Introduction to Exposure

Introduction to Exposure. GETTING THE RIGHT AMOUNT OF LIGHT TO MAKE THE IMAGE. Exposures. Correct Exposure Image looks the way you want it to Not always the way the scene actually appears in real life Over Exposure Image is too bright Under Exposure Image is too dark.

micol
Download Presentation

Introduction to Exposure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

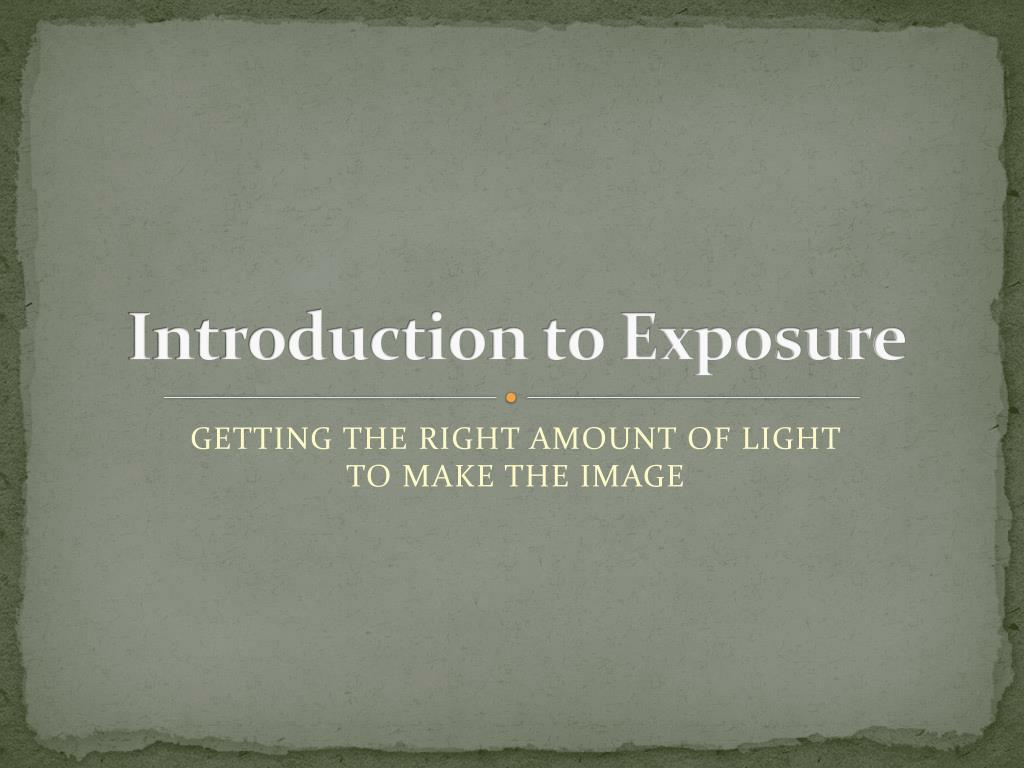

  1. Introduction to Exposure GETTING THE RIGHT AMOUNT OF LIGHT TO MAKE THE IMAGE

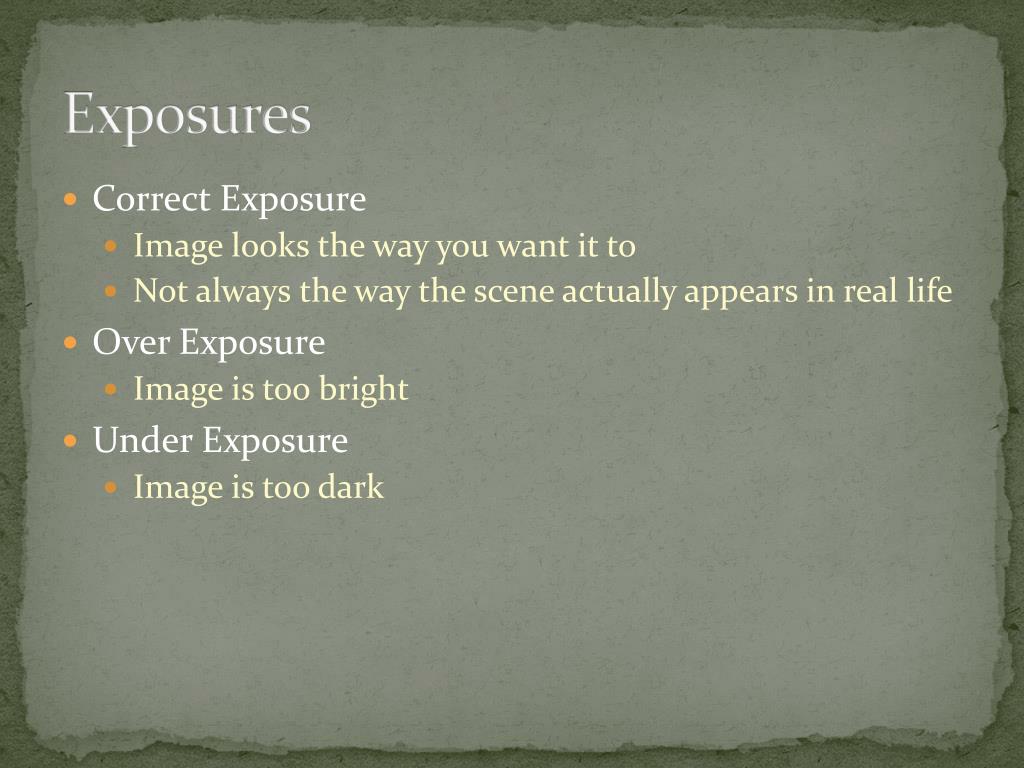

  2. Exposures • Correct Exposure • Image looks the way you want it to • Not always the way the scene actually appears in real life • Over Exposure • Image is too bright • Under Exposure • Image is too dark

  3. Four Factors Affect Exposure • Light • Film Speed (ISO) • Aperture • Shutter Speed

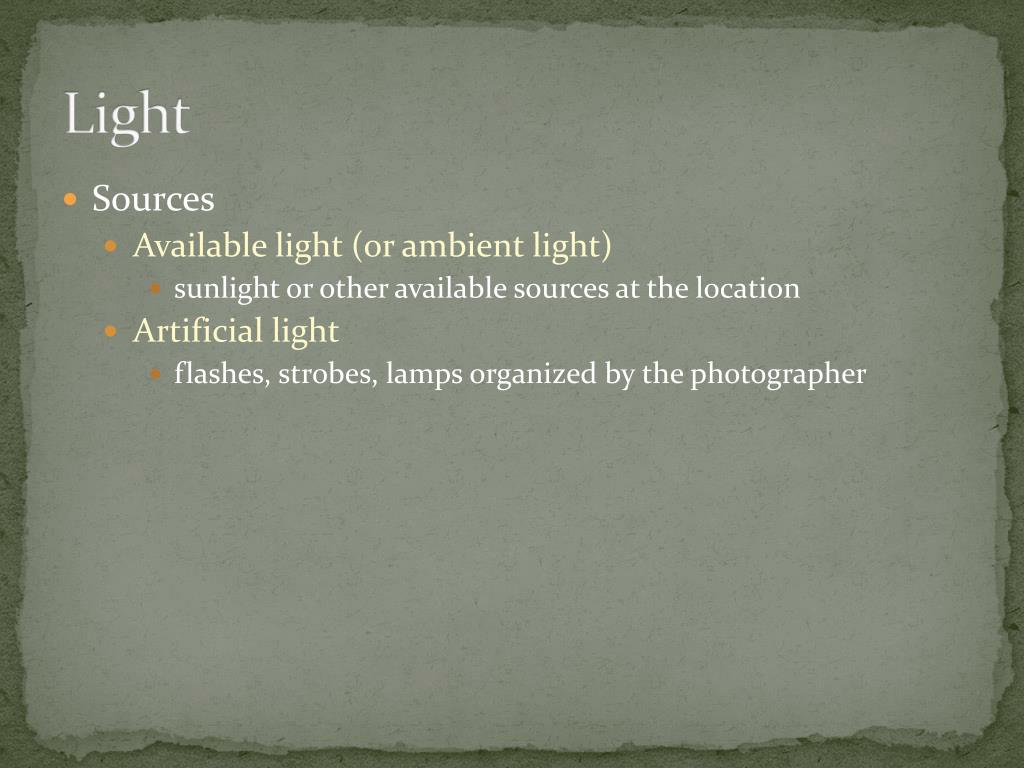

  4. Light • Sources • Available light (or ambient light) • sunlight or other available sources at the location • Artificial light • flashes, strobes, lamps organized by the photographer

  5. Six Flavors of Available Light • Frontlight • Light in front of the subject (behind the camera) • Creates a flat, often dull light

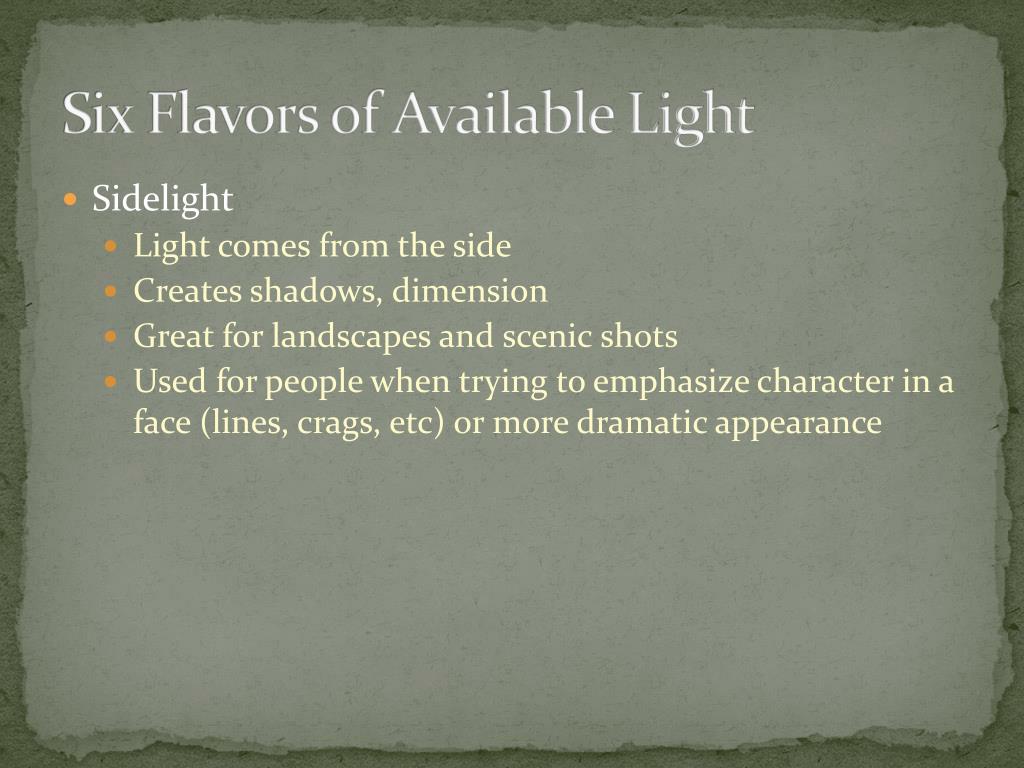

  6. Six Flavors of Available Light • Sidelight • Light comes from the side • Creates shadows, dimension • Great for landscapes and scenic shots • Used for people when trying to emphasize character in a face (lines, crags, etc) or more dramatic appearance

  7. Six Flavors of Available Light • Toplight • Noon light, directly over head • Not favorable for people • Creates harsh shadows, tends to be colorless

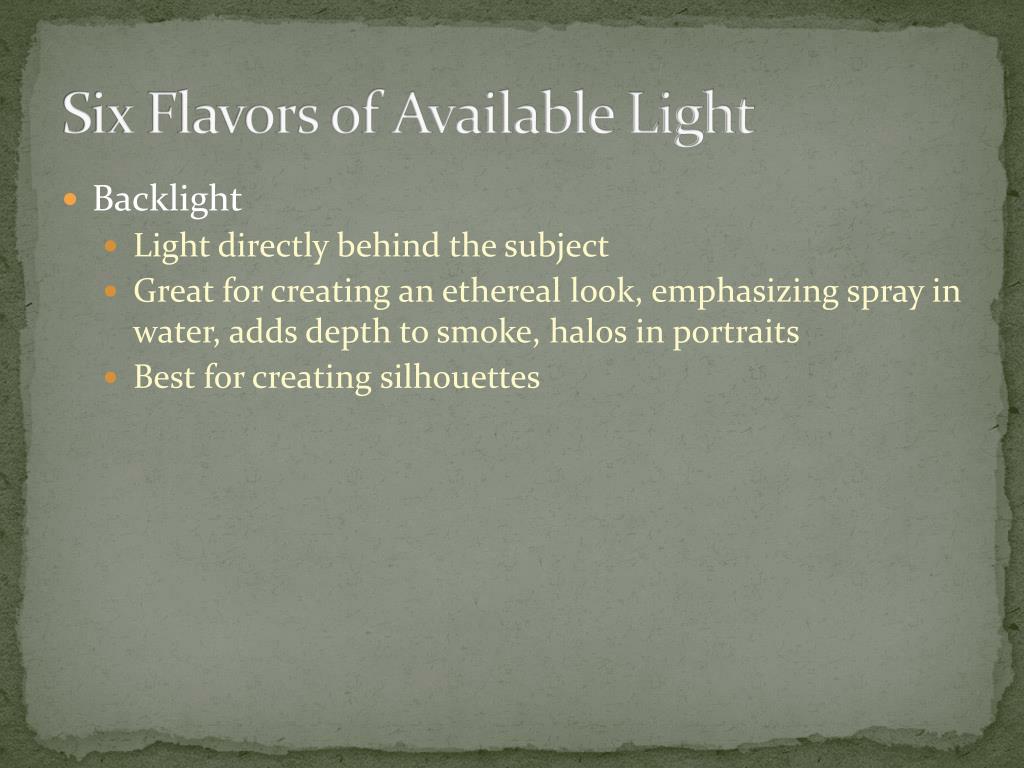

  8. Six Flavors of Available Light • Backlight • Light directly behind the subject • Great for creating an ethereal look, emphasizing spray in water, adds depth to smoke, halos in portraits • Best for creating silhouettes

  9. Six Flavors of Available Light • Overcast/shade • Cloudy days with clouds filtering the light or in shade avoiding direct light • Creates a soft light that is kindest type of light for portraits

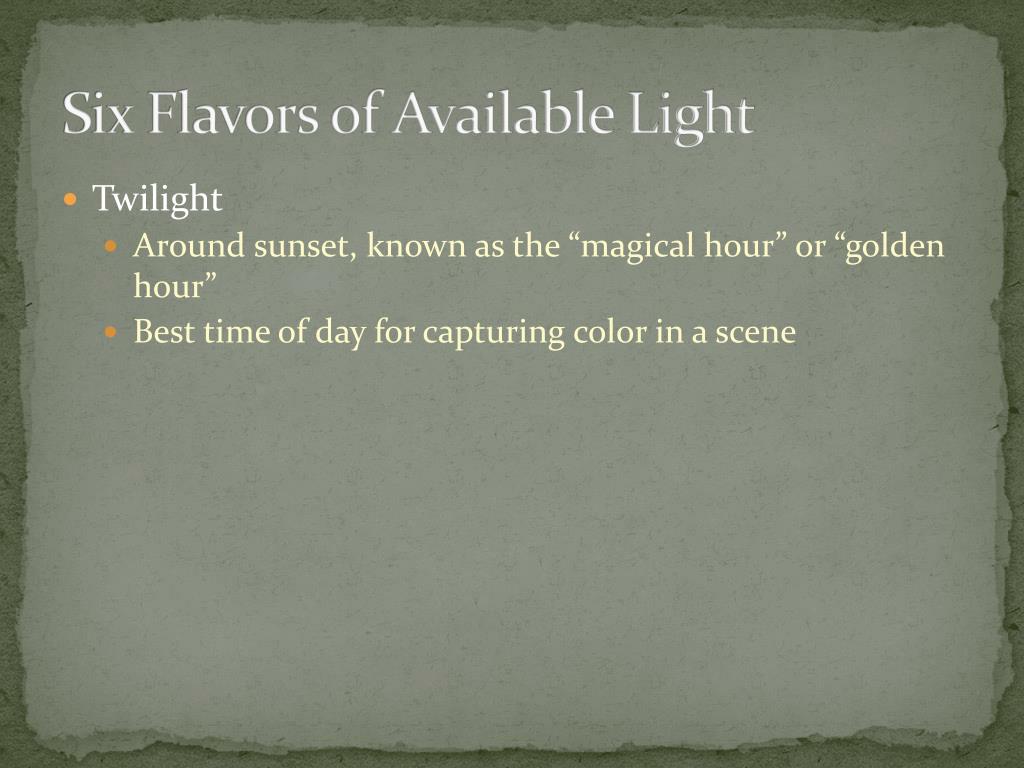

  10. Six Flavors of Available Light • Twilight • Around sunset, known as the “magical hour” or “golden hour” • Best time of day for capturing color in a scene

  11. The Photographic Triangle Photographer’s creative tools include: Film Speed (ISO) Shutter Speed Aperture

  12. Film Speed (ISO) • Sensitivity to light of the light capturing device • Commonly measured using ISO number • 25, 50, 64, 100, 200, 400, 800, 1600 • each is twice as sensitive to light as the previous

  13. Film Speed Speed of film determines its sensitivity to light Slow speed (25, 50, 64 not availalble with all cameras) • less sensitive to light • good for daylight • requires longer exposure times/larger apertures Medium Speed (100, 200) • good for daylight  Fast speed (400, 800, 1600) • more sensitive to light • good for cloudy days, night, indoors/low light • can use shorter exposure times/smaller apertures

  14. Aperture • Adjustable hole in the lens that opens to various sizes to allow light in • Hole in the lens is set to f/stops • f stop is the diameter of the aperture expressed as a ratio of the focal length • f/4 is one-fourth of the focal length • ex: f/4 for a 100 mm lens, 100/4 = 25 • each stop is ½ of the previous • each stop lets in ½ as much light as the previous

  15. Aperture

  16. Shutter Speed • Device in camera that opens and closes at various speeds to let light in for a certain length of time • Shutter speeds are seconds or fraction of second • 2, 1, ½, ¼, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000 •  Each speed is basically twice as fast as the previous and lets in half as much light as the previous

  17. Shooting Modes and the Photographic Triangle • Program Mode (P) • Select the ISO, camera sets the aperture and shutter speed • Aperture Priority Mode (A or Av) • Select the ISO and aperture, camera sets the shutter speed • Shutter Priority Mode (S or Tv) • Select the ISO and shutter speed, camera sets the aperture • Manual Mode (M) • Select the ISO, aperture and shutter speed
