LCG/EDG Security - update and plans HEPiX/HEPNT - FNAL 23 Oct 2002

1. LCG/EDG Security- update and plansHEPiX/HEPNT - FNAL23 Oct 2002 David KelseyCLRC/RAL, UKd.p.kelsey@rl.ac.uk D.P.Kelsey, Grid Security, HEPiX, FNAL

2. Outline • Introduction to Grid Security • EU DataGrid/DataTAG (EDG/EDT) developments • LHC Computing Grid Project (LCG) Phase 1 • The main challenges for 2003 • Summary D.P.Kelsey, Grid Security, HEPiX, FNAL

3. Introduction to Grid Security D.P.Kelsey, Grid Security, HEPiX, FNAL

4. Authentication (1) • Proof of Identity • Grid Security Infrastructure (GSI) • PKI = Public Key Infrastructure • Private/public key pair • Generated by user – “private” key must be kept secret • Asymmetric encryption • X.509 certificate • National Certificate Authority “signs” the public key • Binds to a “name” / identity • No authorisation to use resources D.P.Kelsey, Grid Security, HEPiX, FNAL

5. Authentication (2) • Uses SSL, certificates and the key-pair • Need to trust the CA(s) • Securely identifies User, Machine, Service • In both directions (mutual authentication) To achieve … • Single sign-on to Grid (via Proxy certificate) • short-lived (no revocation) • To avoid having to register all users at all sites! • Many issues • Revocation, length of keys, period of validity, security of private key, operational procedures, … • Registration authorities (checks identity) D.P.Kelsey, Grid Security, HEPiX, FNAL

6. Authorisation • Today: based on local mechanisms • e.g. UNIX (uid, gid) or Kerberos • Globus gatekeeper • Maps global identity (Distinguished Name) to local user account • Access control all based on standard UNIX tools • Or Kerberos, AFS etc • Site/System management fully in control • Limited tools for Virtual Organisations (VOs) to manage access to resources D.P.Kelsey, Grid Security, HEPiX, FNAL

7. EDG/EDT security developments D.P.Kelsey, Grid Security, HEPiX, FNAL

8. EDG Security news • EU Deliverable 7.5 • Security Requirements and Testbed1 (complete) http://hepwww.rl.ac.uk/kelsey/DataGrid-D7.5.pdf • EU Deliverable 7.6 • Security Design and Testbed2 (January 2003) • Security components • VO/LDAP & VOMS – Authorisation • LCAS, LCMAPS – local authorisation and mapping • Gridmapdir – dynamic leased accounts • Gridsite – certificate-based web management • SlashGrid - dn-based grid homefile system • GACL – Library to parse ACL’s (XML) • edg-security (for database access control) D.P.Kelsey, Grid Security, HEPiX, FNAL

9. EDG WP6 CA group • The PMA (Policy Management Authority) for EDG • Members: the CA managers (but not just EDG!) • includes CrossGrid, US DOE CA’s… more joining • http://marianne.in2p3.fr/datagrid/ca/ • Establishing “Trust” between CA’s, Grid projects, VOs, Sites • Need approval of site security officers and sysadmins • To (perhaps) bypass normal user registration procedures • Achieved for EDG testbed activities • NOT yet for LCG production-scale deployment • Defining “best practice” and “minimum requirements” • Working with GGF • CP/CPS documents • Registration Authority procedures • Operational procedures D.P.Kelsey, Grid Security, HEPiX, FNAL

10. Trusted CA’s • 13 trusted CA’s • CERN, Czech Rep, France, Germany, Ireland, Italy, Netherlands, Nordic, Portugal, Russia, Spain, UK, USA • Under consideration • Canada, Greece, Poland, Slovakia • CNRS/France willing to act as short-term “catch-all” • For small number of users/machines • But needs agreed registration procedure(s) • Already doing so for Austria, Israel, Switzerland, Romania, Taiwan… D.P.Kelsey, Grid Security, HEPiX, FNAL

11. Authorisation • VO/LDAP shown in Catania HEPiX • Now we (EDT for EDG) are developing VOMS • Virtual Organisation Membership Service • See Luciano Gaido’s slides (EDG meeting Budapest) and VOMS architecture report (EDT meeting 8Oct02) • Some of these follow • LCAS & plug-ins and GACL to apply Access Control • Easy management of ACL’s still missing D.P.Kelsey, Grid Security, HEPiX, FNAL

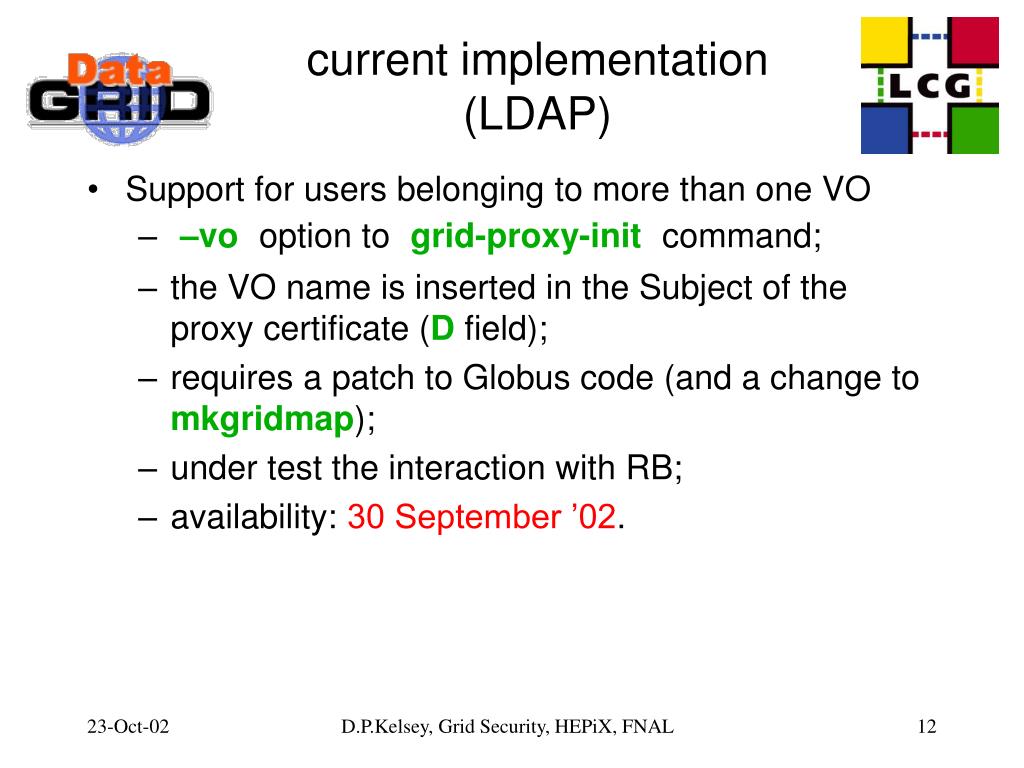

12. current implementation (LDAP) • Support for users belonging to more than one VO • –vooption togrid-proxy-initcommand; • the VO name is inserted in the Subject of the proxy certificate (D field); • requires a patch to Globus code (and a change to mkgridmap); • under test the interaction with RB; • availability: 30 September ’02. D.P.Kelsey, Grid Security, HEPiX, FNAL

13. Authentication Request OK Query AuthDB VOMSpseudo-cert VOMSpseudo-cert VOMS client VO Membership Service • Client and server authenticate themselves and establish a secure communication channel using standard Globus API. • The Client sends the request to the Server. • The Server checks the request and sends back the required info (signed by itself). • The Client checks the validity of the info received. • Steps 1—4 are repeated for each Server the Client wants to contact. • The Client creates a proxy certificate with an extension (non critical) containing all the info received from the contacted VOMS Servers. C=IT/O=INFN /L=CNAF/CN=Pinco Palla/CN=proxy D.P.Kelsey, Grid Security, HEPiX, FNAL

14. VOMS D.P.Kelsey, Grid Security, HEPiX, FNAL

15. LCG Phase 1 D.P.Kelsey, Grid Security, HEPiX, FNAL

16. LCG 1 security • LCG Phase 1 – deploy a production quality Grid • from July 2003 • Planning now – documents by December 2002 • Must be ready by summer 2003 • Security planning • User Registration • Authentication • Authorisation • Security Policy • Operational issues D.P.Kelsey, Grid Security, HEPiX, FNAL

17. User Registration • Users would like to register just once (per VO) • Sign one form • One single “Acceptable Use” description • Sites need • Sufficient recorded information about the user • VO databases – managed by whom? (expt offices?) • Behind-the-scenes creation of new user accounts • Or willingness to use dynamic leased accounts • VO’s need • Tools to manage users, roles, groups • Who owns the databases – VOs and/or Sites? D.P.Kelsey, Grid Security, HEPiX, FNAL

18. Authentication • Scaling of establishing list of trusted CA’s • Currently one per country (many countries!) • Often issued by CA’s serving larger community than HEP • CERN and FNAL proposing a Kerberos-based CA • User authenticates via kerberos to the KCA • KCA then issues short-lived X.509 certs • Not yet “trusted” by EDG/LCG • Some sites will not accept long-lived private keys held by users • Credential repositories (MyProxy, aVOMS) • Smartcards • Specialised additional authentication (e.g. Cryptocard) • Doesn’t scale! • Support multiple levels of authentication • Credential renewal for long-running batch jobs D.P.Kelsey, Grid Security, HEPiX, FNAL

19. Authorisation • Technology immature • What will be ready for LCG phase 1? • Need input from the experiments • Who manages access? • To sites • To resources • To individual files, objects • Sites authorise VO’s • VO’s authorise users, roles, groups • Much will be definition of procedures • Aim for independence from technologies • Move to OGSA, ws-security, … • Sites need to trust VO procedures D.P.Kelsey, Grid Security, HEPiX, FNAL

20. Operational issues • Communication between sites • Intrusion detection • Incident tracking • Auditing and reporting D.P.Kelsey, Grid Security, HEPiX, FNAL

21. Summary • EDG/EDT – much progress during 2002 • More functionality in 2003 • GGF and other Grid projects also important • Current procedures work well for Testbed scale • LCG Phase 1 (and BaBar Grid) • Need improved procedures for production scale • Need to plan for and support • Multiple authentication and authorisation technologies • Will need full consultation with Sites and VOs (experiments) to agree policies and establish trust • MUST be pragmatic • LCG Phase 1 MUST work D.P.Kelsey, Grid Security, HEPiX, FNAL
