Introduction to the 12-lead ECG

Gustav Schellack

SASOCP Workshop

10 March 2012


Electrocardiogram ecg l.jpg

Electrocardiogram (ECG)

  • The ECG is a graphic recording of the electrical activity of the heart, at a specific moment in time.

  • Note: ‘Electrical activity’ refers to the depolarisation and repolarisation of the atria and ventricles.

  • Note: The ECG cannot tell us anything about the ‘mechanical activity’ (i.e. contraction and relaxation) of the myocardium.


Cardiac conduction system l.jpg

Anatomical orientation:

Figure 1:

(Marquette Electronics, 1996)

(From: Yanowitz, FG. The Alan E Lindsay ECG Learning Centre in Cyberspace [homepage on the Internet]. c2012. Available from: http://library.med.utah.edu/kw/ecg/index.html.)

Cardiac Conduction System


The cardiac impulse l.jpg

The Cardiac Impulse

Spreads through both atria [virtually] simultaneously

RA

Originates from the SA-node (in the RA)

Reaches the AV-node (where it is momentarily delayed)

Spreads through both atria [virtually] simultaneously

LA

Enters the Bundle of His and the right and left bundle branches

RBB

Enters the Bundle of His and the right and left bundle branches

LBB

Activates both ventricles via the His-Purkinje network; first the septum from (L) to (R), then the RV, then the LV, and finally the apex

Repolarisation of the ventricles (note that the repolarisation of the atria is obscuredby the depolarisation of the ventricles)


The cardiac impulse5 l.jpg

The Cardiac Impulse

SA-node

Bachmann’s bundle

Ca2+

AV-node

Ca2+

Internodal pathways

Bundle of His

Right atrium (RA)

Bundle branches

Figure 2: Diagram of the functional SA- and AV-nodes

© G Schellack, 2012


The standard 12 lead ecg l.jpg

The Standard 12-lead ECG

You have each received a copy of this ECG…

What is missing in this blank space?

  • This space should contain the following information:

  • Patient identifiers (e.g. name, hospital number, treating physician, etc.)

  • Date and time that the ECG was obtained

  • Vital signs, including BP and HR

  • Comment on any relevant symptoms (e.g. chest pain), cardiovascular drugs and special lead placements…


The standard 12 lead ecg7 l.jpg

The Standard 12-lead ECG

  • The 12 leads are:

    • Six limb leads (I, II, III, aVR, aVL and aVF)

    • Six precordial (chest) leads: V1 to V6

  • The 12 leads are displayed at a standardised tracing speed of 25 mm per second, and with 1 cm representing 1.0 mV on the vertical axis.

  • Check the calibration mark.


The standard 12 lead ecg8 l.jpg

The Standard 12-lead ECG

Criteria:

  • Standardisation: 10 mm in height = 1 mV; 25 mm per second.

  • Double and half-standardisation may be required.

  • Sinus rhythm:

    • Each P-wave must be followed by a QRS-complex, and vice versa.

    • RR-intervals must be constant (or ≤ than 0.12 s of physiological variance).

    • Normal heart rate (60-100 beats per minute).

    • Normal PR-interval (0.12 to 0.2 s in duration).

  • P-waves: Examine for normality in Lead I, II and V1.

  • QRS-complexes: Must be ‘positive’ in Lead I, II, III, aVF and aVL, and ‘negative’ in aVR.

  • Narrow QRS-complexes (0.08 to 0.12 s in duration); Q-waves in V5 and V6 are < 0.04 s and < 3 mm deep.

  • R-S-wave progression from V1 to V6; QTc-interval is normal.

  • Normal cardiac axis: Positive QRS-complexes in Lead I, III and aVF.

  • Normal ST-segments and T-waves.


Limb lead placement and einthoven s triangle l.jpg

Lead I

-

+

RA

-

-

LA

aVR (+)

aVL (+)

Lead III

Lead II

aVF

(+)

+

+

LL

Limb Lead Placement andEinthoven’s Triangle


Limb lead placement and einthoven s triangle10 l.jpg

Limb Lead Placement andEinthoven’s Triangle

(From: Yanowitz, FG. The Alan E Lindsay ECG Learning Centre in Cyberspace [homepage on the Internet]. c2012. Available from: http://library.med.utah.edu/kw/ecg/index.html.)


Limb lead placement and einthoven s triangle11 l.jpg

Limb Lead Placement andEinthoven’s Triangle

(From: Yanowitz, FG. The Alan E Lindsay ECG Learning Centre in Cyberspace [homepage on the Internet]. c2012. Available from: http://library.med.utah.edu/kw/ecg/index.html.)


Placement of the six chest leads l.jpg

Anterior axillary

Midaxillary

Midclavicular

Transverse plane

Antero-lateral view

Placement of the Six Chest Leads


Important clinical considerations l.jpg

Important clinical considerations

Correct lead-placement and good skin contact are essential.

Avoid electrical interference (machine to be earthed).

Compare serial tracings, if available.

Relate any changes to age, gender, clinical history, etc.

Consider co-morbidities and intercurrent illnesses that may have an effect on the ECG.

For thermal paper: Obtain a photocopy for future reference.

Interpret the ECG systematically to avoid errors.


The standard 12 lead ecg 5 5 l.jpg

The Standard 12-lead ECG[5/5]

What/where are the 12 leads?

3 Augmented (unipolar) limb leads

[aVR, aVL and a VF]

3 Standard (bipolar) limb leads

[I, II and III]

6 Precordial (chest) leads

[V1 to V6]

Calibration mark


Ecg graph paper l.jpg

0.04 s

(1  1) mm2

0.1 mV

ECG Graph Paper

Voltage (millivolts; mV)

y

x’

x

Time (seconds; s)

Question: What would the bigger square, i.e. the (5  5) mm2, represent?

Answer: 0.2 s on the x-axis; 0.5 mV on the y-axis.

y’


Deflections on the ecg l.jpg

Deflections on the ECG

R

QRS-complex (qRs)

P-wave

T-wave

U-wave

Q (q)

S (s)


Segments and intervals on the ecg l.jpg

ST-segment

J-point

PR-interval

Isoelectric (base) line [0 mV]

QT-interval

Segments and Intervals on the ECG

QRS-duration


The p wave l.jpg

PR-interval

The P-wave

P-wave

  • Conduction through the Right Atrium (RA)

  • Conduction through the Left Atrium (LA)

  • Conduction through the His-Purkinje network

PR-interval:Represents the depolarisation of the atria and the time it takes for the impulse to spread from the SA-node, through the AV-junction, the bundle of His, and to the bundle branches.


Drawing an isoelectric baseline l.jpg

Drawing an Isoelectric Baseline

Why do we need to do this?

[A portion of the rhythm strip.]


Drawing an isoelectric baseline20 l.jpg

Drawing an Isoelectric Baseline


Rate determination l.jpg

Rate Determination:

First R-wave

Next R-wave

21


Example what is the heart rate l.jpg

Example:What is the heart rate ?

  • Are the RR-intervals constant?

  • RR-intervals are approximately 3 ‘big’ squares apart.

  • Thus, the heart rate is: 300 ÷ 3 = 100 beats per minute.

Count the number of squares between two consecutive R-waves…

22


Calculating heart rate hr l.jpg

Calculating Heart Rate (HR)

‘Counting squares’

‘Accurate measurement’


Calculating heart rate hr24 l.jpg

Calculating Heart Rate (HR)


Calculating heart rate hr25 l.jpg

Calculating Heart Rate (HR)

  • Measure the shortest and the longest distance in mm, and divide 1,500 by each measurement, for example:

  • Shortest distance measured = 10 mm

  • Longest distance measured = 15 mm

  • Then 1,500  10 = 150 and 1,500  15 = 100

  • Thus, the HR = 100-150 beats per minute


Correct answer l.jpg

Correct answer:

  • Shortest measurement = 16 mm

  • Longest measurement = 19 mm

    Remember: Each small square represents 0.04 s, and 1,500 small squares represent one minute on the horizontal axis.

    Therefore:

  • 1,500  16 = 93.75 (~ 94 beats per min.)

  • 1,500  19 = 78.95 (~ 79 beats per min.)

    Thus, this patient’s heart rate (HR) is 79 to 94 beats per minute.


Calculating variance in hr l.jpg

Calculating Variance in HR

  • Following from the previous example, subtract the shortest distance measured, from the longest distance measured (i.e. 150 mm – 100 mm = 50 mm).

  • Then, multiply the answer by 0.04 s (i.e. 50  0.04 = 2.0 seconds).

  • Normal physiological variance should be  0.12 seconds.


Correct answer28 l.jpg

Correct answer:

  • Shortest measurement (RR-interval) = 16 mm

  • Longest measurement (RR-interval) = 19 mm

    Therefore:

  • 19 mm – 16 mm = 3 mm

  • 3 mm  0.04 s = 0.12 s (i.e. the upper limit of normal)

    Normal physiological variance:  0.12 s.


The pqrstu complex summary l.jpg

The ‘PQRSTU-complex’ Summary:

P-wave and PR-interval:

Represents atrial depolarisation – Normal: ~ 0.10 s in duration, with an amplitude of 0.50 to 2.50 mm.

PR-interval is measured from the beginning of P-wave to the beginning of the QRS-complex (whether this a Q-wave or an R-wave) – Normal: 0.12 to 0.20 s in duration.

Digoxin prolongs the PR-interval, effectively causing a 1st-degree AV-block, which will worsen in the event of digitalis toxicity.


Cont d l.jpg

(Cont’d):

QRS-complex and ST-segment:

Represents depolarisation of the ventricles Ventricular contraction – Normal: 0.08 to 0.12 s in duration; amplitude of 5 to 15 mm.

ST-segment is the interval between the end of the QRS-complex and the beginning of the T-wave – Normal: on the isoelectric line (‘electric silence’); deviation of < 1 mm on either side.

T-wave:

Should be a positive deflection (except in aVR, V1 and V2).

Represents repolarisation of the ventricles. Normal: 0.10 to 0.25 s in duration; amplitude < 5 mm.


Slide31 l.jpg

QT-interval:

Is measured from the beginning of QRS-complex to the end of T-wave; requires rate-correction for heart rate (QTc).

Certain drugs may prolong the QTc (i.e. cardiotoxicity) and elicit torsades de pointes.

Example of QT-interval correction: Bazett’s formula.

(Cont’d):


Slide32 l.jpg

U-wave:? (not necessarily present on all normal ECGs).

RR-interval:

Interval between two consecutive R-waves. Each R-wave should immediately precede a contraction of the ventricles.

We use the RR-interval to calculate HR (heart rate); heart monitors “beep” whenever R-waves are recognised.

Remember: Electromechanical dissociation (EMD)…

(Cont’d):


Rate correction of the qt interval l.jpg

[Measured]QT-interval (s)

QTc (s) =

RR-interval(s)

Rate Correction of the QT-interval

Bazett’s Formula:


Correct answer34 l.jpg

Correct answer:

  • Measurement of the QT-interval = 9.5 mm

  • Therefore: QTm (s) = 9.5 mm  0.04 s = 0.38 s

    Using Bazett’s formula:

  • Shortest RR-interval: 16 mm  0.04 s = 0.64 s

  • Longest RR-interval: 19 mm  0.04 s = 0.76 s

    Thus:

  • QTc (s) = 0.38 s  0.64 s = 0.475 s (~ 0.48 s)

  • QTc (s) = 0.38 s  0.76 s = 0.437 s (~ 0.44 s)

    A normal QT-interval (corrected for HR) should measure between: 0.35 and 0.45 s.


Cardiac axis determination l.jpg

Cardiac Axis Determination

Complexes moving towards one another

‘Positive’ complexes

Complexes deflecting away from one another

Normal axis

Left axis deviation

Right axis deviation


Atrial p wave variants l.jpg

Atrial P-wave Variants

Right Axis Deviation

Normal

Left Axis Deviation

II

V1

Cardiac Axis Determination


Questions l.jpg

Questions?


Back up slides l.jpg

Back-up Slides…


Ventricular hypertrophy l.jpg

Ventricular Hypertrophy

Ventricular muscle hypertrophy

Increased QRS-voltages in V1 and V6, Lead I and aVL

May need to change the tracing to half of the normal standardisation

T-wave changes in the opposite direction to the QRS-complexes

Associated axis-deviation

Associated atrial hypertrophy


Blood supply to the heart l.jpg

Blood Supply to the Heart

RCA

LCX

LAD

RCA

LCA


Blood supply to the heart41 l.jpg

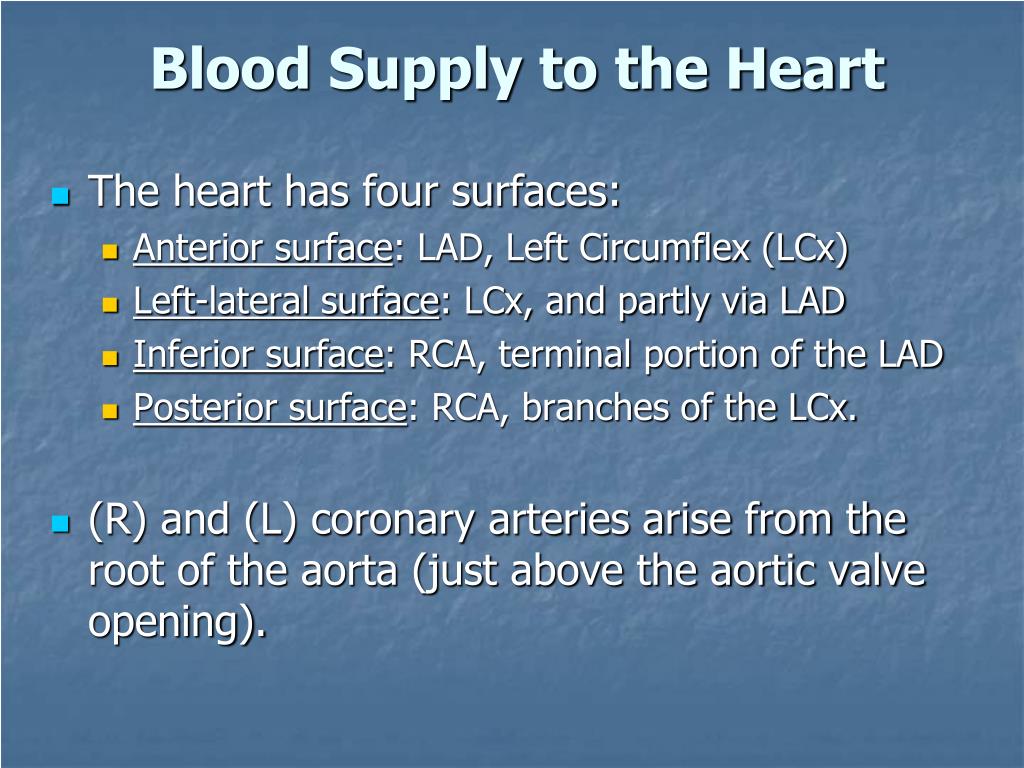

The heart has four surfaces:

Anterior surface: LAD, Left Circumflex (LCx)

Left-lateral surface: LCx, and partly via LAD

Inferior surface: RCA, terminal portion of the LAD

Posterior surface: RCA, branches of the LCx.

(R) and (L) coronary arteries arise from the root of the aorta (just above the aortic valve opening).

Blood Supply to the Heart


St segment abnormalities l.jpg

ST-segment Abnormalities

Source: Bing Images, at http://www.bing.com/images


Lead av r l.jpg

Lead aVR

Flip the ECG vertically


Lead av l l.jpg

?

?

Lead aVL

?
