  1. PageDNA Account Upgrade: Imposition Module Date: 2012 Q3

  2. What is the Imposition Module?: This optional account upgrade provides extensive automation for production of like-sized, typeset items such as business cards. Items are auto-grouped/ganged and these sets of orders are pushed to an external FTP site based on rules and schedules.

  3. PageDNA Fact: 21% of PageDNA orders route through the Imposition Module.

  4. How it works: Any items linked to Imposition system enter a queue, and are then auto-grouped into ‘gangs’ based on schedules and rules you set.

  5. Example: 4-up plate layout

  6. Example: 4-up plate layout Items in queue: 1 order for 500 qty 2 orders for 250 qty

  7. Example: 4-up plate layout Items in queue: 1 order for 500 qty 2 orders for 250 qty

  8. The system optimizes the layout for the ideal grouping for the least amount of waste.

  9. Imposition features: 1 and 2 sided support
 2 sided: individual files or combined PDF output algorithm options: • prioritize older items first
 • allow or disallow partial plates • force unique item to each row in gang • define maximum run lengths

  10. Imposition features (continued): group items by: • storefront (1 or more storefronts ► gang) •products •unique quantities •rush status •material •finishing •ship to country

  11. Imposition features (continued): plate layout flexibility • eg, 12-up, 21-up, different sheet sizes, etc •build as needed • configurable for gutters, registration marks, sluglines rules for triggers and schedules, e.g.: • rush orders plate immediately • customers A, B, C Mon/Wed/Friday • batch at 9am local time zone • auto or hand-batching delivery via FTP push or email notification see documentation library for further details.

  12. Imposition Option: Shipping Labels The Shipping Label feature allows an additional “top sheet” to be output as part of the imposition plate creation process.

  13. : Shipping Label Option Imposition Option: Shipping Labels The Shipping Label feature allows an additional “top sheet” to be output as part of the imposition plate creation process. While the top sheet matches the “grid” for the plate, it can have its own unique layout:

  14. : Shipping Label Option Imposition Option: Shipping Labels Ship Label Imposing Gang

  15. : Shipping Label Option Imposition Option: Shipping Labels Example: a stack of 100 business cards has been printed 4-up – it is stacked and ready to run through the slitter or cutter. Stack of 100 sheets

  16. : Shipping Label Option Imposition Option: Shipping Labels Production prints one copy of the Shipping Label and adds it to the top of the stack. Ship Label Stack of 100 sheets

  17. : Shipping Label Option Imposition Option: Shipping Labels Ship Label Stack of 100 sheets

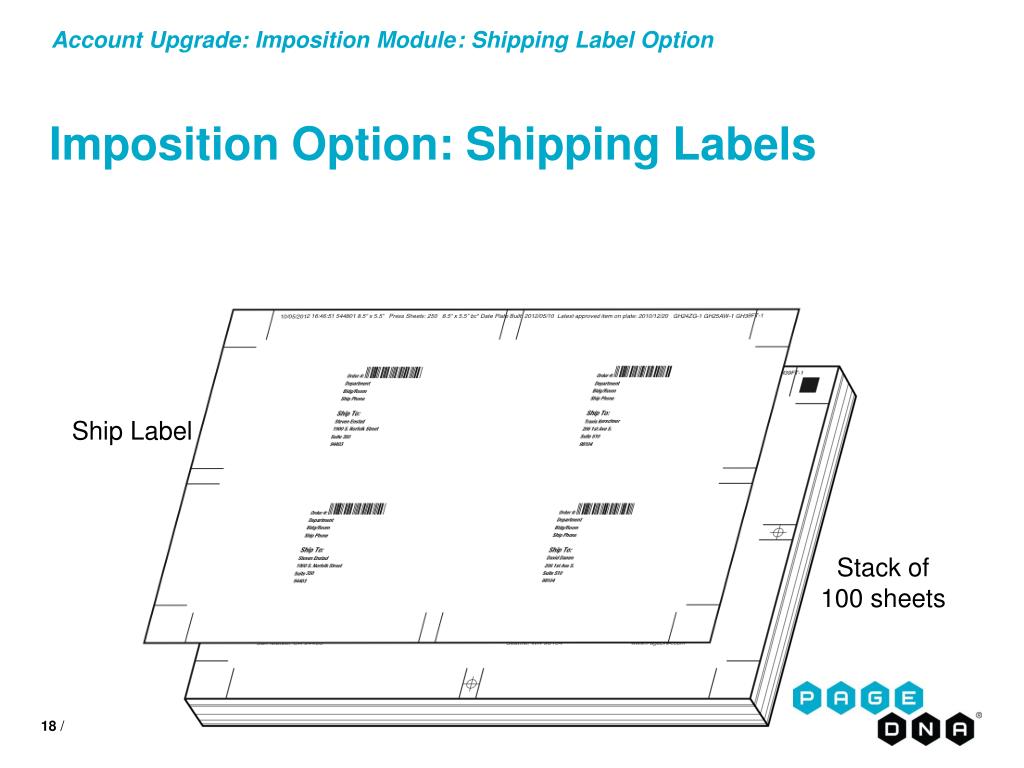

  18. : Shipping Label Option Imposition Option: Shipping Labels Ship Label Stack of 100 sheets

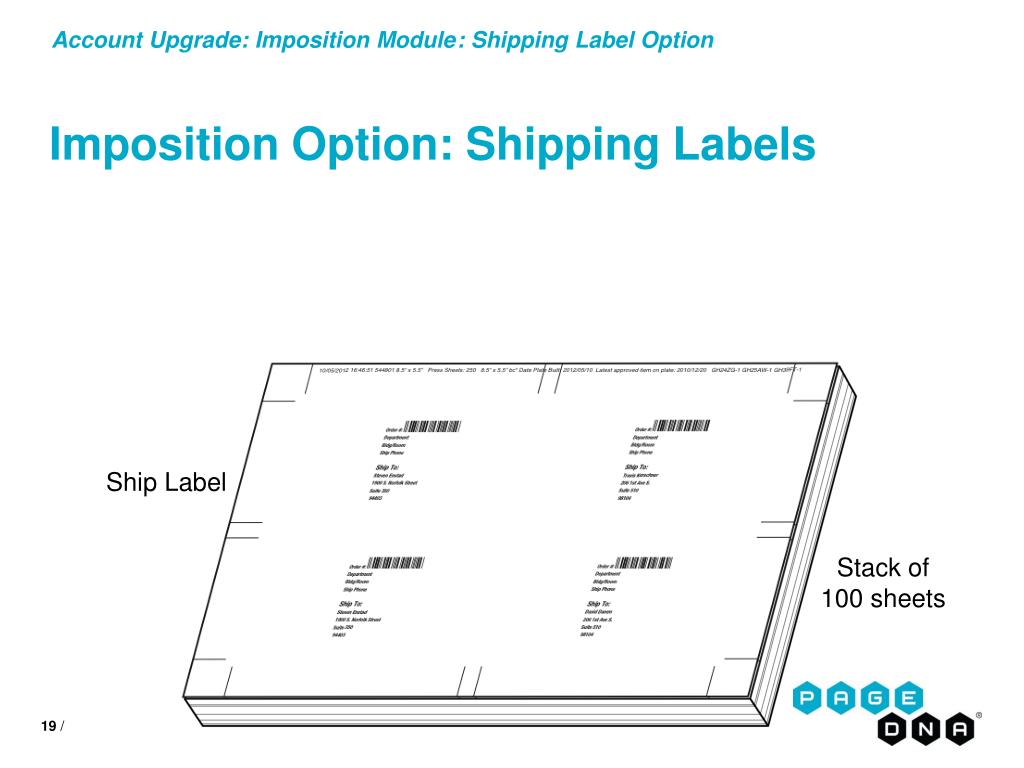

  19. : Shipping Label Option Imposition Option: Shipping Labels Ship Label Stack of 100 sheets

  20. : Shipping Label Option Imposition Option: Shipping Labels Because the Shipping Label rides along on top of each item through the cutter / slitter, it can be extremely helpful for the shipping/grouping department. Examples: • ‘wand’ barcode and enter PageDNA item ID into shipping station • affix ship label to back of box of cards (e.g., include cube number for desktop delivery)

  21. Tour of Imposition System Now we’ll explore how you’d add and setup Imposition in a typical scenario…

  22. Tour of Imposition System Now we’ll explore how you’d add and setup Imposition in a typical scenario…

  23. : Tour Imposition: Module Activation To activate Imposition, log into your Hub Account, go to the ‘Tools’ tab and ‘click’ on ‘Imposition’.

  24. : Tour Imposition: Module Activation There you will be asked to purchase the Imposition Module

  25. : Tour Imposition: Module Activation Imposition has a one-time setup cost of $500 and a monthly cost of $50 Once you’ve purchased the module you will need to inform PageDNA Staff which site it will be applied to, and they will set it up asa manufacturer on your site.

  26. : Tour Imposition: Manufacturer Setup Once you have Imposition set up as a manufacturer, you can then set the items that you wish to deliver that way.

  27. : Tour Imposition: Plate Setup Use the abundant customization controls to configure your plates. Build as many layouts as you need to get just the right combination for your jobs.

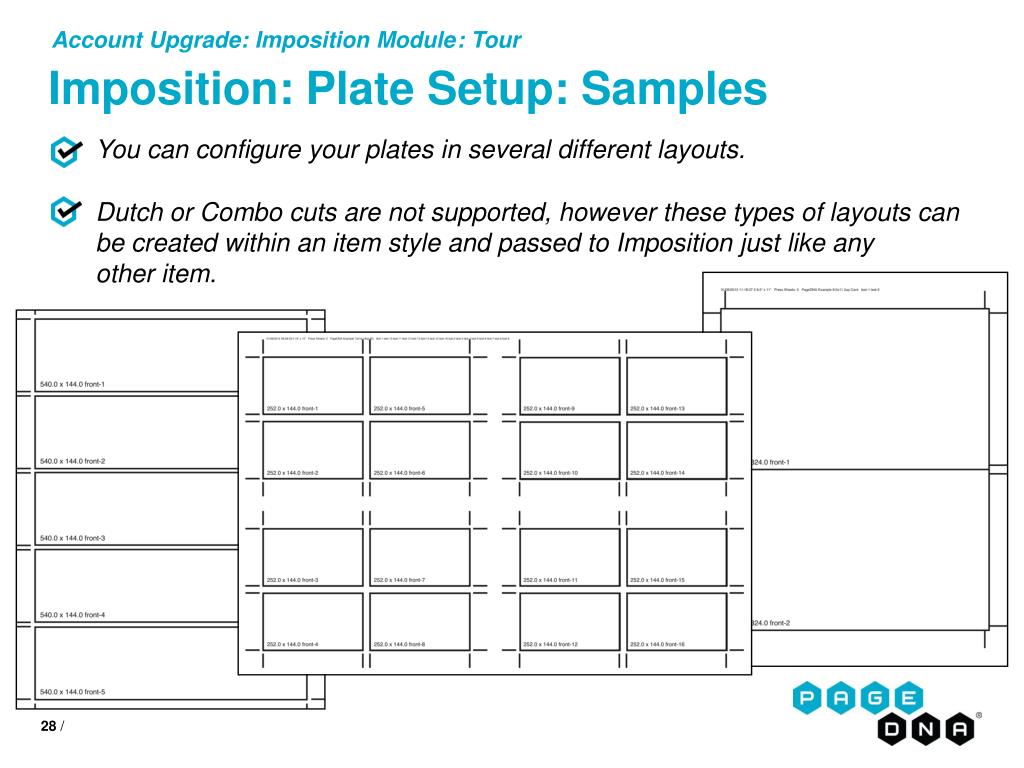

  28. : Tour Imposition: Plate Setup: Samples You can configure your plates in several different layouts. Dutch or Combo cuts are not supported, however these types of layouts can be created within an item style and passed to Imposition just like any other item.

  29. : Tour Imposition: Layout Plates Under Plate Layout you can manually select the items that you want to plate.

  30. : Tour Imposition: Download Plates Use the Download Plates page to view built plates, to download postscript, and to un-make or archive plates. Now once you are setup and happy, we are ready to go toward full automation.

  31. : Tour Imposition: Auto-Build Choose your plate layout. Assign a grouping logic. This calculates how your items will be combined on the plate. Choose the items you want to flow into the Plate Layout. With settings that will fine tune how they will be grouped to help streamline the production. Schedule the hours and days that you want your items to be processed. Choose the delivery method that you configured to best suit your needs.

  32. : Tour Q&A Contact support@ with questions… On line documentation is located…http://www.nationsprint.com/hub/docs/html/ImpositionSystem/
