Presentation Transcript

Specdiff differencing ltss

SpecDiff: Differencing LTSs

Zhenchang Xing*, Jun Sun+, Yang Liu* and Jin Song Dong*

*National University of Singapore

+Singapore University of Technology and Design

Differencing ltss why

Differencing LTSs? Why?

Program behaviors change

Program Behaviors Change!

The evolution of specification

The Evolution of Specification

An evolved concurrent stack spec in csp

An Evolved Concurrent Stack Spec in CSP#

A later version


An earlier version

The differences lead to program fault

The Differences Lead to Program Fault?

The LTS of the later version

The LTS of the earlier version

The application of partial order reduction

The Application of Partial Order Reduction

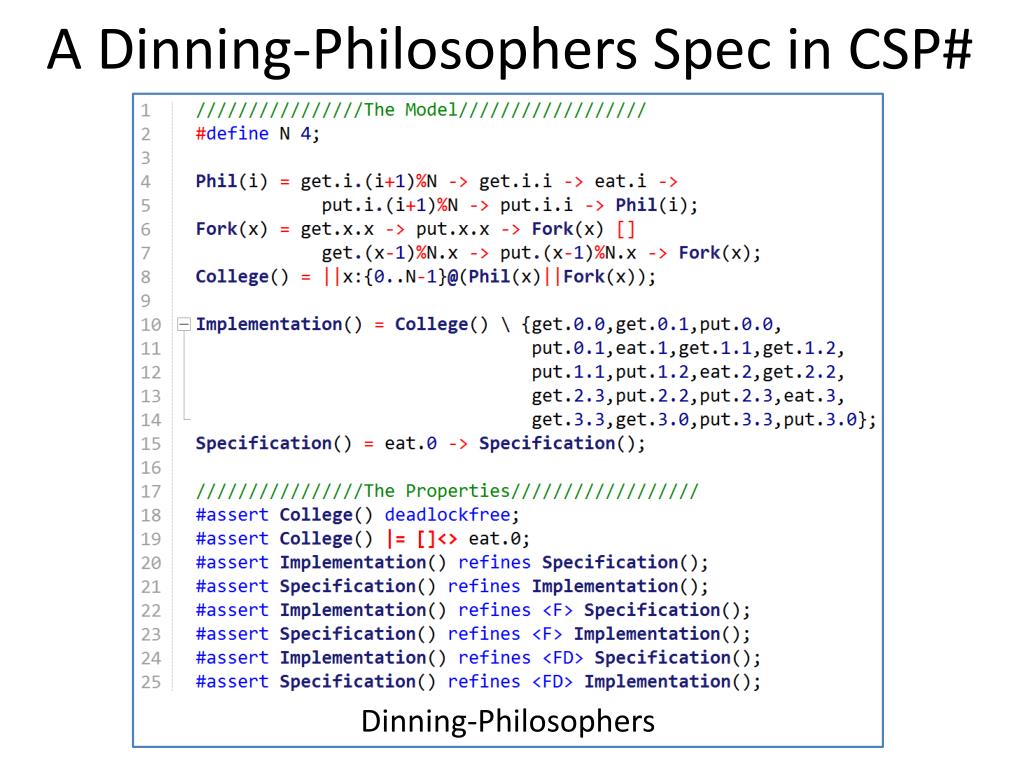

A dinning philosophers spec in csp

A Dinning-Philosophers Spec in CSP#


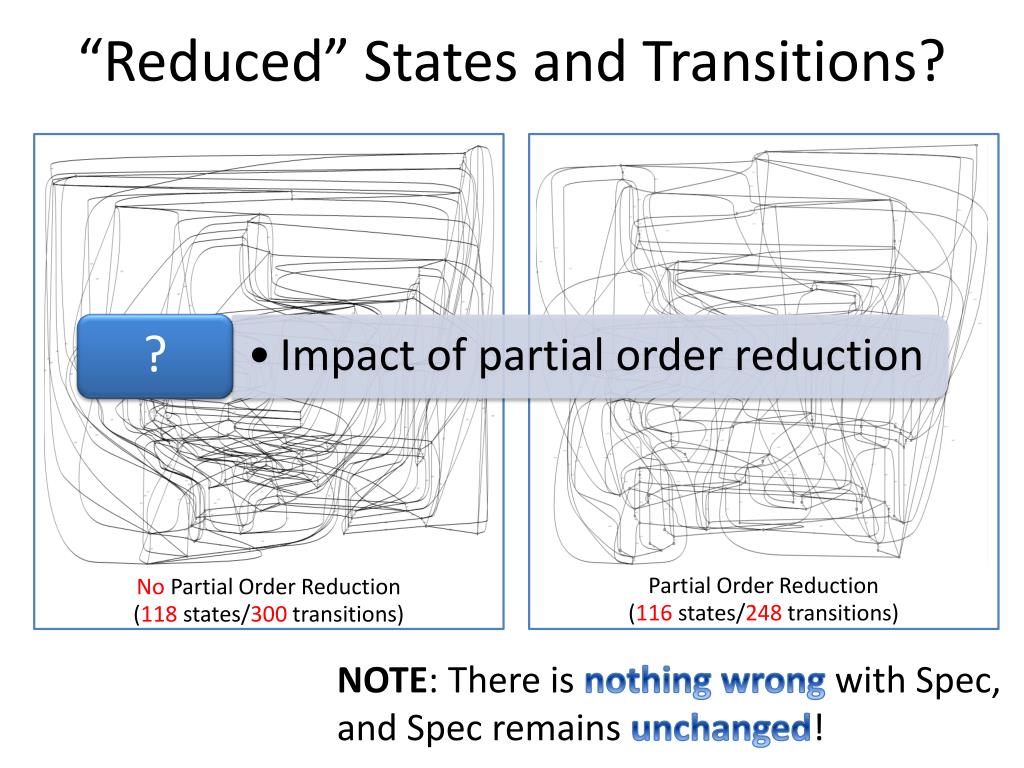

Reduced states and transitions

“Reduced” States and Transitions?

Partial Order Reduction

(116 states/248 transitions)

NOTE: There is nothing wrong with Spec, and Spec remains unchanged!

No Partial Order Reduction

(118 states/300 transitions)

The application of process counter abstraction

The Application of Process Counter Abstraction

A readers writer lock spec in csp

A Readers-Writer Lock Spec in CSP#

Parameterized Readers-Writer Lock

Recurring changes as cutoff number increases

Recurring Changes as Cutoff Number Increases?

Cutoff number = 2

Cutoff number = 4

Cutoff number = 3

NOTE: There is nothing wrong with Spec, and Spec remains unchanged!

Cutoff number = 1

Why do we want to differencing ltss

Why Do We Want to Differencing LTSs?

  • Analyzing Changing Program Behaviors

    • Diagnosing faulty evolution

    • Evaluating impact of different behavior exploration methods

    • Revealing behavioral change patterns of parameterized systems

    • ……

Differencing ltss how

Differencing LTSs? How?

An overview of our specdiff approach

An Overview of Our SpecDiff Approach

SpecDiff Architecture

Describing program behavior in CSP# specification language

Generating the LTSs of CSP# program(s) with PAT Simulator

Applying GenericDiff to compare two LTSs

Visualization and query-based analysis

Differencing ltss by genericdiff

Differencing LTSs By GenericDiff

  • Input: LTSs to be compared

    • LTS1 and LTS2

  • GenericDiff: A generic graph differencing technique

    • Parsing and quantifying the inputs LTSs

      • Typed Attributed Graphs (TAGs)

    • Capturing the graph structure and the matching candidates

      • PairUpGraph (i.e. a product of two TAGs)

    • Traversing the model graphs and computing the similarities

      • Random walk on PairUpGraph

    • Select an “optimal” matching

      • Bipartite graph matching

  • Output: Symmetric difference

    • One set of matched states and transitions

    • Two sets of unmatched states and transitions

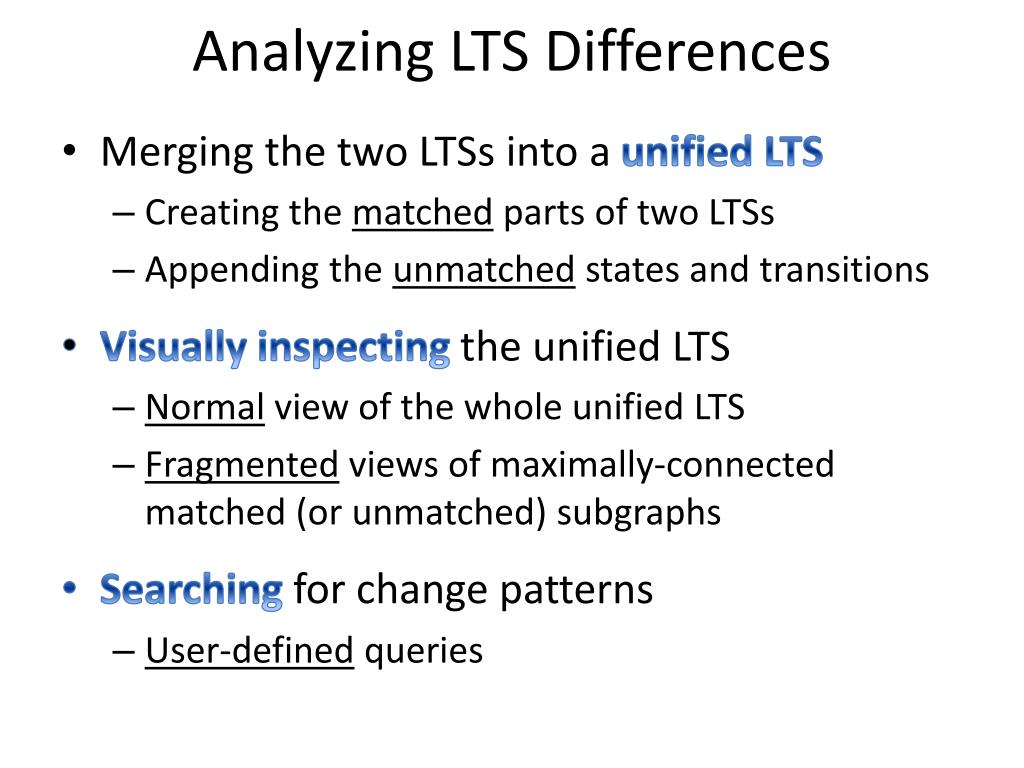

Analyzing lts differences

Analyzing LTS Differences

  • Merging the two LTSs into a unified LTS

    • Creating the matched parts of two LTSs

    • Appending the unmatched states and transitions

  • Visually inspecting the unified LTS

    • Normal view of the whole unified LTS

    • Fragmented views of maximally-connected matched (or unmatched) subgraphs

  • Searching for change patterns

    • User-defined queries

Diagnosing faulty program evolution

Diagnosing Faulty Program Evolution

A fragment of the unified LTS of the evolved concurrent stack example (returned by the query searching for “matched states with unmatched same-label transitions”, for example, matched states 6/22 with unmatched push.0.1)

Black: matched states/transitions in both LTSs; Green: unmatched states/transitions in the earlier-version LTS; Red: unmatched states/transitions in the later-version LTS

The second process pops nothing (pop.1.0) after the first process has pushed an item (push.0.1) into the stack!

Specdiff does it work

SpecDiff? Does it Work?

Tool support usage

Tool Support & Usage

A short demo of SpecDiff in PAT!


Formal Tool Demonstration, ASE’10

Initial evaluation

Initial Evaluation

How to scale it up

How to Scale it Up?

  • Differencing LTSs “smartly”

    • Syntactic differences to “guide” the differencing process of large LTSs

    • Interactive visualization techniques to “select” which part(s) of the LTSs to differentiate

  • Optimizing SpecDiff implementation

    • Direct comparison of the internal data structures of LTSs instead of the LTSs renderedin the GUI

  • Identifying “important” differences

    • Important differences (e.g. program fault) would be reflected in the differences of small LTSs

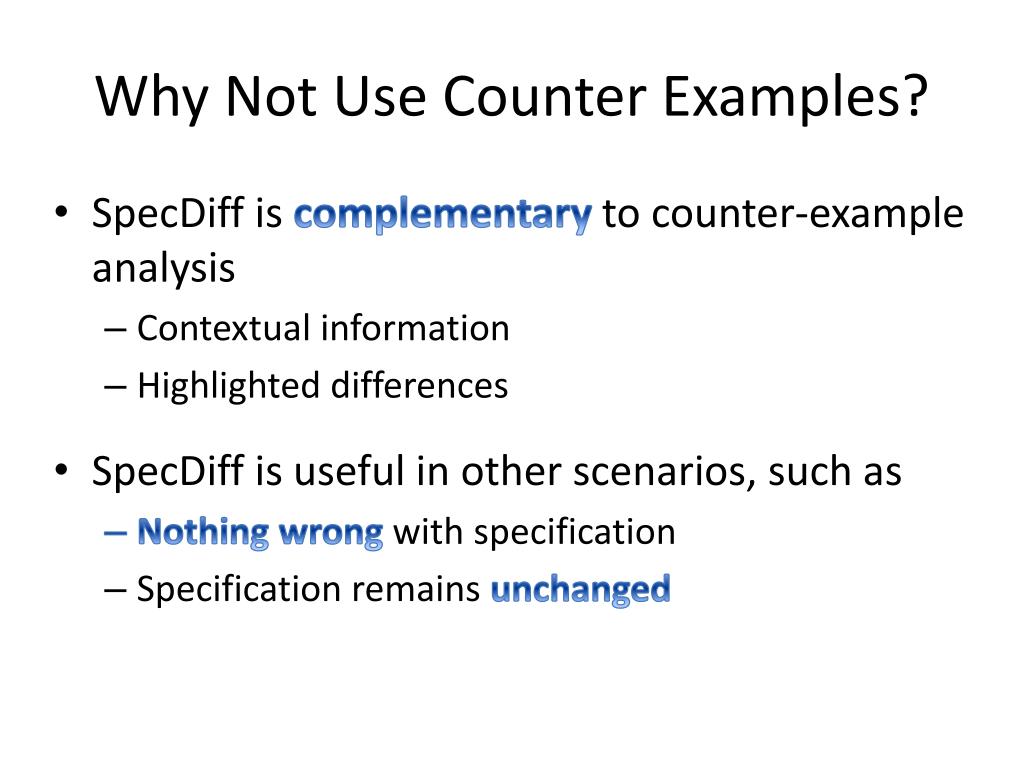

Why not use counter examples

Why Not Use Counter Examples?

  • SpecDiff is complementary to counter-example analysis

    • Contextual information

    • Highlighted differences

  • SpecDiff is useful in other scenarios, such as

    • Nothing wrong with specification

    • Specification remains unchanged

Conclusions and future work

Conclusions and Future Work

Tool Support & Usage

SpecDiff: Differencing LTSs

Effectiveness & Applicability

Scale it Up!
