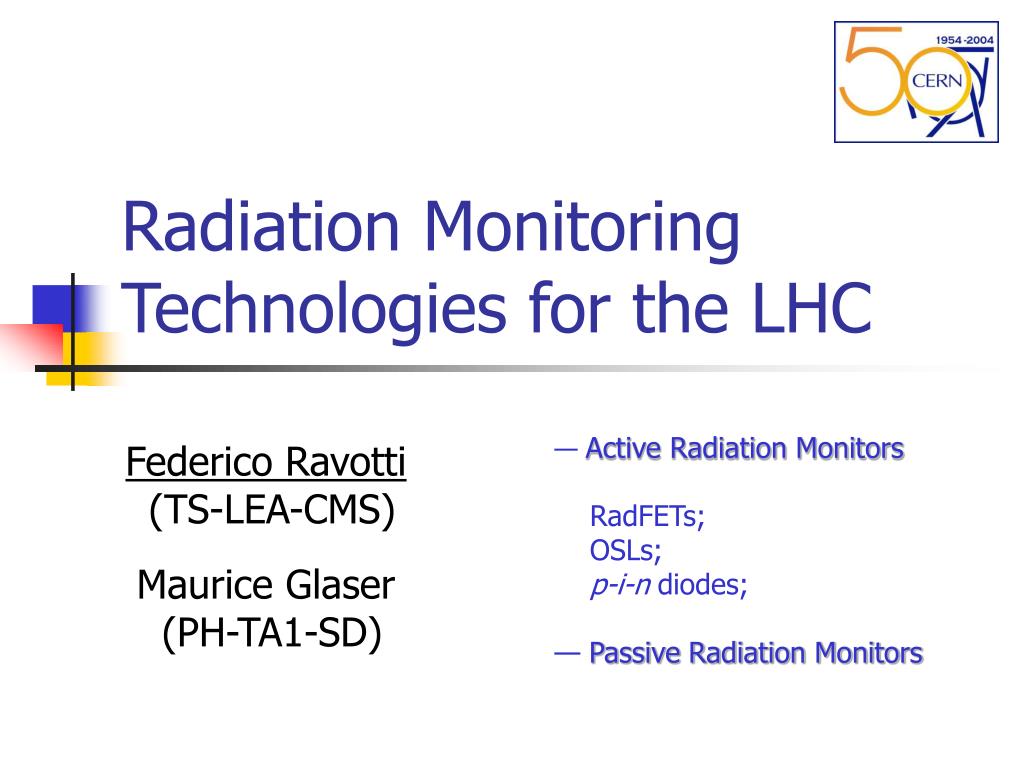

Radiation Monitoring Technologies for the LHC. Active Radiation Monitors RadFETs; OSLs; p-i-n diodes; Passive Radiation Monitors. Federico Ravotti (TS-LEA-CMS) Maurice Glaser (PH-TA1-SD). Active Radiation Monitors. RadFETs.

mia-schultz
Download Presentation

Radiation Monitoring Technologies for the LHC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Radiation Monitoring Technologies for the LHC • Active Radiation Monitors • RadFETs; • OSLs; • p-i-n diodes; • Passive Radiation Monitors Federico Ravotti (TS-LEA-CMS) Maurice Glaser (PH-TA1-SD)

  2. Active Radiation Monitors RadFETs Build-up of charge in MOSFETs SiO2 layer (Ionizing Dose)  (integrating measurement). p-i-n diodes Bulk damage in high r Si-base (particle fluence)  (integrating measurement). Optically Stimulated Luminescence (OSL) Charge buildup in sensitive material detrapped by IR stimulation (Ionizing Dose)  (instantaneous measurement). LHC Exp. RadMon Working Group 06/04/2004

  3. RadFETs General • e-/h+ pair generation; • e-/h+ pair recombination; • e- (~psec) / h+ (~sec) transport; • hole trapping; • Interface state delayed buildup. g responses for different tox Build-up of charge in SiO2 increase of the p-MOS Threshold Voltage  integrated Dose Measurement Sthreshold ~ 1 cGy; S decreasing over ò. Sub-linear Responses LHC Exp. RadMon Working Group 06/04/2004

  4. RadFETs Details • MOS exposed in “zero bias” mode; • (2-wires only readout, bigger dynamic range) • Long-distance readout of Vth after IDS bias (seconds time-scale); • Operation at MTC: if T ~ constant, correction it is not needed; • Good reproducibility of the results  producer selection. DVth= ¦ (particle type, energy, incidence angle, ..); DVth= ¦ (packaging) in neutron field.  Care has to be taken in the choice of the proper calibration & packaging for a neutron/HEP enriched radiation environment! LHC Exp. RadMon Working Group 06/04/2004

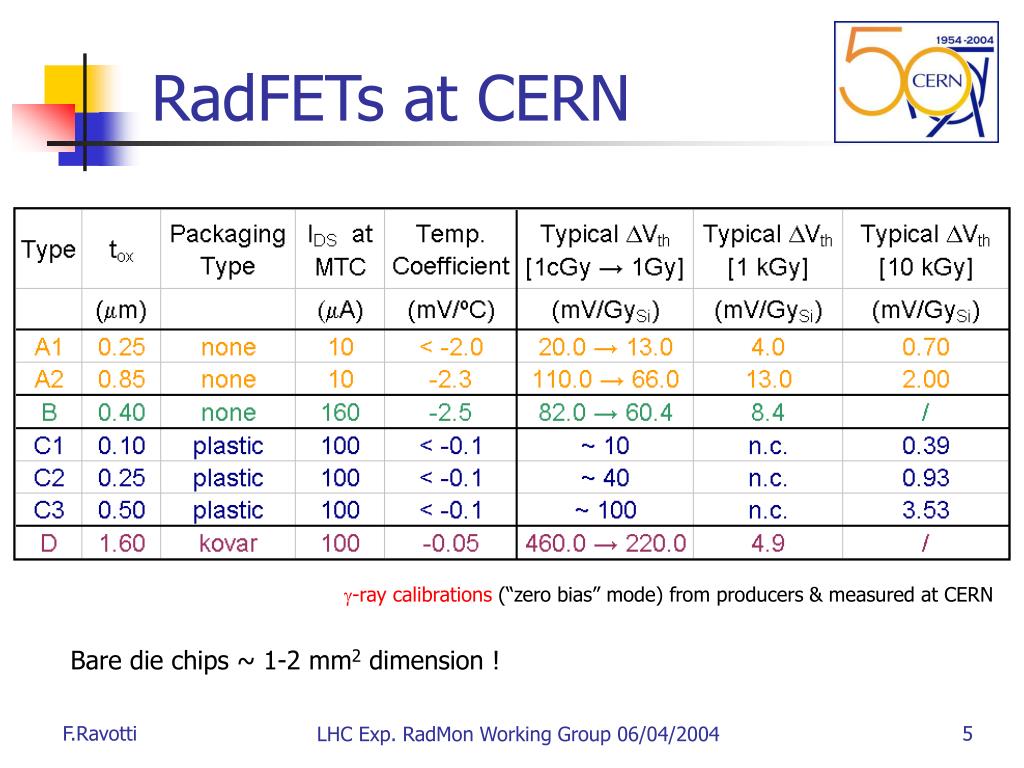

  5. RadFETs at CERN g-ray calibrations (“zero bias” mode) from producers & measured at CERN Bare die chips ~ 1-2 mm2 dimension ! LHC Exp. RadMon Working Group 06/04/2004

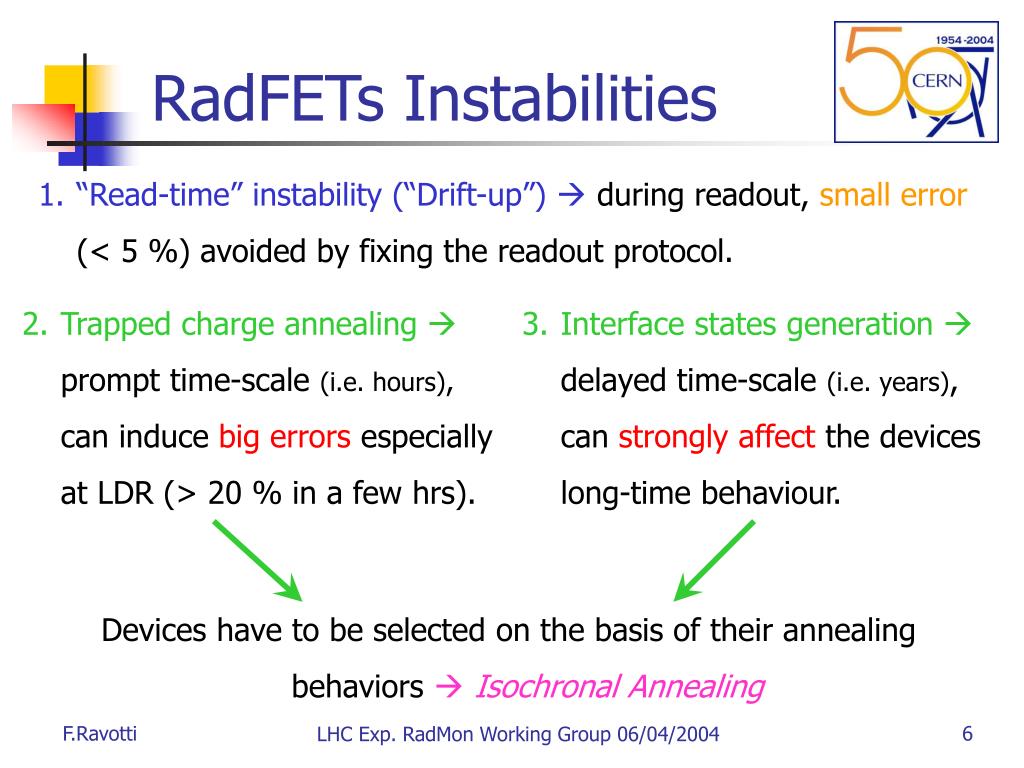

  6. RadFETs Instabilities • “Read-time” instability (“Drift-up”) during readout, small error (< 5 %) avoided by fixing the readout protocol. • Trapped charge annealing prompt time-scale (i.e. hours), can induce big errors especially at LDR (> 20 % in a few hrs). • Interface states generation delayed time-scale (i.e. years), can strongly affectthe devices long-time behaviour. Devices have to be selected on the basis of their annealing behaviors  Isochronal Annealing LHC Exp. RadMon Working Group 06/04/2004

  7. RadFETs Isochrones Regular behaviours • Scaling annealing tÛ annealing T; • Annealing periods at increasing T; • Charge annealing is oxide (i.e. manufacture) dependent; • Simple and quick way to identify not suitable behaviours; • Informations about charge spectrum in SiO2. Data from CERN & CEM2 - Montpellier Not suitable behaviours LHC Exp. RadMon Working Group 06/04/2004

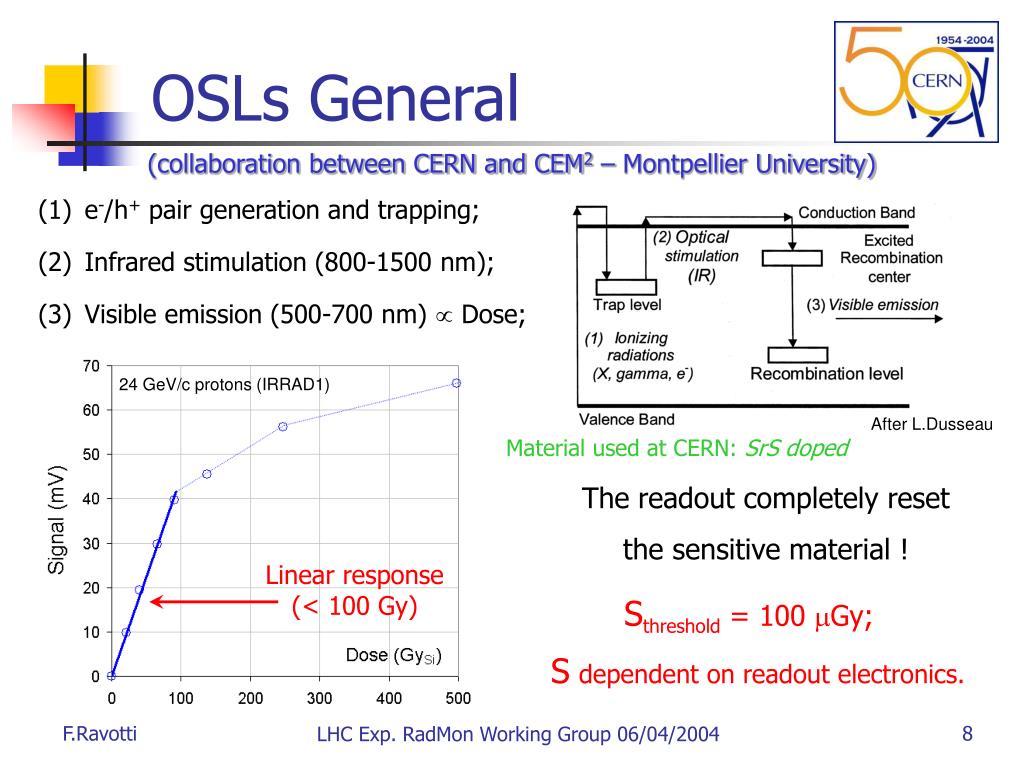

  8. OSLs General (collaboration between CERN and CEM2 – Montpellier University) • e-/h+ pair generation and trapping; • Infrared stimulation (800-1500 nm); • Visible emission (500-700 nm) µ Dose; 24 GeV/c protons (IRRAD1) After L.Dusseau Material used at CERN: SrS doped The readout completely reset the sensitive material ! Linear response (< 100 Gy) Sthreshold = 100 mGy; Sdependent on readout electronics. LHC Exp. RadMon Working Group 06/04/2004

  9. OSLs Details • Radiation independent response (X, g, p, p, e, ..); • OSL materials characterized with off-line measurements (test bench); • Readout process takes 10-15 seconds; • Very low fading at room temperature (to be verified); • Pure OSL does not suffer radiation damage; OSL Test bench • n-OSL tested for the first time: first campaign with 5 mm2 samples performed in 2 different neutron environments. LHC Exp. RadMon Working Group 06/04/2004

  10. Neutron-Sensitive OSLs 1 OSLs with enhanced neutron-sensitivity: 10B(n,a)7Li  Thermal neutrons 1H(n,p)1H  Fast neutrons OSL pure OSL+PE OSL+B OSL+PE+B • The pure OSL material is sensitive to the Ionizing radiation only; • The n-OSLs show a 20-times increased sensitivity. • Boron doping affects fading behaviour ? LHC Exp. RadMon Working Group 06/04/2004

  11. Neutron-Sensitive OSLs 2 89 % CERN-PS IRRAD2 Facility (FLUKA) 99 % 1 % Ljubljana Reactor - Activation measurements - 11 % Thermal Fast CERN OSL 3 % 97 % Ljubljana OSL 87 % 13 % LHC Exp. RadMon Working Group 06/04/2004

  12. OSL on-line approaches • OSLs deposed on GaAsP photodiodes OSL+B OSL OSL pure Designed for Space Intl. Space Station, CUBESAT / PROBA2 (50 mGy – 100 Gy) 3 cm x 1.5 cm OSL material +Radhard electronics = RADHARD INTEGRATED SENSOR OSL+Paraffin Support for off-line readout • Optical-Fiber system The sensor works in HEP environment (CERN PS-IRRAD1) OSLs at the edge of a long optical fiber  LED/PD not damaged by radiations. 2003 2004 LHC Exp. RadMon Working Group 06/04/2004

  13. p-i-n diodes General • Displacement damage in high r Si-base; • Macroscopic Effects: • Resistivity increase µF (forward bias); • Leakage current increase µF(reverse bias); • Forward bias operation: • Fast current pulse (~ms), VF on-line readout over long-distances (2-wires); • Sensitivity = ¦ (w ): • w =1.2 mm  S ~ 1 mV / 108 cm-2 ; Frange = 108 ÷ 1012 cm-2 (Feq) • w = 0.3 mm  S ~ 1.5 mV / 1010 cm-2; Frange = 1012 ÷1014 cm-2 (Feq) • Commercial diodes BPW34F characterized in 2003. LHC Exp. RadMon Working Group 06/04/2004

  14. BPW34F Osram diodes Response Curve (CERN-PS IRRAD1 & IRRAD2 facilities) • High-fluence measurements: • - Linear behaviour (Feq): • 1.0x1012 ÷ 4.0x1014 cm-2 • - Sensitivity (Feq): • 1.5 mV / 1010 cm-2 • Strong T dependence: • Tc = -5 %·ºC-1; • Thermal annealing: • < 10 % in the first 14 days. (preliminary) Max DT over irradiations: ± 0.83 ºC LHC Exp. RadMon Working Group 06/04/2004

  15. “Pad” structures Off-line measurements after annealing (4 min 80 ºC) • Reverse bias operation: • (see next presentations) • ST, Italy “Pad structure” of 0.25 cm2 for bulk damage studies; • Off-line characterization; • Very wide fluence range; • Complex Annealing behaviour; Possible “on-line” implementation for high-sensitivity fluence measurements After M.Moll LHC Exp. RadMon Working Group 06/04/2004

  16. Passive Radiation Monitors Polymer-Alanine (PAD) & Radio-Photo Luminescent (RPL) Dosimeters: Calibration campaign 2003 in the mixed g/n field of CERN-PS IRRAD2 facility • Formation of stable free radicals/color center • after irradiation; • Readout by • CERN SC/RP (“TIS”); • Well known dosimetry systems. • [NIM-B 83 (1993) pp. 181-188] Gafchromicâ Sensitive Films • Formation of a stable dye polymer after • irradiation; • Optical readout (color density); • Different sensitivities/ranges 24 GeV/c protons (HD-810) LHC Exp. RadMon Working Group 06/04/2004

  17. Summary RadFETs: Responses in HEP/n environments fully characterized. Isochronal annealing studies are ongoing with setup in Lab. 14-R-012. OSLs: Responses HEP fully characterized. Neutron-sensitive materials under development. Annealing studies & test on new on-line configurations are planned. BPW34F: Particle responses fully characterized. More on Annealing & readout procedure. Pad Structures: Particle responses well known. Looking forward for an “on-line” readout. Passive Monitors: Daily used in the operation of the CERN-PS Irradiation Facilities. LHC Exp. RadMon Working Group 06/04/2004

  18. and finally … More on … • p-i-n diodes; RadFETs HEP/n responses, packaging dependence, annealing & instabilities: • CERN Technical Note EST/LEA/2003-03, July 2003 (EDMS No. 394670) • RadFETs fast-neutron response: Paper in preparation for NSS Rome, 2004 • Special neutron-sensitive OSLs: • Paper submitted to RADECS Madrid, 2004 & CERN Preprints collection • Integration Issues: • CERN-PH-EP-2004-04, February 2004 (Presented at NSREC Atlanta, 2004) • Passive technologies, PS Irradiation facilities: http://www.cern.ch/irradiation Acknowledgments … - M. Moll, C. Joram, E. Tsesmelis from CERN; - L. Dusseau, J R. Vaillé from CEM2 - Montpellier University; - G. Sarrabayrouse (CNRS, France), A. Holmes-Siedle (REM, England) for their support in RadFETs studies; - I. Mandic and M. Mikuz from the Josef Stefan Institute, Ljubljana, Slovenia. LHC Exp. RadMon Working Group 06/04/2004

  19. Neutrons Cross-sections LHC Exp. RadMon Working Group 06/04/2004

  20. Readout parameters LHC Exp. RadMon Working Group 06/04/2004
