  1. Tutorial: An Introduction to OpenFlow using POX Vic Thomas, Niky Riga– GPO Summercamp July 2014

  2. Tutorial Tips … • For this tutorial you will need • Omni • ability to login through ssh • a text editor • Optional • Basic understanding of python • xterm support (MAC, linux, cygwin are ok) http://tinyurl.com/geniof

  3. Switch Architecture

  4. Moving Control out of the Switch

  5. OpenFlow is an API • Control how packets are forwarded • Implementable on COTS hardware • Make deployed networks programmable • not just configurable • Makes innovation easier Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

  6. OpenFlow • The controller is responsible for populating forwarding table of the switch • In a table miss the switch asks the controller Any Host OpenFlow Controller OpenFlow Protocol (SSL/TCP) Switch Control Path OpenFlow Data Path (Hardware) Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

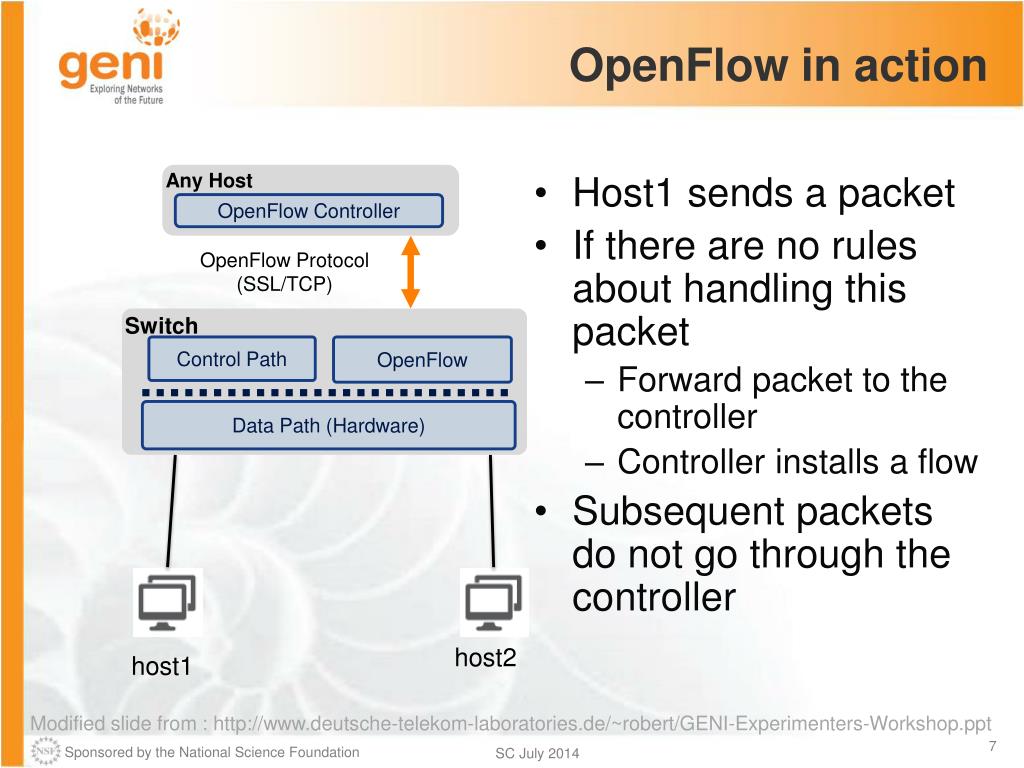

  7. OpenFlow in action • Host1 sends a packet • If there are no rules about handling this packet • Forward packet to the controller • Controller installs a flow • Subsequent packets do not go through the controller Any Host OpenFlow Controller OpenFlow Protocol (SSL/TCP) Switch Control Path OpenFlow Data Path (Hardware) host2 host1 Modified slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

  8. OpenFlow BasicsFlow Table Entries Rule Action Stats Packet + byte counters • Forward packet to port(s) • Encapsulate and forward to controller • Drop packet • Send to normal processing pipeline • Modify Fields Eth type VLAN PCP Switch Port IP Prot IP Src IP Dst TCP sport TCP dport IP ToS VLAN ID MAC src MAC dst + mask what fields to match slide from : http://www.deutsche-telekom-laboratories.de/~robert/GENI-Experimenters-Workshop.ppt

  9. Use Flow Mods • Going through the controller on every packet is inefficient • Installing Flows either proactively or reactively is the right thing to do: • A Flow Mod consists of : • A match on any of the 12 supported fields • A rule about what to do matched packets • Timeouts about the rules: • Hard timeouts • Idle timeouts • The packet id in reactive controllers

  10. OpenFlow common Pitfalls • Controller is responsible for all traffic, not just your application! • ARPs • DHCP • LLDP • Reactive controllers • UDP • Performance in hardware switches • Not all actions are supported in hardware • No STP • Broadcast storms

  11. GENI Rack Campuses • Each rack has an OpenFlow-enabled switch

  12. Core Networks Internet2 adding 10GbE paths to Advanced Layer 2 Services (AL2S) at 4 of 5 OpenFlow meso-scale/ProtoGENI Pops GENI Aggregate Manager in Internet2 AL2S and dynamic stitching coming soon Internet2 SDN networks

  13. OpenFlowdatapaths • OpenFlow switches are usually referred to as datapaths with a unique dpid Different OpenFlow modes • switches in pure OF mode areacting as onedatapath • Hybrid VLAN switchesareonedatapath per VLAN • Hybrid portswitchesaretwodatapaths (one OF and onenon-OF) Any Host OpenFlow Controller • It is not necessary that 1 physical switch corresponds to 1 dpid OpenFlowProtocol Switch Control Path OpenFlow Data Path (Hardware) • Each Datapath can point to only one controller!

  14. FlowVisor Any Host Any Host Any Host • FlowVisor is a proxy controller that can support multiple controllers FlowSpacedescribes packet flows : • Layer 1: Incoming port on switch • Layer 2: Ethernet src/dstaddr, type, vlanid, vlanpcp • Layer 3: IP src/dstaddr, protocol, ToS • Layer 4: TCP/UDP src/dst port FlowVisor OpenFlow Controller OpenFlow Controller OpenFlow Protocol (SSL/TCP) Switch OpenFlow Protocol (SSL/TCP) Control Path OpenFlow Data Path (Hardware)

  15. FOAM • An OpenFlow Aggregate Manager • It’s a GENI compliant reservation service • Helps experimenters reserve flowspace in the FlowVisor • Speaks AM API v1 and AM API v2 • RSpecs GENI v3, OpenFlow v3 extension

  16. Sharing of OpenFlow resources Today In GENI: • Slice by VLAN for exclusive VLANs • Slice by IP subnet and/or eth_type for shared VLANs In FIRE: • On iMinds testbed • Slice by inport • On OFELIA testbed • Slice by VLAN

  17. FOAM RSpecs <rspec … type="request"> <openflow:sliver > <openflow:controllerurl="tcp:192.168.1.1:6633" type="primary"/> <openflow:group name="missouri-instageni-openflow-1750"> <openflow:datapathcomponent_id="urn:publicid:IDN+openflow:foam:foam.instageni.rnet.missouri.edu+datapath+06:d6:2c:59:e5:6a:02:00" component_manager_id="urn:publicid:IDN+openflow:foam:foam.instageni.rnet.missouri.edu+authority+am"/> </openflow:group> <openflow:match> <openflow:use-group name="missouri-instageni-openflow-1750"/> <openflow:packet> <openflow:dl_type value="0x800,0x806"/> <openflow:nw_dst value=”10.10.10.0/24"/> <openflow:nw_src value=”10.10.10.0/24"/> </openflow:packet> </openflow:match> </openflow:sliver> </rspec>

  18. OpenFlow Experiments Debugging OpenFlow experiments is hard: • Network configuration debugging requires coordination • Many networking elements in play • No console access to the switch Before deploying your OpenFlow experiment test your controller. http://mininet.github.com/ http://openvswitch.org/

  19. Run an OpenFlow experiment 1 Xen VM running the OF controller 1 XenVM as OVS switch 3 OpenVZ VMs connected to OVS Host2 Host1 • Setup OVS • Write simple controllers • e.g. divert traffic to a different server • Use Python controller PoX OVS Host3 Controller

  20. Part I: Design/Setup • Obtain Resources • Part II: Execute • Configure and Initialize Services • Execute Experiment • Part III: Finish • Teardown Experiment

  21. Obtain Resources Two slices • Running your controller • “XEN VM Pox Ctrl” • Your OpenFlow topology • “OF OVS Tutorial with Xen & OpenVZ” Host2 Host1 Use the aggregate on your worksheet! slice 1 OVS Controller Host3 slice 2

  22. Configure OVS OVS is a virtual switch running on a XenVM • The dataplaneintfof VM are the ports of the switch • Configure an Ethernet bridge (done) • Add all dataplane ports to the switch • Make it an OpenFlow switch • Point OVS switch to the controller address and port • Use your controller eth0 IP • Turn off default forwarding • Kernel space OVS

  23. Configure and Initialize OVS • Log in to OVS host and configure software switch: $ ifconfig $ sudoifconfig eth1 0 $ sudoifconfig eth2 0 $ sudoifconfig eth3 0 $ sudoovs-vsctl add-port br0 eth1 $ sudoovs-vsctl add-port br0 eth2 $ sudoovs-vsctl add-port br0 eth3 $ sudoovs-vsctl list-ports br0 $ sudoovs-vsctl set-controller br0 tcp:<ctrl_ip>:6633 $ sudoovs-vsctl set-fail-mode br0 secure $ sudoovs-vsctl show Host2 Host1 Turn off IP eth2 eth1 OVS Add data ports to switch eth3 Host3 Point switch to controller

  24. Part I: Design/Setup • Obtain Resources • What is OpenFlow, what can I do with Openflow? • Demo: Using OpenFlow in GENI • Part II: Execute • Configure and Initialize Services • Execute Experiment • Part III: Finish • Teardown Experiment

  25. Debugging your Controller • Use debugging messages in your controller • Use tcpdump to verify that packets flow in the right intf • Between hosts • Between switch and controller • Use ovs-ofctl, ovs-dpctl, ovs-vsctl • to check connectivity to controller • to see installed flows • Use tcpdump, wireshark • Dissector for OpenFlow • Allows to see OpenFlow messages being exchanged on the wire

  26. Experiments • Use a Learning Switch Controller to see that traffic does not flow without it • Write a controller that duplicates traffic out a port • Write a controller that implements port forwarding on one host • Write a controller that implements a proxy forwarding • Hint: Controller solutions are given, just remove my (e.g. use • Proxy instead of myProxy)

  27. Using Hardware Switches • Part I: Design/Setup • Obtain Resources • Part II: Execute • Configure and Initialize Services • Execute Experiment • Part III: Finish • Teardown Experiment

  28. Obtain Resources Delete Slice 2 (not 1), recreate it with a hardware switch • Your OpenFlow topology • Download and modify rspec Host2 Host1 keep! Use the aggregate on your worksheet! slice 1 Controller Host3 slice 2

  29. Part III: Finish Experiment When your experiment is done, you should always release your resources. • Normally this is when you would archive your data • Delete your slivers at each aggregate sliver credentials sliver project RSpec resource user AM API aggregate certificate slice
