Lessons learned tein2 and cernet

Lessons LearnedTEIN2 and CERNET

Xing Li

2007-01-22


Outline

Outline

  • Introduction

  • TEIN2 routing policy

  • CERNET BGP Experience

  • Lessons learned


Simple case where bgp can handle things easily

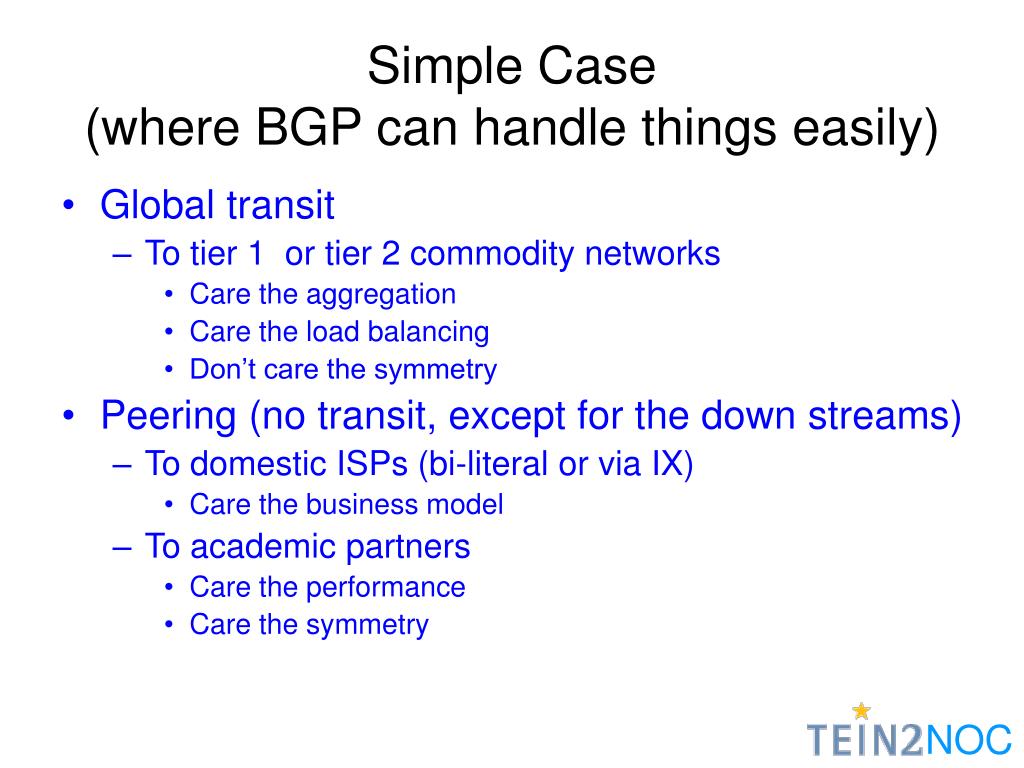

Simple Case (where BGP can handle things easily)

  • Global transit

    • To tier 1 or tier 2 commodity networks

      • Care the aggregation

      • Care the load balancing

      • Don’t care the symmetry

  • Peering (no transit, except for the down streams)

    • To domestic ISPs (bi-literal or via IX)

      • Care the business model

    • To academic partners

      • Care the performance

      • Care the symmetry


Complicated case where bgp cannot handle things easily

Complicated Case (where BGP cannot handle things easily)

  • Global transit

    • To tier 1 or tier 2 commodity networks

      • Care the aggregation

      • Care the load balancing

      • Don’t care the symmetry

  • Academic transit

    • To multiple transit backbones within academic scope

      • Care the aggregation

      • Care the load balancing

      • Care the performance

      • Care the symmetry

      • Etc.

  • Peering (no transit, except for the down streams)

    • To domestic ISPs (bi-literal or via IX)

      • Care the business model

    • To academic partners

      • Care the performance

      • Care the symmetry


Two steps to implement the policy

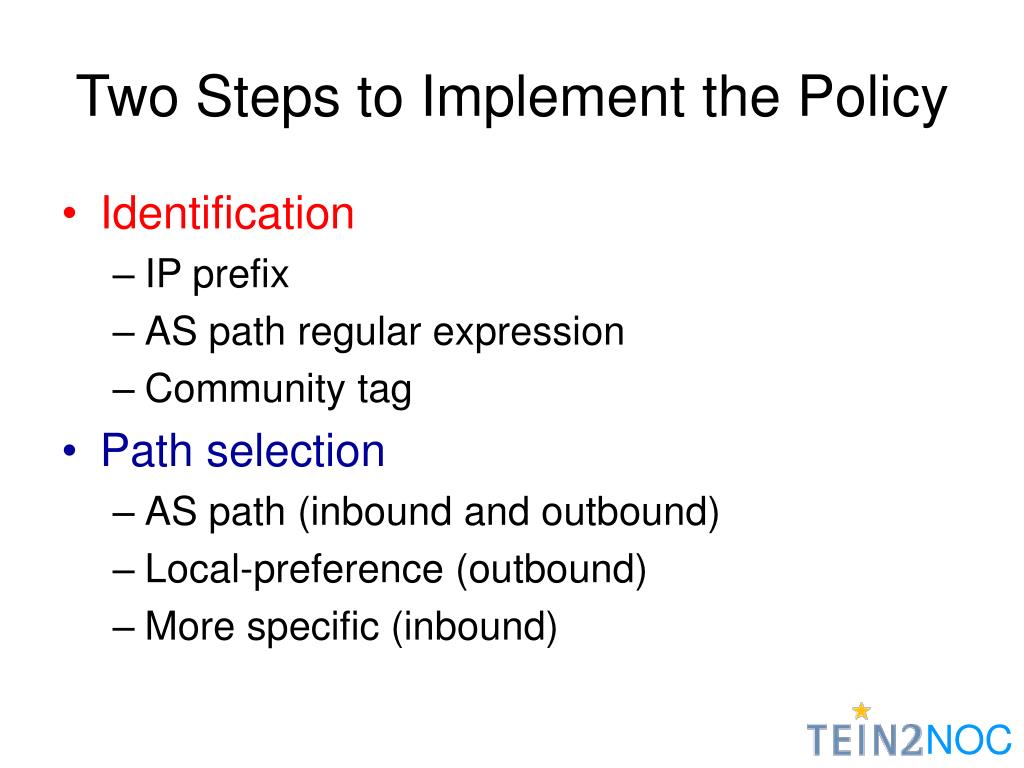

Two Steps to Implement the Policy

  • Identification

    • IP prefix

    • AS path regular expression

    • Community tag

  • Path selection

    • AS path (inbound and outbound)

    • Local-preference (outbound)

    • More specific (inbound)


For transit network tein2 example

For Transit NetworkTEIN2 Example


Tein2 topology

TEIN2 Topology


The principle of routing design for the tein2 network

The Principle of Routing Design for the TEIN2 network

  • To provide interconnection among TEIN2 partners and between TEIN2 partners and EU NRENs.

  • To provide back-up paths within the TEIN2 network and/or via partner networks for service resilience when possible.

  • To provide a flexible and transparent routing policy to TEIN2 NRENs.

  • To avoid being selected by GÉANT, Abilene and other R&E networks outside TEIN2 as the preferred transit network.

  • To minimize the adjustment of the external peers’ routing policy outside TEIN2 networks, e.g. GÉANT and APAN.


Tein2 routing policy

TEIN2 Routing Policy

  • Enable additive community tagging to mark the prefix announcements.

  • Adopt AS number prependingas the preferred BGP policy for TEIN2 traffic adjustment within TEIN2 backbone.

    • Use ingress AS number prepending for outbound traffic adjustment, including traffic from TEIN2 POP to NRENs, GÉANT and APAN.

    • Use egress AS number prepending for inbound traffic adjustment, including traffic from NRENs, GÉANT and APAN to TEIN2 POP.

  • May useLocal-Preference amendment as the last resort of mechanism for fine tuning on TEIN2 traffic over the backbone.


For nrn cernet example

For NRNCERNET Example


Cernet topology

CERNET Topology

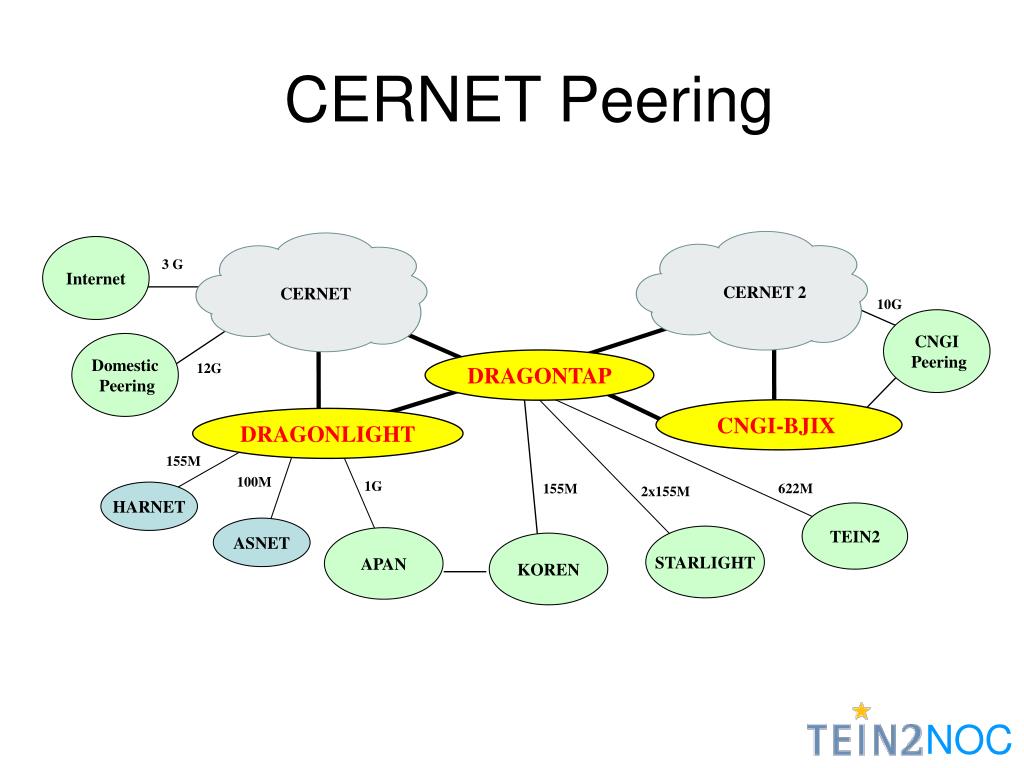

Cernet peering

Internet

3 G

10G

CNGI

Peering

Domestic

Peering

DRAGONTAP

12G

CNGI-BJIX

DRAGONLIGHT

155M

100M

1G

622M

155M

2x155M

HARNET

TEIN2

ASNET

STARLIGHT

APAN

KOREN

CERNET

CERNET 2

CERNET Peering


Cernet routing policy

CERNET Routing Policy

  • Outbound

    • Use AS number prepending if possible

    • Heavily useLocal-Preference

    • Enable additive community tagging to mark the prefixes

  • Inbound

    • Use AS number prepending if possible

    • Announce more specifics

    • Enable additive community tagging to mark the prefixes


Case 1 taiwan earthquake

Case 1TAIWAN Earthquake

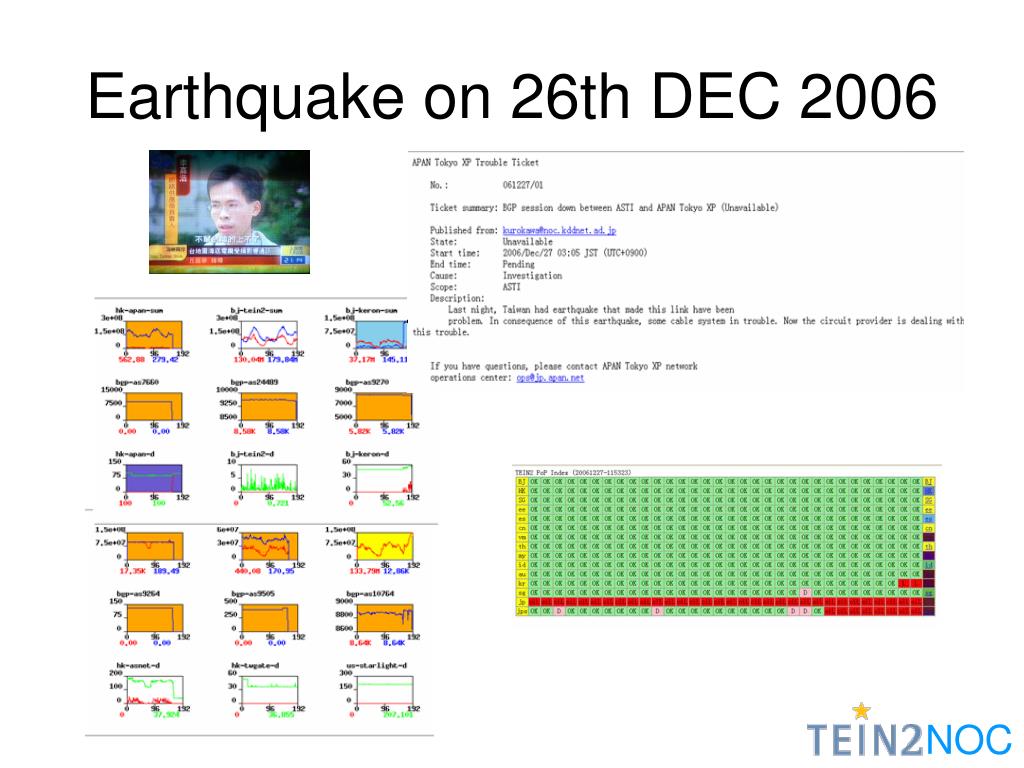

Earthquake on 26th dec 2006

Earthquake on 26th DEC 2006

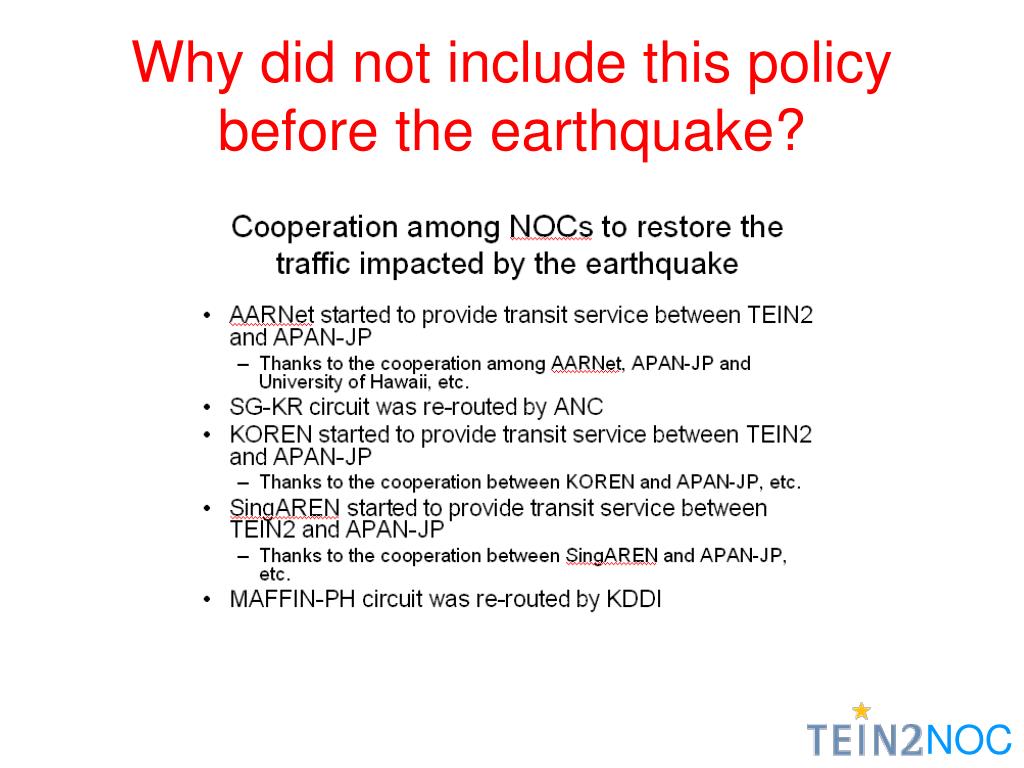

Why did not include this policy before the earthquake

Why did not include this policy before the earthquake?


Case 2 routing and end to end performance

Case 2Routing and End-to-end performance

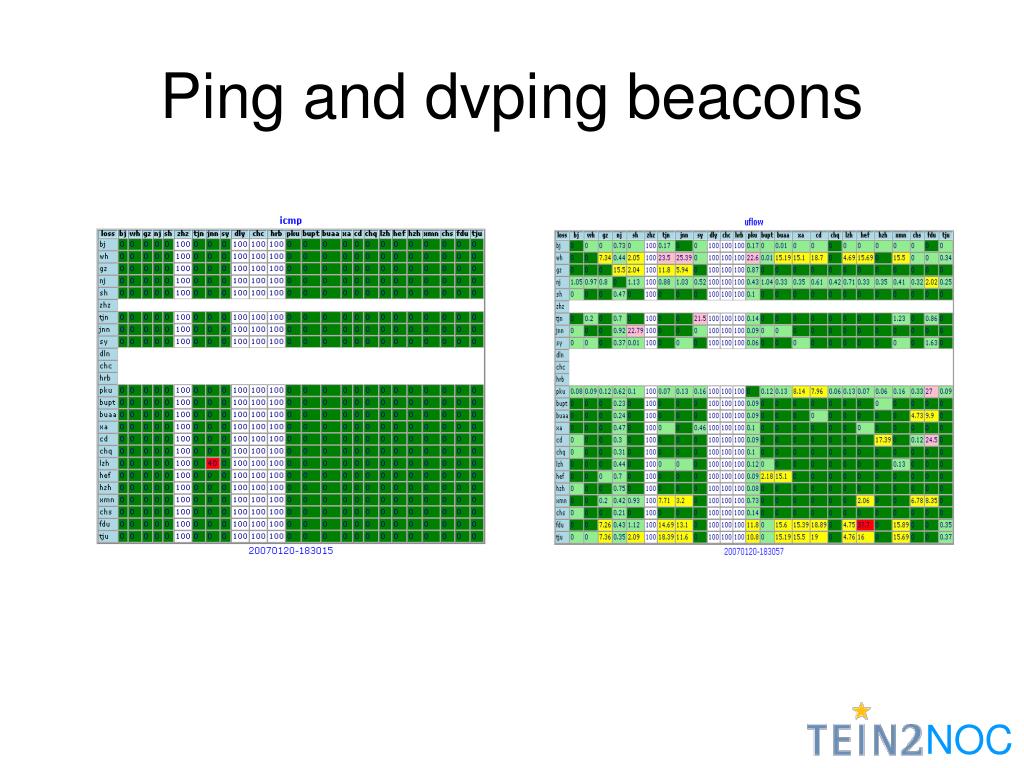

Ping and dvping beacons

Ping and dvping beacons


Here in the apan venue wlan

Here in the APAN venue WLAN


Lessons learned 1

Lessons Learned (1)

  • The nature of BGP is reachability

    • Stupid routing happen

    • Policy based routing makes thing very complicated

    • The routing and topology are very dynamic environment

  • The key words are: simple, open and controllability

    • For transit network

      • Simple

      • Open

    • For NRN

      • Simple

      • Controllability

  • Why did not include this policy before the earthquake?

    • Because it is a NP problem and there are many contradict requirements

    • Mission impossible

    • What should be the solution?


Lessons learned 2

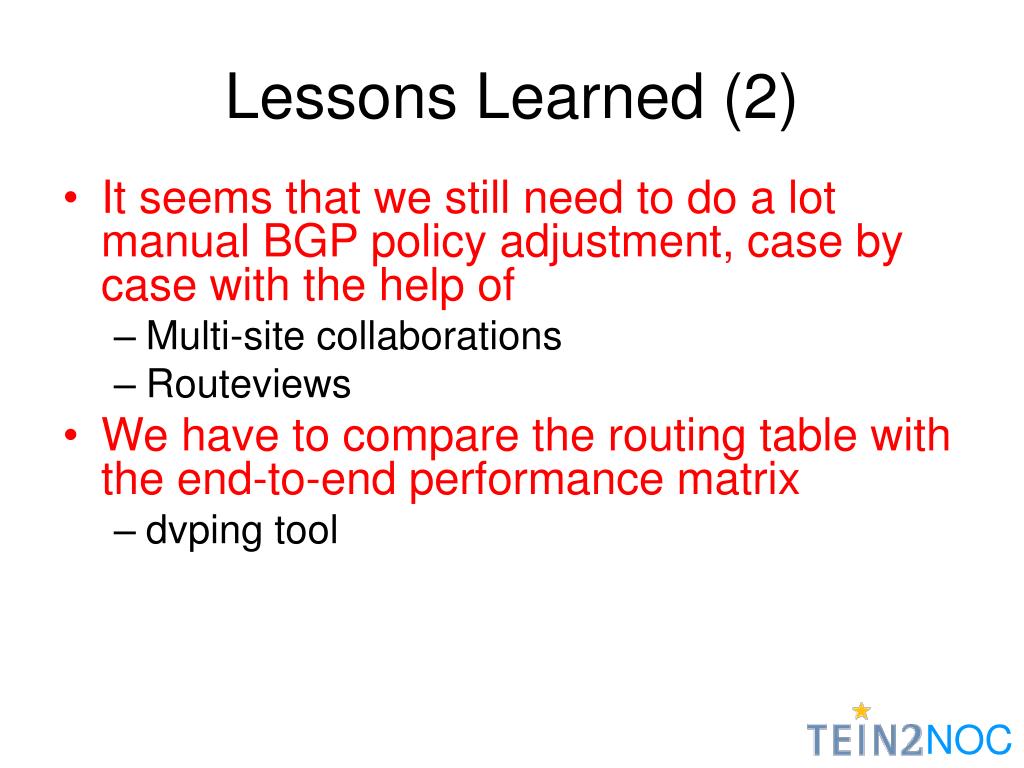

Lessons Learned (2)

  • It seems that we still need to do a lot manual BGP policy adjustment, case by case with the help of

    • Multi-site collaborations

    • Routeviews

  • We have to compare the routing table with the end-to-end performance matrix

    • dvping tool
