  1. Electricity COMPETENCY: AM16.00 Explain principles of electricity.

  2. OBJECTIVE: AM16.01Define common electrical terms. • A. Ampere is the rate of flow of electricity. • B. Volt is the measurement of electrical pressure. • C. Watt is the measurement of electrical power. • D. Kilowatt is 1000 watts. • E. Circuit Breaker protects circuits from overload of current by tripping to break or open the circuit.

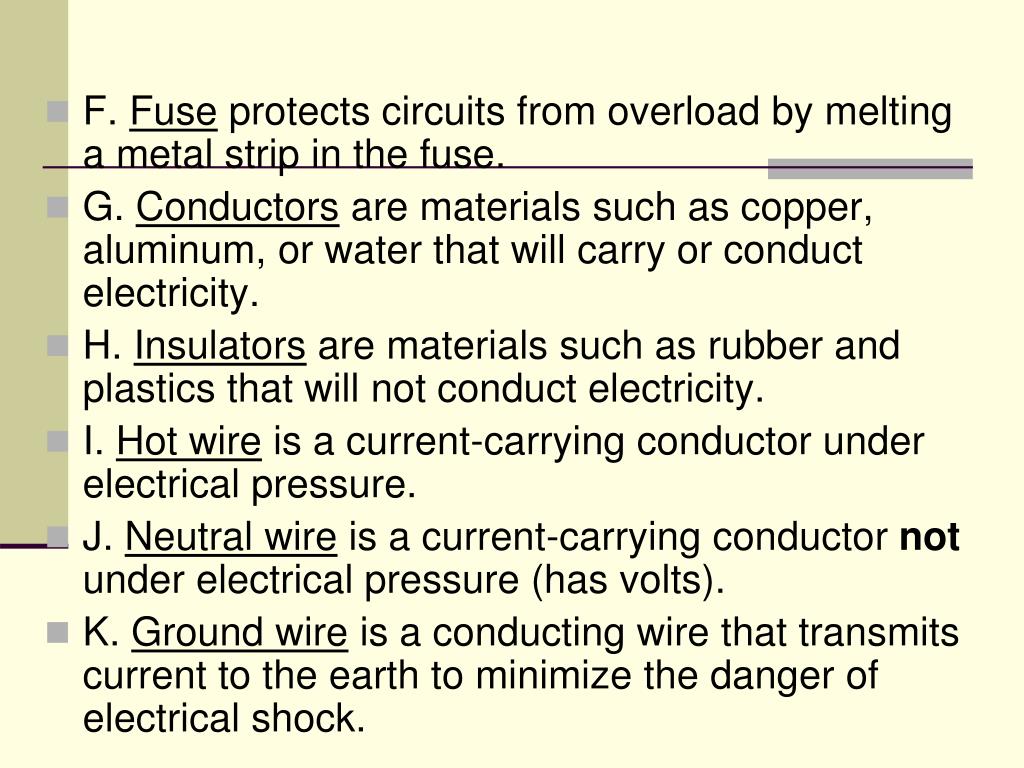

  3. F. Fuse protects circuits from overload by melting a metal strip in the fuse. • G. Conductors are materials such as copper, aluminum, or water that will carry or conduct electricity. • H. Insulators are materials such as rubber and plastics that will not conduct electricity. • I. Hot wire is a current-carrying conductor under electrical pressure. • J. Neutral wire is a current-carrying conductor not under electrical pressure (has volts). • K. Ground wire is a conducting wire that transmits current to the earth to minimize the danger of electrical shock.

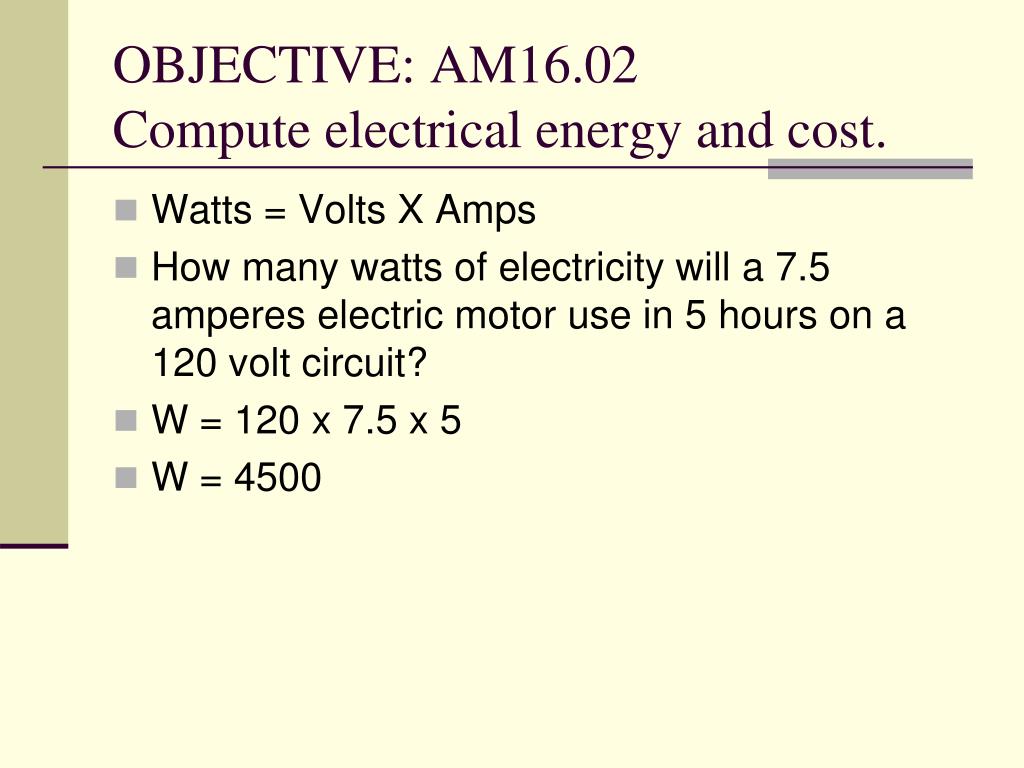

  4. OBJECTIVE: AM16.02 Compute electrical energy and cost. • Watts = Volts X Amps • How many watts of electricity will a 7.5 amperes electric motor use in 5 hours on a 120 volt circuit? • W = 120 x 7.5 x 5 • W = 4500

  5. Volts equal watts divided by amps. V = W/A • What volt circuit is needed for a 7.5 amp electric motor that uses 900 watts in one hour? • V = 900/7.5 • V = 120

  6. Amps equal watts divided by volts. A = W/V • What should the amp rating of an electric motor be if it uses 900 watts of electricity in one hour in a • 120 volt circuit? • A = 900/120 • A = 7.5

  7. Ohm’s Law • Ohms Law I = E/R • I (amps) • E (volts) • R (resistance)

  8. Cost of electricity = cost per kilowatt x number of kilowatts x hours of use • Note: kilowatt is 1000 watts • If electricity costs 12¢ per kilowatt-hour, how much would it cost to use 2 kilowatts per hour for 10 hours? • .12 x 2 x10 = $2.40

  9. Safe Practices • National Fire Protection Association (NFPA) promotes and improves the science and methods of fire protection and publishes the National Electric Code (NES). • Underwriter Laboratories (UL) tests all types of wiring materials and electrical devices for safety.

  10. Safety Precautions • 1. Wear boots or shoes with rubber heels to insulate against shock. • 2. Wear clothing made of materials low in flammability to prevent fires. • 3. Ground all outlets, switches, service entrances, etc. to prevent shock. • 4. Extension cords should not be used under carpet because of fire danger.

  11. 5. Standing in water or damp places or touching switches or receptacles with wet hands may cause • electrical shock because water conducts electricity. • 6. Do not touch someone undergoing electrical shock because both people will become part of circuit, and both will be shocked. • 7. Always turn circuit breaker to “off” position before beginning work.

  12. 8. Use correct size fuses and circuit breakers to prevent fires. • 9. Use only double insulated portable tools or those with three-wire grounded cords to prevent shock. • 10. The two deadliest hazards associated with electricity are shock and fire. Precautions and common sense should be used to prevent conditions that will cause either.

  13. Indoor Wires • 1. T is thermoplastic used for dry locations indoors. • 2. TW is moisture resistant thermoplastic for indoor dry or wet areas. • 3. RHW is rubber and is heat and moisture resistance and is used for large appliances or service entrance in both wet and dry locations. • 4. Others include THHN, THW/THWN, RH, and XHHW.

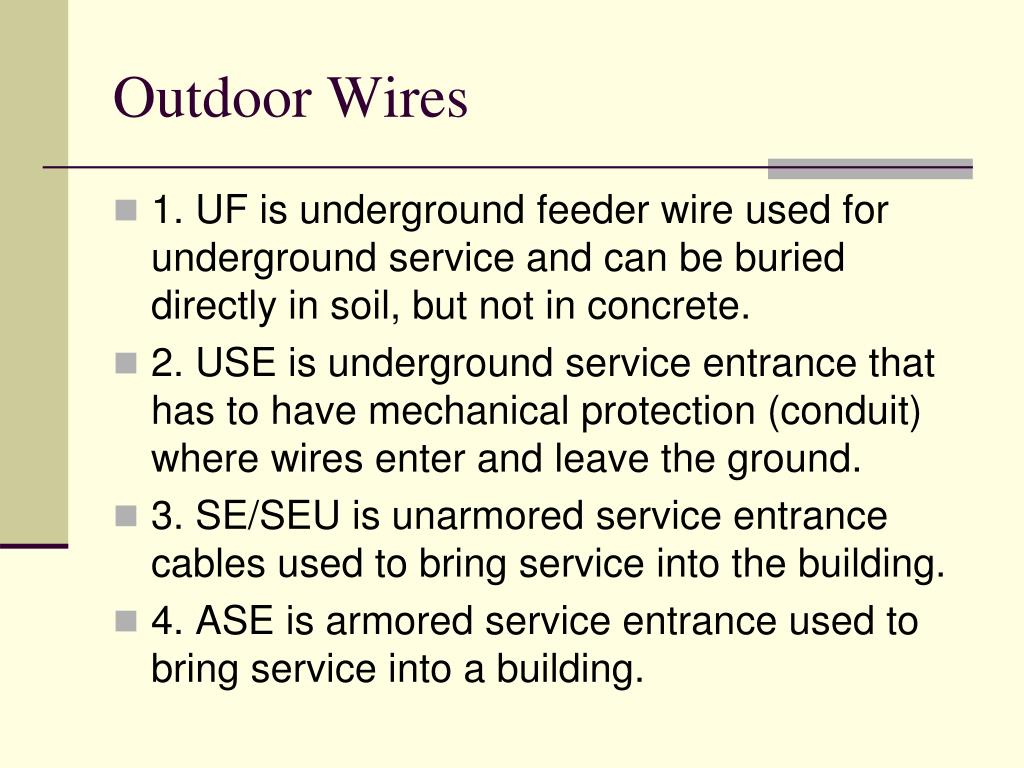

  14. Outdoor Wires • 1. UF is underground feeder wire used for underground service and can be buried directly in soil, but not in concrete. • 2. USE is underground service entrance that has to have mechanical protection (conduit) where wires enter and leave the ground. • 3. SE/SEU is unarmored service entrance cables used to bring service into the building. • 4. ASE is armored service entrance used to bring service into a building.

  15. Non-metallic sheathed cable commonly called Romex ™ has copper wire covered with paper and vinyl for insulation. • Most wiring used in residential construction is this type.

  16. Conduit provides mechanical protection for wires and may be flexible or non-flexible and metal or plastic depending on NEC Code requirements.

  17. Junction Box • Switch Box

  18. Duplex Receptacle • 240 Volt Receptacle

  19. Switches • Single pole has two terminals and controls lights from one location.

  20. 3 Way Switch

  21. Switches • Single pole • Toggle • Mercury • Silent • Rocker arm • Push button

  22. Splices • Rat tail- used inside junction boxes

  23. Splices • Western Union- used where strength is required

  24. Wire loops should be attached in the direction the screw turns to tighten
