Xml compression

XML Compression

Aslam Tajwala

Kalyan Chakravorty


Overview

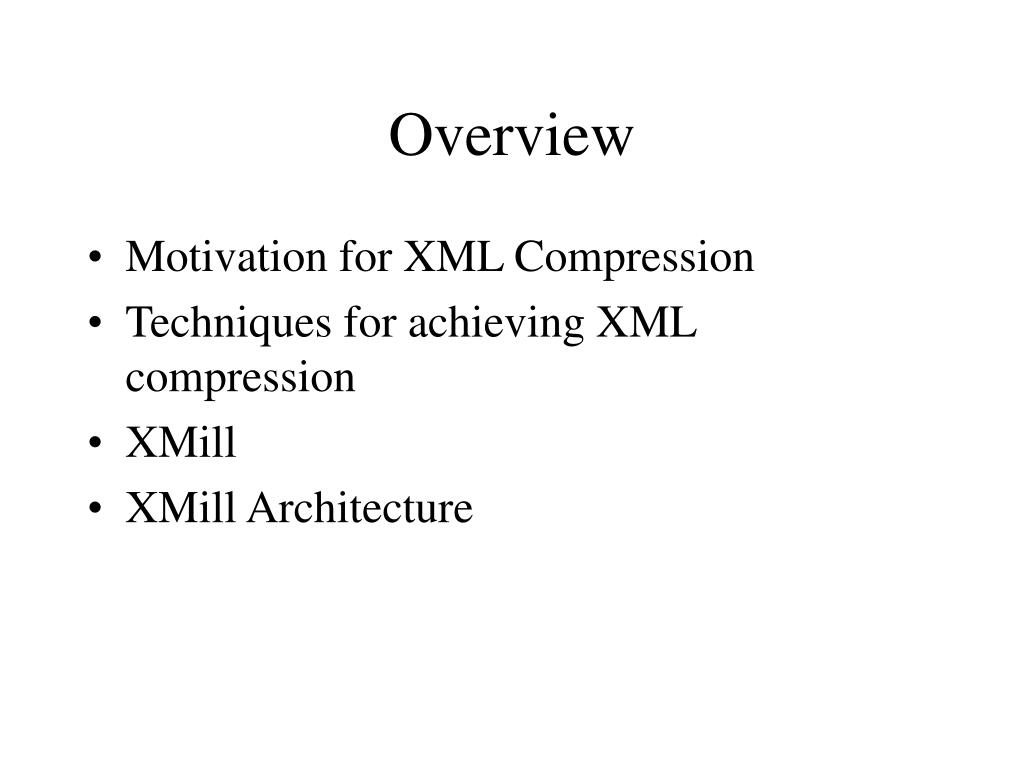

Overview

  • Motivation for XML Compression

  • Techniques for achieving XML compression

  • XMill

  • XMill Architecture


Why compress xml

Why Compress XML?

  • Structured nature of XML makes it understandable to humans,

  • Downside: XML is verbose

    • Each non-empty element tag must end with a matching closing tag -- <tag>data</tag>

    • Ordering of tags is often repeated in a document (e.g. multiple records)


Why compress xml 2

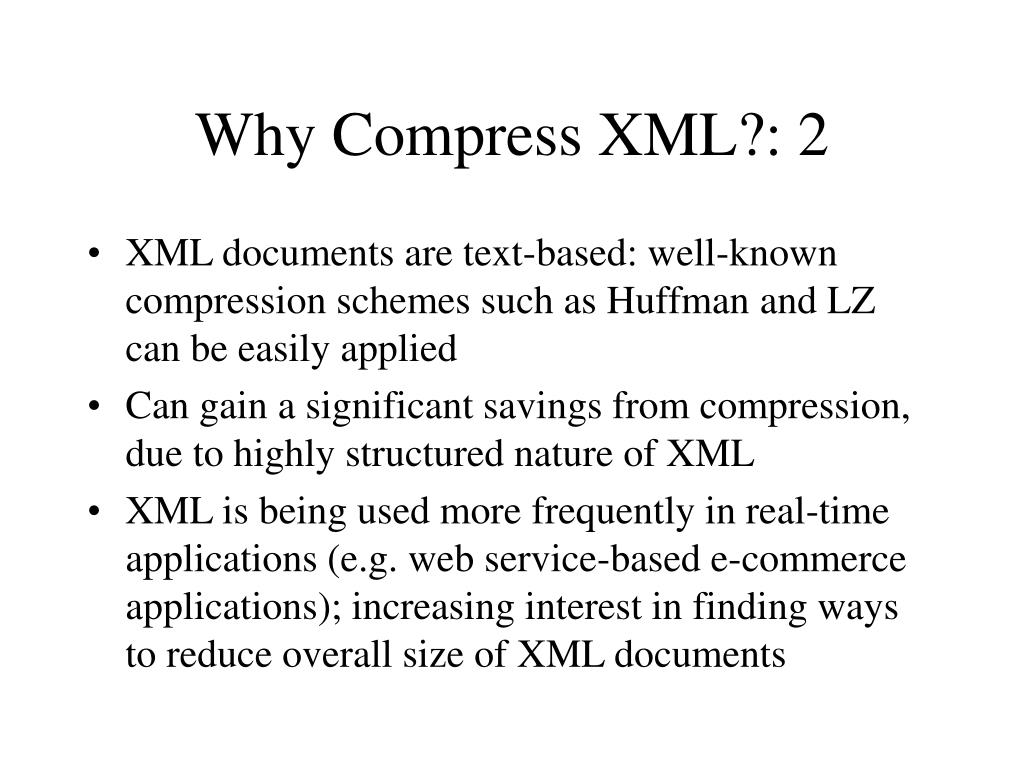

Why Compress XML?: 2

  • XML documents are text-based: well-known compression schemes such as Huffman and LZ can be easily applied

  • Can gain a significant savings from compression, due to highly structured nature of XML

  • XML is being used more frequently in real-time applications (e.g. web service-based e-commerce applications); increasing interest in finding ways to reduce overall size of XML documents


Using huffman lz

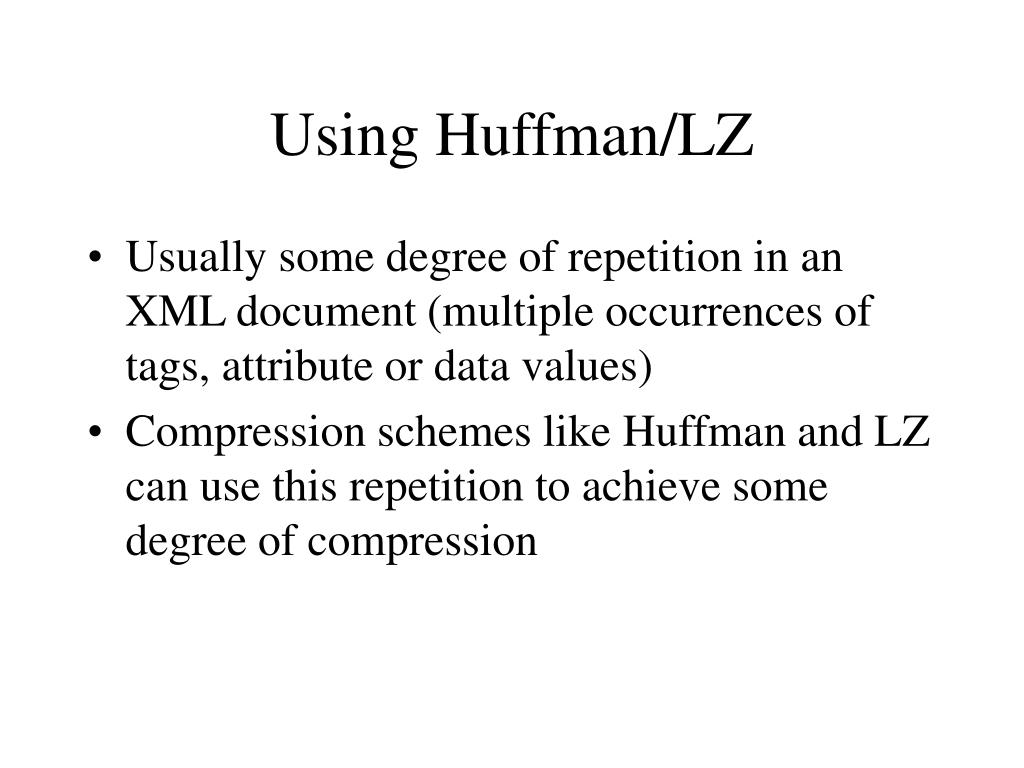

Using Huffman/LZ

  • Usually some degree of repetition in an XML document (multiple occurrences of tags, attribute or data values)

  • Compression schemes like Huffman and LZ can use this repetition to achieve some degree of compression


Using huffman lz 2

Using Huffman/LZ: 2

  • Many existing (and efficient) implementations of these algorithms are readily available (e.g. gzip)

  • Downside is that these techniques aren’t fully capable of exploiting the structure of XML to achieve greater compression


Huffman encoding example

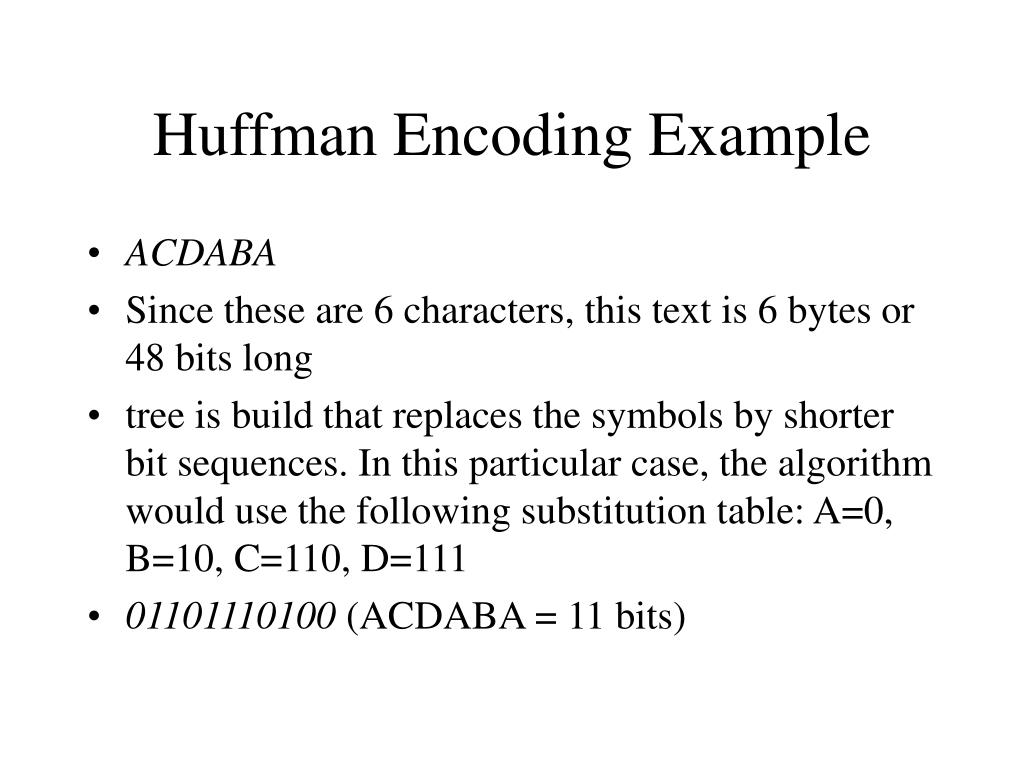

Huffman Encoding Example

  • ACDABA

  • Since these are 6 characters, this text is 6 bytes or 48 bits long

  • tree is build that replaces the symbols by shorter bit sequences. In this particular case, the algorithm would use the following substitution table: A=0, B=10, C=110, D=111

  • 01101110100 (ACDABA = 11 bits)


Lz77 example dictionary based compressors

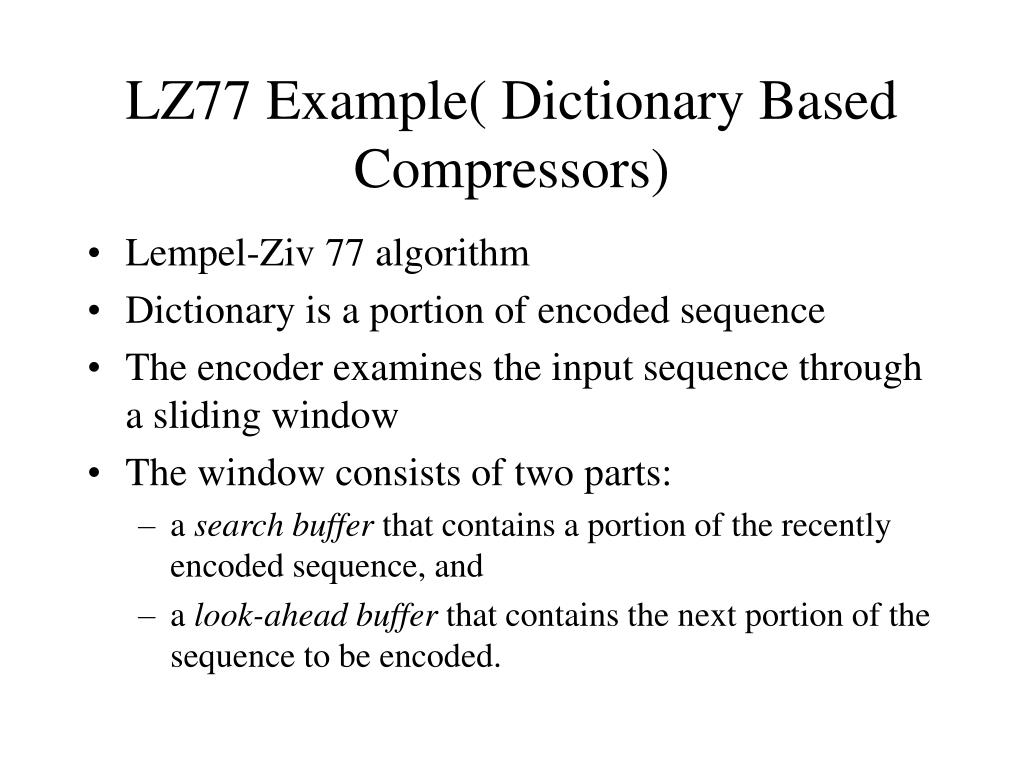

LZ77 Example( Dictionary Based Compressors)

  • Lempel-Ziv 77 algorithm

  • Dictionary is a portion of encoded sequence

  • The encoder examines the input sequence through a sliding window

  • The window consists of two parts:

    • a search buffer that contains a portion of the recently encoded sequence, and

    • a look-ahead buffer that contains the next portion of the sequence to be encoded.


Xmill liefke and suciu 2000

XMill (Liefke and Suciu, 2000)

  • Relies heavily on zlib, the compression library used in gzip

  • Also defines a few data type specific compressors; user-defined compressors can be added using SCAPI (Semantic Compressor API)

  • During compression, each XML tag is examined to see which compression technique(s) should be applied


Xml compression1

XML Compression

  • View XML as a tree

  • Separate the tree structure and what is stored in leaves

  • Save the tree structure so that it can be restored

  • The compressed file may or may not remember the tree structure

breadfruit tree


Xmill compression strategy

XMill: Compression Strategy

  • XMill applies 3 principles during compression:

    • Separate structure (element tags and attribute names) from data

    • Group related data items in a single container; compress each container separately

    • Apply appropriate semantic compressors to each container


Xmill separating structure from content

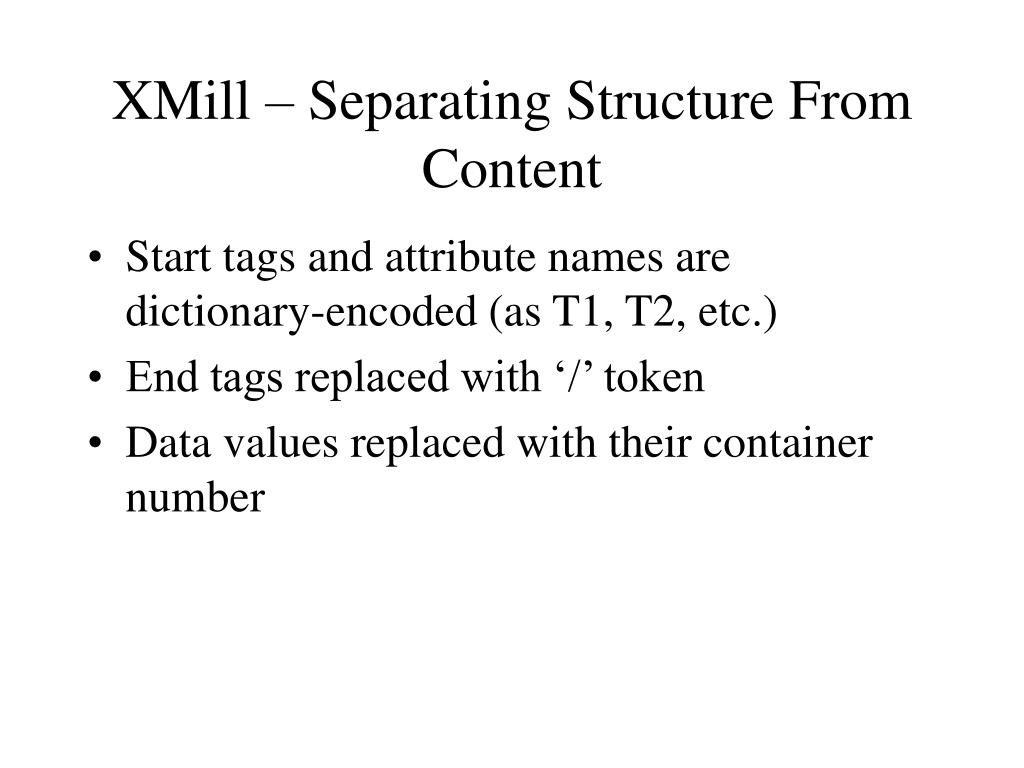

XMill – Separating Structure From Content

  • Start tags and attribute names are dictionary-encoded (as T1, T2, etc.)

  • End tags replaced with ‘/’ token

  • Data values replaced with their container number


Xmill separating structure from content 2

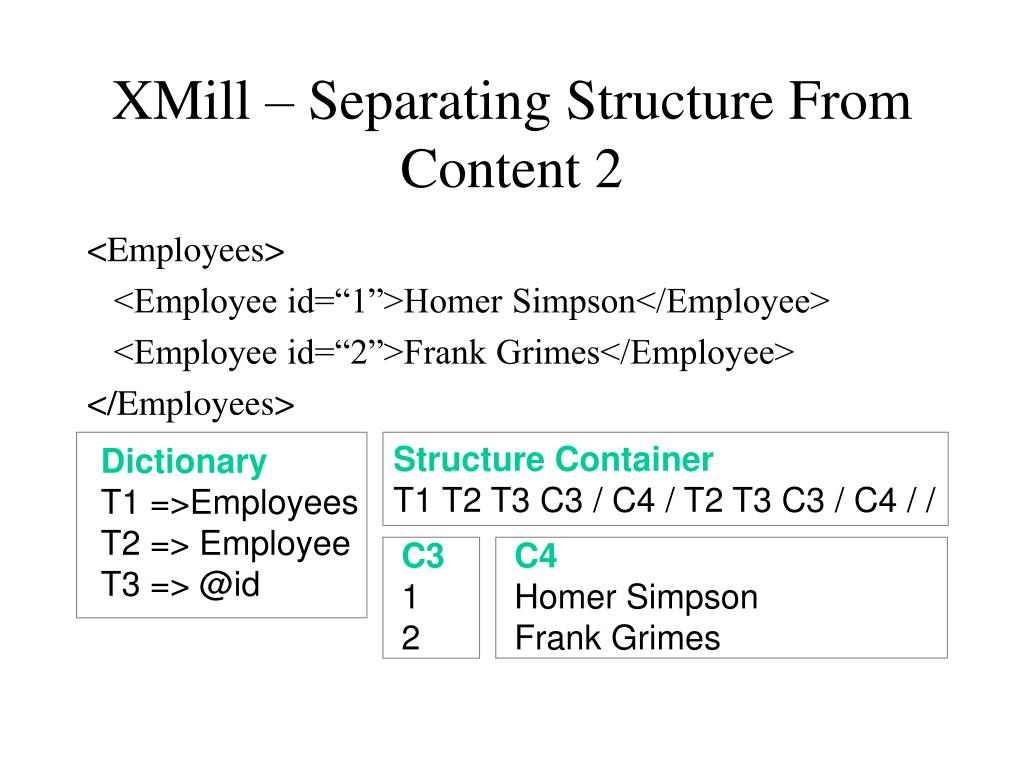

XMill – Separating Structure From Content 2

<Employees>

<Employee id=“1”>Homer Simpson</Employee>

<Employee id=“2”>Frank Grimes</Employee>

</Employees>

Structure Container

T1 T2 T3 C3 / C4 / T2 T3 C3 / C4 / /

Dictionary

T1 =>Employees

T2 => Employee

T3 => @id

C3

1

2

C4

Homer Simpson

Frank Grimes


Xmill container expressions

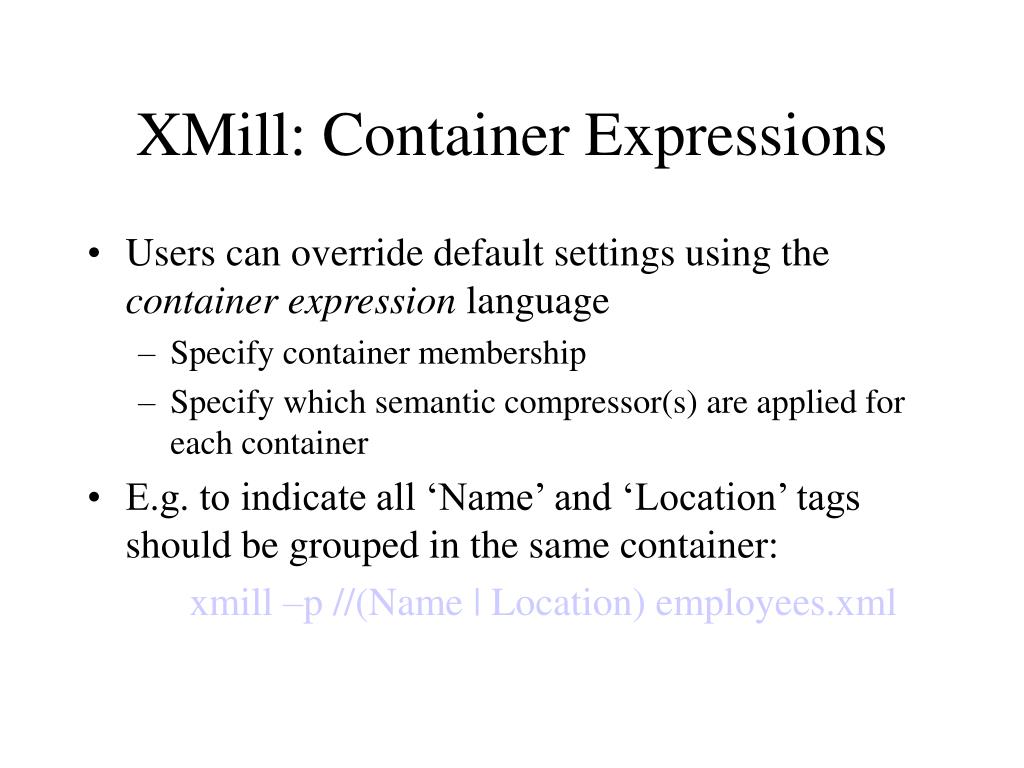

XMill: Container Expressions

  • Users can override default settings using the container expression language

    • Specify container membership

    • Specify which semantic compressor(s) are applied for each container

  • E.g. to indicate all ‘Name’ and ‘Location’ tags should be grouped in the same container:

    xmill –p //(Name | Location) employees.xml


Xmill semantic compressors

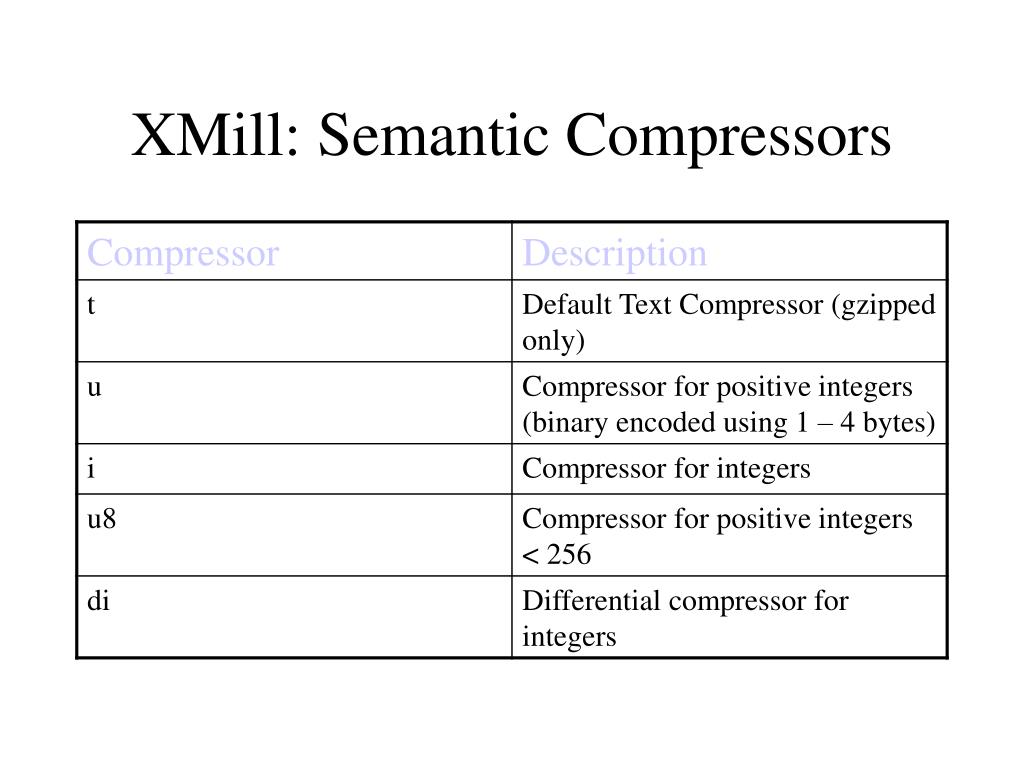

XMill: Semantic Compressors


Xmill semantic compressors 2

XMill: Semantic Compressors 2


Xmill semantic compressors 3

XMill: Semantic Compressors 3

  • Text compressor is applied to each element by default

  • User can add other instructions via command line:

    xmill –p //price=>i file.xml

    Applies integer compressor to each occurrence of ‘price’ element in file.xml


Xmill architecture 1 3

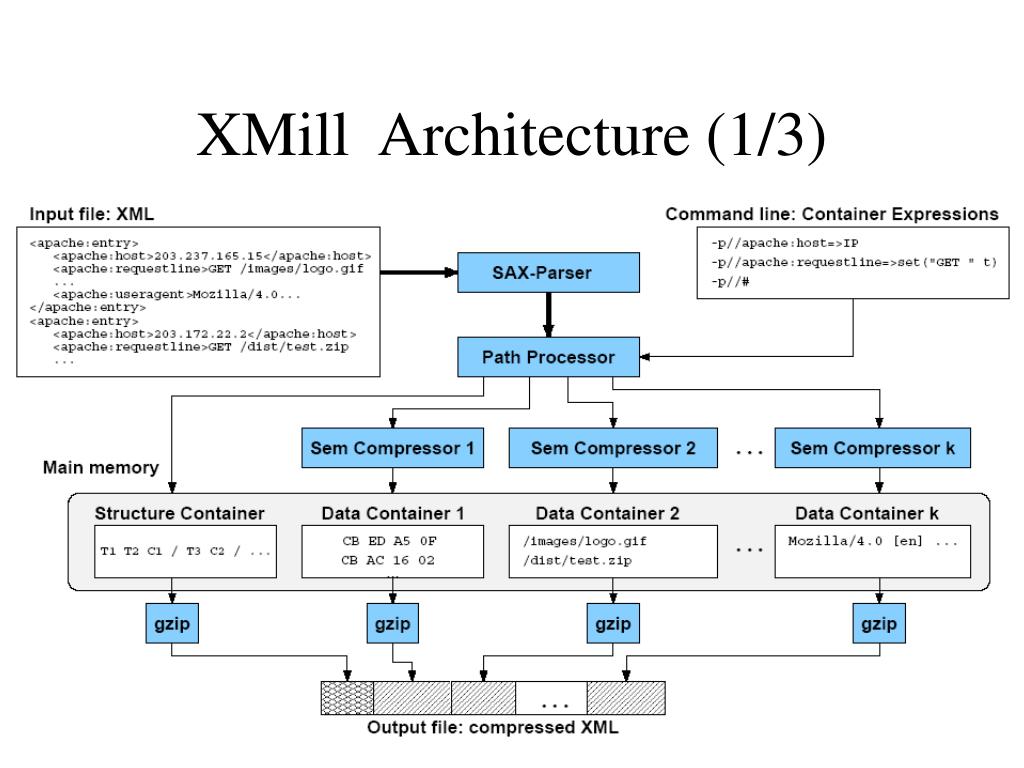

XMill Architecture (1/3)


Xmill architecture 2 3

XMill Architecture (2/3)

  • SAX Parser

    • sends tokens to the path processor.

  • Path Processor

    • determines how to map data values to containers.

  • Semantic Compressors

    • compresses the input and copies it to the container – in the memory window.

    • E.x. binary encoding of integers, differential compressors.

      When the window is filled, all containers are gzipped, stored on disk, and the compression resumes.


Performance evaluation 1 2

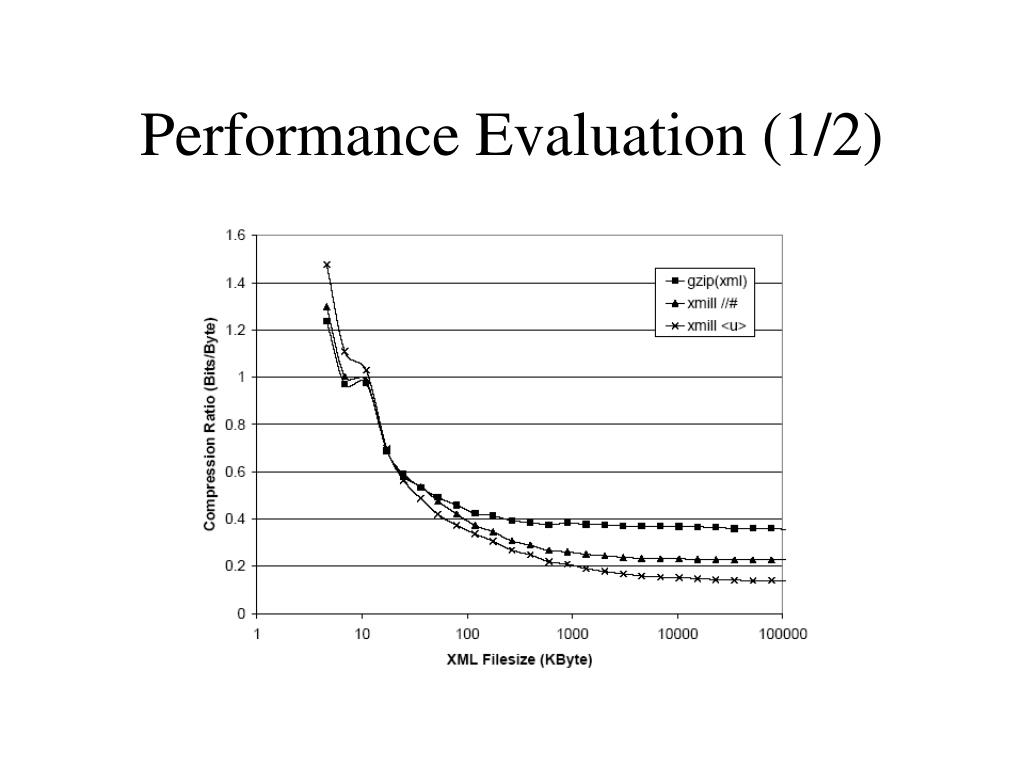

Performance Evaluation (1/2)


Performance evaluation 2 2

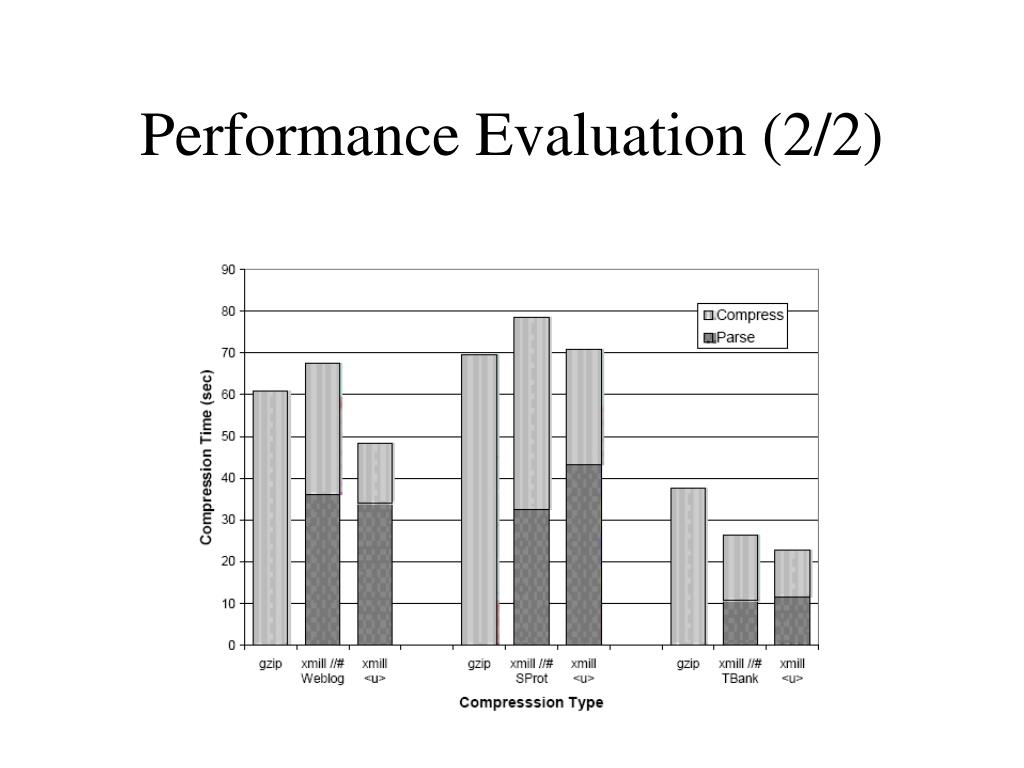

Performance Evaluation (2/2)


References

References

  • XMill:An efficent Compressor for XML Data

  • XGrind:A query friendly compressor

  • www.cs.washington.edu/homes/ suciu/COURSES/590DS/19compression.ppt


Xml compression

  • Questions ?
