Presentation Transcript


Chapter 14

Chapter 14

Regular Polygons and the Circle


Regular polygons

Regular Polygons

  • A regular polygon is a convex polygon that is both equilateral and equiangular

Regular

hexagon

Regular

pentagon

Equilateral

triangle

square


Theorem every regular polygon is cyclic

Theorem : Every regular polygon is cyclic

  • Given: ABCDE is a regular polygon

  • Prove: ABCDE is cyclic

Draw the circle that contains points A, B, and C, and let its center be called O.

Draw OA, OB, OC, and OD.

OB=OC (all radii of a circle are equal)

Therefore, 1= 2 (if 2 sides of a triangle are equal, the are equal, the angles opposite them are equal)

Because ABC= BCD (a regular polygon is equiangular), 3= 4 (subtraction).

Also, AB = CD (a regular polygon is equilateral), and so ∆OBA =∆OCD (SAS)

Therefore, OD= OA

And because OA is the radius of the circle, it follows that OD also is a radius.


Vocab

Vocab…

  • A polygon whose vertices lie on a circle is inscribed in the circle and the circle is circumscribed about the polygon

  • The center of a regular polygon is the center of its circumscribed circle

  • The word radius, as for circles, can refer either to a line segment or to a distance: a line segment that connects the center of a regular polygon to a vertex or the distance between the center and that vertex.

  • A central angle of a regular polygon is an angle formed by radii drawn to two consecutive vertices

  • An apothem of a regular polygon is a perpendicular line segment from its center to one of its sides.


The perimeter of a regular polygon

The perimeter of a regular polygon

  • The perimeter of a regular polygon can be found by multiplying the length of a side by the number of sides.

  • Doing so gives us the equation: p= ns

    where p is the perimeter of the polygon

    n is the number of sides

    s is the length of one side


Theorem

Theorem:

  • The perimeter of a regular polygon having n sides is 2Nr

    in which N= n(sin180/n)

    and r is its radius

  • This formula shows that the perimeter of a regular polygon is proportional to tis radius


The area of a regular polygon

The area of a regular polygon

  • The area of a regular polygon having n sides is Mr2

    in which M= n(sin180/n)(cos180/n)

    and r is its radius


Vocab1

Vocab…

  • The polygons are inscribed in the circles; so there is a limit to how large the perimeters can get. This limit is the length, or circumference, of the circle

  • The circumference of a circle is the limit of the perimeters of the inscribed regular polygons


Theorem1

Theorem

  • If the radius of a circle is r, its circumference is 2r

    because the diameter of a circle is twice its radius, it follows from the equations c=2r and d=2r that c=d

  • Corollary:

    If the diameter of a circle is d, its circumference is d

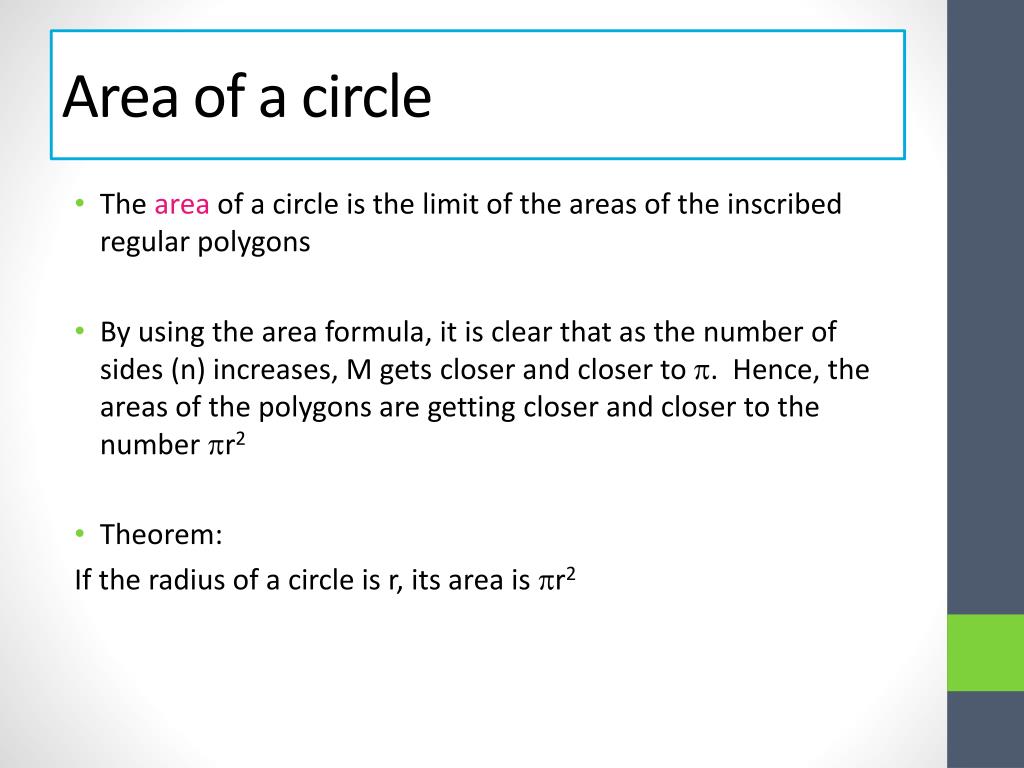

Area of a circle

Area of a circle

  • The area of a circle is the limit of the areas of the inscribed regular polygons

  • By using the area formula, it is clear that as the number of sides (n) increases, M gets closer and closer to . Hence, the areas of the polygons are getting closer and closer to the number r2

  • Theorem:

    If the radius of a circle is r, its area is r2


Sectors and arcs

Sectors and Arcs

  • A sector of a circle is a region bounded by an arc of the circle and the two radii to the endpoints of the arc.

If the circle had a radius of 12 inches, and was cut into 8 equal pieces, the area of each piece is

1/8(12)2 =18 57 square inches

Because the border of the circle (360°) also is divided into eight congruent pieces, each sector has an arc (and central angle) with a measure of

1/8(360°) =45°

The lengths of these eight equal arcs add up to give the circumference of the circle; so each arc has length

1/8(2)(12)= 3 9 inches


Chapter 14

Because the arc of every circle has a measure of 360°, the area of the sector must be m/360 times the area of the circle, or m/360r2 .

The length of its arc is m/360 times the circumference of the circle, or m/360(2)r.

The idea is simple:

If a sector is a certain fraction of a circle, then its area is the same fraction of the circle’s area. If an arc is a certain fraction of a circle, then its length is the same fraction of the circle’s circumference.
