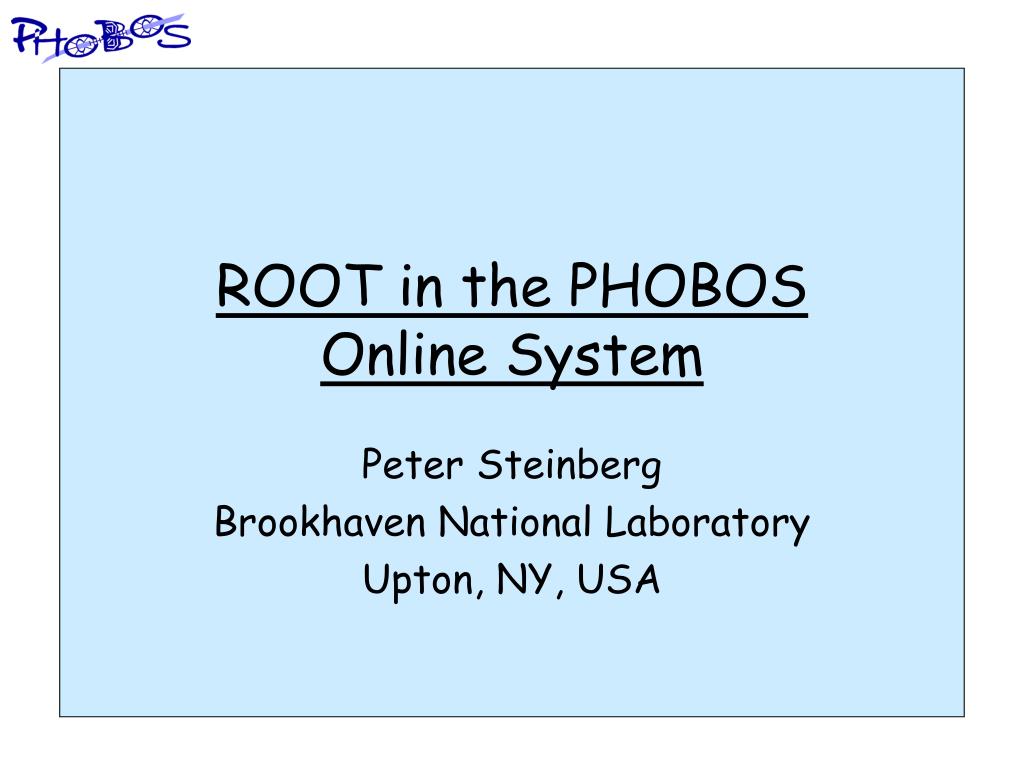

ROOT in the PHOBOSOnline System

Peter Steinberg

Brookhaven National Laboratory

Upton, NY, USA


Phobos experimental setup

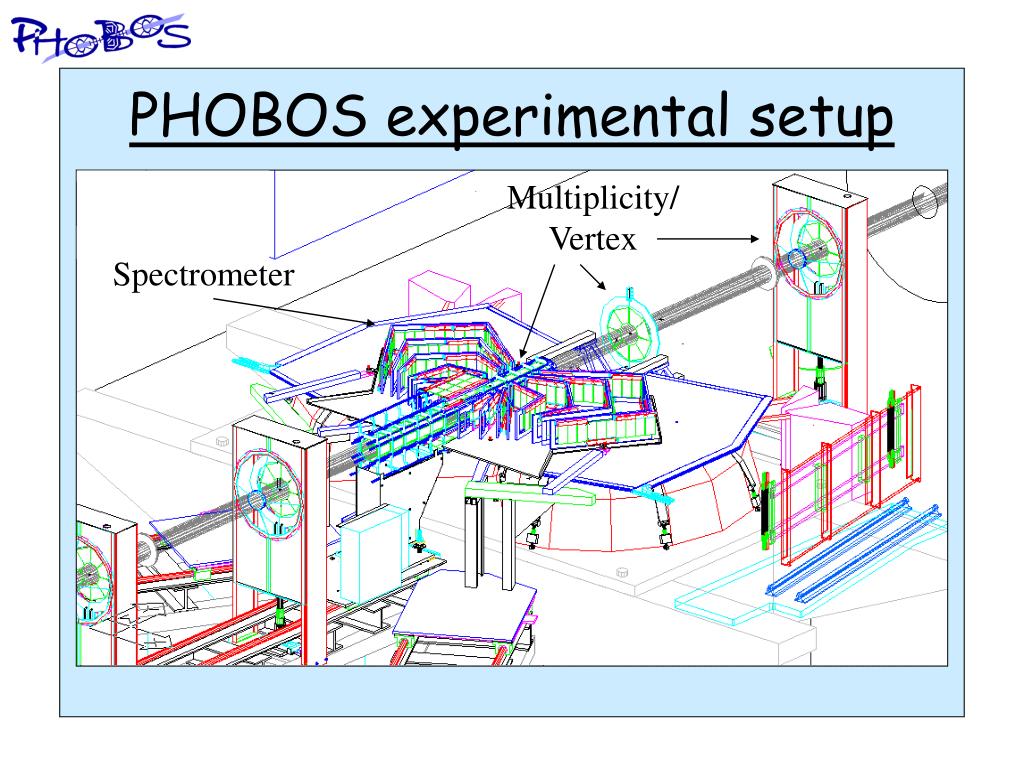

PHOBOS experimental setup

Multiplicity/Vertex

Spectrometer


Readout channels

Readout Channels

  • PHOBOS is meant (CDR) to be a high-rate detector

  • However, while a “small” detector, it has a “big” channel count.

    • Spectrometer

      • 73,728 channels

    • Octagon Multiplicity + Vertex detectors

      • 28,612 channels

    • Ring Multiplicity Detectors

      • 16,384 channels

  • Over 120,000 channels to read out -> 150kB/central event

  • Main Constraint: average bandwidth 10MB/sec allowed by RHIC computing facility (RCF)

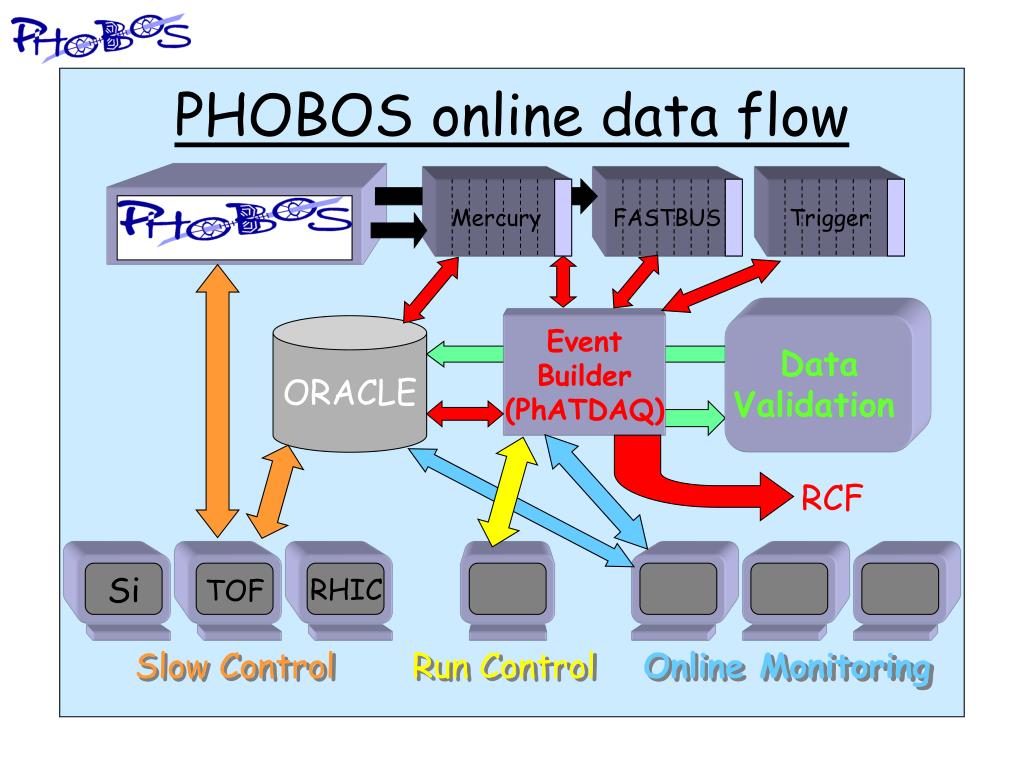

Phobos online data flow

FASTBUS

Trigger

Mercury

PHOBOS online data flow

ORACLE

EventBuilder(PhATDAQ)

DataValidation

RCF

Si

RHIC

TOF

Slow Control

Run Control

Online Monitoring


Phatdaq

PhATDAQ

  • PhAT is the general PHOBOS analysis toolkit (see Gunther Roland’s talk)

  • Originally used for offline tasks

    • Data analysis, algorithms, etc.

  • But what about DAQ?

  • Original DAQ group started to develop using CODA from CEBAF

  • But one day, Andrei Sukhanov (BNL) mentioned that he would try and perform the event building directly using ROOT objects and I/O

  • (very) soon thereafter, PhATDAQ was born


Phatdaq architecture

Legend:

Working

Slow Monitoring

Being developed

Data Base

ROCDB

Gateway

Work started

Work not started yet

TCP TSocket

events

UDP

socket

PhatOnline

Silicon

ROC

Event

Builder

phatdaq.exe

TOF

Data

Run Control

(root/phat)

ROC

Trigger

ROC

Data & Commands

PhATDAQ Architecture

(Andrei Sukhanov, BNL)

Structure of the communication messages

Gigabit

Message:

SubEvent:

Length

Length

Seq.number

Header length

Command

Source

Type

Event# from Event Manager

ROC:

SubEvent or Command

SubEvent

SubEvent

0x12345678

EB interface

Run number

Data

Data taking


Phatdaq data format

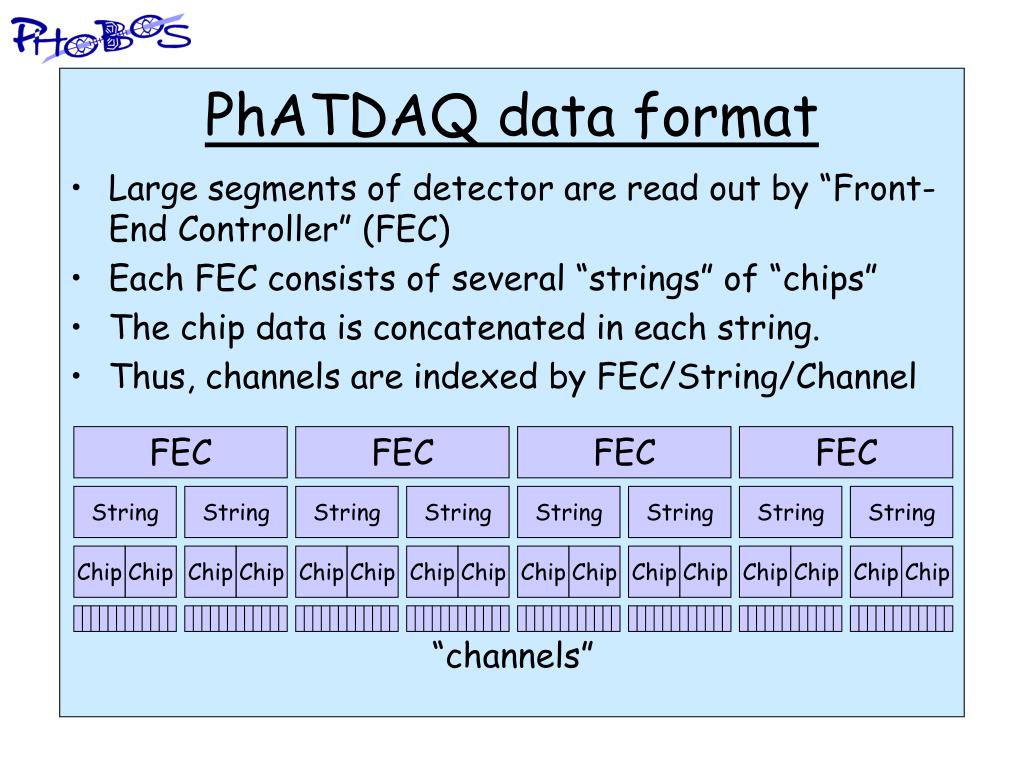

PhATDAQ data format

  • Large segments of detector are read out by “Front-End Controller” (FEC)

  • Each FEC consists of several “strings” of “chips”

  • The chip data is concatenated in each string.

  • Thus, channels are indexed by FEC/String/Channel

FEC

FEC

FEC

FEC

String

String

String

String

String

String

String

String

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

Chip

“channels”


Root in phatdaq

ROOT in PhATDAQ

  • ROOT objects are used to store and access raw data

    • Each FEC is its own object, which contains arrays of string data.

  • Trees are used for raw data files

    • one event after the other, no tags as of yet.

  • Heavy use of ROOT containers for flexibility

    • Our TPhEvent class is a hash table which store relevant objects (TPhDataObject, TPhObjectContainer)

    • However, hashtables are “heavy” -- we have a substitute object (TPhSubEventArray) which can be turned into a TPhEvent and vice versa.

  • PhATDAQ has been working perfectly for 6 months

  • Extensive performance benchmarks to come.


Run control

Run Control

  • So far, CINT is our run control interface

    • .L runcontrol.cxx

    • rc_start_run()

    • rc_end_run(), etc.

  • Works very well

    • flexible

    • robust

  • DAQ team is conspiring to move to a GUI

  • Inspired by NA45 RC GUI


  • Online monitoring

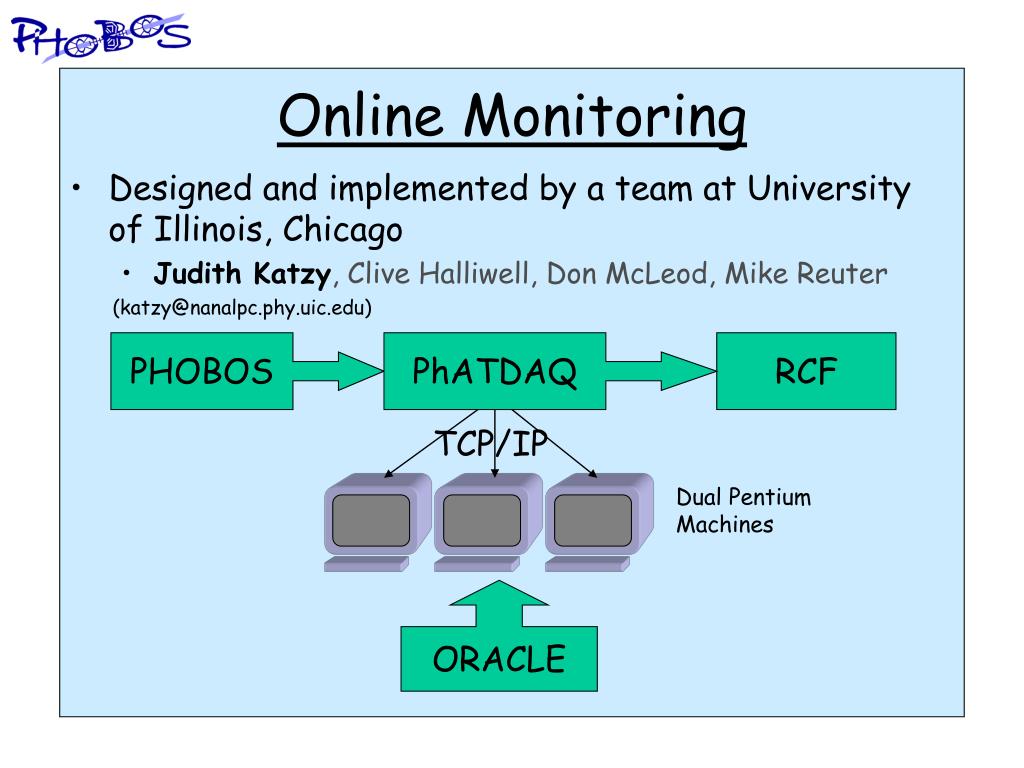

    Online Monitoring

    • Designed and implemented by a team at University of Illinois, Chicago

      • Judith Katzy, Clive Halliwell, Don McLeod, Mike Reuter

    ([email protected])

    PHOBOS

    PhATDAQ

    RCF

    TCP/IP

    Dual Pentium Machines

    ORACLE


    Monitoring implementation

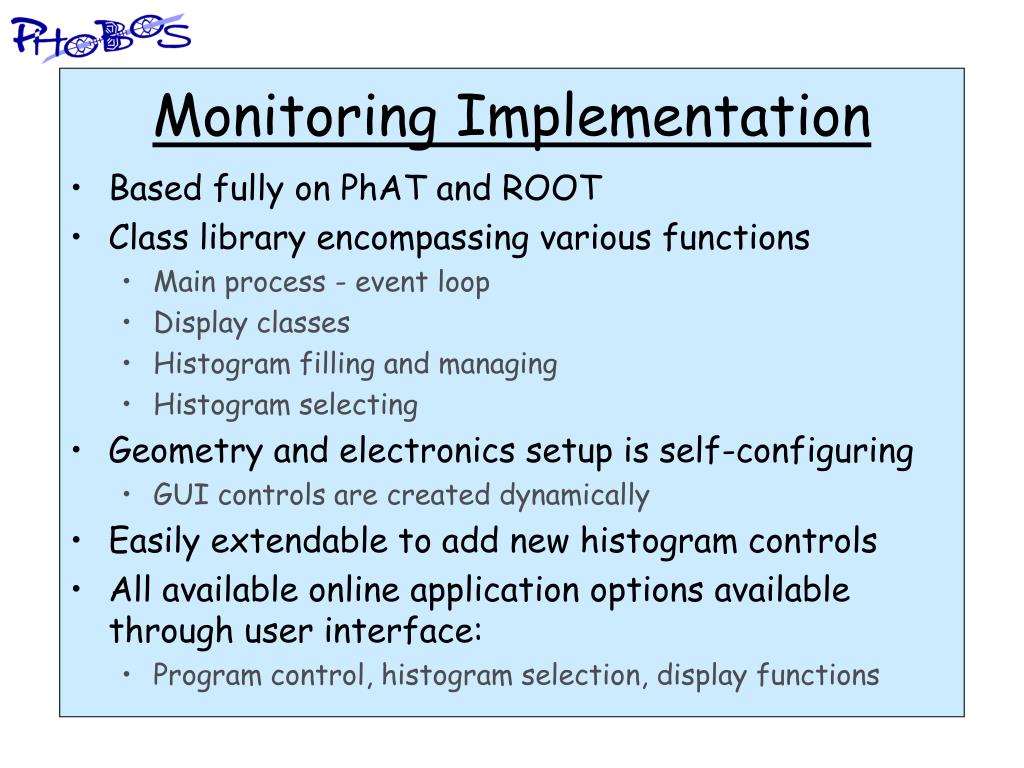

    Monitoring Implementation

    • Based fully on PhAT and ROOT

    • Class library encompassing various functions

      • Main process - event loop

      • Display classes

      • Histogram filling and managing

      • Histogram selecting

    • Geometry and electronics setup is self-configuring

      • GUI controls are created dynamically

    • Easily extendable to add new histogram controls

    • All available online application options available through user interface:

      • Program control, histogram selection, display functions


    Online monitoring gui

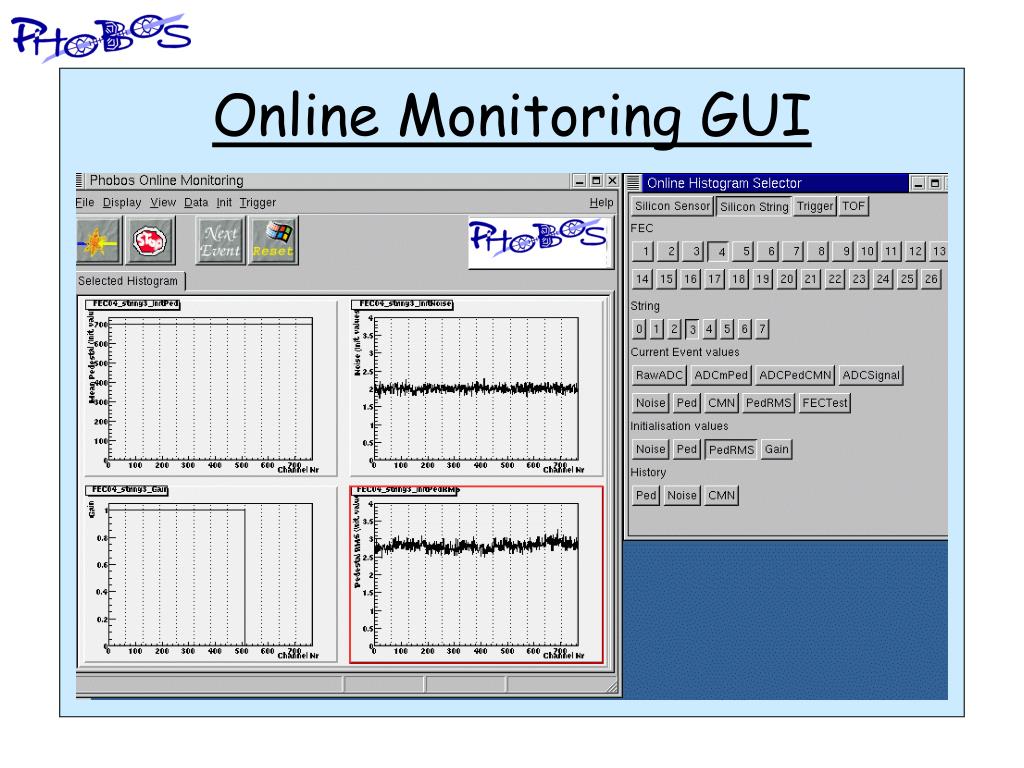

    Online Monitoring GUI

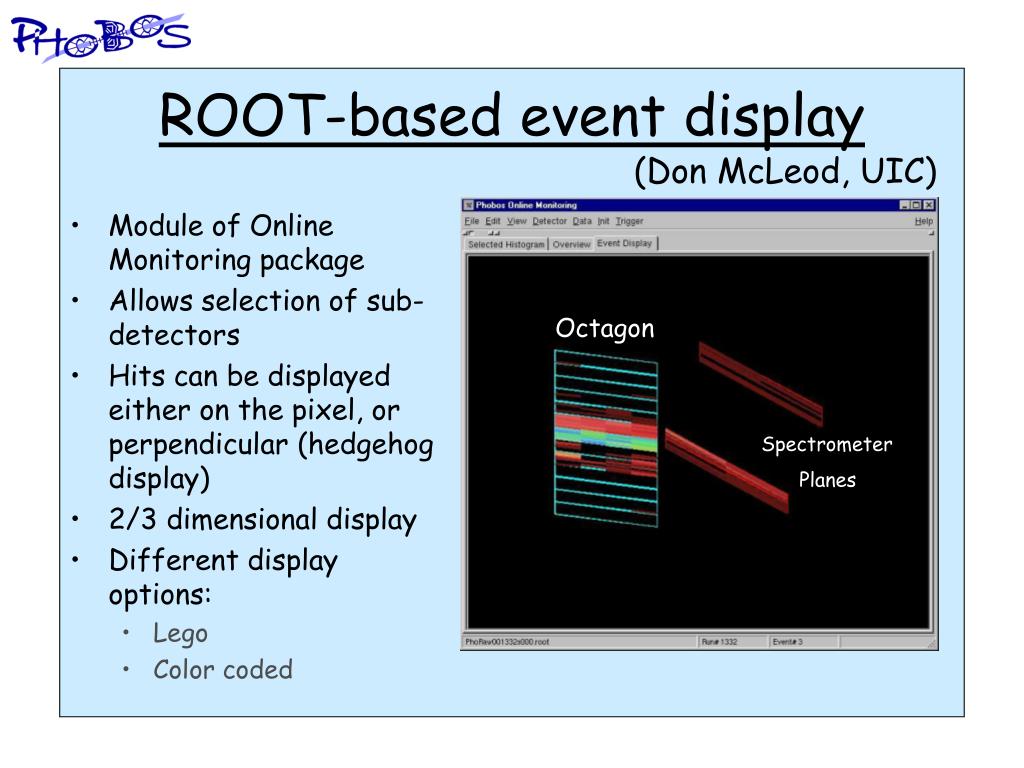

    Root based event display

    Module of Online Monitoring package

    Allows selection of sub-detectors

    Hits can be displayed either on the pixel, or perpendicular (hedgehog display)

    2/3 dimensional display

    Different display options:

    Lego

    Color coded

    ROOT-based event display

    (Don McLeod, UIC)

    Octagon

    Spectrometer

    Planes


    More event displays

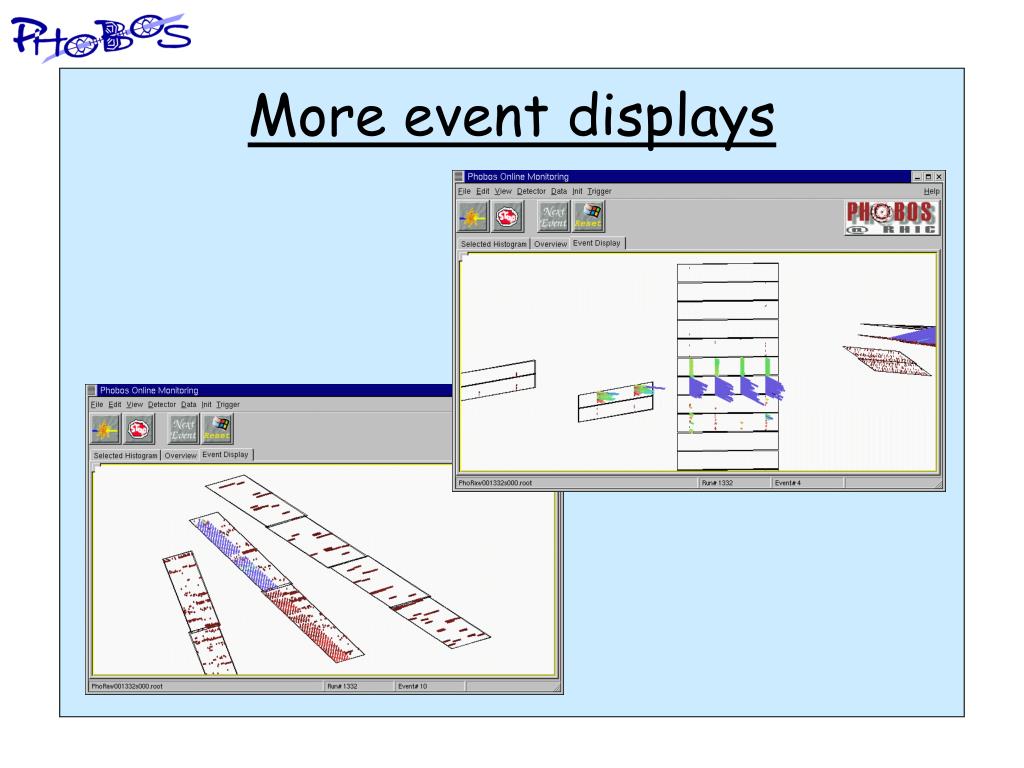

    More event displays


    Oracle root phat

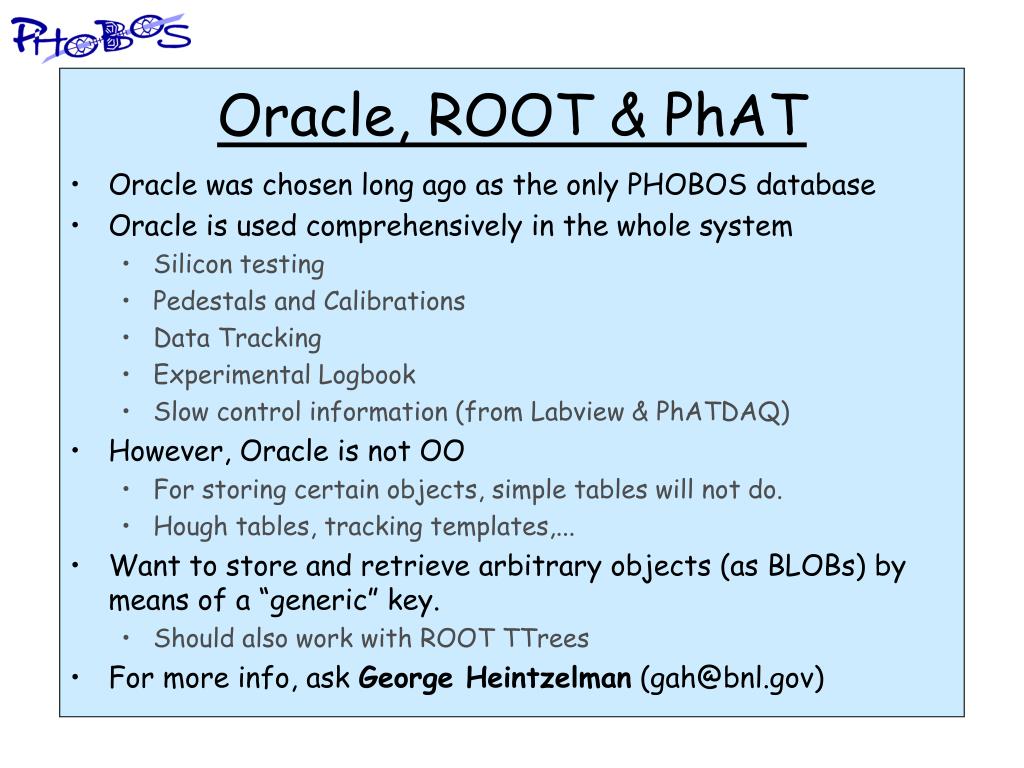

    Oracle, ROOT & PhAT

    • Oracle was chosen long ago as the only PHOBOS database

    • Oracle is used comprehensively in the whole system

      • Silicon testing

      • Pedestals and Calibrations

      • Data Tracking

      • Experimental Logbook

      • Slow control information (from Labview & PhATDAQ)

    • However, Oracle is not OO

      • For storing certain objects, simple tables will not do.

      • Hough tables, tracking templates,...

    • Want to store and retrieve arbitrary objects (as BLOBs) by means of a “generic” key.

      • Should also work with ROOT TTrees

    • For more info, ask George Heintzelman ([email protected])


    Signal processing in phat

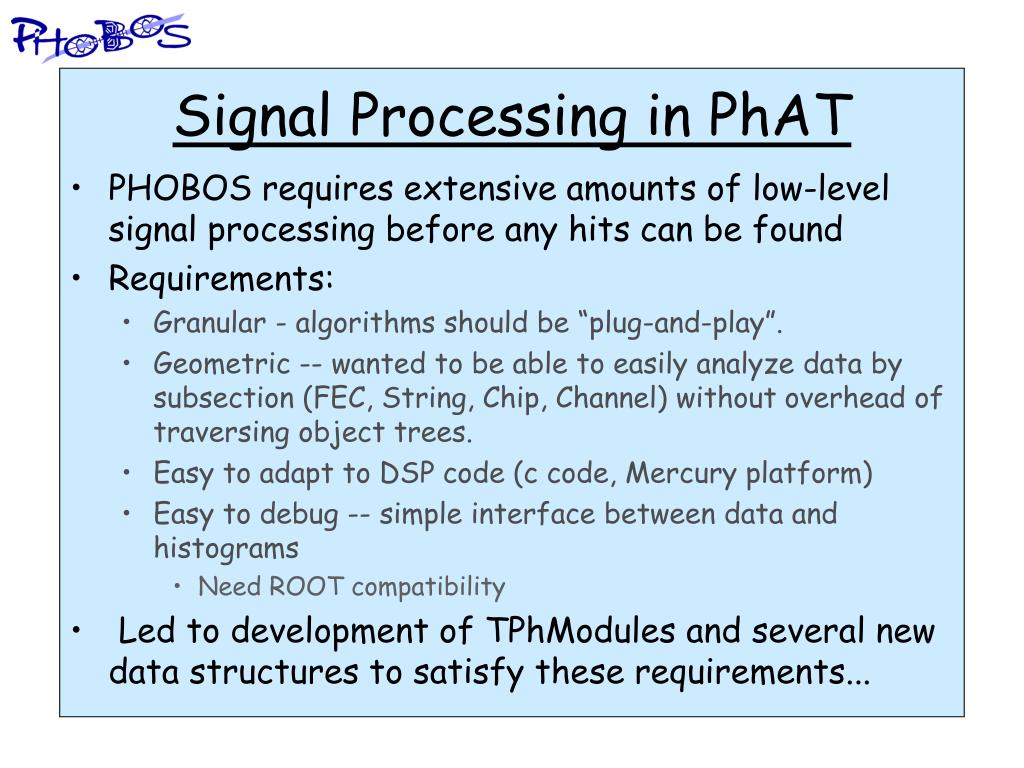

    Signal Processing in PhAT

    • PHOBOS requires extensive amounts of low-level signal processing before any hits can be found

    • Requirements:

      • Granular - algorithms should be “plug-and-play”.

      • Geometric -- wanted to be able to easily analyze data by subsection (FEC, String, Chip, Channel) without overhead of traversing object trees.

      • Easy to adapt to DSP code (c code, Mercury platform)

      • Easy to debug -- simple interface between data and histograms

        • Need ROOT compatibility

    • Led to development of TPhModules and several new data structures to satisfy these requirements...


    Tphtopology

    TPhTopology

    (George Heintzelman, BNL)

    • Any particular geometry has a fixed electronics structure

    • Thus, every channel has a well defined location

    • This lets us store a set of values as a flat array.

    • The detector topology can then be used to find the start of data! We can iterate from there.

    FEC Detector

    FEC

    FEC

    FEC

    FEC

    String

    String

    String

    String

    String

    String

    String

    String

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    Chip

    “TopoData”


    Tphtopodata

    TPhTopoData

    • With this “topology” we can create data structures of different “depths”

      • “Channel Depth” - one entry for each channel

      • “Chip Depth” - one entry for each chip (e.g. for CMN studies…)

      • etc.

    • The contents of this structure can in principle be any object ( working w/ templates in CINT)

      • Integer, Float, etc.

      • Any TObject - TPhHistogram, TPhCalibration, TPhFrog, etc.

    NEW


    Application to signal processing

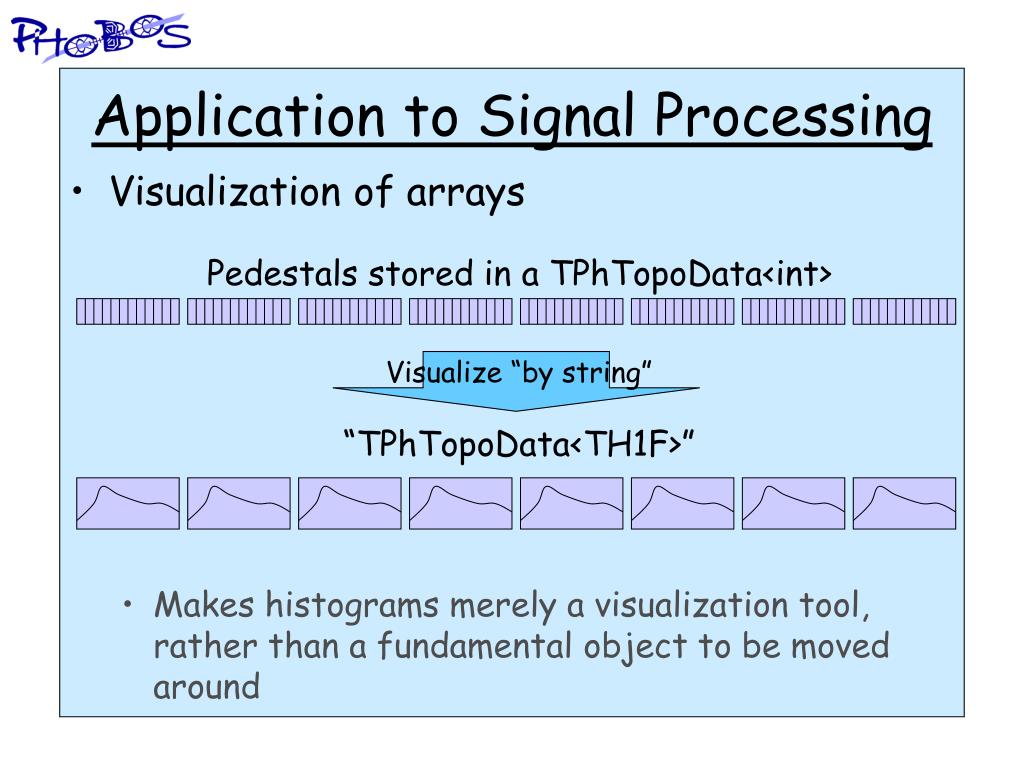

    Application to Signal Processing

    • Visualization of arrays

      • Makes histograms merely a visualization tool, rather than a fundamental object to be moved around

    Pedestals stored in a TPhTopoData<int>

    Visualize “by string”

    “TPhTopoData<TH1F>”


    Things we d like to see

    Things we’d like to see...

    • A collection from the collaboration:

      • More & Better Template support

        • reduces code duplication, increases type-safety

        • need working examples, esp. w/ STL

      • Simple shared memory interface

        • At least a way to directly share simple structures with an object interface

        • Maybe not as critical if thread support improves

      • Rationalization of the relationship between objects and TDirectories

        • “now, where did my pointer go?…”

        • Instead, had to roll our own (TPhObjectManager)


    And something we really need

    And something we really need

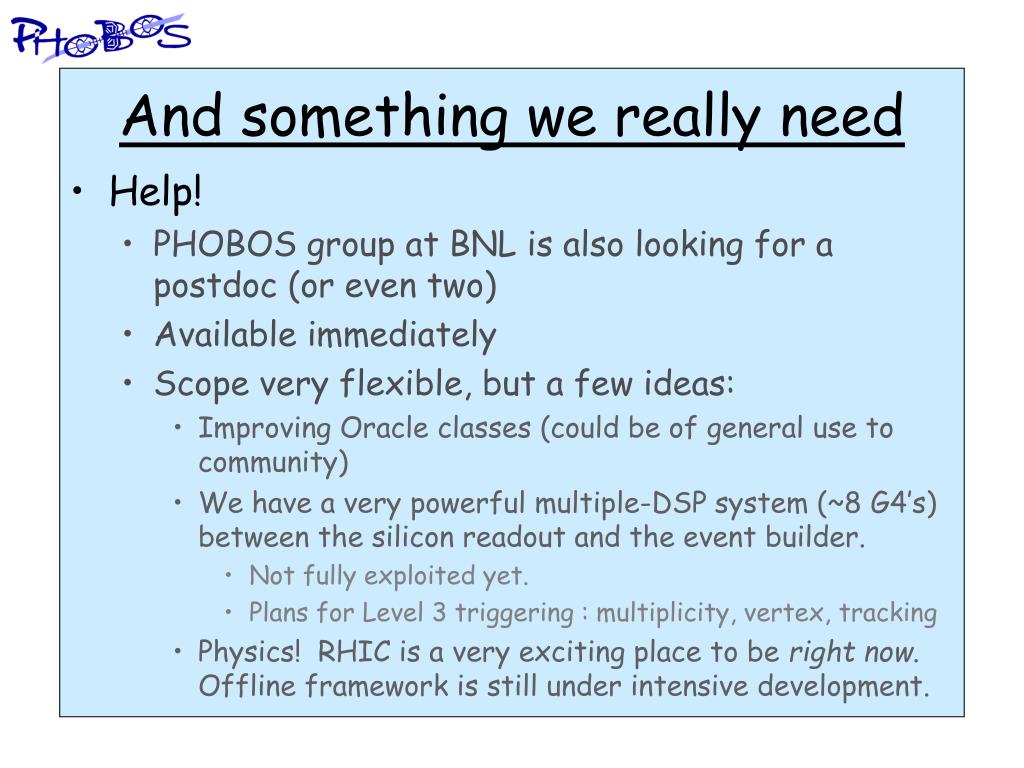

    • Help!

      • PHOBOS group at BNL is also looking for a postdoc (or even two)

      • Available immediately

      • Scope very flexible, but a few ideas:

        • Improving Oracle classes (could be of general use to community)

        • We have a very powerful multiple-DSP system (~8 G4’s) between the silicon readout and the event builder.

          • Not fully exploited yet.

          • Plans for Level 3 triggering : multiplicity, vertex, tracking

        • Physics! RHIC is a very exciting place to be right now. Offline framework is still under intensive development.
