1 / 8

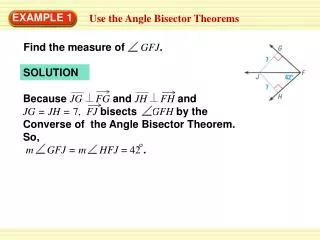

EXAMPLE 1

Find the measure of ∠ GFJ. Because JG FG and JH FH and JG = JH = 7, FJ bisects GFH by the Converse of the Angle Bisector Theorem. So, m GFJ = m HFJ = 42. o. EXAMPLE 1. Use the Angle Bisector Theorems. SOLUTION.

Download Presentation

EXAMPLE 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Find the measure of ∠ GFJ. Because JG FGand JH FHand JG =JH = 7, FJ bisects GFH by the Converse of the Angle Bisector Theorem. So,m GFJ =m HFJ = 42 . o EXAMPLE 1 Use the Angle Bisector Theorems SOLUTION

  2. A soccer goalie’s position relative to the ball and goalposts forms congruent angles, as shown. Will the goalie have to move farther to block a shot toward the right goalpost Ror the left goalpost L? EXAMPLE 2 Solve a real-world problem SOCCER

  3. The congruent angles tell you that the goalie is on the bisector of LBR. By the Angle Bisector Theorem, the goalie is equidistant from BRand BL. So, the goalie must move the same distance to block either shot. EXAMPLE 2 Solve a real-world problem SOLUTION

  4. For what value of xdoes Plie on the bisector of A? From the Converse of the Angle Bisector Theorem, you know that P lies on the bisector of Aif Pis equidistant from the sides of A, so when BP =CP. CP BP = 2x –1 x + 3 = 4 = x Point Plies on the bisector of Awhen x = 4. EXAMPLE 3 Use algebra to solve a problem ALGEBRA SOLUTION Set segment lengths equal. Substitute expressions for segment lengths. Solve for x.

  5. B P 1. A C From the Converse of the Angle Bisector Theorem, you know that P lies on the bisector of Aif Pis equidistant from the sides of A, so when BP =CP. CP BP = 15 = x for Examples 1, 2, and 3 GUIDED PRACTICE In Exercises 1–3, find the value of x. SOLUTION Set segment lengths equal. Solve for x.

  6. B 2. P A From the Converse of the Angle Bisector Theorem, you know that P lies on the bisector of Aif Pis equidistant from the sides of A, so when C BAP = BAP = CAP CAP 11 = x for Examples 1, 2, and 3 GUIDED PRACTICE In Exercises 1–3, find the value of x. SOLUTION Set angle equal. 3x + 5 = 4x – 6 Substitute expressions for segment lengths. Solve for x.

  7. 3. SOLUTION From the Converse of the Angle Bisector Theorem, you know that P lies on the bisector of Aif Pis equidistant from the sides of A, so when BP =CP. CP BP = 6x –5 5x = 5 = x for Examples 1, 2, and 3 GUIDED PRACTICE In Exercises 1–3, find the value of x. P B C A Set segment lengths equal. Substitute expressions for segment lengths. Solve for x.

  8. In Exercises 1–3, find the value of x. Do you have enough information to conclude that QSbisects PQR? Explain. 4. No; you need to establish thatSR QRand SP QP. for Examples 1, 2, and 3 GUIDED PRACTICE SOLUTION
