Upgrades Week – November 2011

1. Upgrades Week – November 2011 • Goals for the November Upgrade week • Schedule for Phase I • Work towards TP for Phase II J. Nash - CMS Upgrades

2. CMS Upgrade Weeks • This is the 12th CMS Upgrade “event” • Started with Upgrade Workshops • First in Feb 2004 • We have held two previous workshops at FNAL (2008,2009) • These have been very successful as workshops • Lots of opportunity for discussion • Away from CERN we tend to allocate more time for discussion J. Nash - CMS Upgrades

3. Reminder: CMS Upgrade Scope

4. CMS Upgrades Project Status: • We have been focused on producing the Technical Proposal for the first decade of operation • Now this part of the project is moving into construction • We need to begin to prepare a technical proposal for the second decade of operation • Increase R&D • Take some strategic decisions J. Nash - CMS Upgrades

5. CSC Factory B904 hall Gluing Winding CSC assembly Wire soldering Component soldering

6. RPC Assembly/Installation Assembly and installation trial test of one 10 degree sector happened this week

7. New CMS central beampipe 3120 CMS E & I, for C. Schaefer support Issues: Impedance, HOM etc: shape OK Vacuum stability: static OK, dynamic to do Support collar on cone at 1630 mm: OK Aperture: OK! see today’s presentations. Materials and Construction: work to do: Cones 1450 -->1948 machined from Be or AlBe Considering replacing SS conical section (up to bellows junction with Endcap pipe at 3.12m) with AlBe. AlBe to Be braise to be studied Lighter pipe, as strong, reduces sag, activation and backgrounds, eliminates transition piece.

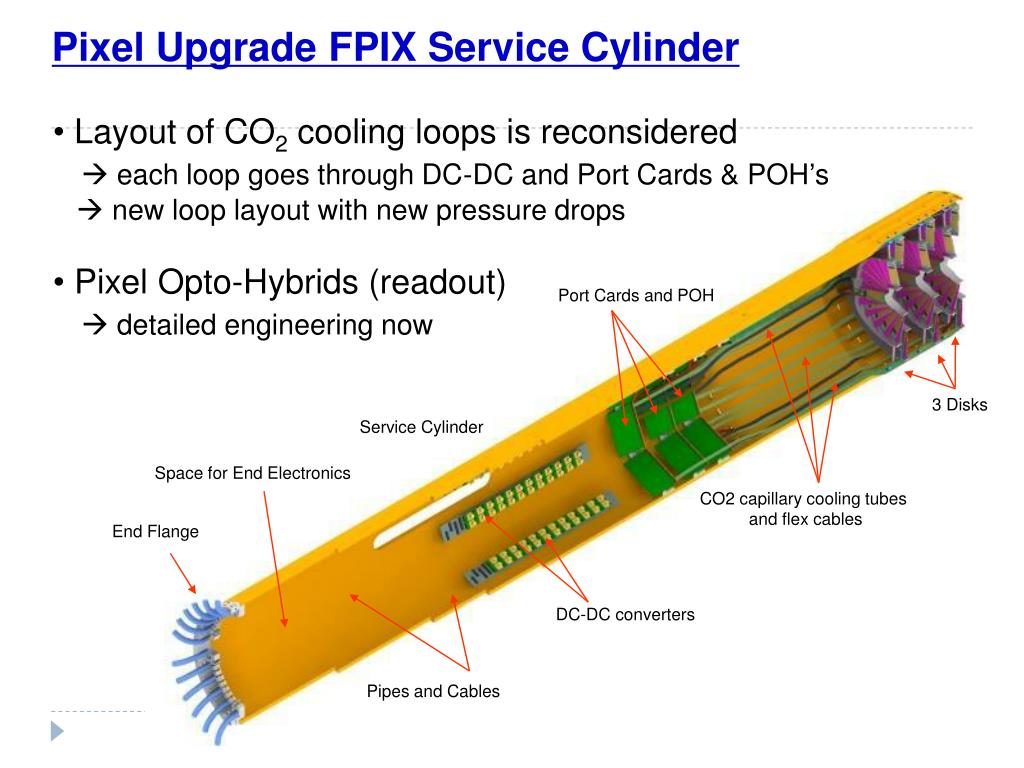

8. Pixel Upgrade FPIX Service Cylinder • Layout of CO2 cooling loops is reconsidered •  each loop goes through DC-DC and Port Cards & POH’s •  new loop layout with new pressure drops • Pixel Opto-Hybrids (readout) •  detailed engineering now Port Cards and POH 3 Disks Service Cylinder Space for End Electronics CO2 capillary cooling tubes and flex cables End Flange DC-DC converters Pipes and Cables

9. Outer Assembly Mounts X3 Pixel Upgrade FPIX half-disk Inner Assembly Mounts X3 • FPIX module 16 pixel ROC • Each blade has 2 modules • Half disk: - inner: 11 blades - outer : 17 blades - independent mount to service cylinder  allows independent removal new ! new ! FPIX blade SS Tubing Coupling X6 9

10. HCAL Upgrade SiPM Recent Results • Pixel dead-time issue solved in 15m Hamamatsu Device • 99% cell recovery after 15ns • Dynamic range limitations overcome using large area SiPMs • 22k pixels per readout channel • 4 optically-mixed tile-fibers per SiPM • First results from new 15m Hamamatsu devices tested with Electro-Optical Decoding Units in H2 test beam at CERN in July are positive • Will proceed with establishing HPK as a baseline for the upgrade • Meanwhile continue to qualify other vendors, final choice by end of 2012 D. Baden

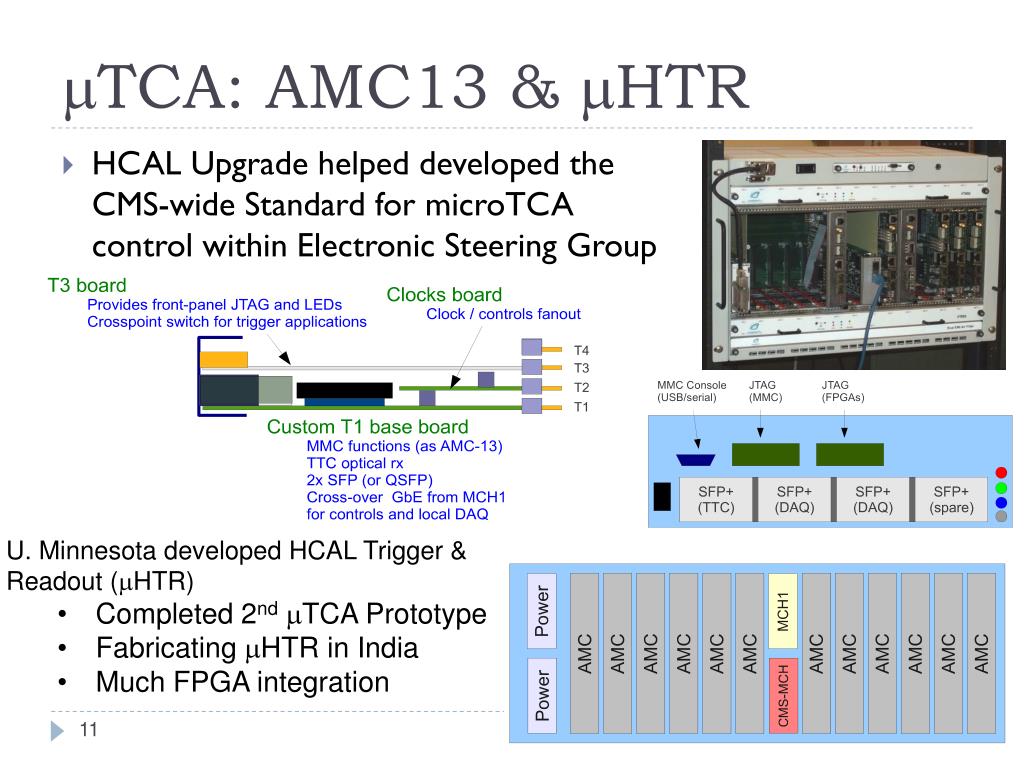

11. mTCA: AMC13 & mHTR • HCAL Upgrade helped developed the CMS-wide Standard for microTCA control within Electronic Steering Group • U. Minnesota developed HCAL Trigger & Readout (mHTR) • Completed 2ndmTCA Prototype • Fabricating mHTR in India • Much FPGA integration D. Baden

12. Calorimeter Trigger Designs • Several prototype uTCA trigger cards have been built and have been shown to work. Working demonstrators at the crate level exist also. • Two calorimeter trigger architectures are under consideration. • We have organised a review for the two Calorimeter Trigger architectures. The aim of the review is: • to select the architecture which best serves CMS for the next decade. • Produce a plan for the two relevant groups (Wisconsin-Imperial) to work together towards the final design.

13. ECAL–Trigger Interface - OptoSLB • Converts ECAL copper signals to 4.8 GBps optical and allows to keep using the current ECAL Trigger electronics after 2014. • Bought 4 optical devices for evaluation. • Design effort for the card has started. • First prototypes have been promised late in 2011 early 2012. • Production should start in 2012.

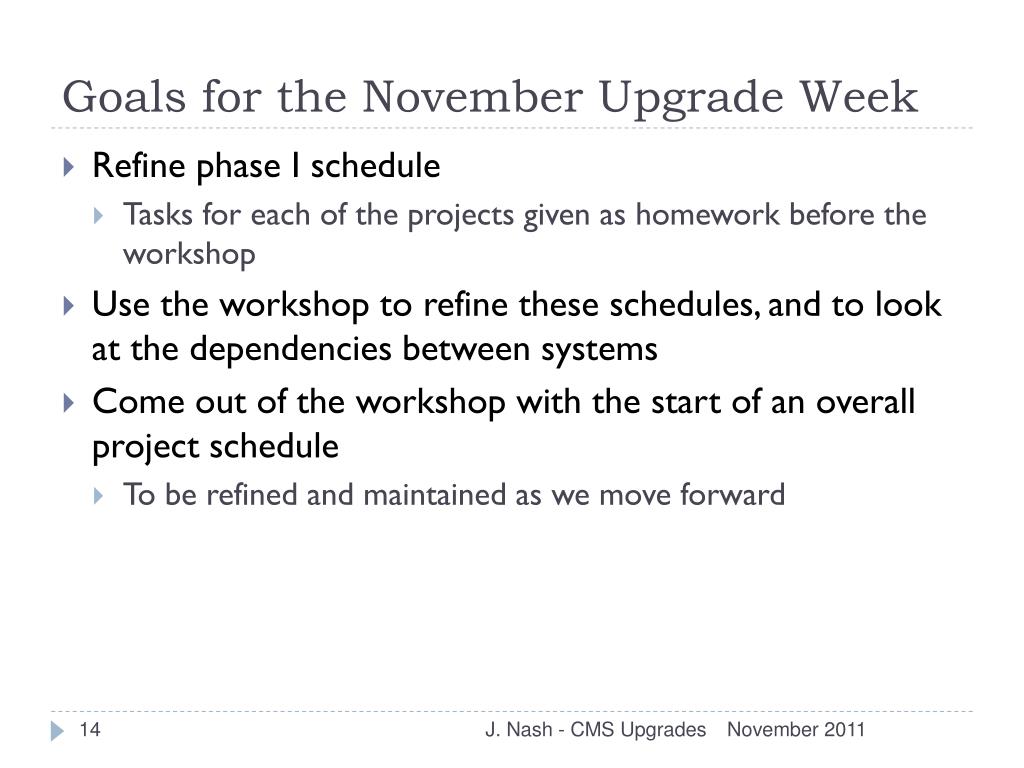

14. Goals for the November Upgrade Week • Refine phase I schedule • Tasks for each of the projects given as homework before the workshop • Use the workshop to refine these schedules, and to look at the dependencies between systems • Come out of the workshop with the start of an overall project schedule • To be refined and maintained as we move forward J. Nash - CMS Upgrades

15. Project Breakdown • Define the appropriate high level project tasks • (eg – Front end electronics, cooling…) • We will use these tasks as the units for reporting and tracking the progress on the project • This was very successful during the build of CMS • Important to break the project down in an appropriate way • This certainly depends on the project, so no top down overall requirement for the shape of these J. Nash - CMS Upgrades

16. Milestones • Define a set of milestones for each of the project tasks • Examples • Prototypes ready, • TDR ready (the LHCC are waiting for these…), • production review, • Commissioning • Declare them (at a defined level) to the upgrade project • Discuss how we will monitor and present them J. Nash - CMS Upgrades

17. Dependencies between projects • Look at Links to other projects, and the machine schedule and how they affect the milestones • Take into account links between projects • Take into account possible shutdowns now being considered i.e. TS or LS2 installations • We would like everyone to take the latest “official” schedule for the machine as the basis for when the shutdowns could be • Allow for the possibility of an extended Technical Stop before LS2 J. Nash - CMS Upgrades

18. Longer Term Planning – Sept LHCC Not yet approved! J. Nash - CMS Upgrades

19. Costs • Cost profile • Look at potential spending profiles for the project • Look at impact on delivery • Realistic assessment of arrival of funding J. Nash - CMS Upgrades

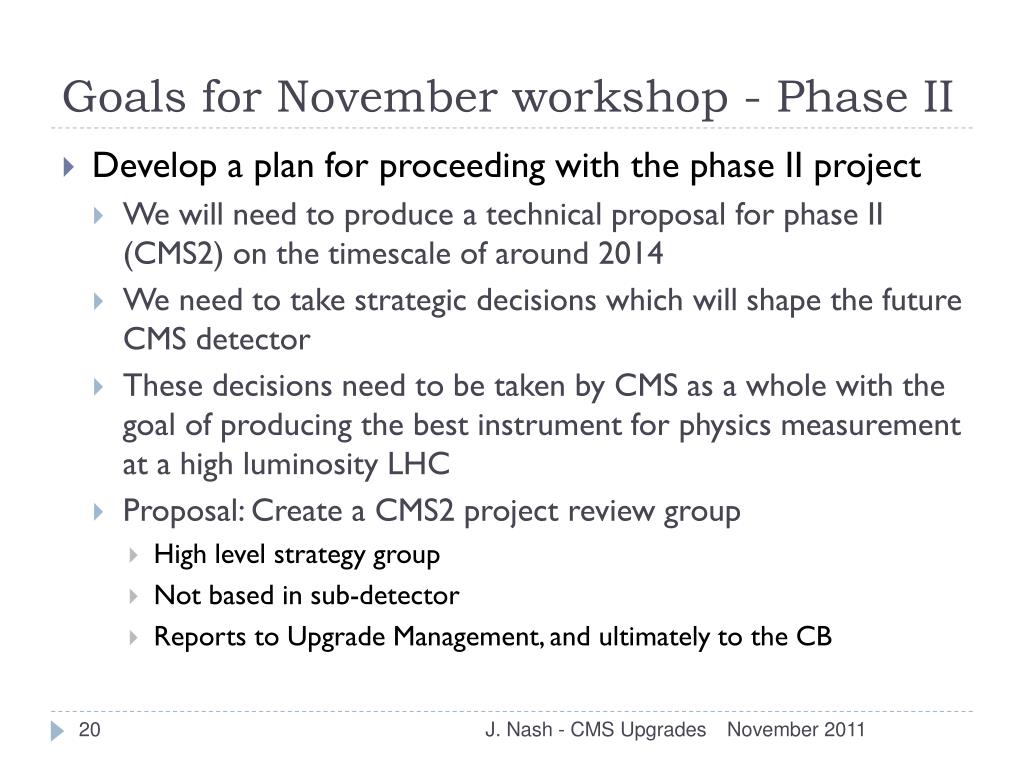

20. Goals for November workshop - Phase II • Develop a plan for proceeding with the phase II project • We will need to produce a technical proposal for phase II (CMS2) on the timescale of around 2014 • We need to take strategic decisions which will shape the future CMS detector • These decisions need to be taken by CMS as a whole with the goal of producing the best instrument for physics measurement at a high luminosity LHC • Proposal: Create a CMS2 project review group • High level strategy group • Not based in sub-detector • Reports to Upgrade Management, and ultimately to the CB J. Nash - CMS Upgrades

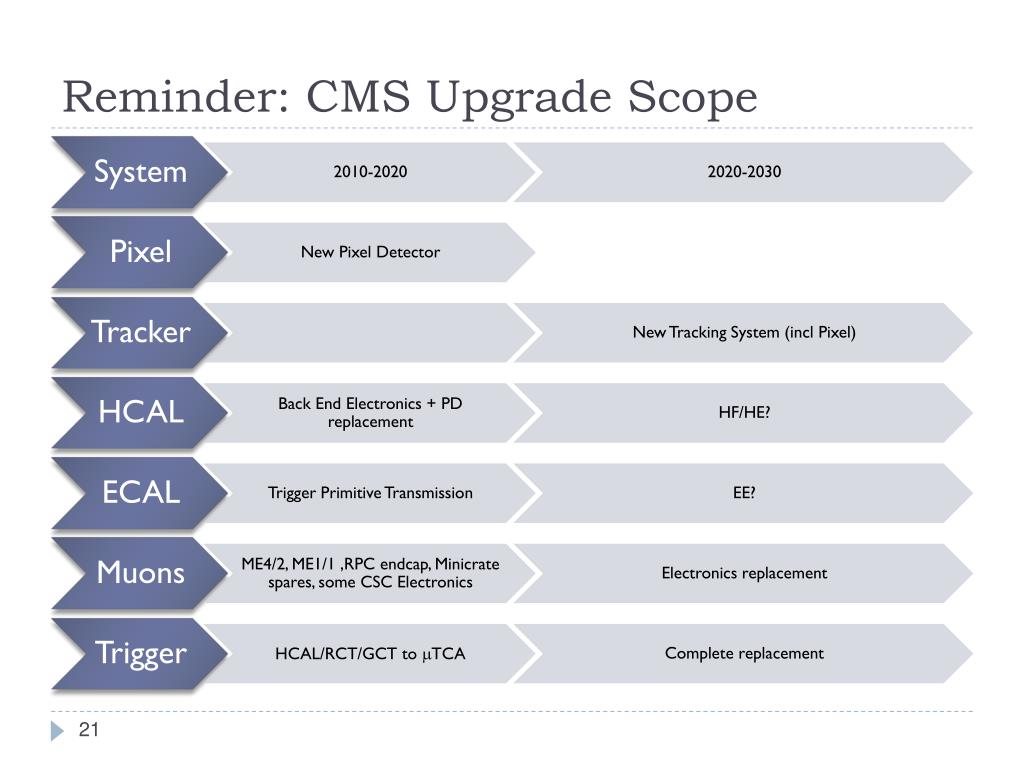

21. Reminder: CMS Upgrade Scope

22. High Luminosity LHC (HL-LHC) • Goals for the High Luminosity Running after the third technical stop • Integrated Luminosity 3000/fb • This to be collected at up to 300/fb-yr • Detectors need to cope with high pile-up • Up to an order of magnitude greater than what we are seeing now • Detectors need to cope with high radiation • Up to an order of magnitude greater than we expected for LHC operation J. Nash - CMS Upgrades

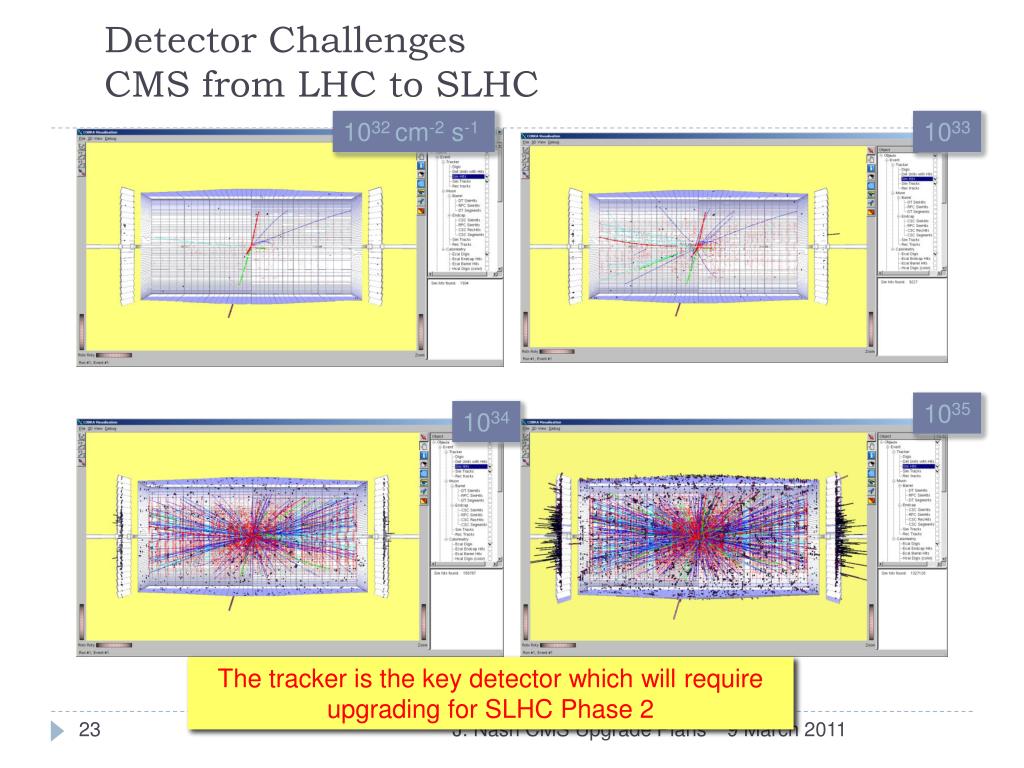

23. Detector ChallengesCMS from LHC to SLHC 1032 cm-2 s-1 1033 1035 1034 The tracker is the key detector which will require upgrading for SLHC Phase 2 J. Nash CMS Upgrade Plans

24. Level 1 Trigger Level 1 Trigger has no discrimination for PT > ~ 20 GeV/c • The trigger/daq system of CMS will require an upgrade to cope with the higher occupancies and data rates at HL-LHC • One of the key issues for CMS is the requirement to include some element of tracking in the Level 1 Trigger • One example: There may not be enough rejection power using the muon and calorimeter triggers to handle the higher luminosity conditions at HL-LHC • Adding tracking information at Level 1 gives the ability to adjust PT thresholds • Single electron trigger rate also suffers • Isolation criteria are insufficient to reduce rate at L= 1035 cm-2.s-1 J. Nash CMS Upgrade Plans

25. Phase II – the Big Projects γ Search Window • A completely new tracking system • Able to handle the very extreme environment • High pileup implies high occupancy and in some areas high radiation exposure • Able to participate in the Level 1 Trigger Decision • New Forward Calorimetry? • New Trigger/DAQ • New Electronics Systems J. Nash - CMS Upgrades

26. Technical Proposal in 2014? • How long should we spend working on R&D • We have been conducting R&D since around 2006 • At some point we need to make decisions about what directions we will take, and move from R&D phase to a proto-typing phase J. Nash - CMS Upgrades

27. LHCC Meeting March 2004 Peter Sharp CERN

28. Time needed for Phase II R&D • There were about 10 years of R&D for the initial build of CMS • Followed by • 2 years proto-typing • 5 years production-install-commission • To get a new big detector ready by 2022 the timescale of 2014 for a TP just fits. • The detectors for phase II are the same scale as major sub-detectors were for the LHC, and technically more complex • We will need to ensure we are doing enough focused R&D to be ready to make designs and decisions. J. Nash - CMS Upgrades

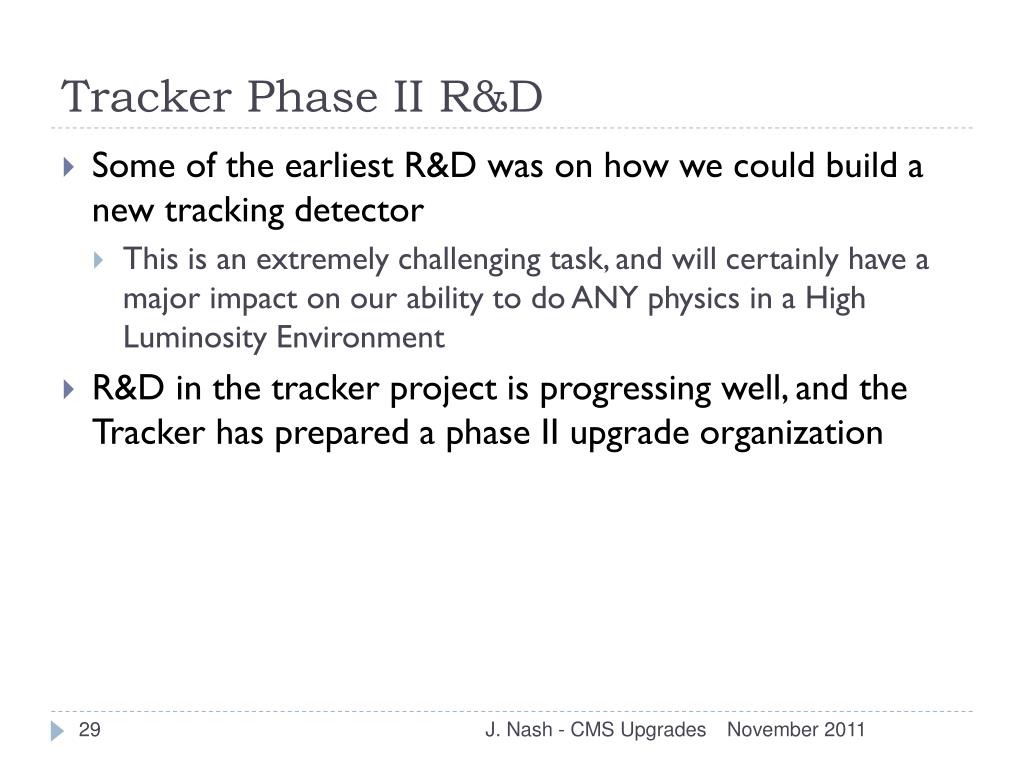

29. Tracker Phase II R&D • Some of the earliest R&D was on how we could build a new tracking detector • This is an extremely challenging task, and will certainly have a major impact on our ability to do ANY physics in a High Luminosity Environment • R&D in the tracker project is progressing well, and the Tracker has prepared a phase II upgrade organization J. Nash - CMS Upgrades

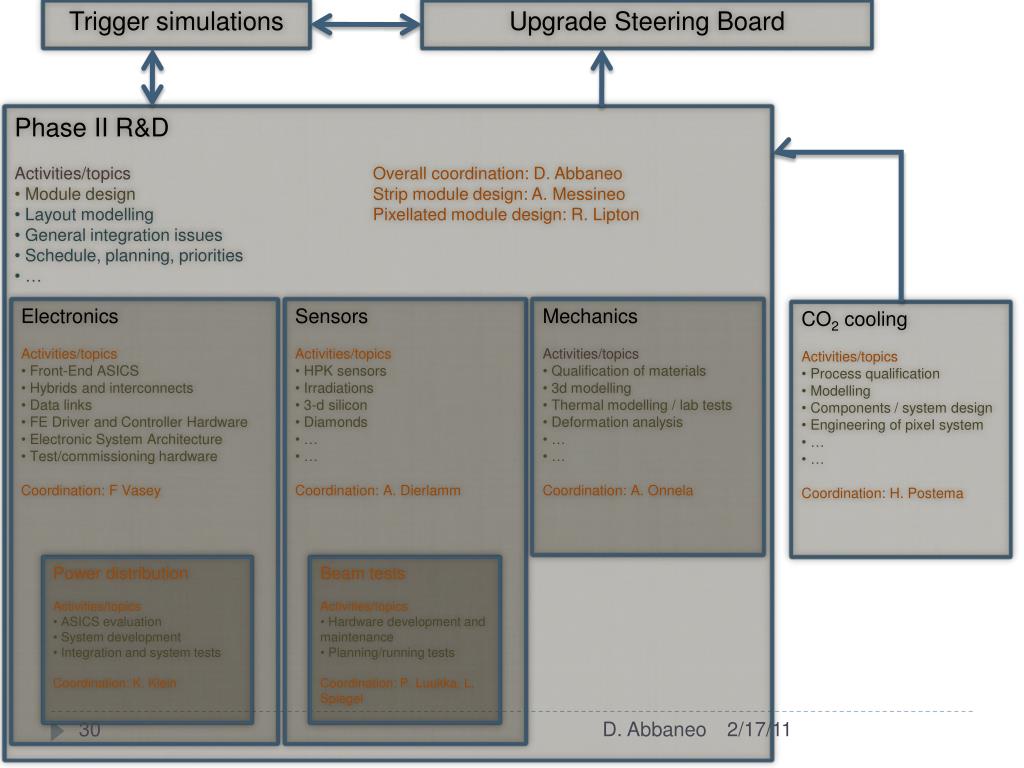

30. Trigger simulations Upgrade Steering Board • Phase II R&D • Activities/topics Overall coordination: D. Abbaneo • Module design Strip module design: A. Messineo • Layout modelling Pixellated module design: R. Lipton • General integration issues • Schedule, planning, priorities • … • Electronics • Activities/topics • Front-End ASICS • Hybrids and interconnects • Data links • FE Driver and Controller Hardware • Electronic System Architecture • Test/commissioning hardware • Coordination: F Vasey • Sensors • Activities/topics • HPK sensors • Irradiations • 3-d silicon • Diamonds • … • … • Coordination: A. Dierlamm • Mechanics • Activities/topics • Qualification of materials • 3d modelling • Thermal modelling / lab tests • Deformation analysis • … • … • Coordination: A. Onnela • CO2 cooling • Activities/topics • Process qualification • Modelling • Components / system design • Engineering of pixeI system • … • … • Coordination: H. Postema • Power distribution • Activities/topics • ASICS evaluation • System development • Integration and system tests • Coordination: K. Klein • Beam tests • Activities/topics • Hardware development and maintenance • Planning/running tests • Coordination: P. Luukka, L. Spiegel D. Abbaneo

31. Tracker R&D – Pt Modules J. Nash - CMS Upgrades

32. Tracker R&D - Electronics J. Nash - CMS Upgrades

33. Tracker R&D - cooling J. Nash - CMS Upgrades

34. Tracking Trigger Task Force • Study how a Level 1 trigger could be built using the tracking detector as input • How many Pt modules needed for a Level 1 Trigger? • Where do these need to be placed? • At the first FNAL workshop we kicked off the work of this task force with some radical layouts to be studied in order to help answer some of these questions. J. Nash - CMS Upgrades

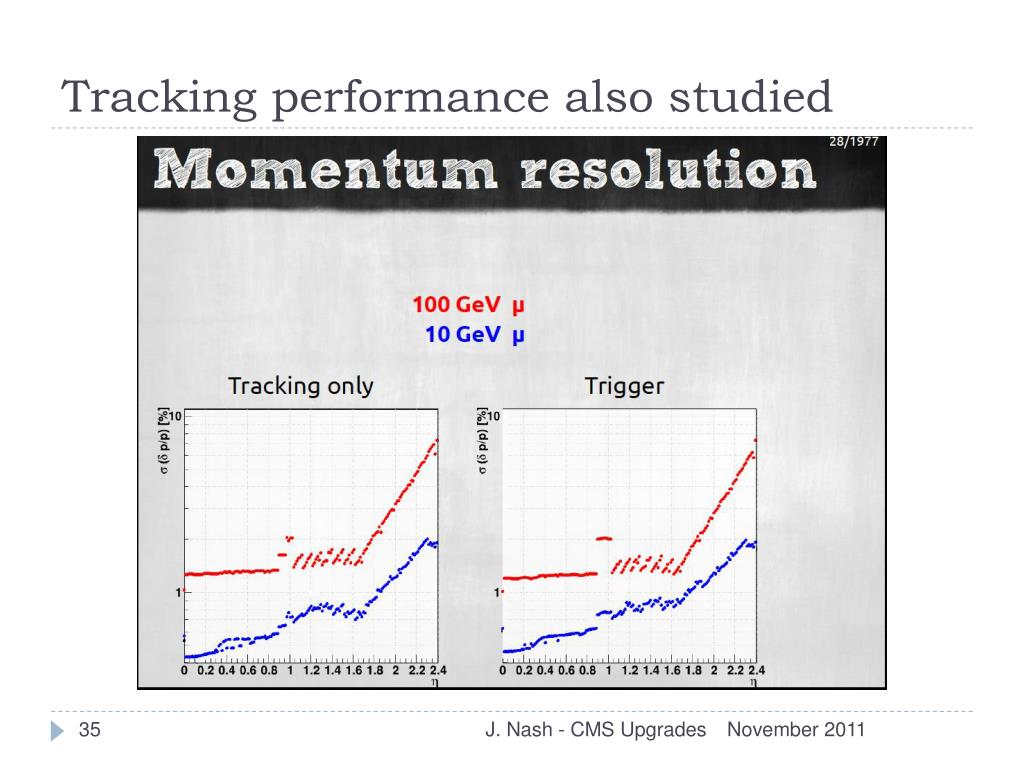

35. Tracking performance also studied J. Nash - CMS Upgrades

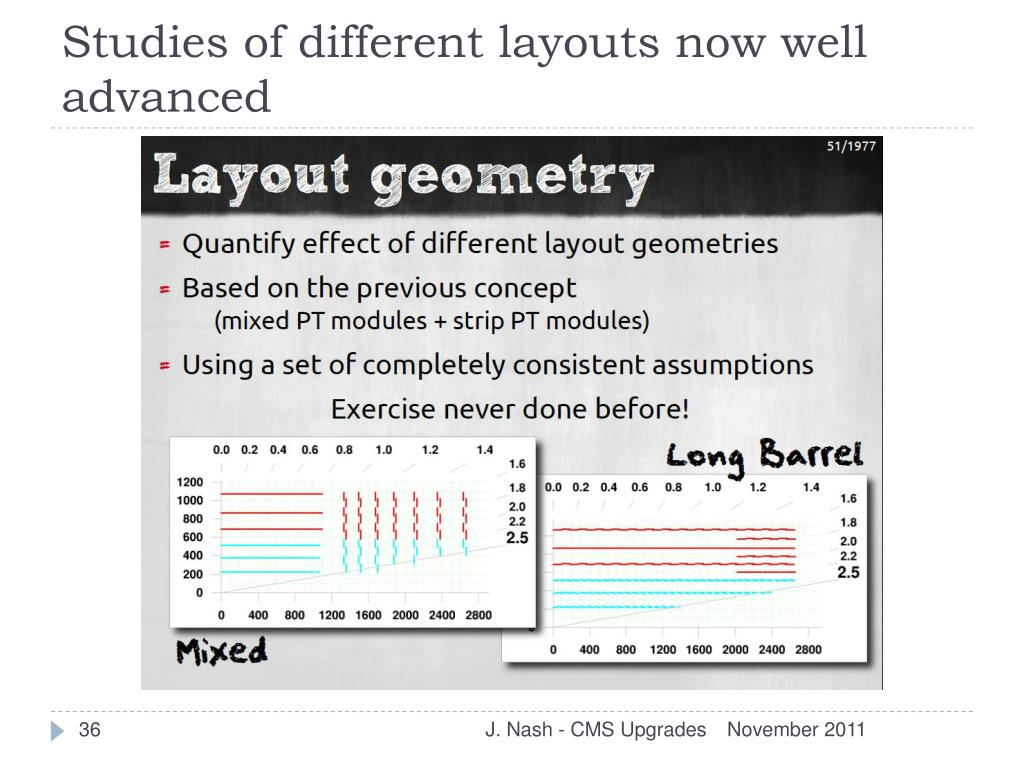

36. Studies of different layouts now well advanced J. Nash - CMS Upgrades

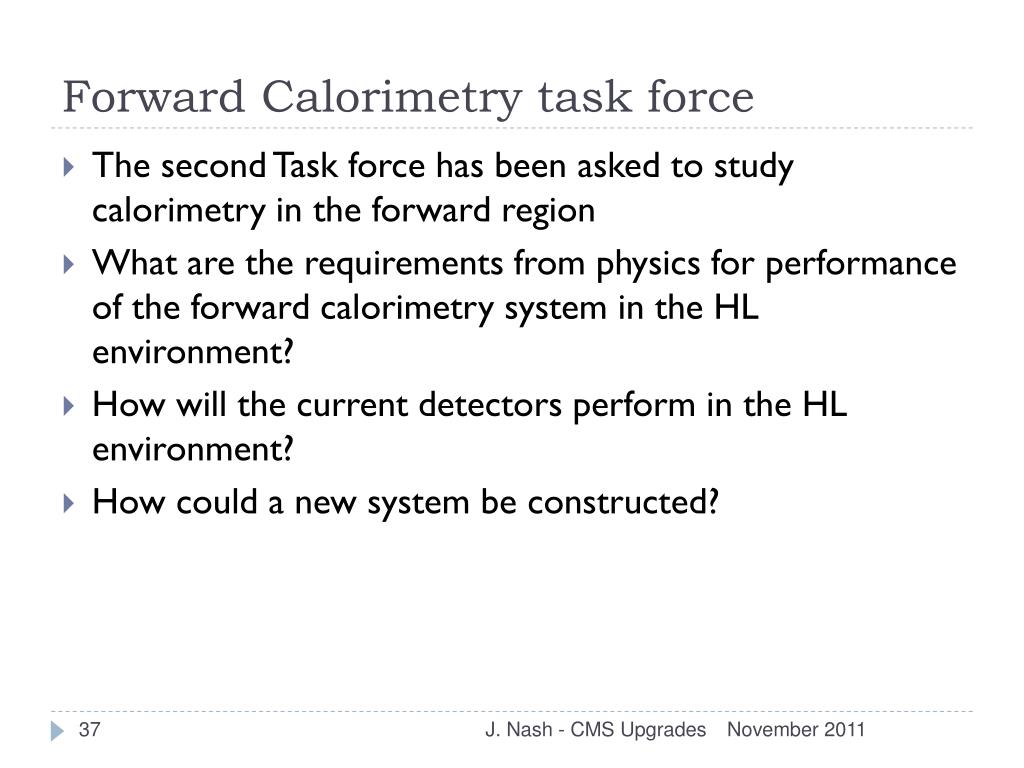

37. Forward Calorimetry task force • The second Task force has been asked to study calorimetry in the forward region • What are the requirements from physics for performance of the forward calorimetry system in the HL environment? • How will the current detectors perform in the HL environment? • How could a new system be constructed? J. Nash - CMS Upgrades

38. Schematic of Approach Important physics channels indicated by real data and theory Find rad-hard technologies for calorimetry materials and photodetectors Test beam validations of detector components Perform simulations of these channels Choose final configuration of forward calorimetry based on physics/simulations plus pragmatic considerations such as cost, feasibility of construction and schedule

39. Effect of Radiation Damage On / Jet Position

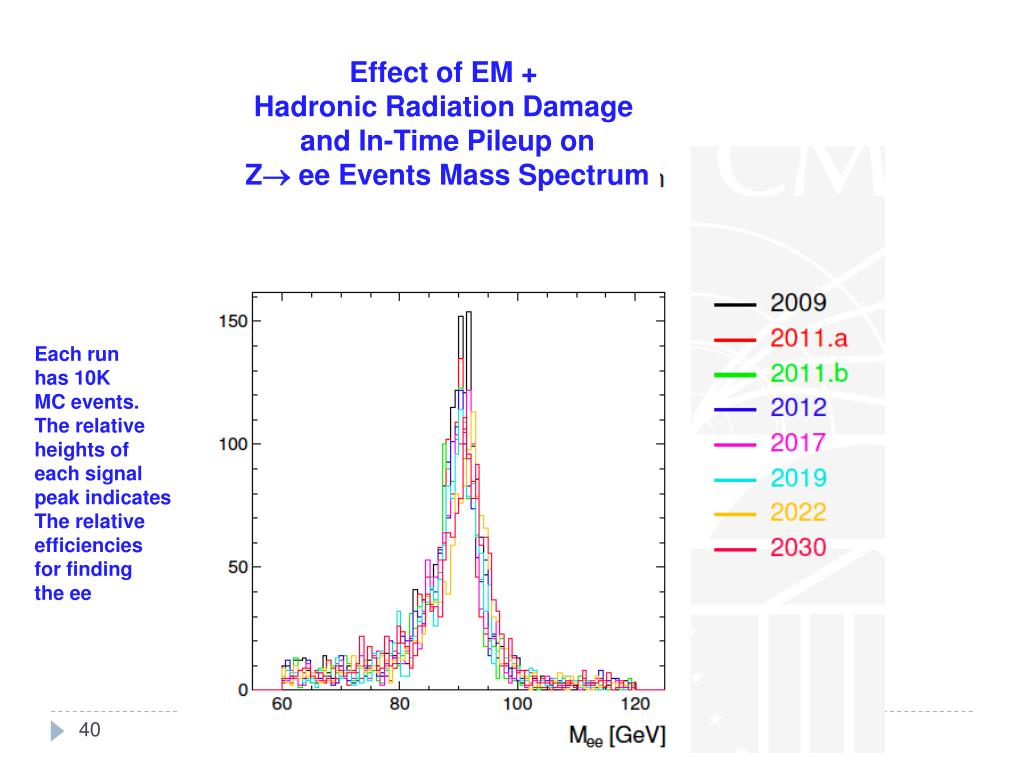

40. Effect of EM + Hadronic Radiation Damage and In-Time Pileup on Z ee Events Mass Spectrum Each run has 10K MC events. The relative heights of each signal peak indicates The relative efficiencies for finding the ee

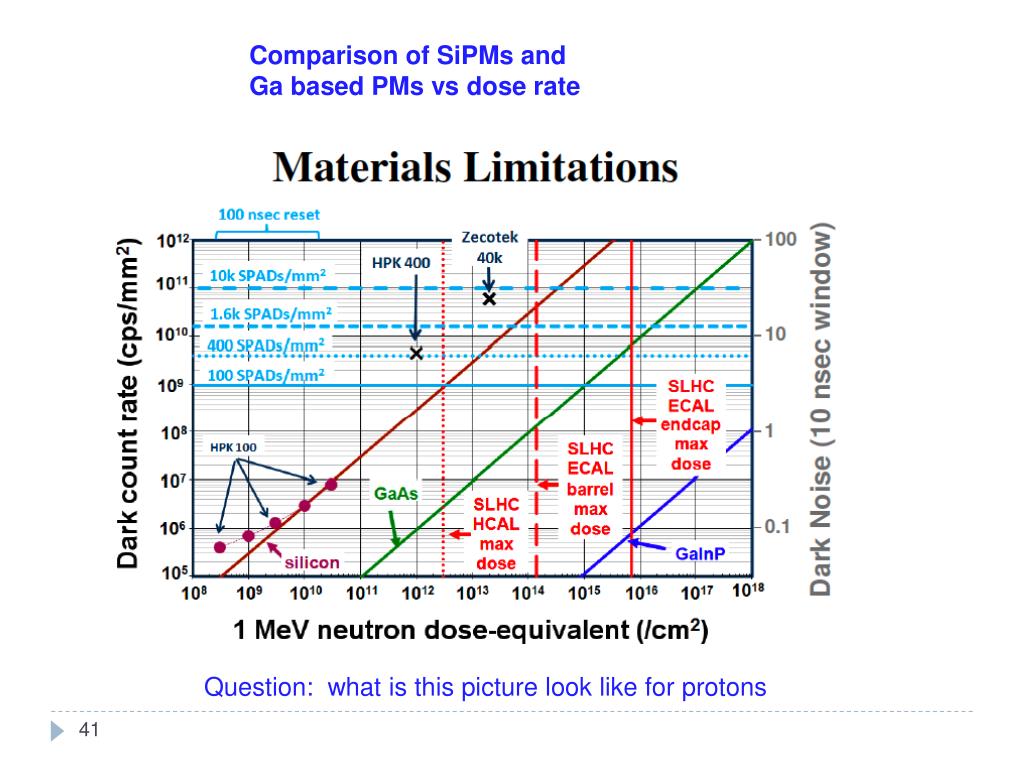

41. Comparison of SiPMs and Ga based PMs vs dose rate Question: what is this picture look like for protons

42. Upgrade Workshop Outline J. Nash - CMS Upgrades

43. Plenary Sessions – Sub-detector contributions • Wednesday afternoon • Technical progress on the upgrades • Thursday morning • Schedule/Milestones as developed at the meeting • Flagging up potential problems issues, outstanding questions and any lurking potential “showstoppers” • Pixel Sensors • CSC Panels • HCAL SiPm/Front Ends • Commissioning of the trigger J. Nash - CMS Upgrades
