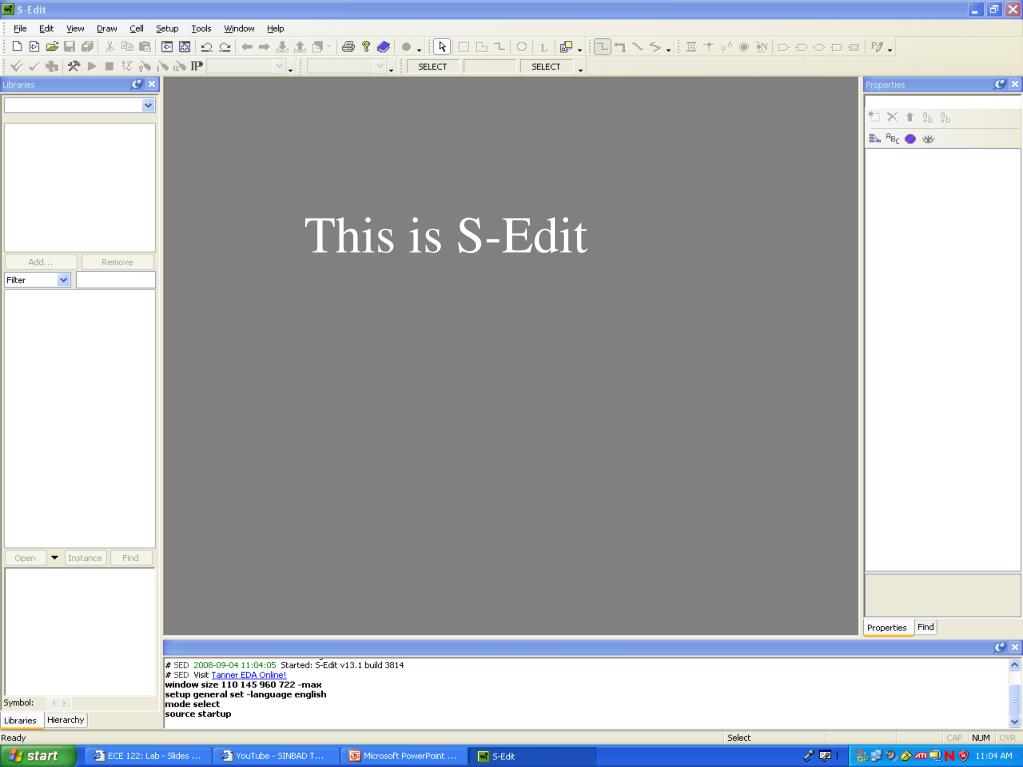

S-Edit v13.0 Tutorial. Tanner Tools Tutorial. Tanner Tools consists of the following. L-Edit: Layout editing. LVS: Layout vs. Schematic. S-Edit: Schematic Entry. T-Spice: Simulation. W-Edit: Waveform formatting. This is S-Edit. For creating new design go File->New->New design.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about ' Tanner Tools Tutorial' - melyssa-mosley


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
S edit v13 0 tutorial

S-Edit v13.0 Tutorial

Tanner Tools Tutorial

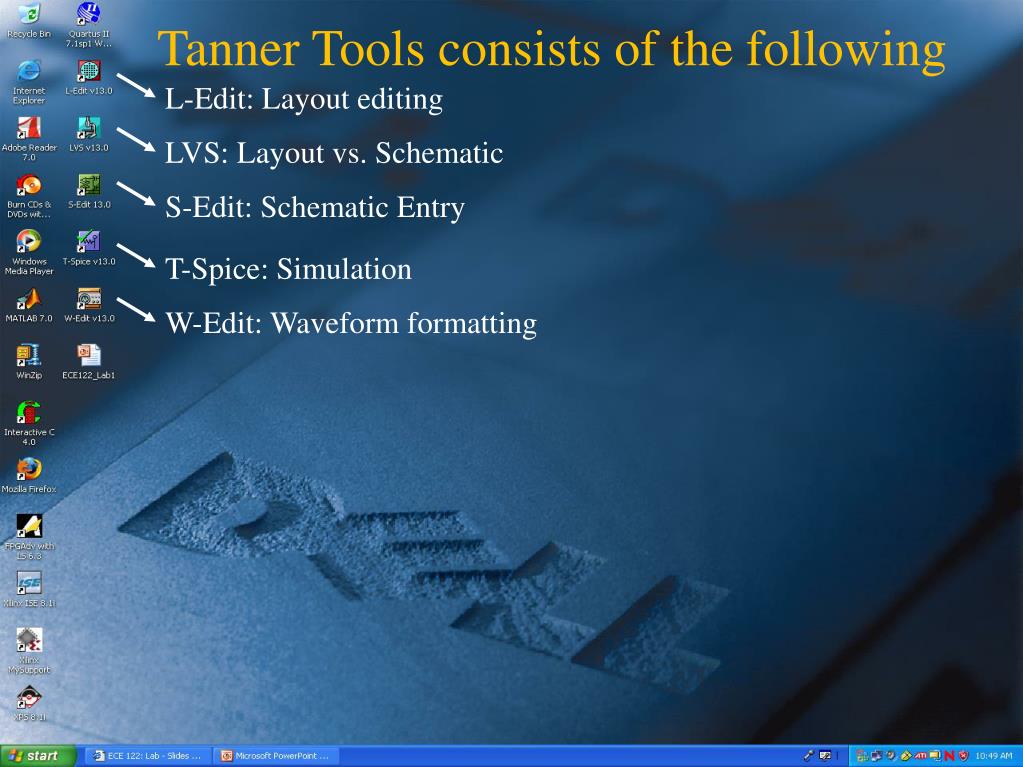

Tanner Tools consists of the following

L-Edit: Layout editing

LVS: Layout vs. Schematic

S-Edit: Schematic Entry

T-Spice: Simulation

W-Edit: Waveform formatting

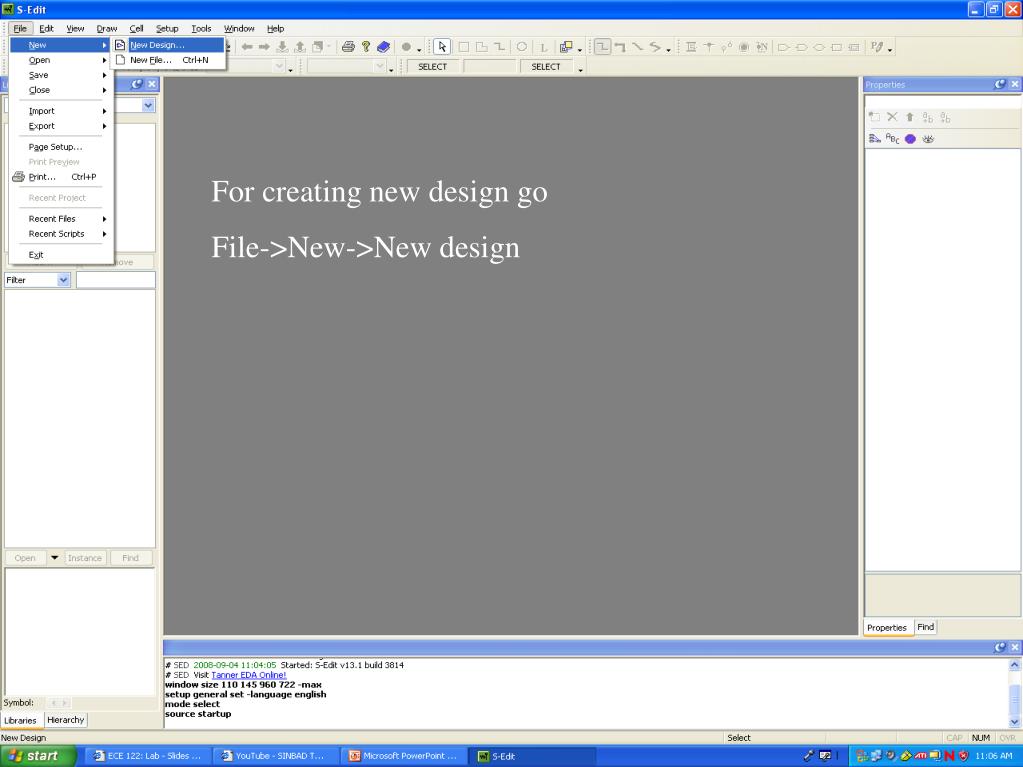

For creating new design go

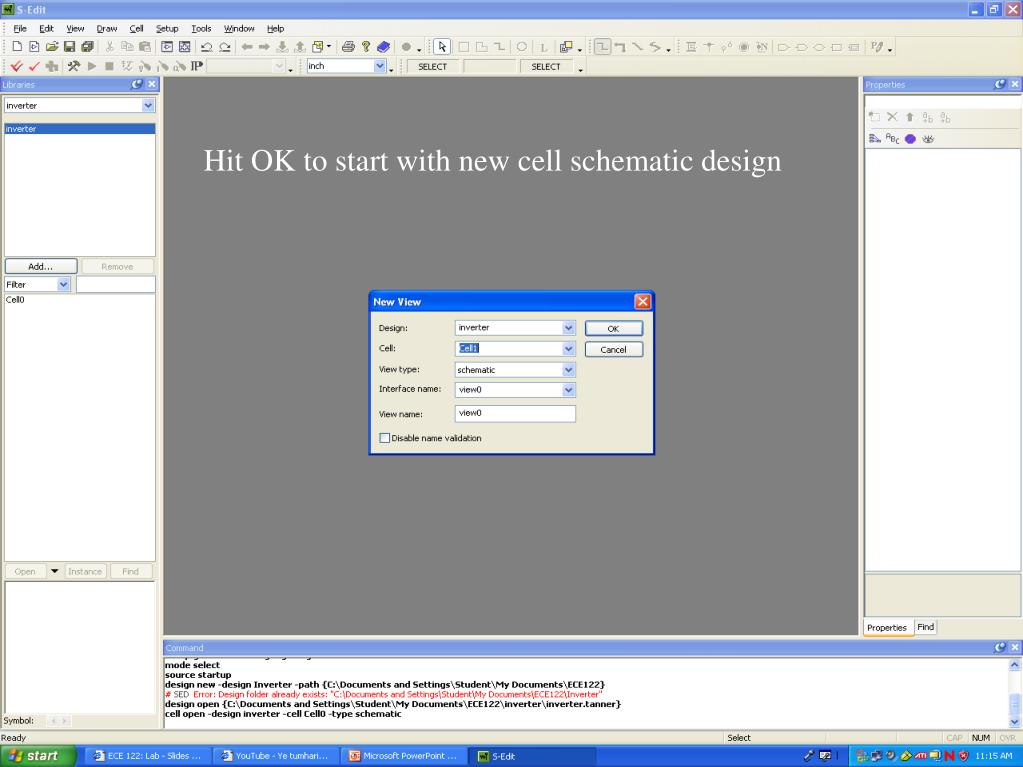

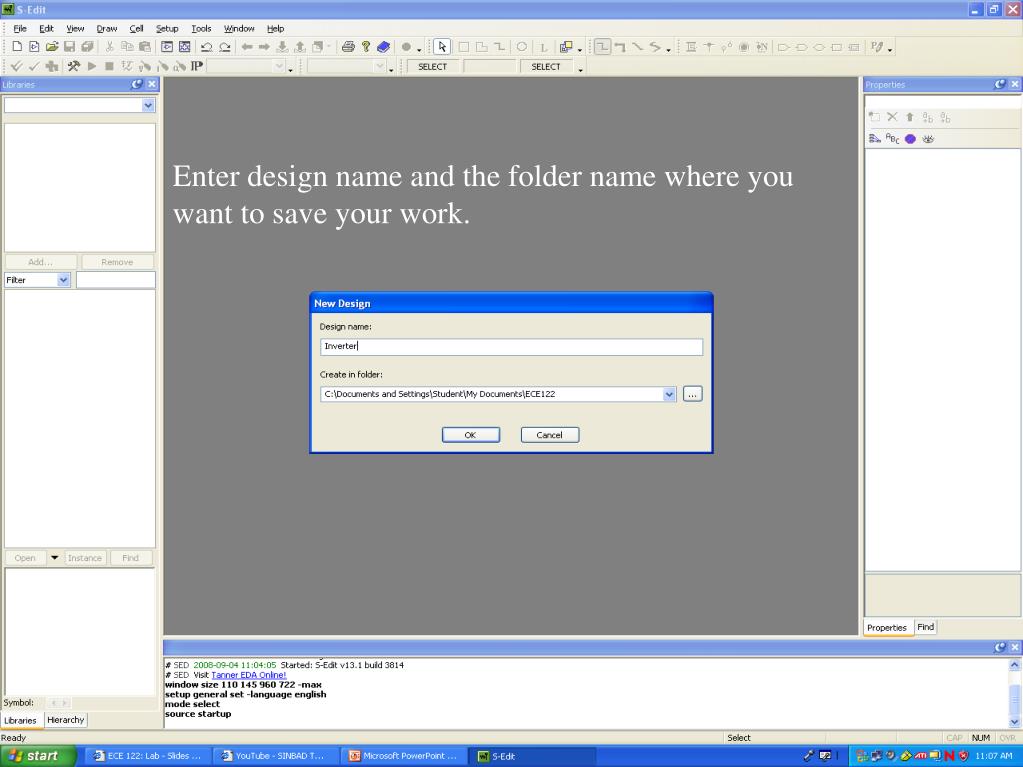

File->New->New design





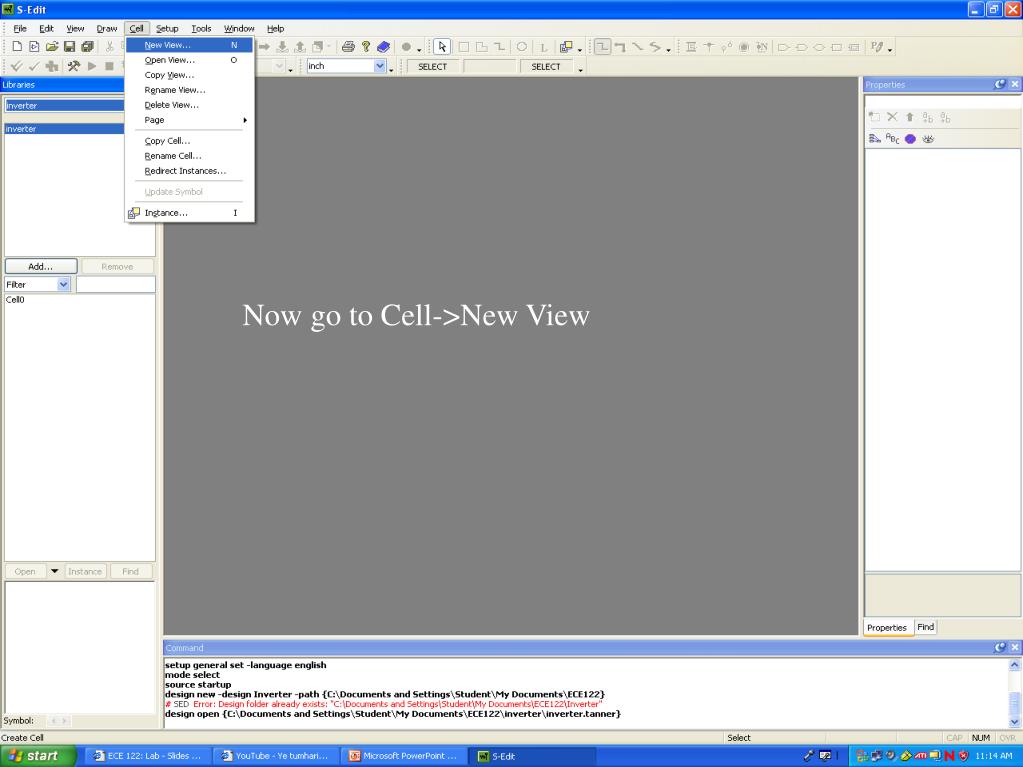

Levels of design in s edit
Levels of design in S-Edit your work.

  • The highest level in the S-Edit design hierarchy is the design file. Files contain modules, which can contain primitive objects or reference to other modules.

  • A module can further have pages.

  • S-Edit has 2 viewing modes, Schematic mode and Symbol mode. We can switch between 2 modes using the tabs in the tool bar or using a question mark (?).


Select tool your work.

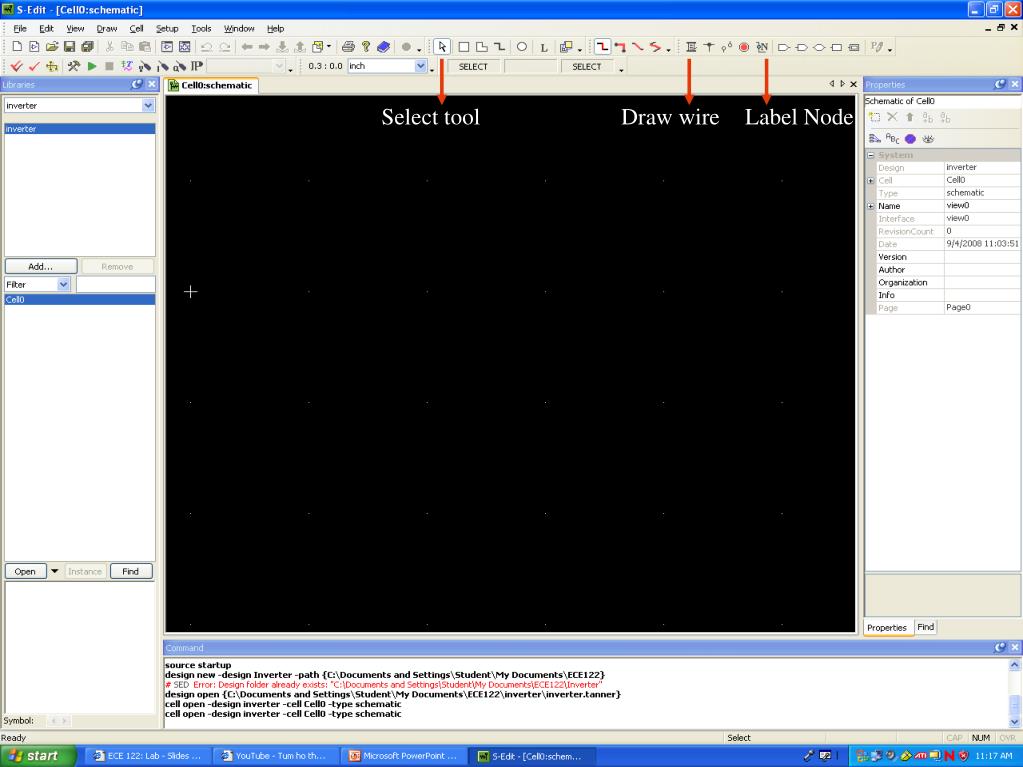

Draw wire

Label Node

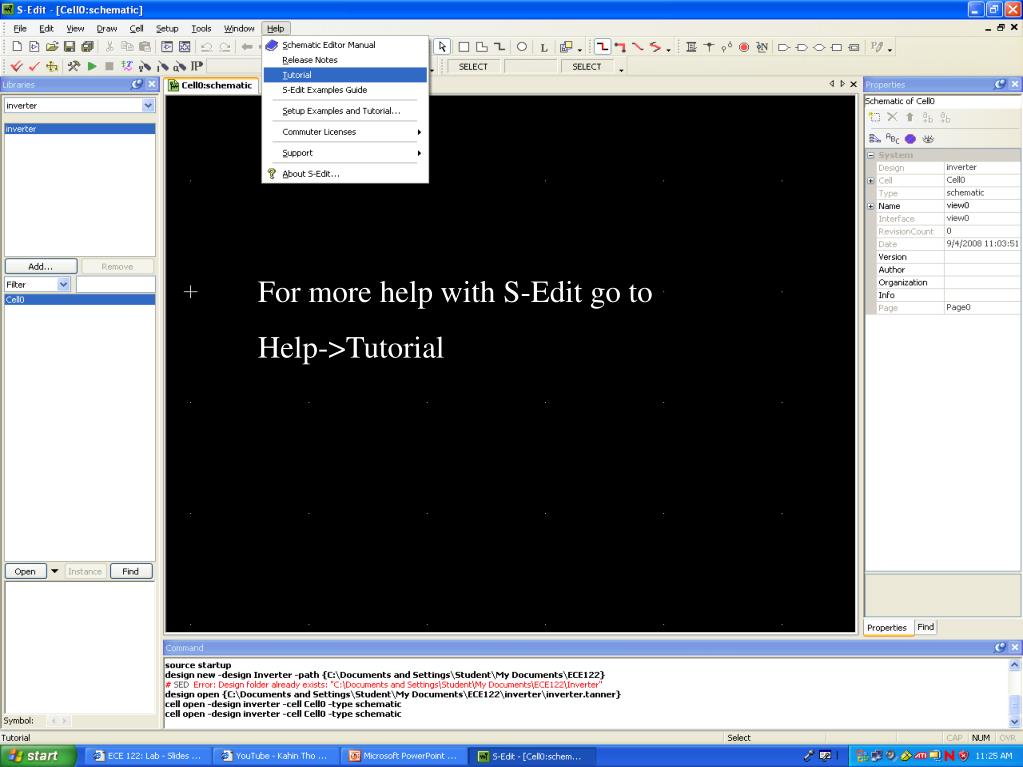

For more help with S-Edit go to your work.

Help->Tutorial

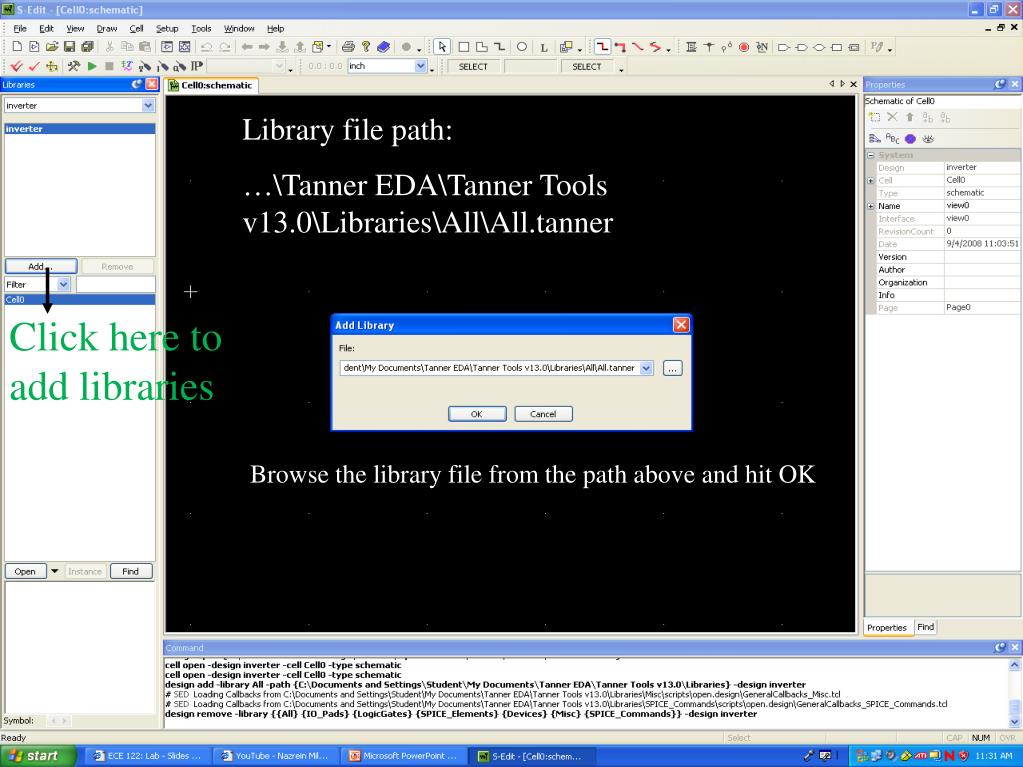

Library file path: your work.

…\Tanner EDA\Tanner Tools v13.0\Libraries\All\All.tanner

Click here to

add libraries

Browse the library file from the path above and hit OK

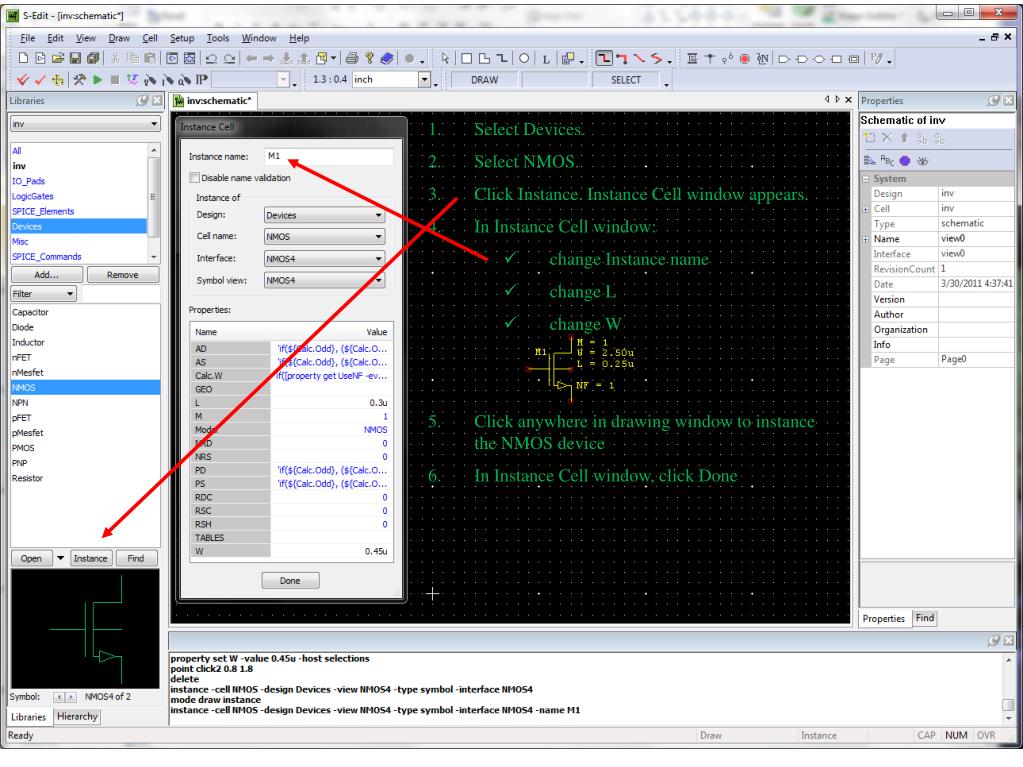

  • Select Devices. your work.

  • Select NMOS.

  • Click Instance. Instance Cell window appears.

  • In Instance Cell window:

    • change Instance name

    • change L

    • change W

  • Click anywhere in drawing window to instance the NMOS device

  • In Instance Cell window, click Done

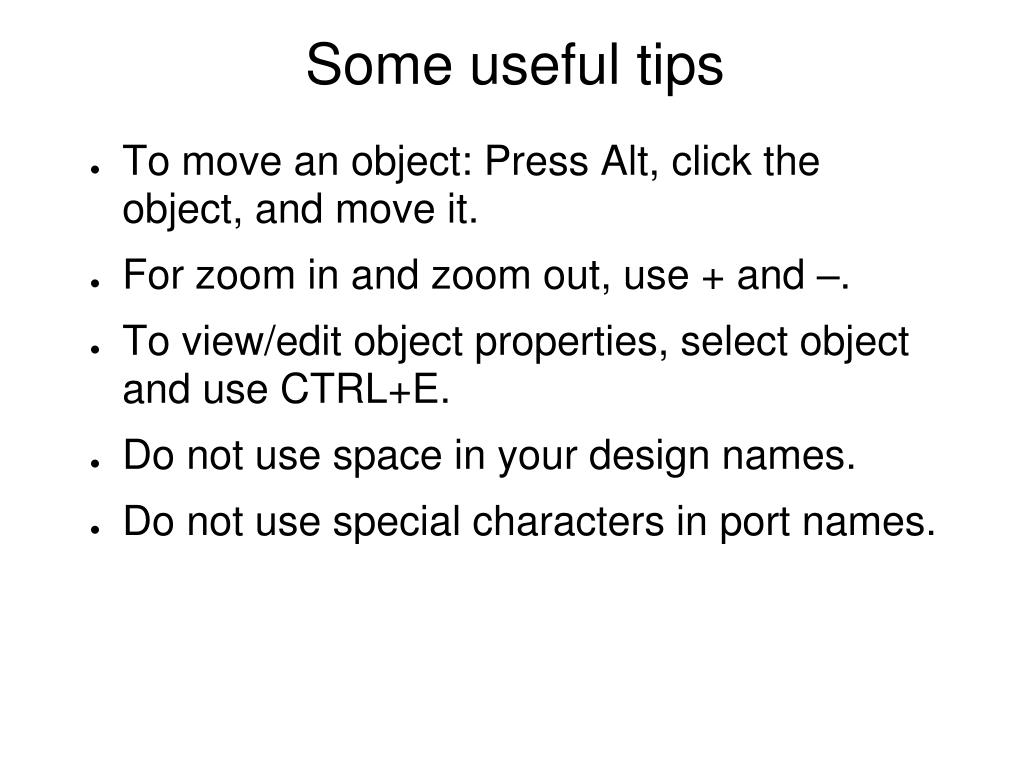

Some useful tips
Some useful tips your work.

  • To move an object: Press Alt, click the object, and move it.

  • For zoom in and zoom out, use + and –.

  • To view/edit object properties, select object and use CTRL+E.

  • Do not use space in your design names.

  • Do not use special characters in port names.


Input port your work.

Output port

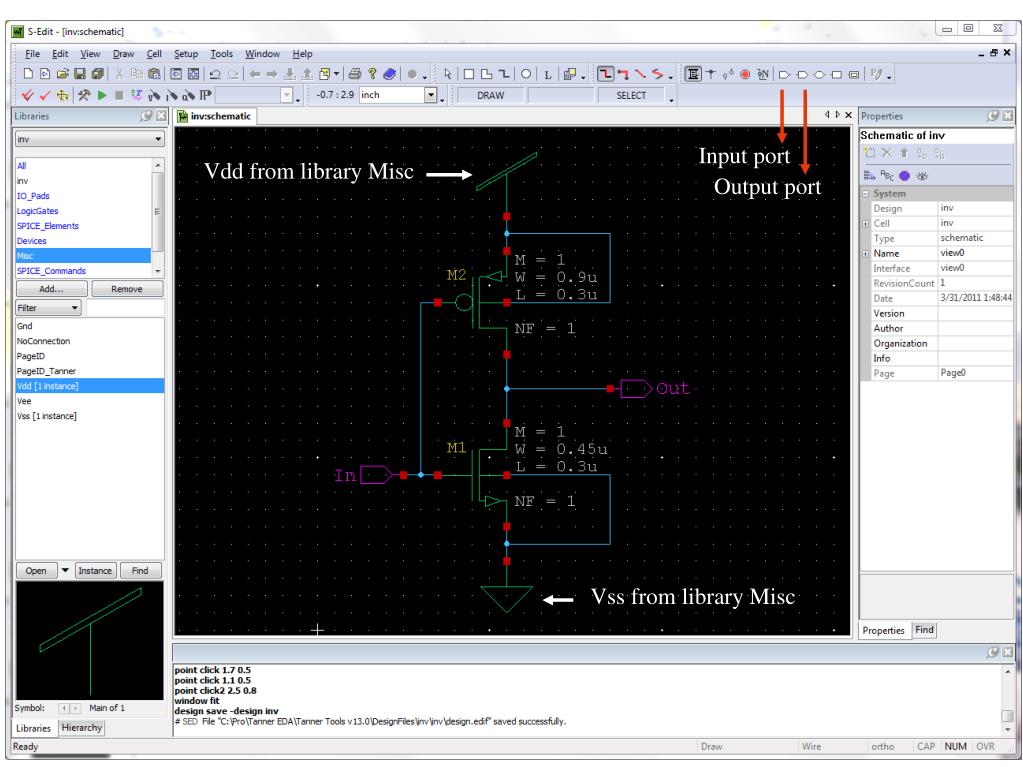

Vdd from library Misc

Input port

Vdd from library Misc

Output port

PMOS from library Devices

Vss from library Misc

Gnd from library Misc

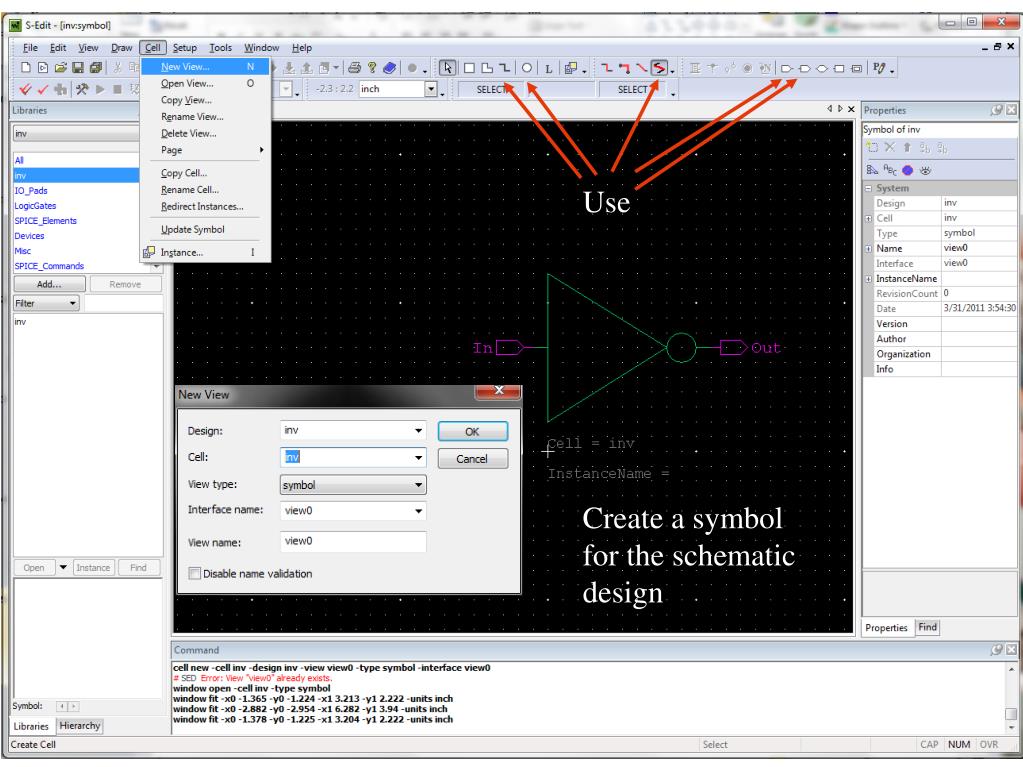

Now we are ready to create a symbol for the schematic design your work.

Use

Create a symbol for the schematic design

Create a symbol for the schematic design
