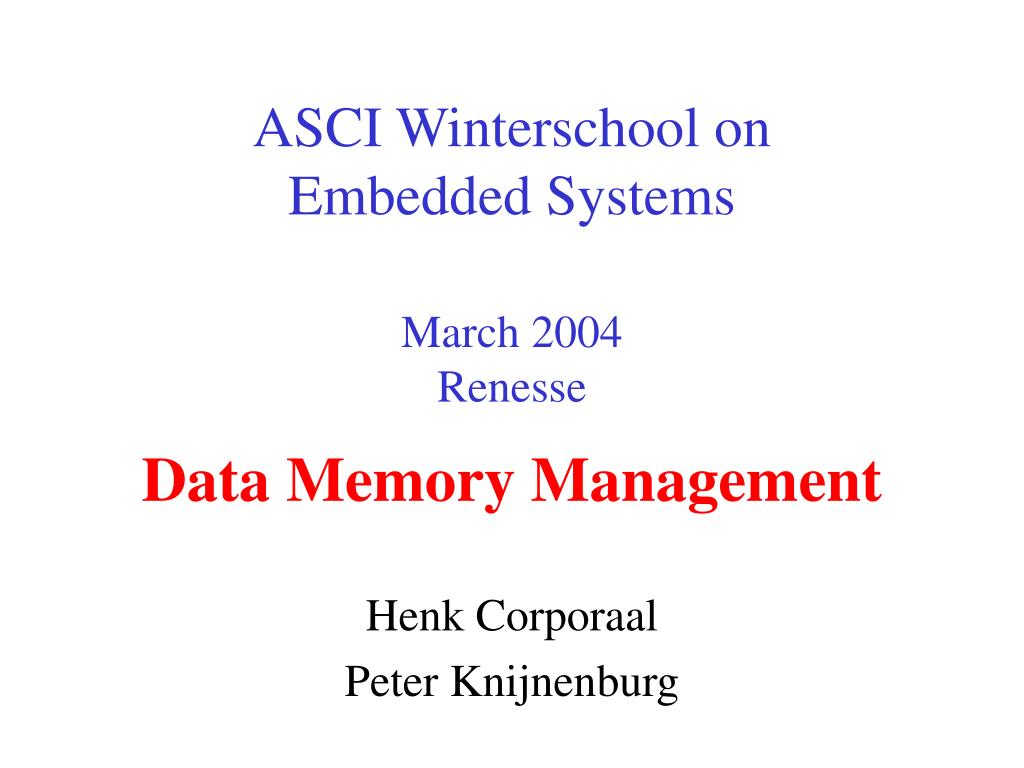

  1. ASCI Winterschool on Embedded SystemsMarch 2004Renesse Data Memory Management Henk Corporaal Peter Knijnenburg

  2. Data Memory Management Overview • Motivation • Example application • DMM steps • Results Notes: • We concentrate on Static Data Memory Management‘ • The Data Transfer and Storage Exploration (DTSE)methodology, on which these slides are based, has been developed by IMEC, Leuven

  3. SDRAM SDRAM Serial I/O video-in B[j] = A[i*4+k]; B[j] = A[i*4+k]; B[j] = A[i*4+k]; PCI bridge video-out timers I2C I/O Data storage bottleneck audio-out I$ VLIW cpu audio-in Data transfer bottleneck D$ D$ The underlying idea for (i=0;i<n;i++) for (j=0; j<3; j++) for (k=1; k<7; k++) B[j] = A[i*4+k];

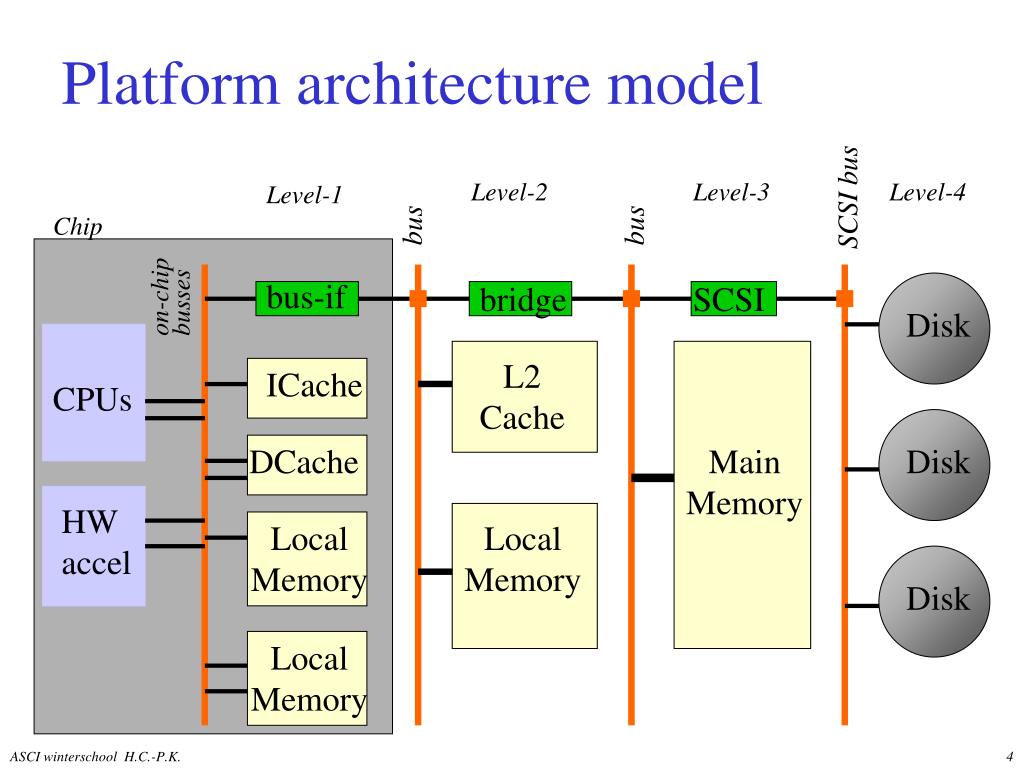

  4. Platform architecture model Level-2 Level-3 Level-4 Level-1 SCSI bus bus bus Chip on-chip busses bus-if bridge SCSI Disk L2 Cache ICache CPUs DCache Main Memory Disk HW accel Local Memory Local Memory Disk Local Memory

  5. Power(memory) = 33 Power(arithmetic) Data transfer and storage power

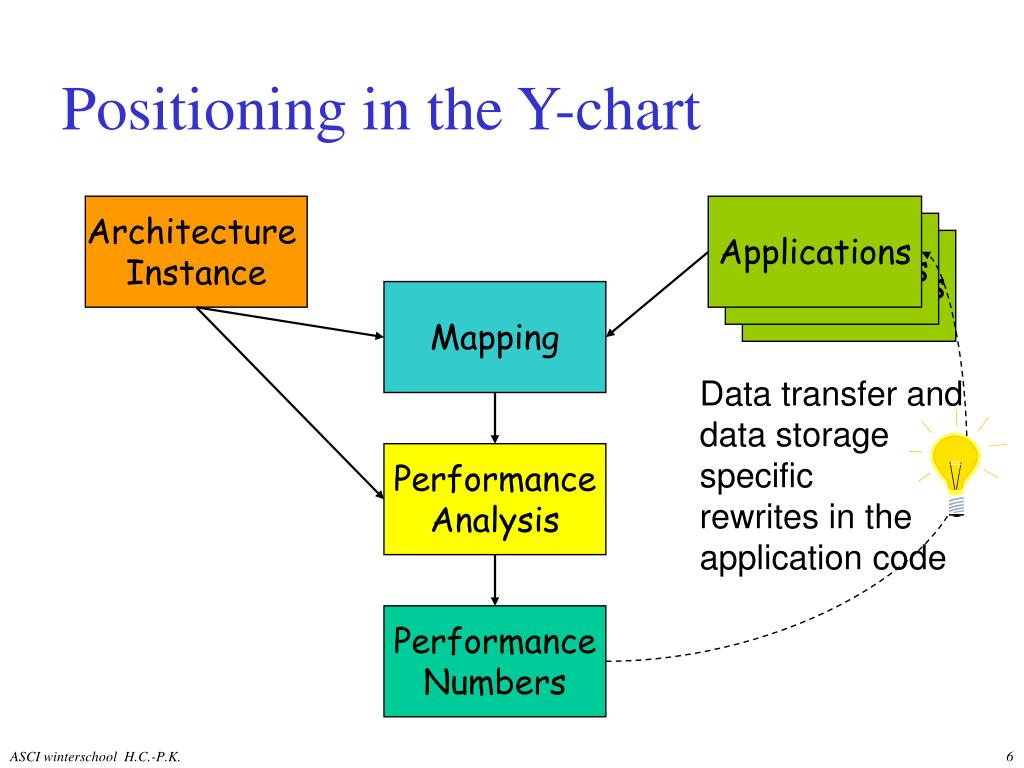

  6. Data transfer and data storage specific rewrites in the application code Positioning in the Y-chart Architecture Instance Applications Applications Applications Mapping Performance Analysis Performance Numbers

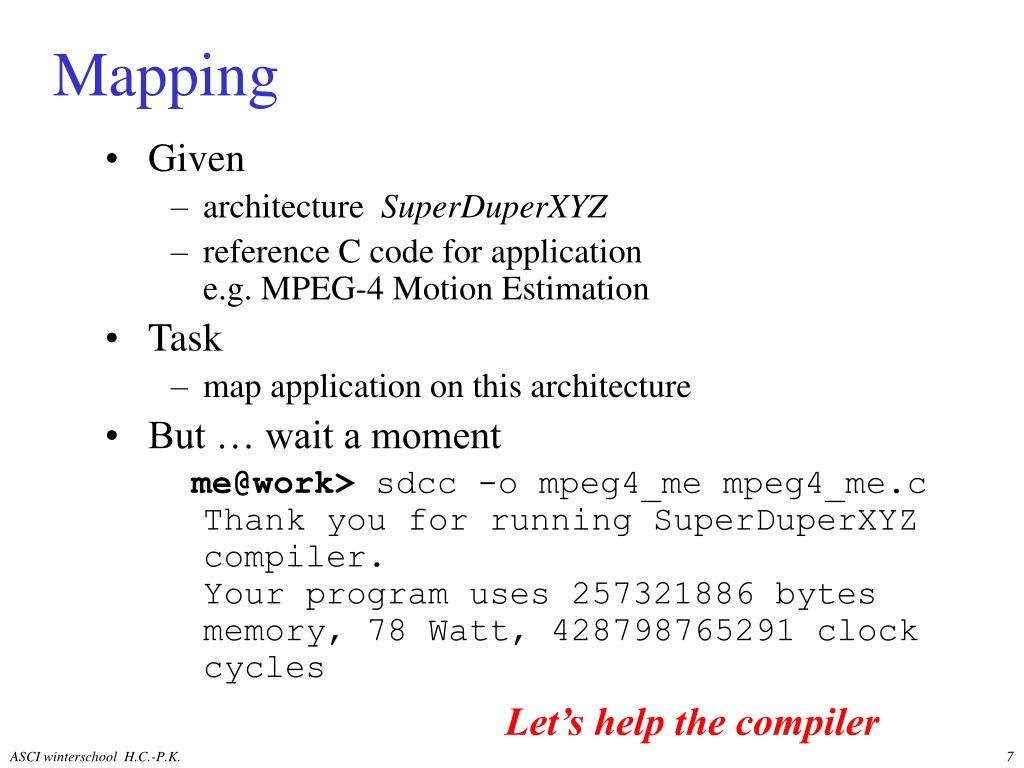

  7. Mapping • Given • architecture SuperDuperXYZ • reference C code for applicatione.g. MPEG-4 Motion Estimation • Task • map application on this architecture • But … wait a moment me@work> sdcc -o mpeg4_me mpeg4_me.cThank you for running SuperDuperXYZ compiler.Your program uses 257321886 bytes memory, 78 Watt, 428798765291 clock cycles Let’s help the compiler

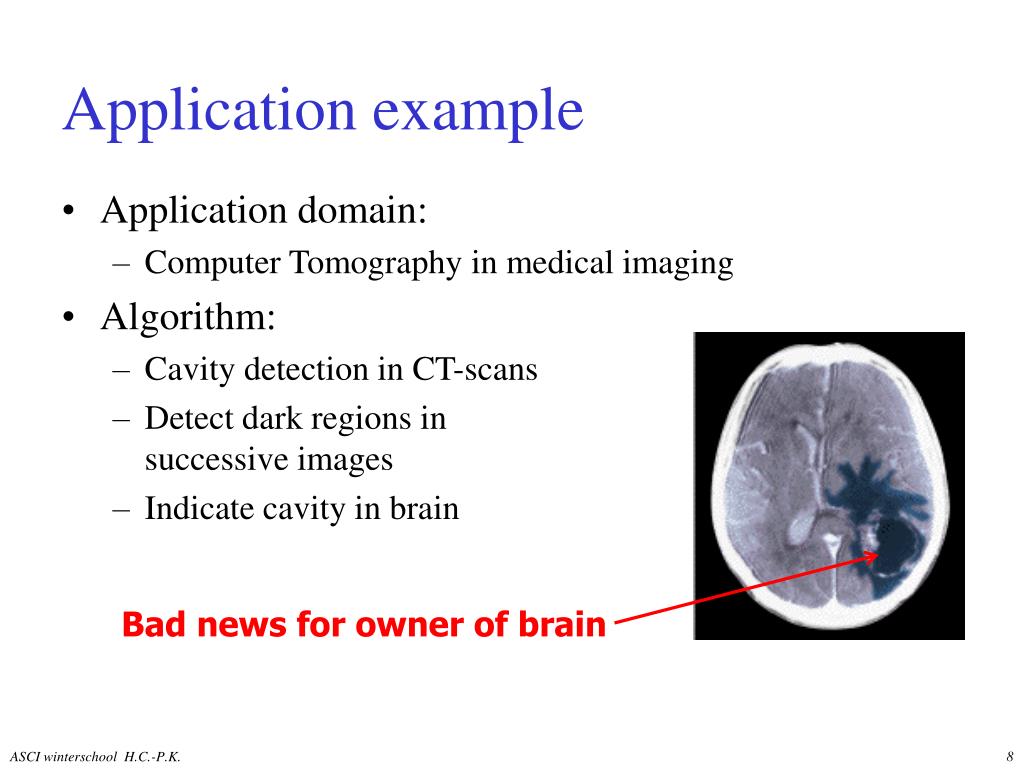

  8. Application domain: Computer Tomography in medical imaging Algorithm: Cavity detection in CT-scans Detect dark regions in successive images Indicate cavity in brain Bad news for owner of brain Application example

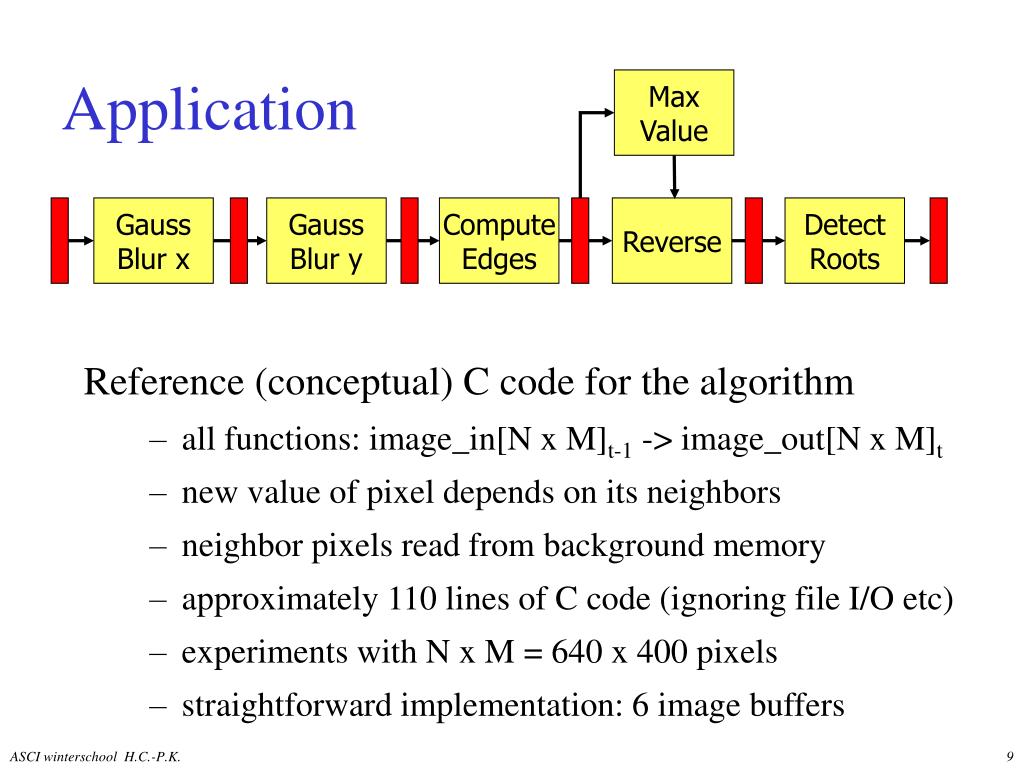

  9. Application Max Value Reference (conceptual) C code for the algorithm • all functions: image_in[N x M]t-1 -> image_out[N x M]t • new value of pixel depends on its neighbors • neighbor pixels read from background memory • approximately 110 lines of C code (ignoring file I/O etc) • experiments with N x M = 640 x 400 pixels • straightforward implementation: 6 image buffers Gauss Blur x Gauss Blur y Compute Edges Reverse Detect Roots

  10. Avoid N-port Memories within real-time constraints local latch 1 & bank 1 Processor Data Paths L1 cache L2 cache Cache Bank Combine local latch N & bank N Introduce Locality Reduce redundant transfers Exploit memory hierarchy DMM principles Off-chip SDRAM Exploit limited life-time

  11. C-in DMM steps Preprocessing Dataflow transformations Loop transformations Data reuse Memory hierarchy layer assignment Cycle budget distribution Memory allocation and assignment Data layout Address expression optimization C-out

  12. The DMM steps • Preprocessing • Rewrite code in 3 layers (parts) • Selective inlining, Single Assignment form, .... • Data flow transformations • Eliminate redundant transfers and storage • Loop and control flow transformations • Improve regularity of accesses and data locality • Data re-use and memory hierarchy layer assignment • Determine when to move which data between memories to meet the cycle budget of the application with low cost • Determine in which layer to put the arrays (and copies)

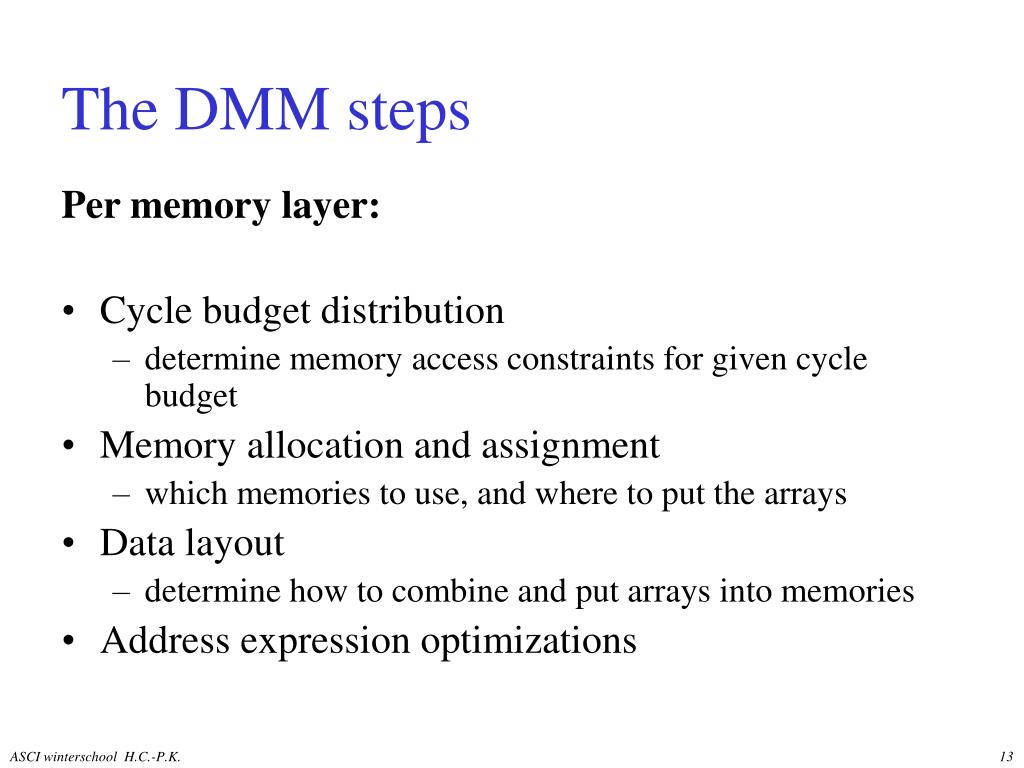

  13. The DMM steps Per memory layer: • Cycle budget distribution • determine memory access constraints for given cycle budget • Memory allocation and assignment • which memories to use, and where to put the arrays • Data layout • determine how to combine and put arrays into memories • Address expression optimizations

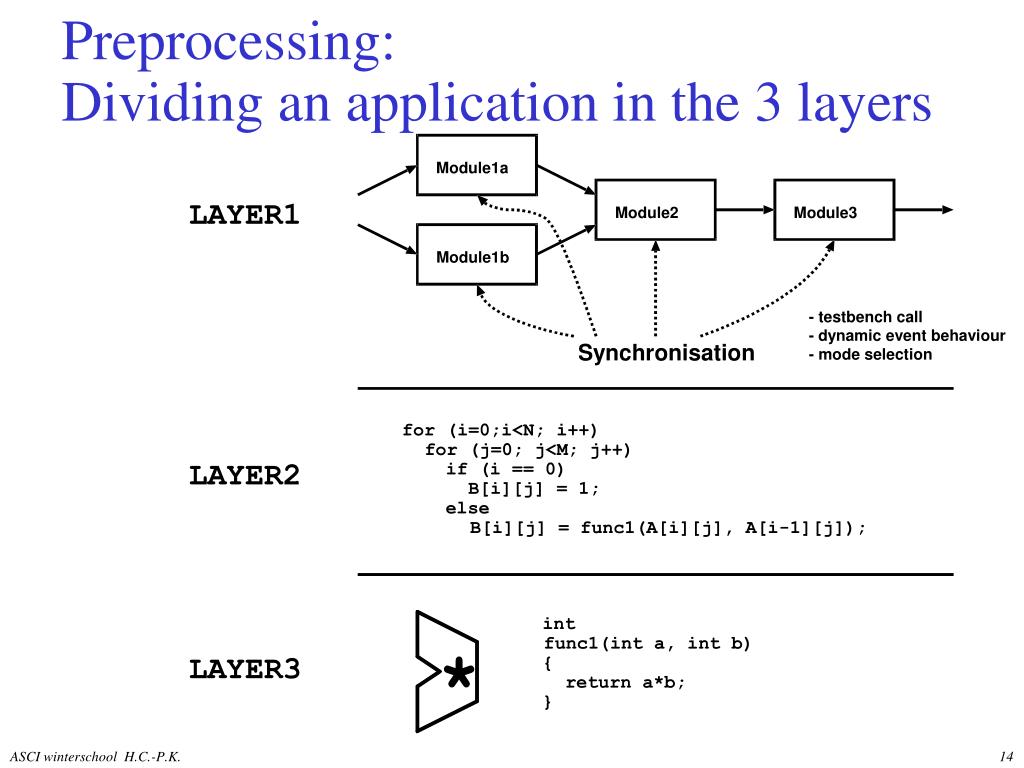

  14. Preprocessing: Dividing an application in the 3 layers Module1a LAYER1 Module2 Module3 Module1b - testbench call - dynamic event behaviour Synchronisation - mode selection for (i=0;i<N; i++) for (j=0; j<M; j++) LAYER2 if (i == 0) B[i][j] = 1; else B[i][j] = func1(A[i][j], A[i-1][j]); int func1(int a, int b) LAYER3 { return a*b; }

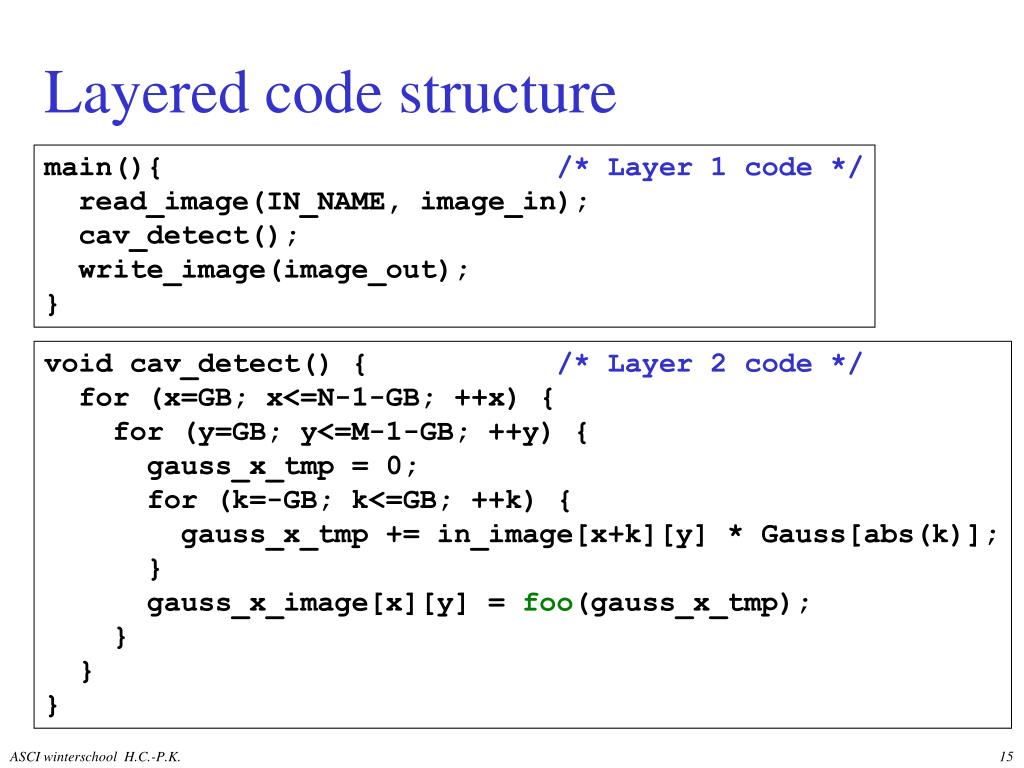

  15. Layered code structure main(){ /* Layer 1 code */ read_image(IN_NAME, image_in); cav_detect(); write_image(image_out); } void cav_detect() { /* Layer 2 code */ for (x=GB; x<=N-1-GB; ++x) { for (y=GB; y<=M-1-GB; ++y) { gauss_x_tmp = 0; for (k=-GB; k<=GB; ++k) { gauss_x_tmp += in_image[x+k][y] * Gauss[abs(k)]; } gauss_x_image[x][y] = foo(gauss_x_tmp); } } }

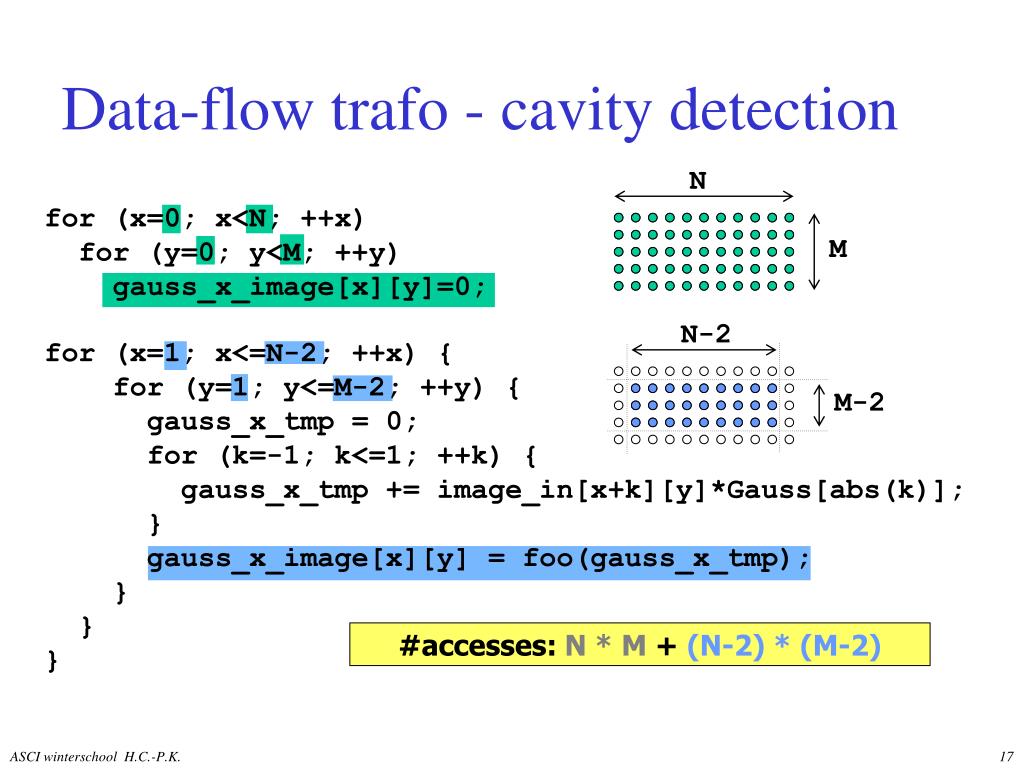

  16. N M N-2 M-2 Data-flow trafo - cavity detection for (x=0; x<N; ++x) for (y=0; y<M; ++y) gauss_x_image[x][y]=0; for (x=1; x<=N-2; ++x) { for (y=1; y<=M-2; ++y) { gauss_x_tmp = 0; for (k=-1; k<=1; ++k) { gauss_x_tmp += image_in[x+k][y]*Gauss[abs(k)]; } gauss_x_image[x][y] = foo(gauss_x_tmp); } } } #accesses: N * M + (N-2) * (M-2)

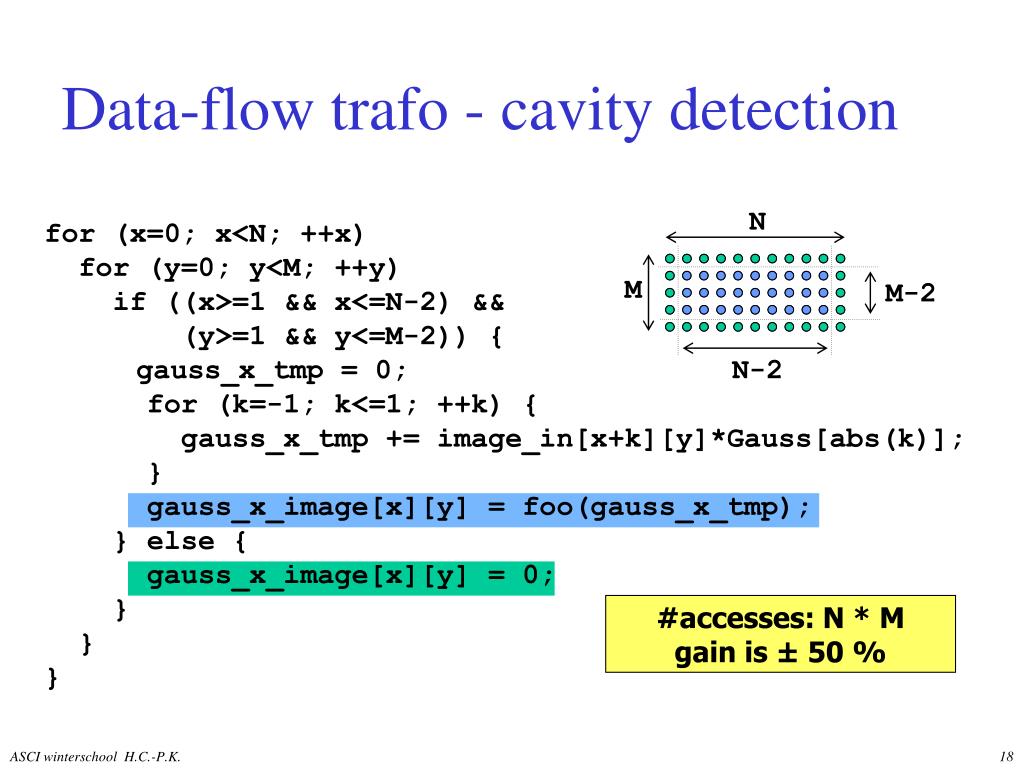

  17. N M M-2 N-2 Data-flow trafo - cavity detection for (x=0; x<N; ++x) for (y=0; y<M; ++y) if ((x>=1 && x<=N-2) && (y>=1 && y<=M-2)) { gauss_x_tmp = 0; for (k=-1; k<=1; ++k) { gauss_x_tmp += image_in[x+k][y]*Gauss[abs(k)]; } gauss_x_image[x][y] = foo(gauss_x_tmp); } else { gauss_x_image[x][y] = 0; } } } #accesses: N * M gain is ± 50 %

  18. Data-flow transformation • In total 5 types of data-flow transformations: • advanced signal substitution and propagation • algebraic transformations (associativity etc.) • shifting “delay lines” • re-computation • transformations to eliminate bottlenecksfor subsequent loop transformations

  19. Data-flow transformation - result

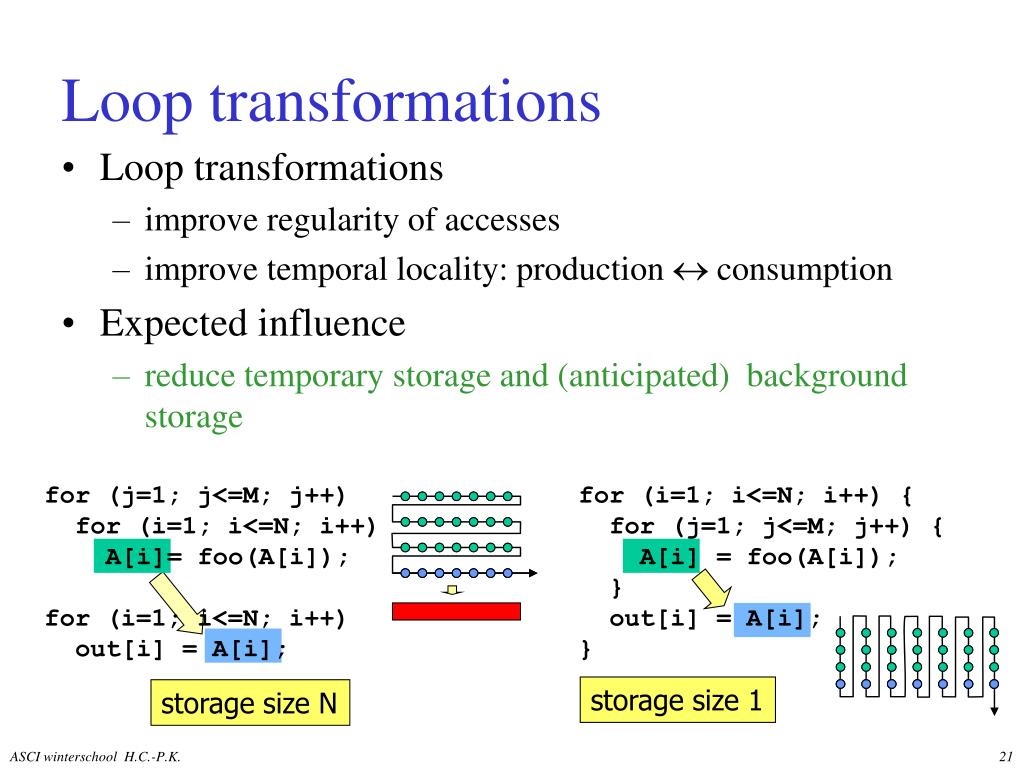

  20. for (j=1; j<=M; j++) for (i=1; i<=N; i++) A[i]= foo(A[i]); for (i=1; i<=N; i++) out[i] = A[i]; for (i=1; i<=N; i++) { for (j=1; j<=M; j++) { A[i] = foo(A[i]); } out[i] = A[i]; } storage size 1 storage size N Loop transformations • Loop transformations • improve regularity of accesses • improve temporal locality: production  consumption • Expected influence • reduce temporary storage and (anticipated) background storage

  21. scandevice Data enters Cavity Detectorrow-wise serial scan Buffer =image_in GaussBlur loop Cavity Detector

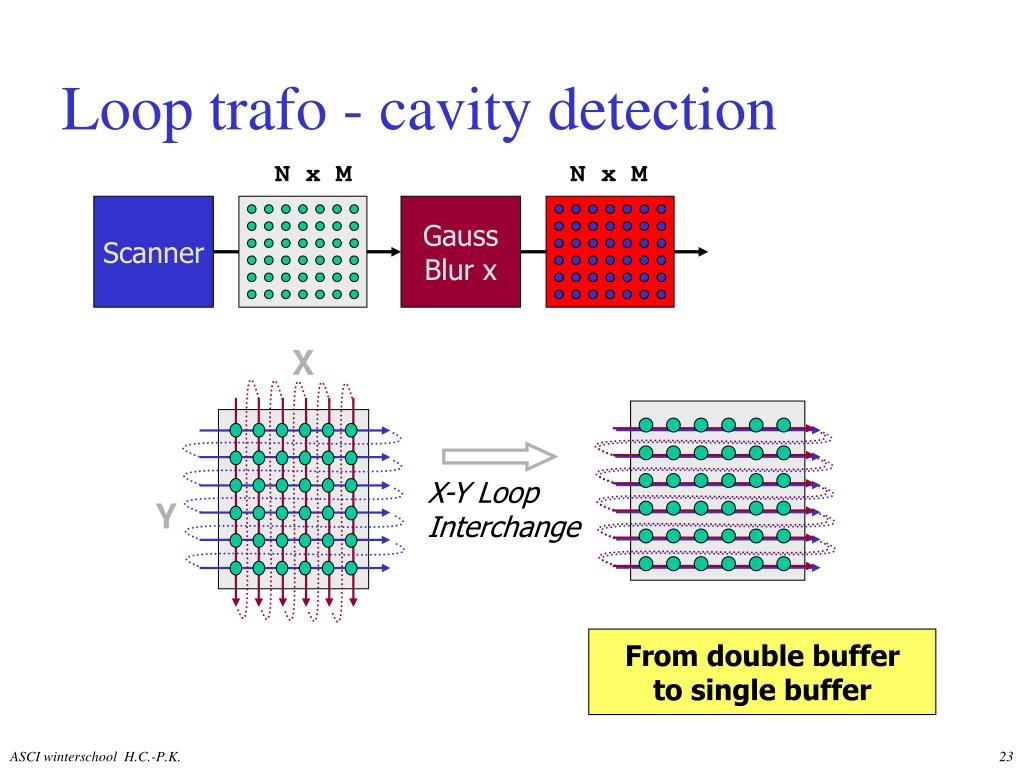

  22. N x M Gauss Blur x X-Y Loop Interchange Loop trafo - cavity detection N x M Scanner X Y From double bufferto single buffer

  23. Loop trafo - cavity detection N x (2GB+1) N x 3 Gauss Blur x Gauss Blur y Compute Edges Repeated fold and loop merge 3(offset arrays) 2GB+1 From N x M toN x (3) buffer size From N x M toN x (2GB+1) buffer size

  24. Improve regularity and locality Loop Merging !! Impossible due to dependencies! for (y=0;y<M;y++) for (x=0;x<N;x++) /* 1st filtering code */ for (y=0;y<M;y++) for (x=0;x<N;x++) /* 2nd filtering code */ for (y=0;y<M;y++) for (x=0;x<N;x++) /* 1st filtering code */ for (x=0;x<N;x++) /* 2nd filtering code */

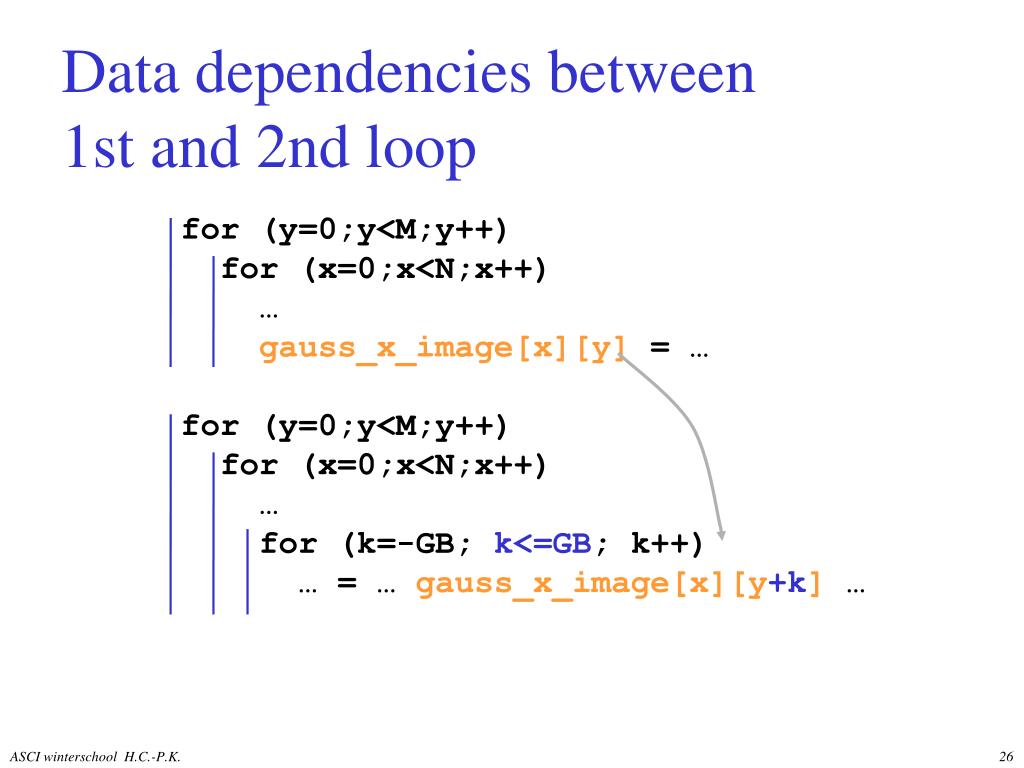

  25. Data dependencies between1st and 2nd loop for (y=0;y<M;y++) for (x=0;x<N;x++) … gauss_x_image[x][y] = … for (y=0;y<M;y++) for (x=0;x<N;x++) … for (k=-GB; k<=GB; k++) … = … gauss_x_image[x][y+k] …

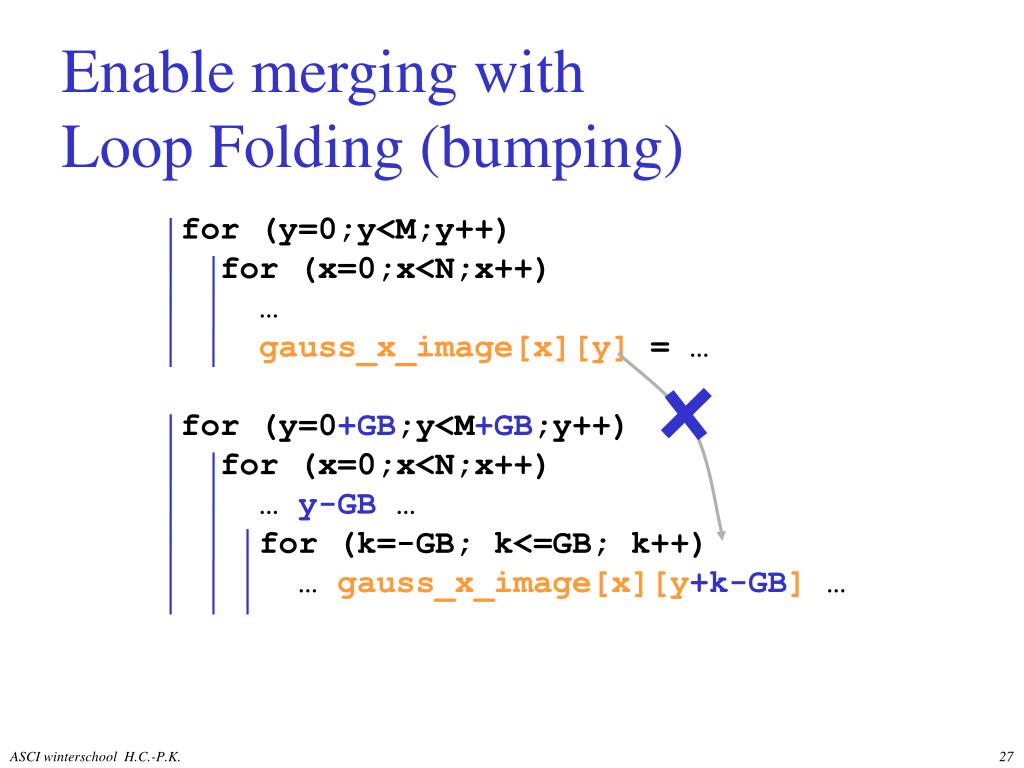

  26. Enable merging withLoop Folding (bumping) for (y=0;y<M;y++) for (x=0;x<N;x++) … gauss_x_image[x][y] = … for (y=0+GB;y<M+GB;y++) for (x=0;x<N;x++) … y-GB … for (k=-GB; k<=GB; k++) … gauss_x_image[x][y+k-GB] …

  27. Y-loop merging on 1st and 2nd loop nest for (y=0;y<M+GB;y++) if (y<M) for (x=0;x<N;x++) … gauss_x_image[x][y] = … if (y>=GB) for (x=0;x<N;x++) if (x>=GB && x<=N-1-GB && (y-GB)>=GB && (y-GB)<=M-1-GB) … for (k=-GB; k<=GB; k++) … gauss_x_image[x][y-GB+k] … else

  28. Simplify conditionsin merged loop nest for (y=0;y<M+GB;y++) for (x=0;x<N;x++) if (y<M) … gauss_x_image[x][y] = … for (x=0;x<N;x++) if (y>=GB && x>=GB && x<=N-1-GB && (y-GB)>=GB && (y-GB)<=M-1-GB) … for (k=-GB; k<=GB; k++) … gauss_x_image[x][y-GB+k] … else if (y>=GB)

  29. End result of global loop trafo for (y=0; y<M+GB+2; ++y) { for (x=0; x<N+2; ++x) { … if (x>=GB && x<=N-1-GB && (y-GB)>=GB && (y-GB)<=M-1-GB) { gauss_xy_compute[x][y-GB][0] = 0; for (k=-GB; k<=GB; ++k) gauss_xy_compute[x][y-GB][GB+k+1] = gauss_xy_compute[x][y-GB][GB+k] + gauss_x_image[x][y-GB+k] * Gauss[abs(k)]; gauss_xy_image[x][y-GB] = gauss_xy_compute[x][y-GB][(2*GB)+1]/tot; } else if (x<N && (y-GB)>=0 && (y-GB)<M) gauss_xy_image[x][y-GB] = 0; …

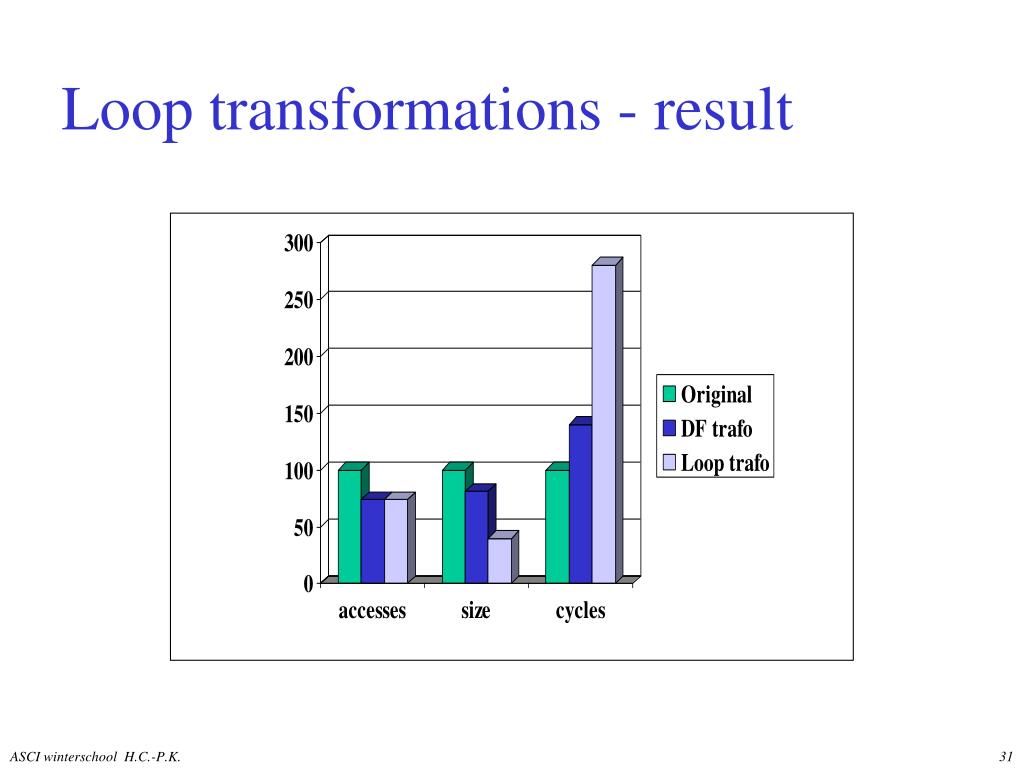

  30. Loop transformations - result

  31. M’’ M’ M Main memory P = 0.01 P = 0.1 P = 1 Data re-use & memory hierarchy • Introduce memory hierarchy • reduce number of reads from main memory • heavily accessed arrays stored in smaller memories Processor Data Paths Reg File #A = 100 100 10 1 P (original) = # access x power/access = 100 P (after) = 100 x 0.01 + 10 x 0.1 + 1 x 1 = 3

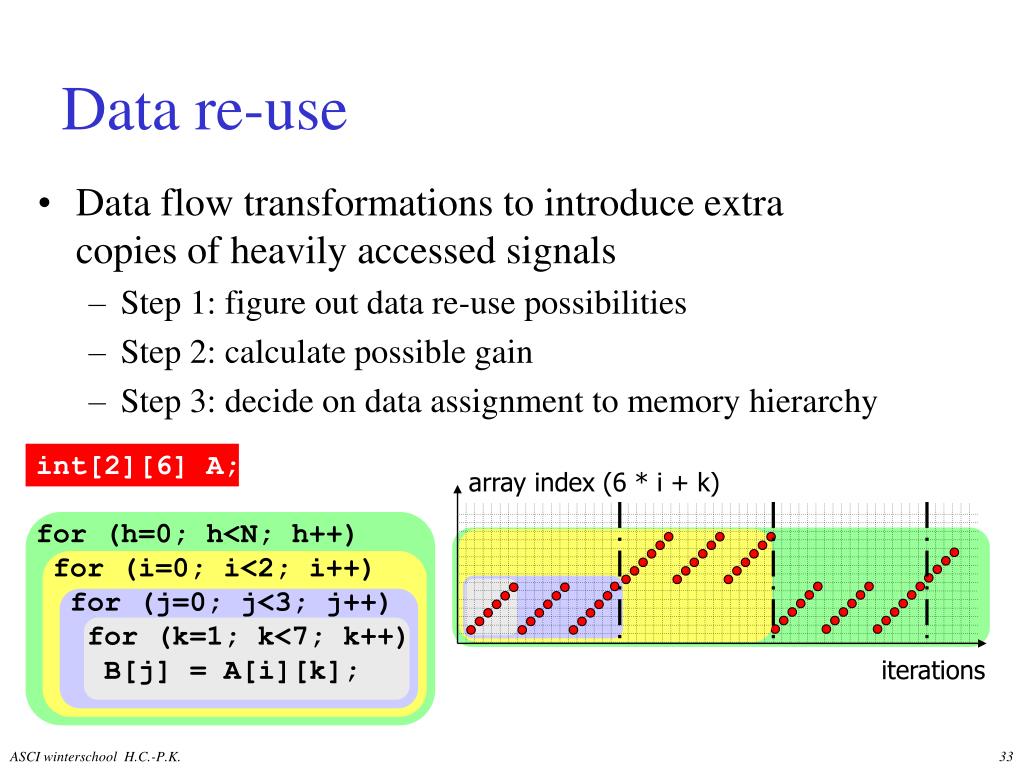

  32. int[2][6] A;for (h=0; h<N; h++) for (i=0; i<2; i++) for (j=0; j<3; j++) for (k=1; k<7; k++) B[j] = A[i][k]; array index (6 * i + k) iterations Data re-use • Data flow transformations to introduce extracopies of heavily accessed signals • Step 1: figure out data re-use possibilities • Step 2: calculate possible gain • Step 3: decide on data assignment to memory hierarchy

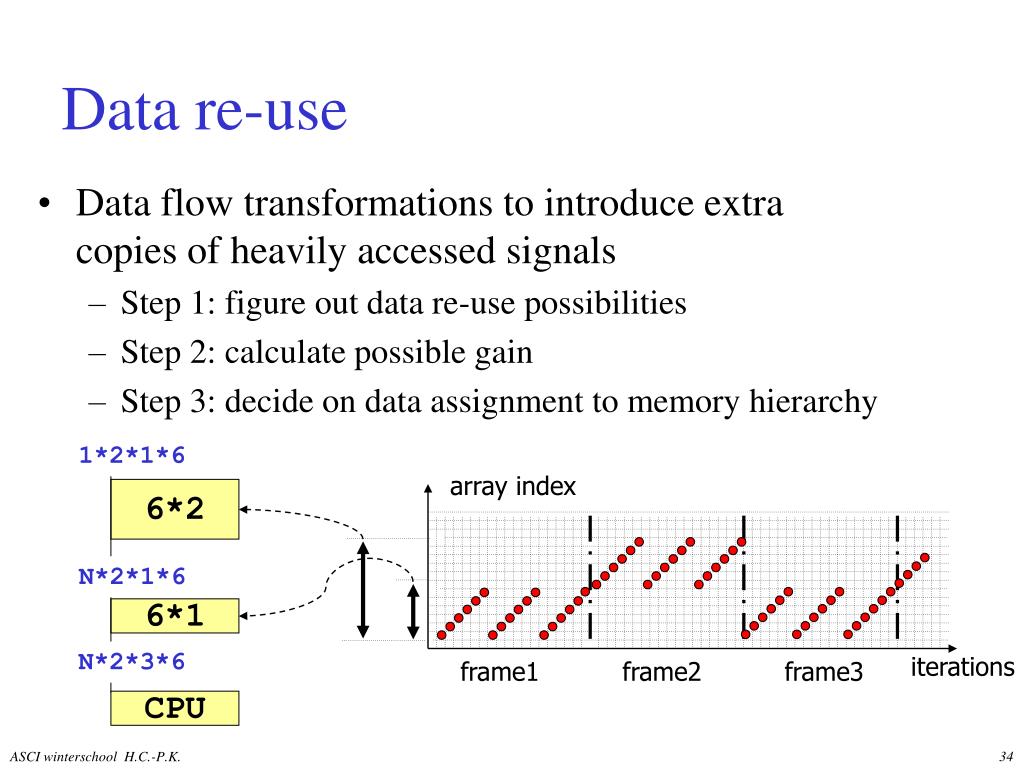

  33. array index 6*2 6*1 N*2*3*6 iterations frame1 frame2 frame3 CPU Data re-use • Data flow transformations to introduce extracopies of heavily accessed signals • Step 1: figure out data re-use possibilities • Step 2: calculate possible gain • Step 3: decide on data assignment to memory hierarchy 1*2*1*6 N*2*1*6

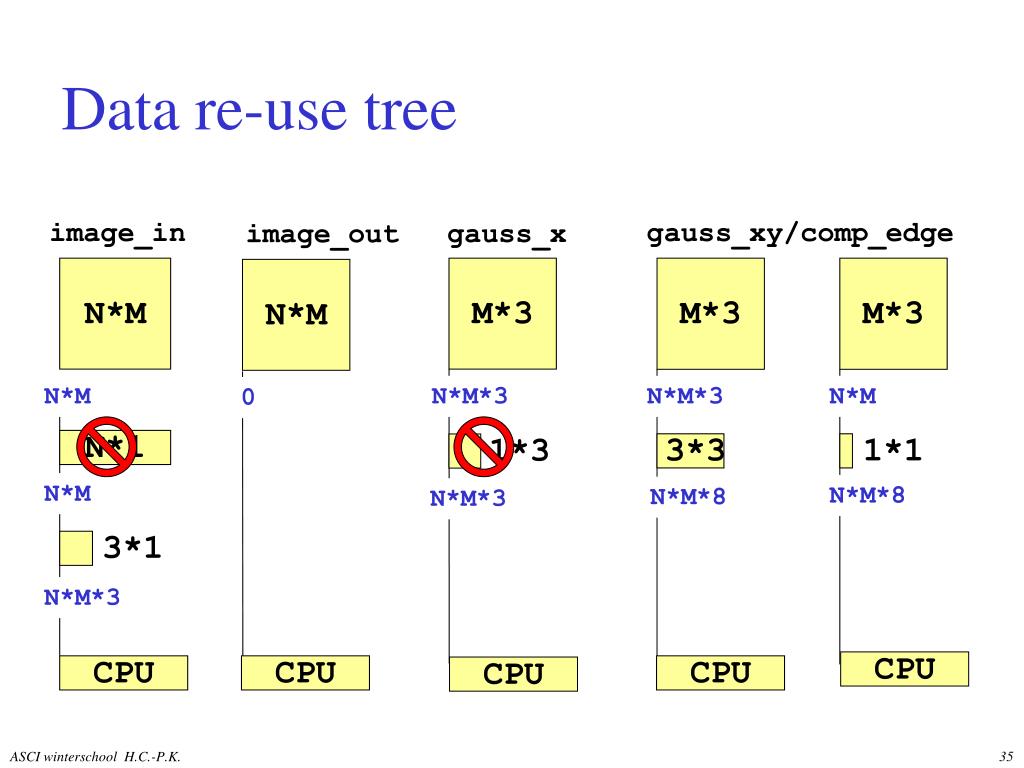

  34. Data re-use tree image_in gauss_xy/comp_edge gauss_x image_out N*M M*3 M*3 M*3 N*M N*M N*M*3 N*M*3 N*M 0 1*1 N*1 3*3 1*3 N*M N*M*8 N*M*8 N*M*3 3*1 N*M*3 CPU CPU CPU CPU CPU

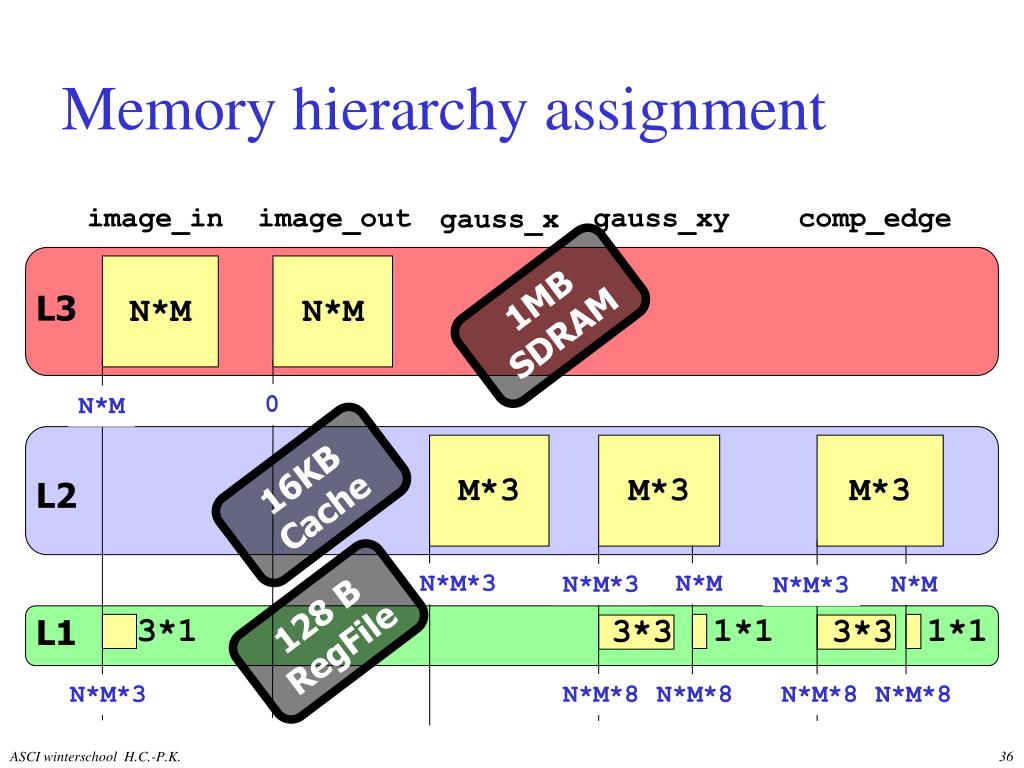

  35. L3 L2 L1 Memory hierarchy assignment image_in image_out gauss_xy comp_edge gauss_x N*M N*M 1MB SDRAM 0 N*M M*3 M*3 M*3 16KB Cache N*M*3 N*M N*M N*M*3 N*M*3 128 B RegFile 1*1 1*1 3*1 3*3 3*3 N*M*3 N*M*8 N*M*8 N*M*8 N*M*8

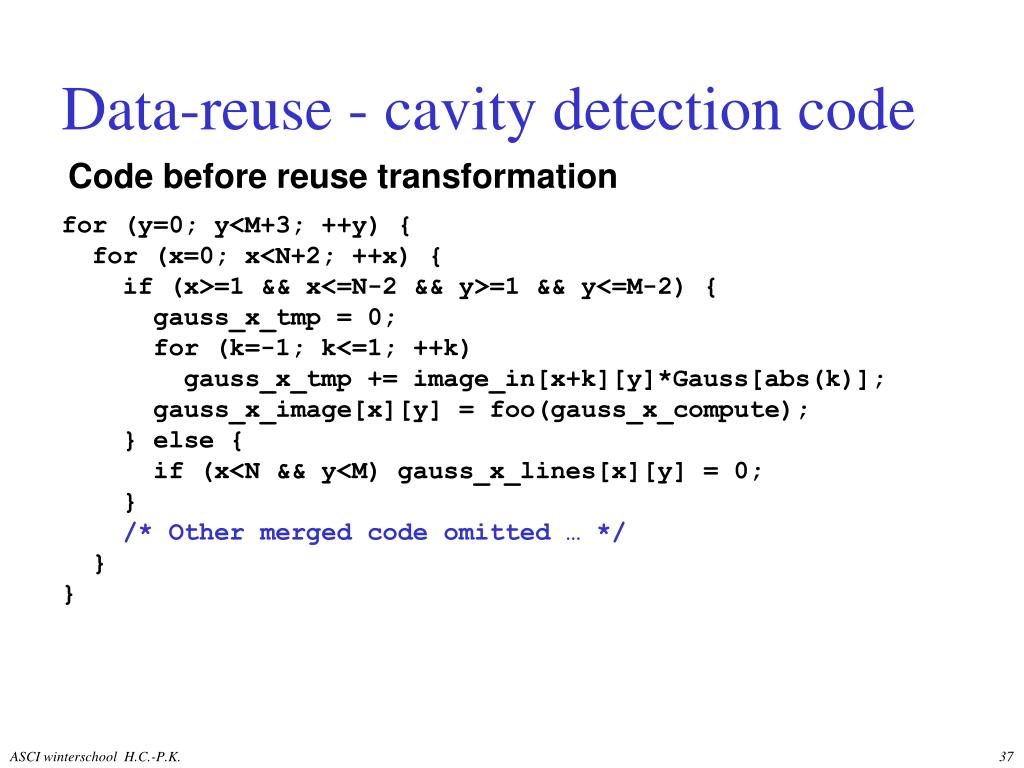

  36. Data-reuse - cavity detection code Code before reuse transformation for (y=0; y<M+3; ++y) { for (x=0; x<N+2; ++x) { if (x>=1 && x<=N-2 && y>=1 && y<=M-2) { gauss_x_tmp = 0; for (k=-1; k<=1; ++k) gauss_x_tmp += image_in[x+k][y]*Gauss[abs(k)]; gauss_x_image[x][y]= foo(gauss_x_compute); } else { if (x<N && y<M) gauss_x_lines[x][y] = 0; } /* Other merged code omitted … */ } }

  37. Data-reuse - cavity code Code after reuse transformation detection for (y=0; y<M+3; ++y) { for (x=0; x<N+2; ++x) { /* first in_pixel initialized */ if (x==0 && y>=1 && y<=M-2) for (k=0; k<1; ++k) in_pixels[(x+k)%3][y%1] = image_in[x+k][y]; /* copy rest of in_pixel's in row */ if (x>=0 && x<=N-2 && y>=1 && y<=M-2) in_pixels[(x+1)%3][y%1] = image_in[x+1][y]; if (x>=1 && x<=N-1-1 && y>=1 && y<=M-2) { gauss_x_tmp=0; for (k=-1; k<=1; ++k) gauss_x_tmp += in_pixels[(x+k)%3][y%1]*Gauss[Abs(k)]; gauss_x_lines[x][y%3]= foo(gauss_x_tmp); } else if (x<N && y<M) gauss_x_lines[x][y%3] = 0;

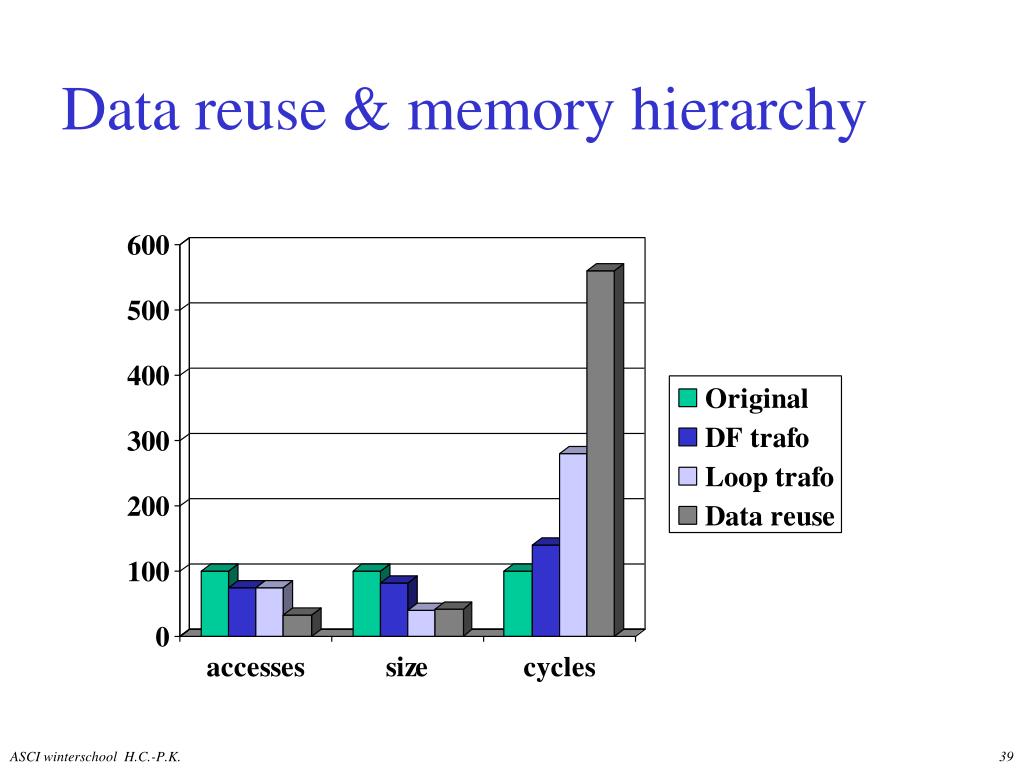

  38. Data reuse & memory hierarchy

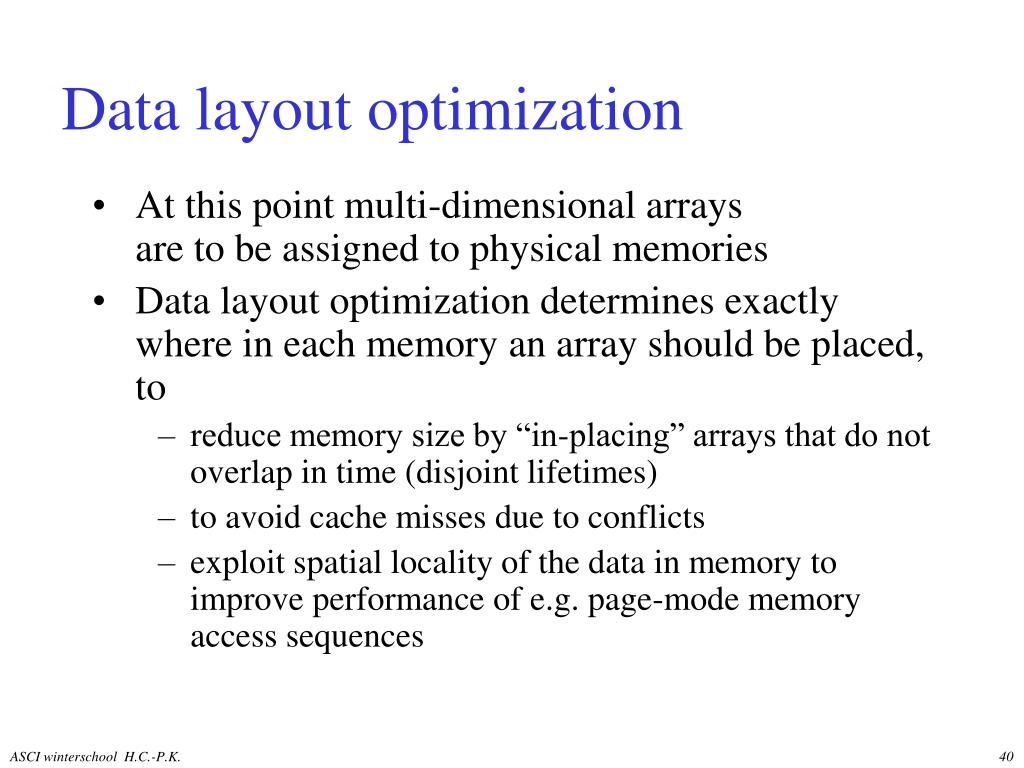

  39. Data layout optimization • At this point multi-dimensional arraysare to be assigned to physical memories • Data layout optimization determines exactly where in each memory an array should be placed, to • reduce memory size by “in-placing” arrays that do not overlap in time (disjoint lifetimes) • to avoid cache misses due to conflicts • exploit spatial locality of the data in memory to improve performance of e.g. page-mode memory access sequences

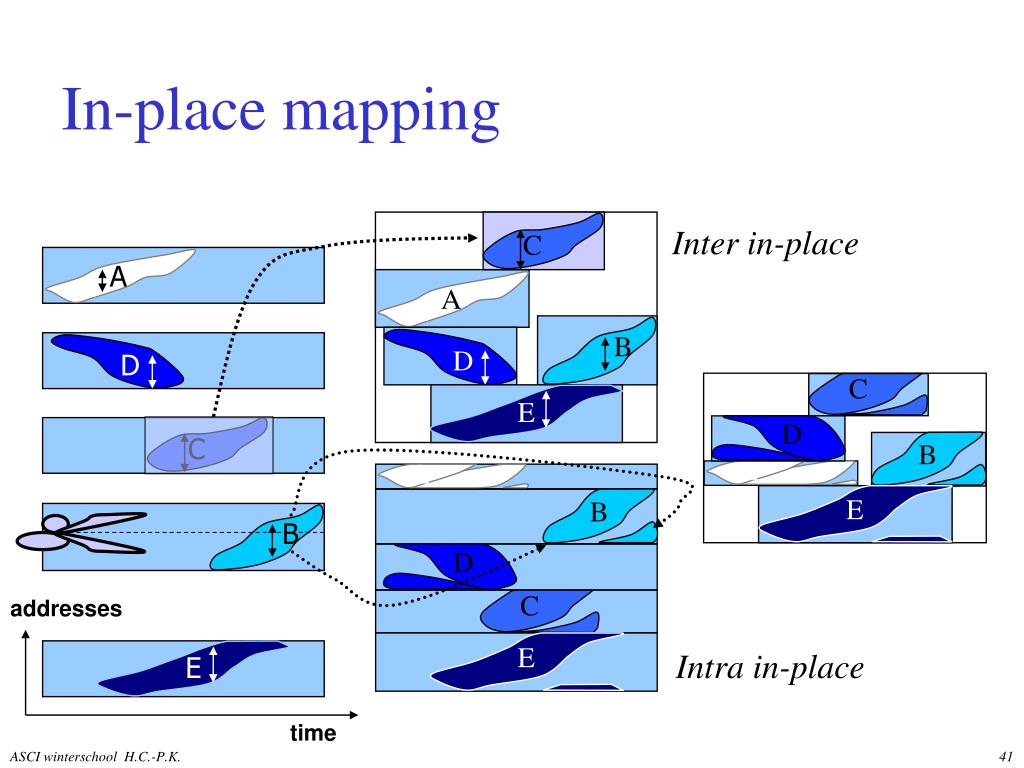

  40. A A A A D D B B D D C C C C B B E E E E In-place mapping Inter in-place addresses Intra in-place time

  41. In-place mapping - results

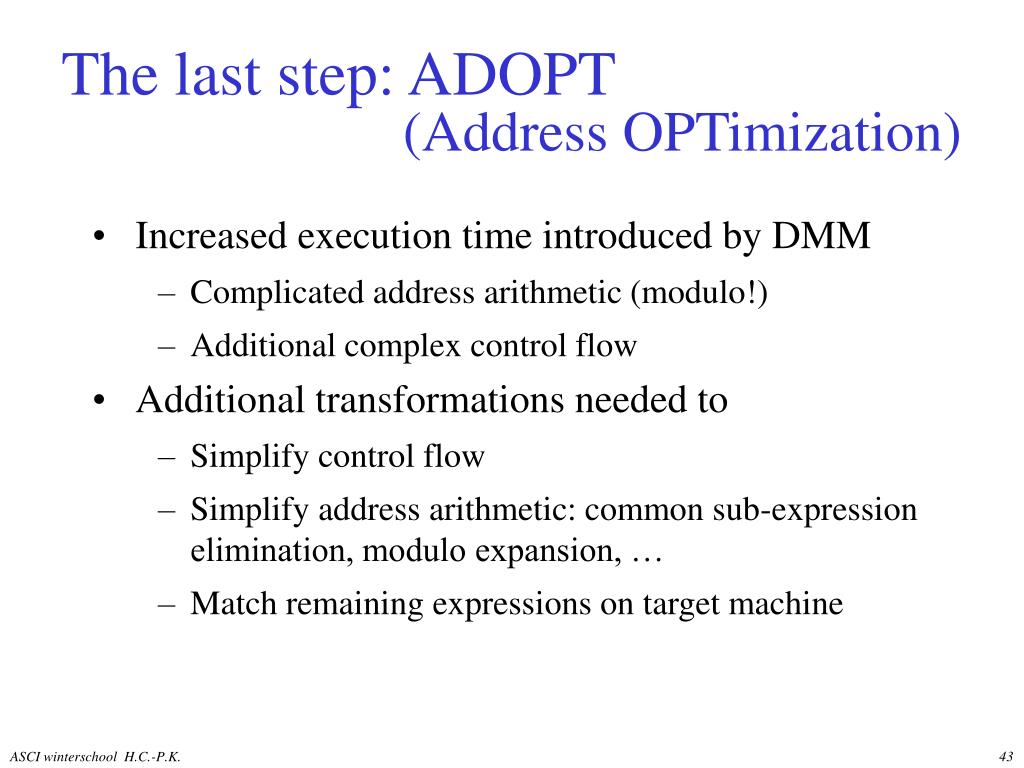

  42. The last step: ADOPT (Address OPTimization) • Increased execution time introduced by DMM • Complicated address arithmetic (modulo!) • Additional complex control flow • Additional transformations needed to • Simplify control flow • Simplify address arithmetic: common sub-expression elimination, modulo expansion, … • Match remaining expressions on target machine

  43. for (i=-8; i<=8; i++) { for (j=- 4; j<=3; j++) { for (k=- 4; k<=3; k++) { Ad[ ] = A[ ]; }} dist += A[ ]-Ad[ ]; } ADOPT example From Full-search Motion Estimation for (i=- 8; i<=8; i++) { for (j=- 4; j<=3; j++) { for (k=- 4; k<=3; k++) A[((208+i)*257+8+j)*257+ 16+i+k] = B[(8+j)*257+16+i+k]; } dist += A[3096] - B[((208+i)*257+4)*257+ 16+i-4]; } cse1 = (33025*i+6869616)*2; cse3 = 1040+i; cse4 = j*257+1032; cse5 = k+cse4; cse5+cse1 = cse5+cse3 3096 cse1 Algebraic transformations at word-level

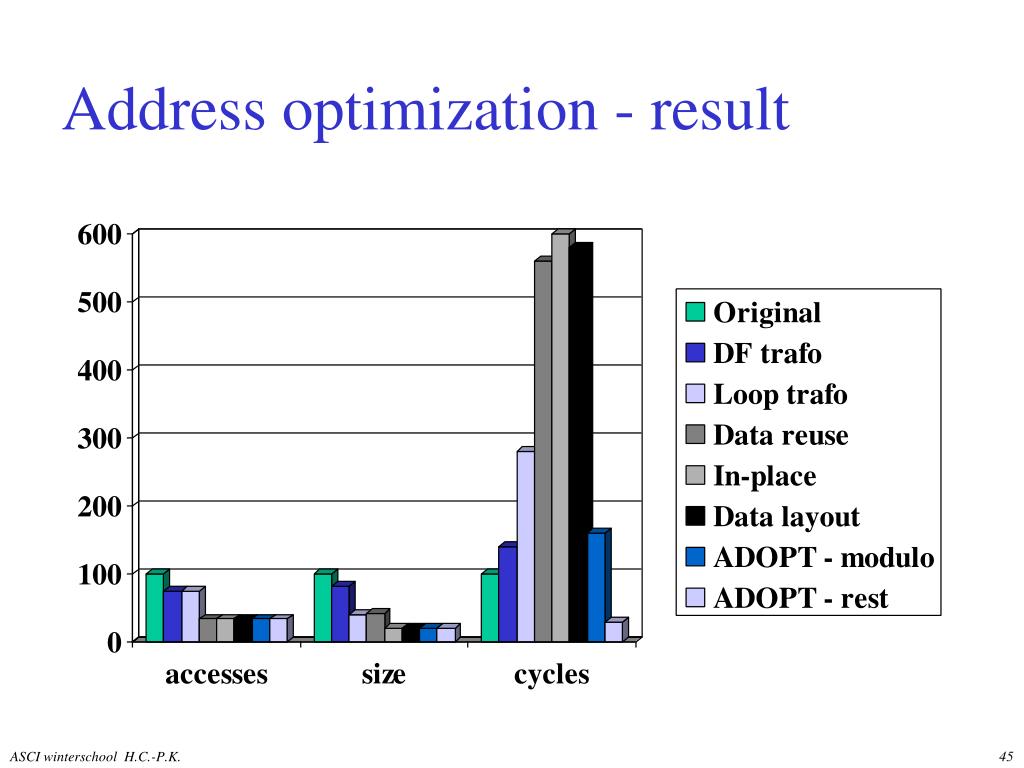

  44. Address optimization - result

  45. Conclusion • In embedded applications exploring data transfer and storage issues should be done at system level • DTSE is a methodology for Data Transfer and Storage Exploration based on manual and/or tool-assisted code rewriting • Platform independent high-level transformations • Platform dependent transformations exploit platform characteristics (efficient use of cache, local memories) • Substantial reduction in power and memory size demonstrated on MPEG-4, OFDM, H.263, ADSL, ...
