HMI Mission Assurance

1. HMI00378 HMI Mission Assurance Edward McFeaters HMI Mission Assurance Manager edward.mcfeaters@lmco.com

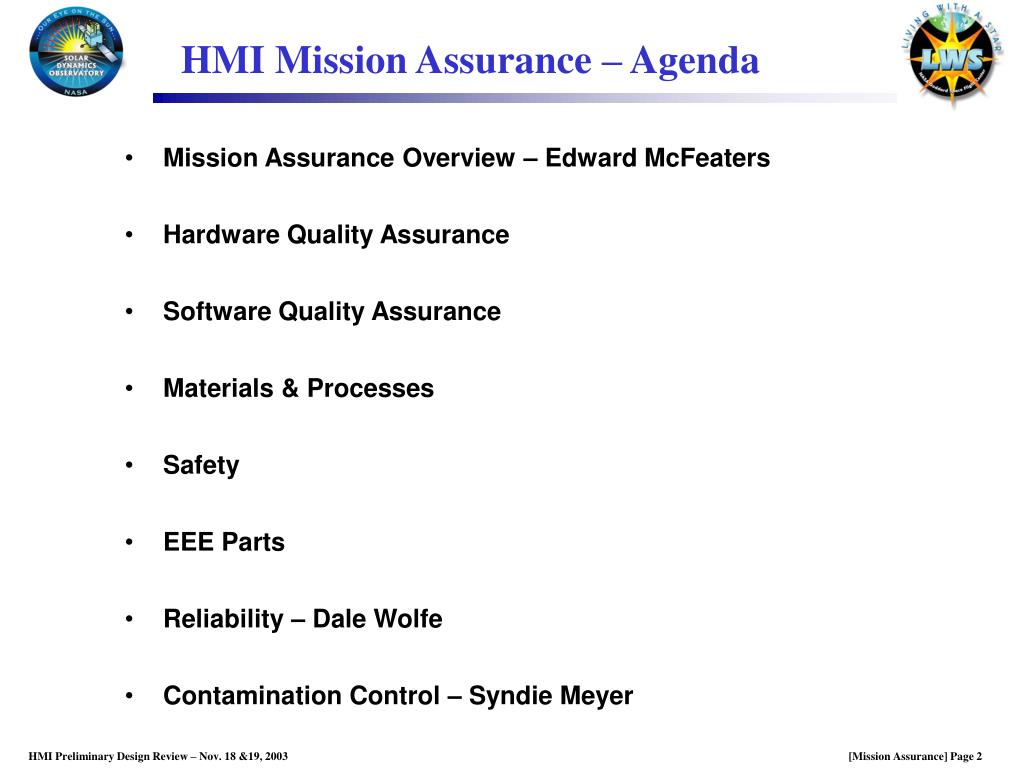

2. HMI Mission Assurance – Agenda • Mission Assurance Overview – Edward McFeaters • Hardware Quality Assurance • Software Quality Assurance • Materials & Processes • Safety • EEE Parts • Reliability – Dale Wolfe • Contamination Control – Syndie Meyer

3. HMI Mission Assurance Overview • HMI Product Assurance Implementation Plan (PAIP) 2H00021 Rev. A submitted to GSFC on 15 Oct. 2003. • HMI MA Team has been fully integrated into the HMI Program since the start. • Mission Assurance Manager; Edward McFeaters. • Quality Engineer; Edward McFeaters. • Software Quality Engineer; Karen Kao. • Reliability Engineer; Dale Wolfe. • Systems Safety Engineer; Zaki Kudiya. • Materials and Processes Engineer; Chuck Fischer. • Components Engineer; Ross Yamamoto. • Contamination Control Engineer; Syndie Meyer. • PDR Deliverable MA Data Items per PAIP. • Safety Package/System Safety Engineering Assessment. • FMEA/Critical Items List/Limited Life List. • EEE Parts Stress Analysis. • EEE Parts List. • Materials & Processes List. • Contamination Control Plan.

4. HMI Hardware Quality Assurance Edward McFeaters Quality Engineer edward.mcfeaters@lmco.com

5. HMI Hardware Quality Assurance – Agenda • Hardware QA Requirements. • ISO 9000:2000 Certification. • Controls, Inspection and Test. • Quality Records. • Material Review Board. • Procurement.

6. Hardware Quality Assurance • Requirements for the HMI Quality Assurance Program flow down from the PAIP, 2H00021 Rev. A • LMSSC and ATC are ISO 9000:2000 Registered, BSI Certificate No. FM 36556, 26 Mar. 97 Date of Original Registration.. • LMSSC and ATC quality procedures and standards are in accordance with the requirements ISO 9000:2000 • HMI specific quality procedures and standards are in accordance with the SDO mission and HMI contract requirements as well as 9000:2000 . • Controls, processes, verification equipment, fixtures, production resources and skills needed to achieve the desired level of HMI quality are in place. • Quality control, inspection, and testing techniques are available, and required new instrumentation is being developed. • Quality Records are being prepared and maintained. • Material Review Board (MRB) is in place to process any discrepancies. • HMI Purchase Requests and Subcontracts are reviewed on an individual basis to ensure Mission Assurance provisions are flowed down to our suppliers, vendors and subcontractors as appropriate. • The selection of HMI suppliers, vendors and subcontractors, from the LMSSC Directory of Approved Suppliers, is based on performance history, supplier ratings, etc., to assure the suitable selection of suppliers who produce reliable products.

7. HMI Software Quality Assurance Karen Kao Software Quality Engineer Karen.kao@lmco.com

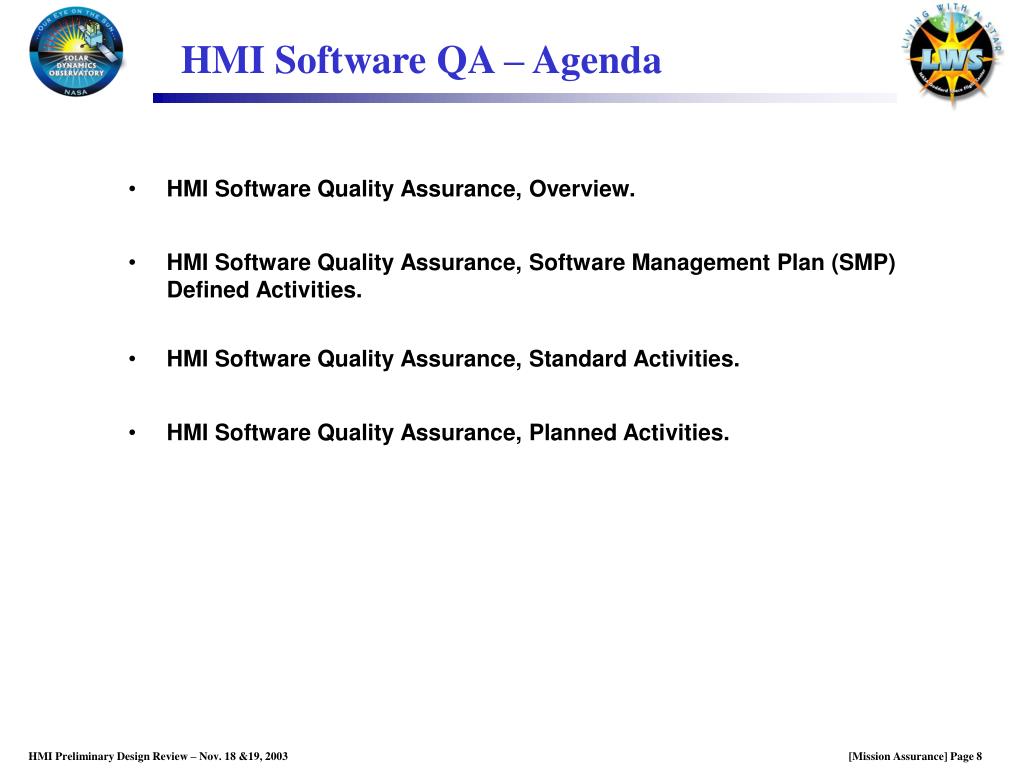

8. HMI Software QA – Agenda • HMI Software Quality Assurance, Overview. • HMI Software Quality Assurance, Software Management Plan (SMP) Defined Activities. • HMI Software Quality Assurance, Standard Activities. • HMI Software Quality Assurance, Planned Activities.

9. HMI SQA – Overview • Software Quality Assurance (SQA) activities flow from the SDO HMI PAIP, 2H00021 Rev. A , and the Software Management Plan (SMP), 2H00005. • SQA activities are adapted from the LMSSC SQA Practices and the LMSSC Standard Software process (SSP). • SQA activities related to the HMI Program are performed by the Software Quality Engineer (SQE) for the Lockheed Martin Advanced Technology Center (LMATC). • SQE support for HMI began at program inception and continues through program completion. • The primary goal of the ATC SQE is to ensure that ATC program software is reliable and verifiably exhibits the characteristics specified in program software requirements.

10. HMI SQA – SMP Defined Activities • SQE software process activities : • Software Development Planning – support SMP development, review and sign-off prior to release. • Project Tracking and Oversight – attend program status, software staff, and other meetings to monitor development progress. • Software Engineering Environment – audit to ensure adequacy of resource and support for software development. • Software Management Indicators – surveillance of definition and use of software progress and quality indicators. • Software Analysis and Design – monitor software analysis and design by auditing related processes and products. • Software Testing – review and sign off test related documents and witness formal testing of final integrated software items. • Corrective Action – CA completion verification throughout software life cycle. • Software Configuration Management – member of SCCB, review and monitor CM process for adequate product control. • Software Peer Review – attend peer reviews and ensure appropriate records are kept.

11. HMI SQA – Standard Activities • Compose ATC SQE Weekly Activity Report including all ATC SQE supported programs. • Attend Bi-Weekly HMI Software Status Meetings. • Attend HMI Program Team Meetings and other HMI software related meetings. • Perform Software Process Audits in accordance to LMSSC SSP and archive audit reports. • Assist in Developing the SMP and Updates. • Review and Approve Software Documents. • Support Customer Reviews. • Attend Software Peer Reviews. • Provide Software Process and Product Consultation.

12. HMI SQA – Planned Activities • Continue Current Regularly Scheduled Meetings. • Continue Monthly Software Process Audits. • Audit All Software Test Documentation. • Verify HMI S/W Test Programs Addresses All Software Requirements. • Support Customer Reviews. • Attend Software Peer Reviews. • Monitor CM Process and attend SCCB meetings. • Surveillance of software progress & quality indicators. • Participate in the Corrective Action Process. • Review all Software Anomaly Reports. • Developer Anomaly and Improvement (DAI). • Instrument Anomaly Report (IAR). • Witness Software Acceptance Testing.

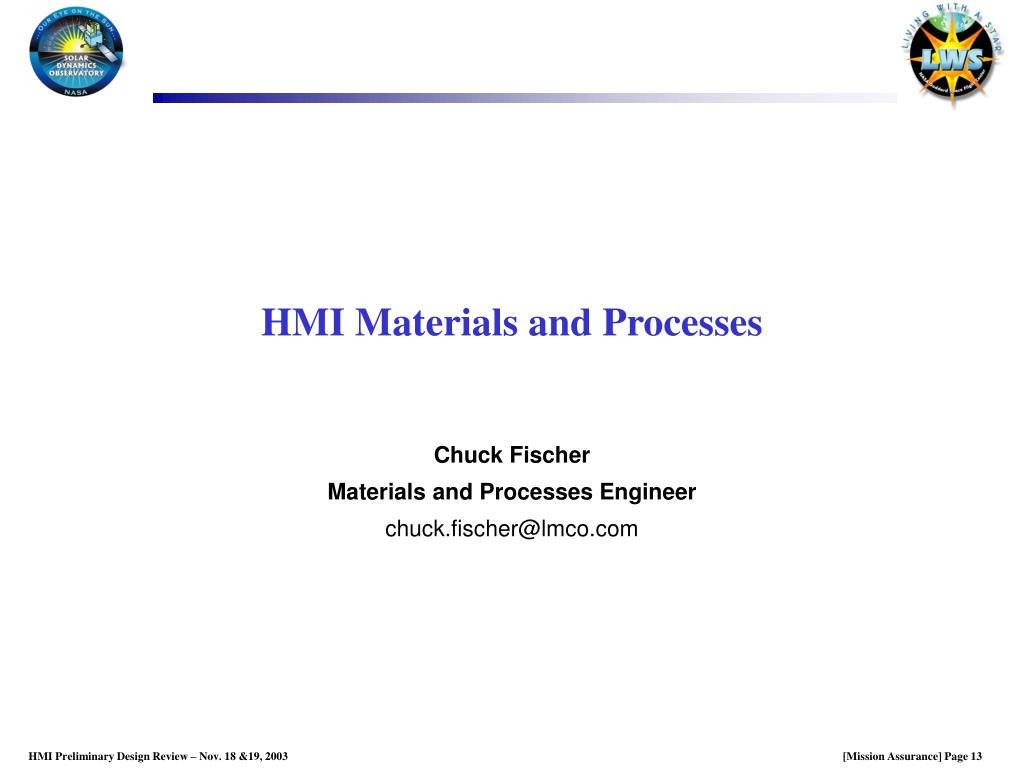

13. HMI Materials and Processes Chuck Fischer Materials and Processes Engineer chuck.fischer@lmco.com

14. HMI Materials & Processes – Agenda • Materials and Processes Requirements • Materials and Processes Control Board • Program M & P List • Electronics Fabrication Support

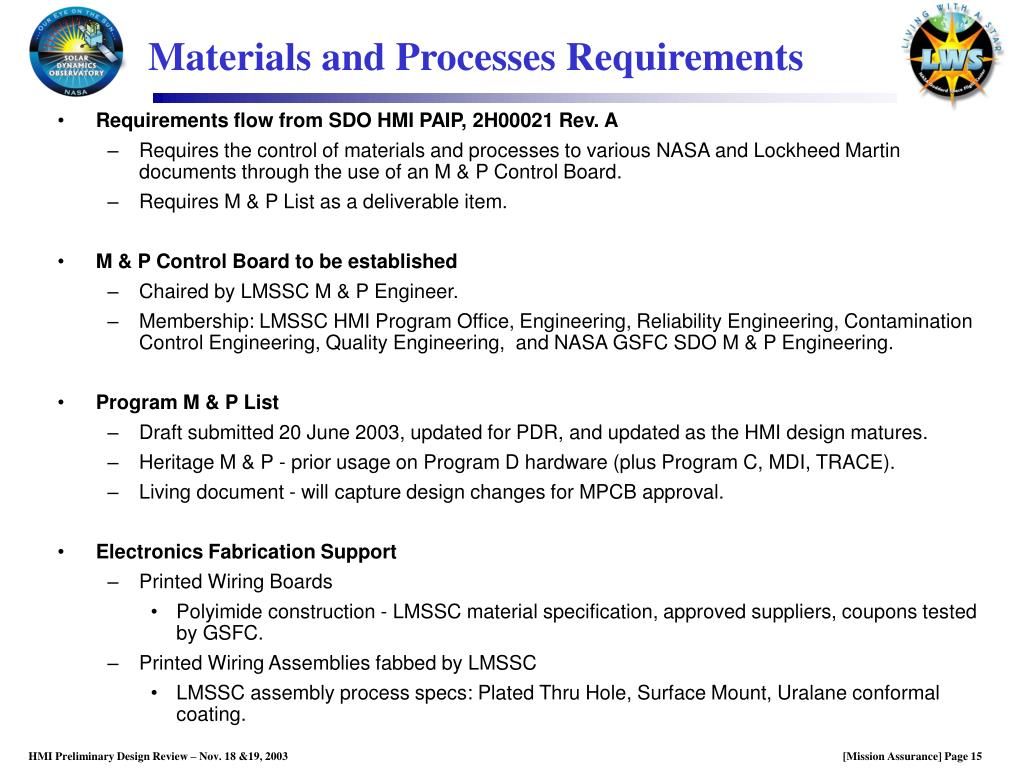

15. Materials and Processes Requirements • Requirements flow from SDO HMI PAIP, 2H00021 Rev. A • Requires the control of materials and processes to various NASA and Lockheed Martin documents through the use of an M & P Control Board. • Requires M & P List as a deliverable item. • M & P Control Board to be established • Chaired by LMSSC M & P Engineer. • Membership: LMSSC HMI Program Office, Engineering, Reliability Engineering, Contamination Control Engineering, Quality Engineering, and NASA GSFC SDO M & P Engineering. • Program M & P List • Draft submitted 20 June 2003, updated for PDR, and updated as the HMI design matures. • Heritage M & P - prior usage on Program D hardware (plus Program C, MDI, TRACE). • Living document - will capture design changes for MPCB approval. • Electronics Fabrication Support • Printed Wiring Boards • Polyimide construction - LMSSC material specification, approved suppliers, coupons tested by GSFC. • Printed Wiring Assemblies fabbed by LMSSC • LMSSC assembly process specs: Plated Thru Hole, Surface Mount, Uralane conformal coating.

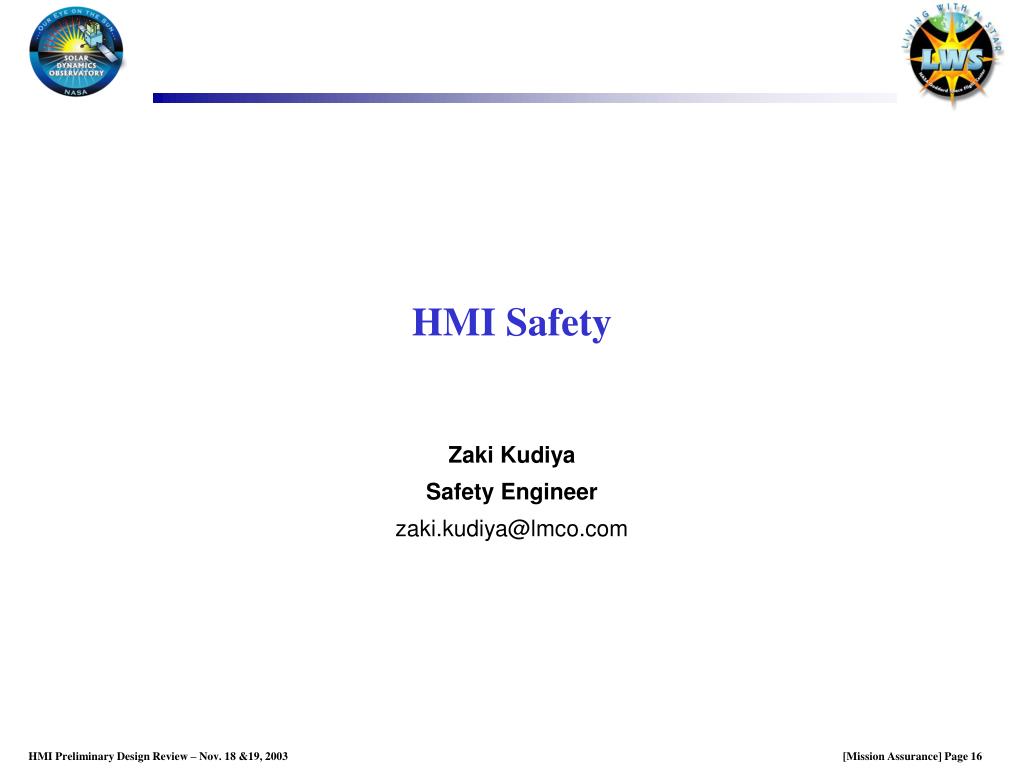

16. HMI Safety Zaki Kudiya Safety Engineer zaki.kudiya@lmco.com

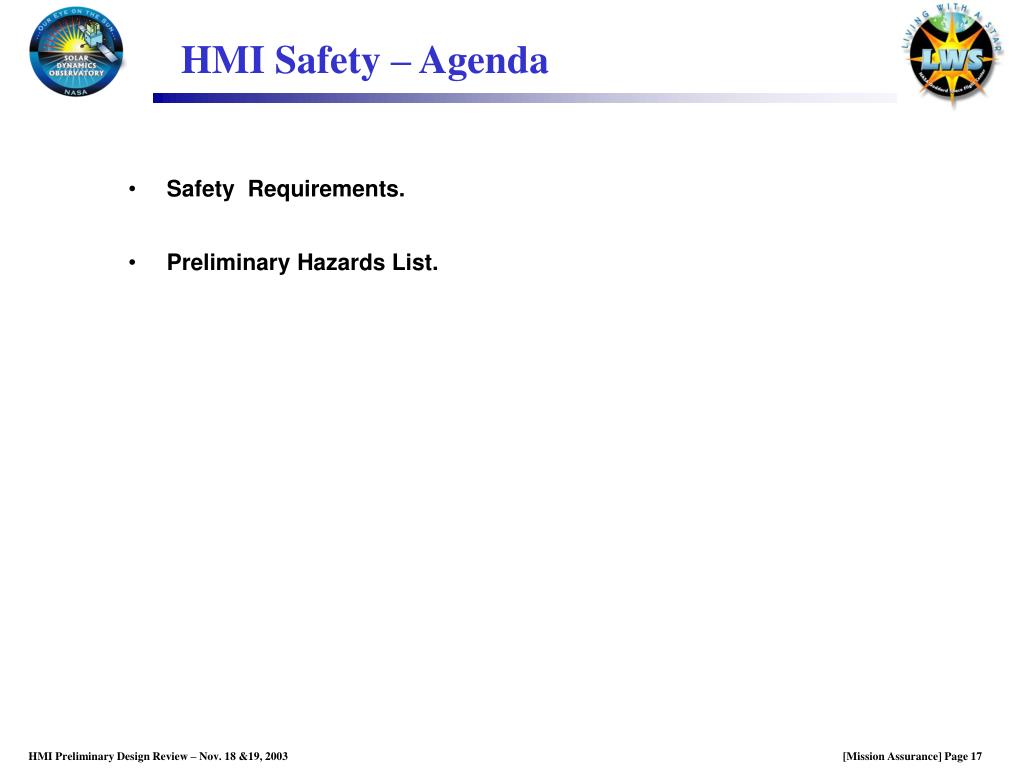

17. HMI Safety – Agenda • Safety Requirements. • Preliminary Hazards List.

18. Safety Requirements • Requirements flow from SDO HMI PAIP, 2H00021 Rev. A. • System Safety Implementation Plan is included in the PAIP Meets the requirements of DID 3.1 “Safety Planning”. • The Safety Engineer is the single point of contact for program personnel, LMSSC ATC, and GSFC for safety-related matters. • A Hazard Analysis is Presented for Each Major Program Review. • Safety Concerns Are In Two Categories • Protection of HMI and its components from damage due to hazards during manufacturing, assembly, test, transport, and pre-launch integration with the SDO. • Protection of personnel who will be working with the HMI Instrument from potential hazards originating from the HMI and associated support equipment during the above operations. • Safety Package/System Safety Engineering Assessment has been issued for PDR • Safety Package/System Engineering Assessment meets the requirements of DID 3.1. • Safety Package describes the the different aspects of the system. • A Preliminary Hazard Analysis has been presented as the System Safety Engineering Assessment. • Seven Preliminary Hazards have been identified.

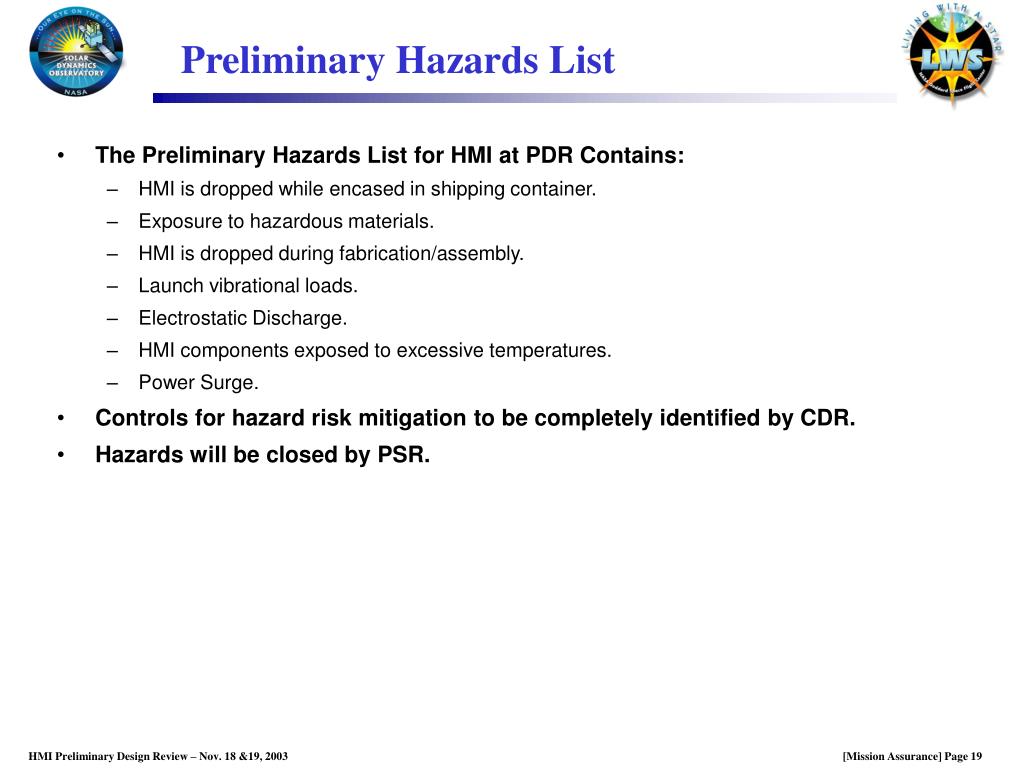

19. Preliminary Hazards List • The Preliminary Hazards List for HMI at PDR Contains: • HMI is dropped while encased in shipping container. • Exposure to hazardous materials. • HMI is dropped during fabrication/assembly. • Launch vibrational loads. • Electrostatic Discharge. • HMI components exposed to excessive temperatures. • Power Surge. • Controls for hazard risk mitigation to be completely identified by CDR. • Hazards will be closed by PSR.

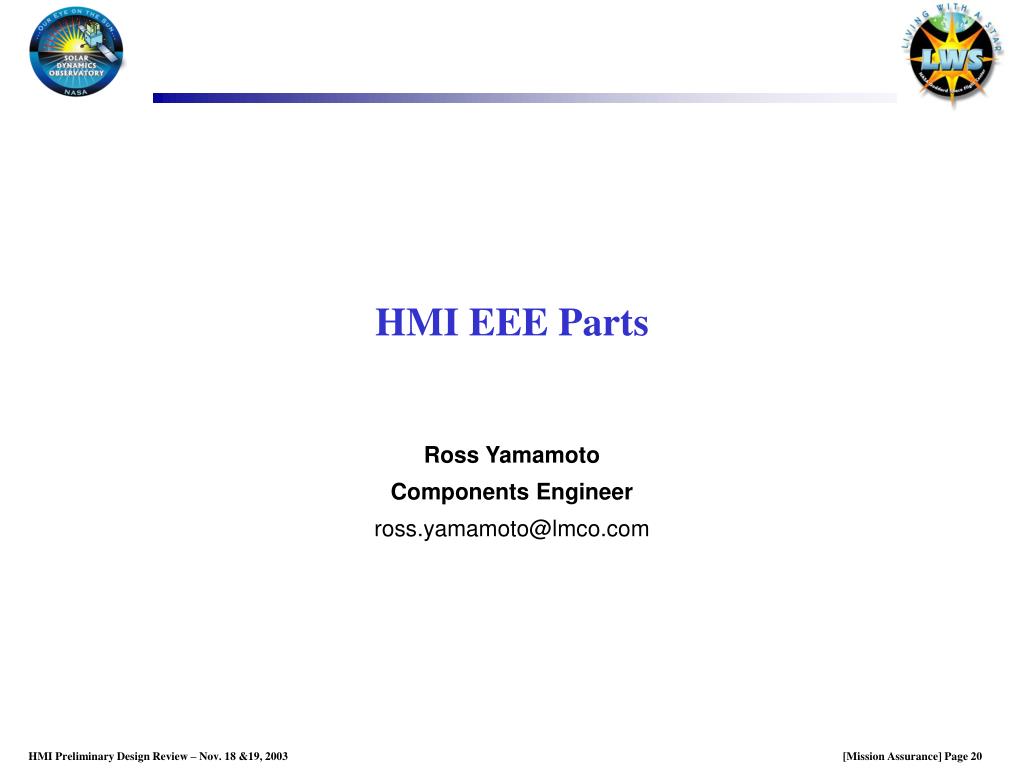

20. HMI EEE Parts Ross Yamamoto Components Engineer ross.yamamoto@lmco.com

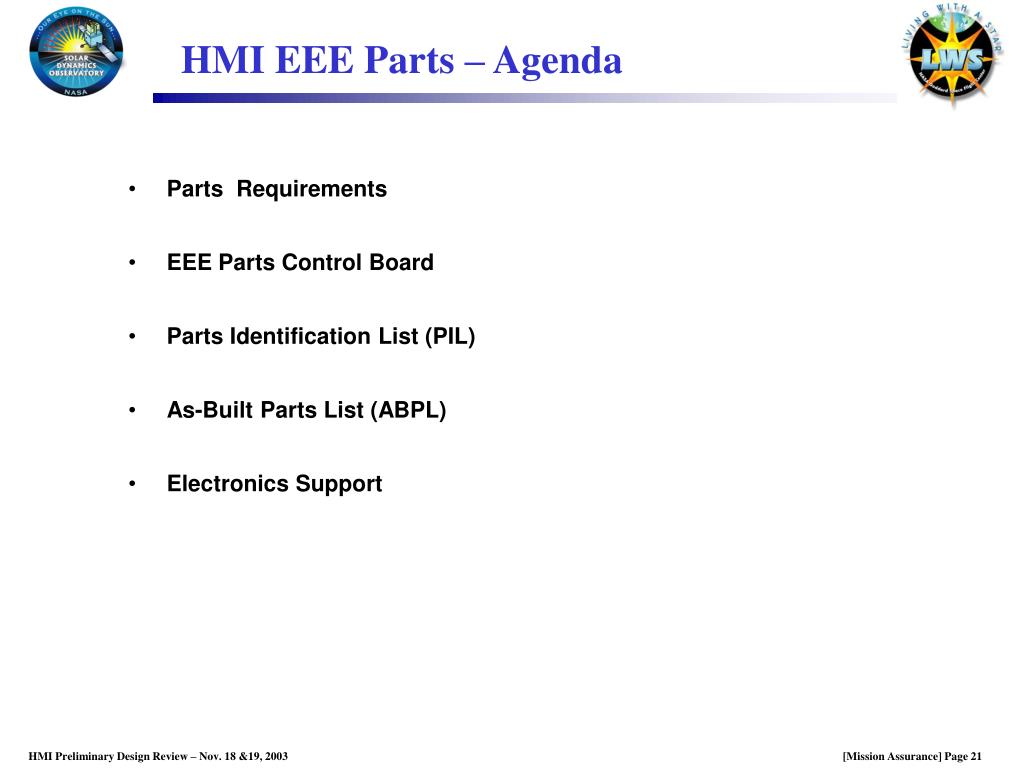

21. HMI EEE Parts – Agenda • Parts Requirements • EEE Parts Control Board • Parts Identification List (PIL) • As-Built Parts List (ABPL) • Electronics Support

22. EEE Parts Requirements • Requirements flow from Performance Assurance Implementation Plan, 2H00021 • Requires the control of EEE Parts to various NASA, Military, and Lockheed Martin documents through the use of an Parts Control Board. • Requires a Parts Identification List (PIL) and an As-Built Parts List (ABPL) as deliverable items • Parts Control Board • Chaired by LMSSC Parts Engineer • Membership: LMSSC HMI Program Office, Engineering, Reliability Engineering, Quality Engineering, and NASA GSFC SDO Parts Engineering. • Program PIL • Draft submitted 11 June 2003 • Updated 27 October 2003 (Revision A) • Program ABPL • Reflects as-built condition of hardware • Generated after flight hardware is built • Electronics Support • Assist designers in the selection of EEE parts • Coordinate part procurements • Oversee DPA and PIND testing • Ensure requirements defined in EEE-INST-002 are met • Review all GIDEP’s and NASA Advisories for impact

23. EEE Parts Screening • Parts screened to the requirements defined in EEE-INST-002. Derating requirements also defined in this document. • Standard Parts • Microcircuits – when an SMD is available will be procured to Class Q requirements with the addition of PIND testing. • Hybrids – when an SMD is available will be procured to Class H requirements with the addition of PIND testing. • Semiconductors – procured to TXV level as a minimum • Passive Devices – procured to failure rate level R as a minimum • Non-Standard Parts • Microcircuits – procured either to a LM SCD or vendor specification to an equivalent Class Q or B level, as a minimum, with the addition of PIND testing. DPA will also be required. • Hybrids – procured either to a LM SCD or vendor specification to an equivalent Class K or S level, as a minimum, with the addition of PIND testing. Pre-cap and DPA will also be required. • Semiconductors - procured either to a LM SCD or vendor specification to an equivalent JTXV or JANS level, as a minimum, with the addition of PIND testing. DPA will also be required. • Passive Devices – procured either to a LM SCD or vendor specification. Screening to the appropriate section of EEE-INST-002 will be required. DPA will also be required.

24. Radiation • Radiation environment specified in the Radiation Requirements for the Solar Dynamics Observatory (Michael A. Xapsos & Janet L. Barth dated June 2003) • LM designed electronics shielded with at least 160 mils of aluminum • Total Dose • All parts selected for 100Krads • Part parametric deratings after radiation supplied to designers • Low dose rate taken in account for bipolar linear IC’s • Protons • Degradation of optocouplers accommodated by derating CTR • SEU • After initial review of the preliminary parts list by Sunnyvale Survivability, single even transients defined to designers for assessment • Latch-Up • The plan is that no parts are to be procured that are susceptible to single event latch-up. However, should an SEL susceptible part have to be used, protective circuitry shall be added to eliminate the possibility of damage.

25. HMI Reliability Dale Wolfe Reliability Engineer dale.wolfe@lmco.com

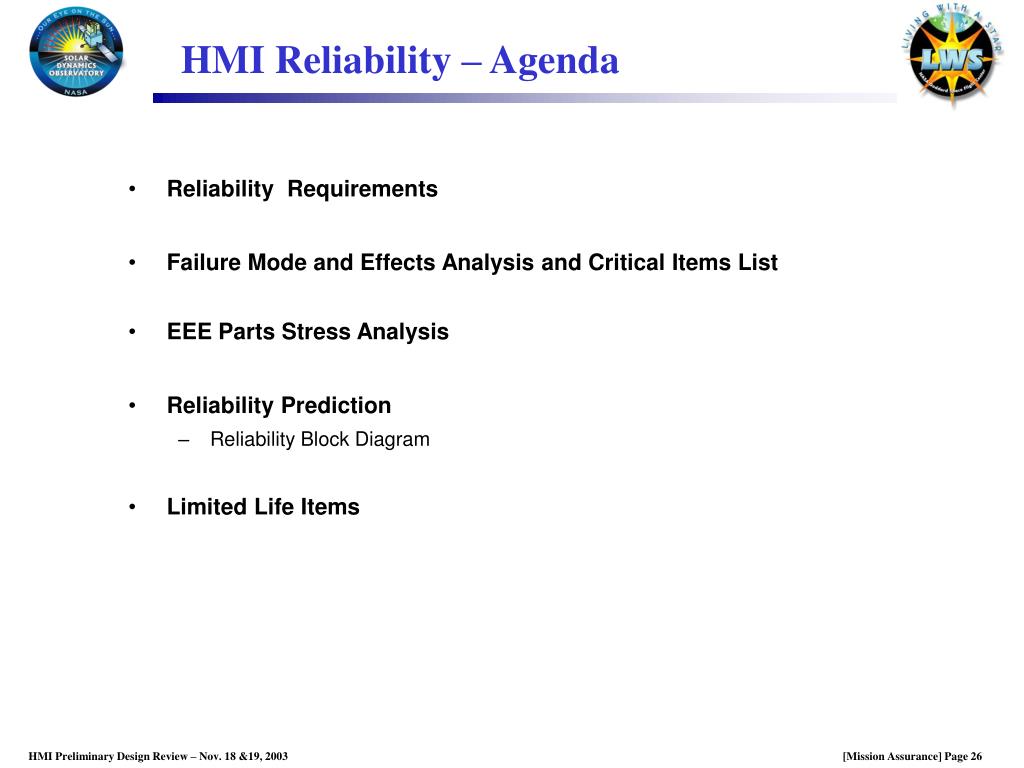

26. HMI Reliability – Agenda • Reliability Requirements • Failure Mode and Effects Analysis and Critical Items List • EEE Parts Stress Analysis • Reliability Prediction • Reliability Block Diagram • Limited Life Items

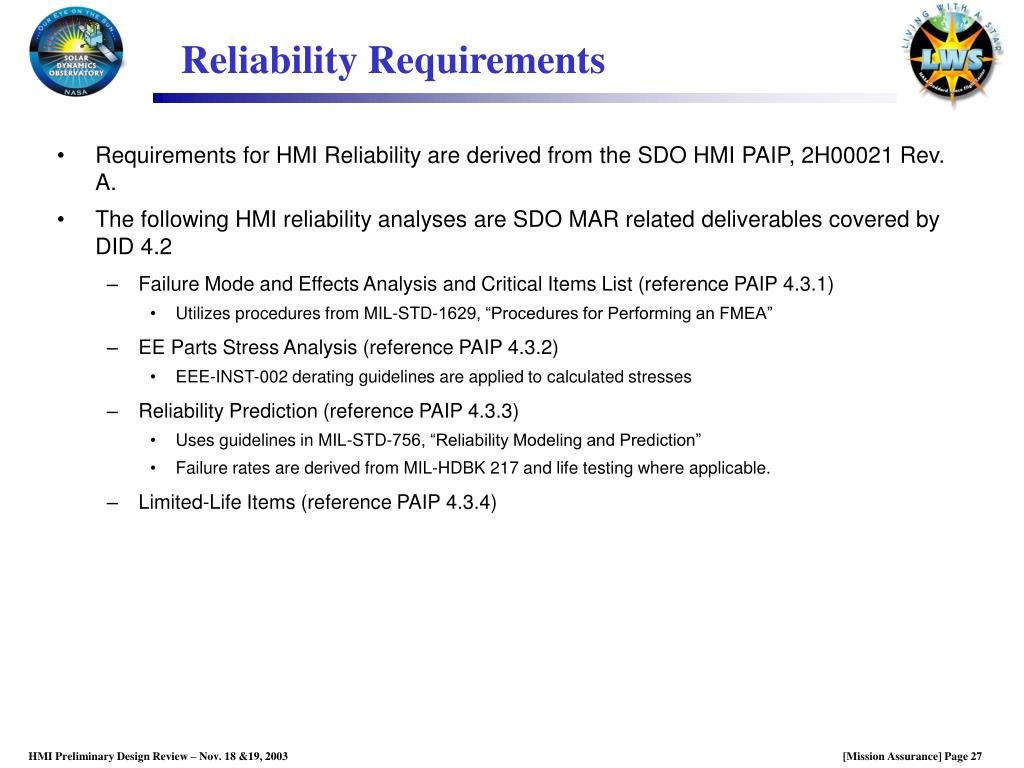

27. Reliability Requirements • Requirements for HMI Reliability are derived from the SDO HMI PAIP, 2H00021 Rev. A. • The following HMI reliability analyses are SDO MAR related deliverables covered by DID 4.2 • Failure Mode and Effects Analysis and Critical Items List (reference PAIP 4.3.1) • Utilizes procedures from MIL-STD-1629, “Procedures for Performing an FMEA” • EE Parts Stress Analysis (reference PAIP 4.3.2) • EEE-INST-002 derating guidelines are applied to calculated stresses • Reliability Prediction (reference PAIP 4.3.3) • Uses guidelines in MIL-STD-756, “Reliability Modeling and Prediction” • Failure rates are derived from MIL-HDBK 217 and life testing where applicable. • Limited-Life Items (reference PAIP 4.3.4)

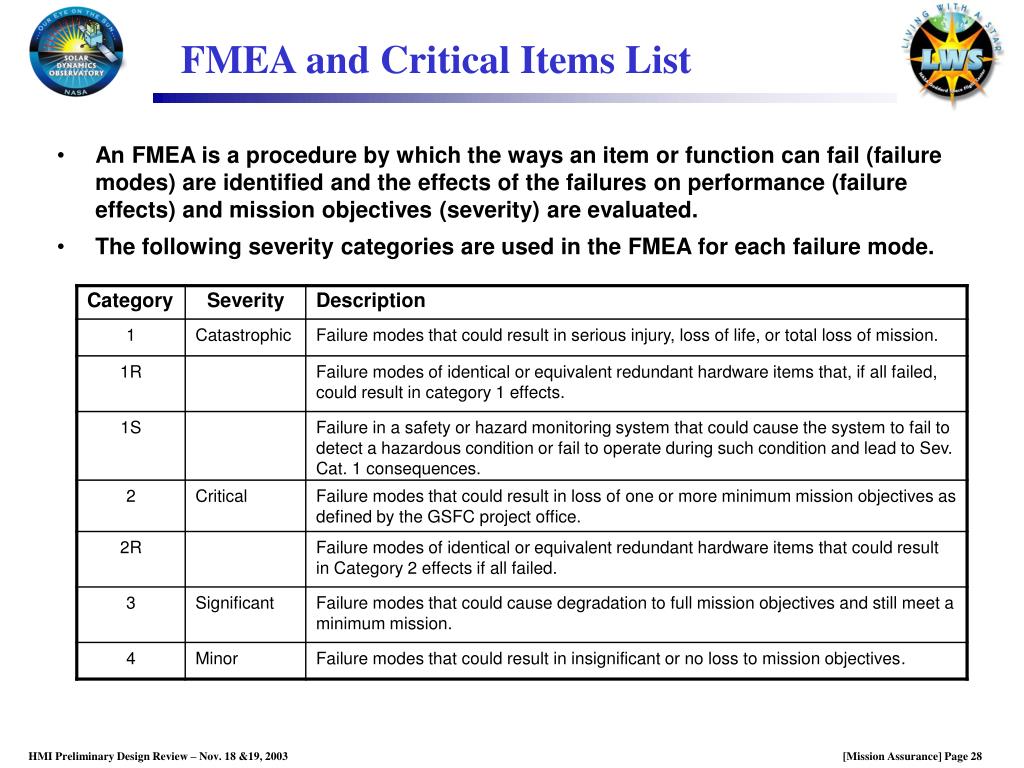

28. FMEA and Critical Items List • An FMEA is a procedure by which the ways an item or function can fail (failure modes) are identified and the effects of the failures on performance (failure effects) and mission objectives (severity) are evaluated. • The following severity categories are used in the FMEA for each failure mode.

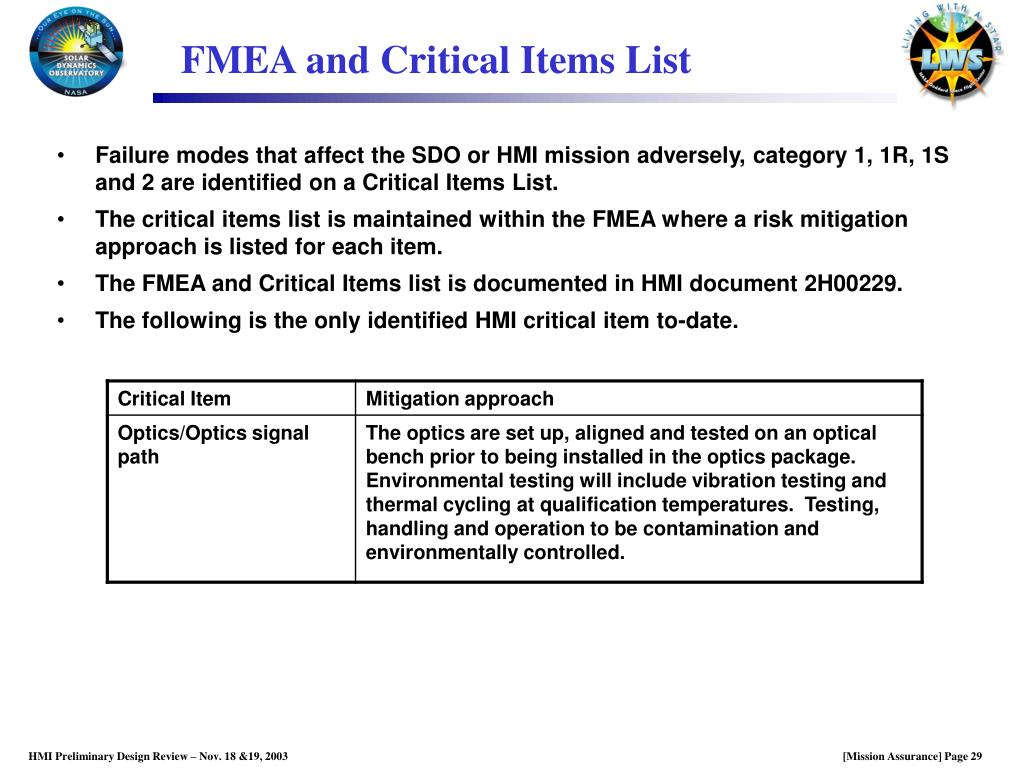

29. FMEA and Critical Items List • Failure modes that affect the SDO or HMI mission adversely, category 1, 1R, 1S and 2 are identified on a Critical Items List. • The critical items list is maintained within the FMEA where a risk mitigation approach is listed for each item. • The FMEA and Critical Items list is documented in HMI document 2H00229. • The following is the only identified HMI critical item to-date.

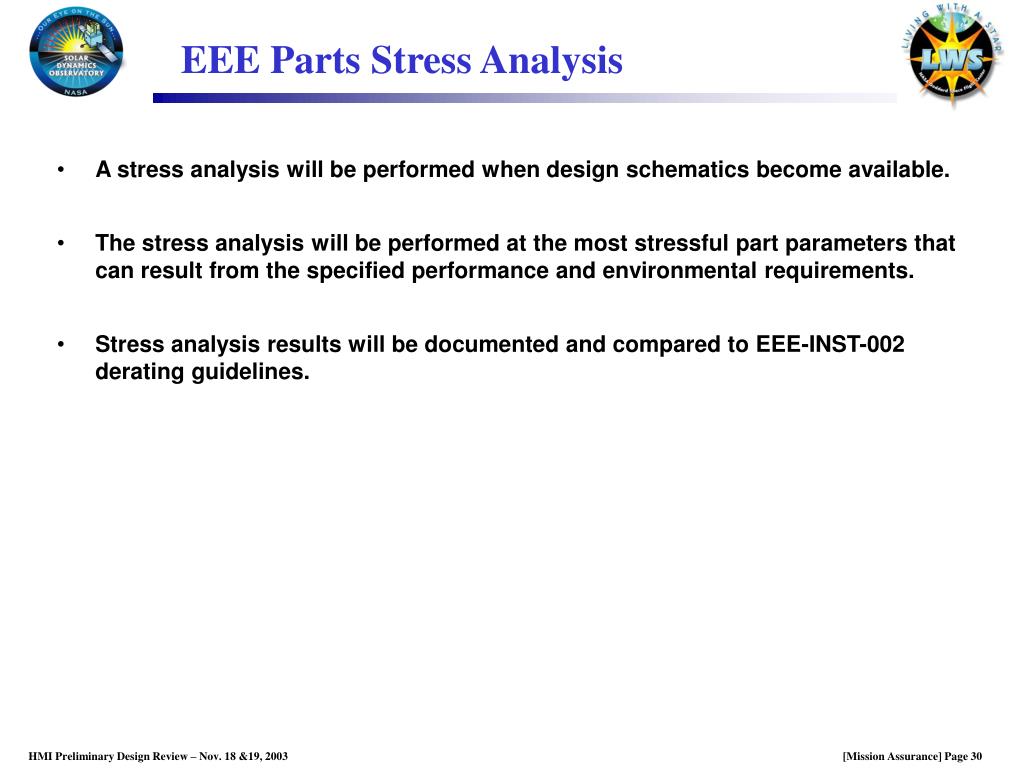

30. EEE Parts Stress Analysis • A stress analysis will be performed when design schematics become available. • The stress analysis will be performed at the most stressful part parameters that can result from the specified performance and environmental requirements. • Stress analysis results will be documented and compared to EEE-INST-002 derating guidelines.

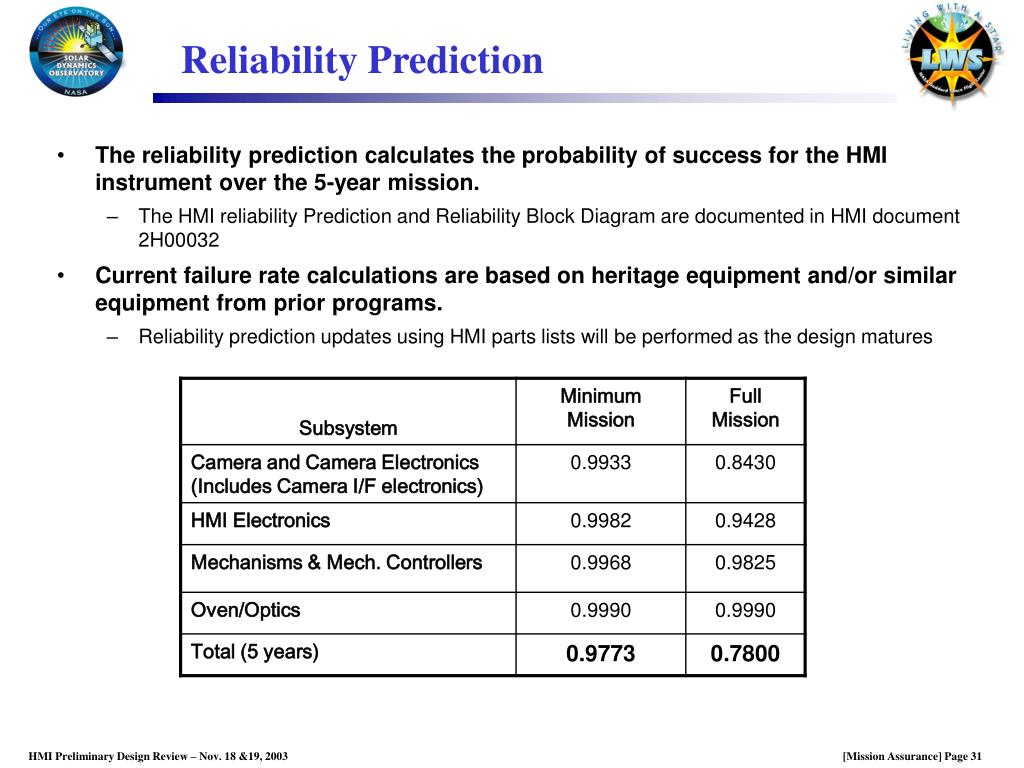

31. Reliability Prediction • The reliability prediction calculates the probability of success for the HMI instrument over the 5-year mission. • The HMI reliability Prediction and Reliability Block Diagram are documented in HMI document 2H00032 • Current failure rate calculations are based on heritage equipment and/or similar equipment from prior programs. • Reliability prediction updates using HMI parts lists will be performed as the design matures

32. Reliability Prediction • HMI Reliability Block Diagram (full mission)

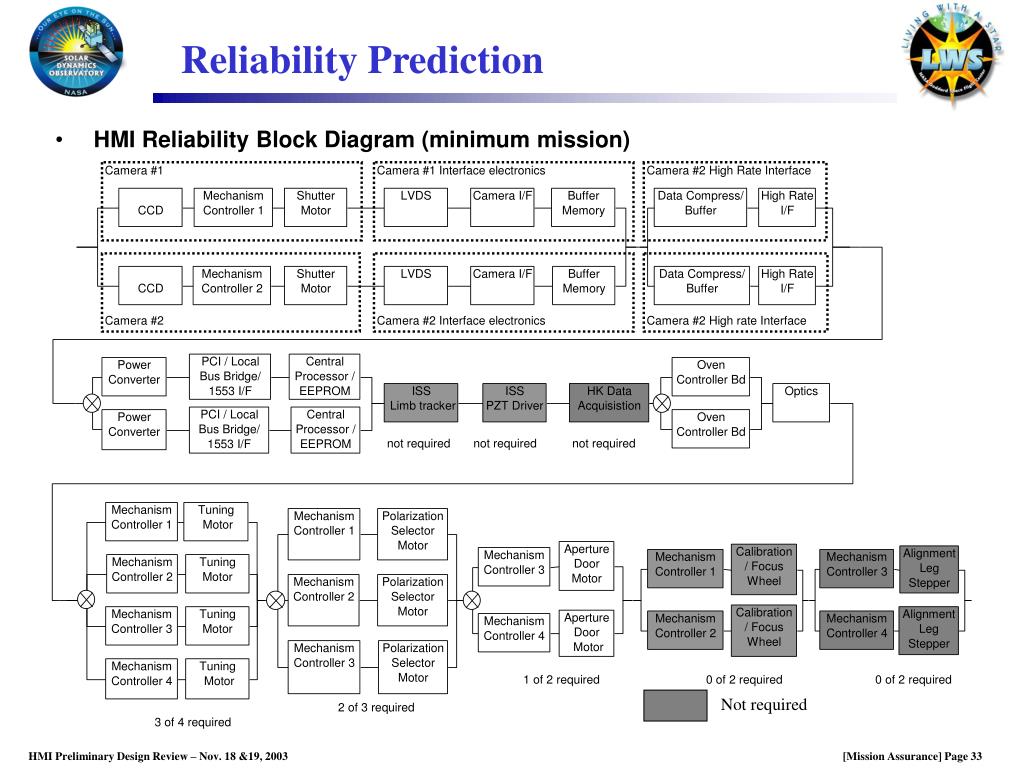

33. Reliability Prediction • HMI Reliability Block Diagram (minimum mission) Not required

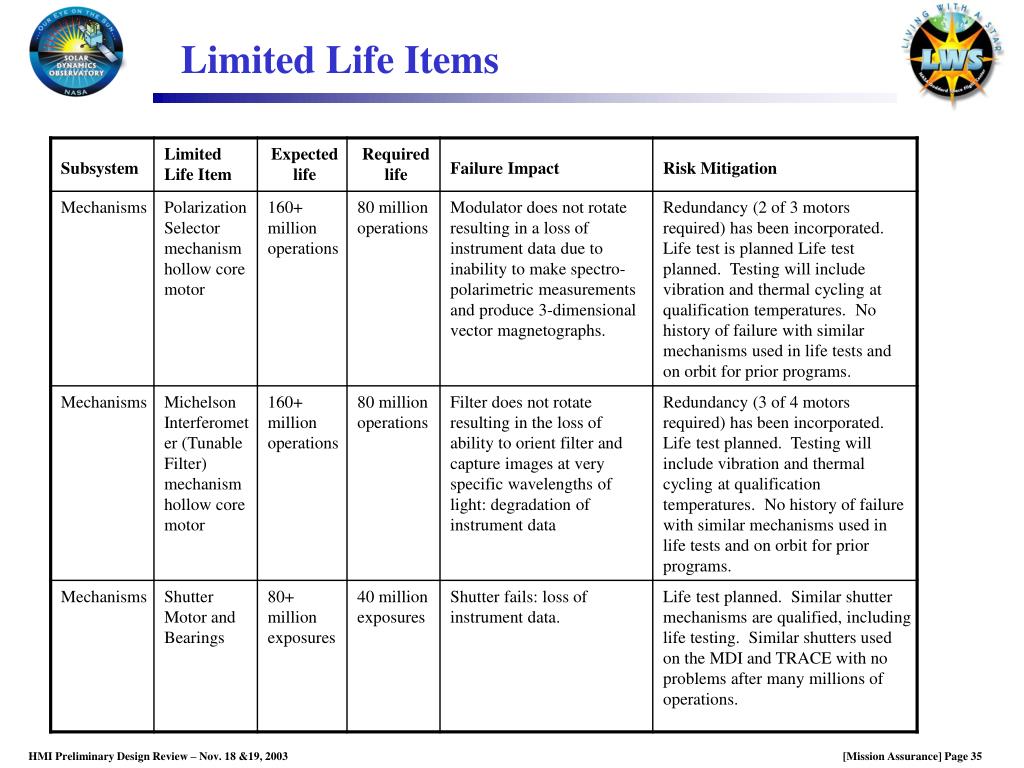

34. Limited Life Items • Limited Life items are defined as those items that are time or cycling sensitive • The limited life items are maintained in the HMI FMEA, document 2H00229 • Mitigation actions are identified in the limited life items list to minimize potential risk in meeting mission requirements and provide confidence in their use for the duration of the HMI mission.

35. Limited Life Items

36. HMI Contamination Control Syndie Meyer Contamination Control Engineer s.b.meyer@lmco.com

37. HMI Contamination Control – Agenda • HMI Contamination Control Plan • Contamination Control Requirements and Flow-down • Design Features for Contamination Control • Cleanliness Inspection and Verification • Facilities (Assembly and Test) • Shipping and Handling • Integration and Test (Spacecraft) • Launch and On Orbit Operations

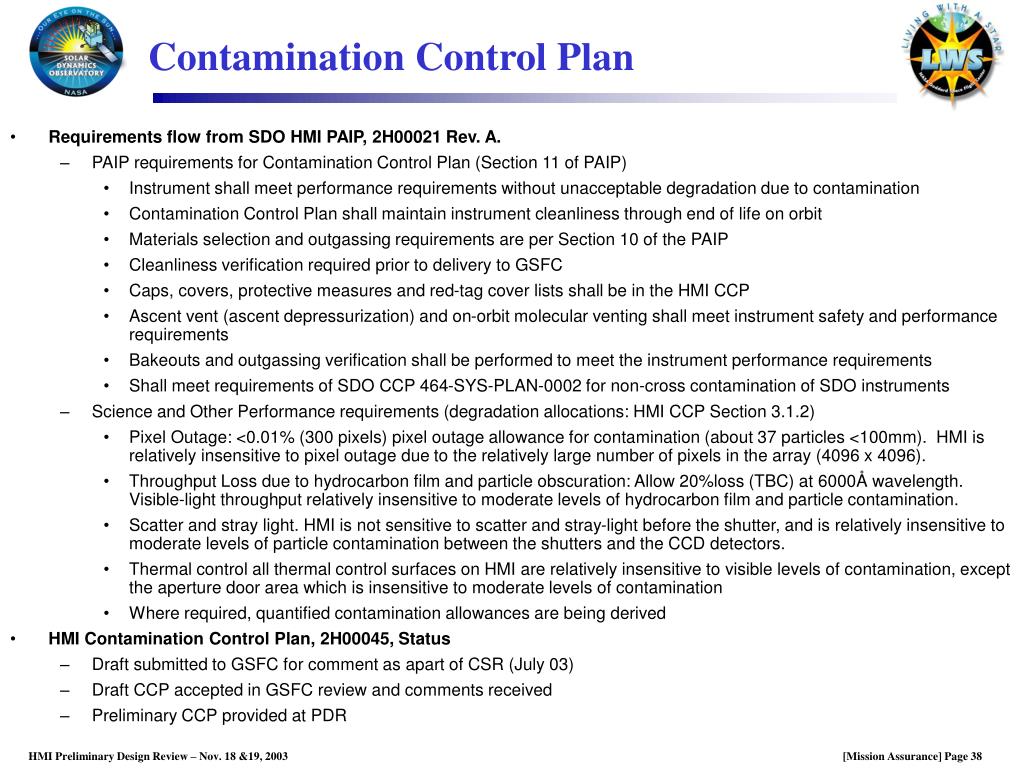

38. Contamination Control Plan • Requirements flow from SDO HMI PAIP, 2H00021 Rev. A. • PAIP requirements for Contamination Control Plan (Section 11 of PAIP) • Instrument shall meet performance requirements without unacceptable degradation due to contamination • Contamination Control Plan shall maintain instrument cleanliness through end of life on orbit • Materials selection and outgassing requirements are per Section 10 of the PAIP • Cleanliness verification required prior to delivery to GSFC • Caps, covers, protective measures and red-tag cover lists shall be in the HMI CCP • Ascent vent (ascent depressurization) and on-orbit molecular venting shall meet instrument safety and performance requirements • Bakeouts and outgassing verification shall be performed to meet the instrument performance requirements • Shall meet requirements of SDO CCP 464-SYS-PLAN-0002 for non-cross contamination of SDO instruments • Science and Other Performance requirements (degradation allocations: HMI CCP Section 3.1.2) • Pixel Outage: <0.01% (300 pixels) pixel outage allowance for contamination (about 37 particles <100mm). HMI is relatively insensitive to pixel outage due to the relatively large number of pixels in the array (4096 x 4096). • Throughput Loss due to hydrocarbon film and particle obscuration: Allow 20%loss (TBC) at 6000Å wavelength. Visible-light throughput relatively insensitive to moderate levels of hydrocarbon film and particle contamination. • Scatter and stray light. HMI is not sensitive to scatter and stray-light before the shutter, and is relatively insensitive to moderate levels of particle contamination between the shutters and the CCD detectors. • Thermal control all thermal control surfaces on HMI are relatively insensitive to visible levels of contamination, except the aperture door area which is insensitive to moderate levels of contamination • Where required, quantified contamination allowances are being derived • HMI Contamination Control Plan, 2H00045, Status • Draft submitted to GSFC for comment as apart of CSR (July 03) • Draft CCP accepted in GSFC review and comments received • Preliminary CCP provided at PDR

39. Contamination Control Requirements • Preliminary Contamination Budget (Section and Surface Cleanliness Requirements -- Derived from Performance Requirements (all requirements per Mil-Std 1246C or JSC-SN-C 0005) HMI CCP Section 3.2.1 and Tables 3.2.1.1-1 and 3.2.2-1 • Hardware components: Interior 300A; Exterior 500A • CCD and interior of CCD housing at assembly: 100A • Instrument at delivery to spacecraft: Exterior VC-HS / 500A • Radiators and MLI at delivery to spacecraft; VC-HS / 500A • At delivery to orbit:Thermal control surfaces VC-HS / 750A • End of Life on Orbit: Thermal control surfaces 750C / VC1 • Outgassing Requirements (PAIP Section 10, HMI CCP Section 3.2.2) • Materials Screening to meet JSC-SN-C 0022/ 1.00%TML 0.10% CVCM per ASTM E595 • Bakeout of major sub-assemblies and Integrated Instrument • Cleanroom Requirements (HMI CCP Section 3.4.1 and 4.4.1) • Class 100 for CCD detector assembly • Class 10,000, or better, for Structure, Optics, Telescope, Instrument Exterior, and Thermal Control Surfaces through Assembly, test and environmental test. • Nitrogen Purge Requirements (HMI CCP Section 3.7 and 4.3.3) • No purge required for HMI Optics if environment is Class 1000 or better and humidity is <50%, but purge may be use as an additional protective measure.

40. Design Featuresfor Contamination Control • Materials and configuration (PAIP Section 10, HMI CCP Sections 3.1.3, 4.3.1, 4.3.2) • to reduce sources where possible, cleanable materials and configuration, materials screening • Enclosed areas, Compartments, Covers, and Housings (HMI CCP Sections 1, 3.4.2, 3.4.4) • Aperture door to cover telescope window • Telescope optics isolated from environment • Enclosed Optical Package with other interior spaces • Enclosed, Isolated, and separately assembled CCD housing and assembly • Michelsons and Lyot Filter enclosed in oven • Temperature control (HMI CCP Section 1, 3.4.2, and 4.3.4) • Warm optics, especially Michelsons and Lyot Filter warmed in temperature controlled oven. • Warmable CCD detector recessed within a cold-tube isolator that acts as a collecting surface for molecular material • Red-Tag Covers (HMI CCP Sections 3.4.3, 3.4.4) • Sections of Optical Structure with separate covers for protection during assembly and test • Baffles, labyrinths, and filters at vents (HMI CCP Section 1 and,4.3.3) • GN2 purge port (HMI CCP Sections 3.7, 4.3.3)

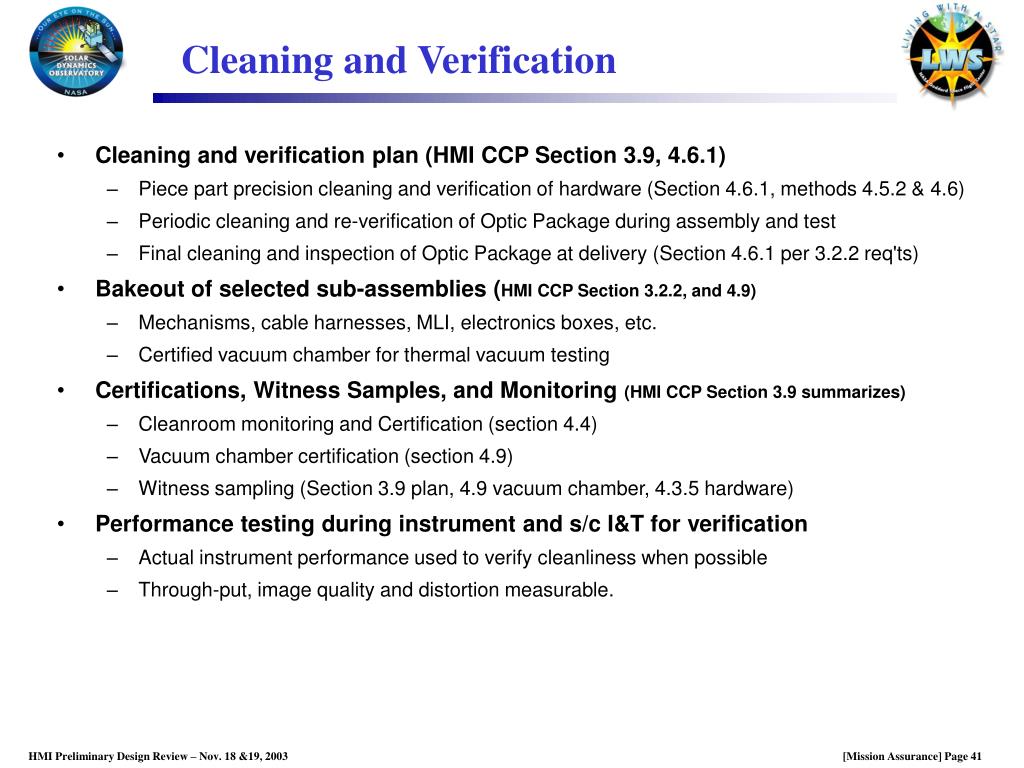

41. Cleaning and Verification • Cleaning and verification plan (HMI CCP Section 3.9, 4.6.1) • Piece part precision cleaning and verification of hardware (Section 4.6.1, methods 4.5.2 & 4.6) • Periodic cleaning and re-verification of Optic Package during assembly and test • Final cleaning and inspection of Optic Package at delivery (Section 4.6.1 per 3.2.2 req'ts) • Bakeout of selected sub-assemblies (HMI CCP Section 3.2.2, and 4.9) • Mechanisms, cable harnesses, MLI, electronics boxes, etc. • Certified vacuum chamber for thermal vacuum testing • Certifications, Witness Samples, and Monitoring (HMI CCP Section 3.9 summarizes) • Cleanroom monitoring and Certification (section 4.4) • Vacuum chamber certification (section 4.9) • Witness sampling (Section 3.9 plan, 4.9 vacuum chamber, 4.3.5 hardware) • Performance testing during instrument and s/c I&T for verification • Actual instrument performance used to verify cleanliness when possible • Through-put, image quality and distortion measurable.

42. Facilities, Shipping and Handling • Facilities (HMI CCP Section 4.4) • Parts cleaning facility in Vertical Flow Class 100 cleanroom. B/202 2B28 • CCD assembly in Class 100 Laminar Flow Bench in Clean area(Room 140) • Bakeout chambers B/252 Rm 107 dedicated to LMSAL Bakeout and thermal cycling operations • Class 1000 Laminar Flow Bench in clean enclosure in Rm 107 for chamber loading and unloading operations • Class 10,000 Vertical Laminar Flow Tent (Program D tent) for instrument assembly and test (removable panel to allow testing with heliostat) B/252 Rm 110 • Clean Tent with HEPA filtration, capable of Class 10,000 particle counts enclosing Thermal Vacuum chamber. Rocket Chamber (Programs C and D) B/252 Rm 116 high bay • Packaging and covering between activities (HMI CCP Section 3.9, 4.10) • Shipping and Transportation (HMI CCP Sections 3.4.5, 3.8, 3.9, 4.10, 4.11) • Cleaned and verified shipping and storage containers, cleanroom compatible • GN2 Backfill • Cleaned and verified prior to use

43. Purge, GSE, Interface Control • GN2 Purge (HMI CCP Section 3.9) • Active for Optical Structure interior and vacuum chamber • Backfill for storage containers and shipping (Section 4.10, 4.11) • GSE • GSE cleanroom compatible • Cleaned and verified (VC-HS, or better, as required) prior to use with clean flight hardware • Flow-down of Cleanliness Requirements to Sub-contractors • Specifications and Statement of Work • Sub-contract contamination control plans • Spacecraft Integration, Test, and Launch operations • HMI CCP input to Spacecraft interface control document contam section • Comments and input to SDO CCP

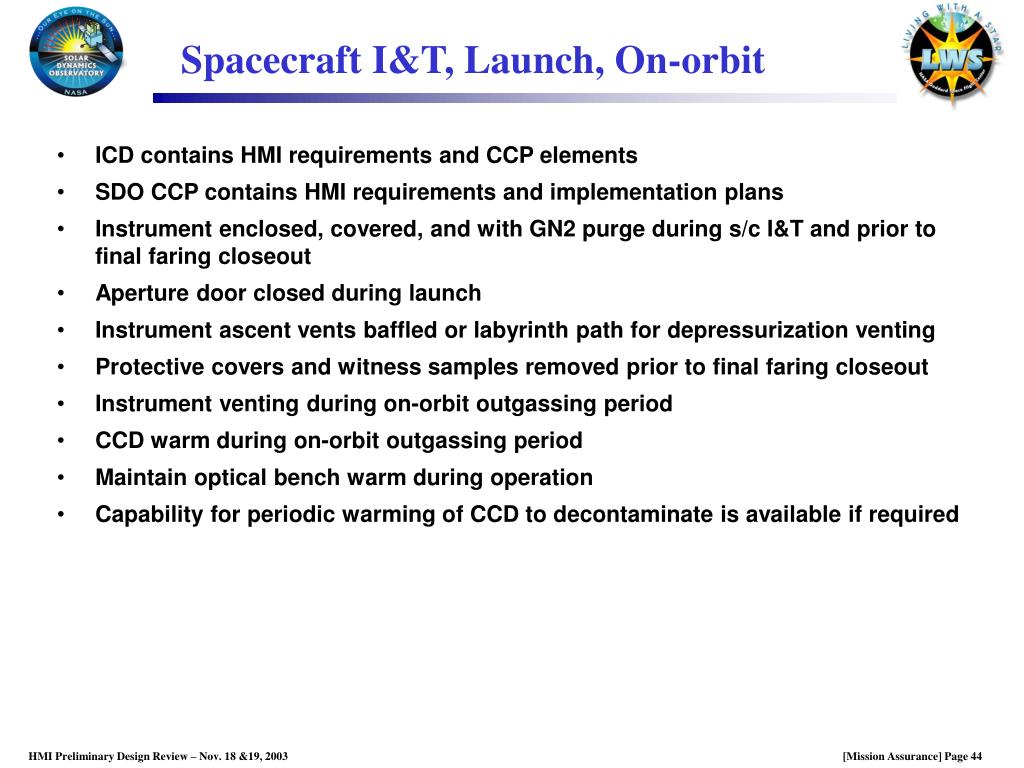

44. Spacecraft I&T, Launch, On-orbit • ICD contains HMI requirements and CCP elements • SDO CCP contains HMI requirements and implementation plans • Instrument enclosed, covered, and with GN2 purge during s/c I&T and prior to final faring closeout • Aperture door closed during launch • Instrument ascent vents baffled or labyrinth path for depressurization venting • Protective covers and witness samples removed prior to final faring closeout • Instrument venting during on-orbit outgassing period • CCD warm during on-orbit outgassing period • Maintain optical bench warm during operation • Capability for periodic warming of CCD to decontaminate is available if required
