Objectives
Objectives

  • Discuss techniques for specifying/implementing Lexical analyzers

  • Examines methods to recognize words in a stream of characters

    • Tokens, Patterns, Lexemes

    • Attributes for Tokens

  • Input Buffering (buffer pairs)

  • Finite Automata ( intermediate step)

    • DFA Faster but bigger

  • Implementing a Transition Diagram


Lexical
Lexical

  • Lex-i-cal: of or relating to words or the vocabulary of a language as distinguished from its grammar and construction

    • Webster’s Dictionary


Lexical analyzers features

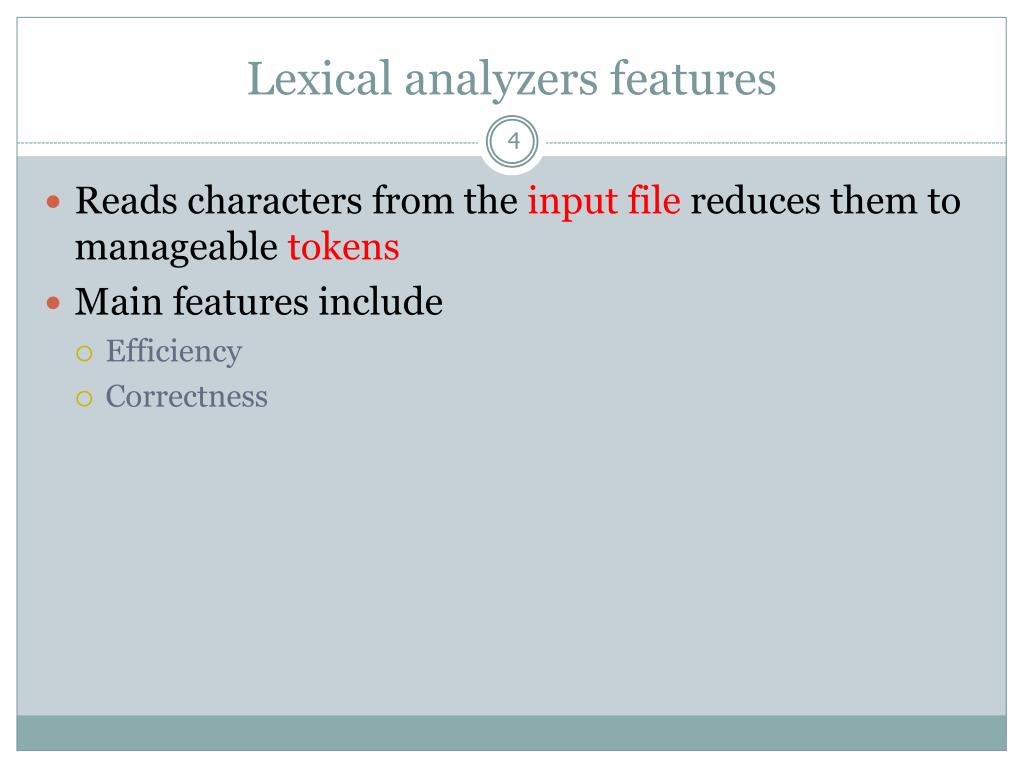

Lexical analyzers features

  • Reads characters from the input file reduces them to manageable tokens

  • Main features include

    • Efficiency

    • Correctness


Lexical analysis vs parsing
Lexical Analysis vs. Parsing

  • Main reasons for separating the analysis phase

    • Compiler simplicity of design (separation of concerns)

    • Compiler efficiency (specialized buffering)

      • A large amount of time is dedicated for reading the source program and tokenization

      • Parser is harder than lexical analysis because the size of parser grows as the grammar grows

    • Compiler Portability

      • Input peculiarities and device specific-anomalies can be limited to the lexical analyzers

      • Special symbols (e.g., ) can be isolated in the LA

    • Lexical analysis can be fully automated

    • Tool Supports

      • Specialized tools have been implemented to automate the implementation of laxer and parser


Some terminologies token pattern lexemes
Some terminologies: Token, Pattern, Lexemes

  • Token (syntactic category)?

    • Terminal symbols in the grammar of the source languages

    • A pair:

      • token name

      • optional attribute value

        • E.g., ID

  • Lexeme?

    • An actual spelling or a sequence of characters in the source program

      • E.g., MyCounter

  • Pattern?

    • The possible form that the lexemes of a token may take

      • E.g., an identifier can be specified as a regular expression: L+D*




Token classes

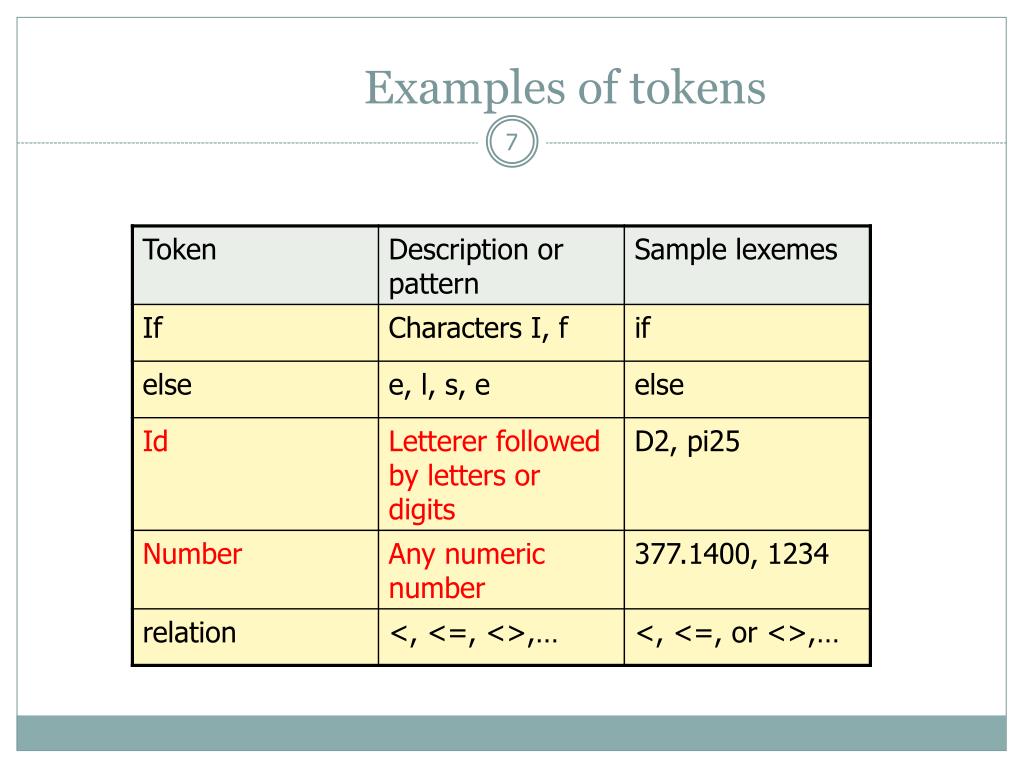

Token classes

  • The following classes cover most or all of the tokens:

    • One token for each keyword

      • IF, THEN. WHILE, FOR, etc

    • Tokens for operators

      • +, -, /, *

    • One token for identifier

      • Mycounter, Myclass, x, y, p234, etc

    • Tokens for punctuation symbol

      • @, #, $, etc

    • One or more tokens representing constants (numbers) and strings literals

      • “mybook”


Lexical examples of non tokens
Lexical: examples of Non-Tokens

  • Examples of non-tokens

    • comment: /* do not change */

    • preprocessor directive: #include <stdio.h>

    • preprocessor directive: #define NUM 5

    • blanks

    • tabs

    • newlines


Attributes and tokens 1
Attributes and Tokens: 1

  • When more than one pattern matches a lexems, the LA must provide additional information about the particular lexeme that matched to the next phases of the compiler

    • E.g.,

      • the pattern num matches both 0 and 1; code generator needs to know the exact one


Attributes for token 2

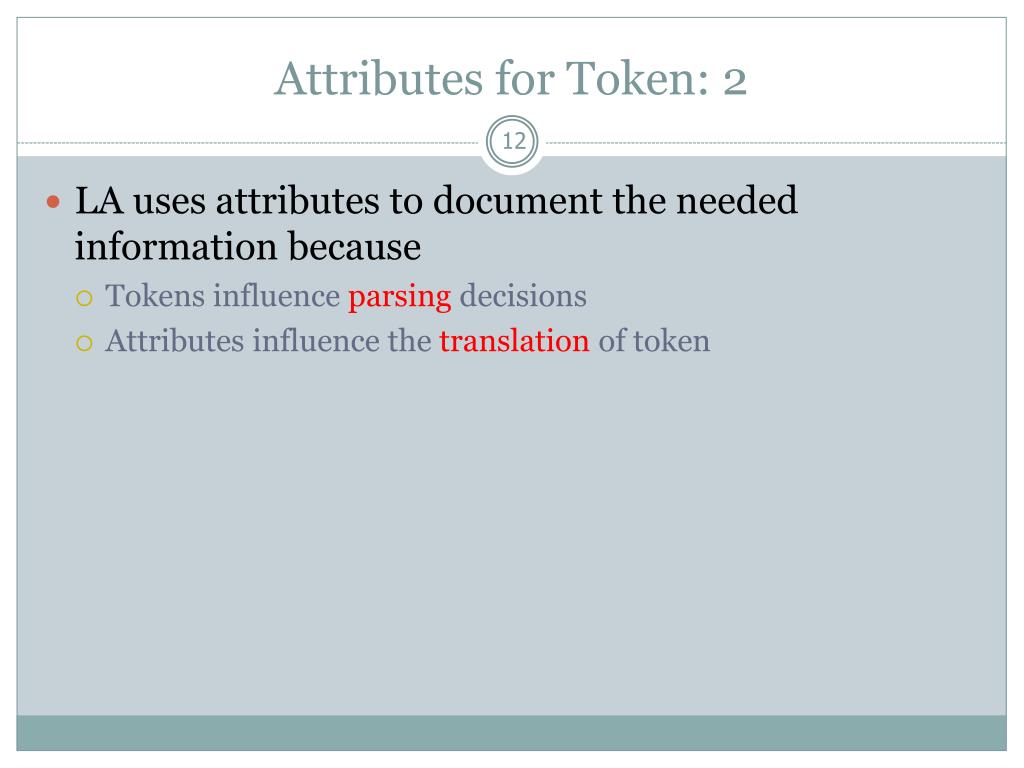

Attributes for Token: 2

  • LA uses attributes to document the needed information because

    • Tokens influence parsing decisions

    • Attributes influence the translation of token


Example tokens and related attributes
Example: tokens and related attributes

  • E = M * C ** 2

    Written as

    < ID, ptr to symbol-table for E>

    < Assignsym>

    < ID, ptr to symbol-table for M>

    < Multsym>

    < ID, ptr to symbol-table for C>

  • < ExpSym>

  • < num, integer value 2>


Lexical analyzer and source code errors
Lexical Analyzer and source code errors

  • LA cannot detect syntax or semantic errors

  • Leaves it up to parser or semantic analyzers

    • E.g., LA cannot detect the following error

    • fi (a == f(x))…

      • fi?

        • Could be undeclared function call

        • Misspelled keyword or ID

      • Will be treated as a valid id


Error recovery and error handling by la
Error Recovery and Error handling by LA

  • Case where no pattern matches the current input

    • Delete successive characters from input till the LA finds the next well-formed token (panic mode)

    • Deleting an extraneous chars

    • Inserting a missing char

    • Replacing an incorrect char by corrected one

    • Transposing two adjacent char


Input buffering
Input Buffering

  • to find the end of token, LA may need to go one or more characters beyond the next lexeme

    • E.g.,

      • to find ID or >, =, ==

  • Buffer Pairs

    • Concerns with efficiency issues

    • Used with a lookahead on the input


Using a pair of input buffers
Using a pair of input buffers

N (4096 byte)

N (4096 byte)

lexemeBegin

Forward ptr


Using a pair of input buffers1
Using a pair of input buffers

N (4096 byte)

N (4096 byte)

lexemeBegin

Forward ptr


Using a pair of input buffers2

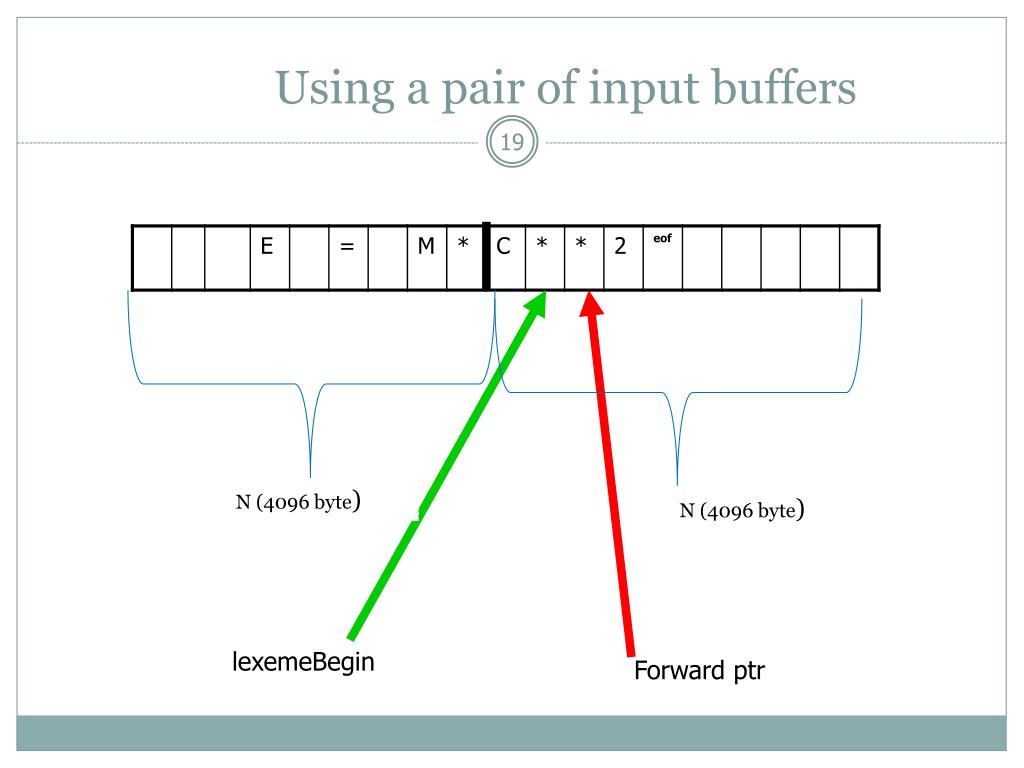

Using a pair of input buffers

N (4096 byte)

N (4096 byte)

lexemeBegin

Forward ptr


Using a pair of input buffers3
Using a pair of input buffers

N (4096 byte)

N (4096 byte)

lexemeBegin

Forward ptr


Specification of token

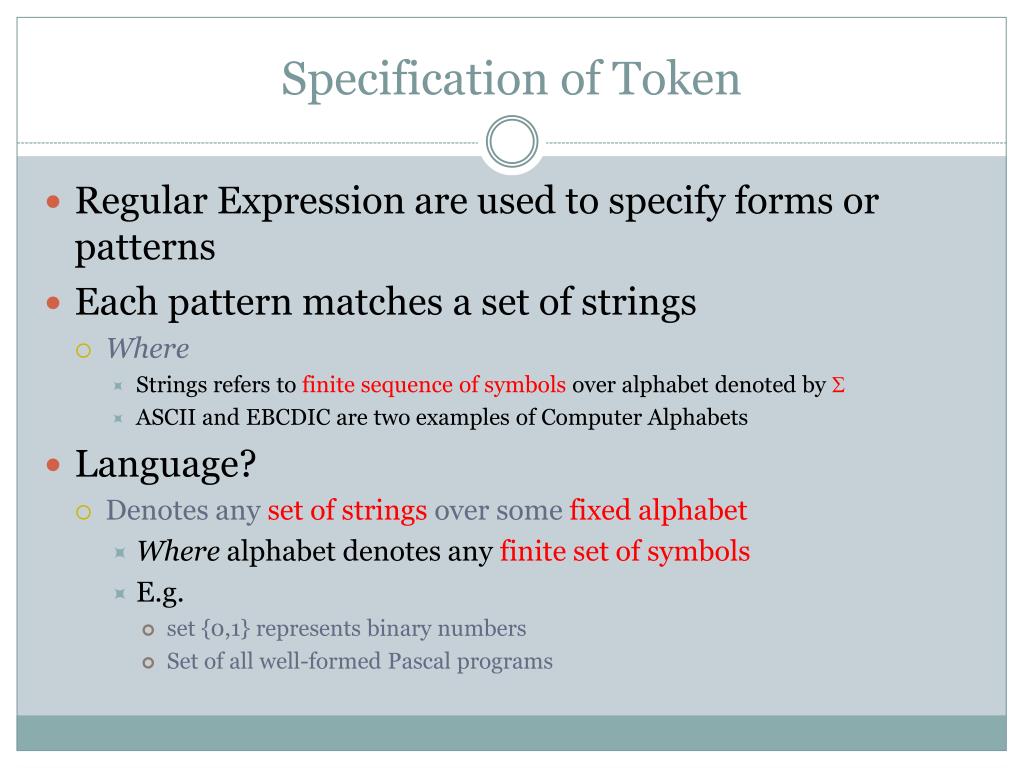

Specification of Token

  • Regular Expression are used to specify forms or patterns

  • Each pattern matches a set of strings

    • Where

      • Strings refers to finite sequence of symbols over alphabet denoted by 

      • ASCII and EBCDIC are two examples of Computer Alphabets

  • Language?

    • Denotes any set of strings over some fixed alphabet

      • Where alphabet denotes any finite set of symbols

      • E.g.

        • set {0,1} represents binary numbers

        • Set of all well-formed Pascal programs



Operations on languages

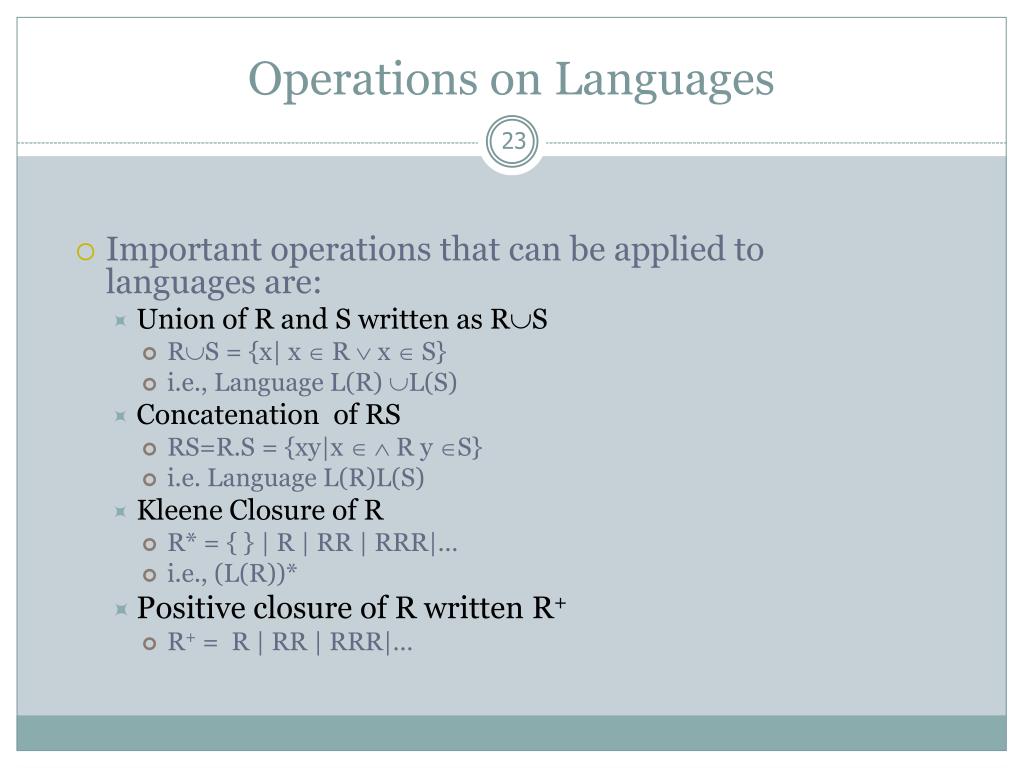

Operations on Languages

  • Important operations that can be applied to languages are:

    • Union of R and S written as RS

      • RS = {x| x  R  x  S}

      • i.e., Language L(R) L(S)

    • Concatenation of RS

      • RS=R.S = {xy|x   R y S}

      • i.e. Language L(R)L(S)

    • Kleene Closure of R

      • R* = { } | R | RR | RRR|…

      • i.e., (L(R))*

    • Positive closure of R written R+

      • R+ = R | RR | RRR|…


Examples
Examples

  • Suppose:

    • L = { A, B,…Z,a,b,…z} and

    • D = {0,1,…,9}

  • New languages can be created from L and D by applying the operators

    • LD is the set of letters and digits (62 string where each|si|=1)

      • E.g., a, A, 1, b, …

    • LD is the set of strings consisting of a letter followed by a digit

      • E.g., a1, a2, a3, b9, etc.

    • L4 is the set of all four-letter strings

    • Aaaa, aadd, axcv, etc


More examples
More examples

  • L* is a set of ALL strings of letters, including 

  • L(LD)* is the set of all stings of letters and digits beginning with a letter

    • E.g., a, aa, a1, …,a211111

  • D+ is the set of all strings of one or more digits


Regular expression formal definition

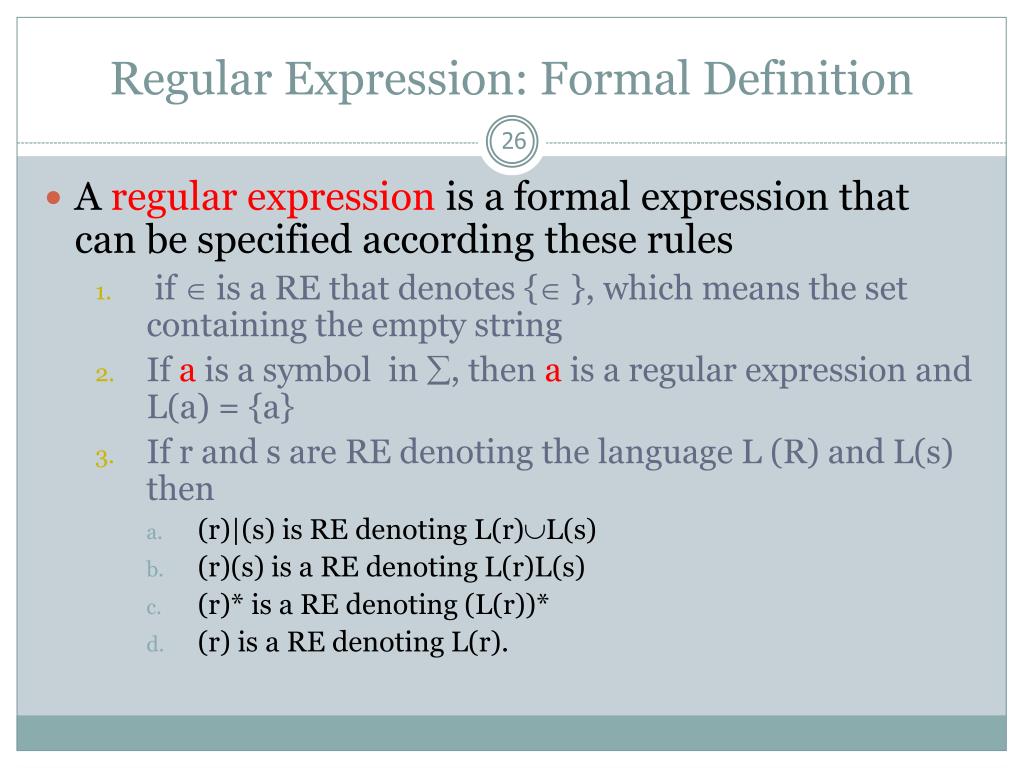

Regular Expression: Formal Definition

  • A regular expression is a formal expression that can be specified according these rules

    • if  is a RE that denotes { }, which means the set containing the empty string

    • If a is a symbol in , then a is a regular expression and L(a) = {a}

    • If r and s are RE denoting the language L (R) and L(s) then

      • (r)|(s) is RE denoting L(r)L(s)

      • (r)(s) is a RE denoting L(r)L(s)

      • (r)* is a RE denoting (L(r))*

      • (r) is a RE denoting L(r).


Re precedence rules
RE: Precedence rules

  • Unnecessary parentheses can be avoided if we adopt the following rules

    • * has the highest precedence and is left associate

    • Concatenation has second highest precedence and is left associative

    • Union has the lowest precedence and is left associative


Some examples

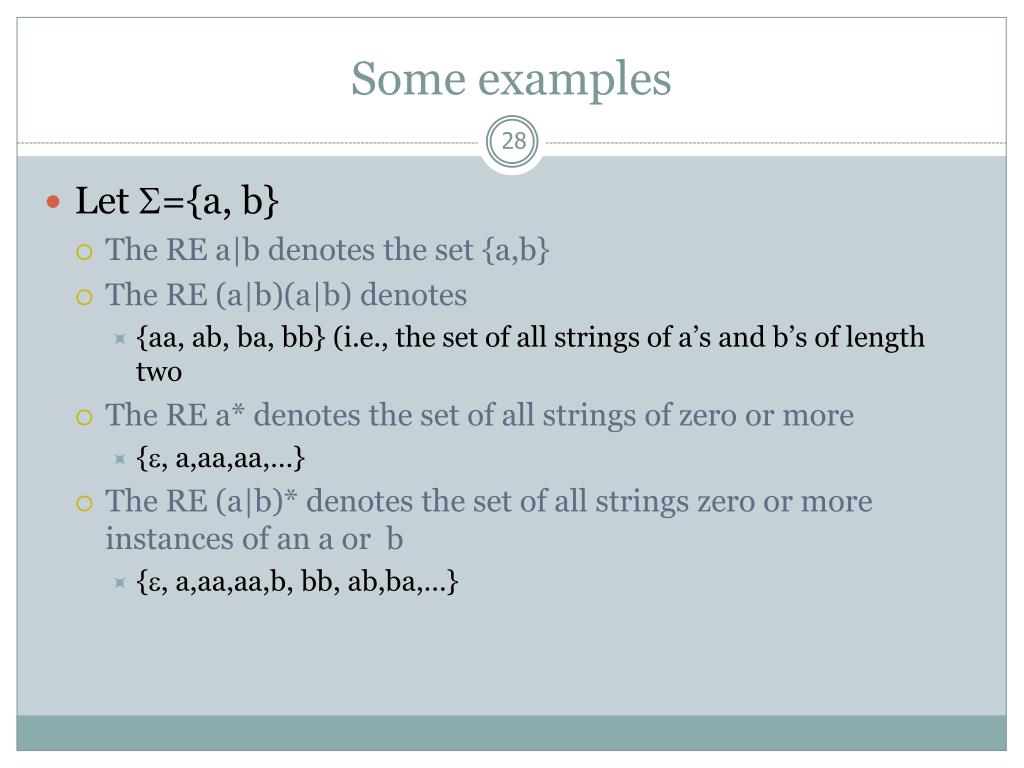

Some examples

  • Let ={a, b}

    • The RE a|b denotes the set {a,b}

    • The RE (a|b)(a|b) denotes

      • {aa, ab, ba, bb} (i.e., the set of all strings of a’s and b’s of length two

    • The RE a* denotes the set of all strings of zero or more

      • {, a,aa,aa,…}

    • The RE (a|b)* denotes the set of all strings zero or more instances of an a or b

      • {, a,aa,aa,b, bb, ab,ba,…}


Regular language
Regular Language

  • A language L is regular iff

    • there exists a regular expression that specifies the strings in L

  • If S and R regular expressions, then R and S define Regular Language L(R) and L(S)


Examples1
Examples

  • Examples

    • L(abc) = {abc}

    • L(hello | Bye)= { Hello, Bye}

    • L([1-9][0-9]*)= all possible integer constants

      • where

        • [1-9] means (1|…|9)


Algebra of re see fig 3 7

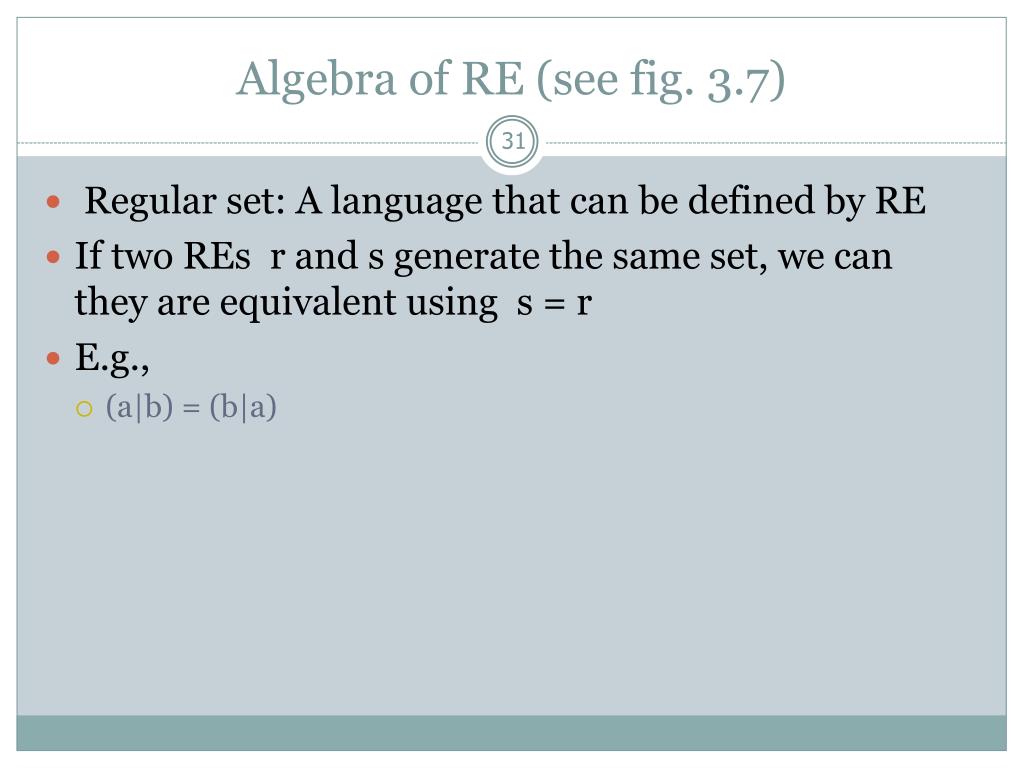

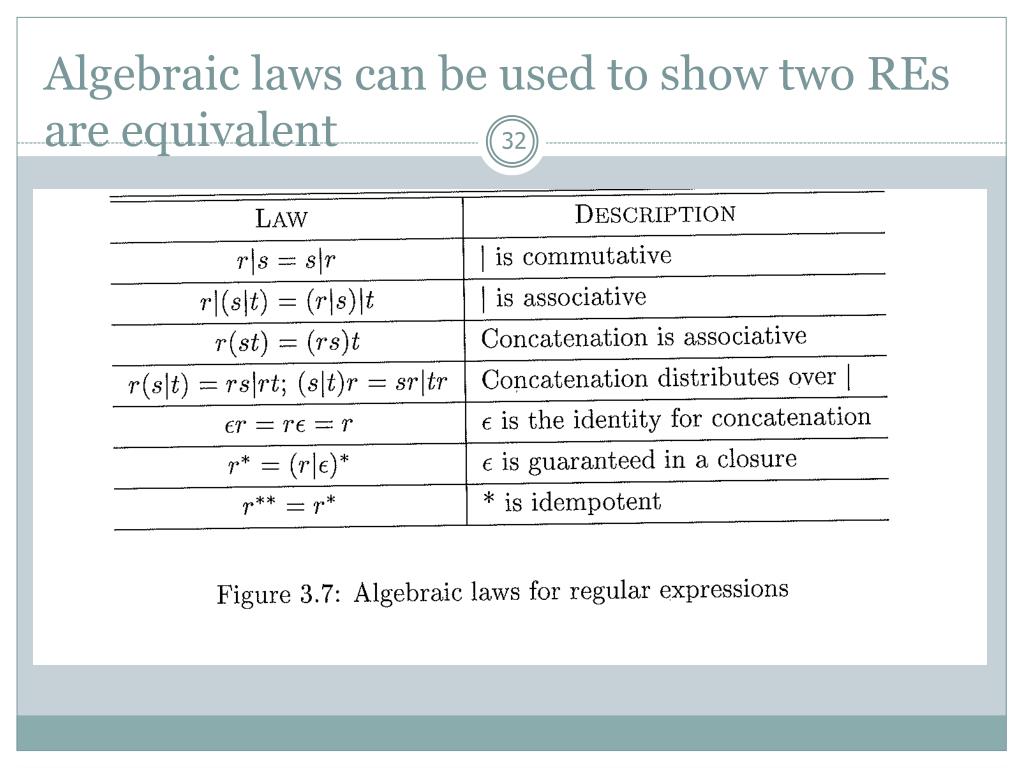

Algebra of RE (see fig. 3.7)

  • Regular set: A language that can be defined by RE

  • If two REs r and s generate the same set, we can they are equivalent using s = r

  • E.g.,

    • (a|b) = (b|a)



Regular definitions
Regular Definitions

  • For notational convenience, we may give names to RE and define RE using these names diri

    • Where:

      • Each di is a new symbol, not in , and not the same as any other of the d’s

      • Each ri is a RE in {   {d1,…,di-1} }


Example 3 5 pg 123
Example.3.5 (pg 123)

  • E.g.,

    • C identifier are strings of letter, digits, and underscore can be defined by following regular definitions:

      • letters A|B|…|Z|a|b|…|z|-

      • digit 0|1|…|9

      • id  letter_ (letter_ | digit)*


Example unsigned numbers in pascal
Example: Unsigned numbers in Pascal

  • Unsigned numbers in Pascal are strings

    • 5280

    • 78.90

    • 6.336E4

    • 1.89E-4

  • Regular definitions

    • digit 0|1|…|9

    • digits digitdigit*

    • optional_fractions . digits |

    • optional_exp (E(+|-| ) digits| 

    • number digits optional_fractionoptional_exp


Shorthand notation
Shorthand Notation

  • Character classes

    • [aba] where a, b, and c are alphet symbol is a shorthand for RE A|b|c

    • [a-z] shorthand for a|b|…|z


Limitation of re
Limitation of RE

  • RE can not be used to describe some programming construct

    • E.g.,

      • Balanced parentheses

      • Repeating strings

        • {wcw| w is a string of a’s and b’s}

        • RE can be used for fixed or unspecified number of repetitions (arbitrary)


Recognition of tokens

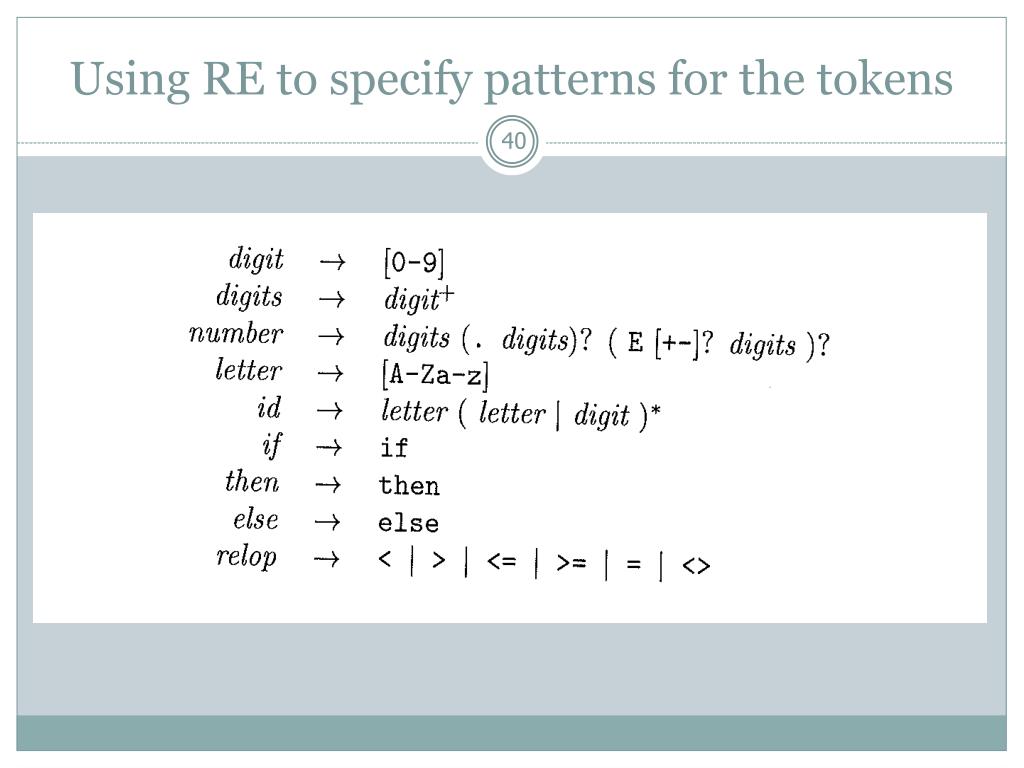

Recognition of Tokens

  • RE are used to specify pattern

    • Used mainly to specify pattern for ALL possible tokens in language

  • How to recognize tokens are totally different issues


Example
Example

  • Consider the following grammar

    • Stmtif exp then stmt

    • |if exp then stmt else stmt

    • |

    • exp term relop term

    • | term

    • term id

    • | num



Quiz 3 9 20 2013

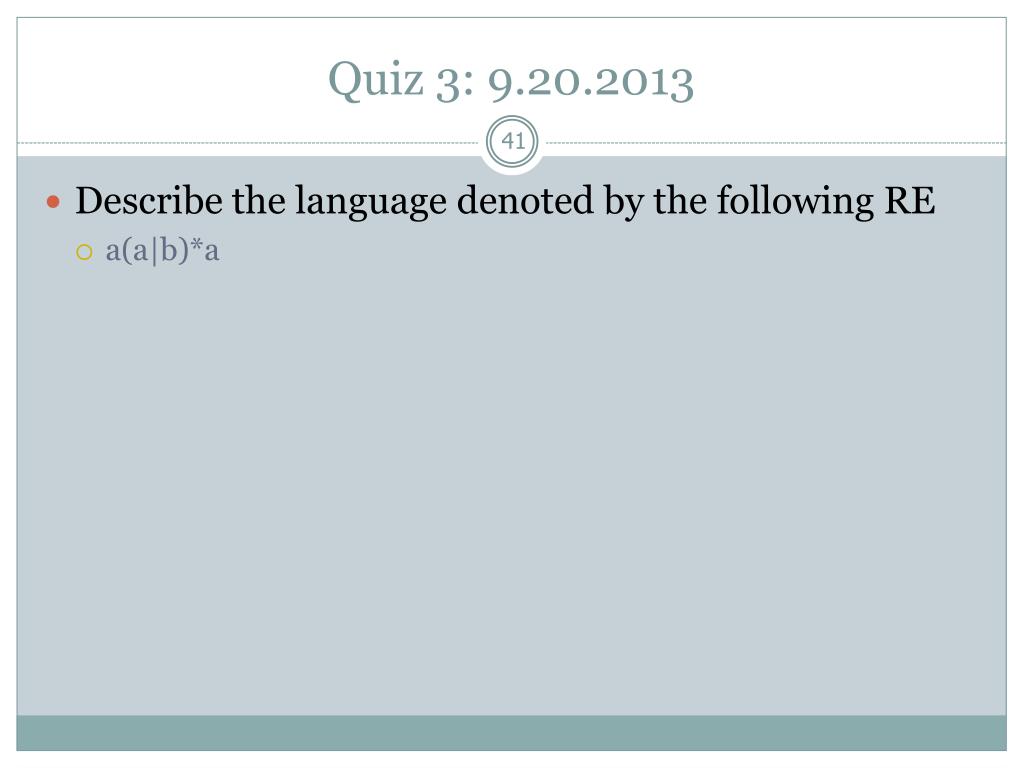

Quiz 3: 9.20.2013

  • Describe the language denoted by the following RE

    • a(a|b)*a


Goal building lex

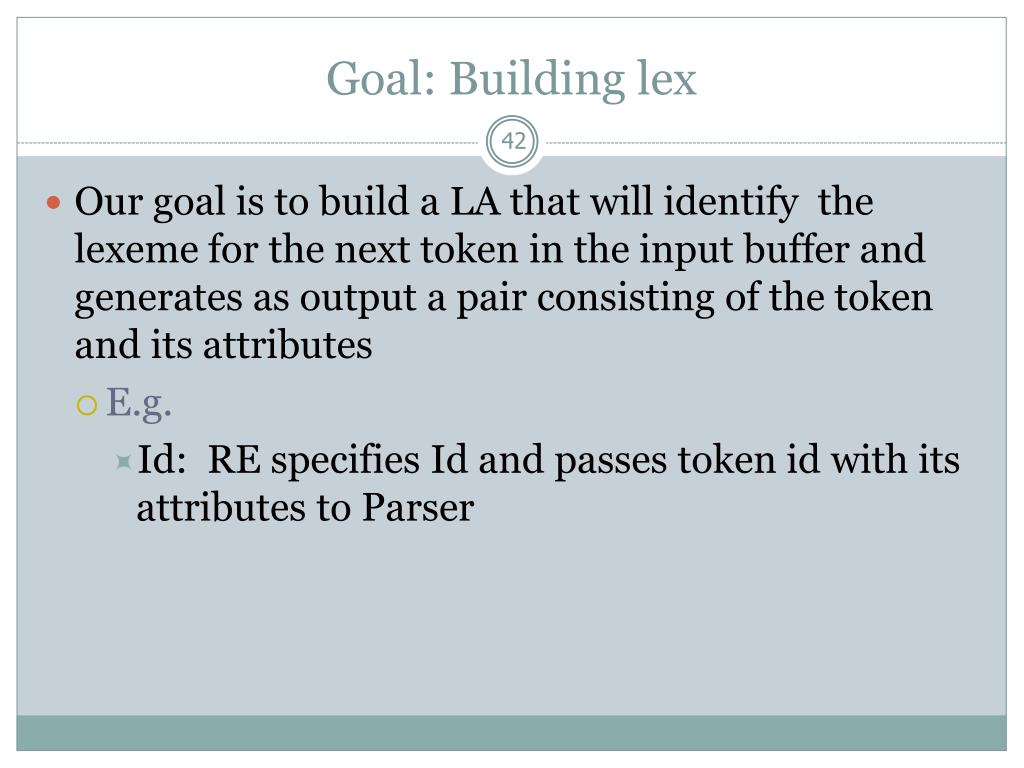

Goal: Building lex

  • Our goal is to build a LA that will identify the lexeme for the next token in the input buffer and generates as output a pair consisting of the token and its attributes

    • E.g.

      • Id: RE specifies Id and passes token id with its attributes to Parser


Transition diagram
Transition diagram

  • An intermediate step but important step in implementing the LAX

  • Transition diagram represents the actions that must take place when a LAX is called by the parser

    • Used to keep track of information about characters as scanned by forward pointer AND beginning pointer


Deterministic finite automata dfa

For every language defined by a RE, there exists a DFA to recognize the same language

FSA can be defined

M = (,Q,T,q0, F)

: alphabet

Q: a finite set of states

T: QQ a finite set of transition rule {partial function}

q0: start state

F: final/halting states

Deterministic Finite Automata (DFA)


Simple dfa
Simple DFA recognize the same language

Input symbols

a d

a

A B

states

A

a

B

B B B

d


Automata for if

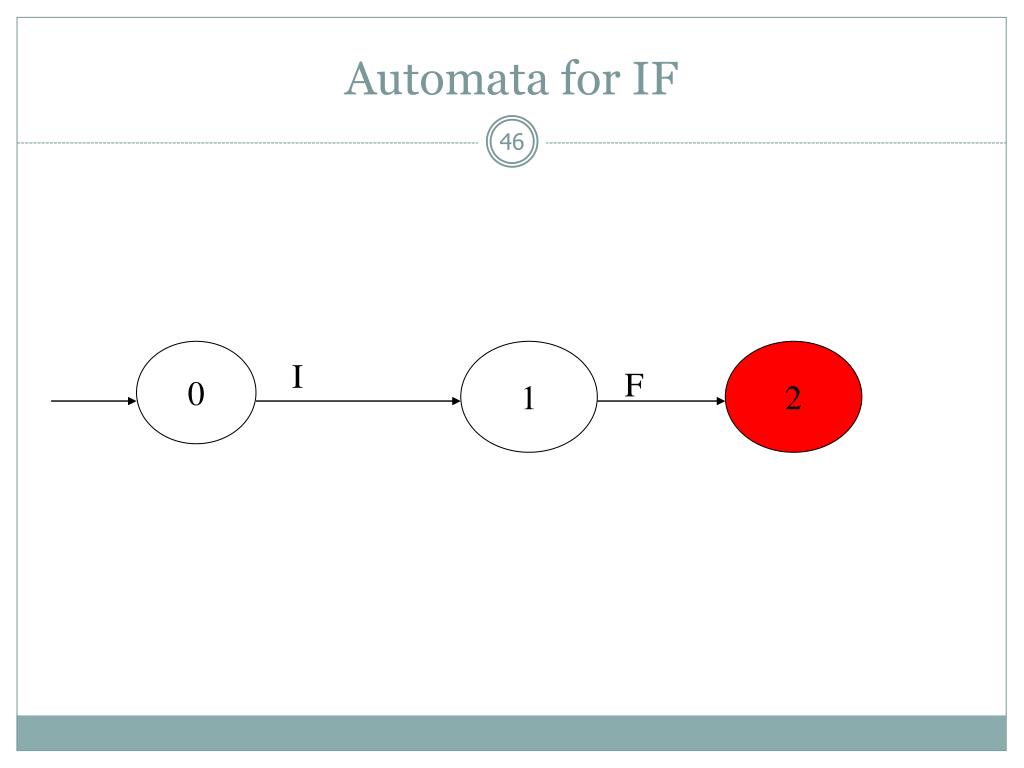

Automata for IF recognize the same language

0

1

2

I

F


Automata for

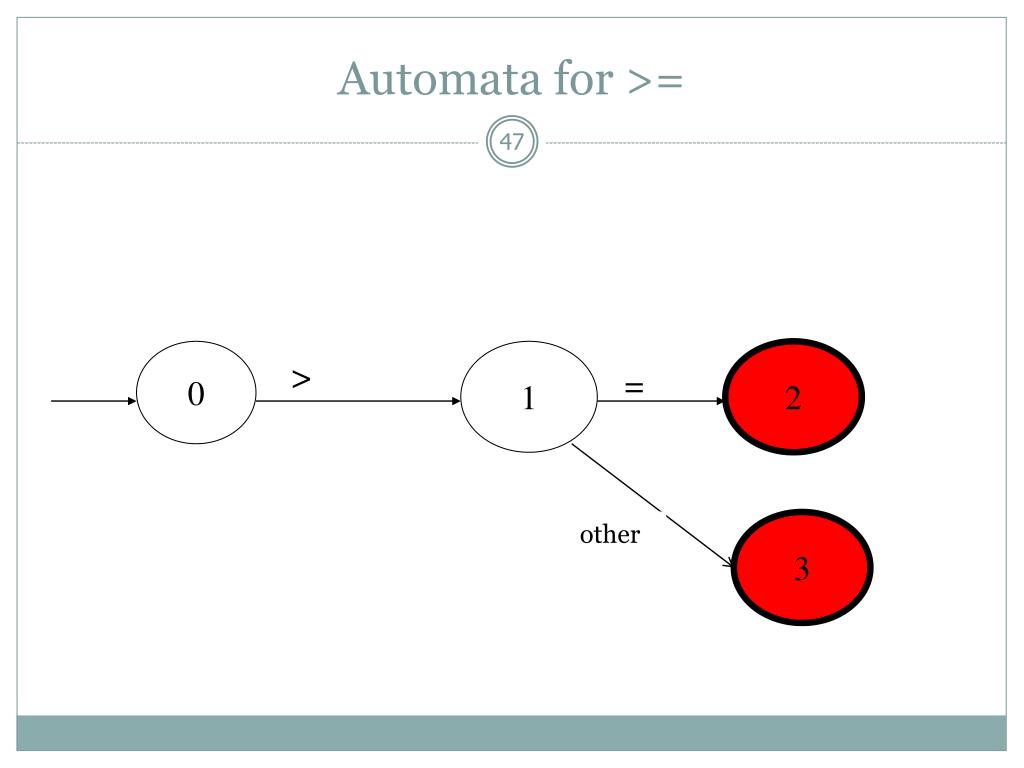

Automata for >= recognize the same language

0

1

2

>

=

other

3


Combine automata for each token
Combine Automata for each token recognize the same language

Final Automata can be created by combing individual automaton


Augmenting with action
Augmenting with action recognize the same language


Re review
RE: Review recognize the same language


More and more example
More and More Example recognize the same language


Error handling using re
Error Handling using RE recognize the same language

  • One can add special REs that match erroneous token

  • Example:

    • A RE for a fixed-point number with no digit after “.” is very common error

    • Integer_Num::= [0-9]+

    • Fixed_point_num::= [0-9]* ’.’ [0-9]+

    • Bad_Fixed_point_num::= [0-9]*’.’

      • The above specification will generate the token bad_fixed_point_num when erroneous input is detected

      • Action: appending 0 to correcting it is very important

        • Allows routines advances in the compilation and not crashes on the incorrect input


Simple implementation of dfa
Simple implementation of DFA recognize the same language

  • Input: an input string x terminated by eof. A DFA D with start state so and set of accepting state F

  • Output: Yes if FA accepts x, NOotherwise


Simple implementation
Simple Implementation recognize the same language

s:= s0

c:= getnextchar()

While c eof do

s:= move(s,c)

c:=getnextchar

End;

If s F then

return “yes”

Else return “no”;


More example
More example recognize the same language


Continue
continue recognize the same language


Code to implement id recognize the same language


Nondeterministic fa nfa
Nondeterministic FA (NFA) recognize the same language

  • NFA

    • Differs from deterministic model in two ways

      • For any given state and input symbol, there may exist more than one transition

      • State transition can occur without reading an input token– this is called empty transition


Example1
example recognize the same language

  • NFA for (a|b)*abb

b

b

0

1

2

3

a

b

a

Possible paths: {<0, 0, 1,2,3>, <0,0,0,0,0>}


Table
table recognize the same language


DFA recognize the same language


More example1
More example recognize the same language

  • NFA to recognize aa*|bb*

a

0

1

2

a

3

4

b

b


All kind of transformation
All kind of Transformation recognize the same language

  • There is all kind of transformation from automata to RE and from RE to automata


Lexical analyzer implementation approaches
Lexical Analyzer: Implementation Approaches recognize the same language

General Approach to implement Lexical Analyzer (LA)

1. Tool such as Lex

2. Write the LA using Programming Languages

3. Write LA in assembly language (difficult but efficient)


Main approach
Main Approach recognize the same language


Hand written approach
Hand written approach recognize the same language


Option two using tool to generate lex
Option two: Using Tool to generate Lex recognize the same language


Example2
Example recognize the same language


More on lexer generators
More on Lexer generators recognize the same language


From re to lexical analyzer
From RE to Lexical Analyzer recognize the same language

  • The idea behind FA is to automate the generation of executable scanners using RE

    • RENFADFA Code


The cycle of construction
The cycle of Construction recognize the same language

  • The following mapping are needed

    • RE-NFA mapping (Thompson's’ Algorithms)

    • NFA-DFA mapping (Subset Construction)

    • DFA-DFA mapping (Minimization)


More example2
More Example recognize the same language

a

S0

a

S1

b

S2

S0

a

S1

a

S2

b

S3

S0


Rules to describe the behaviors of nfa
Rules to describe the behaviors of NFA recognize the same language

  • Models to maintain the behavior of NFAs

    • Maintains the well-defined accepting mechanism of the DFA

    • Or, for any given input, the NFA clones (configurations) itself to pursue each possible transition

  • NFA Halts iff there exists (at least) one path from start state to final state

  • Any NFA can be simulated by DFA


Re to nfa thompson s construction
RE to NFA: Thompson’s Construction recognize the same language


Applying thompson s rules to a b c
Applying Thompson’s rules to a(b|c)* recognize the same language


The worst case space and time complexity for re using fsa
The worst-case space and time complexity for RE using FSA recognize the same language

r: length of RE

x: length of input string


ad
