  1. Presentation #5: Rijndael Encryption Team W1Design Manager: Rebecca Miller1. Bobby Colyer (W11)2. Jeffrey Kuo (W12)3. Myron Kwai (W13)4. Shirlene Lim (W14) Stage IV: February 18h 2004 COMPONENT LAYOUT Overall Project Objective: Implement the new AES Rijndael algorithm on chip 18-525 Integrated Circuit Design Project

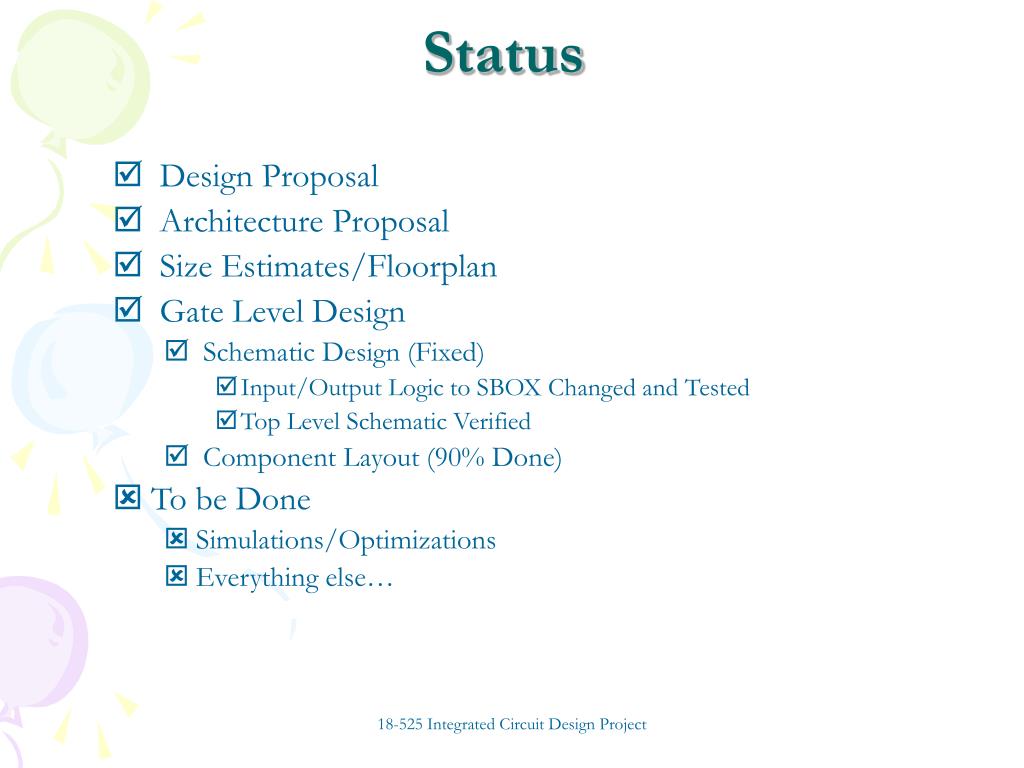

  2. Status • Design Proposal • Architecture Proposal • Size Estimates/Floorplan • Gate Level Design • Schematic Design (Fixed) • Input/Output Logic to SBOX Changed and Tested • Top Level Schematic Verified • Component Layout (90% Done) • To be Done • Simulations/Optimizations • Everything else… 18-525 Integrated Circuit Design Project

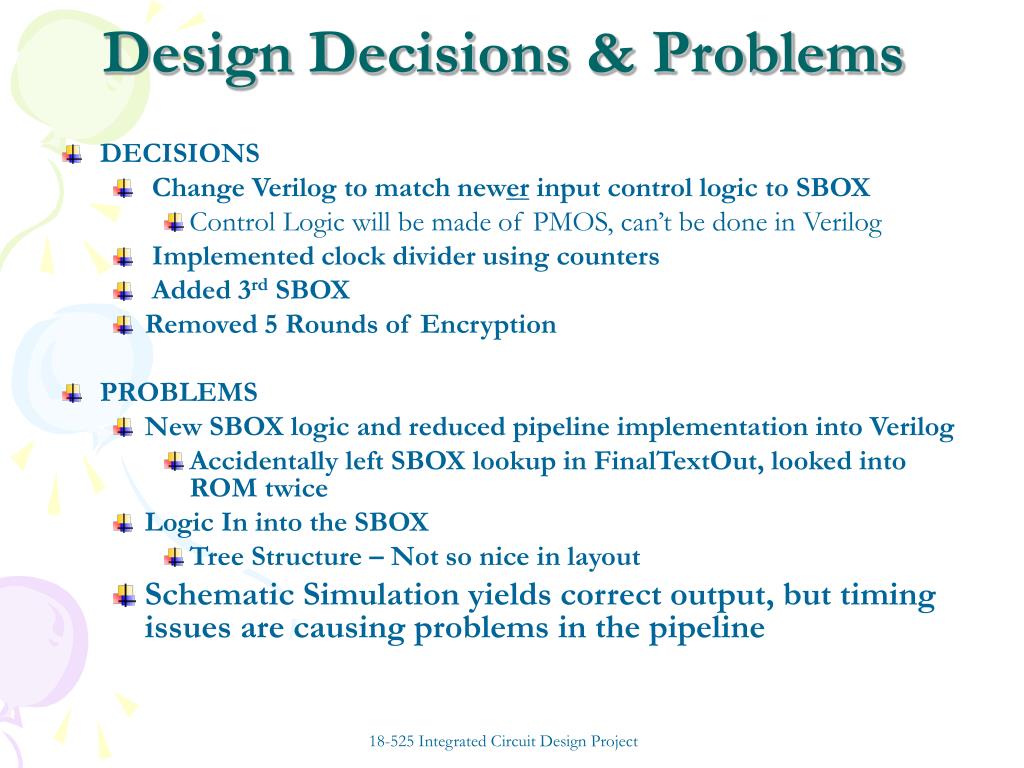

  3. Design Decisions & Problems • DECISIONS • Change Verilog to match newer input control logic to SBOX • Control Logic will be made of PMOS, can’t be done in Verilog • Implemented clock divider using counters • Added 3rd SBOX • Removed 5 Rounds of Encryption • PROBLEMS • New SBOX logic and reduced pipeline implementation into Verilog • Accidentally left SBOX lookup in FinalTextOut, looked into ROM twice • Logic In into the SBOX • Tree Structure – Not so nice in layout • Schematic Simulation yields correct output, but timing issues are causing problems in the pipeline 18-525 Integrated Circuit Design Project

  4. OLD FLOORPLAN 18-525 Integrated Circuit Design Project

  5. 18-525 Integrated Circuit Design Project

  6. ADDED SBOX #3 • Previous design inefficient for small text • Makes Sense to Give Round Key Generation its own SBOX • But increased transistor count drastically to ~45k • The logic and muxes are HUGE 18-525 Integrated Circuit Design Project

  7. ELIMINATION • Eliminate 5 rounds • Eliminate 1 SBOX & control logic • Reduce transistor count to 27k 18-525 Integrated Circuit Design Project

  8. New Schematic (5 Rounds) Mux used in both In and Out logic, moved outside and shared Mux used in both In and Out logic, moved outside and shared

  9. FUNCTIONAL MODEL OF ROM module logicandsbox (Out, In); output [7:0] Out; input [7:0] In; reg [7:0] Out; always @(In) case(In) // synopsys full_case parallel_case 8'h00: Out=8'h63; 8'h01: Out=8'h7c; 8'h02: Out=8'h77; 8'h03: Out=8'h7b; 8'h04: Out=8'hf2; 8'h05: Out=8'h6b; 8'h06: Out=8'h6f; 8'h07: Out=8'hc5; 8'h08: Out=8'h30; 8'h09: Out=8'h01; 8'h0a: Out=8'h67; 8'h0b: Out=8'h2b; 8'h0c: Out=8'hfe; 8'h0d: Out=8'hd7; 8'h0e: Out=8'hab; Case Statements 18-525 Integrated Circuit Design Project

  10. Floorplan 345 um x 325 um Key Expand no pipe ROM and Control In Logic & Out Logic Key Expand Text & Key Output Round Permutations In Logic & Out Logic ROM and Control 18-525 Integrated Circuit Design Project

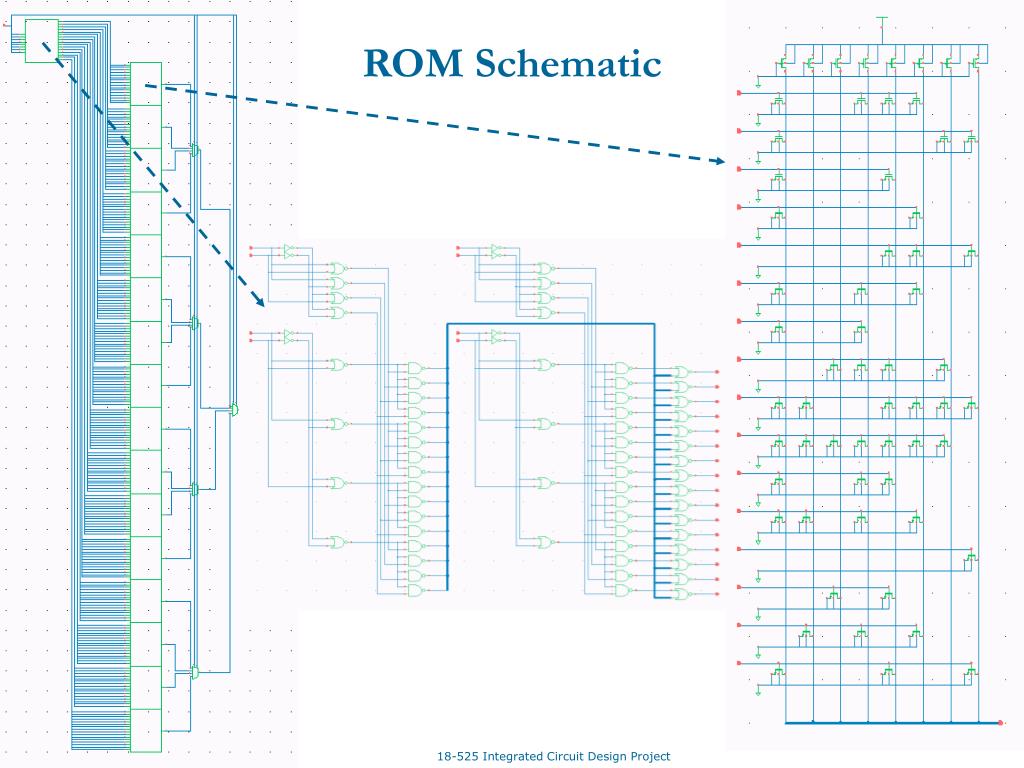

  11. ROM Schematic 18-525 Integrated Circuit Design Project

  12. ROM Control with PMOS 18-525 Integrated Circuit Design Project

  13. ROM and Control Logic Control Logic ROM Control Logic 18-525 Integrated Circuit Design Project

  14. Round Permutation 18-525 Integrated Circuit Design Project

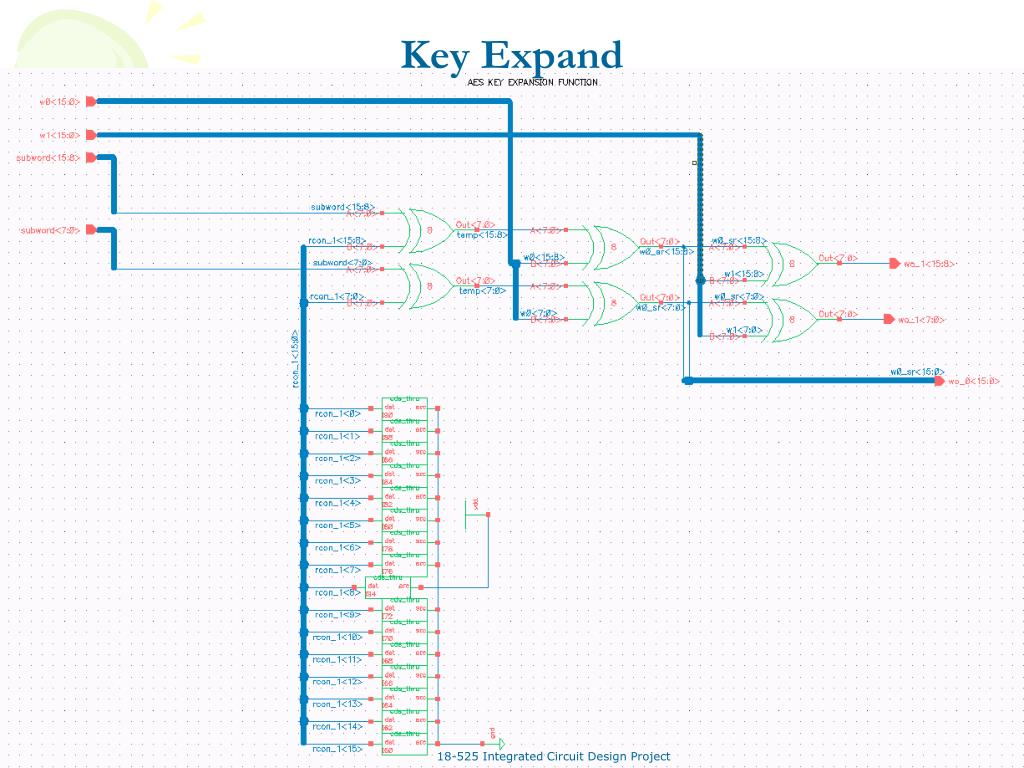

  15. Key Expand 18-525 Integrated Circuit Design Project

  16. Key Expand Layout 18-525 Integrated Circuit Design Project

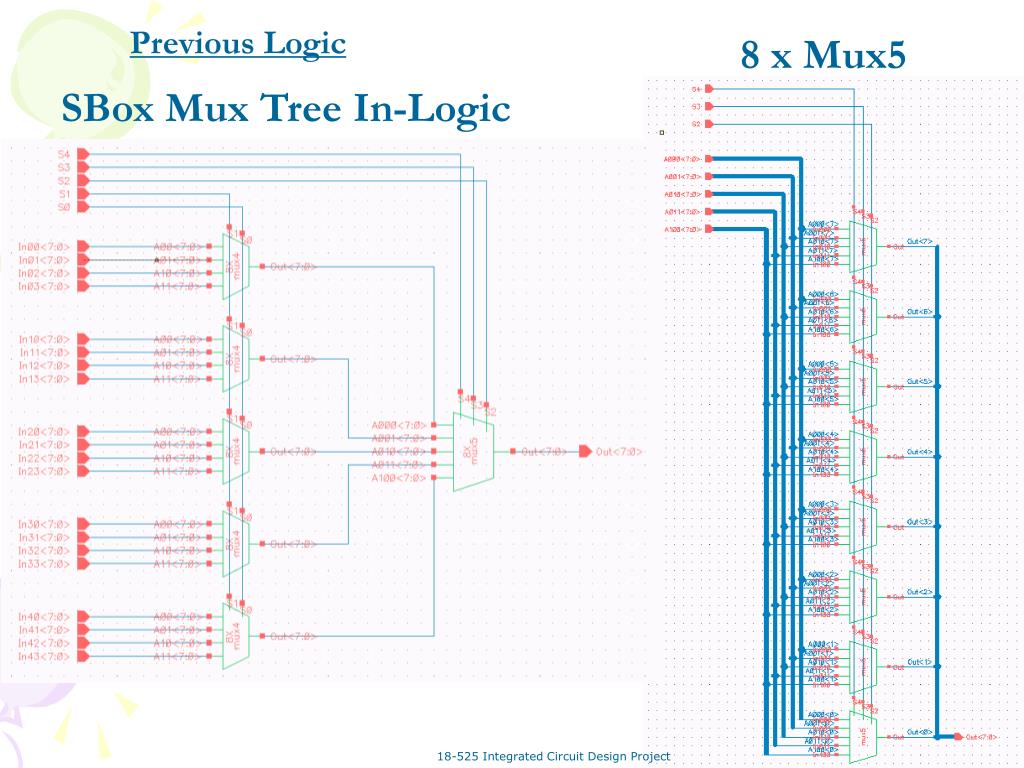

  17. Previous Logic 8 x Mux5 SBox Mux Tree In-Logic 18-525 Integrated Circuit Design Project

  18. Current Logic SBox Mux Tree In-Logic 18-525 Integrated Circuit Design Project

  19. Current Logic SBox Mux Tree In-Logic • Tree Structure Difficult to Implement in Layout • Need to finalize wiring from other modules in order to be more efficient in arranging in-logic 18-525 Integrated Circuit Design Project

  20. SBox Mux Tree Out-Logic 18-525 Integrated Circuit Design Project

  21. Schematic Simulation Results e0 34 e7 8b 18-525 Integrated Circuit Design Project

  22. Schematic Simulation Results 18-525 Integrated Circuit Design Project

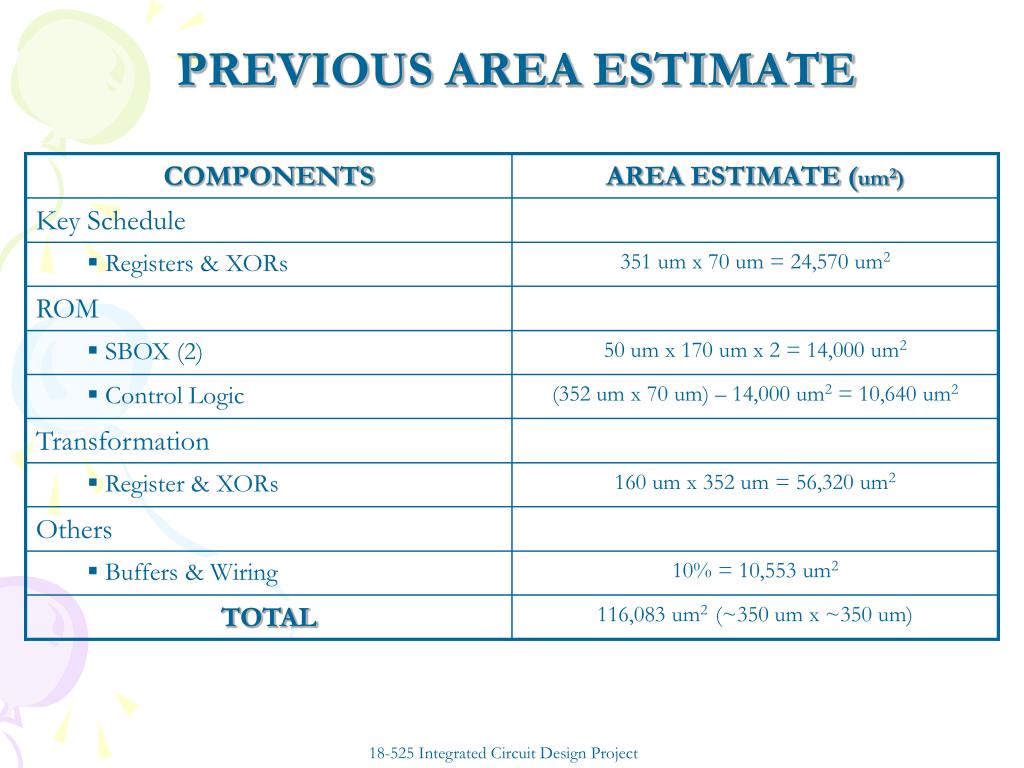

  23. PREVIOUS AREA ESTIMATE 18-525 Integrated Circuit Design Project

  24. CURRENT AREA DIMENSIONS Total: 345 um x 325 um (taken from current floorplan) 18-525 Integrated Circuit Design Project

  25. Previous PROBLEMATIC Transistor Count(Assuming 32-bit Implementation) • Clock Divider 165 • Add Round Key 256 • Valid Out DFFs (10) 266 • SBoxMuxTreeIn (3) 7008 • SBoxMuxTreeOut(3) 11976 • ROM (3) 7644 • Key Expansion (10) 3840 • Round Permutation (9) 11952 • Final Text Out 256 Total: 47523 Total with Buffer Estimate (10%) 52275 Changing the ROM Control to PMOS 47211 18-525 Integrated Circuit Design Project

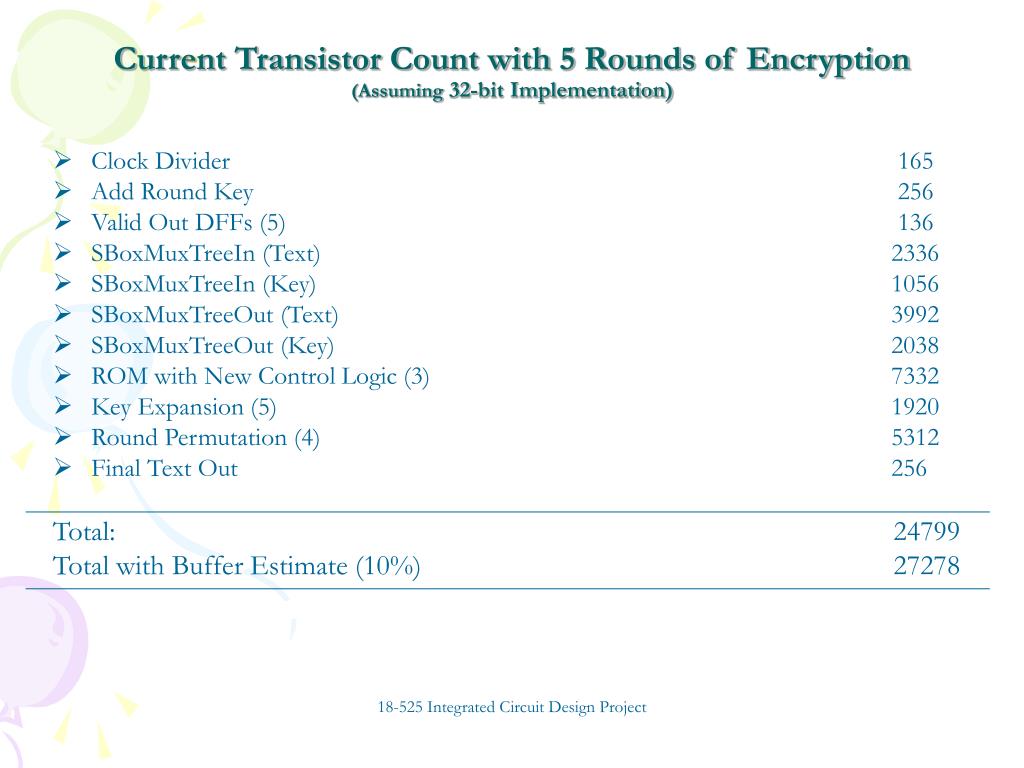

  26. Current Transistor Count with 5 Rounds of Encryption (Assuming 32-bit Implementation) • Clock Divider 165 • Add Round Key 256 • Valid Out DFFs (5) 136 • SBoxMuxTreeIn (Text) 2336 • SBoxMuxTreeIn (Key) 1056 • SBoxMuxTreeOut (Text) 3992 • SBoxMuxTreeOut (Key) 2038 • ROM with New Control Logic (3) 7332 • Key Expansion (5) 1920 • Round Permutation (4) 5312 • Final Text Out 256 Total: 24799 Total with Buffer Estimate (10%) 27278 18-525 Integrated Circuit Design Project

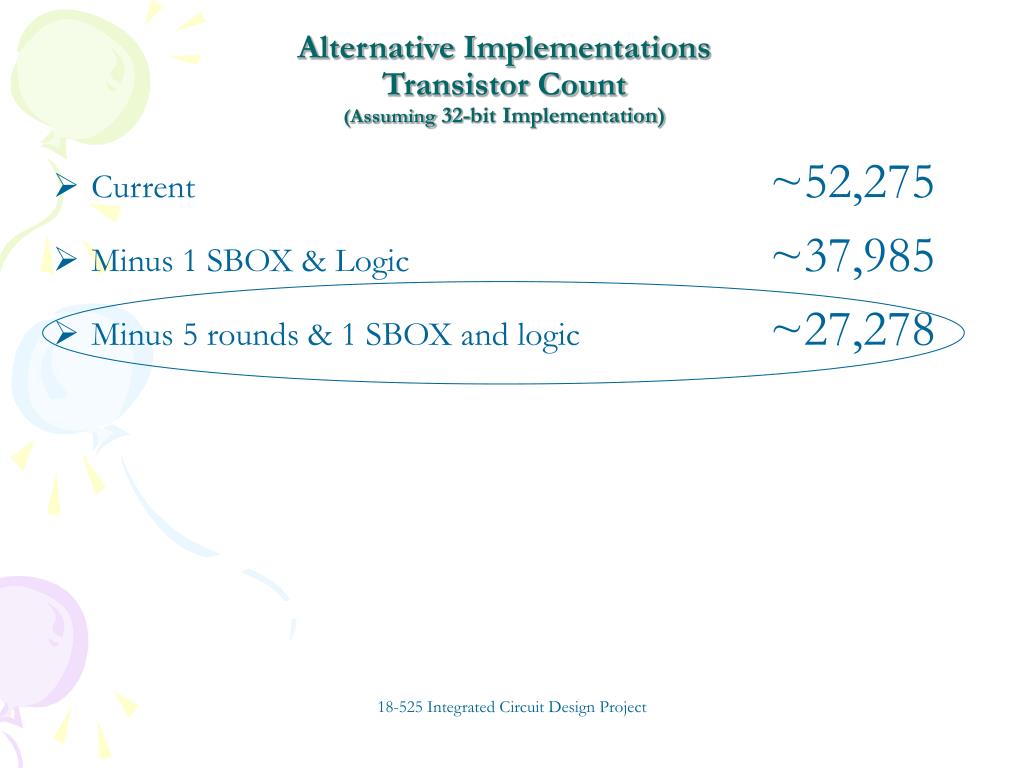

  27. Alternative ImplementationsTransistor Count(Assuming 32-bit Implementation) • Current ~52,275 • Minus 1 SBOX & Logic ~37,985 • Minus 5 rounds & 1 SBOX and logic ~27,278 18-525 Integrated Circuit Design Project

  28. Questions?Answers??? 18-525 Integrated Circuit Design Project
