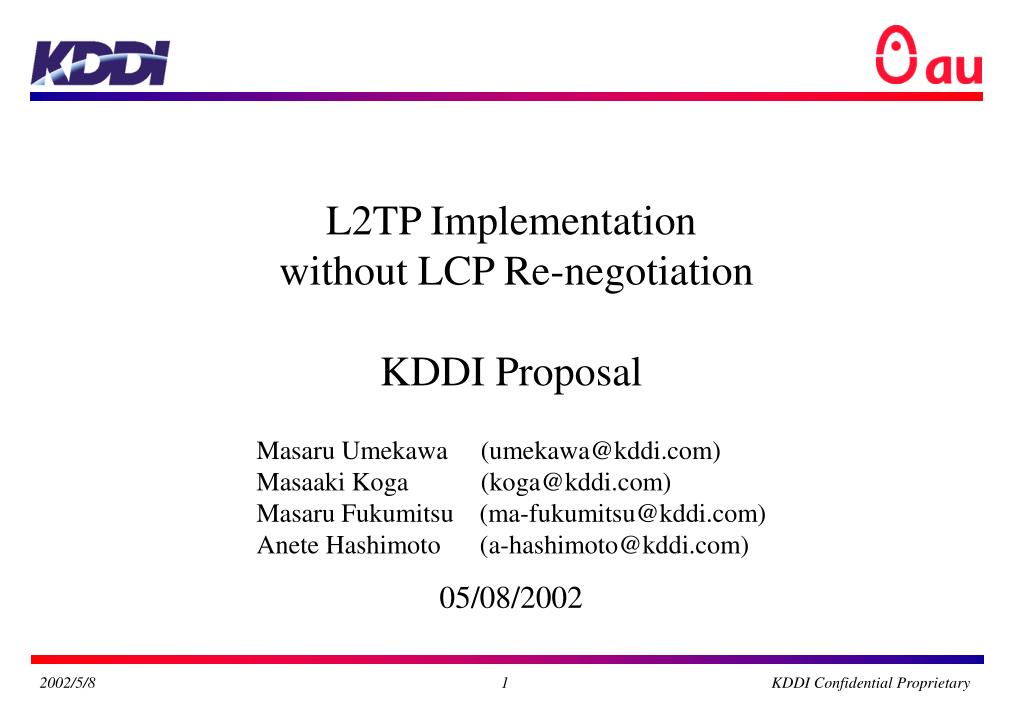

L2TP Implementation without LCP Re-negotiationKDDI Proposal

Masaru Umekawa ([email protected])

Masaaki Koga ([email protected])

Masaru Fukumitsu ([email protected])

Anete Hashimoto ([email protected])

05/08/2002

KDDI Confidential Proprietary


Why l2tp

Why L2TP ?

  • To solve the conflict between the Private IP address used among the carries, L2TP tunneling has been considered and agreed within the CDG international roaming team.

  • In the last CDG meeting, SKT suggested and explained about L2TP tunneling with LCP re-negotiation

  • Issue:Can the mobile respond properly if the call setup is different in the home data network and in the serving side?

KDDI Confidential Proprietary


L2tp implementation without lcp re negotiation kddi proposal

L2TP Without LCP Re-negotiation

  • In this material, KDDI suggests L2TP without LCP Re-negotiation as a way to solve the above issue

  • No need to change current mobile implementation

    Some clients possibly cannot renegotiate LCP re-negotiation (RFC2809, section4.2)

  • There is less air resource consumption if LCP re-negotiation is avoided

KDDI Confidential Proprietary


L2tp implementation without lcp re negotiation kddi proposal

Dual Authentication without LCP Re-Negotiation

Dial-up

Client

LAC

Serving Radius

LNS

Home Radius

LCP-CFG-REQ

Example of attribute for L2TP initialization

RFC2868(Section3)

- Tunnel-type

- Tunnel-Server-Endpoint

- Tunnel-Client-Endpoint

- etc

LCP-CFG-REQ

LCP-CFG-ACK

LCP-CFG-ACK

Example of AVP for LCP

Forwarding(RFC2661, Section4.4.5):

- Initial Received LCP CONFREQ

- Last Sent LCP CONFREQ

- Last Received LCP CONFREQ

- Proxy Authentication Type

- Proxy Authen Name

- Proxy Authen Challenge

- Proxy Authen ID

- Proxy Authen Response

- etc

PAP-REQ

Access-Request

Access-Accept

SCCRQ (Start-Control-Connection-Request)

SCCRP (Start-Control-Connection-Reply)

Example of AVP sent in ICRQ:

- Calling-Number

SCCCN (Start-Control-Connection-Connected)

ICRQ(In-Coming-Call-Request)

ICRP(In-Coming-Call-Reply)

ICCN(In-Coming-Call-Connected)

LCP Forwarding as per

RFC2809 (section 4.2)

SLI(Set-Link-Info)

Access-Request

L2TP Tunnel

Access-Accept

Accounting-Request(Start)

Accounting-Request(Start) [Optional]

Accounting-Response

Accounting-Response

PAP-ACK

IPCP (Configure-Request)

IPCP (Configure-Reply)

Accounting-Request(Start)

PPP Session

Accounting-Response

KDDI Confidential Proprietary


L2tp implementation without lcp re negotiation kddi proposal

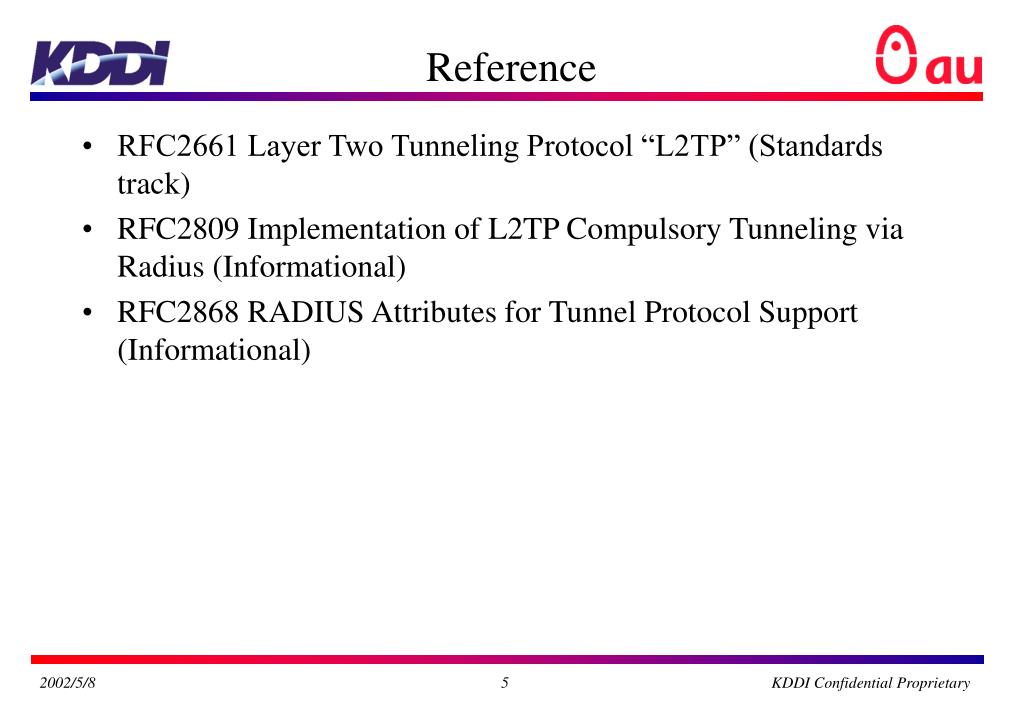

Reference

  • RFC2661 Layer Two Tunneling Protocol “L2TP” (Standards track)

  • RFC2809 Implementation of L2TP Compulsory Tunneling via Radius (Informational)

  • RFC2868 RADIUS Attributes for Tunnel Protocol Support (Informational)
