Transportation problemsSlide 1

Transportation Problems

Dr. Ron Lembke

Transportation problems1Slide 2

Transportation Problems

  • Linear programming is good at solving problems with zillions of options, and finding the optimal solution.

  • Could it work for transportation problems?

  • Costs are linear, and shipment quantities are linear, so maybe so.

Defining variablesSlide 3

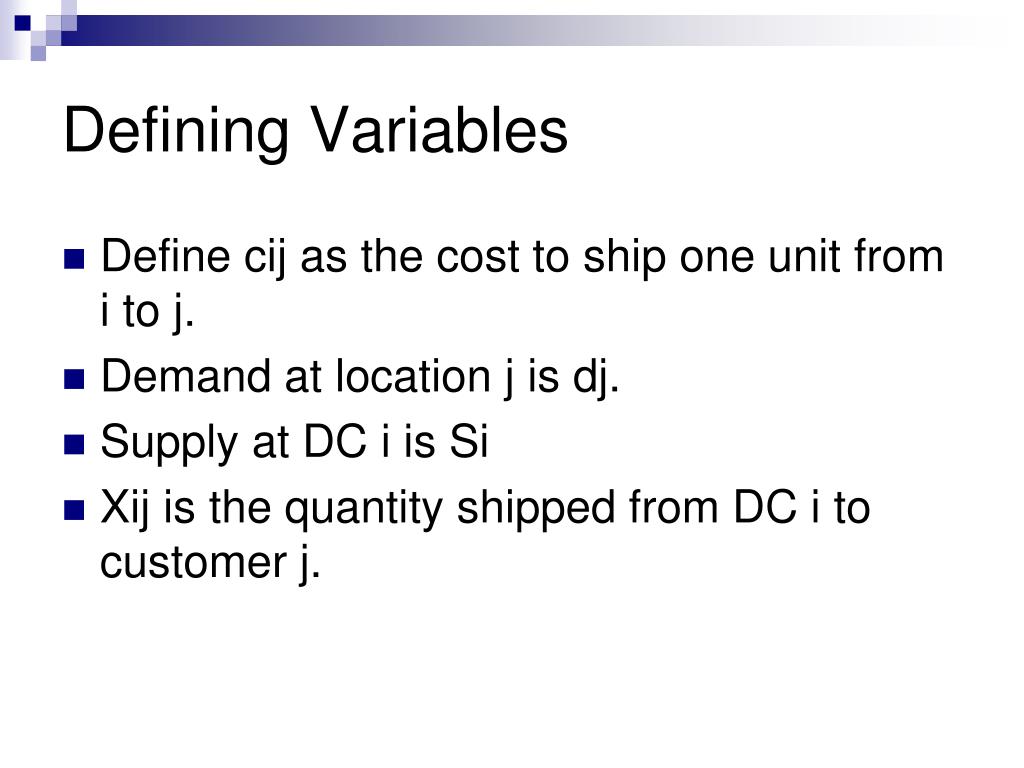

Defining Variables

  • Define cij as the cost to ship one unit from i to j.

  • Demand at location j is dj.

  • Supply at DC i is Si

  • Xij is the quantity shipped from DC i to customer j.

FormulationSlide 4

Formulation

Transportation methodSlide 5

Transportation Method

You have 3 DCs, and need to deliver product to 4 customers.

Find cheapest way to satisfy all demand

D 2

A 10

E 4

B 10

F 12

C 10

G 11

Solving transportation problemsSlide 6

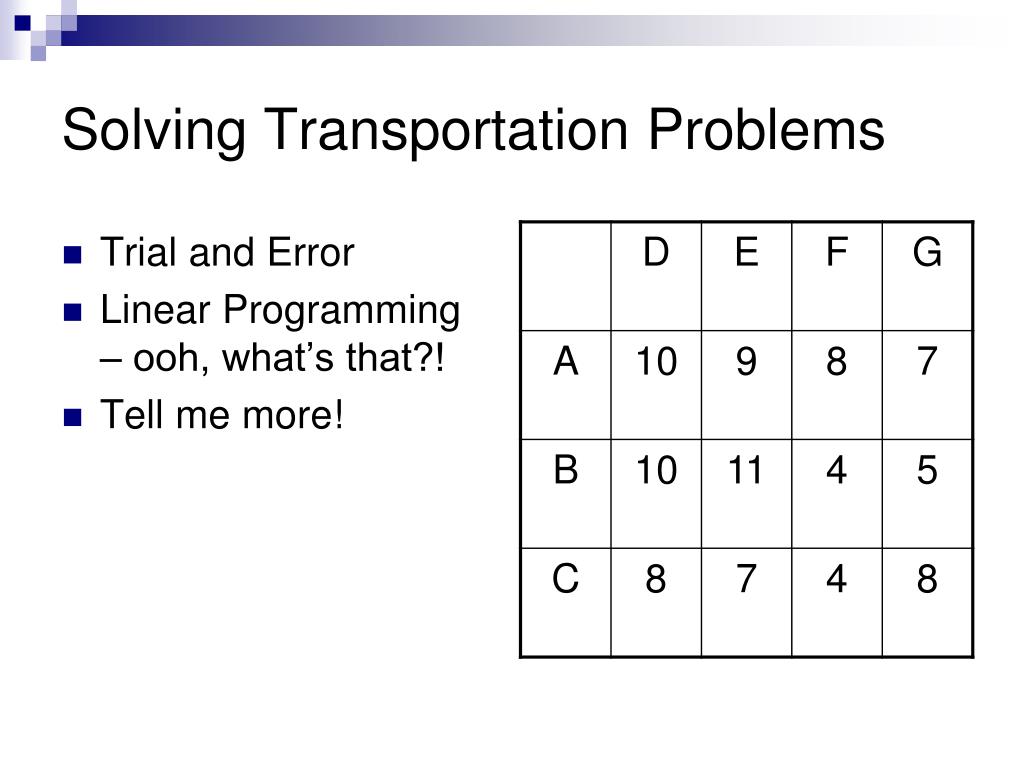

Solving Transportation Problems

  • Trial and Error

  • Linear Programming – ooh, what’s that?!

  • Tell me more!

Setting up lpSlide 8

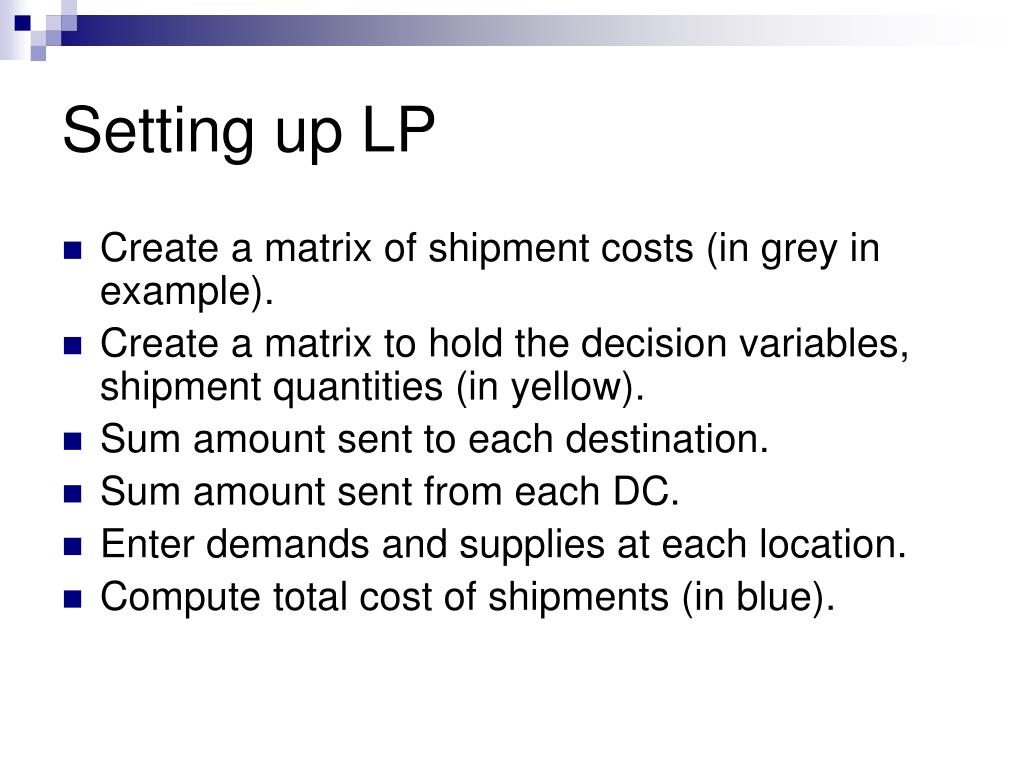

Setting up LP

  • Create a matrix of shipment costs (in grey in example).

  • Create a matrix to hold the decision variables, shipment quantities (in yellow).

  • Sum amount sent to each destination.

  • Sum amount sent from each DC.

  • Enter demands and supplies at each location.

  • Compute total cost of shipments (in blue).

Using solverSlide 9

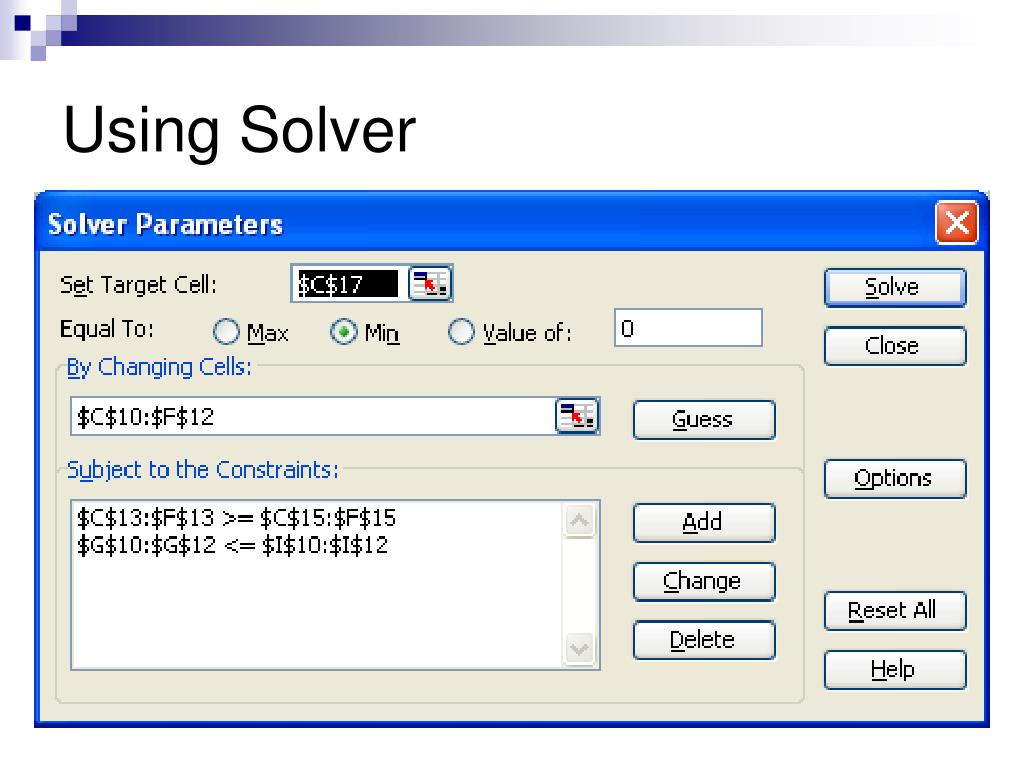

Using Solver

Transportation problemsSlide 12

  • If you don’t check “assume non-negative” we get the following results:

  • Solver doesn’t converge to an optimal solution. Why not?

InequalitiesSlide 14

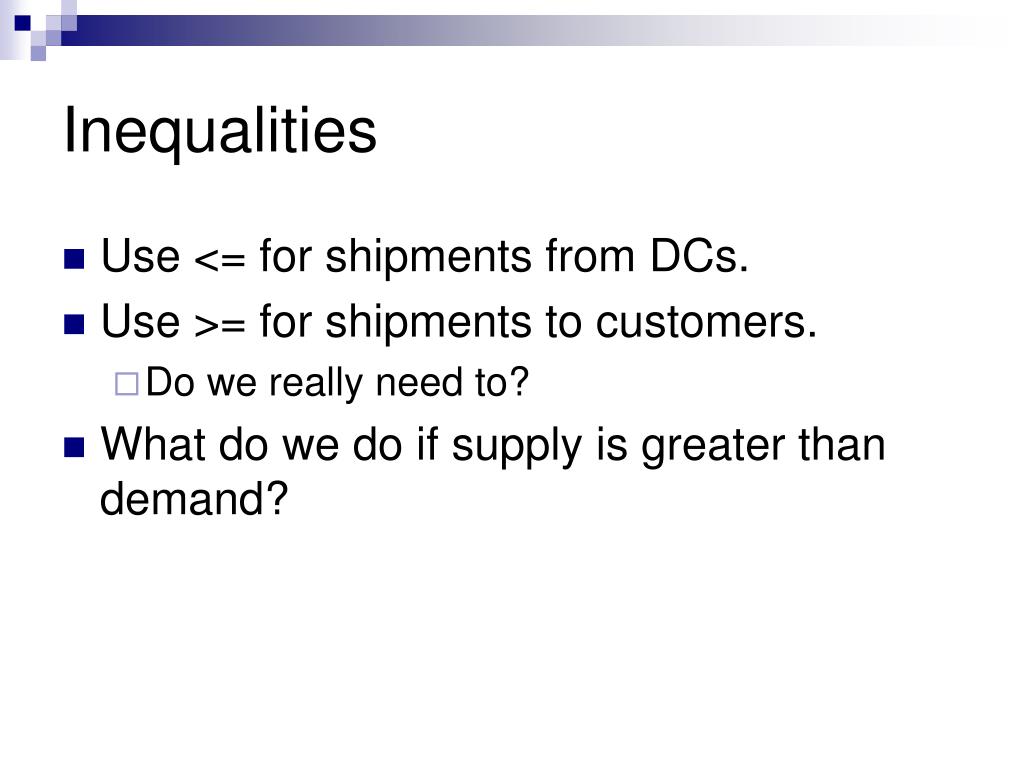

Inequalities

  • Use <= for shipments from DCs.

  • Use >= for shipments to customers.

    • Do we really need to?

  • What do we do if supply is greater than demand?

Product shortagesSlide 15

Product Shortages

  • If total demand is greater than total supply, what happens?

  • If demand in G is 15, we get this:

Product shortages1Slide 16

Product Shortages

  • If demand at G is 15, there are no feasible solutions, much less a best one.

  • We need to add a phantom source, Z, with huge capacity. Think of it as a supplier that ships empty boxes.

  • Now supply can satisfy total demand.

Shortage costsSlide 17

Shortage Costs

  • What cost should we use for supplier Z?

  • It should be the last resort, so it should be higher than any real costs.

  • The cost of a shipment from Z is really the cost of shorting the customer.

  • If all customers are created equal, give them all the same shortage cost.

  • If some are more important, give them higher shortage costs, and we’ll only short them as a last resort.

Shortage solutionSlide 20

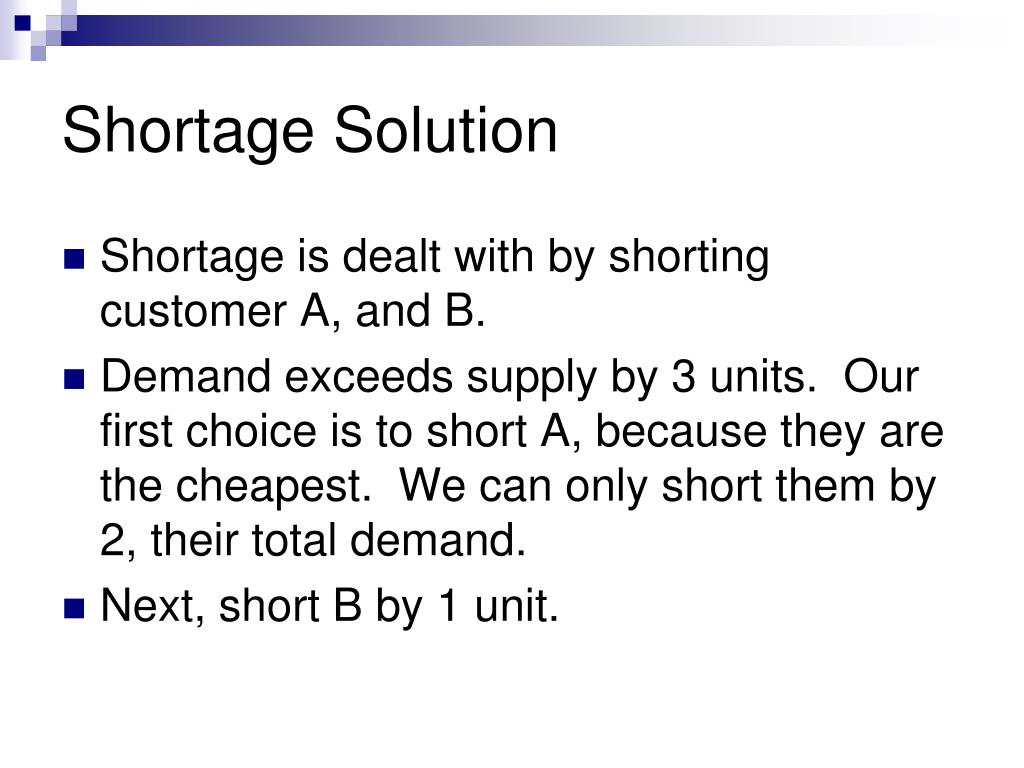

Shortage Solution

  • Shortage is dealt with by shorting customer A, and B.

  • Demand exceeds supply by 3 units. Our first choice is to short A, because they are the cheapest. We can only short them by 2, their total demand.

  • Next, short B by 1 unit.
