Glast large area telescope electronics data acquisition flight software electronics

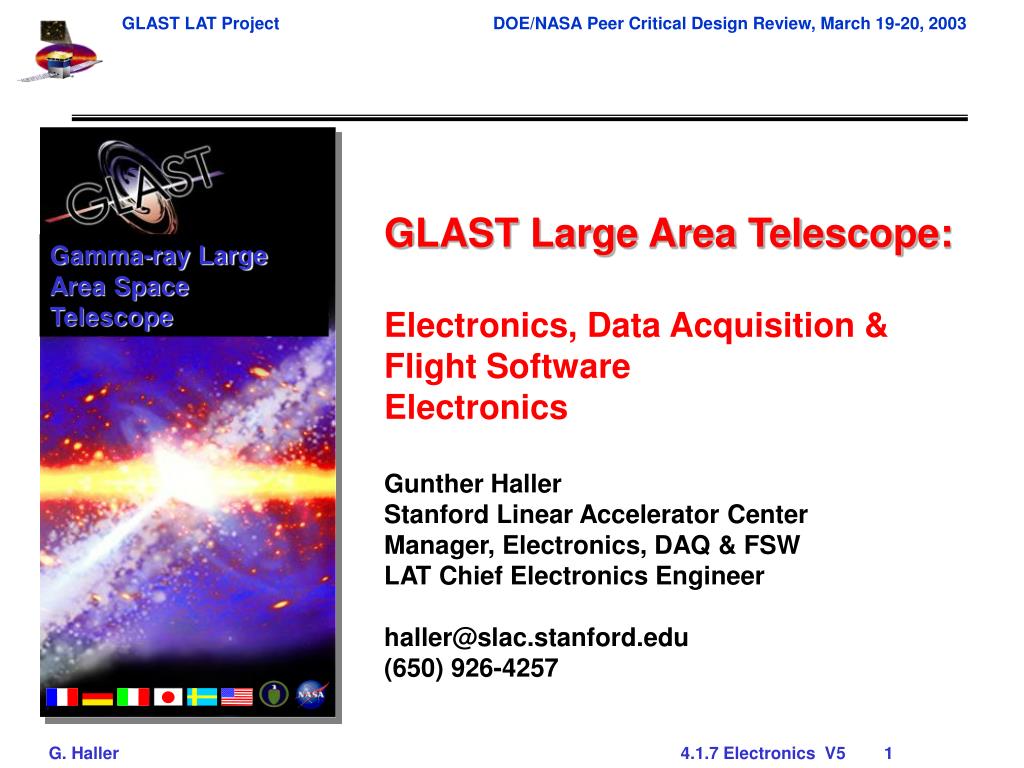

Gamma-ray Large Area Space Telescope

GLAST Large Area Telescope:

Electronics, Data Acquisition & Flight Software

Electronics

Gunther Haller

Stanford Linear Accelerator Center

Manager, Electronics, DAQ & FSW

LAT Chief Electronics Engineer

[email protected]

(650) 926-4257


Electronics outline

Electronics Outline

  • Overview

  • Team

  • Front-End Electronics

  • Tower Electronics Module

    • GLAST Calorimeter Cable Controller ASIC (GCCC)

    • GLAST Tracker Cable Controller ASIC (GTCC)

  • GAS Unit

  • GLAST Global Trigger Controller (GLTC)

  • SIU/EPU Crate

    • LAT Communication Board

    • Spacecraft Interface Board

    • Processor

  • Spacecraft Interface

  • Verification & Test

  • Testbed

  • Summary


Lat electronics signals

LAT Electronics (Signals)

  • TKR: Tracker

  • CAL: Calorimeter

  • ACD: Anti-Coincidence Detector

  • TEM: Tower Electronics Module

  • EPU: Event Processor Unit

  • SIU: Spacecraft Interface Unit

  • GAS Unit: Global Trigger-ACD-Signal Distribution Unit


Lat electronics power

LAT Electronics (Power)

  • TKR: Tracker

  • CAL: Calorimeter

  • ACD: Anti-Coincidence Detector

  • TEM: Tower Electronics Module

  • EPU: Event Processor Unit

  • SIU: Spacecraft Interface Unit

  • GAS Unit: Global Trigger-ACD-Signal Distribution Unit

  • PDU: Power Distribution Unit*

* PDU is presented separate in Power System presentation


Glast large area telescope electronics data acquisition flight software electronics

Team

  • Power Distribution Unit

    • Patrick Young, SLAC

  • GAS Unit

    • Joszef Ludvig, SLAC

  • TEM DAQ Module

    • Leonid Sapozhnikov, SLAC

  • Tower Power Supply

    • Vendor (Oversight: Dave Nelson, SLAC)

  • Spacecraft Interface Board

    • Michael Lovellette, Greg Clifford, Dennis Silver (NRL & Silver Engineering)

    • Software: Dan Wood (NRL)

  • Crate Backplane

    • Robert O’Leary, SLAC

  • Crate Power Supply Board

    • Robert O’Leary, SLAC

  • LAT Communication Board

    • Sandra Frazier, SLAC

  • GLAST Tracker Cable Controller ASIC

    • Leonid Sapozhnikov, Noman Ahmed, SLAC

  • GLAST Calorimeter Cable Controller ASIC

    • Leonid Sapozhnikov, Noman Ahmed, SLAC

  • GLAST Global Trigger ASIC

    • Joszef Ludvig, Noman Ahmed, SLAC

  • Front-End Simulator

    • Mark McDougald, SLAC

  • Parts

    • Mark Freytag, SLAC

  • Harness

    • Dave Nelson, Mark Freytag, SLAC

  • Packaging

    • Jobe Noriel, SLAC

  • ASIC & Board Analysis

    • Dieter Freytag, Oren Milgrome, SLAC

  • TKR sub-system electronics

    • Manager: Robert Johnson, UCSC

    • EE: Dave Nelson, SLAC

  • CAL sub-system electronics

    • System Manager: Neil Johnson, NRL

    • EE: Jim Ampe, NRL

  • ACD sub-system electronics

    • Manager: Dave Thompson, GSFC

    • EE: Glenn Unger, GSFC

  • Manager

    • Gunther Haller, SLAC

  • Flight Software Lead

    • JJ Russell, SLAC

  • DAQ System Lead

    • Mike Huffer, SLAC

  • Mechanical-Thermal Lead

    • Dave Nelson, SLAC

  • Power-EMI Lead

    • Dave Nelson, SLAC

  • EGSE Lead

    • Mike Huffer, SLAC

  • I&T Lead

    • Dave Nelson, SLAC

  • Mission Assurance Lead

    • Darren Marsh, Nick Virmani (SLAC, Swales)

  • Manufacturing Lead

    • Jerry Clinton, SLAC

  • Flight-Software Team: see FSW presentation


Tracker electronics

Tracker Electronics

  • TKR sub-system electronics

    • Si-Strip Detectors

    • 24 GTFE (GLAST Tracker Front-End) ASIC (1,536 signal channels)

    • 2 GTRC (GLAST Tracker Readout Controller) ASIC

    • MCM (Multi-Chip Module)

    • Flex-cables

  • Presented in tracker sub-system CDR

  • GTRC ASIC

    GTFE ASIC


    Calorimeter electronics

    Calorimeter Electronics

    • CAL sub-system electronics

      • Diodes

      • 48 GCFE (GLAST Calorimeter Front-End) ASIC

      • 4 GCRC (GLAST Calorimeter Readout Controller) ASIC

      • AFEE (Analog Front-End Electronics) board

  • Presented in calorimeter sub-system CDR

  • GCRC ASIC

    GCFE ASIC


    Acd electronics

    ACD Electronics

    • ACD sub-system electronics

      • PMT’s

      • 18 GAFE (GLAST ACD Front-End) ASIC

      • 1 GARC (GLAST ACD Readout Controller) ASIC

      • FREE (Front-End Electronics) board

      • High-Voltage Supply board (not shown)

  • Presented in ACD sub-system CDR

  • GAFE ASIC

    GARC ASIC


    Tower electronics daq module

    Tower Electronics DAQ Module

    • Main DAQ module, one on each tower

      • Controls and reads out data from TKR MCM and CAL AFEE front-end electronics

      • Zero-suppresses CAL event data

      • Buffers events in cable ASIC FIFO’s

      • Assembles CAL and TKR event fragments to tower event

      • Transmits data to GASU

      • Contains monitoring and low-rate science circuits

      • LVDS interface to front-end electronics and GASU

      • Hardware with software controlled configuration and mode registers

        • CAL ICD: LAT-SS-00238

        • TKR ICD: LAT-SS-00176

        • TEM ICD: LAT-SS-00363

    CAL (4 cables)

    TKR (8 cables)

    CAL Cable ASIC

    TKR Cable ASIC

    Control, Event & HSK Signals

    Power

    Trigger

    Power from TEM PS Module

    Power to TEM Elex

    Trigger signals to/from Global Trigger on GAS Unit

    Trigger Controller

    Control & HSK signals from/to SIU, Event data to EPU, all via GAS Unit

    Common Controller


    Tower electronics daq module con t

    Tower Electronics DAQ Module (Con’t)

    • Engineering Model with full functionality and interfaces as flight has been used extensively in 18 copies in the field, controlled and readout with real-time software from the FSW group, and I&T software from the I&T group

    • Not just tested in TEM test-setup at SLAC, but more importantly fully integrated in set-ups with real sub-system electronics

      • at NRL and at SLAC with CAL electronics

      • In Italy and at SLAC with TKR electronics

      • At SLAC, NRL with DAQ electronics

    • Flight Model with 8 GTCC and 4 GCCC ASIC, plus 2 ACTEL’s: design finished, ready for layout/fabrication

    • LAT-TD-00605


    Tower electronics module gccc asic

    Tower Electronics Module GCCC ASIC

    • GLAST Calorimeter Cable Controller (GCCC) ASIC

      • TEM interface to calorimeter AFEE

        • Configuration and readback data

        • Trigger and event data handling

        • Log suppression algorithm

        • Event buffers

      • Contains

        • Two 64x16 FIFO’s

        • Three 128x16 FIFO’s

        • Core Logic

        • LVDS drivers/receivers

      • VHDL code compiled into XILINX FPGA, is used on TEM’s which are operating with CAL electronics

      • ASIC in fabrication, expected April 25

      • LAT-TD-01549

    LVDS IO

    CORE

    FIFO

    GCCC


    Tower electronics module gtcc asic

    Tower Electronics Module GTCC ASIC

    • GLAST Tracker Cable Controller (GTCC) ASIC

      • TEM interface to tracker MCM’s

        • Configuration and readback data

        • Trigger and event data handling

        • Data reformatting

        • Event buffers

      • Contains

        • Two 64x16 FIFO’s

        • Three 128x16 FIFO’s

        • Core Logic

        • LVDS drivers/receivers

      • VHDL code compiled into XILINX FPGA, is used on TEM’s which are operating with CAL electronics

      • ASIC in fabrication, expected April 25

      • LAT-TD-01550

    LVDS IO

    CORE

    FIFO

    GTCC


    Design verification for gccc gtcc

    Design & Verification for GCCC/GTCC

    VHDL

    Simulation

    Netlist

    Automatic: Layout, Place&Route

    Manual: Schematic of IO, LVDS

    Automatic: Generate Schematic

    Layout: Add IO and LVDS. Result: Complete Chip Layout

    Compare

    Simulation: Spice

    Full Chip Schematic

    Netlist w/o Parasitics

    Netlist with Parasitics

    Netlist

    Stress & Timing Analysis

    Full-Chip Simulation with Synopsys

    Full-Chip Simulation with Synopsys

    Full-Chip Compare/Verification

    Flight-Model Status 3/03

    Fabrication

    Test


    Gas unit signal distribution and trigger

    GAS Unit (Signal Distribution and Trigger)

    • Uses GLTC ASIC to receive LVDS signals and to logically mask and combine 228 ACD trigger signals

    • Global Trigger controller

      • Combines trigger inputs from TKR, CAL, ACD and makes trigger decision

      • Distributes trigger message with target CPU for event, time-stamp, event-number, and trigger type to sub-systems

      • Total time from particle in detector to receipt of trigger accept signal: 2 msec

    • Command Response Unit

      • Distributes control from SIU to TEM’s, GLT, ACD EM, EB

      • Transmits readback data from TEM’s, GLT, ACD, EB to EPU’s

    • Hardware with software controllable configuration & mode registers

      • GLT ICD: LAT-TD-01545

      • CMD-Response ICD: LAT-SS-00461; LAT-TD-00606

    • One prime and one redundant DAQ board


    Gas unit acd em event data

    GAS Unit (ACD EM & Event Data)

    • Uses GLTC ASIC to convert LVDS to CMOS signals and to logically mask and combine 228 ACD trigger signals

    • ACD EM

      • Controls and reads out data from ACD front-end electronics

      • Buffers events

      • Assembles 12 ACD event fragments to ACD event

      • Transmits data to EB

      • Contains monitoring circuits

    • Event Builder

      • Receives event fragments from TEM’s, AEM, and GLT at up to 10 KHz rate

      • Builds LAT event and transmits to EPU’s/SIU’s at up to 10 KHz rate

      • Receives CPU data, forwards to other CPU’ s or to SC (science data interface)

    • Hardware with software controllable configuration & mode registers

      • ACD ICD: LAT-SS-00363

      • AEM ICD: LAT-TD-00639

      • EB ICD: LAT-TD-01546

    • One prime and one redundant DAQ board


    Gas unit con t

    GAS Unit (Con’t)

    • Engineering Model with partial functionality and interfaces as flight has been used in several copies in the field, controlled and readout with real-time software from the FSW group, and I&T software from the I&T group

    • ACD EM at SLAC and GSFC, with real ACD front-end electronics

    • Trigger input signal received and trigger accept message generated via SLAC COM-module (either CAL, TKR, and ACD programmed)

    • Flight Model with 14 GLTC and 9 ACTEL’s: design finished, in layout/fabrication

    • GLAST Global Trigger Controller (GLTC) ASIC

      • LVDS receivers for ACD veto and CNO trigger signals

      • Maskable logical-OR function of ACD trigger signal

      • Handles 18 input signal channels

      • Contains

        • Core Logic

        • LVDS receivers

      • First version ASIC was received in Dec 02

      • Fully working, is flight design

      • Flight quantity is on shared LAT wafer-run expected back end of March 03

      • LAT-TD-0148


    Siu epu crate

    SIU/EPU Crate

    • Spacecraft Interface Board (SIB)

      • EEPROM

      • MIL1553 Communication with spacecraft*

      • Power Control of PDU/GASU power switches in PDU*

      • Power Control of VCHP switches in heater box*

    • LAT Communication Board (LCB)

      • Communication with GASU

        • Commanding

        • Read-back Data

        • Housekeeping Data

        • Event Data

    • Power Supply Board (PSB)

      • 28V to 3.3V/5V conversion

      • Power-On Reset

      • LVDS-CMOS conversion of spacecraft discretes*

      • System clock to GASU

    • CPU Board

      • Processor

      • IO of level-converted SC discretes

    • Backplane

      • passive

    * Only used in SIU crate


    Lat communication board

    LAT Communication Board


    Lat communication board con t

    LAT Communication Board (Con’t)

    • PCI-interface engineering model in operation since early 03 (has PMC connector)

    • Flight Model has cPCI connector: design finished, scheduled to be in layout/fabrication 4/03

    • ICD: LAT-TD-00860


    Spacecraft interface board

    TO LEFT HEATER

    CONTROL BOX

    +5V

    POR

    (12)

    Heater

    Register

    4MB

    EEPROM

    4MB

    EEPROM

    FPGA

    TO RIGHT HEATER

    CONTROL BOX

    +5V

    POR

    ACTEL RT54SX32S

    (208PIN)

    PCI Core

    Target Only

    (12)

    LOCAL BUS

    64

    TO PRIMARY

    PDU/GASU

    cPCI

    10

    (4)

    SUMMIT CTRL/STAT/SEL/ARB

    TO REDUNDANT

    PDU/GASU

    (4)

    cPCI

    44

    47

    SHARED ADDRESS/DATA/CTRL

    33MHZ

    32bit

    3.3V

    PDU SPARE

    (4)

    EXT_POR_L

    SRAM

    32K x 16

    +3.3V

    +2.5V

    VR

    SµMMIT

    UT69151DXE

    1553 A BUS

    24MHZ

    1553 B BUS

    48MHZ

    /2

    Spacecraft Interface Board

    • Designed/implemented by Silver Engineering (Dennis Silver, Greg Clifford) under contract by NRL

      • Driver by Dan Wood/NRL

    • Engineering model is in test since mid 02

      • 6U cPCI PCB Format

      • Uses J1 of cPCI

      • 12 Layer Polyimide Construction

      • 4 Chassis GND Planes

      • 3 Power and Ground Planes

      • 5 Routing Layers

      • 65 Ohm Controlled Impedance Signals

    • Flight Model adds npn transistors for heater control

      • Schematic updated

      • Waiting for layout modification

    • ICD: LAT-SS-01539


    Processor

    Processor

    • BAe750 compact PCI board

      • 750 class Power-PC

      • 240 MIPS at 133 Mhz,

      • Less Than 12W

      • 128 Mbytes main memory

      • 256 Kbytes SUROM

      • Total Dose > 100 kRad (Si), Latchup Immune, SEU Rate < 1E-5 Upsets/processor-day @ 90% GEO

      • VxWorks real-time operating system

    • LAT ordered prototype, was received Spring 02

    • Since then used for software development at NRL

      • Boot-code

      • Bench-mark for LAT filtering code

      • Test with SIB MIL1553 prototype

    • Same board selected by GLAST spacecraft contractor

  • To be ordered April 03


  • Lat spacecraft interface

    LAT Spacecraft Interface

    • Power

      • 28V regulated and unregulated

    • MIL1553

      • Commanding

    • Science Interface (LVDS)

      • Transport of science data to spacecraft solid-state recorder

    • 1-PPS timing signal (LVDS)

      • Timing pulse

    • GBM GRB Candidate signal (LVDS)

      • Notification of candidate Gamma-Ray Burst (GRB), from GBM routed through SC

    • Discretes (LVDS)

      • Pulsed and level digital signals from and to spacecraft

    • Analog Monitoring

      • Temperature and voltage monitoring by SC without having LAT powered

    • Two power/signal sets: Prime and redundant

    • All agreed to: Spectrum Astro SC-LAT Interface Document

    LVDS: Low-Voltage-Differential-Swing signaling


    Power interface to spacecraft

    Power Interface to Spacecraft

    • All power feeds from spacecraft can be turned off/on via ground

    • Spacecraft turns off SIU/DAQ feeds when going to survival mode

    • LAT start-up ICD: LAT-TD-01536

      • Describes process of cold and warm boot (bring-up) of LAT


    Spacecraft 1 pps and grb candidate signal

    Spacecraft 1-PPS and GRB Candidate Signal

    • 1-PPS signal from spacecraft prime and redundant are connected to both GASU DAQ boards (prime and redundant)

    • GASU DAQ selects which SC signal to use

    • Result is fanned out to all processor crates (SIU’s as well as EPU’s)

    • Crate DAQ selects which GASU signal to use

    • SC-LAT components are fully cross-connected

    • Same for GBM GRB candidate signal


    Spacecraft discrete signal

    Spacecraft Discrete Signal

    • Discrete Signals from SC to LAT:

      • Discrete LVDS-signals from spacecraft prime and redundant are connected to both SIU crates (prime and redundant)

      • Reset discrete: P and R SC signal is logically Or’ed and used as CPU reset

      • Spare discretes: CPU selects whether to use P or R input and result is routed to CPU discrete inputs (3 prime and 3 redundant)

    • Discrete Signals from LAT to SC (not shown)

      • Discrete LVDS-signals from LAT SIU P and SIU R are driven to both, prime and redundant, spacecraft C&DH (Control & Data Handling) systems


    Lat sc science interface

    LAT-SC Science Interface

    • GASU event builder

      • Directs data from TEM’s to any of the CPU’s (not shown)

      • Directs data from CPU to CPU

      • Directs data from CPU to spacecraft

    • Any CPU can direct data via either GASU DAQ (P or R) to SC

    • Data is driven to both SC sections (P and R)

      • SC needs to select which GASU to listen to

      • GASU needs to know from which SC (P or R) the flow-control line is valid

      • All configured via ground commanding


    Harness

    Harness

    • Almost exclusively point-to-point cables (not harness)

    • Connectors are Micro-D and Sub-D

    • Cables are shielded-twisted pair, 24 AWG

    • Installation in layers; assembly drawings close to complete

    • Designed an fitted on 1:1 LAT model


    Example connections lat spacecraft and to lat emi shield

    Example: Connections LAT/Spacecraft and to LAT EMI Shield


    Connections lat spacecraft and to lat emi shield focus

    Connections LAT/Spacecraft and to LAT EMI Shield (focus)


    Verification test example tem fsw

    Verification & Test: Example TEM & FSW

    LCB: LAT Communication Module

    Transistion-card: Trigger Module

    • Processor: Motorola Power-PC

    • Flight Software

    • PMCIA LAT Communication Board for

      • LAT Communication

    • Transition Board

      • Trigger

    • TEM DAQ Assembly

    • TEM Power-Supply Assembly

    • 28-V Supply

    • LAT-TD-00861

    Power-PC Processor

    Flight Software

    TEM DAQ Assembly

    Tower Power Supply Assembly

    (1.5V/2.5V/3.3V/ 0-100V/0-150V)

    28-V Power Supply


    Verification test rad750 sib

    Verification & Test: RAD750/SIB

    • 3u-cPCI BAE RAD750 processor prototype

    • 6u-cPCI Spacecraft Interface Board (Silver Engineering)

      • MIL1553 interface

    • Flight Software

      • Boot code development

      • SIB board code driver/interface

    SIB

    CPU

    Courtesy of Dan Wood, NRL


    Verification test front end data simulator

    Verification & Test: Front-End Data Simulator

    • System uses 9 PC’s

      • 8 PC’s for 16 TEM’s

      • 1 PC for ACD

    • Data transported to towers via high-speed data link; PCI bridge to local bus on simulator

    • Data Simulators interface to TEM like CAL and TKR sub-system electronics

      • CAL and TKR simulator board identical except code in FPGA’s

      • Patch cable connect simulator to CAL and TKR TEM connectors

    • Can operate TEM or LAT with data generated from simulations

    • Data simulator board in layout


    Verification test testbed

    Verification & Test: Testbed

    • Full DAQ set with EM2 hardware (each with identical interfaces and functionality as flight)

    • Incremental built according to plan (complete testbed Feb04)

    • All DAQ modules including 16 TEM’s

    • Harness like flight

    • TKR and CAL front-end electronics for 1 tower, front-end simulator boards for other 15 towers

    • Full set of ACD EM2 electronics

    • Spectrum Astro SC simulator

    • Excellent hardware and software testbed

    TKR and CAL Electronics Simulators

    TEM DAQ Modules TEM Power Supplies

    12 ACD Electronics Cards

    Spectrum Astro Simulator


    Verification test spacecraft interface

    Verification & Test: Spacecraft Interface

    • Use Spectro-Astro provided Spacecraft Instrument Interface Simulator (SIIS)

    • Power

      • Manual off-on switch

    • Control & Data Handling (C&DH)

      • MIL1553

      • Science Interface (LVDS)

      • 1-PPS timing signal (LVDS)

      • GBM GRB Candidate signal (LVDS)

      • Discretes (CMOS)

      • Analog Monitoring

    • Present plan is for SIIS to only provide

      • Primary interface

        • can’t test prim-redundant interface response

      • Timing accuracy of 1 PPS interface not sufficient to test timing interface performance

    • Work in progress

    LVDS: Low-Voltage-Differential-Swing signaling


    Summary

    Summary

    • Flight designs for electronics components well advanced

    • Engineering models in use in EGSE test-stands

    • Flight-designs of DAQ ASIC’s submitted to fabrication

    • Component verification and test plans described

    • To be worked on:

      • Worst-case & timing analysis plus test-procedures for several modules still need to be completed

      • EM2 tests (multi-tower with GASU) scheduled to be started end of April 03

      • Documents still need to be completed

    • The electronics is ready to purchase flight components/hardware


    Backup

    Backup


    Trigger path

    Trigger Path

    • TKR, CAL, and ACD produce fast (< 700 ns) trigger input signals from their front-end comparators

      • CAL, LO and HI discriminator signals

        • LO is used as monitor trigger for TKR

        • HI is used for very high energy (>10GeV) events

      • TKR, Layer OR

      • ACD, LO and HI discriminator signals

        • LO is efficient for minimum ionizing particles

        • HI selects CNO events

    • TEM produces sub-system specific trigger primitives for CAL & TKR (e.g. 3-in-a-row)

    • Global Trigger in GASU receives trigger inputs from ACD and TEM’s and decides whether to trigger the instrument

    • If instrument is triggered, Trigger Accept signal is distributed back to front-ends -> Event data is generated

    • Total time from particle in detector to receipt of trigger accept signal: < 2 usec

    16 Towers

    TKR

    CAL

    TEM

    GASU

    ( includes Global Trigger)

    Trigger Inputs

    Trigger Accept

    ACD


    Event data path

    Event Data Path

    • Event data from CAL & TKR are acquired by TEM’s, reformatted, buffered, and transmitted via GASU to all Processor Units (for ACD the TEM function is included in the GASU)

    • EPU’s assemble LAT events and filter the data to reduce the event rate of ~6 KHz down to ~30 Hz

    • Events arriving at EPU’s have target EPU ID in header, so each EPU only processes sub-set of events and forwards filtered events via GASU to other processors or spacecraft solid-state recorder

    • All pipe-line stages subject to flow-control

    • Dead-time is monitored on an event-by-event basis

    Towers

    TKR

    CAL

    EPU/SIU

    TEM

    Data to Spacecraft

    GASU

    Event Data

    ACD


    Datapath building events

    Datapath & Building Events

    Event Processing Unit (EPU)

    Tower

    TEM

    Front-End

    Processor

    Event Builder

    Latch on trigger

    Cable

    ~50,000 TKR GTFE MEM Cells

    TKR FIFO

    With 1 Event

    With 2 Events

    Accept/Reject

    SW Filter

    Assemble TEM Event

    Spacecraft

    Digitize on trigger

    CAL ADC Data

    Assemble LAT Event

    From other TEM’s

    CAL-TRG FIFO

    Trigger Data

    With 3 Events

    FIFO for each Tower


  • Login
