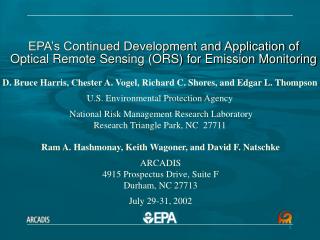

EPA’s Continued Development and Application of Optical Remote Sensing (ORS) for Emission Monitoring

Ram A. Hashmonay, Keith Wagoner, and David F. Natschke

ARCADIS 4915 Prospectus Drive, Suite FDurham, NC 27713

July 29-31, 2002

D. Bruce Harris, Chester A. Vogel, Richard C. Shores, and Edgar L. Thompson

U.S. Environmental Protection Agency

National Risk Management Research LaboratoryResearch Triangle Park, NC 27711


Recent activities ors method development l.jpg
Recent Activities -- ORS Method Development Remote Sensing (ORS) for Emission Monitoring

  • Radial scanning to locate emission sources

    • Small-scale field test using simulated source to test capability

    • Small field study on actual source site

  • Diesel exhaust plume sampling


Radial scanning l.jpg

Radial Scanning Remote Sensing (ORS) for Emission Monitoring


Slide4 l.jpg

Radial Geometry: A Simplified Practical Approach Remote Sensing (ORS) for Emission Monitoring


16 beam classical ct and radial ct configurations l.jpg
16-Beam Classical CT and Radial CT Configurations Remote Sensing (ORS) for Emission Monitoring


Validation study experimental setup l.jpg
Validation Study Experimental Setup Remote Sensing (ORS) for Emission Monitoring


Slide7 l.jpg

Validation Field Site Remote Sensing (ORS) for Emission Monitoring


Slide8 l.jpg

East Remote Sensing (ORS) for Emission Monitoring


Slide9 l.jpg

Center Remote Sensing (ORS) for Emission Monitoring


Slide10 l.jpg

South Remote Sensing (ORS) for Emission Monitoring


Slide11 l.jpg

Southwest Remote Sensing (ORS) for Emission Monitoring


Slide12 l.jpg

West Remote Sensing (ORS) for Emission Monitoring


Diesel exhaust plume measurements l.jpg

Diesel Exhaust Plume Measurements Remote Sensing (ORS) for Emission Monitoring


The ors measurement setup l.jpg
The ORS Measurement Setup Remote Sensing (ORS) for Emission Monitoring

  • OP-FTIR – Monostatic, Coaxial, Single-Telescope Design

  • Beam Path – 7 Meters (One Way)

  • Diesel Exhaust from a Stationary Class-8 Tractor Directed Through Infrared Beam


The diesel emissions measurement setup l.jpg
The Diesel Emissions Measurement Setup Remote Sensing (ORS) for Emission Monitoring


Diesel emissions time plot l.jpg
Diesel Emissions Time Plot Remote Sensing (ORS) for Emission Monitoring


Time plots of measured no and no 2 concentrations l.jpg
Time Plots of Measured NO and NO Remote Sensing (ORS) for Emission Monitoring2 Concentrations


Recent ors activities emissions monitoring l.jpg
Recent ORS Activities -- Emissions Monitoring Remote Sensing (ORS) for Emission Monitoring

  • Agricultural ammonia sources

    • Waste lagoon control via porous biocover

    • High-rise layer house

  • Solid waste landfill


Agricultural ammonia sources l.jpg

Agricultural Ammonia Sources Remote Sensing (ORS) for Emission Monitoring


Slide20 l.jpg

ORS Plane-integrated Interception and Measurement of Plume Remote Sensing (ORS) for Emission Monitoring


Slide21 l.jpg

wind Remote Sensing (ORS) for Emission Monitoring

OP-FTIR Measurement Paths


Slide22 l.jpg

Seasonal Emission Rates Remote Sensing (ORS) for Emission Monitoring

Ammonia

Ammonia

Methane

Methane

grams/min

grams/min

grams/min

grams/min

7/11/2000

7/11/2000

20

20

40

40

uncovered

uncovered

8/16/2000

8/16/2000

4.7

4.7

66

66

covered

covered

2/28/2001

2/28/2001

0.84

0.84

62

62

covered

covered

8/15/2001

8/15/2001

Not

Not

1.2

1.2

Available

Available

covered

covered


Slide24 l.jpg

250,000-Hen Layer House Remote Sensing (ORS) for Emission Monitoring


Msw landfill measurements l.jpg

MSW Landfill Measurements Remote Sensing (ORS) for Emission Monitoring



Future activities l.jpg
Future Activities Landfill

  • Method improvement and application validation -- DOD’s ESTCP Program supported project

  • Agricultural ammonia sources -- broilers, hogs, and cattle

  • Landfills -- MSW bioreactors and brownfields

  • Diesel emissions -- weigh station and cross road studies

  • Incorporate Tunable Diode Laser (TDL) system into program


Summary l.jpg
Summary Landfill

  • Radial scanning has demonstrated the ability to locate point sources within the field of measurement

  • Initial deployment of radial scanning on a large landfill is scheduled in September

  • Plane-integrated (PI) OP-FTIR has been used to evaluate the effectiveness of a lagoon biocover to control ammonia emissions

  • Single path and PI OP-FTIR measurements have been made on a large high-rise layer house - data analysis is not finished
