Presentation Transcript
Slide1 l.jpg

Phillip Manuel (Fire Weather Program Leader)

NWS – Corporate Research Center

1750 Forecast Drive

Blacksburg, VA 24060

Email: [email protected]

Phone: 540-552-0084

Fax : 540-552-1650

Fire Weather Meteorologist


To get fire l.jpg
To Get Fire

OXYGEN

FUEL

FIRE

HEAT

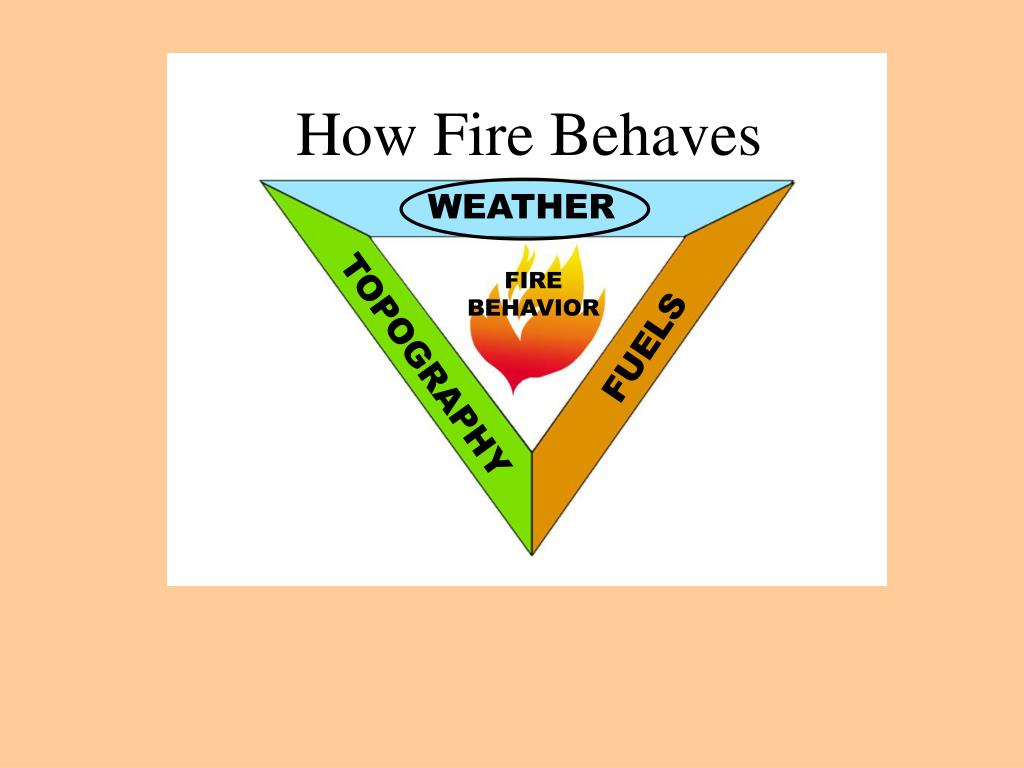

How fire behaves l.jpg
How Fire Behaves

WEATHER

FIRE

BEHAVIOR

FUELS

TOPOGRAPHY


Slide4 l.jpg

Weather Information

Mehring / R3


Where do you get weather information l.jpg
Where do you get weather information?

X

  • Newspaper?

  • Almanac?

  • Television?



Slide7 l.jpg

Where to find information on the Internet intelligence.

http://www.weather.gov

http://www.dof.virginia.gov


Slide10 l.jpg

The State of Virginia is served by 5 Weather Service offices:

Blacksburg – Wakefield – Sterling – Charleston – Morristown.


Point and click l.jpg
Point and Click offices:


Slide16 l.jpg

Discussion offices:

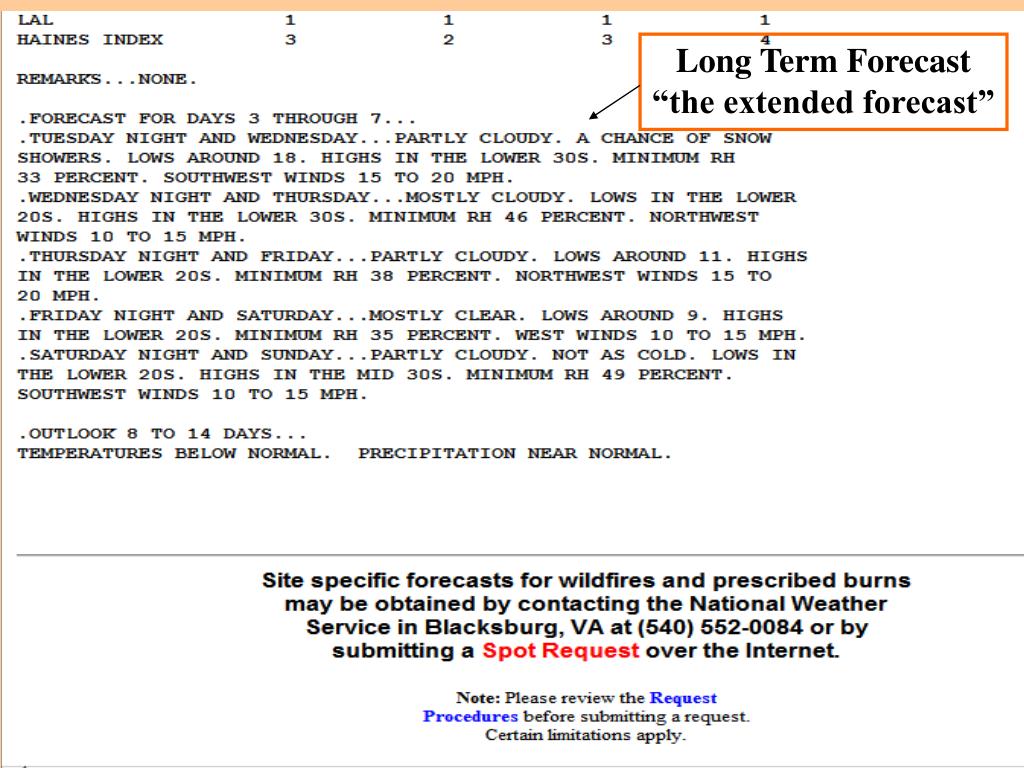

Slide18 l.jpg

Long Term Forecast offices:

“the extended forecast”


Slide19 l.jpg

Issued twice daily. During the morning and afternoon (2:00-4:00 am/pm).

Composed of: a Weather Discussion, Current Watches and/or Warnings, Forecast Weather Conditions and a Transport and Stability Forecast,

An Extended Forecast (including winds and relative humidity minimums), and an 8-14 day outlook.


Slide20 l.jpg

Forecasts are (2:00-4:00 am/pm).not site specific.

General forecast with average conditions over the entire forecast area. Does not take into account for local effects.

The forecast will be updated if weather conditions are no longer representative.


Slide21 l.jpg

  • Any mention of a strong (2:00-4:00 am/pm).west or northwest winds (High Wind Warnings and Wind Advisories).

  • Poor overnight humidity recovery or minimums of less than 30%.

  • Dry lightning.

  • An extended period of above normal temperature with below normal precipitation.


Slide24 l.jpg

(2:00-4:00 am/pm).Spot Request”


Slide29 l.jpg

(2:00-4:00 am/pm).Weather Planner”


Weather activity planner l.jpg
Weather Activity Planner (2:00-4:00 am/pm).



Slide34 l.jpg

Red Flag Events figured it out, it changes.

  • Dry Lightning.

  • The first lightning event after an extended dry period.

  • Unusually low relative humidity.

  • Very dry and unstable air. (Haines Index)

  • Very strong and shifting winds that may or may not be associated with a cold front.


Slide35 l.jpg

Red Flag Criteria For VA figured it out, it changes.

Generally, a Red Flag Warning will be issued when:

Ten hour fuel moistures are observed or expected to be 7 percent or less.

-AND-

Relative humidity is expected to fall below 30 percent at any time over the forecast area and sustained wind of 20 mph or more.

Established by VICC/NWS/Fire Management Partners for the 2008 Fire Season


Slide36 l.jpg

Fire Weather Watches figured it out, it changes.

  • Used to alert land management agencies of the possible development of weather conditions, when coupled with critically dry and volatile fuel conditions, that may contribute to potentially dangerous wildfire situations.

  • Issued for all or part of a fire district.


Slide37 l.jpg

Fire Weather Watches (Cont.) figured it out, it changes.

  • Issued when the fire weather meteorologist is reasonably confident that a Red Flag event will occur in the next 24 to 72 hours.

  • Issued in conjunction with the regularly scheduled fire weather forecasts.


Slide38 l.jpg

Red Flag Warnings figured it out, it changes.

  • Issued to warn land management agencies of an impending or already occurring Red Flag event.

  • Issued immediately when the Fire Weather Meteorologist becomes aware of an ongoing Red Flag event.

  • Issued for impending Red Flag conditions when there is a high degree of confidence and the onset of the critical weather conditions is less than 24 hours away.


Slide39 l.jpg

Red Flag Warnings (cont.) figured it out, it changes.

  • Will remain in effect until the critical weather pattern passes or fails to develop. Warnings will then be canceled.

  • May be issued with the regular fire weather forecast or will await input from fire management agencies.


Slide41 l.jpg

example.htm figured it out, it changes.


Slide42 l.jpg

Review figured it out, it changes.

  • Identify how and where to obtain weather information.

  • List types of weather forecasts available.

  • Describe common terms used in weather forecasting.

  • Define Red Flag Warning.


Slide43 l.jpg

Learn more about figured it out, it changes.

Fire Weather Intelligence!


Slide44 l.jpg

Blacksburg, VA figured it out, it changes.

Phillip Manuel (Fire Weather Program Leader)

NWS – Corporate Research Center

1750 Forecast Drive

Blacksburg, VA 24060

Email: [email protected]

Phone: 540-552-0084

Fax : 540-552-1650
