Presentation Transcript
Slide1 l.jpg

Developing Immunotherapy for Autoimmune Diseases

Premkumar Christadoss, M.B.B.S.

Department of Microbiology and Immunology

University of Texas Medical Branch

301 University Blvd.

Galveston, Texas 77555-1070

[email protected]




Neuromuscular junction nmj l.jpg
Neuromuscular Junction (NMJ)

Conti-Fine, B.M. et al. J. Clin. Invest. (116) 2843-22854, 2006


Slide5 l.jpg

Normal

MG

NMJ in MG


Slide6 l.jpg

Electronmicroscopy Study of NMJ of an MG Patient

Engel et al.

Mayo clinic proc. 52:267, 1977


Slide7 l.jpg

AChR is a transmembrane glycoprotein formed by five homologous subunits in thestoichiometrya2bgdora2bed. The molecular weights of the subunits range between 45 and 55 kDa.

Theasubunit is Considered to be the highly immunogenic region.


Slide8 l.jpg

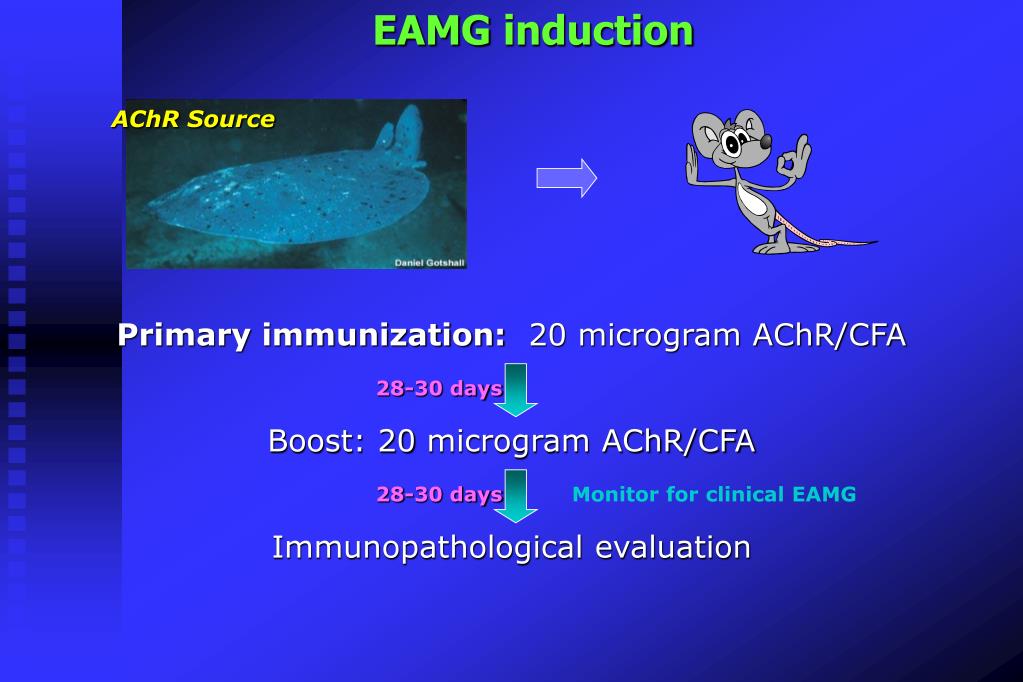

EAMG induction

AChR Source

Primary immunization: 20 microgram AChR/CFA

28-30 days

Boost: 20 microgram AChR/CFA

28-30 days

Monitor for clinical EAMG

Immunopathological evaluation


Slide9 l.jpg

MG in Mice

Normal

MG


Slide10 l.jpg

Molecular Mechanisms of EAMG

AChR-Ab

Plasma cells

Complement activation

Class II

Peptide

(a146-162)

CD4

TCR

IFN-g

IL-18

NK

B7

CD 28

Proliferation and Differentiation

IL-10, TNF-a, IL-6,

IL-12, IL-18

APC

CD4

CD40L/CD40

AChR

IL-1, IL-12

AChR-specific memory B cells

AChR-specific memory T cell

C’

C’

Damage to the neuromuscular junction

B


Slide11 l.jpg

COMPLEMENT PATHWAYS

CLASSICAL PATHWAY

C1

C4b

C2a

MASP1

MASP2

MBL

C3

C5

MAC

(C5bC9)

MBL PATHWAY

C3b

C3bBb

Bb

ALTERNATIVE PATHWAY


Slide12 l.jpg

AChR-immunized C3-/- and C4-/- mice

are resistant to clinical EAMG

Tuzun -Christadoss.

J. Immunol. 171:3847, 2003


Slide13 l.jpg

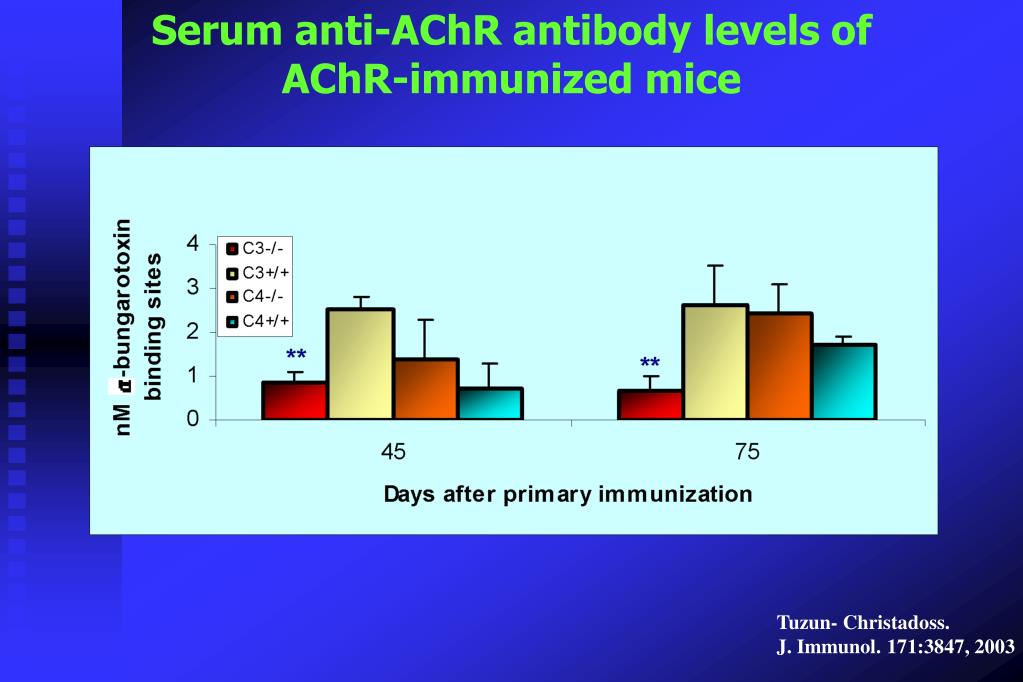

Serum anti-AChR antibody levels of

AChR-immunized mice

Tuzun- Christadoss.

J. Immunol. 171:3847, 2003


Slide14 l.jpg

IF Studies Reveal IgG Deposits But Not C3 or MAC Deposits at the NMJs of Mice with C3 or C4 Deficiency

C4+/+

C4-/-

C3-/-

C3

MAC

IgG

Tuzun –Christadoss

J. Immunol. 171:3847, 2003

RED -bungarotoxin binding (NMJ)

GREEN C3, MAC or IgG deposits


Slide15 l.jpg

Antigen/organ specific the NMJs of Mice with C3 or C4 Deficiency

Disease specific

I. AChR T cell epitope tolerance

II. AChR B cell epitope tolerance

I. Anti-Proinflammatory Cytokine

a. Soluble TNFR (etanercept)

b. IL1-Ra

c. Anti-IL-6

II. Blocking classical complement pathway

a. Anti C1q/C2/C4

Immune Intervention


Slide16 l.jpg

Targeting Classical Complement Pathway the NMJs of Mice with C3 or C4 Deficiency


Slide17 l.jpg

Anti-C1q Administration Suppresses EAMG the NMJs of Mice with C3 or C4 Deficiency

Tuzun-Christadoss, J.Neuroimmunol.174:157-167, 2006


Slide18 l.jpg

Dual Effect of Anti-C1q the NMJs of Mice with C3 or C4 Deficiency

Tuzun-Christadoss, J.Neuroimmunol.174:157-167, 2006


Slide19 l.jpg

Anti-C1q Ab Treats EAMG the NMJs of Mice with C3 or C4 Deficiency

B6

RIII

Tuzun-Christadoss, J.Neuroimmunol, 182: 167-176, 2007


Slide20 l.jpg

Anti-C1q Ab Treatment Suppresses AChR the NMJs of Mice with C3 or C4 Deficiency

and Dominant Peptide Specific

IL-6 Production


Slide21 l.jpg

Effect of Cytokine Deficiencies in the NMJs of Mice with C3 or C4 Deficiency

Clinical EAMG

Normal

IL-4

IL-10

Gene Depletion

IFN-g

Anti-AChR Ab

Disease

IL-12

IL-18

IL-6

TNF-a p55p75

0

20

40

60

80

100

120

% clinical disease and anti-AChR antibodies


Slide22 l.jpg

IL-6 and TNF in EAMG the NMJs of Mice with C3 or C4 Deficiency

TNF

TNF

AChR

specific

IL6

IL-6

Th

Th

GC formation

Activation of B cells and generation of effector B cells.

Potentiates production of IgG anti-AChR antibodies (pathogenic)

B

B

Activates C3

Promotes EAMG pathology


Slide23 l.jpg

Targeting ProinflammatorCytokines the NMJs of Mice with C3 or C4 Deficiency

A. Soluble Recombinant HumanTNFR (Etanercept)


Slide24 l.jpg

Soluble TNFR (Etanercept) Treats EAMG the NMJs of Mice with C3 or C4 Deficiency

Christadoss and Goluszko

J. Neuroimmunol, 122:186, 2002


Slide25 l.jpg

Etanercept Treatment Fails to Suppress Serum Anti-AChR Ab the NMJs of Mice with C3 or C4 Deficiency

Christadoss and Goluszko, J. Neuro. Immunol. 122:186, 2002.


A pilot trial of etanercept in the treatment of steroid dependent mg l.jpg
A pilot Trial of Etanercept in the Treatment of Steroid-Dependent MG *+

  • Mean change in QMG score from basline at 6 months was - 2.9 (p=0.041).

  • Mean change in MMT at 6 months was - 8.4 (p=0.020).

  • Mean decrease in prednisone dose from baseline to end of study was 17.5 mg/48 hr dose (p=0.0084).

  • Etanercept was well tolerated, and no severe adverse reaction observed

  • + 11 patients enrolled; 8 completed, and 2 patients withdrawn due to disease worsening.


Immunological effect of etanercept l.jpg
Immunological Effect of Etanercept Steroid-Dependent MG *+

  • No reduction in plasma anti-AChR antibody.

  • Peripheral blood CD4 and B cell (CD19+) counts rose steadily during the 24 week study.

  • Patients who had higher increases in their cytokine levels had a worse outcome.


Slide29 l.jpg

Targeting ProinflammatorCytokines Steroid-Dependent MG *+

b. Recombinant Human IL1-Ra

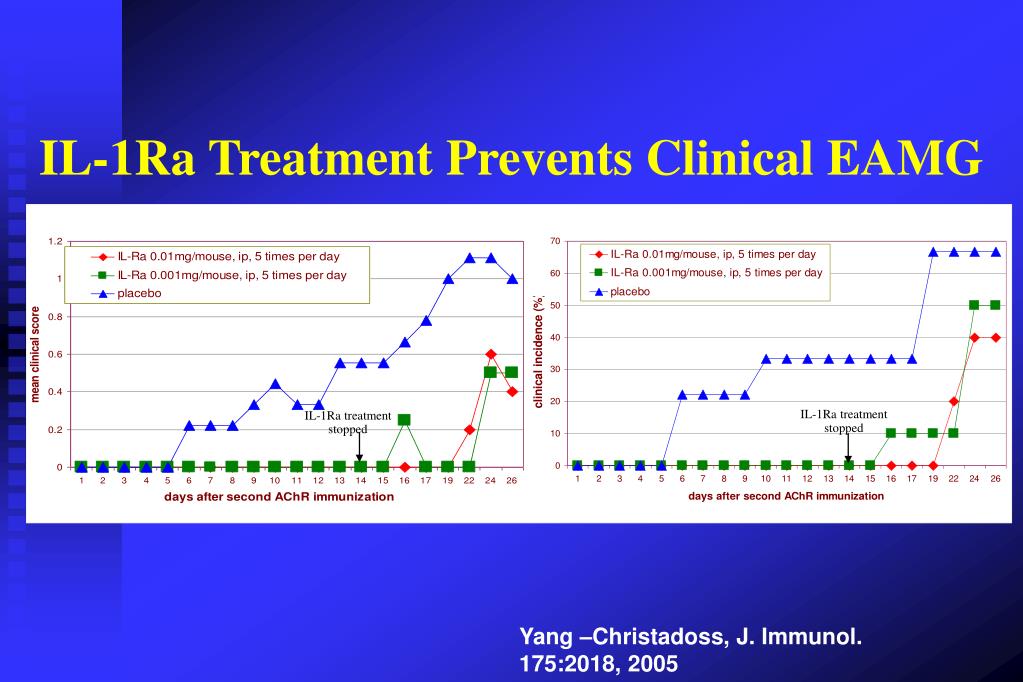

Slide31 l.jpg

IL-1Ra treatment Steroid-Dependent MG *+

stopped

IL-1Ra treatment

stopped

IL-1Ra Treatment Prevents Clinical EAMG

Yang –Christadoss, J. Immunol.

175:2018, 2005


Slide32 l.jpg

IL-1Ra Treats EAMG Steroid-Dependent MG *+

Yang –Christadoss, J. Immunol.

175:2018, 2005

P<0.05

P<0.05

P<0.05


Slide33 l.jpg

Possible Consequence of Down Regulating IL-1 by IL-1Ra in Mice with Clinical EAMG

IL-1

IL-1Ra

CD40L, OX40 Expression on T cells

Anti-AChR IgG , IgG1 and C3

Inflammatory cytokines

IFN-g, IL-2, IL-1, IL-6, TNF-a

Anti-AChR antibodies and complement

mediated NMJ pathology


Slide34 l.jpg

IL-6 in MG: Multiple Hit Mice with Clinical EAMG

AChR Specific

NMJ

CD4

IL-6

B

IgG2b -C1q

C4-C3-

C5-9

C3


Il 6 a danger molecule in eamg l.jpg
IL-6 Mice with Clinical EAMG–ADanger Molecule in EAMG !

1. IL-6 deficient mice are resistant to EAMG and produce less C3

2. C3 and FCγRIII deficient mice are resistant to EAMG and produce less IL-6

3. Amelioration of EAMG following anti-C1q treatment is associated with reduced IL-6


Slide36 l.jpg

Anti-IL-6 Ab Treatment Reduces the Incidence of EAMG Mice with Clinical EAMG

Days after second immunization


Slide37 l.jpg

Anti-IL-6 Ab Treatment Suppresses Serum Anti-AChR IgG Mice with Clinical EAMG

and IgG2b Ab


Slide38 l.jpg

Anti-IL-6 Ab Treatment Suppresses AChR Specific Mice with Clinical EAMG

Cytokine Production


Slide39 l.jpg

Classical Complement Pathway and IL-6 in EAMG Pathogenesis Mice with Clinical EAMG

anti-AChR antibody production

T helper

B cell

Antigen presenting cell

AChR

IL-6

C3

Immune complex formation

AChR

C1q

C1r

C1s

C1q

FcγRIII activation

Classical complement pathway activation

Stimulation of

IL-6, C1q and C3 production

Membrane attack complex formation


Slide40 l.jpg

Balancing the Immune System to Treat Autoimmune Disease (MG)

Disease

IL-6, TNF

C3-C5b-C9

Anti-AChR IgG

IL-6, TNF-normal level

Healthy

Suppress anti-AChR

and C5b-C9


Slide41 l.jpg

Targeting IL-6 and Classical Complement Pathway (MG)

Suppressed anti-AChR antibody production

T helper

B cell

Antigen presenting cell

AChR

IL-6

C3

Immune complex formation

AChR

C1q

C1r

C1s

C1q

Classical complement pathway activation

FcγRIII activation

Stimulation of

IL-6, C1q and C3 production

Membrane attack complex formation



Slide43 l.jpg

MG Lab - Galveston (MG)

Erdem Tuzun1,2

Shamsher Saini

Andrey Bednov

Ben Scott 3

Jing Li1

Iris Wingrow3

Huibin Qi

Xiarong Wu

Collaborators

Huan Yang

Bo Wu

Stephen Higgs

Tian Lin Xio

Galen Kaufmann

Mat Merigioli

Juli Rowin

1MG foundation Osserman/Sosin/McClure Post doctoral Fellows

1,2MDA Research Career Award Recipients

3 MG Foundation Henry Viets Fellow

Supported by NIH,MDA, AFM,and MG Foundation
