Presentation Transcript
real time digital simulation

REAL TIME DIGITAL SIMULATION

GOOSE and SV with RTDS

goose and sv with rtds
GOOSE and SV with RTDS

Presentation Outline:

  • Introduction to RTDS
  • Network Interface Card
  • GTNET-GSE
  • GTNET-SV
  • IEC 61850 applications in RTDS
  • Question and Answer

The World Standard for Real Time Digital Power System Simulation

rtds technologies inc
RTDS Technologies Inc.

Background and History:

  • Technical Advisory Board (sponsors)
  • RTDS Development Project initiated in 1986
  • Major Funding from Manitoba Hydro
  • World’s 1st real time HVDC simulation was achieved in 1989
  • Continued development and refinement to produce a commercial product
  • 1st commercial installation in 1993
  • RTDS Technologies created in 1994

The World Standard for Real Time Digital Power System Simulation

rtds simulation hardware
RTDS Simulation Hardware

RTDS Hardware

  • Custom parallel processing computer
  • Modular hardware design
    • A unit of hardware is called a ‘Rack’ and typicallyincludes:
      • 2~6 RISC PB5 Processor Cards
      • 1 Giga Transceiver Workstation InterFace Card (GTWIF)
  • Main interface with the hardware is through user-friendly software
  • Ample, convenient input and output allowing connection of physical devices

The World Standard for Real Time Digital Power System Simulation

rtds simulation software
RTDS Simulation Software

RSCAD

  • Includes everything required for simulation studies
  • No additional add-on modules required for any aspects of simulation
  • No 3rd party modules
  • Site license and one maintenance agreement

The World Standard for Real Time Digital Power System Simulation

gtnet
GTNET

GTNET Card

  • Network Interface Card
  • Used to interface a number of different network protocols with RTDS simulator
  • Currently supports
    • GSE – IEC 61850 GOOSE/GSSE
    • SV – IEC 61850 9-2LE (Sampled Measured Values)
    • PMU – IEEE C37.118 data stream output
    • DNP3 – Distributed Network Protocol
    • IEC 60870-5-104 (104)
    • PLAYBACK – Playback of large data sets

The World Standard for Real Time Digital Power System Simulation

gtnet sv
GTNET-SV

GTNET Component Library

GTNET-SV

  • Simulates IEC 61850 9-2 LE compliant Merging Unit
  • Two models with different capabilities available in the library
    • GTNET_SV9-2_v5.def
    • GTNET_SV-SE2.def

The World Standard for Real Time Digital Power System Simulation

gtnet sv1

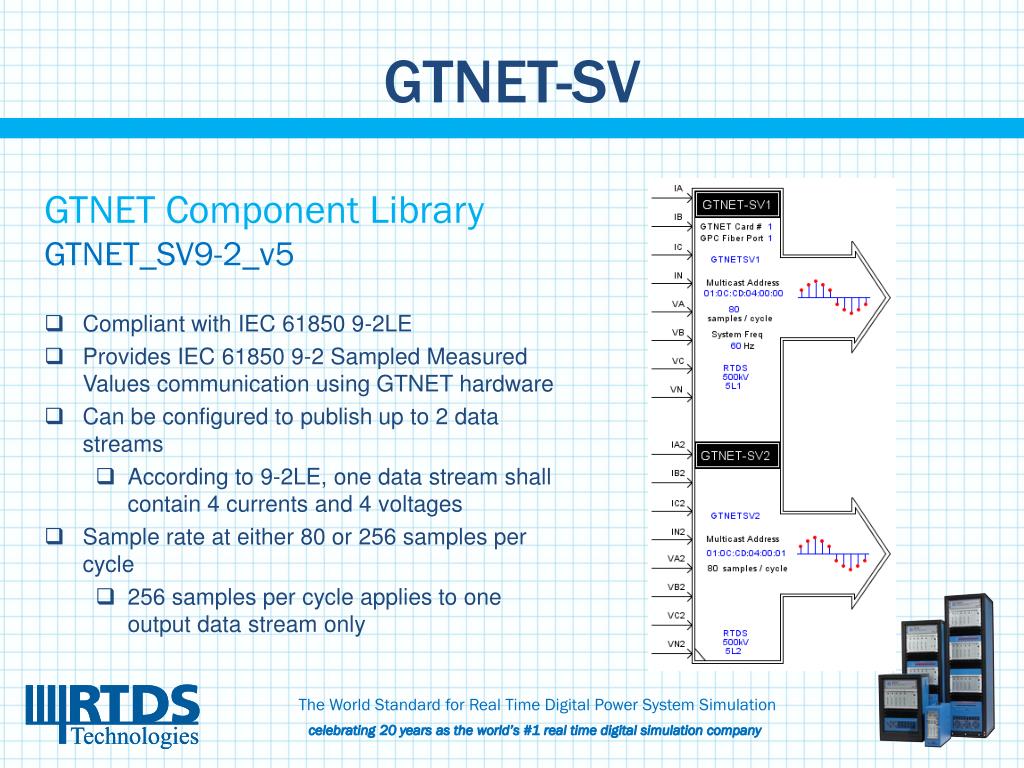

GTNET-SV

GTNET Component Library

GTNET_SV9-2_v5

  • Compliant with IEC 61850 9-2LE
  • Provides IEC 61850 9-2 Sampled Measured Values communication using GTNET hardware
  • Can be configured to publish up to 2 data streams
    • According to 9-2LE, one data stream shall contain 4 currents and 4 voltages
  • Sample rate at either 80 or 256 samples per cycle
    • 256 samples per cycle applies to one output data stream only

The World Standard for Real Time Digital Power System Simulation

gtnet sv2
GTNET-SV
  • GTNET Component Library

GTNET_SV9-2_v5 – Non-9.2LE mode

  • based on IEC 61869-9 and the Chinese National Standard for SV merging units
  • Able to publish one datastream for up to 24 channels of voltages or currents
  • The time delay channel can be configured to the first channel as required in a Chinese merging unit SV datastream
  • Currently supports data rate of 80 samples/cycle
  • Able to achieve the requirement of 10 usec of jitter between samples

The World Standard for Real Time Digital Power System Simulation

gtnet sv3
GTNET-SV
  • GTNET Component Library

GTNET_SV9-2_v5 – Input Mode

  • Can be configured to subscribe 1 data stream from 1 MU at 80 or 256 samples per cycle
  • GTSYNC is needed for use of the GTNET_SV9-2_v5 component

The World Standard for Real Time Digital Power System Simulation

gtnet sv4
GTNET-SV
  • GTNET Component Library

GTNET_SV-SE2

  • Developed to have customized functions for Alstom Grid (UK)
    • Only supports 1 SV output data stream at 80 samples per cycle
    • Change chronological order of Samples (packets)
    • Packet delay
    • Packet loss
    • Jitter algorithm
  • Provides more flexibility for testing MUs

The World Standard for Real Time Digital Power System Simulation

gtnet gse
GTNET-GSE
  • GTNET Component Library

GTNET_GSE

  • GTNET_GSE_v5.def
    • Provides IEC 61850 GOOSE communications
    • Supports up to 4 TX/RX modules, which can be arranged to simulate 1-4 IEDs (i.e. 1 IED with 4 modules, 4 IEDs each with 1 module…)
    • Each module can publish up to 64 points (stVal) (Boolean, or INT32, or FLOAT32, or Dbpos), or 32 points with Quality
    • Each module can subscribe up to 32 points (16 Booleans) with Quality
    • Can subscribe GOOSE message from up to 16 unique external IEDs

The World Standard for Real Time Digital Power System Simulation

gtnet gse1
GTNET-GSE
  • GTNET_GSE

SCD Editor

  • A software tool to generate the required configuration file
  • The configuration file defines the capabilities of the interconnected devices
  • Provides a mechanism for the user to create and edit a Substation Configuration Description (SCD) file
  • Includes an interface for mapping the external references to the GTNET inputs
  • Loads existing SCD files to import ICD/CID files
  • Exports GTNET ICD file

The World Standard for Real Time Digital Power System Simulation

gtnet gse2
GTNET-GSE

GTNET_GSE

SCD Editor

The World Standard for Real Time Digital Power System Simulation

gtnet iec 61850 test
GTNET IEC 61850 Test

GTNET Card

Testing

  • IEC 61850 Closed-loop relay testing
    • The interested power system is simulated in RTDS
    • Bus voltages and breaker currents at certain location are sent to the external physical IEDs (IEC 61850 9-2LE or 61869-9 compatible) through SV messages
    • Breaker status and tripping/reclosing signals are exchanged through GOOSE messages

The World Standard for Real Time Digital Power System Simulation

gtnet iec 61850 test1
GTNET IEC 61850 Test

Testing

IEC 61850 Closed-Loop Relay Testing Demonstration

The World Standard for Real Time Digital Power System Simulation

question answer
Question & Answer

The World Standard for Real Time Digital Power System Simulation

?
