ASW METOC Metrics: MPRA Committee Report

Bruce Ford

Clear Science, Inc. (CSI)

[email protected]

Tom Murphree

Naval Postgraduate School (NPS)

[email protected]

Brief for ASW METOC Metrics Symposium Two

02-04 May, 2007

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

  • Scope

  • Customers

  • METOC inputs to mission phases

  • METOC performance metrics

  • Customer performance metrics

  • Operational performance metrics

  • Proxy operational metrics

  • Other metrics

  • Data collection systems

  • Data analysis process

  • Operational modeling

  • Funding Levels

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Members

  • LEAD: Clear Science – Mr. Bruce Ford

  • NOAD Kadena OIC - LCDR Danny Garcia

  • NOAD JAX OIC – LT Eric MacDonald

  • CPRG - CDR Sopko

  • NRL - Pat Hogan

  • APL- UW – Mr. Bob Miyamoto

  • FNMOC – LTJG Dave Watson

  • PDD South - Doug Lipscombe

  • SPA - Paul Vodola, Matt McNamara, Luke Piepkorn

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

  • Scope

  • Brick from which MPRA metrics could be built is data surrounding an individual MPRA mission

    • Mission execution package (MEP)

    • Verification of MEP discrete elements

    • Mission objectives (GREEN, PURPLE)

    • Mission outcomes (PURPLE)

    • Note: No routinely-produced planning product for

    • individual MPRA missions

  • Expanded scope will be proposed for additional metrics

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

  • Customers

  • Primary

    • MPRA Aircrews  Primary focus

  • Secondary

    • Wing/TSC stations

    • Supported activities

      • Other warfare communities

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Planning Timeline

  • Climo/advisory inputs at IPC/MPC/FPCs for large scale exercises

  • Wing level training planned about a month in advance of missions

  • Individual aircrew planning occurs within 24-36 hours prior to mission

    • No routinely produced planning product

    • Planning info passed informally (conversation, phonecon)

    • Amount of planning is mission dependent (e.g., multistatic missions may involve more planning by aircrew)

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Planning Timeline

  • GREEN messages released within 24 hours prior to launch

    • Mission date/event number

    • Mission type

    • Squadron and callsign

    • On-station area

    • Flight levels

    • On and off station times

  • Mission execution brief

    • Conducted about 3 hours prior to mission launch

    • MEP briefed

    • Copy of MEP provided to the aircrew

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Execution Timeline

  • During mission, data collected for inclusion in PURPLE

    • Weather conditions data

    • BT data

    • AN data

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Debrief Timeline

  • Other Post-mission Activities

  • Mission Construction and Evaluation (MC&E) assigns mission grade – within a week following mission

  • Mission data archived for a month

  • BT data archived for 1 year

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

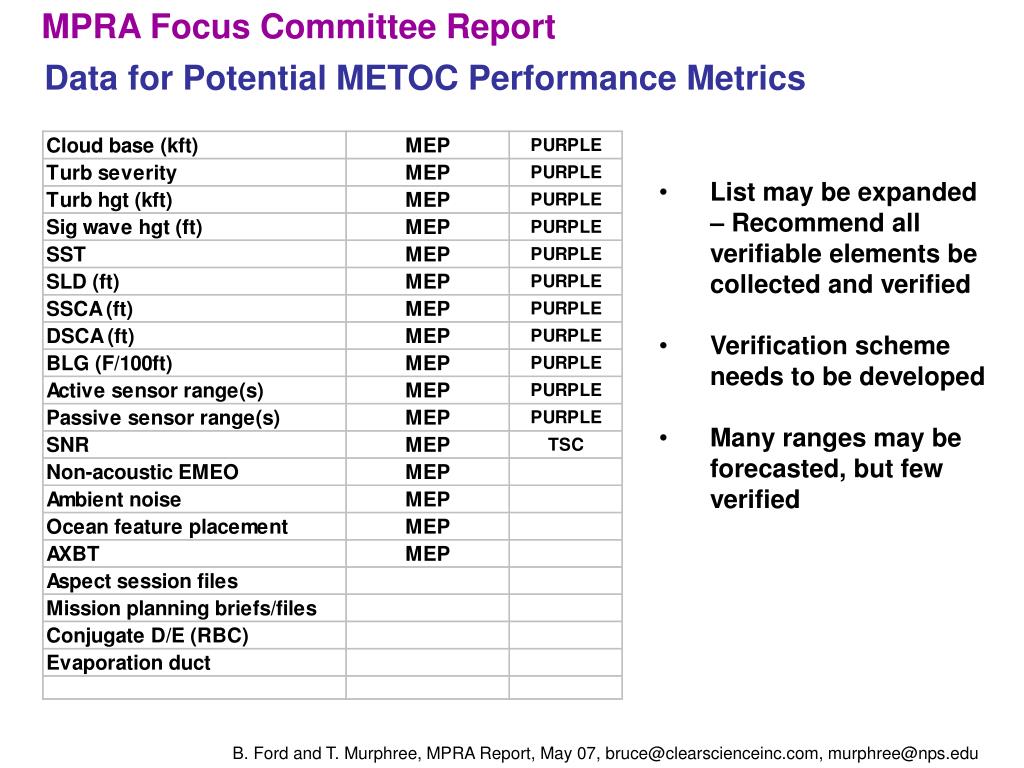

Data for Potential METOC Performance Metrics

  • List may be expanded – Recommend all verifiable elements be collected and verified

  • Verification scheme needs to be developed

  • Many ranges may be forecasted, but few verified

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Key asw issue sensor performance prediction

Key ASW Issue: Sensor Performance Prediction

  • Considerable effort is taken to predict sensor performance (measurements, databases, models)

  • This results in an estimate of signal-to-noise (SNR) on target

    • Fundamental metric

    • SNR potentially a very good proxy metric

  • Difficult to compare SNR to “fleet detections”

    • Detect-to-engage sequence involves many more factors in detection, classification and localization.

  • Can we compare predicted SNR to measured SNR for MPRA?

    • Not final step, but key metric


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Potential Customer Performance Metrics

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Other Metrics – Drawn from PURPLEs

  • Number of ASW contacts detected by acoustic sensors

  • Possibly subdivide this further by sensor (e.g., sonobuoy, EER)

  • Number of ASW contacts detected by MAD sensors

  • Number of ASW contacts detected by IR sensors

  • Number of ASW contacts detected by RADAR sensors

  • Number of ASW contacts detected by visual sensors

  • Number of surface contacts detected by IR sensors

  • Number of surface contacts detected by RADAR sensors

  • Number of surface contacts detected by visual sensors

  • Contact investigation time

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Potential Operational Impacts Metrics

  • Draw correlations between METOC performance metrics and customer performance metrics

  • * Proposed proxy metrics: SLD, BLG, visibility, and sig wave height

  • Those elements with high correlations over time may be good proxy operational impacts metrics

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Data Collection Methods – Three Proposed Levels

  • Primary data collection

    • Largely automated process

    • Data drawn from MEP inputs, GREENs, PURPLEs with limited free form entries (if any)

    • MEP inputs collected by MEP builder

    • MEP builder

      • Proposed web interface for entering discrete elements

      • Potentially automate data pulls (RBC, JAAWIN)

      • Collect data for metrics computation

      • Output brief ready slide for start of MEP

    • QC by RBC or other organization

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Secondary

Collection

Data Collection Methods – Three Proposed Levels

  • Secondary data collection

    • To be undertaken if primary data collection is inadequate

    • Collect additional information from mission debriefs that is not included in PURPLEs

    • Would require NOAD personnel directly collecting/entering information

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Data Collection Methods – Three Proposed Levels

  • Tertiary/Exercise-level data collection

    • Flag missions as part of an exercise (MPRA, Surface ASW, etc.)

    • Collect data regarding impacts of METOC information on exercise planning process (e.g., IPC/MPC/FPC)

    • Collection data on outcomes from post-exercise (hot wash) meetings

    • Prepare whole-exercise data for further analysis

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Data Analysis/Display - Multi-Level Access

  • Display determined by user permissions

  • Level 1 – Single-mission metrics information

  • Level 2 – Multiple mission, single METOC unit metrics. Metrics displayed by combination of:

    • NOAD

    • Geographical region

    • Span of time

  • Level 3 – Multiple mission, multiple METOC unit metrics. Metrics displayable by:

    • METOC unit

    • Geographical region

    • Span of time

    • Include directorate level metrics for top level users

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Data Analysis/Display – Level 1

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

NOAD

NOAD A

NOAD B

NOAD C

Data Analysis/Display – Level 2

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Data Analysis/Display – Level 3

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Operational Modeling

  • Recommend modeling studies to simulate ASW conflicts and model existing metrics forward

    • Identify sensitivities of warfighter to METOC information

    • Provide a basis for the metrics evaluation process

    • Inform future funding and R&D decisions

    • Improve data collection methods

    • Align training and research to add value to and improve METOC information

  • Metrics data collected should be integrated with operational modeling in a continual feedback loop

    • Real-world data used to improve the fidelity of the operational model

    • Model results used to identify the type and methods of data to collect

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

MPRA Focus Committee Report

Funding Recommendations

  • 1.Bare bones – Initiate primary collection system with analysis and display of metrics. Provide training to personnel who will enter data or administer collection system.

  • 2.Adequate to complete project – Same as 1 above but also institute the secondary collection system and conduct operational modeling when feasible

  • 3.Completely funded – Same as 1 and 2 above, but also institute the tertiary (exercise level) data collection system. Train and equip R&A personnel to enter data and administer exercise metrics system.

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

Back-up Slides

B. Ford and T. Murphree, MPRA Report, May 07, [email protected], [email protected]


Asw metoc metrics mpra committee report

Tactical Decision Aid

(ASPECT)

Predicted SNR

Can we predict sensor performance?

Reconstruction

P-3 flies

What happened during the mission (TSC)?

Measured SNR

Predicted SNR

Measured SNR


Asw metoc metrics mpra committee report

Probability of detection is a complex process

(aligning the stars)


  • Login
