  1. Isolated PoK and Isolated ZK Ivan Damgård, Jesper Buus Nielsen and Daniel Wichs

  2. Proofs of Knowledge (Review) Language L in NP. Instance x. Witness w. Prover (x,w) Verifier x Accept/Reject Completeness: Prover, Verifier honest ) Verifier outputs “Accept” W.O.P

  3. Simulator x Verifier x Prover (x,w) Zero Knowledge (Review) Language L in NP. Instance x. Witness w. Verifier did not learn anything new. ¼ Simulator ensures that verifier could have produced entire conversation on its own.

  4. Knowledge Soundnes (Review) Language L in NP. Instance x. Witness w. Extractor recovers w from the prover. Prover Verifier x If “Accept”, prover knows w. Extractor

  5. Environment (x,w) Helper (x,w) Isolation? • Standard definitions assume isolation. • Prover can run a man-in-the-middle attack between a “helper” and the verifier. • No non-trivial protocol can guarantee that the prover knows w. • Similar setting considered by Universal Composability. Verifier (x) Prover (?) Prover (x,w)

  6. Environment (x,w) What can be done without full isolation? • Setup assumptions (CRS, KRK,…) can be used to get UC security. • Partial Isolation: Assume prover is l-isolated during the proof. • Necessary condition: C>l. Verifier (x) Prover C bits l bits

  7. Why Study Partial Isolation? • Often reasonable to assume that Prover has more bandwidth with Verifier than with other parties. • Prover and Verifier are in same room with no fast Internet connection to the outside. • Prover is a tamper-proof hardware token and does not have a large antenna sticking out (motivated by [Katz07]). • Prover is a smart-card and Verifier can monitor power-supply to limit communication. • Interesting theoretical question. Rewinding is possible, but not easy.

  8. Environment (x,w) What can be done without full isolation? • An l-Isolated PoK (l-IPoK) is a protocol where no l-isolated cheating prover can succeed without knowing a witness. • Goal: Construct an IPoK compiler. For any l, compile an l-IPoK. • Concentrate on witness indistinguishable (WI)l-IPoKprotocols. Verifier (x) Prover C bits l bits

  9. Extractor Definition:Knowledge Soundness of l-IPoK • Stage 1: Prover and Environment communicate without restraint. • Stage 2: Prover is l-isolated. Prover and Verifier run protocol. • Stage 3: If verifier accepts, the extractor is given: • The code and coins of the prover • The transcript of the proof • The transcript of communication with the environment (inc. stage 1). • Negligible probability of prover succeeding and extractor failing. Environment (x,w) Verifier (x) Prover (?) l bits

  10. Presentation Road-Map • Background, Motivation, Definition • A simple construction of an l-IPoK protocol with a large communication/round complexity. • Lower bound on # of rounds in Black Box extractable l-IPoK. • A construction of an l-IPoK protocol with optimal communication complexity. • A non-black-box construction in the RO model with optimal communication/round complexity. • Zero Knowledge when the Verifier is only partially Isolated

  11. Review: §-Protocols • Assume L 2 NP and § is a §-protocol for L. • Special Knowledge Soundness • Can recover w from any two accepting conversations (a,c,z) and (a,c’,z’) with c  c’. • Honest Verifier Zero Knowledge • Implies Witness Indistinguishability. Prover (x, w) Verifier (x) a c z

  12. Compiling an l-IPoK from a §-Protocol • Theorem: Repeating § with 1 bit challenges (l+·) times sequentially results in an l-IPoK. • Intuition: The prover cannot communicate even 1 bit on at least · rounds and hence must know the witness! Verifier (x) Prover (x, w) a1 c1 z1 a2 c2 z2 ….. an cn zn

  13. Extractor Description • The extractor rewinds to each round iand tries the challenge (1-ci). • Extractor ignores attempted communication with the environment. • If the prover answers incorrectly (or does not answer), go to next round. • Prover “expected help” from the environment. • Prover would have answered incorrectly in the original execution on this challenge. • Otherwise use (ai,ci,zi) and (ai, (1-ci), z’i) to compute w. Extractor Prover a1 c1 1-c1 Ignore! z’1 z1 (a1, 1-c1, z’1) is rejecting a2 1-c2 z’2

  14. Soundness (Proof) • We consider computationally unbounded provers and environments. Hence we can consider deterministic provers and envrionments only. • An execution of the protocol is fully determined by the verifier challenges c1, c2, c3,…,cn. • An execution is as a random path in a tree. • An execution path is winning if it is accepting AND the extractor fails to recover a witness. C1=0 C2=1 C3=0

  15. Soundness (Proof) C1=0 • On a winning path • All edges are correct. • All sibling edges are incorrect or communicating • If two winning paths diverge at a node N. Then both edges are correct and communicating. • There can be at most l such nodes on any path. Hence there are at most 2l winning paths out of 2l+· total paths. • ) Probability of getting a winning execution is 1/2· C2=1 C3=0 • An edge is correct the prover gives a correct response on that challenge. • An edge is communicating if the environment communicates with the prover on that challenge.

  16. Parameters

  17. Presentation Road-Map • Background, Motivation, Definition • A simple construction of an l-IPoK protocol with a large communication/round complexity. • Lower bound on # of rounds in Black Box extractable l-IPoK. • A construction of an l-IPoK protocol with optimal communication complexity. • A non-black-box construction in the RO model with optimal communication/round complexity. • Zero Knowledge when the Verifier is only partially Isolated

  18. Round Complexity of BB extractable l-IPoK • Prover and environment share a key k2 to a PRF. • The prover follows the protocol honestly. • “Checks in” with the Environment before producing any output. • Rewinding requires finding a collission on fk1 or guessing fk2 at a new input! Environment (k2) Prover (x,w,k1,k2) Verifier (x) ¾ = fk1(view) ! = fk2(¾) Update view ¾ = fk1(view) ! = fk2(¾) Update view ¾ = fk1(view) ! = fk2(¾) Update view ¾ = fk1(view) ! = fk2(¾) If there are ½ rounds of communication then l/½ = O(log(·)) ) The number of rounds grows linearly with l.

  19. Presentation Road-Map • Background, Motivation, Definition • A simple construction of an l-IPoK protocol with a large communication/round complexity. • Number of rounds in BB extractable l-IPoK is linear in l. • A construction of an l-IPoK protocol with optimal communication complexity. • A non-black-box construction in the RO model with optimal communication/round complexity. • Zero Knowledge when the Verifier is only partially Isolated

  20. Reducing the Communication • Task: Design an l-IPoK where the communication complexity and round complexity are both O(l). In other words, we need lots of short rounds. • If we start with a § protocol, then the flows (a,0,z0) and (a,1,z1) determine w. The values z0 ,z1 can be thought of as a secret sharing of w. Easy to verify that a share is indeed a share of the witness. • Idea: Use a ramp secret sharing scheme to split z0, z1 into very short shares. On each round give out ones short share. Extractor collects enough shares to recover.

  21. / / ? Efficient Protocol This is a single epoch with N =O(l/·) rounds. Protocol consists of M=O(·) epochs. Choose ? So that expected number of received blue/yellow shares is less than (secrecy_threshold)/2. If Verifier asks for enough blue/yellow shares to break secrecy, Prover quits. Happens w/ negligible probability when verifier is honest. Verifier (x) Prover (x,w) a à (random first message of §) z0, z1 à responses to c=0,1 (s0[0],...,s0[N])à SS(z0;r0) (s1[0],...,s1[N])à SS(z1;r1) C0à commit(z0||r0) C1à commit(z1||r1) a, C0,C1 e 2{0,1,?} } Repeat i=1,…,N Se[i]/? Verify: (a,b,zb) is accepting for § Collected shares Sb[i] match the decommitment. b 2 {0,1} / decommit(Cb)

  22. / / ? Proof Intuition N =O(l/·) rounds. M=O(·) epochs. Verifier (x) Prover (x,w) a à (random first message of §) z0, z1 à responses to c=0,1 (s0[0],...,s0[N])à SS(z0;r0) (s1[0],...,s1[N])à SS(z1;r1) C0à commit(z0,r0) C1à commit(z1, r1) • If Prover communicates, that share is lost. • Share might also be incorrect. • Thrm: On at least one epoch, extractor can recover other correct response and hence w. a, C0,C1 e 2{0,1,?} } • Extractor rewinds to each round in each epoch and tries the other challenge. Repeat i=1,…,N b 2 {0,1} Verify: (a,b,zb) is accepting for § Verify all shares Sb[i] Received match the decommitment /

  23. Parameters Assume l = (·|§|)

  24. Presentation Road-Map • Background, Motivation, Definition • A simple construction of an l-IPoK protocol with a large communication/round complexity. • Number of rounds in BB extractable l-IPoK is linear in l. • A construction of an l-IPoK protocol with optimal communication complexity. • A non-black-box construction in the RO model with optimal communication/round complexity. • Zero Knowledge when the Verifier is only partially Isolated

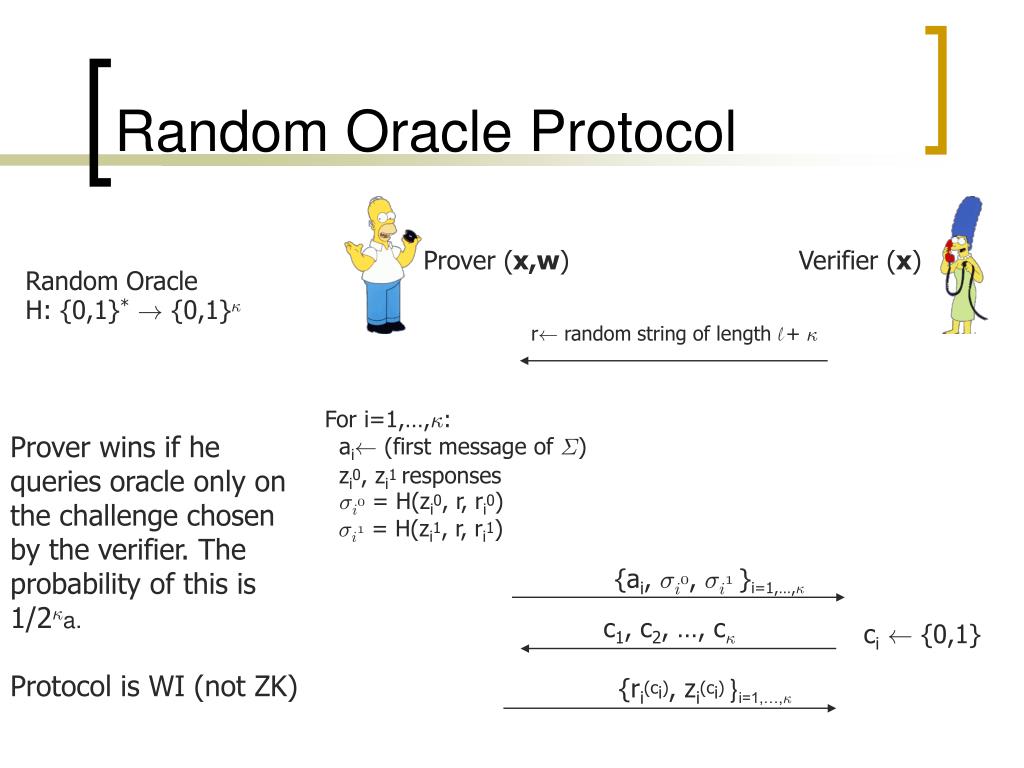

  25. rà random string of length l + · {ai, ¾i0, ¾i1}i=1,…,· c1, c2, …, c· {ri(ci), zi(ci) }i=1,…,· Random Oracle Protocol Prover (x,w) Verifier (x) Random Oracle H: {0,1}*! {0,1}· For i=1,…,·: aià (first message of §) zi0, zi1 responses ¾i0 = H(zi0, r, ri0) ¾i1 = H(zi1, r, ri1) Prover wins if he queries oracle only on the challenge chosen by the verifier. The probability of this is 1/2·a. Protocol is WI (not ZK) cià {0,1}

  26. Presentation Road-Map • Background, Motivation, Definition • A simple construction of an l-IPoK protocol with a large communication/round complexity. • Number of rounds in BB extractable l-IPoK is linear in l. • A construction of an l-IPoK protocol with optimal communication complexity. • A non-black-box construction in the RO model with optimal communication/round complexity. • Zero Knowledge when the Verifier is only partially Isolated

  27. Simulator x l-Isolated Zero Knowledge (l-IZK) • Stage 1: Environment and Verifier/Simulator communicate arbitrarily. • Stage 2: Verifier is l-isolated. Prover and Verifier run proof. • Stage 3: Environment and Verifier/Simulator communicate arbitrarily. • Environment cannot distinguish left from right. ? Verifier (x) Prover (x,w) Environment (x,w) l bits l bits

  28. IZK + IPoK from WI IPoK • Use FLS paradigm to go from WI to IZK • Use your favorite WI IPoK, Perfectly Binding Commitments Prover (x,w) Verifier (x) C0,C1 C0Ã commit(m0;r0) C1Ã commit(m1;r1) WI IPoK for one of (m0||r0) or (m1||r1) WI IPoK for one of (m0||r0) or (m1||r1) or w

  29. Applications of IPoK and IZK • Can prevent man-in-the-middle attacks on identification schemes when the prover is partially isolated (use a WI IPoK). • UC secure MPC under a “cave” assumption. We can implement ideal ZK PoK in such a cave and so can do arbitrary UC-MPC using [CLOS02]. • Would like to do UC-MPC when only one party is partially isolated at a given time. This is needed for tamper-proof hardware. can be accomplished using a WI-IPoK (see ePrint 2007/332).

  30. Open Questions • Open Questions: • A BB protocol with overhead 1 + o(1). • A non-standard, non-black-box assumption to replace RO model in RO protocol

  31. Thank You! QUESTIONS?
