  1. Exercises Moeller GmbH xEnergy - Page 1

  2. Example 1: Create a distribution board with… Degree of protection: IP 31 Main busbar: no busbar Cable connection: from bottom Dimensions (WxHxD): 800 x 2000 x 600 mm Plinth: no Internal partitions: Form 1 1 no. Section for frequency inverter. Width: 800 mm, with section high mounting plate. Moeller GmbH xEnergy - Page2

  3. Example 2: Create a distribution board with… Degree of protection: IP 31 Netform: TN-S Cable connection: from bottom Dimensions (WxHxD): ? x 2000 x 600 mm Plinth: no Internal partitions: Form 4 Switchgear: 1 no. ACB 3-pole, fixed mounted 3200 A 1 no. MCCB, 3-pole, fixed mounted 800 A 1 no. MCCB, 3-pole, withdrawable 1600 A 1 no. Section for frequency inverter. Width: 800 mm, with section high mounting plate. Moeller GmbH xEnergy - Page3

  4. Example 2: possible front-view Moeller GmbH xEnergy - Page4

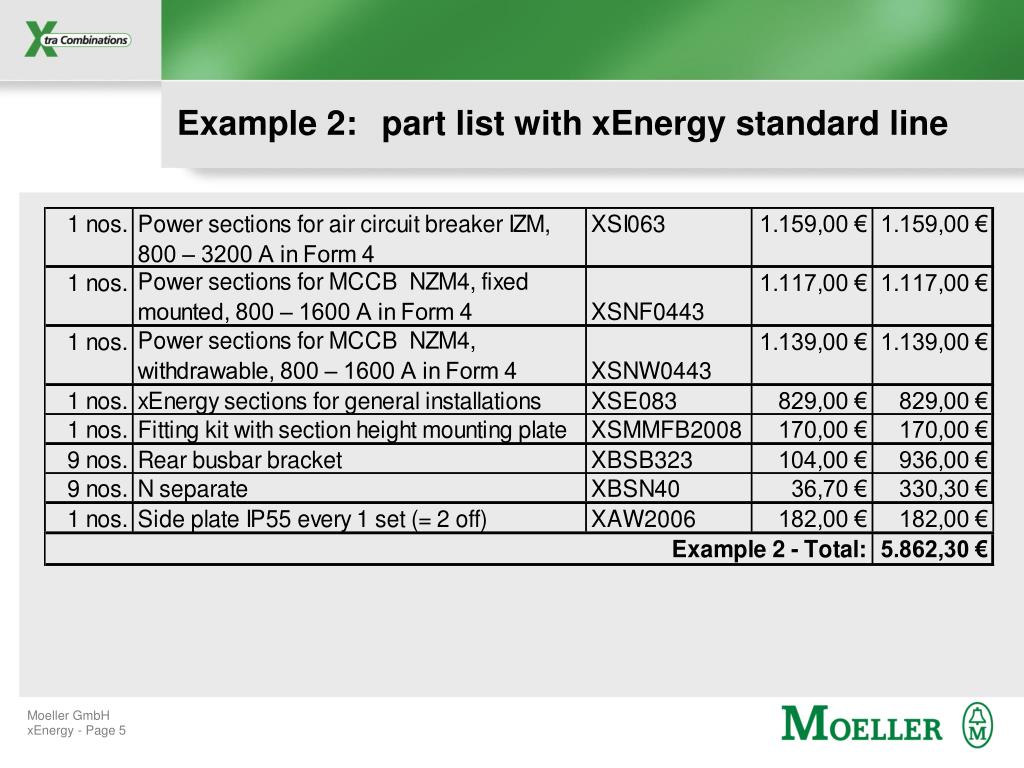

  5. Example 2: part list with xEnergy standard line Moeller GmbH xEnergy - Page5

  6. Example 2: Questions • „Our customer is not satisfied with the size of cable connection area for the • 1600 A NZM4 breaker.“ • - What can we do? • - How many ordering types do we have to change? • „Our customer wants now 800 mm deep sections.“ • - Is it possible? How? • „Now the NZM4 should be with remote operation.“ • - Is it possible? How? • „The IZM should be withdrawable.“ • - Is it possible? • - How many ordering types do we have to change? • Change section width to 600 mm. • Only one: XSNW0643 Yes, but not with standard line. Go to catalogue. - Yes with fixed mounted NZM4. No change. - Also yes with withdrawable NZM4, but not with standard line. Go to catalogue. Yes. No changes. Moeller GmbH xEnergy - Page6

  7. Example 3: Create a distribution board with… Degree of protection: IP 55 Netform: TN-S Cable connection: from bottom Dimensions (WxHxD): ? x 2000 x 600 mm Plinth: 100 mm Internal partitions: Form 4 Switchgear: 1 no. ACB 3-pole, withdrawable 1600 A 12 nos. MCCB, 3-pole, fixed mounted up to 125 A 8 nos. MCCB, 3-pole, fixed mounted 160 A 4 nos. MCCB, 3-pole, fixed mounted 200 A 2 nos. MCCB, 3-pole, fixed mounted 400 A 2 nos. MCB, 3P+N 16 A Moeller GmbH xEnergy - Page7

  8. Example 3: possible front-view Moeller GmbH xEnergy - Page8

  9. Example 3: part list with xEnergy standard line Moeller GmbH xEnergy - Page9

  10. Example 4: possible front-view Moeller GmbH xEnergy - Page10
