  1. Mining Large GraphsPart 3: Case studies Jure Leskovec and Christos Faloutsos Machine Learning Department Joint work with: Lada Adamic, DeepayChakrabarti, Natalie Glance, Carlos Guestrin, Bernardo Huberman, Jon Kleinberg, Andreas Krause, Mary McGlohon, Ajit Singh, and Jeanne VanBriesen.

  2. Tutorial outline • Part 1: Structure and models for networks • What are properties of large graphs? • How do we model them? • Part 2: Dynamics of networks • Diffusion and cascading behavior • How do viruses and information propagate? • Part 3: Case studies • 240 million MSN instant messenger network • Graph projections: how does the web look like Leskovec&Faloutsos ECML/PKDD 2007

  3. Part 3: Outline Case studies • Microsoft Instant Messenger Communication network • How does the world communicate • Web projections • How to do learning from contextual subgraphs • Finding fraudsters on eBay • Center piece subgraphs • How to find best path between the query nodes Leskovec&Faloutsos ECML/PKDD 2007

  4. Microsoft Instant Messenger Communication Network How does the whole world communicate? Leskovec and Horvitz: Worldwide Buzz: Planetary-Scale Views on an Instant-Messaging Network, 2007

  5. The Largest Social Network • What is the largest social network in the world (that one can relatively easily obtain)?  For the first time we had a chance to look at complete (anonymized) communication of the whole planet (using Microsoft MSN instant messenger network) Leskovec&Faloutsos ECML/PKDD 2007

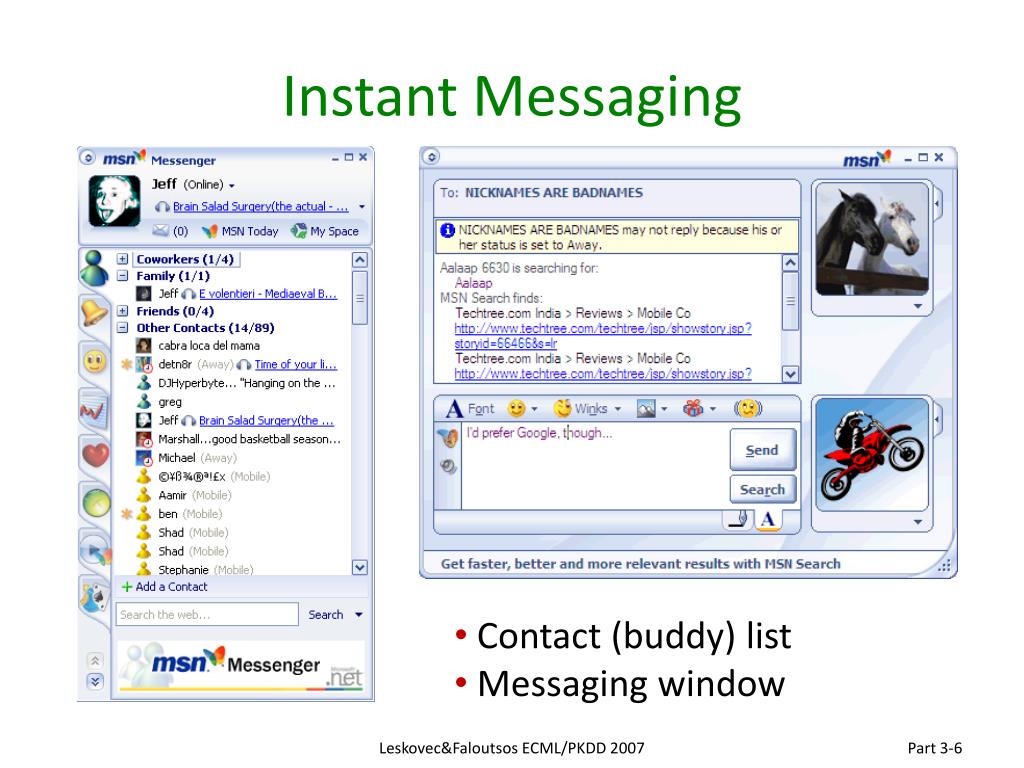

  6. Instant Messaging • Contact (buddy) list • Messaging window Leskovec&Faloutsos ECML/PKDD 2007

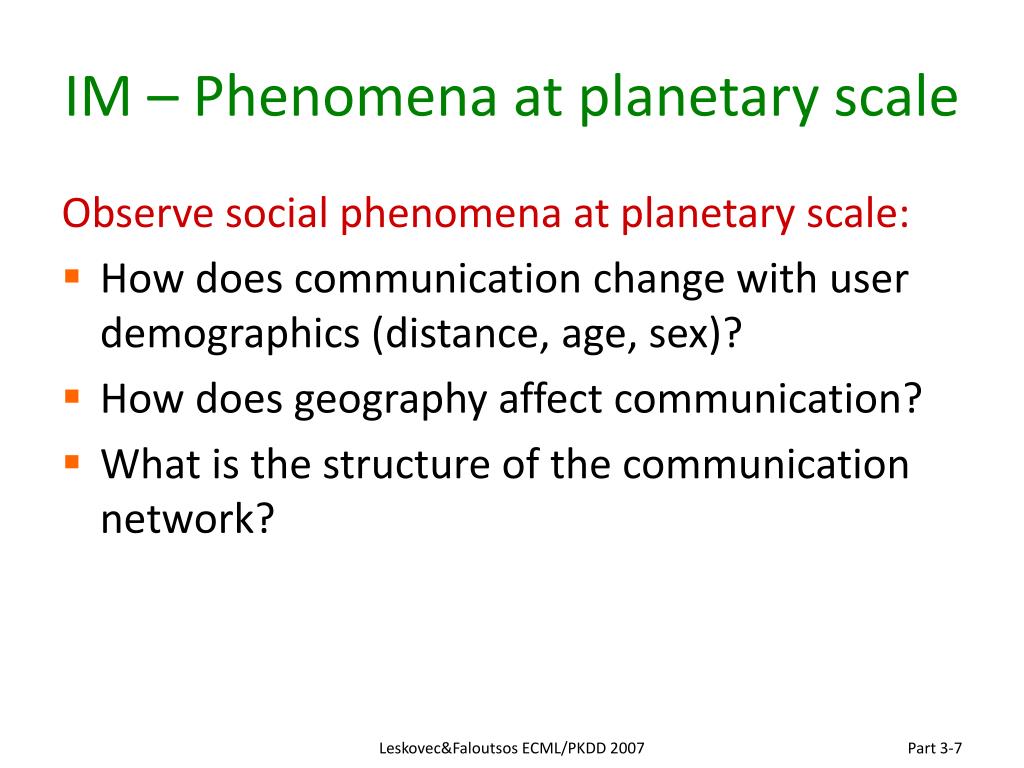

  7. IM – Phenomena at planetary scale Observe social phenomena at planetary scale: • How does communication change with user demographics (distance, age, sex)? • How does geography affect communication? • What is the structure of the communication network? Leskovec&Faloutsos ECML/PKDD 2007

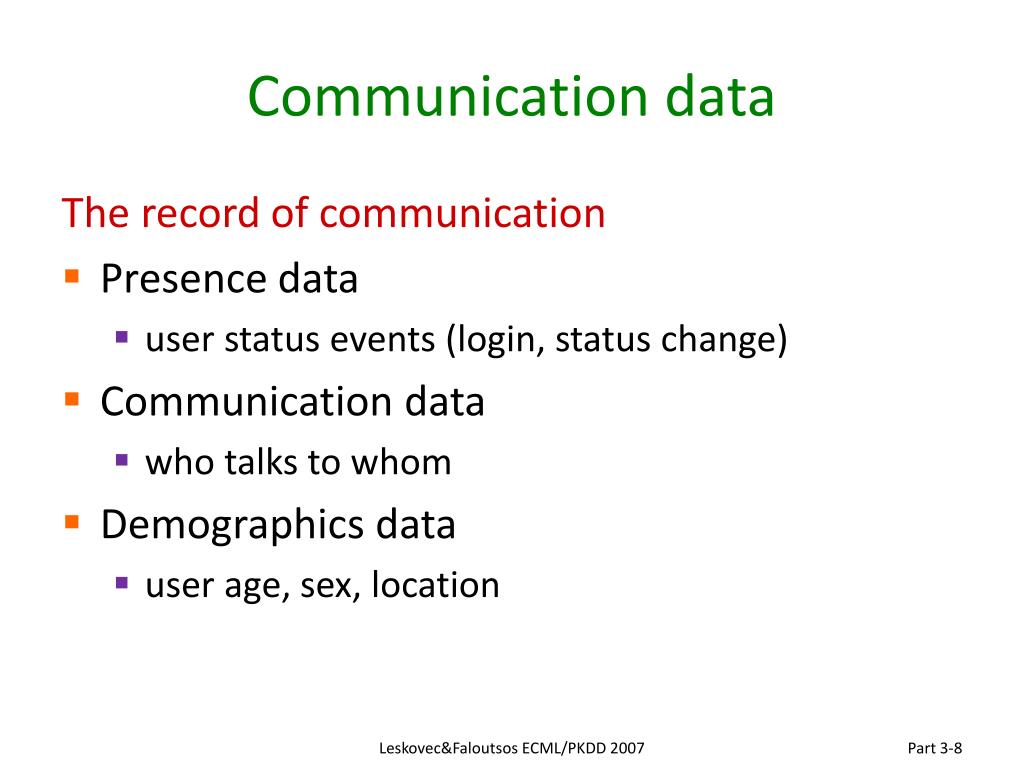

  8. Communication data The record of communication • Presence data • user status events (login, status change) • Communication data • who talks to whom • Demographics data • user age, sex, location Leskovec&Faloutsos ECML/PKDD 2007

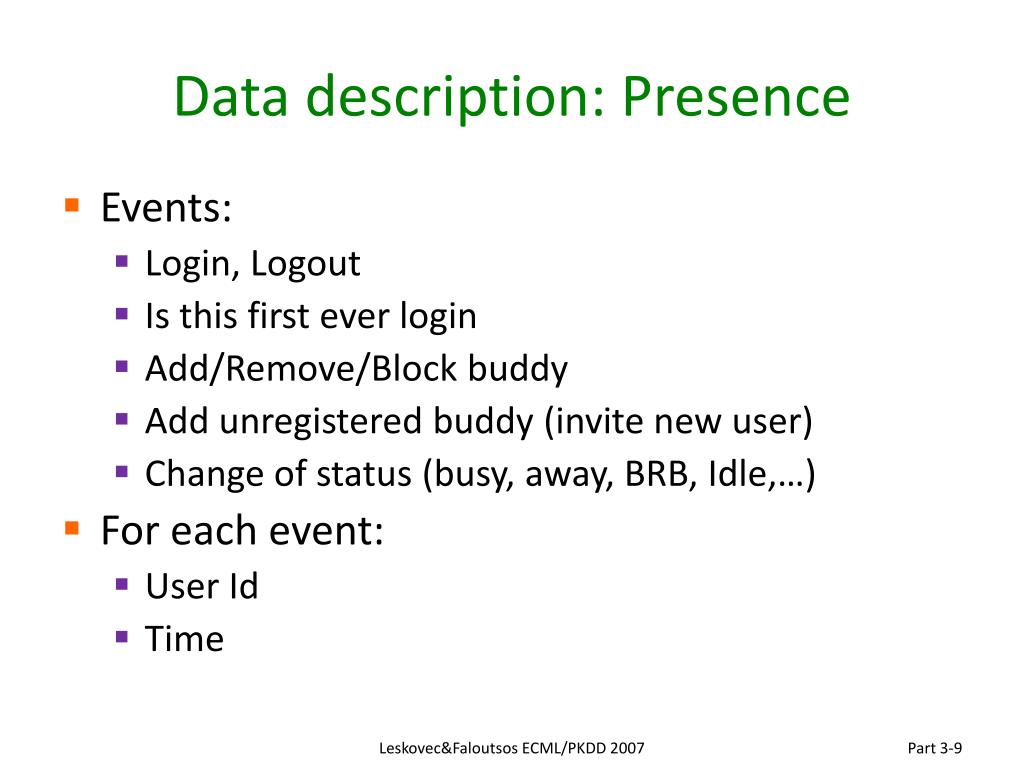

  9. Data description: Presence • Events: • Login, Logout • Is this first ever login • Add/Remove/Block buddy • Add unregistered buddy (invite new user) • Change of status (busy, away, BRB, Idle,…) • For each event: • User Id • Time Leskovec&Faloutsos ECML/PKDD 2007

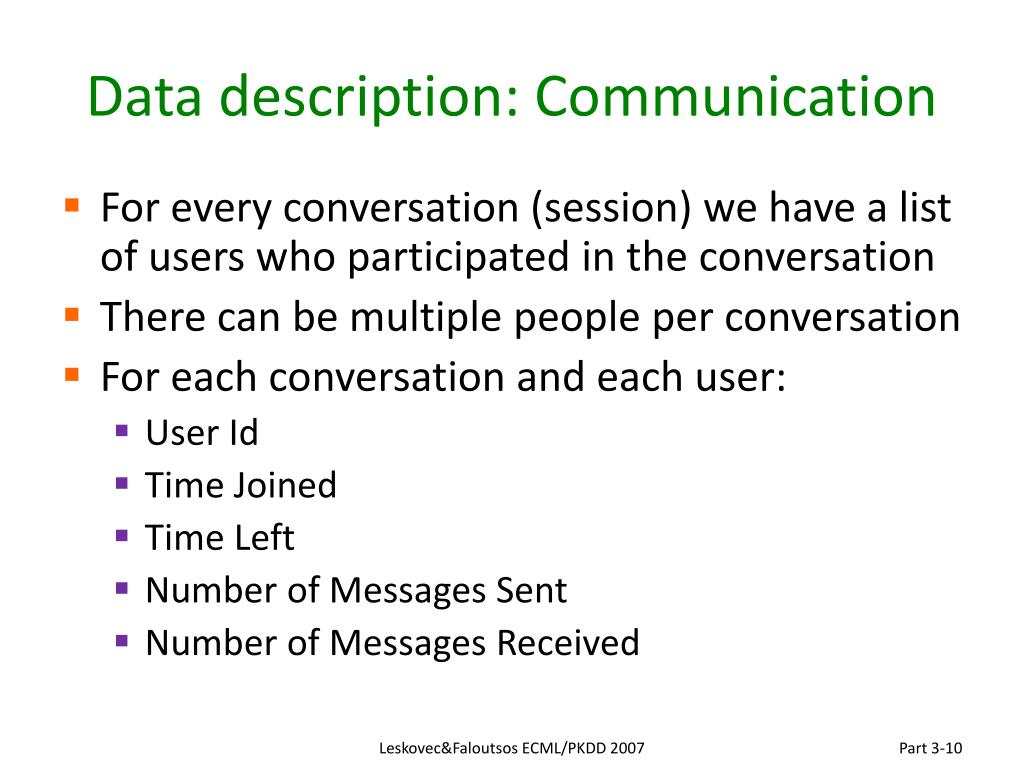

  10. Data description: Communication • For every conversation (session) we have a list of users who participated in the conversation • There can be multiple people per conversation • For each conversation and each user: • User Id • Time Joined • Time Left • Number of Messages Sent • Number of Messages Received Leskovec&Faloutsos ECML/PKDD 2007

  11. Data description: Demographics • For every user (self reported): • Age • Gender • Location (Country, ZIP) • Language • IP address (we can do reverse geo IP lookup) Leskovec&Faloutsos ECML/PKDD 2007

  12. Data collection • Log size: 150Gb/day • Just copying over the network takes 8 to 10h • Parsing and processing takes another 4 to 6h • After parsing and compressing ~ 45 Gb/day • Collected data for 30 days of June 2006: • Total: 1.3Tb of compressed data Leskovec&Faloutsos ECML/PKDD 2007

  13. Data statistics Activity over June 2006 (30 days) • 245 million users logged in • 180 million users engaged in conversations • 17,5 million new accounts activated • More than 30 billion conversations Leskovec&Faloutsos ECML/PKDD 2007

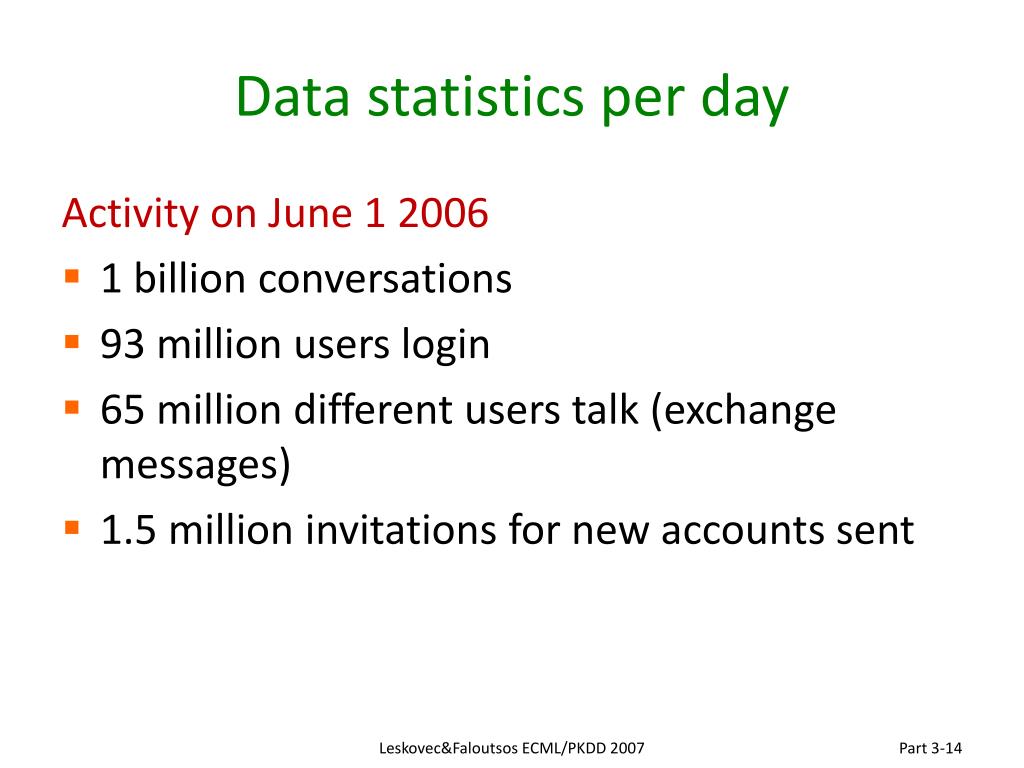

  14. Data statistics per day Activity on June 1 2006 • 1 billion conversations • 93 million users login • 65 million different users talk (exchange messages) • 1.5 million invitations for new accounts sent Leskovec&Faloutsos ECML/PKDD 2007

  15. User characteristics: age Leskovec&Faloutsos ECML/PKDD 2007

  16. Age piramid: MSN vs. the world Leskovec&Faloutsos ECML/PKDD 2007

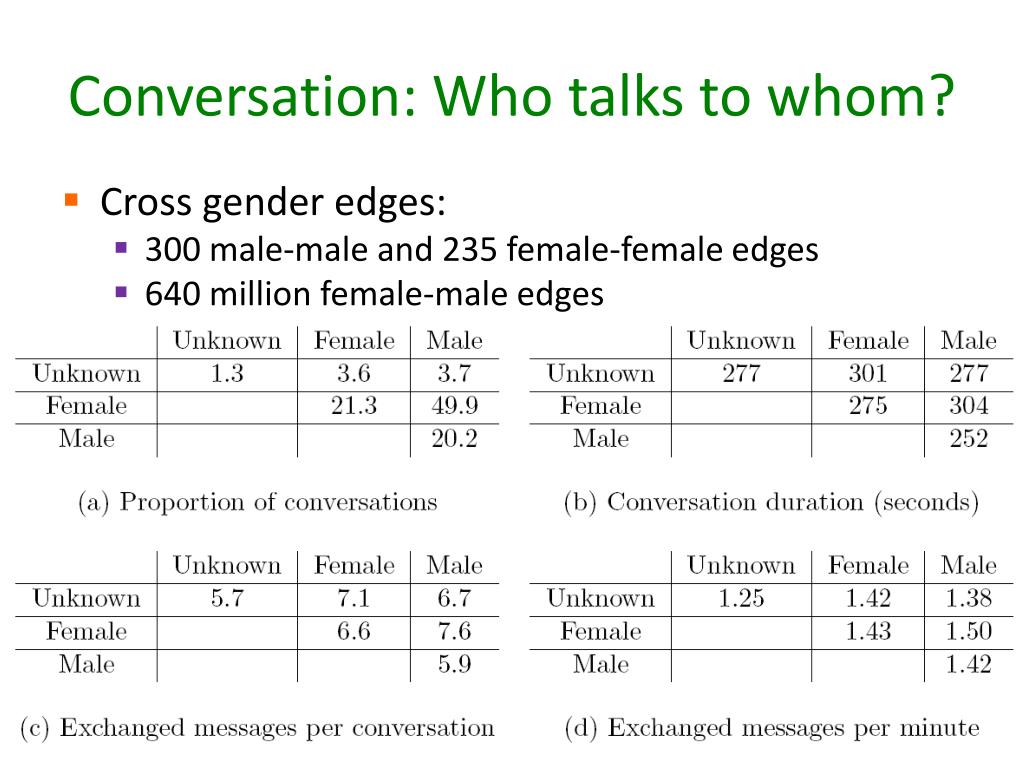

  17. Conversation: Who talks to whom? • Cross gender edges: • 300 male-male and 235 female-female edges • 640 million female-male edges

  18. Number of people per conversation • Max number of people simultaneously talking is 20, but conversation can have more people Leskovec&Faloutsos ECML/PKDD 2007

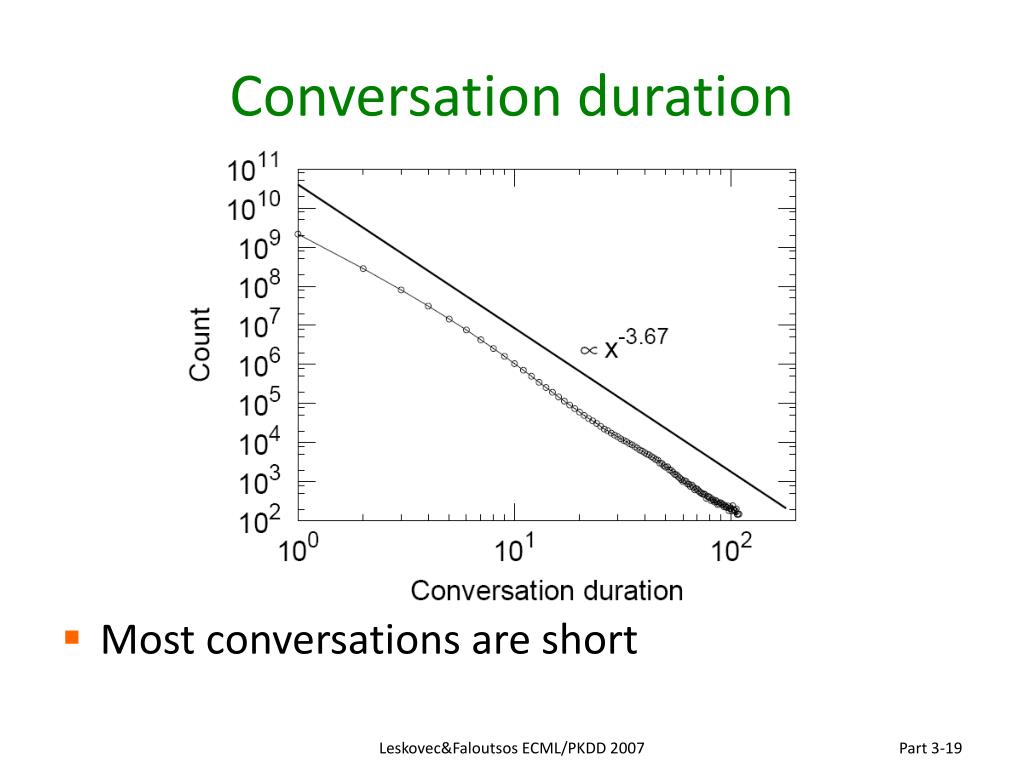

  19. Conversation duration • Most conversations are short Leskovec&Faloutsos ECML/PKDD 2007

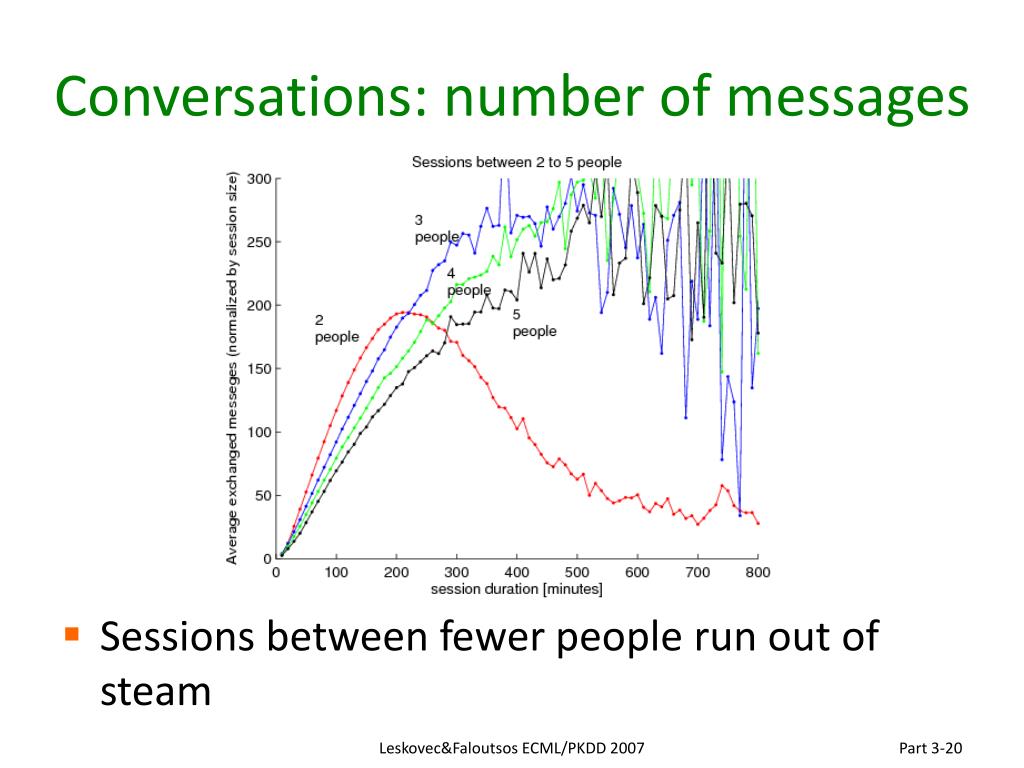

  20. Conversations: number of messages • Sessions between fewer people run out of steam Leskovec&Faloutsos ECML/PKDD 2007

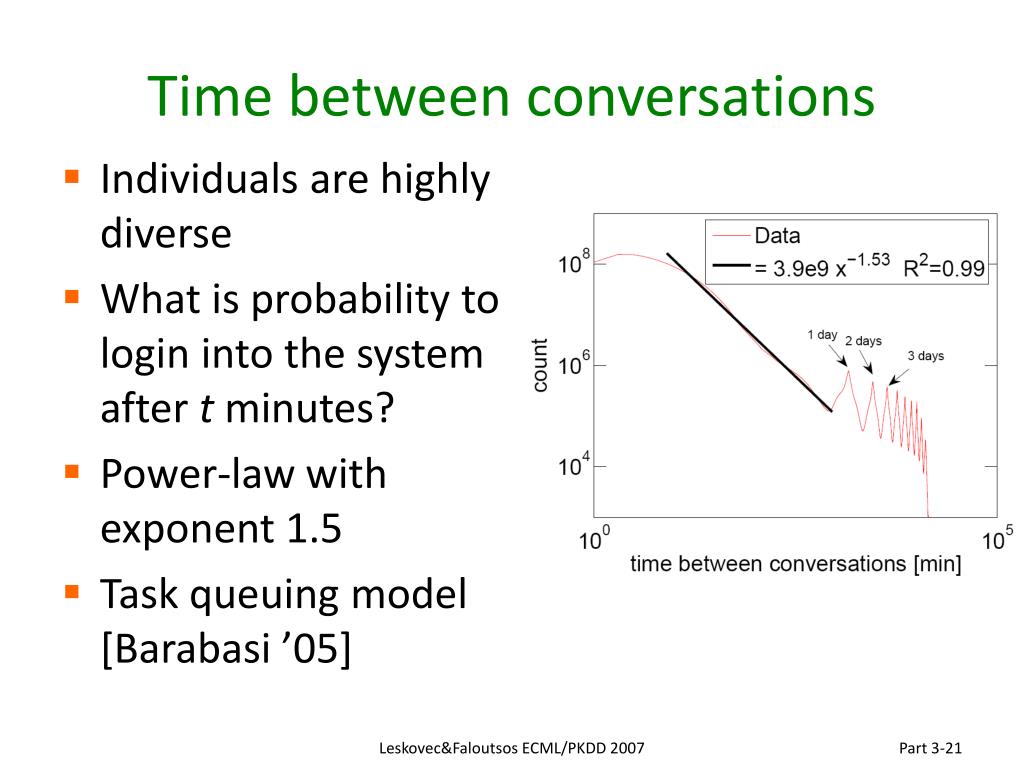

  21. Time between conversations • Individuals are highly diverse • What is probability to login into the system after tminutes? • Power-law with exponent 1.5 • Task queuing model [Barabasi ’05] Leskovec&Faloutsos ECML/PKDD 2007

  22. Age: Number of conversations High User self reported age Low Leskovec&Faloutsos ECML/PKDD 2007

  23. Age: Total conversation duration High User self reported age Low Leskovec&Faloutsos ECML/PKDD 2007

  24. Age: Messages per conversation High User self reported age Low Leskovec&Faloutsos ECML/PKDD 2007

  25. Age: Messages per unit time High User self reported age Low Leskovec&Faloutsos ECML/PKDD 2007

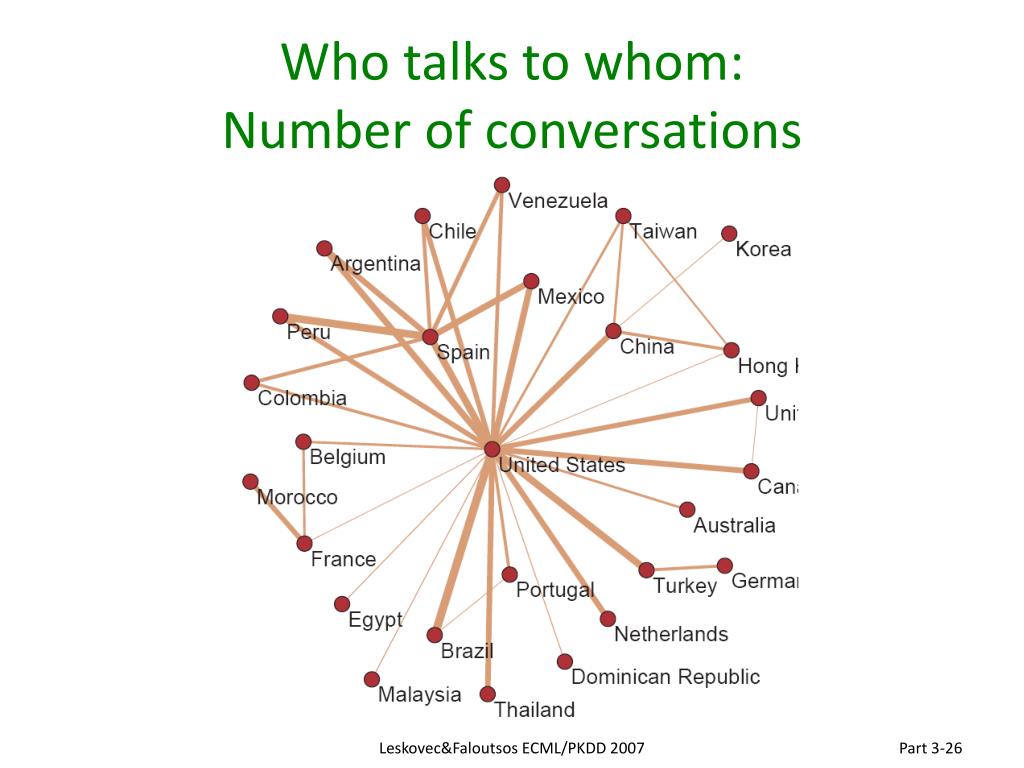

  26. Who talks to whom: Number of conversations Leskovec&Faloutsos ECML/PKDD 2007

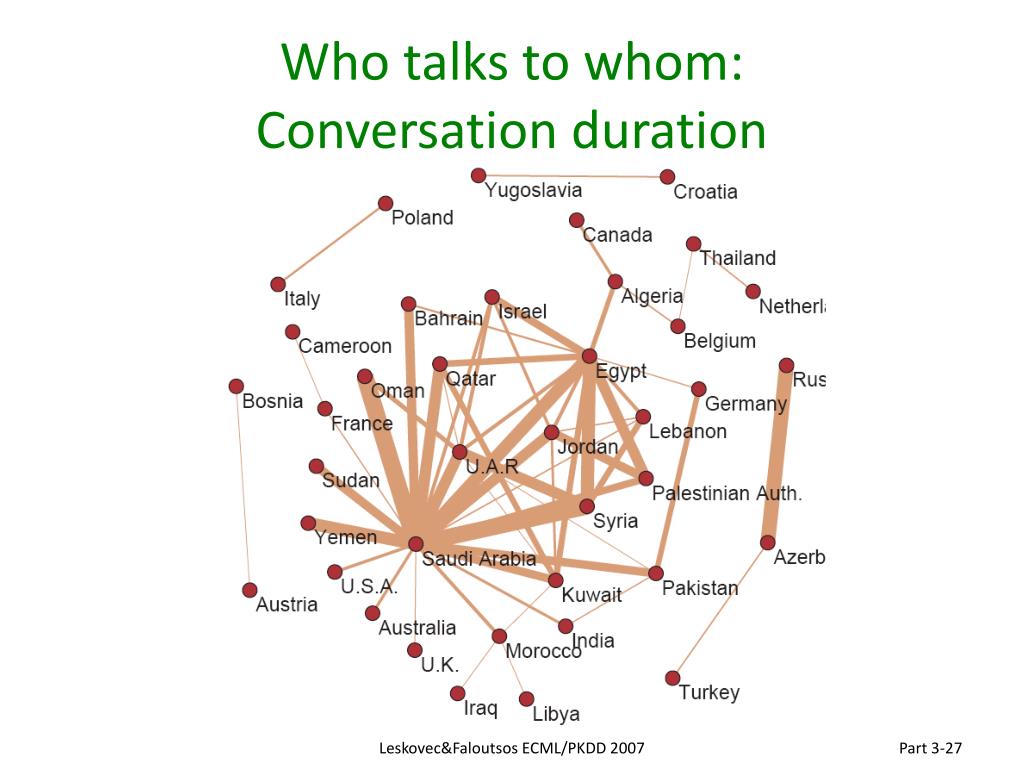

  27. Who talks to whom: Conversation duration Leskovec&Faloutsos ECML/PKDD 2007

  28. Geography and communication • Count the number of users logging in from particular location on the earth Leskovec&Faloutsos ECML/PKDD 2007

  29. How is Europe talking • Logins from Europe Leskovec&Faloutsos ECML/PKDD 2007

  30. Users per geo location Blue circles have more than 1 million logins. Leskovec&Faloutsos ECML/PKDD 2007

  31. Users per capita • Fraction of population using MSN: • Iceland: 35% • Spain: 28% • Netherlands, Canada, Sweden, Norway: 26% • France, UK: 18% • USA, Brazil: 8% Leskovec&Faloutsos ECML/PKDD 2007

  32. Communication heat map • For each conversation between geo points (A,B) we increase the intensity on the line between A and B Leskovec&Faloutsos ECML/PKDD 2007

  33. Correlation: • Probability: Age vs. Age

  34. IM Communication Network • Buddy graph: • 240 million people (people that login in June ’06) • 9.1 billion edges (friendship links) • Communication graph: • There is an edge if the users exchanged at least one message in June 2006 • 180 million people • 1.3 billion edges • 30 billion conversations Leskovec&Faloutsos ECML/PKDD 2007

  35. Buddy network: Number of buddies • Buddy graph: 240 million nodes, 9.1 billion edges (~40 buddies per user) Leskovec&Faloutsos ECML/PKDD 2007

  36. Communication Network: Degree • Number of people a users talks to in a month Leskovec&Faloutsos ECML/PKDD 2007

  37. Communication Network: Small-world • 6 degrees of separation [Milgram ’60s] • Average distance 5.5 • 90% of nodes can be reached in < 8 hops

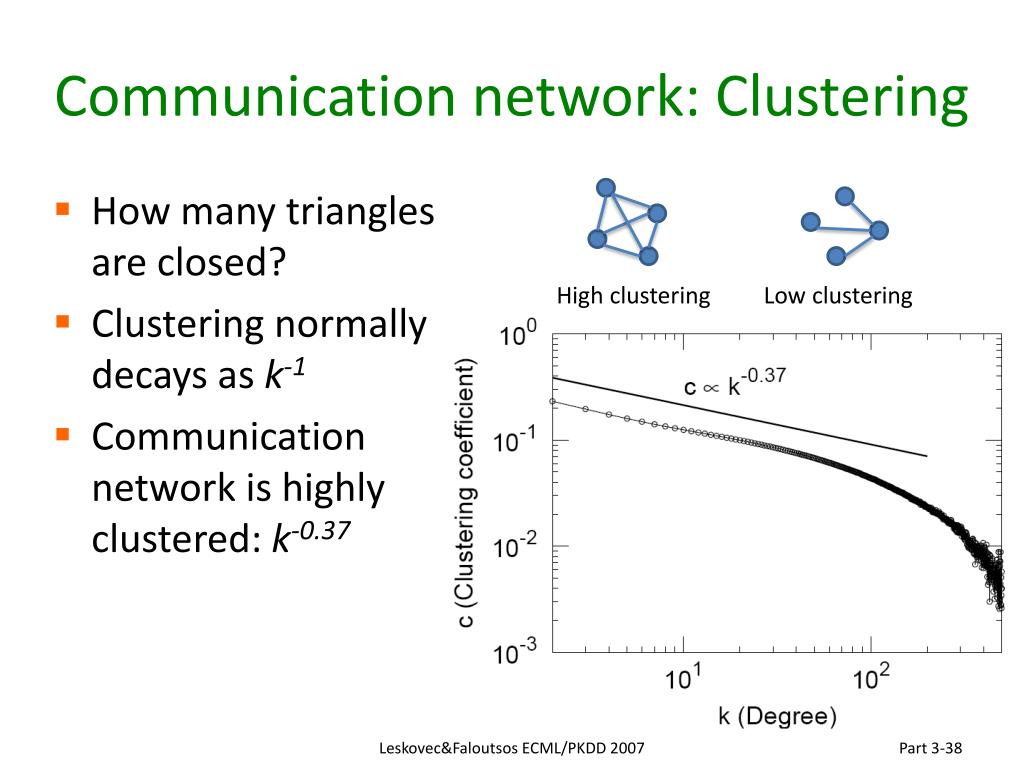

  38. Communication network: Clustering • How many triangles are closed? • Clustering normally decays as k-1 • Communication network is highly clustered: k-0.37 High clustering Low clustering Leskovec&Faloutsos ECML/PKDD 2007

  39. Communication Network Connectivity Leskovec&Faloutsos ECML/PKDD 2007

  40. k-Cores decomposition • What is the structure of the core of the network? Leskovec&Faloutsos ECML/PKDD 2007

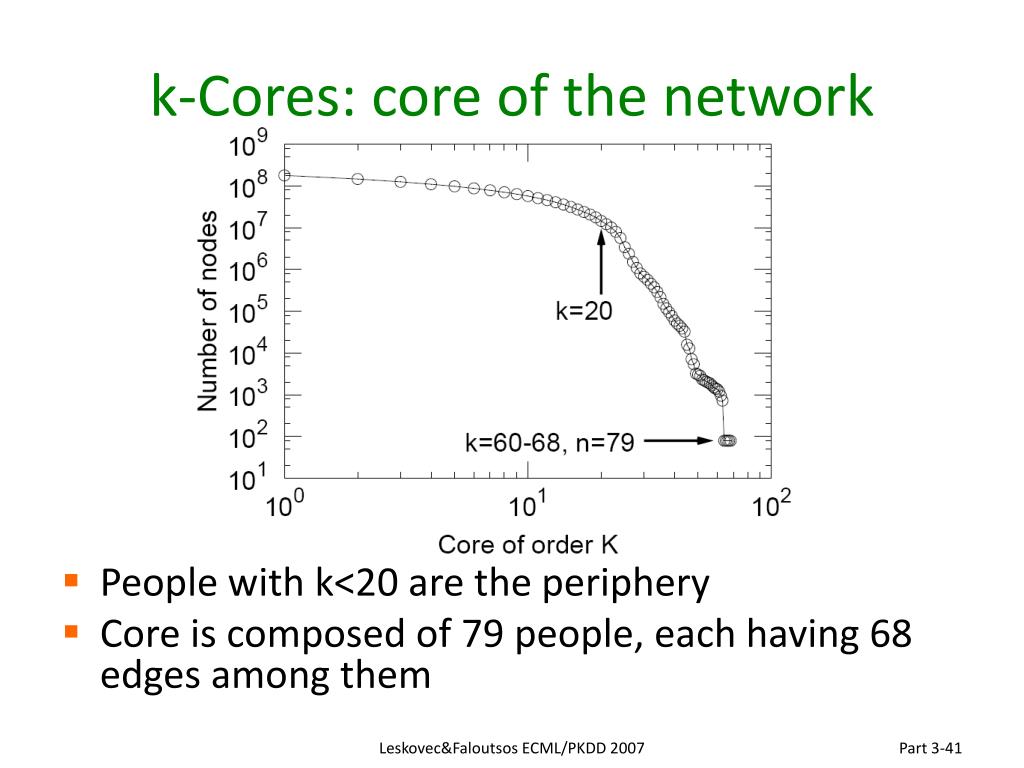

  41. k-Cores: core of the network • People with k<20 are the periphery • Core is composed of 79 people, each having 68 edges among them Leskovec&Faloutsos ECML/PKDD 2007

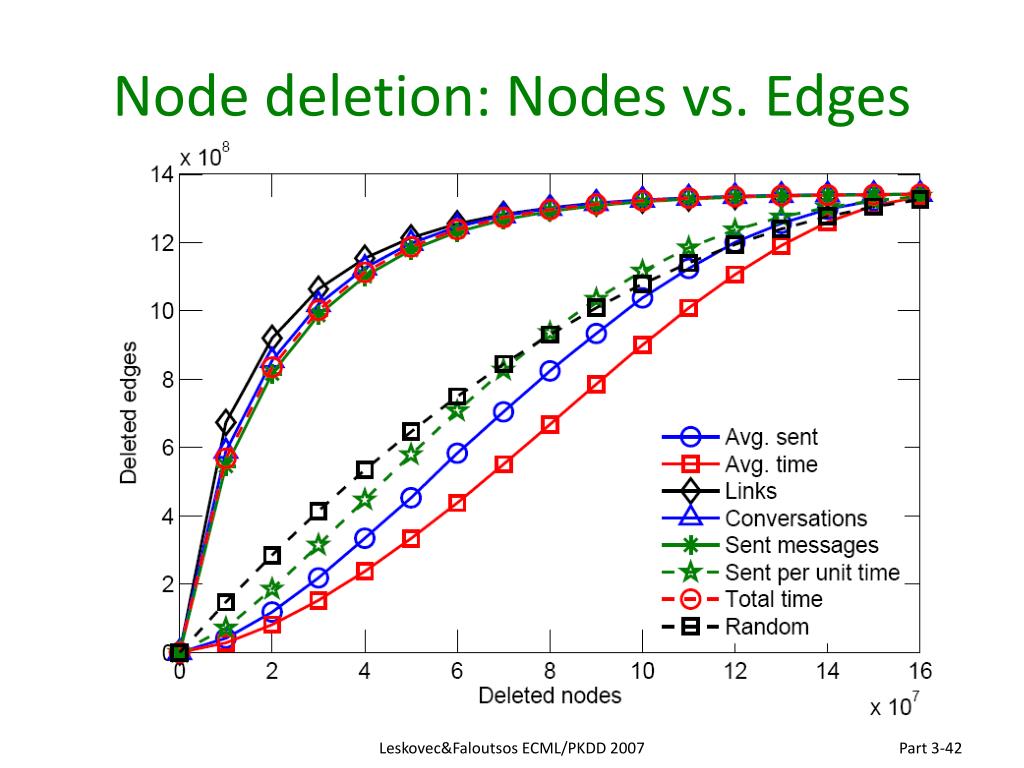

  42. Node deletion: Nodes vs. Edges Leskovec&Faloutsos ECML/PKDD 2007

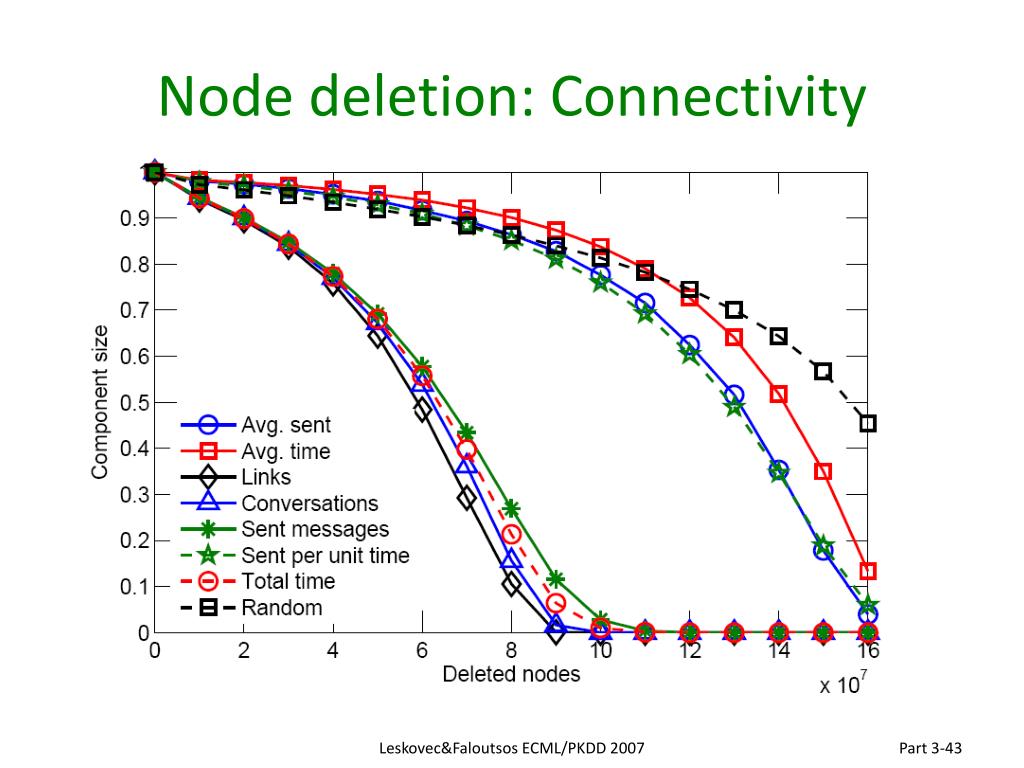

  43. Node deletion: Connectivity Leskovec&Faloutsos ECML/PKDD 2007

  44. Web ProjectionsLearning from contextual graphs of the web How to predict user intention from the web graph?

  45. Motivation • Information retrieval traditionally considered documents as independent • Web retrieval incorporates global hyperlink relationships to enhance ranking (e.g., PageRank, HITS) • Operates on the entire graph • Uses just one feature (principal eigenvector) of the graph • Our work on Web projections focuses on • contextual subsets of the web graph; in-between the independent and global consideration of the documents • a rich set of graph theoretic properties Leskovec&Faloutsos ECML/PKDD 2007

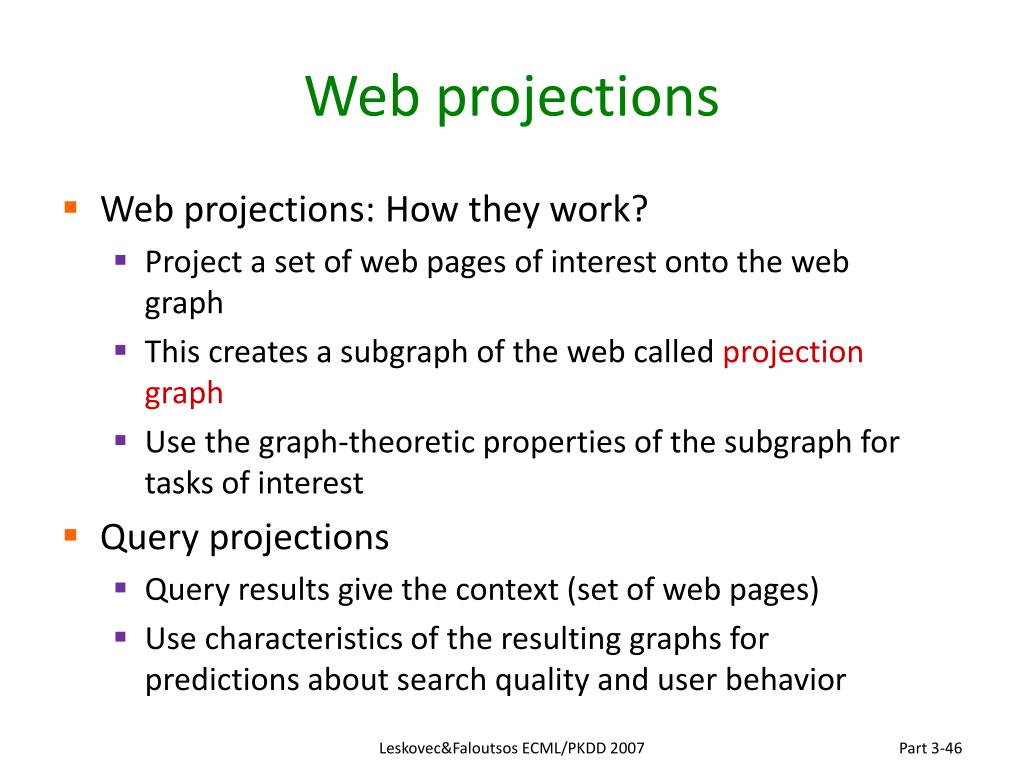

  46. Web projections • Web projections: How they work? • Project a set of web pages of interest onto the web graph • This creates a subgraph of the web called projection graph • Use the graph-theoretic properties of the subgraph for tasks of interest • Query projections • Query results give the context (set of web pages) • Use characteristics of the resulting graphs for predictions about search quality and user behavior Leskovec&Faloutsos ECML/PKDD 2007

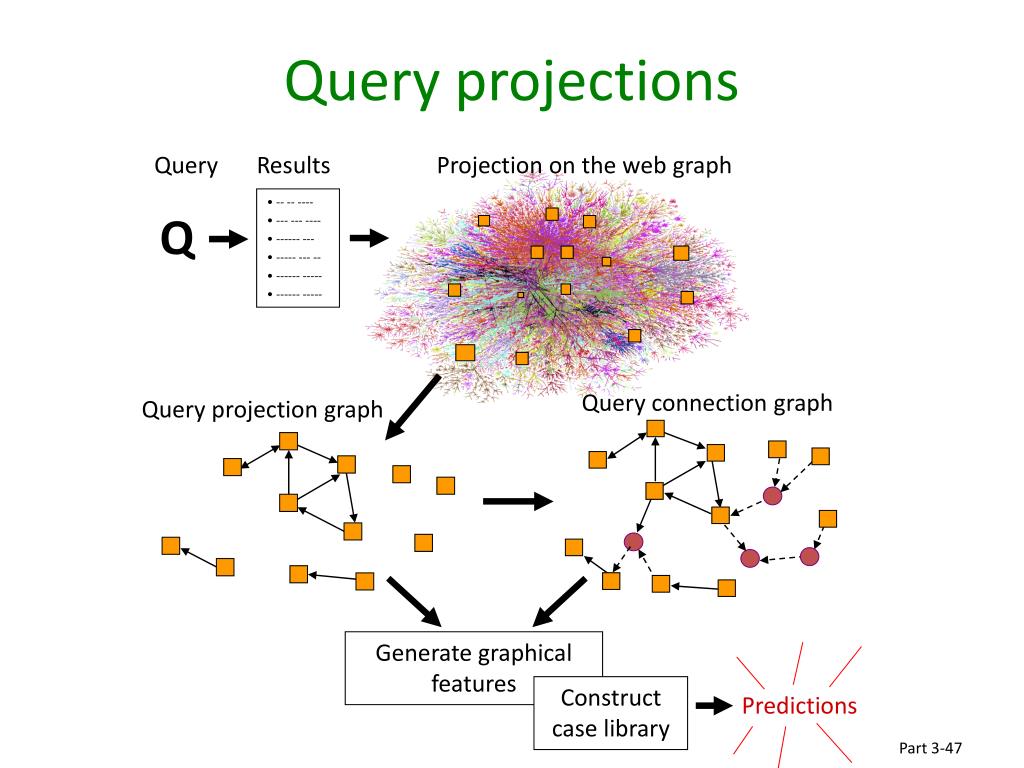

  47. Predictions Query projections Query Results Projection on the web graph • -- -- ---- • --- --- ---- • ------ --- • ----- --- -- • ------ ----- • ------ ----- Q Query connection graph Query projection graph Generate graphical features Construct case library

  48. Questions we explore • How do query search results project onto the underlying web graph? • Can we predict the quality of search results from the projection on the web graph? • Can we predict users’ behaviors with issuing and reformulating queries? Leskovec&Faloutsos ECML/PKDD 2007

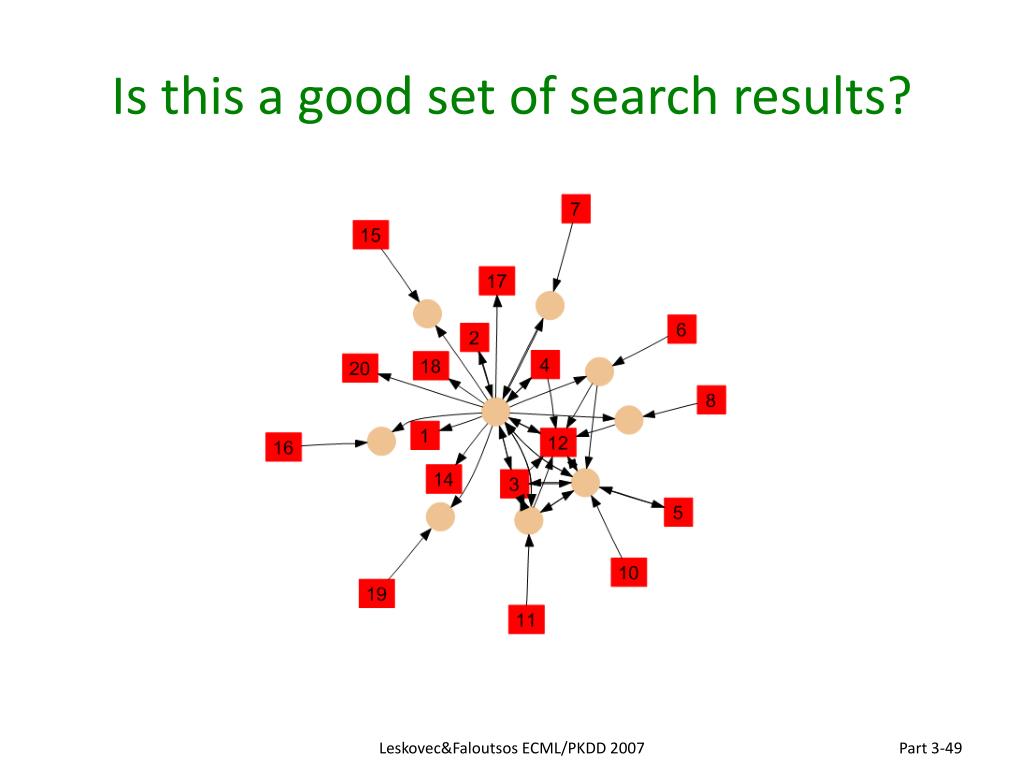

  49. Is this a good set of search results? Leskovec&Faloutsos ECML/PKDD 2007

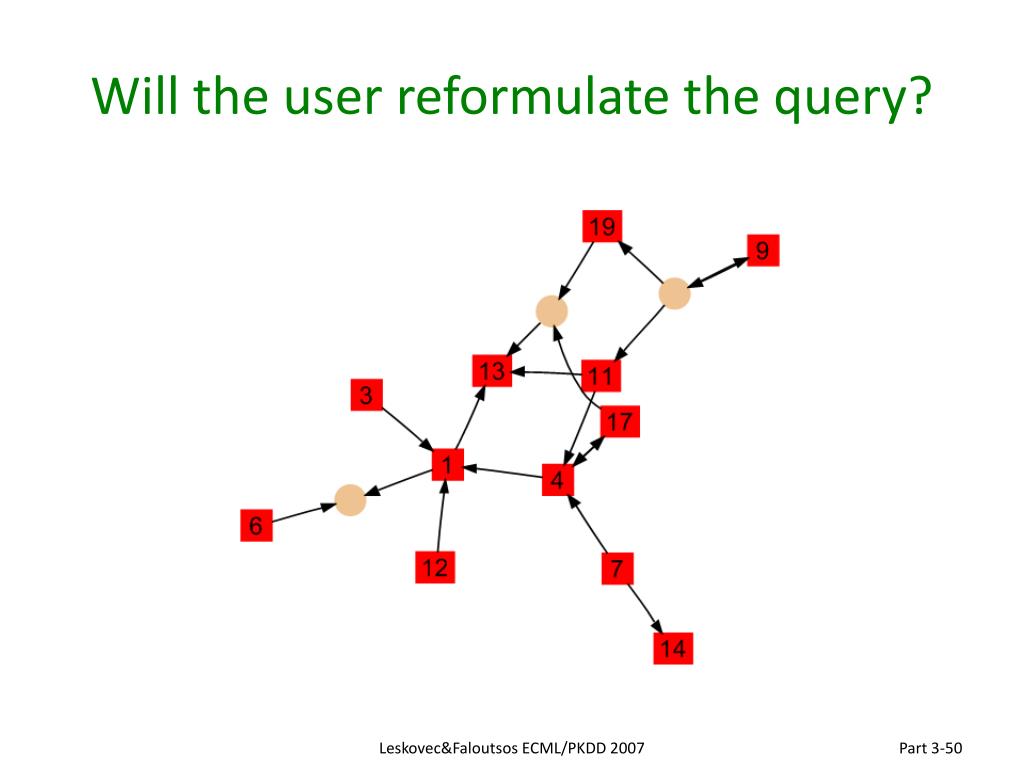

  50. Will the user reformulate the query? Leskovec&Faloutsos ECML/PKDD 2007
