Warm up: Finding the Area of a Lateral Face

Warm up: Finding the Area of a Lateral Face. Architecture. The lateral faces of the Pyramid Arena in Memphis, Tennessee, are covered with steal panels. Use the diagram of the arena to find the area of each lateral face of this regular pyramid.

may
Download Presentation

Warm up: Finding the Area of a Lateral Face

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

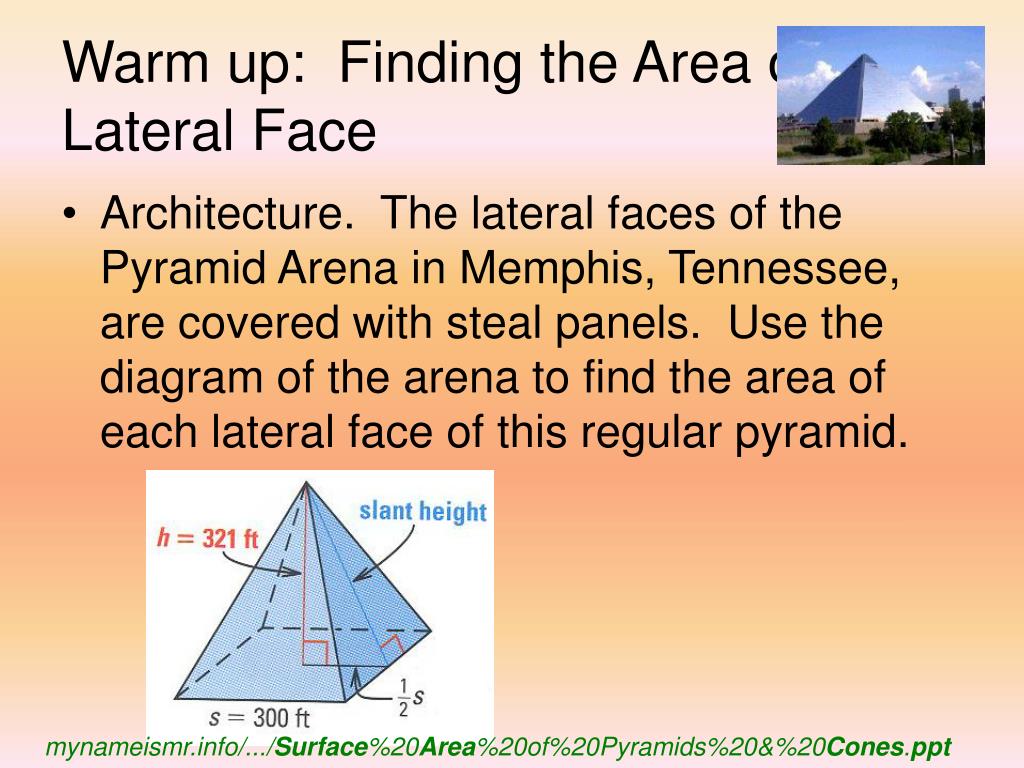

  1. Warm up: Finding the Area of a Lateral Face Architecture. The lateral faces of the Pyramid Arena in Memphis, Tennessee, are covered with steal panels. Use the diagram of the arena to find the area of each lateral face of this regular pyramid. mynameismr.info/.../Surface%20Area%20of%20Pyramids%20&%20Cones.ppt

  2. Pyramid Arena mynameismr.info/.../Surface%20Area%20of%20Pyramids%20&%20Cones.ppt

  3. mynameismr.info/.../Surface%20Area%20of%20Pyramids%20&%20Cones.pptmynameismr.info/.../Surface%20Area%20of%20Pyramids%20&%20Cones.ppt

  4. Surface Area of a Cone Unit 6, Day 4 Ms. Reed With slides from www.cohs.com/.../229_9.3%20Surface%20Area%20of%20Pyramids%20and%20Cones%20C...

  5. A cone has a circular base and a vertex that is not in the same plane as a base. • In a right cone, the height meets the base at its center. • The height of a cone is the perpendicular distance between the vertex and the base. • The slant height of a cone is the distance between the vertex and a point on the base edge. The vertex is directly above the center of the circle. Height Lateral Surface Slant Height r Base r

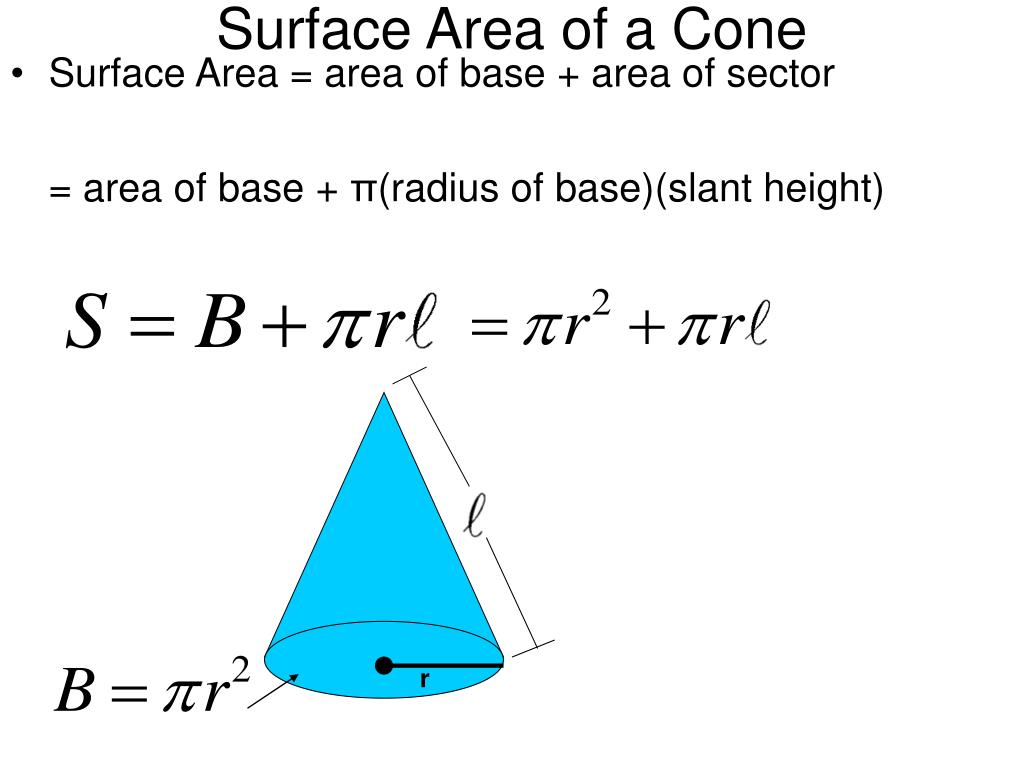

  6. Surface Area of a Cone • Surface Area = area of base + area of sector = area of base + π(radius of base)(slant height) r

  7. L.A. = Lateral Area of a Cone • Since Lateral Area = Surface Area – area of the base

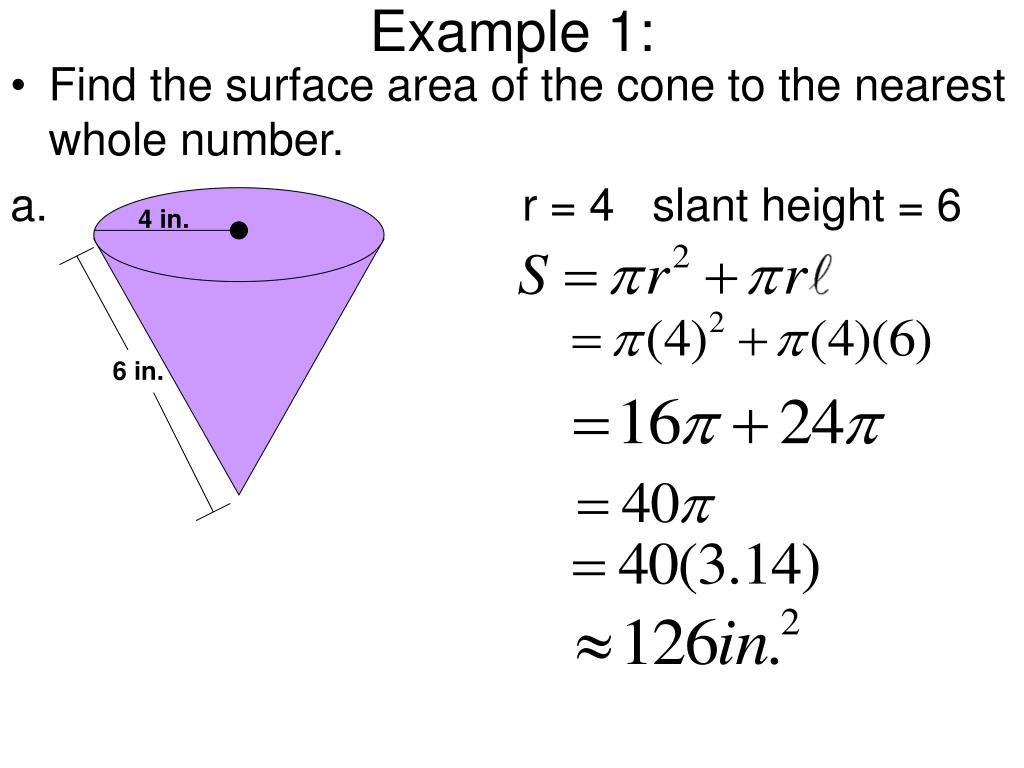

  8. Example 1: • Find the surface area of the cone to the nearest whole number. a. r = 4 slant height = 6 4 in. 6 in.

  9. Example 2: • Find the surface area of the cone to the nearest whole number. b. First, find the slant height. Next, r = 12, 5 ft. 12 ft.

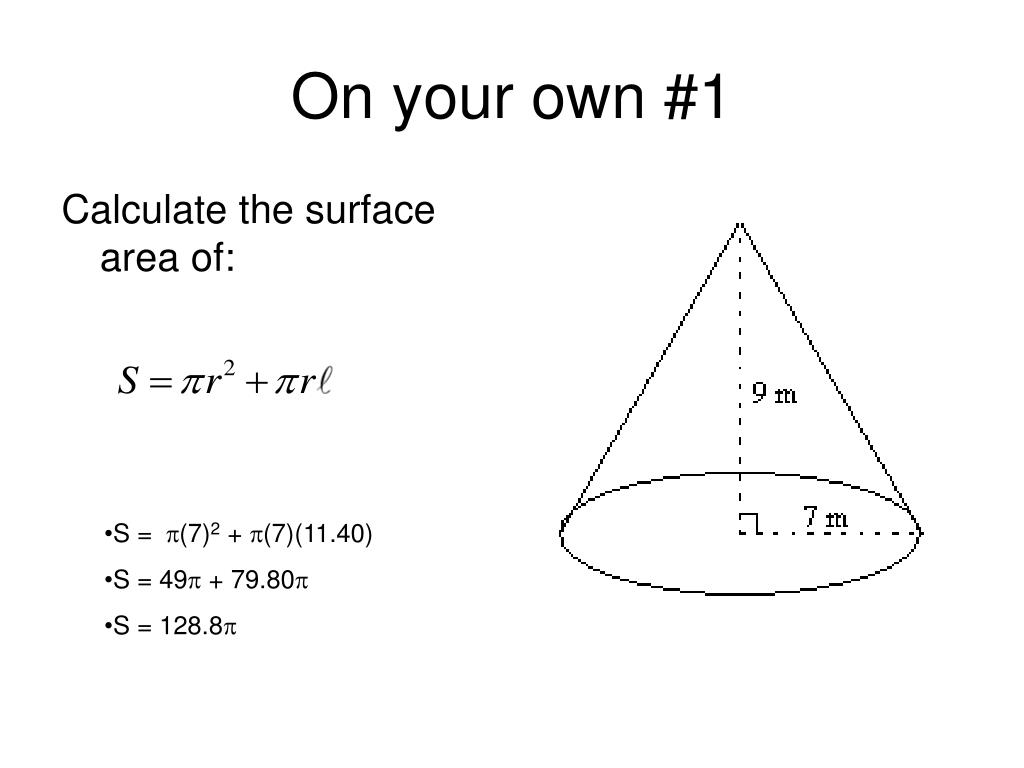

  10. On your own #1 Calculate the surface area of: • S = (7)2 + (7)(11.40) • S = 49 + 79.80 • S = 128.8

  11. L.A. = On your own #2 Calculate the lateral area of: • L.A. = (5)(13) • L.A. = 65

  12. Homework Work Packet: Surface Area of Cones
