Presentation Transcript


July 2011

Series NRX (IZMX) CommunicationDisplay and operate remotely through optional interface modulesMCAM, PCAM, ECAM (Communication Adapter Module)

July 2011

Integrated smart

Communication Interfaces


Supported interfaces

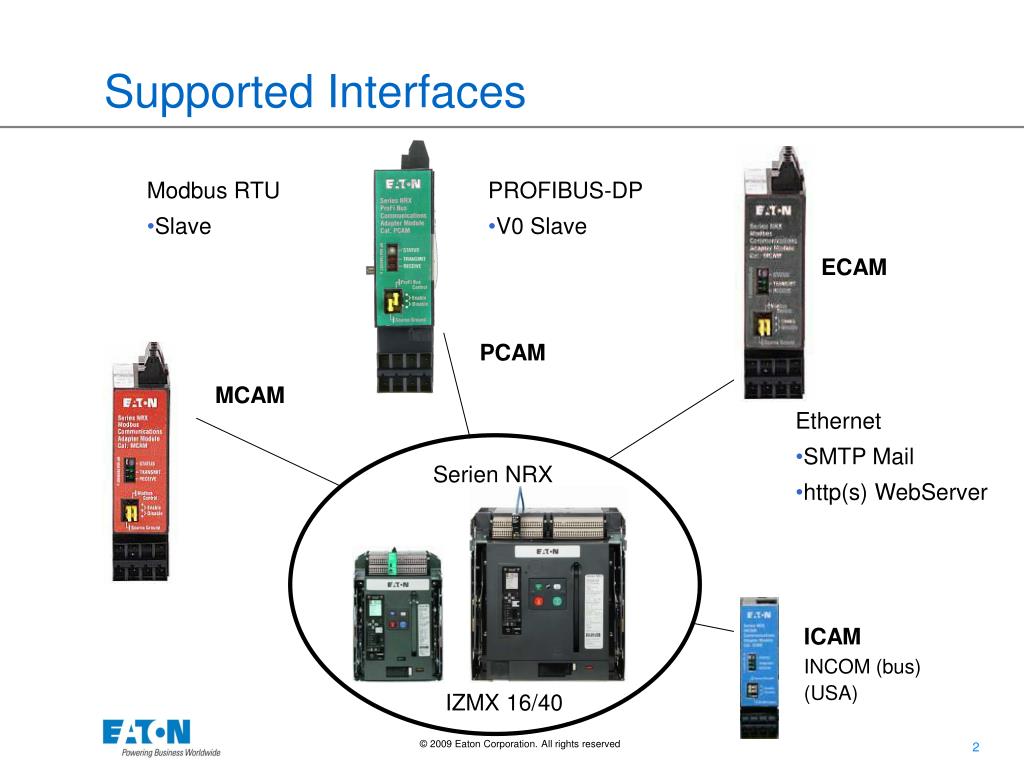

Supported Interfaces

  • Modbus RTU

  • Slave

  • PROFIBUS-DP

  • V0 Slave

ECAM

PCAM

MCAM

  • Ethernet

  • SMTP Mail

  • http(s) WebServer

Serien NRX

ICAM

INCOM (bus)(USA)

IZMX 16/40


Areas of application

Areas of Application

Mechanical Engineering

MOEM

SPS

PROFIBUS-DP

Building /

Power Distribution

EOEM

Energy

monitoring

http (WebServer)

SMTP (mail)

EATON Power Expert System

Control Systems

Process Engineering

Modbus RTU

SPS

OPC


Communication partner

Communication Partner

MCAM

Feldbus Protokolle

PLC or Scada

PCAM

ECAM

Operator

http

SMTP


Overview of data acquisition

Overview of Data Acquisition

Trip Unit

520M 1150

StatusOpen / Closed / TripXX

Warning (Alarm)XX

MeasurementCurrentXX

DataVoltageX

FrequencyX

Power / Energy / HarmonicsX

LoggingAlarmX

(configurable)Event**X

Measurement Data**X

Control Open / Close / Reset After TrippingXX

CommandsARMS*XX

RemoteSet Point Parameters** X

Configuration Logging**X

*not in PCAM **only for ECAM


Schematic

Schematic

Blue = Customer Wiring

Purple = Optional for Remote Control

Bus connection

Power Supply

24V DC

Supply Voltage

Switching Command

Power Supply via Comm Module

Serial Interface

TU

Shunt Trip (Open Coil)

Spring Release

(Close Coil)

Current / Voltage Sensors

Data Processing

Metering Calculation

Protective Function

Open/Closed Sensor


Cam configuration

CAM Configuration

xCAM

All configuration parameters performed locally on the trip unit

no additional software/tools required


Ecam menu structure

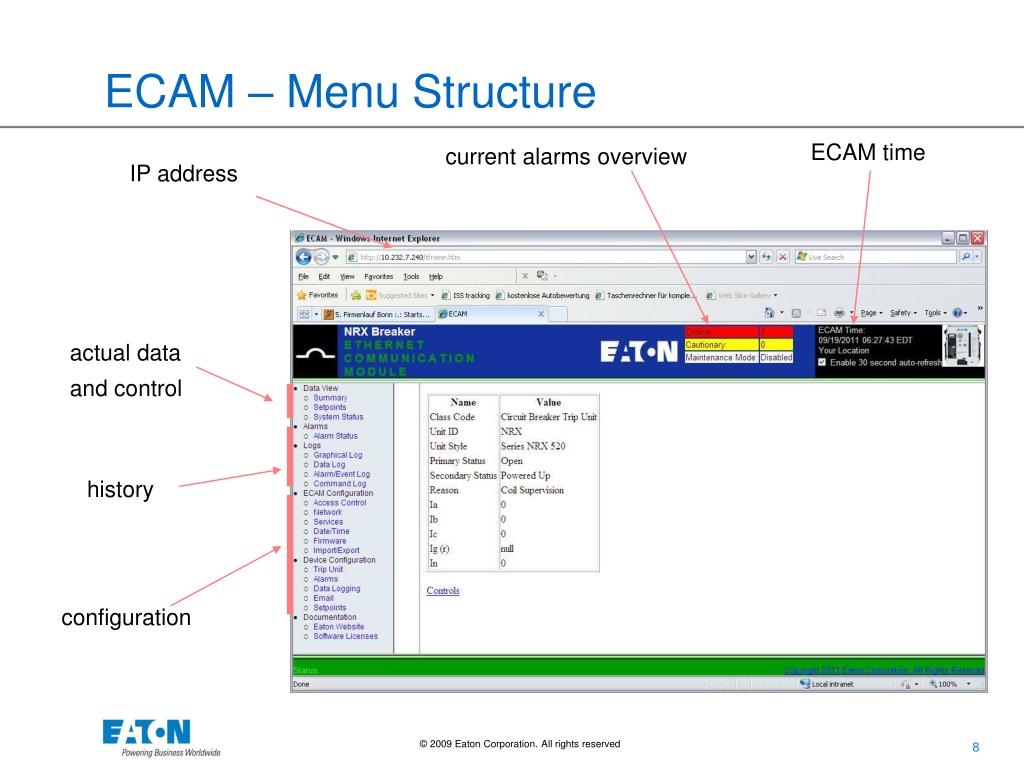

ECAM – Menu Structure

ECAM time

current alarms overview

IP address

actual data

and control

history

configuration


Ecam control commands

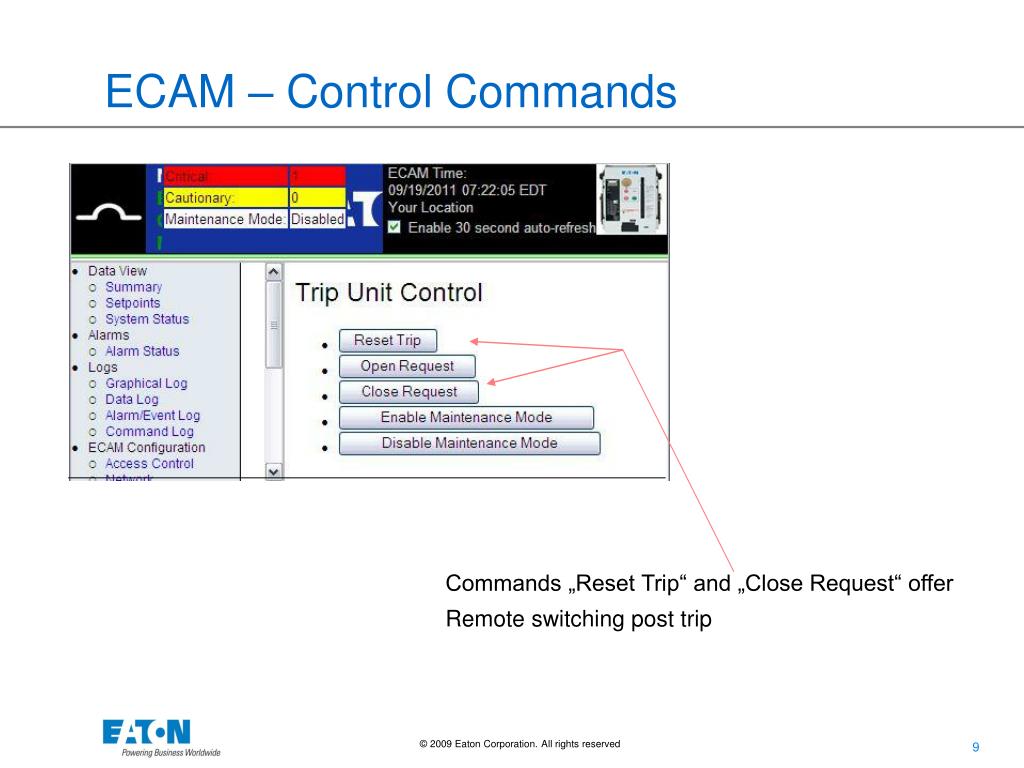

ECAM – Control Commands

Commands „Reset Trip“ and „Close Request“ offer

Remote switching post trip


Demo case for demonstration and test

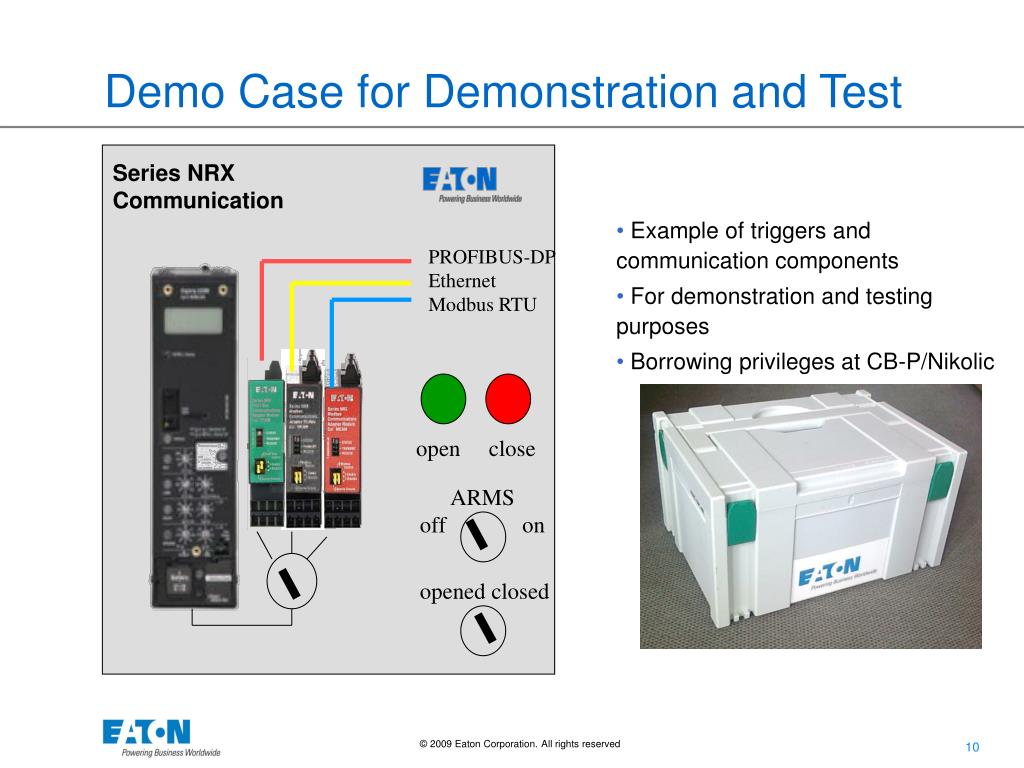

Demo Case for Demonstration and Test

Series NRX

Communication

  • Example of triggers and communication components

  • For demonstration and testing purposes

  • Borrowing privileges at CB-P/Nikolic

PROFIBUS-DP

Ethernet

Modbus RTU

open close

ARMS

offon

opened closed
