Striated muscle cells with T- tubules on the Z lines

1 T-tubule per sarcomere

Skeletal muscle which is faster has 2 per sarcomere

Cells contract in response to an action potential (like skeletal muscle)

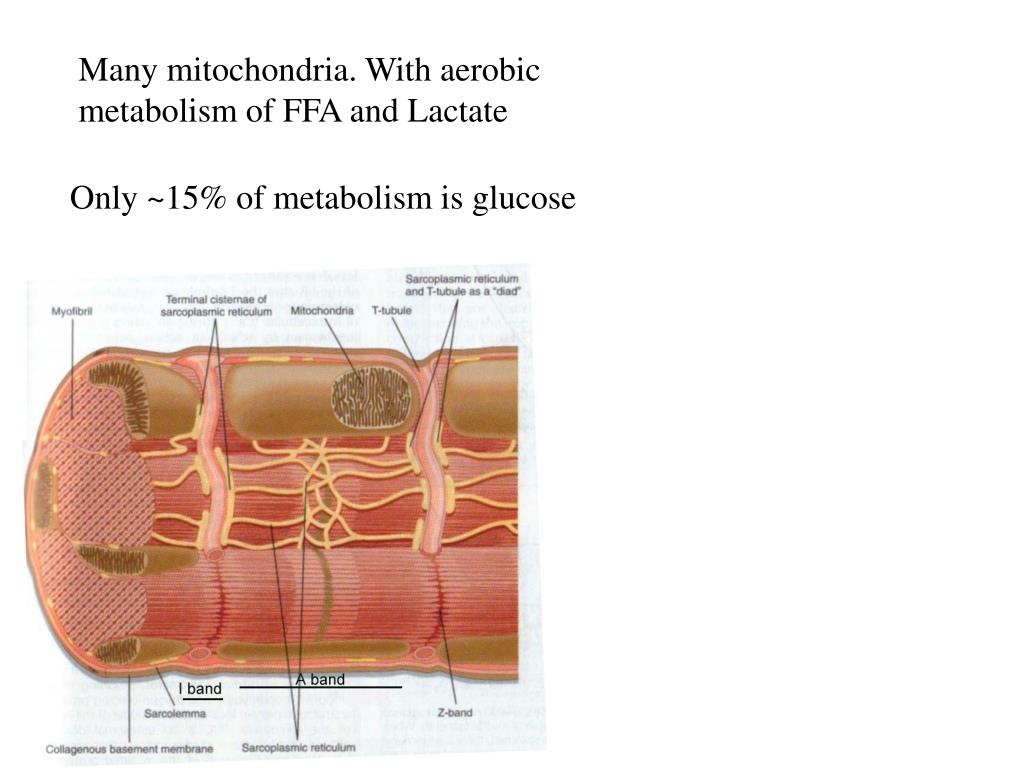

Many mitochondria. With aerobic metabolism of FFA and Lactate

Only ~15% of metabolism is glucose


There are no motor nerves or end plates in the heart Lactate

The beat originates in the cardiac muscle itself. The heart beat is therefore called myogenic (muscle + origin)

Skeletal muscle is Neurogenic


Cells are rich in LactateGap Junctions at the intercalateddiscs

Action potentials are conducted from cell-to- cell through the gap junctions causing every cell in the heart to contract with each beat.

The heart is said to act as a functional syncytium (single cell) even though composed of individual cells

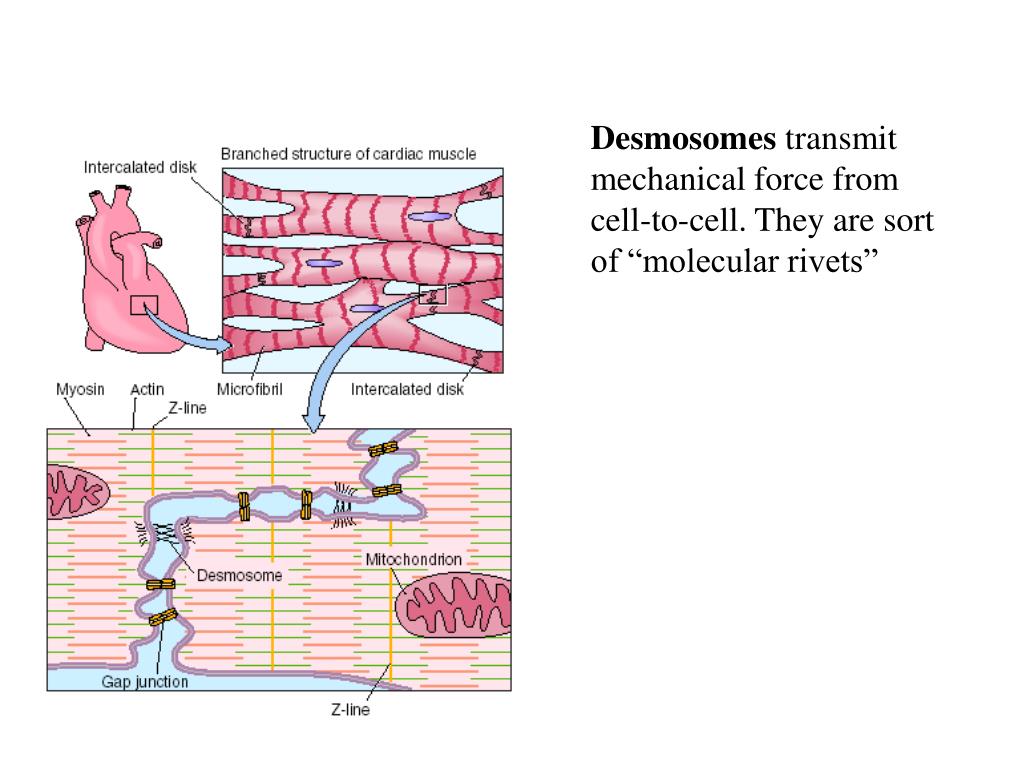

Desmosomes Lactate transmit mechanical force from cell-to-cell. They are sort of “molecular rivets”


Specialized cardiac muscle types Lactate

1. Contractile (found in the Atrium and Ventricle).

3. Conductile (specialized to conduct quickly: Purkinje cells)

4. Nodal (specialized to act as pacemakers or conduct very slowly as in the AV node).


Phase 0 Lactate is the rapid spike due to increased Na+ conductance (it is regenerative thanks tovoltage-gated fast sodium channels).

Phase 1 is the recovery from the overshoot due to closure of Na+ channels and transient opening potassium channels, Ito.


Phase 2 Lactate is the plateau

Due to Ca++ influx through slow (L-type) calcium channels. They are called slow because they stay open for about 300 ms

Prolongs the action potential to 300 ms to maintain force generation and create a long refractory period (see below)


Phase 3 Lactate The repolarization phase is due to increased potassium conductance. Two channel types open, IK (delayed rectifier) and IK1 (inward rectifier)

Phase 4 is the resting potential between beats.



Absolute refractory period action potential.: all inactivation gates are closed no electrical stimulus will elicit another action potential. Runs from phase 0 through most of phase 3.

Because of the refractory periods heart muscle cannot be tetanized.

Relative refractory period: some inactivation gates are open. An action potential can be elicited but a higher stimulus voltage is required and not all channels participate.


Absolute action potential.

Supranormal period: The cells can be restimulated and the threshold is actually lower than normal. Occurs early in phase 4 as some potassium channels close.

S.N.

Rel

This can be source of reentrant arrhythmias especially when phase 3 is delayed as in long Q-T syndrome as their positive afterpotentials fall in the supranormal period and can trigger another action potential.


+ action potential.

K

ATP

Pump

Ex

+

++

Na

+

Ca

Na

Some calcium enters the cell through the slow Ca++ channels during phase 2. This is called Trigger Ca++.

Trigger Ca++ binds to the ryanodine receptors on the sarcoplasmic reticulum (SR).

Extracellular

Fluid

++

Ca

Sarcolemma

L type

channel

Cytosol

++

Ca

Trigger

ATP

SERCA

++

Ca

Sarcoplasmic reticulum

Ryanodine

receptor

Sliding filaments


+ action potential.

K

ATP

Pump

Ex

+

++

Na

+

Ca

Na

Most of the calcium that activates the muscle comes from the SR.

This is termed calcium-induced calcium release.

The Ryanodine receptors are actually Ca++ channels. Calcium binding causes them to open and release Ca++ that is stored in the SR

Extracellular

Fluid

++

Ca

Sarcolemma

L type

channel

Cytosol

++

Ca

Trigger

ATP

SERCA

++

Ca

Sarcoplasmic reticulum

Ryanodine

receptor

Sliding filaments


+ action potential.

K

ATP

Pump

Ex

+

++

++

Na

+

Ca

Ca

Na

After the action potential subsides calcium is pumped back into the SR by a calcium ATPase,called SERCA.

Extracellular

Fluid

++

Ca

Sarcolemma

L type

channel

Cytosol

++

Ca

Trigger

ATP

SERCA

++

Ca

Sarcoplasmic reticulum

Ryanodine

receptor

Sliding filaments


Much of the calcium stored in the SR is bound to action potential.calsequestrin thus increasing the SR’s capacity.

Ca++ has low solubility and would precipitate in the SR without casequestrin.


Calcium is moved out of the cell by the action potential. Na/Ca exchanger. To maintain a steady state as much Ca++ leaves the cell over one cycle as entered. The exchanger gets its energy from the sodium gradient. A small amount of calcium is also pumped out by a sarcolemmal calcium ATPase (pump)

Extracellular

Fluid

++

Ca

+

K

Sarcolemma

ATP

Pump

Ex

L type

channel

Cytosol

+

++

Na

+

Ca

Na

++

Ca

Trigger

ATP

SERCA

++

Ca

Sarcoplasmic reticulum

Ryanodine

receptor

Sliding filaments


Insufficient Ca action potential.++ is released with each action potential to cover all troponin binding sites.

Therefore increasing the cytosolic calcium concentration increases the force of contraction.


Extracellular action potential.

Fluid

++

Ca

+

K

Sarcolemma

ATP

Pump

Ex

L type

channel

Cytosol

+

++

Na

+

Ca

Na

++

Ca

Trigger

ATP

SERCA

++

Ca

Sarcoplasmic reticulum

Ryanodine

receptor

Sliding filaments

Decreasing the sodium gradient by the sodium pump inhibitor digitalis causes less calcium to leave via the exchanger and consequently more to enter the SR. That increases force of contraction


Hearts are very sensitive to serum Ca action potential.++. Low serum calcium results in loss of trigger calcium, low SR calcium and a weak heart beat

The strength of the beat is proportional to the amount of calcium stored in the SR. SERCA competes with surface exchangers for Calcium during phase 4 and anything that promotes more calcium in the SR increases the force of contraction.


Increasing the heart rate causes more calcium to enter per unit time and decreases time spent in phase 4. This causes Ca++ to accumulate in the SR. Hence increasing the heart rate increases force of contraction


Extracellular unit time and decreases time spent in phase 4. This causes Ca

Fluid

++

Ca

+

K

Sarcolemma

ATP

Pump

Ex

L type

channel

Cytosol

+

++

Na

+

Ca

Na

++

Ca

Trigger

ATP

SERCA

++

Ca

Sarcoplasmic reticulum

Ryanodine

receptor

Sliding filaments

Blocking L-Type Calcium channels with nifedipine a dihydropyridine reduces calcium entry with each beat and reduces contractile force.


SERCA which pumps Ca unit time and decreases time spent in phase 4. This causes Ca++ back into the SR is modulated by Phospholamban. Increasing SERCA activity will increase the force of contraction because SR will contain more calcium

Protein kinase A (PKA) phosphorylates both L-type Ca++ channels (opens them) and Phospholamban which in turn increases SERCA activity




Phosphorylating troponin I decreases its calcium affinity causing the muscle to relax faster (lusitrophic effect).


Digitalis increases contractility by retaining calcium. causing the muscle to relax faster (lusitrophic effect).


How can we vary the force of contraction in any striated muscle?

  • Increase the duration of the active state (skeletal only)

  • Increase muscle length

  • Increase contractility (cardiac only)


In skeletal muscle the force generated by a single action potential (twitch) is very small. Force is increased by repetitive stimulation and fusing action potentials together (prolonging the active state).

In cardiac muscle every beat is a twitch with a long refractory period. Temporal summation is not possible


Skeletal muscle AP potential (twitch) is very small. Force is increased by repetitive stimulation and fusing action potentials together (prolonging the active state).

The plateau prolongs the active state in cardiac muscle so that full tension occurs with a single twitch.


How can we vary the force of contraction in any striated muscle?

  • Increase the duration of the active state (skeletal only)

  • Increase muscle length

  • Increase contractility (cardiac only)


Change the muscle?resting muscle length (preload).

As in skeletal muscle the force of contraction is very dependent on the geometry of the overlap between the thick and thin filaments

Starling’s law of the heart: The more the heart is filled during diastole the more forcefully it will contract during systole


The top figure is actually for skeletal muscle because the relaxed tension is still zero at the peak of the contracted curve (Lo). Contrast that to the curve in in the lower panel.

The high passive tension opposes over-filling of the ventricle during diastole.

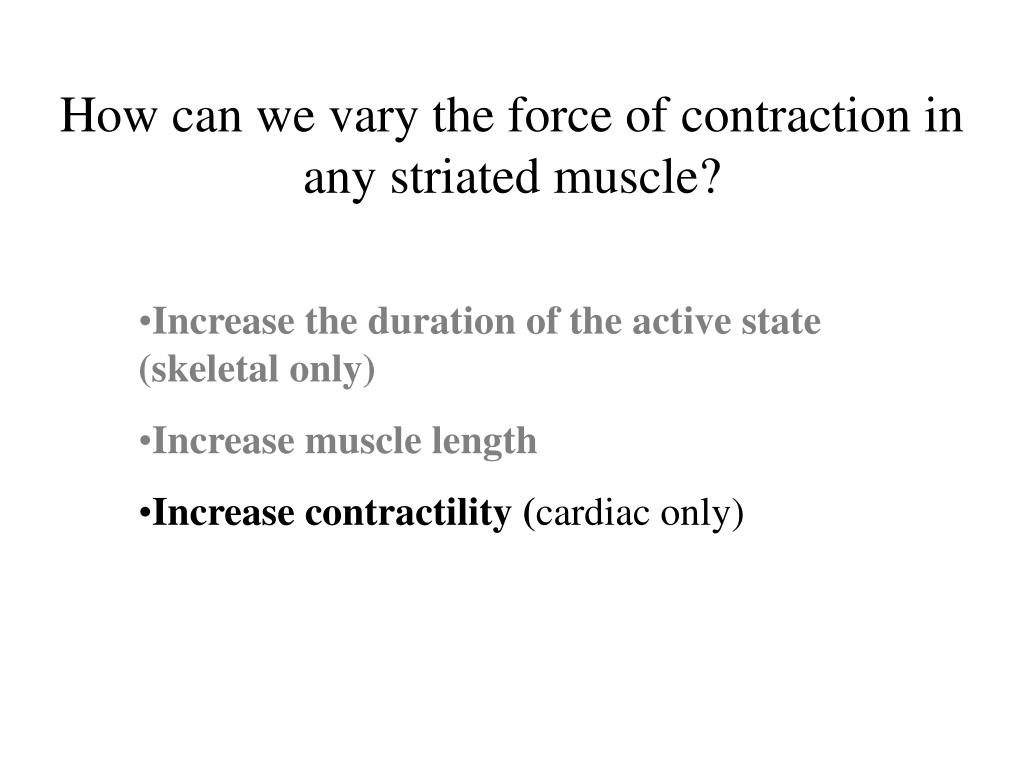

How can we vary the force of contraction in any striated muscle?

  • Increase the duration of the active state (skeletal only)

  • Increase muscle length

  • Increase contractility (cardiac only)


Change the contractility muscle?

A change in contractility is defined as a change in force of contraction not related to a change in length.

A change in contractility can be seen as a shift in the “contracted” curve either up (an increased contractility) or down (a decreased contractility)


Sympatheic nerve muscle? activity is the usual cause of an increased contractility.

Heart failure occurs when contractility is pathologically reduced

Contractility is hard to measure in patients


Isotonic contraction muscle? is where the tension is held constant and the muscle is allowed to shorten

The higher the contractility the more blood will be ejected

The heart contracts in an isotonic manner

4. Contraction

Aortic pressure

Total

3. At this point the ventriclebegins to eject and the contraction becomes isotonic

stops here

125

100

2. Isometric

contraction as

pressure builds

75

stroke

Pressure (mmHg)

1. The ventricle is filled

volume

50

25

Resting

20

40

60

80

100

Volume (ml)

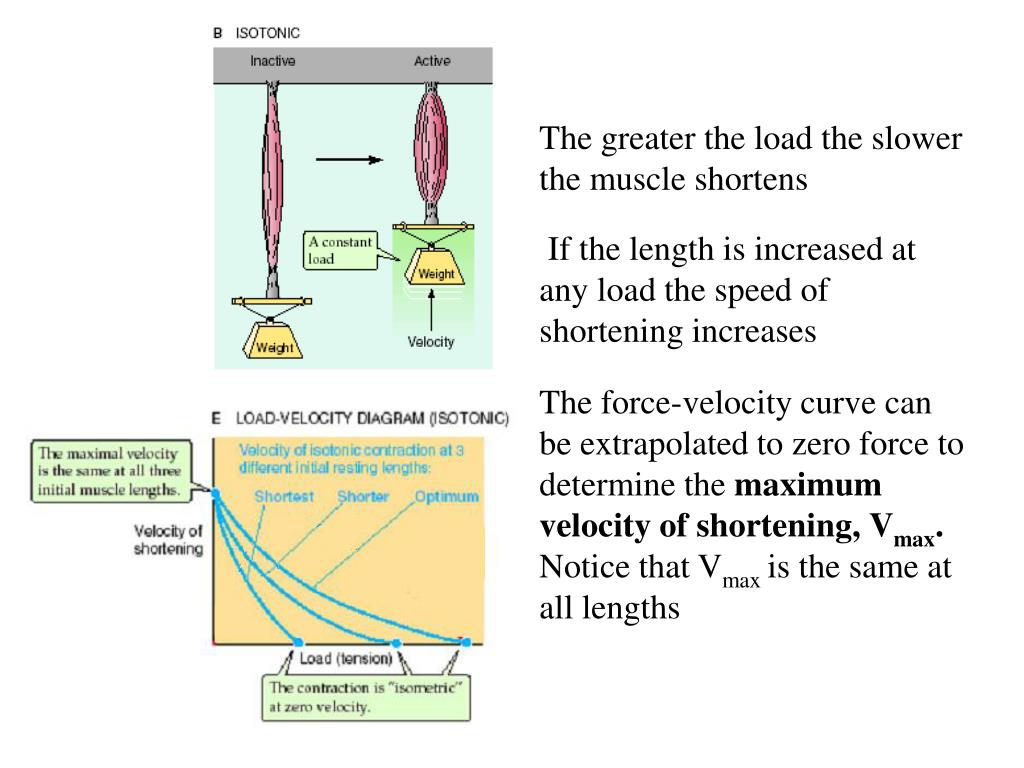

The greater the load the slower the muscle shortens muscle?

If the length is increased at any load the speed of shortening increases

The force-velocity curve can be extrapolated to zero force to determine the maximum velocity of shortening,Vmax. Notice that Vmax is the same at all lengths


Changes in contractility shift the entire curve including the y axis intercept, Vmax

Vmax is a length-independent index of contractility.

Unfortunately Vmax is hard to measure in humans


Optimal load the y axis intercept, V

Power = force x velocity.

The power generated by the heart is a function of its load. Note that there is an optimal load.


There is a tendency for students to treat length tension diagrams as specific for isometric muscles and and force-velocity plots as specific for isotonic muscles.

Actually they are just two sides of the same coin.
