Preparation of rh-Insulin National Reference standard

Preparation of rh-Insulin National Reference standard. National Institute of Biologicals Noida E-mail: info@nib.gov.in. Meeting of the Manufacturer’s March 20, 2009. rh-Insulin Reference Standard. WHY the need

maxine-day
Download Presentation

Preparation of rh-Insulin National Reference standard

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Preparation of rh-Insulin National Reference standard National Institute of Biologicals Noida E-mail: info@nib.gov.in Meeting of the Manufacturer’s March 20, 2009

  2. rh-Insulin Reference Standard WHY the need • There is no National Reference Standard available in our country on rh-Insulin with any metrological trace ability as per ISO guidelines –17511. • The certificate of Analysis also varies from one Manufacturer to another as there are no guidelines and Recommendations laid down for National Reference standard of rh-Insulin incorporated in “ Indian Pharmacopoeia” • International biological standards are the “Primary standards” against which Secondary standards are calibrated. Secondary standards may be - • National standard , • Regional standard, • Working Reference material .

  3. CALIBRATION HIERARCHY & METROLOGICAL TRACEABILITY M E T R O L O G I C A L T R A C E A B I L I T Y International conventional reference measurement procedure by International Scientific organization, WHO a International scientific organization: WHO, NIBSC, USP International conventional Calibrator b Manufacturer’s selected measurement procedure c Manufacturer’s Working calibrator d Manufacturer’s standing measurement procedure e Manufacturer’s Product calibrator f End User’s routine measurement procedure g Manufacturer Or end user Routine Sample h End user RESULT i End user Source ISO 17511-2003, First edition , 2003-08-15

  4. Memorandum of Understanding • All the information of API-bulk material supplied during the study will be treated as confidential and proprietary to the manufacturer’s. • A MoU will be developed between a) NIB , b) Industry and c) IPC • All persons involved herein by signing the agreement confirms that there is no financial or vested commercial interest.

  5. Collaborators in the Study

  6. Steps in establishingNational Reference standard • Incorporation of human Insulin National Reference Standard in IP-Monograph for Human Insulin • Provide collaborators with set of necessary documents • Establish – 3.1Inter laboratory” collaborative study for selecting a Candidate RS material 3.2 coded material to be distributed maintaining confidentiality 33Proficiency testing program based on NABL 162 guidelines

  7. Intended Use • Quantitative uses in assays of rh-insulin bulk & formulation, either by: • Biological methods • Physiochemical method-HPLC • Quantitative uses in Limit tests by Physiochemical method-HPLC • Qualitative uses in Identification tests, system suitability tests, chromatographic peak markers • Method development , evaluation of method performance

  8. Goals of Collaborative study Selection of rh-insulin Candidate material Obtain API-Bulk material from a major manufacturer of rh-insulin Detailed rh-insulin testing Protocol to include elements of : • Type of tests • No of tests • No of collaborators • Elements of validation • No. of replicates • References to the procedure to be used. • Data recording forms for result compilation Material is Calibrated and Characterized, with regular use of CRM Statistical control in design and Analysis of Results Assign Property values and Uncertainties

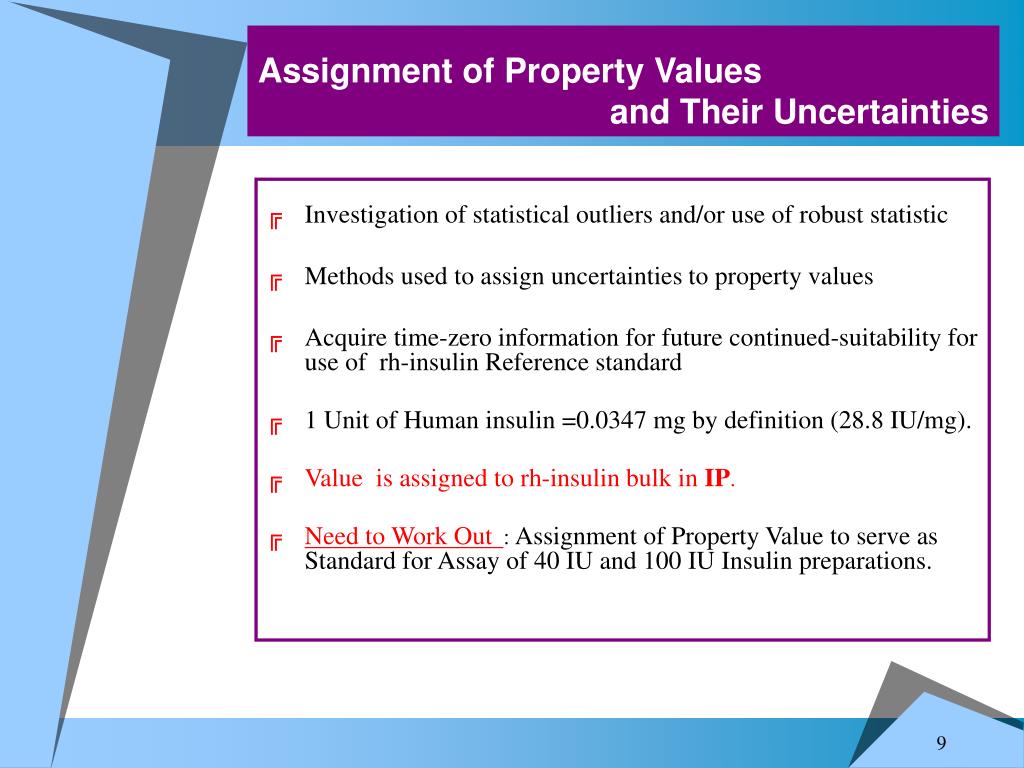

  9. Assignment of Property Valuesand Their Uncertainties • Investigation of statistical outliers and/or use of robust statistic • Methods used to assign uncertainties to property values • Acquire time-zero information for future continued-suitability for use of rh-insulin Reference standard • 1 Unit of Human insulin =0.0347 mg by definition (28.8 IU/mg). • Value is assigned to rh-insulin bulk in IP. • Need to Work Out: Assignment of Property Value to serve as Standard for Assay of 40 IU and 100 IU Insulin preparations.

  10. Lead Role of Collaborators Calibrationtest as per requirements of IP-2007 & USP Characterization test on Candidate Reference material as per requirements of IP- 2007 & USP Characterization IdentificationRP-HPLC Peptide map Purity % related compounds RP-HPLC % insulin aggregates SE-HPLC

  11. Work Progress in the study • NIB has received rh-insulin working Ref material from Four manufacturer's • Material received : • powder and liquid form • 4 vials or ampoules from each • Certificate information from 3 manufacturer • NIB has initiated Calibration using: • Certified Ref material-NIBSC & USP • Method –Potency , USP, EP as per Manufacturer CoA • Method –Potency -IP not given in Manufacturer’s CoA

  12. CERTIFICATE INFORMATION from rh-insulin Reference Material Producers

  13. Recommending a Strategy

  14. THANK YOU
