  1. Great Lakes Reflector IRLP ref9610 Owner: KB8ZGL - Mike Admin: K8SN - Sam

  2. Location • Located just south of Grand Rapids in Byron Center, MI. • Housed in state of the art Fiber Network Operations Center for West MI • Network and rack provided by FreedomNet Solutions

  3. Fiber Network • The Great Lakes Reflector is connected via dual GB Fiber links • BGP routing via Charter, Level3, USS and others • Direct connection to Global Crossing for outside the US connections

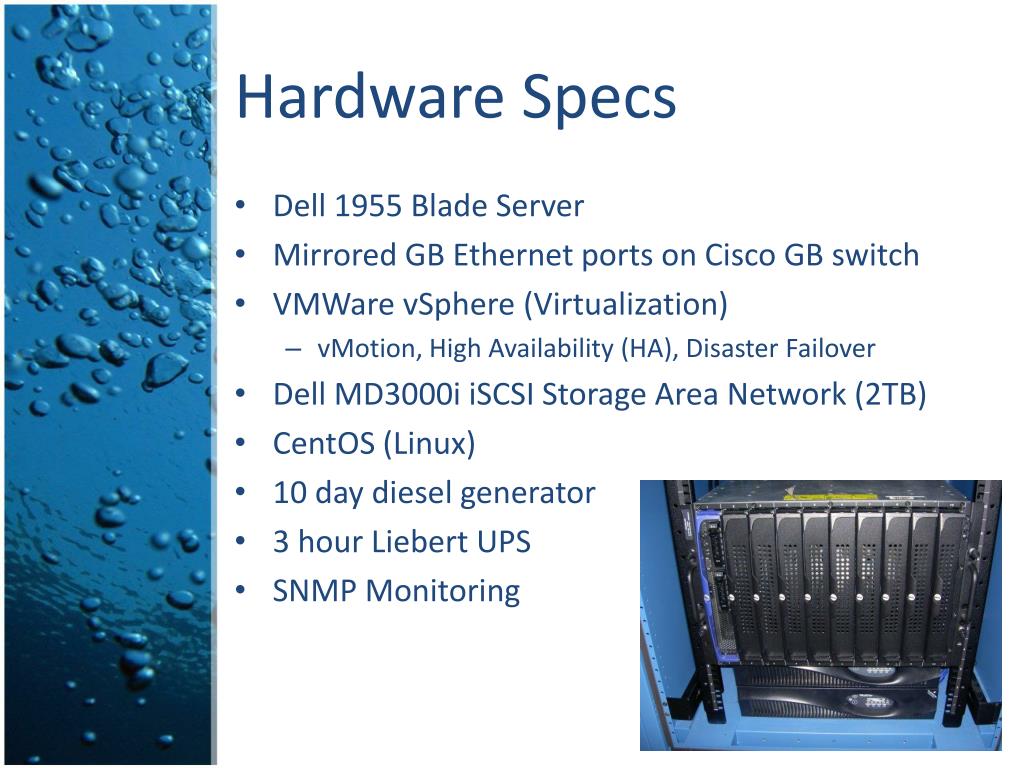

  4. Hardware Specs • Dell 1955 Blade Server • Mirrored GB Ethernet ports on Cisco GB switch • VMWare vSphere (Virtualization) • vMotion, High Availability (HA), Disaster Failover • Dell MD3000i iSCSI Storage Area Network (2TB) • CentOS (Linux) • 10 day diesel generator • 3 hour Liebert UPS • SNMP Monitoring

  5. Channel Assignments http://ref9610.irlp.net • 9610 – Open Ragchew (English) • 9611 – Nets • Say Good Morning with Radio Net (Daily 1500UTC) • IRLP Open Forum Net (Fridays 0100UTC) • The Friendly Manitoba Net (Wednesdays 0100UTC) • 9612 – Florida Hurricane and Skywarn (when active) • 9613 – Kentucky IRLP Reflector Channel • 9614 – South CARS – integrated Echolink *SCARS* - voip.southcars.com • Full Net (Sat 1300-1500UTC) / Pacific Coast Connection (Sat 1700-1800UTC) • Eurasia Connection (Sat 1800-1900UTC) / Australia Connection (Sat 2100-2200UTC) • Traders Net (Sun 1500-1600UTC & Wed 1500-1600UTC) • TNT Open Forum (Fri 0100UTC) • 9615 – Society of Broadcast Engineers (SBE) – www.sbe.org/IRLP.php • 9616 – West Michigan linked repeaters • 9617 – Michigan Channel – integrated Echolink *MICHIGAN* • Upper Peninsula Net(Sun 2000EST) / Michigan IRLP Link-up Net (Tues 0100UTC) • 9618 – Alaska Channel – integrated Echolink *ALASKA* • 9619 – General Ragchew and extended one-time events (English)

  6. Additional Uses • Virtualized Server Environment • Integrated Echolink conference server • *MICHIGAN*, *ALASKA*, *SCARS*, *WMPORN* • Dstar Reflector ref004 (http://ref004.dstargateway.org) • Channel A – Experimental (Analog audio present) / Backup SouthEastern Weather • Channel B – Texas Dstar Permalink Repeaters • Channel C – Ragchew (English) / Digital with GPS position monitoring • Dstar Reflector xrf004 • IRLP exp0042 – experimental technologies • Streaming Audio Server (ShoutCast) • Webserver (Apache and mysql) • Custom written channel sysop control pages and user listings

  7. Mike Wolthuis – KB8ZGL kb8zgl@kb8zgl.net ???QUESTIONS???
