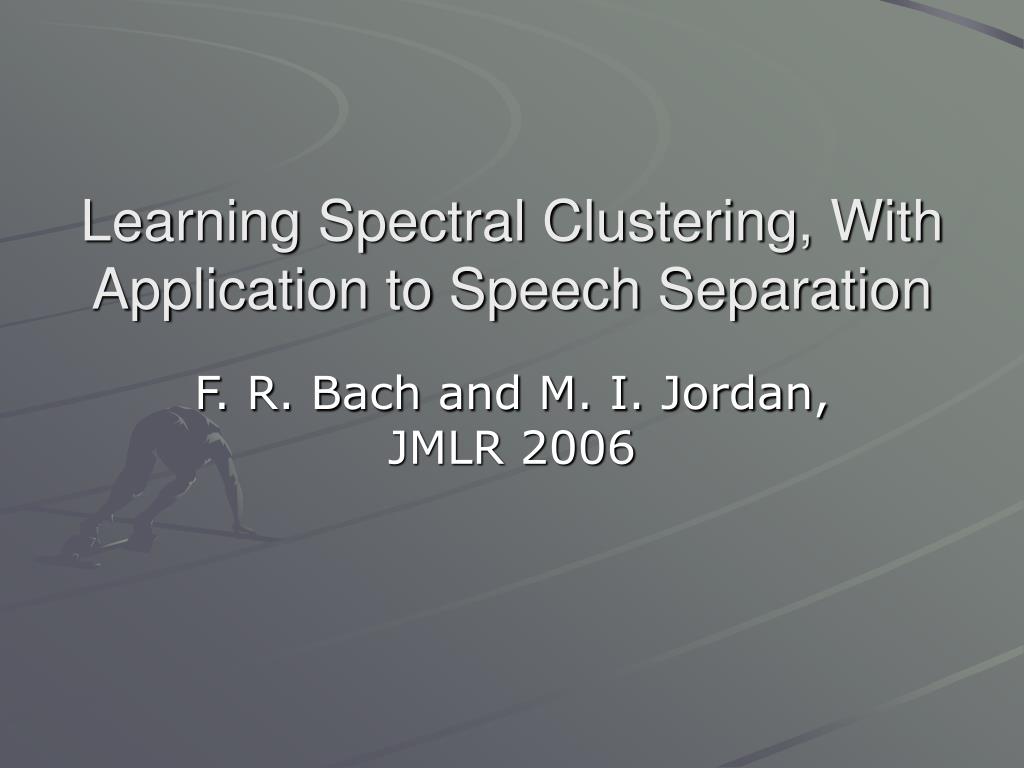

  1. Learning Spectral Clustering, With Application to Speech Separation F. R. Bach and M. I. Jordan, JMLR 2006

  2. Outline • Introduction • Normalized cuts -> Cost functions for spectral clustering • Learning similarity matrix • Approximate scheme • Examples • Conclusions

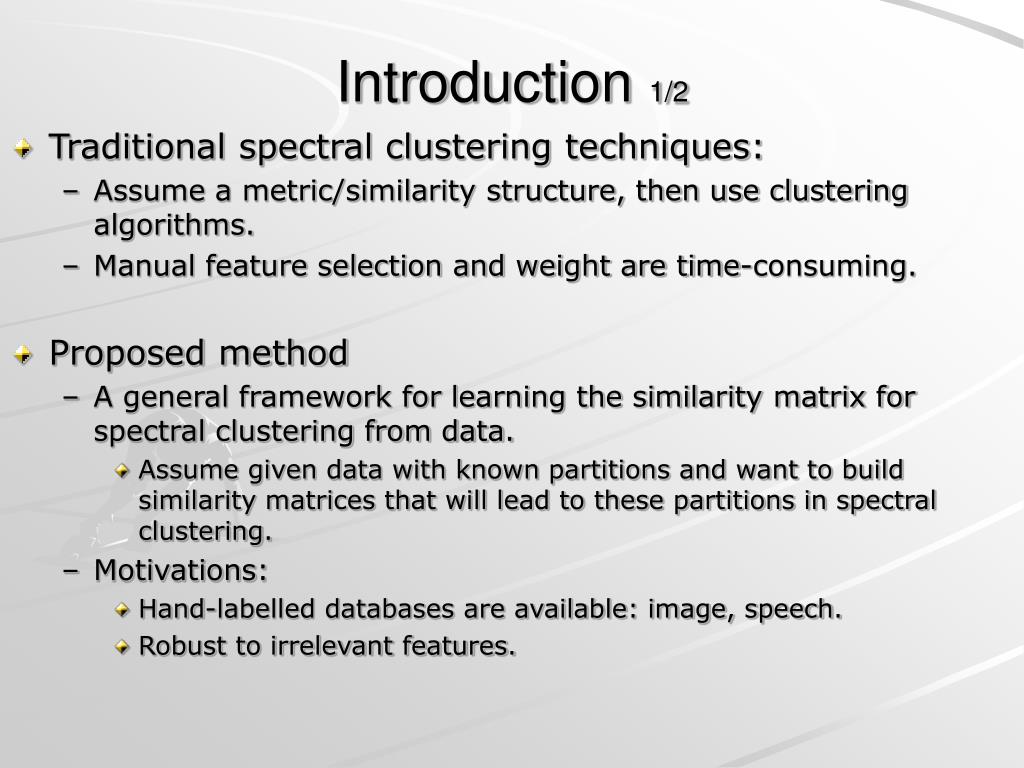

  3. Introduction 1/2 • Traditional spectral clustering techniques: • Assume a metric/similarity structure, then use clustering algorithms. • Manual feature selection and weight are time-consuming. • Proposed method • A general framework for learning the similarity matrix for spectral clustering from data. • Assume given data with known partitions and want to build similarity matrices that will lead to these partitions in spectral clustering. • Motivations: • Hand-labelled databases are available: image, speech. • Robust to irrelevant features.

  4. Introduction 2/2 • What’s new? • Two cost functions J1(W, E), J2(W, E), W: similarity matrix, E: a partition. • MinEJ1 New clustering algorithms; • MinW J1  learning the similarity matrix; • W is not necessarily positive semidefinite; • Design numerical approximation scheme for large scale.

  5. Spectral Clustering & NCuts 1/4 • R-way Normalized Cuts • Each data point is one node in a graph, the weight on the edge connecting two nodes is the similarity of those two. • A graph is partitioned into R disjoint clusters by minimizing the normalized cut, cost function, C(A, W), • V={1,…,P}, index set of all data points • A={Ar}rЄ{1,…,R}, Union of Ar=V. • is total weight between A and B. • , normalized term penalizes unbalanced partition.

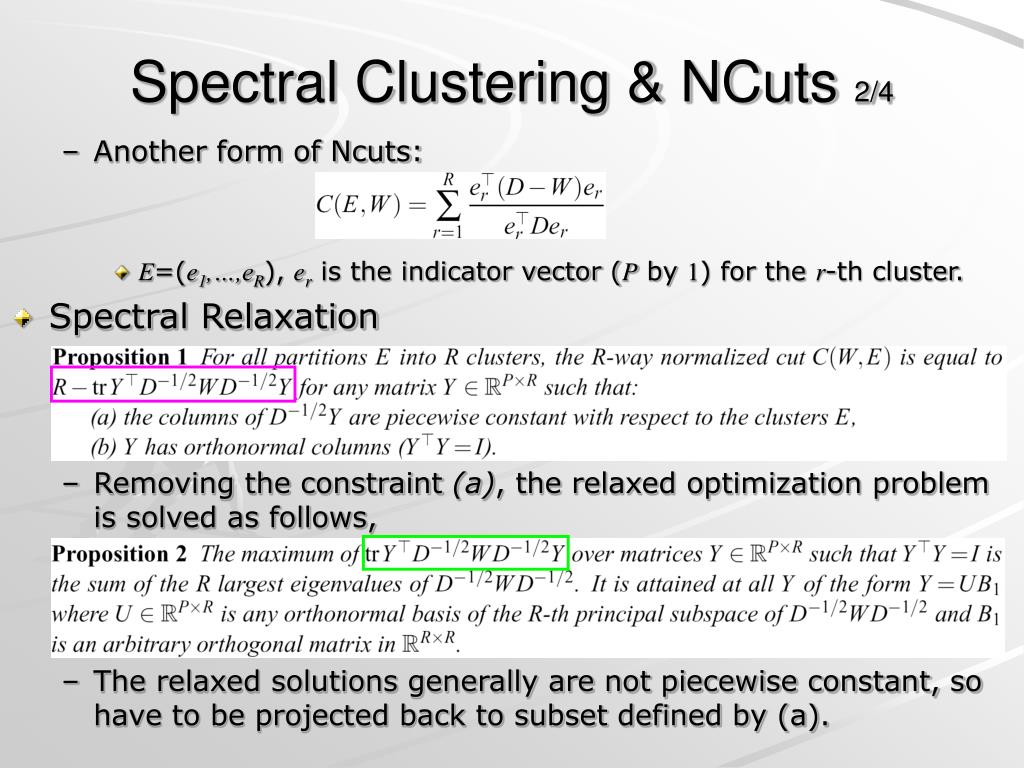

  6. Spectral Clustering & NCuts 2/4 • Another form of Ncuts: • E=(e1,…,eR), er is the indicator vector (P by 1) for the r-th cluster. • Spectral Relaxation • Removing the constraint (a), the relaxed optimization problem is solved as follows, • The relaxed solutions generally are not piecewise constant, so have to be projected back to subset defined by (a).

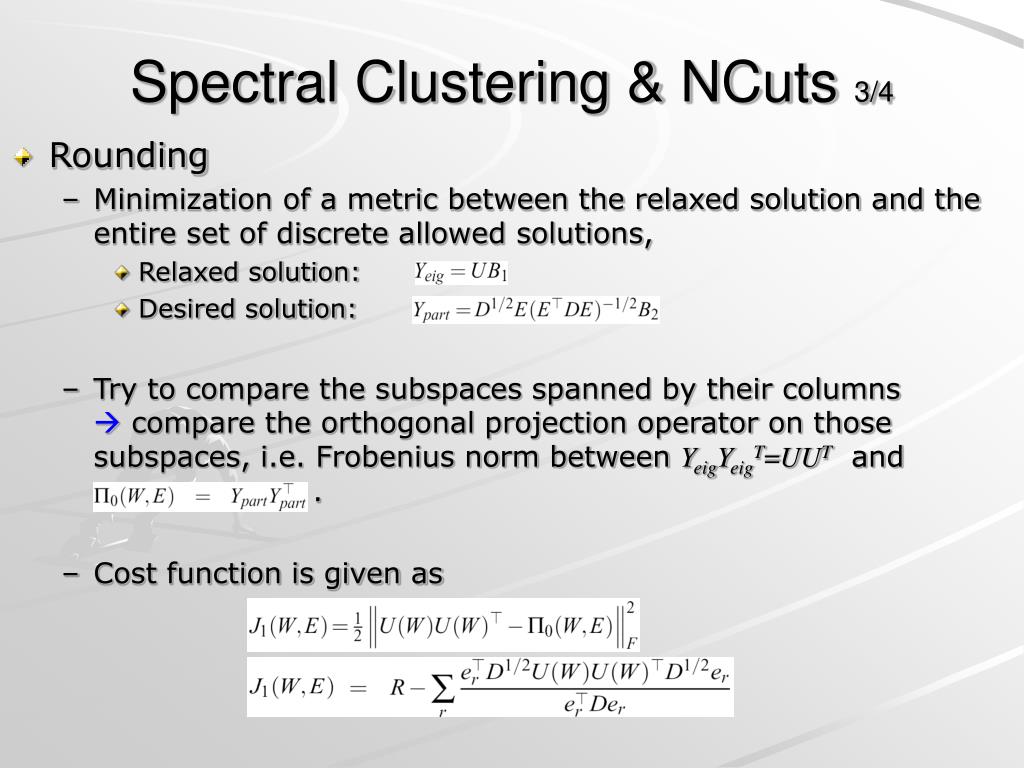

  7. Spectral Clustering & NCuts 3/4 • Rounding • Minimization of a metric between the relaxed solution and the entire set of discrete allowed solutions, • Relaxed solution: • Desired solution: • Try to compare the subspaces spanned by their columns compare the orthogonal projection operator on those subspaces, i.e. Frobenius norm between YeigYeigT=UUT and. • Cost function is given as

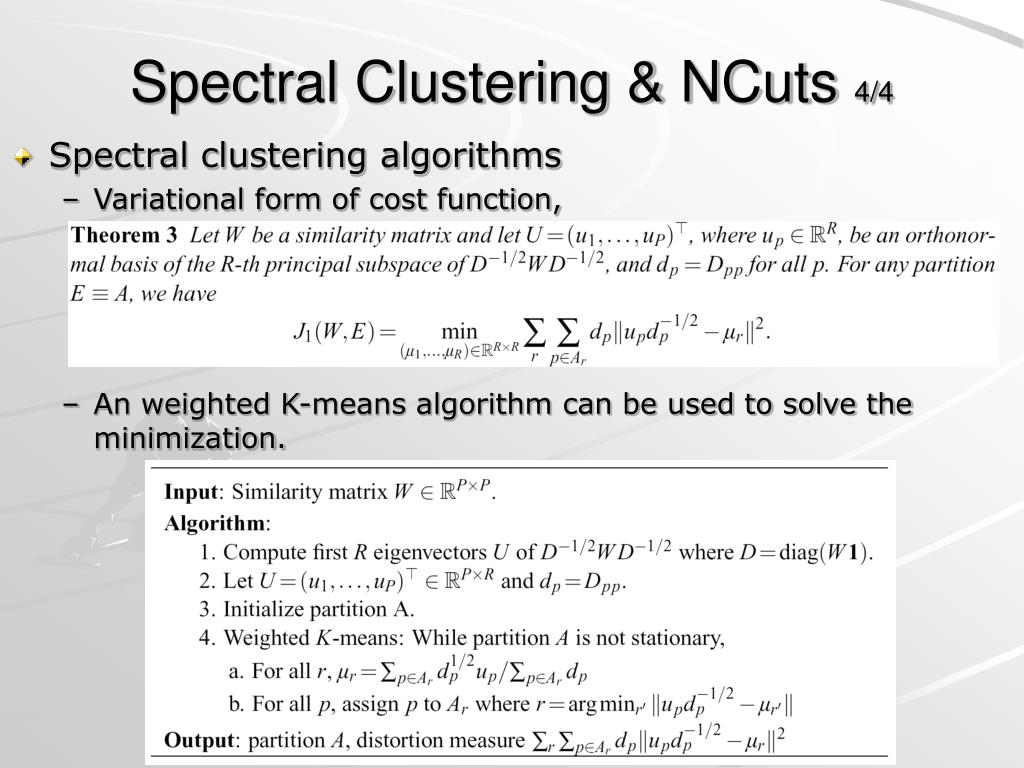

  8. Spectral Clustering & NCuts 4/4 • Spectral clustering algorithms • Variational form of cost function, • An weighted K-means algorithm can be used to solve the minimization.

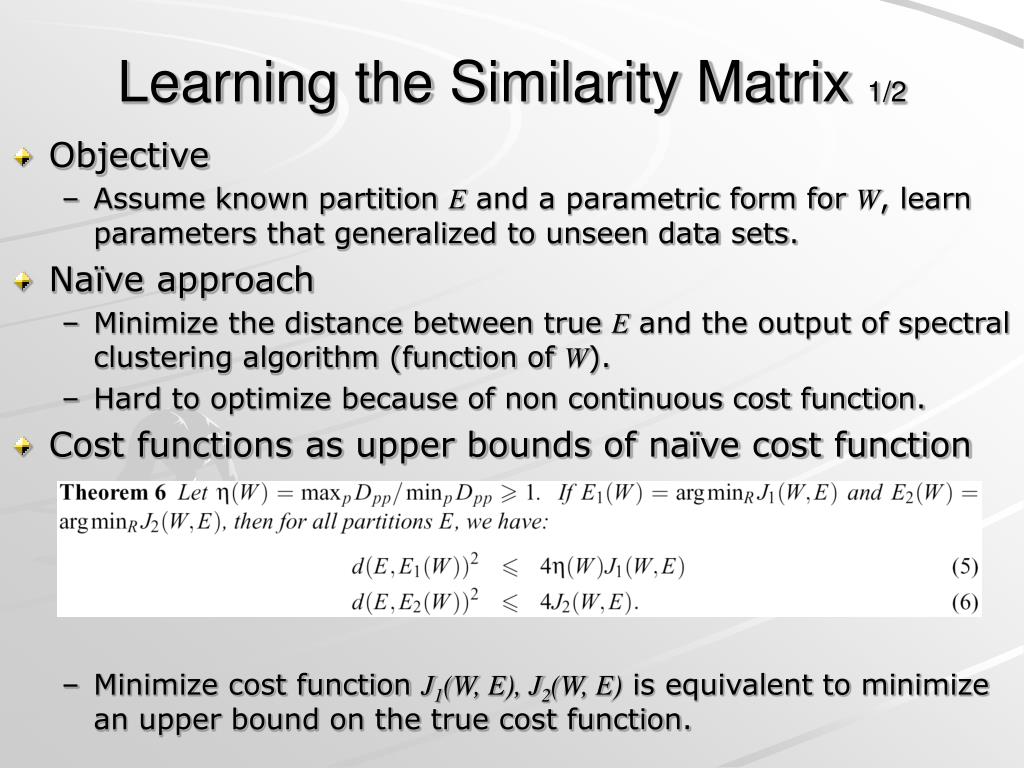

  9. Learning the Similarity Matrix 1/2 • Objective • Assume known partition E and a parametric form for W, learn parameters that generalized to unseen data sets. • Naïve approach • Minimize the distance between true E and the output of spectral clustering algorithm (function of W). • Hard to optimize because of non continuous cost function. • Cost functions as upper bounds of naïve cost function • Minimize cost function J1(W, E), J2(W, E) is equivalent to minimize an upper bound on the true cost function.

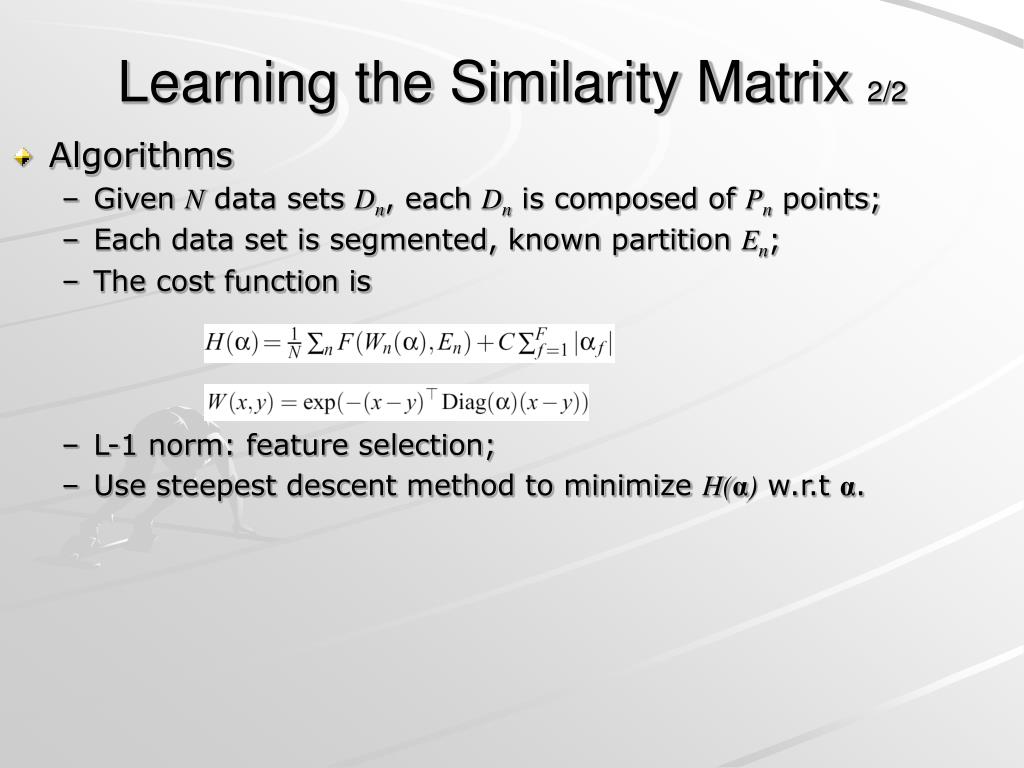

  10. Learning the Similarity Matrix 2/2 • Algorithms • Given N data sets Dn, each Dn is composed of Pn points; • Each data set is segmented, known partition En; • The cost function is • L-1 norm: feature selection; • Use steepest descent method to minimize H(α) w.r.t α.

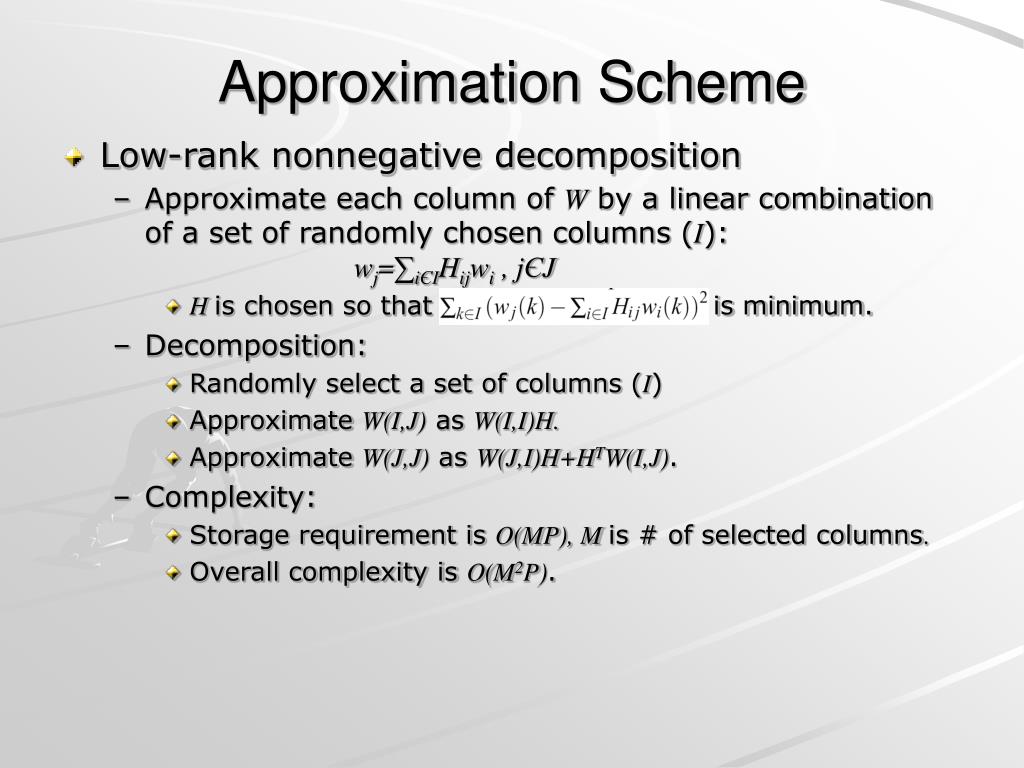

  11. Approximation Scheme • Low-rank nonnegative decomposition • Approximate each column of W by a linear combination of a set of randomly chosen columns (I):wj=∑iЄIHijwi , jЄJ • H is chosen so that is minimum. • Decomposition: • Randomly select a set of columns (I) • Approximate W(I,J) as W(I,I)H. • Approximate W(J,J) as W(J,I)H+HTW(I,J). • Complexity: • Storage requirement is O(MP), Mis # of selected columns. • Overall complexity is O(M2P).

  12. Toy Examples

  13. Line Drawings Training set 1 Favor connectedness Training set 2 Favor direction continuity Examples of testing segmentation trained with Training set 2 Examples of testing segmentation trained with Training set 1

  14. Conclusions • Two sets of algorithms are presented – one for spectral clustering and one for learning the similarity matrix. • Minimization of a single cost function w.r.t. its two arguments leads to these algorithms. • The approximation scheme is efficient. • New approach is more robust to irrelevant features than current methods.
