Investigating tundra and taiga biomes with remote sensing

Investigating Tundra and Taiga Biomes with Remote Sensing

Jessica Robin

SSAI/NASA/GSFC

Photo courtesy of M. K. Raynolds


Outline of presentation

Photo – M. K. Raynolds

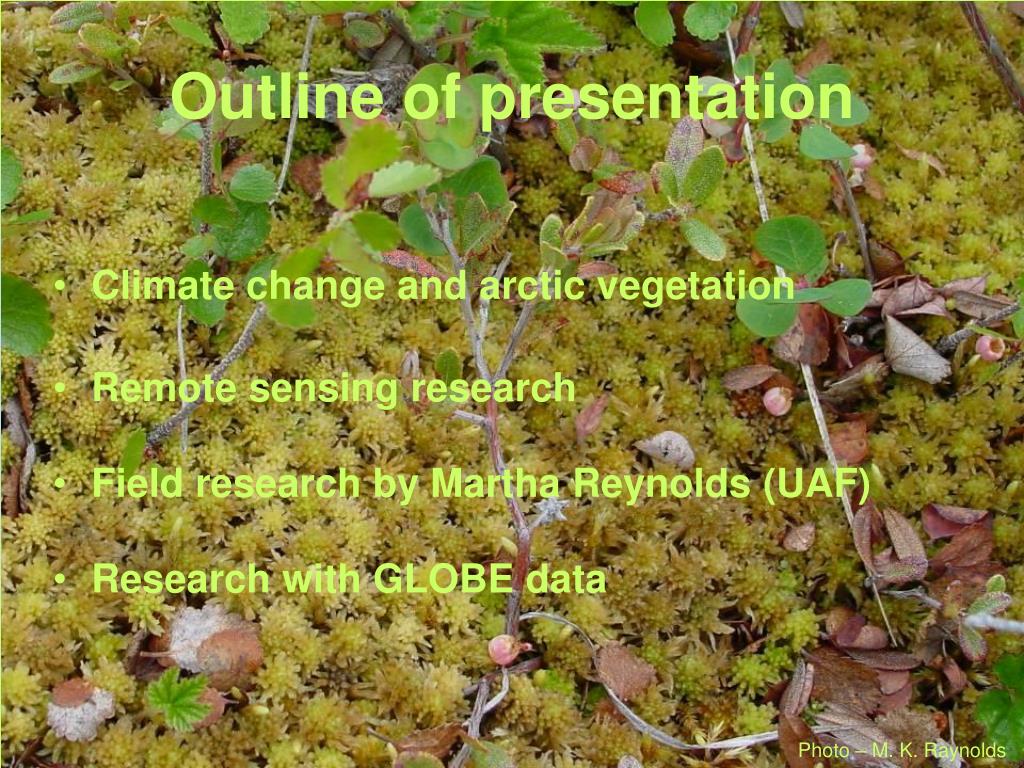

Outline of presentation

  • Climate change and arctic vegetation

  • Remote sensing research

  • Field research by Martha Reynolds (UAF)

  • Research with GLOBE data


Investigating tundra and taiga biomes with remote sensing

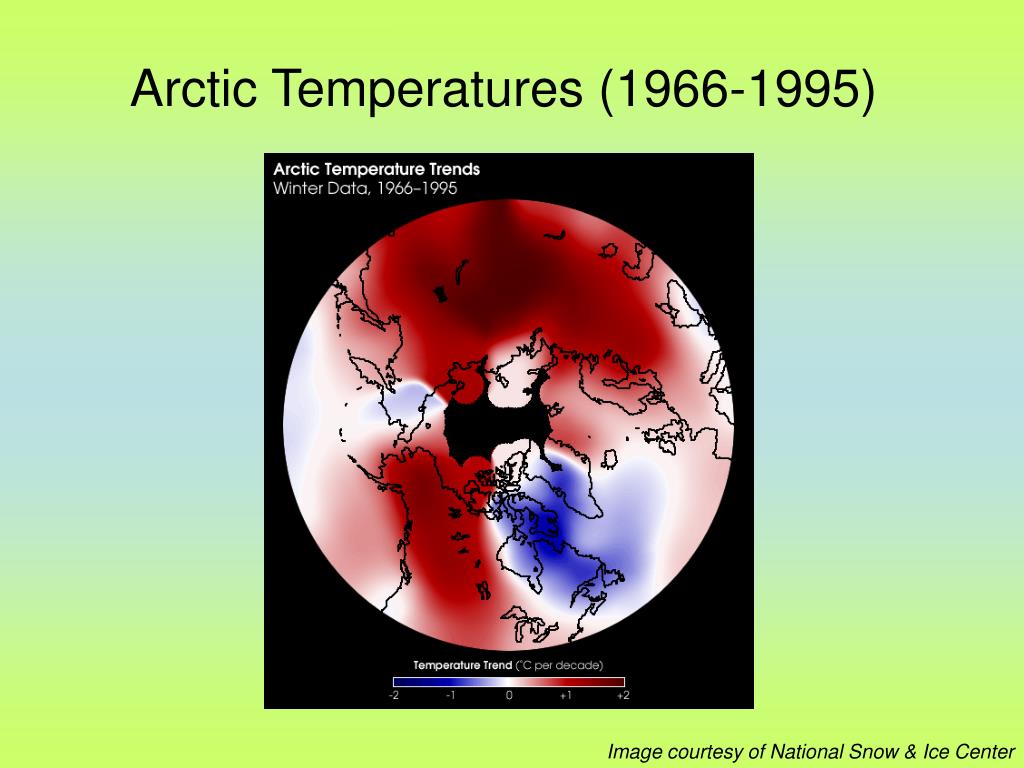

Arctic Temperatures (1966-1995)

Image courtesy of National Snow & Ice Center


2001 temperatures compared to 1950 to 1981 normal temperatures

2001 temperatures compared to 1950 to 1981 “normal” temperatures

Image courtesy of Goddard Institute of Space Science


Investigating tundra and taiga biomes with remote sensing

Northern Greening (1981-1999)

Image courtesy of Liming Zhou, Boston University


Arctic climate impact assessment

Photo – D. A. Walker

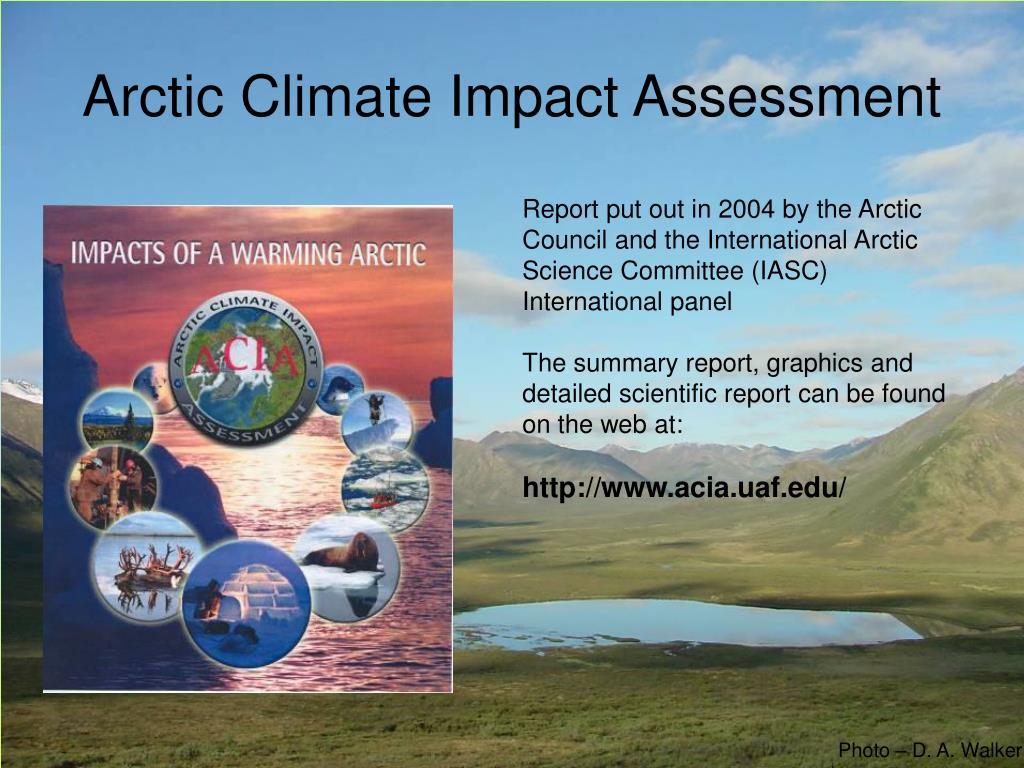

Arctic Climate Impact Assessment

Report put out in 2004 by the Arctic Council and the International Arctic Science Committee (IASC)International panel

The summary report, graphics and detailed scientific report can be found on the web at:

http://www.acia.uaf.edu/


Key findings of the acia regarding vegetation

Key Findings of the ACIA regarding vegetation

Arctic vegetation zones are very likely to shift causing wide-ranging impacts.

  • Treeline is expected to move northward and to higher elevations, with forest replacing a significant fraction of existing tundra, and tundra vegetation moving into polar deserts.

  • More productive vegetation is likely to increase carbon uptake, although reduced reflectivity of the land is likely to outweigh this, causing further warming.

  • Disturbances such as insect outbreaks and forest fires are very likely to increase in frequency, severity and duration, facilitating invasion by non-native species.

  • Where suitable soils are present, agriculture will have the potential to expand northward due to a longer and warmer growing season.


Remote sensing research

Remote Sensing Research


Investigating tundra and taiga biomes with remote sensing

1991

1992

1993

Goetz et al. 2005 summary of 1981-2003 trends in AVHRR NDVI

Strong Positive

Positive

Near Zero

Negative

Strong Negative

1994

1995

1996

1997

1998

1999

High

Low

Time-integrated NDVI

Jia and Epstein

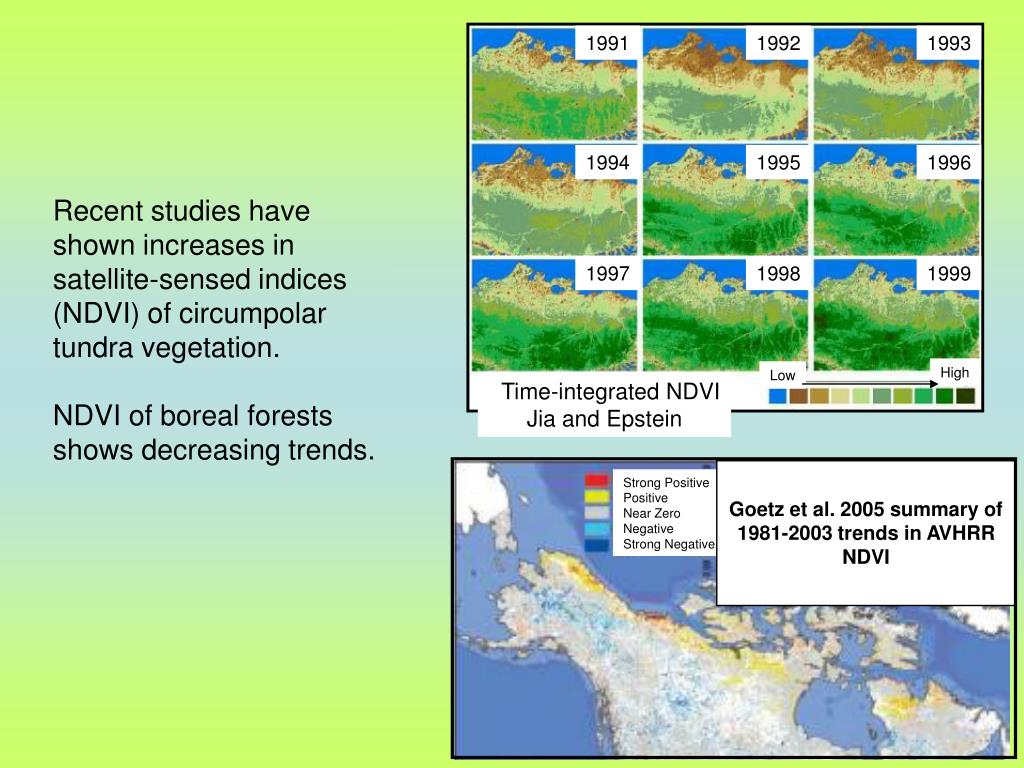

Recent studies have shown increases in satellite-sensed indices (NDVI) of circumpolar tundra vegetation.

NDVI of boreal forests shows decreasing trends.


The spring season has started earlier and max ndvi has increased

The spring season has started earlier and max NDVI has increased

  • NDVI trends for the forested and tundra regions, broken down by six-year intervals.

  • The forested areas show a recent decline in the maximum NDVI.

  • Tundra regions have shown a continued increase in NDVI and a marked 10-day shift toward earlier onset of greening.

  • There is no corresponding shift in the cessation of the greening period.

10% increase in NDVI

10-day spring shift in growing season length

Goetz et al. 2005. PNAS,102: 13521-13525


Changes in arctic shrubs

(Sturm et al. 2001)

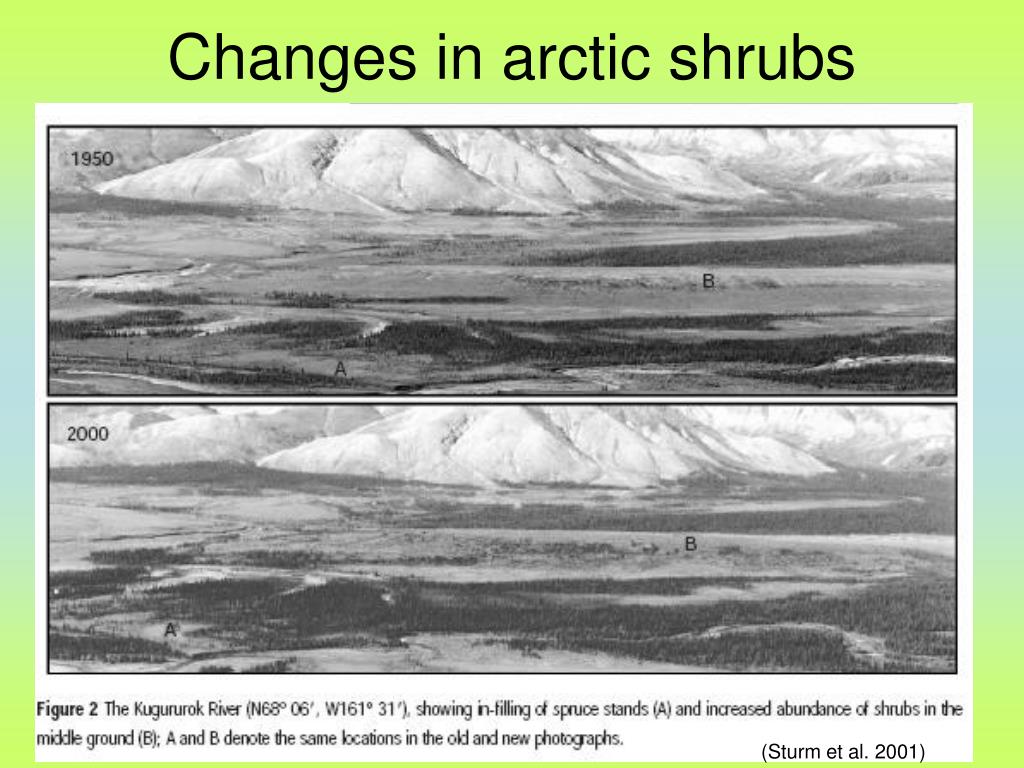

Changes in arctic shrubs


Investigating tundra and taiga biomes with remote sensing

Yukon Flats National Wildlife Refuge, Riordan et al. 2006 JGR

Shrinking lakes due to warmer temperatures leading to changes in permafrost and more evaporation affects vegetation.


Investigating tundra and taiga biomes with remote sensing

Community changes in ITEX experiment after 6 years

  • Satellite data show changes

  • Greenhouse warming experiments show changes

  • but very few studies have been able to document changes occurring to undisturbed tundra

Open-top chamber

Control


Field research

Field Research


Current research by martha k raynolds university of alaska fairbanks

Current research by Martha K. Raynolds University of Alaska Fairbanks

  • Trying to measure existing tundra vegetation conditions in enough detail and in enough places that future changes due to climate change can be measured.


Investigating tundra and taiga biomes with remote sensing

Greenland

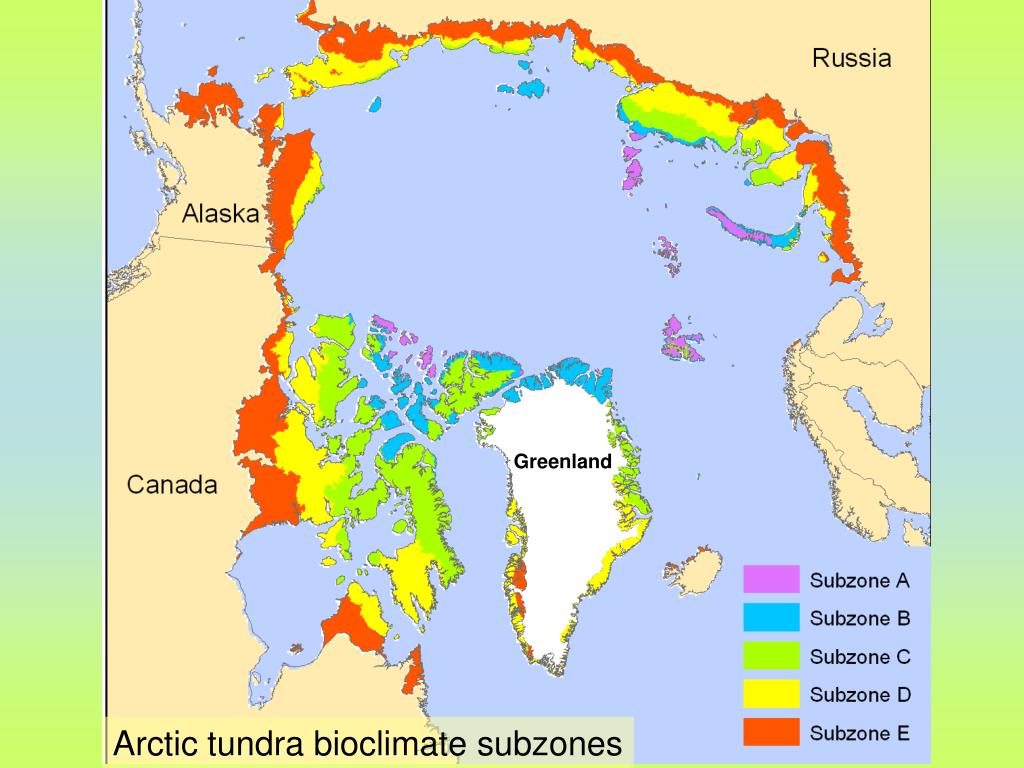

Arctic tundra bioclimate subzones


Investigating tundra and taiga biomes with remote sensing

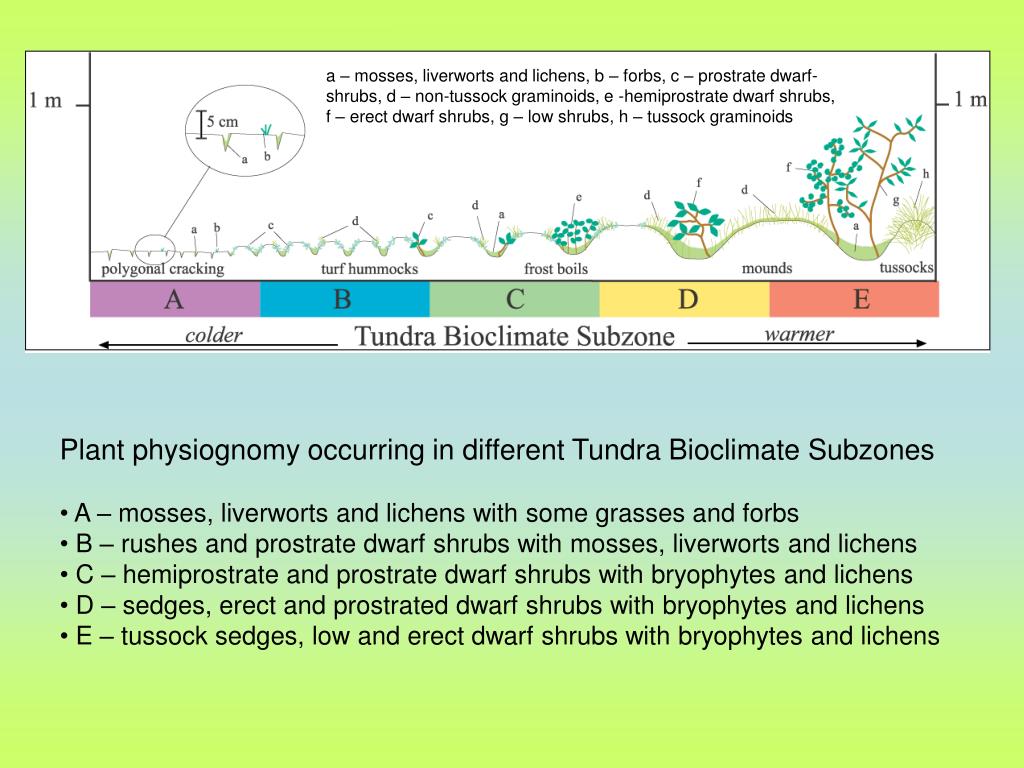

a – mosses, liverworts and lichens, b – forbs, c – prostrate dwarf-shrubs, d – non-tussock graminoids, e -hemiprostrate dwarf shrubs, f – erect dwarf shrubs, g – low shrubs, h – tussock graminoids

  • Plant physiognomy occurring in different Tundra Bioclimate Subzones

  • A – mosses, liverworts and lichens with some grasses and forbs

  • B – rushes and prostrate dwarf shrubs with mosses, liverworts and lichens

  • C – hemiprostrate and prostrate dwarf shrubs with bryophytes and lichens

  • D – sedges, erect and prostrated dwarf shrubs with bryophytes and lichens

  • E – tussock sedges, low and erect dwarf shrubs with bryophytes and lichens


Investigating tundra and taiga biomes with remote sensing

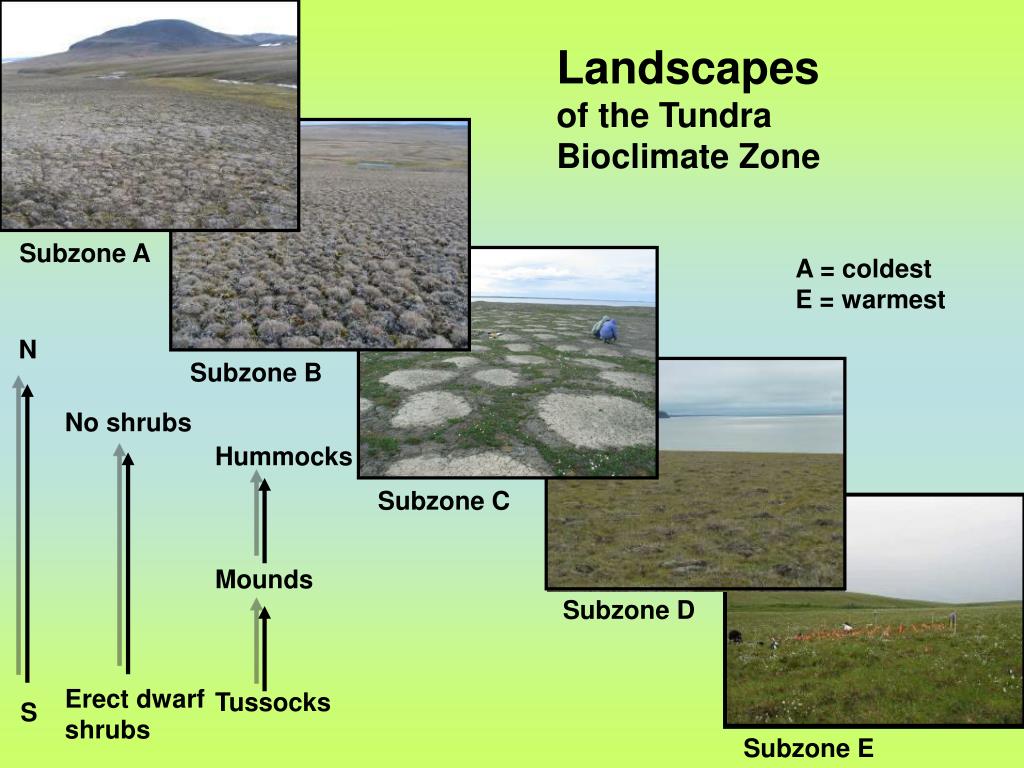

Landscapes

of the Tundra Bioclimate Zone

Subzone A

A = coldest

E = warmest

N

Subzone B

No shrubs

Erect dwarf

shrubs

Hummocks

Mounds

Tussocks

Subzone C

Subzone D

S

Subzone E


Research with globe data

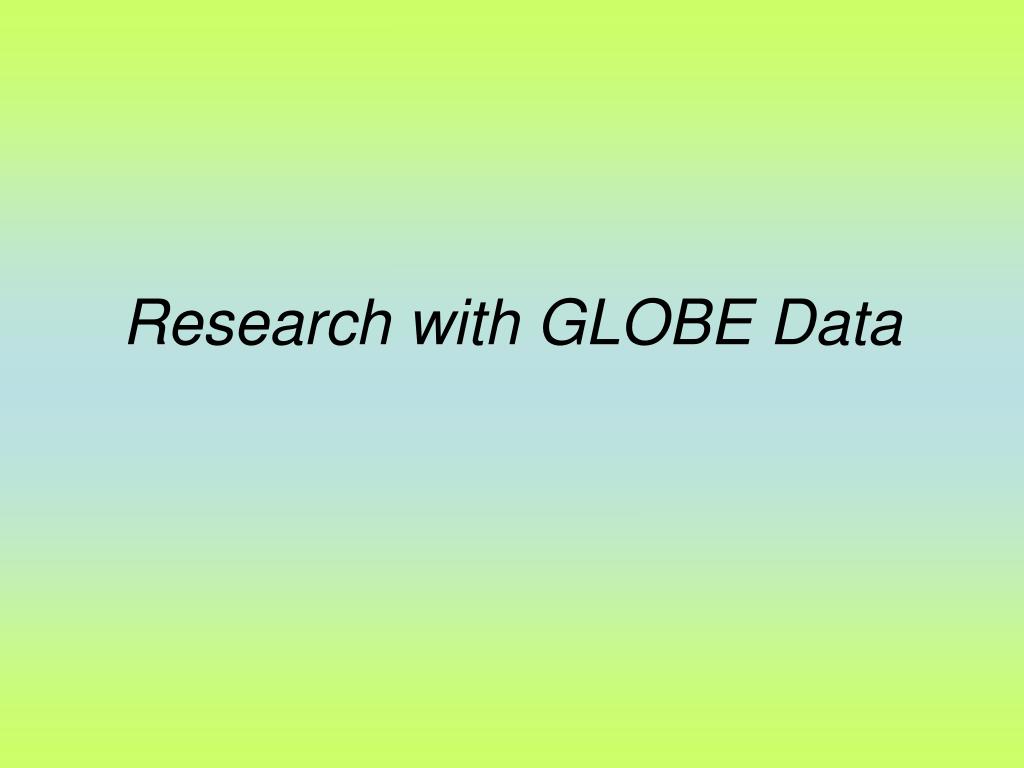

Research with GLOBE Data


Monitoring vegetation phenology with globe data

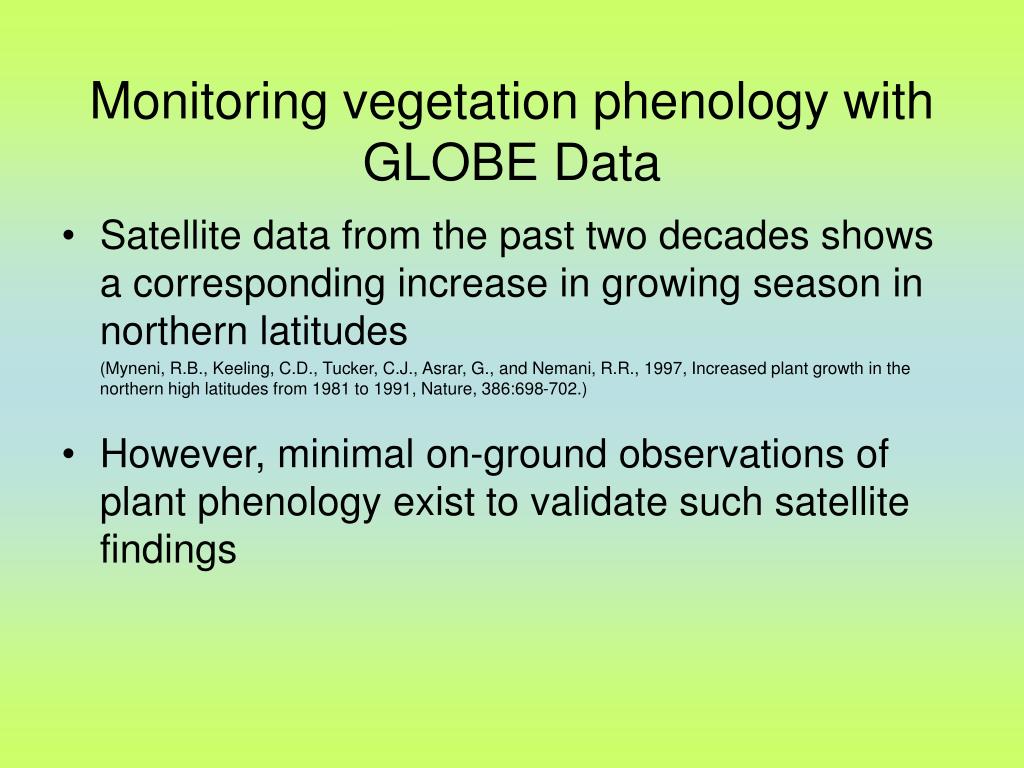

Monitoring vegetation phenology with GLOBE Data

  • Satellite data from the past two decades shows a corresponding increase in growing season in northern latitudes

    (Myneni, R.B., Keeling, C.D., Tucker, C.J., Asrar, G., and Nemani, R.R., 1997, Increased plant growth in the northern high latitudes from 1981 to 1991, Nature, 386:698-702.)

  • However, minimal on-ground observations of plant phenology exist to validate such satellite findings


Objectives

OBJECTIVES

  • Analyze the efficacy of phenology monitoring using GLOBE and satellite derived vegetation indices from AVHRR and MODIS data

  • Compare AVHRR and MODIS data


Investigating tundra and taiga biomes with remote sensing

GLOBE SCHOOLS

10 Schools

Elementary-High School

Public, Charter, Private, Home

Anchorage area (3)

Fairbanks area (7)

Lat: 61.17° – 64.85° N

Lon: 147.52°-149.41° W


Field measurements

FIELDMEASUREMENTS

Birch

  • Students made observations & measurements (2001-2004)

    • budburst, green-up, leaf growth & green down

    • research focused on budburst and green-up

  • Trees/Shrubs: Betula, Populus, Salix

    (Viereck, Leslie, A. and Little, Elbert L. Jr. 1972. Alaska Trees and Shrubs. Agriculture Handbook No. 410. Forest Service, USDA, Washington D.C)

Poplar

Willow

GLOBE Students, Alaska

Photo courtesy of Cheryl Pratt and Elena Sparrow, U of Alaska Fairbanks


Satellite data avhrr

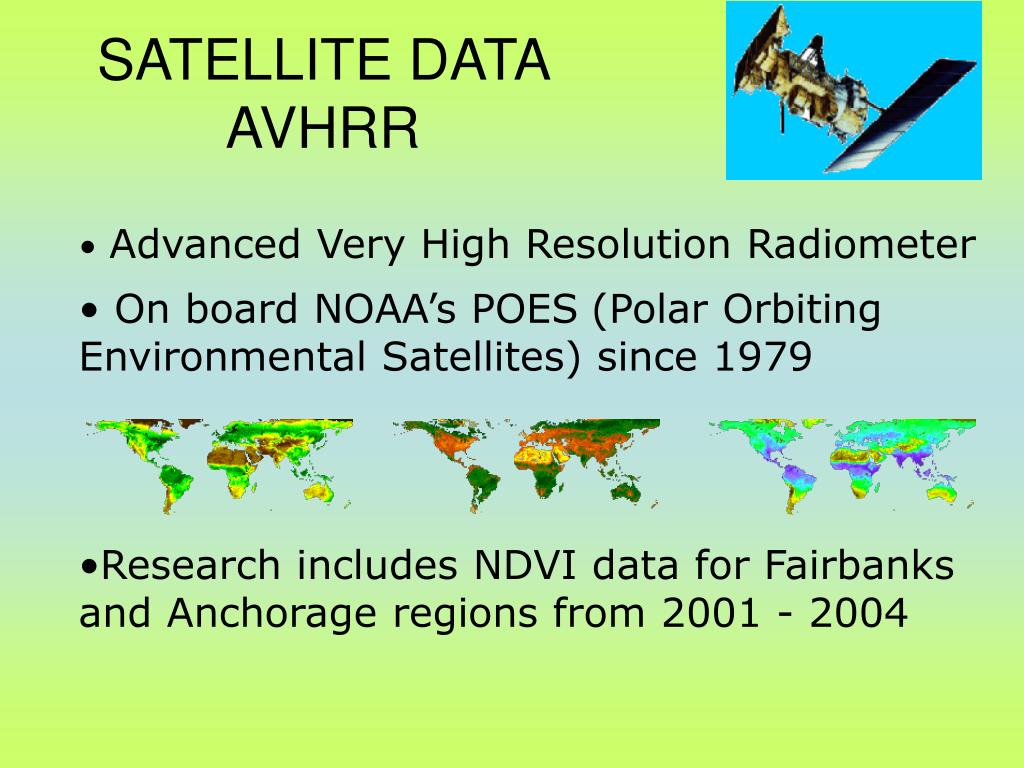

SATELLITE DATA AVHRR

  • Advanced Very High Resolution Radiometer

  • On board NOAA’s POES(Polar Orbiting Environmental Satellites) since 1979

  • Research includes NDVI data for Fairbanks and Anchorage regions from 2001 - 2004


Satellite data modis

SATELLITE DATA MODIS

  • Moderate Resolution Imaging Spectroradiometer

  • On board Terra – Earth Observing System (EOS)

  • Terra satellite launched in 1999

  • This research includes NDVI data for Fairbanks and Anchorage regions from 2001 - 2004


Comparison of satellite data

Comparison of satellite data


Conclusions

Conclusions

  • Different processing and spectral characteristics restrict continuity between AVHRR and MODIS NDVI datasets

  • NDVI has limitations in boreal regions due to snow, large extent of conifers, and clouds
