  1. Urban Meteorology Rick Peltier Sangil Lee Chris Hennigan Ehsan Arhami

  2. The Urban Heat Island

  3. Urban Heat Island • The increased air temperatures in urban areas as contrasted to the cooler surrounding rural areas. Source: Lawrence Berkeley National Lab.

  4. Rapid Urbanization • Lack of surface water (soil water) and vegetation. • Low short-wave reflectivity (albedo). • increased heat release. Source: EPA & Rice University

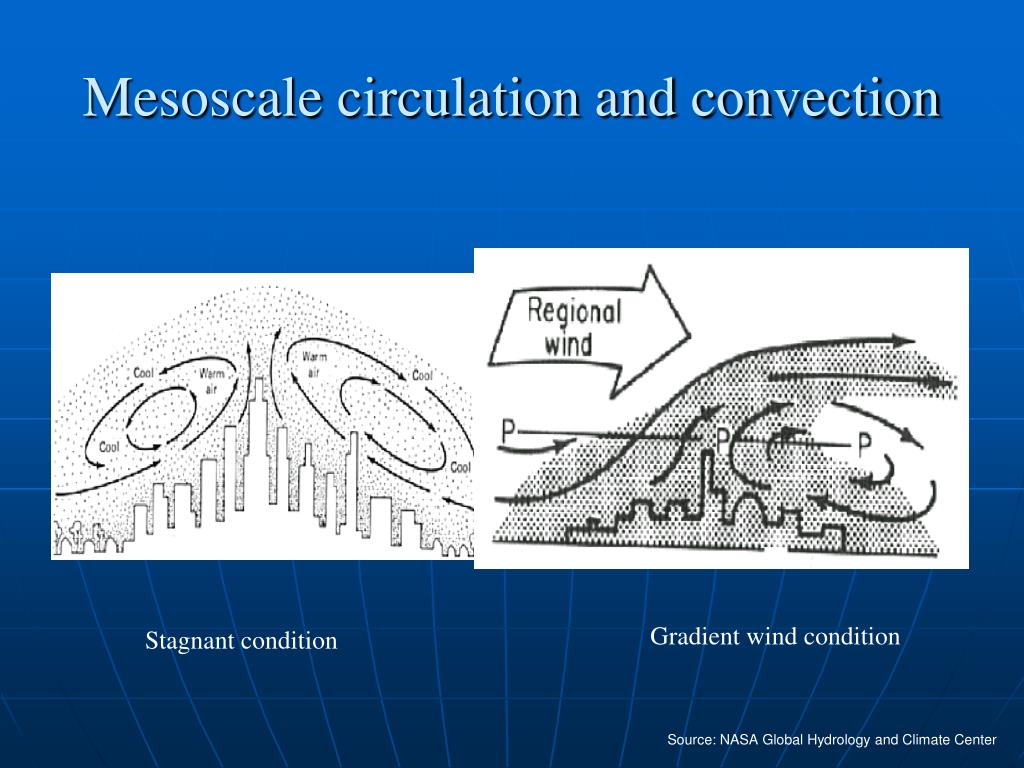

  5. Mesoscale circulation and convection Gradient wind condition Stagnant condition Source: NASA Global Hydrology and Climate Center

  6. Mesoscale circulation and convection Convective precipitation associated with the excess heat. Source: NASA Global Hydrology and Climate Center

  7. Mesoscale circulation and convection • Mean monthly rainfall during the warmer season (May ~ Sept.) from 1998~2000. • Increased precipitation (7 ~ 50% greater). • Maximum rainfall rates (48 ~116 % greater) downwind of major cities. Source: NASA Global Hydrology and Climate Center

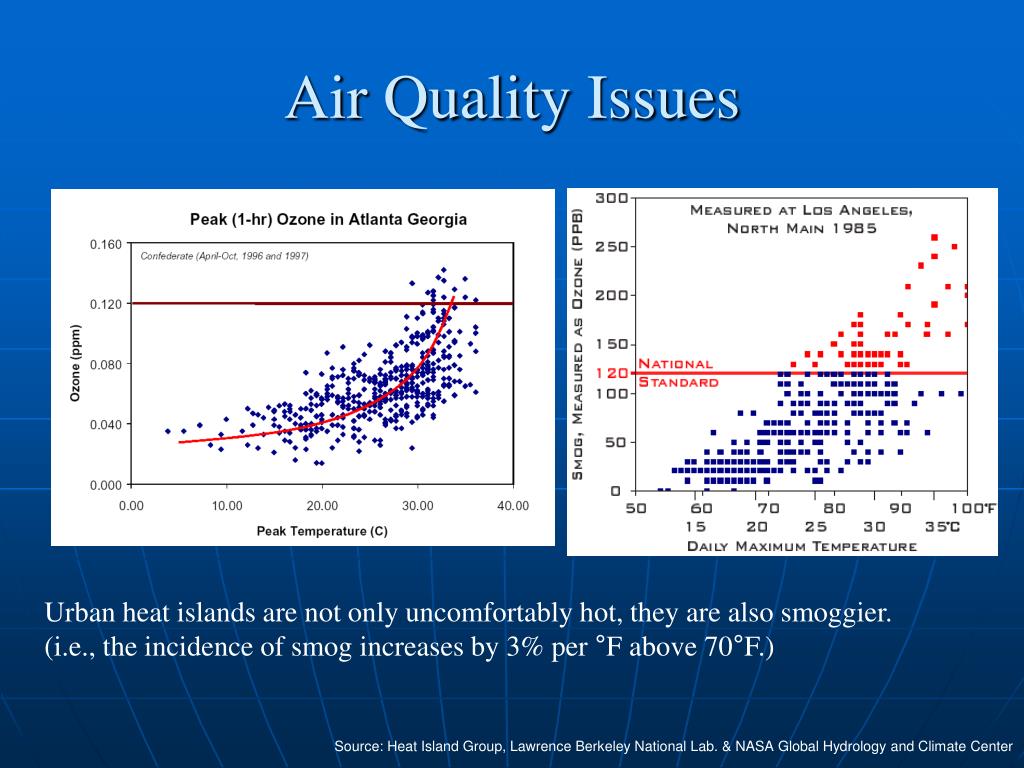

  8. Air Quality Issues Urban heat islands are not only uncomfortably hot, they are also smoggier. (i.e., the incidence of smog increases by 3% per °F above 70°F.) Source: Heat Island Group, Lawrence Berkeley National Lab. & NASA Global Hydrology and Climate Center

  9. Urban Pollution Dispersion Topographical Effects of Urban Area Picture from: corbis.com

  10. Overview • Effect of Topography on Flow • Urban Boundary Layer • Urban Canopy

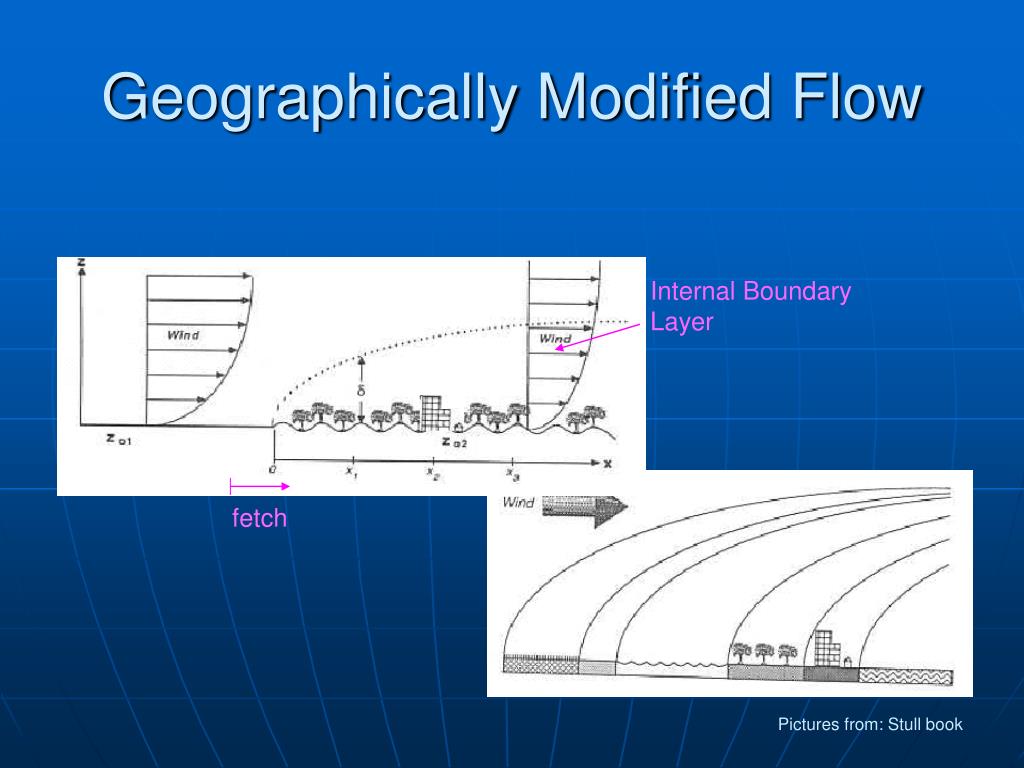

  11. Internal Boundary Layer fetch Geographically Modified Flow Pictures from: Stull book

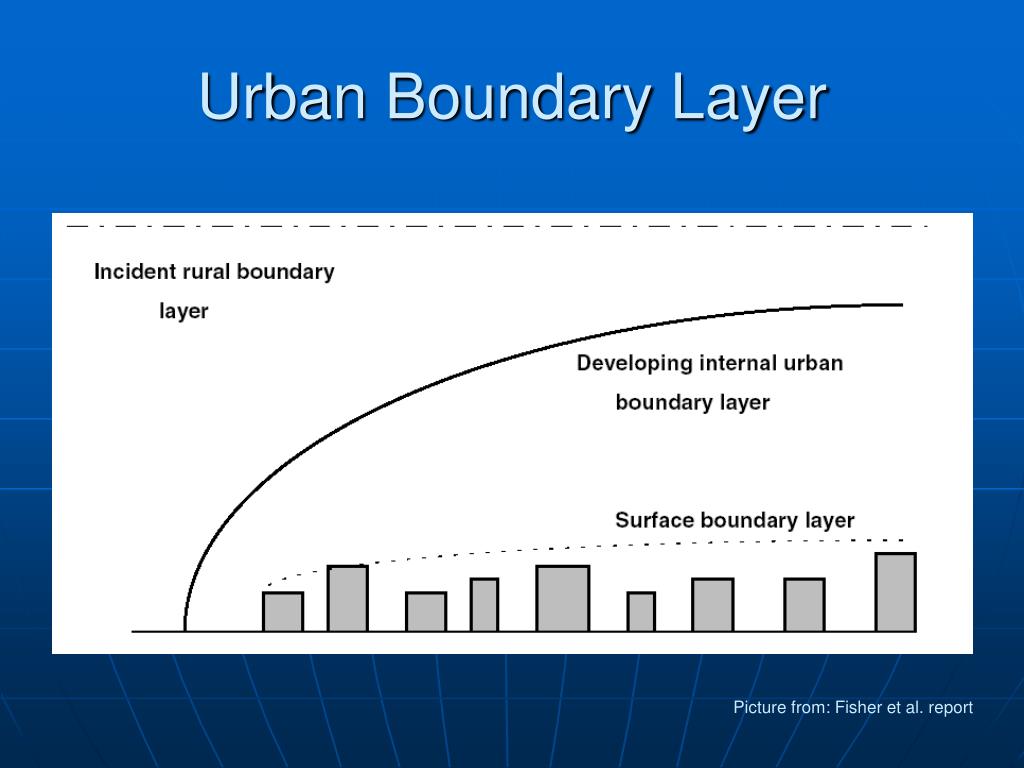

  12. Urban Boundary Layer Picture from: Fisher et al. report

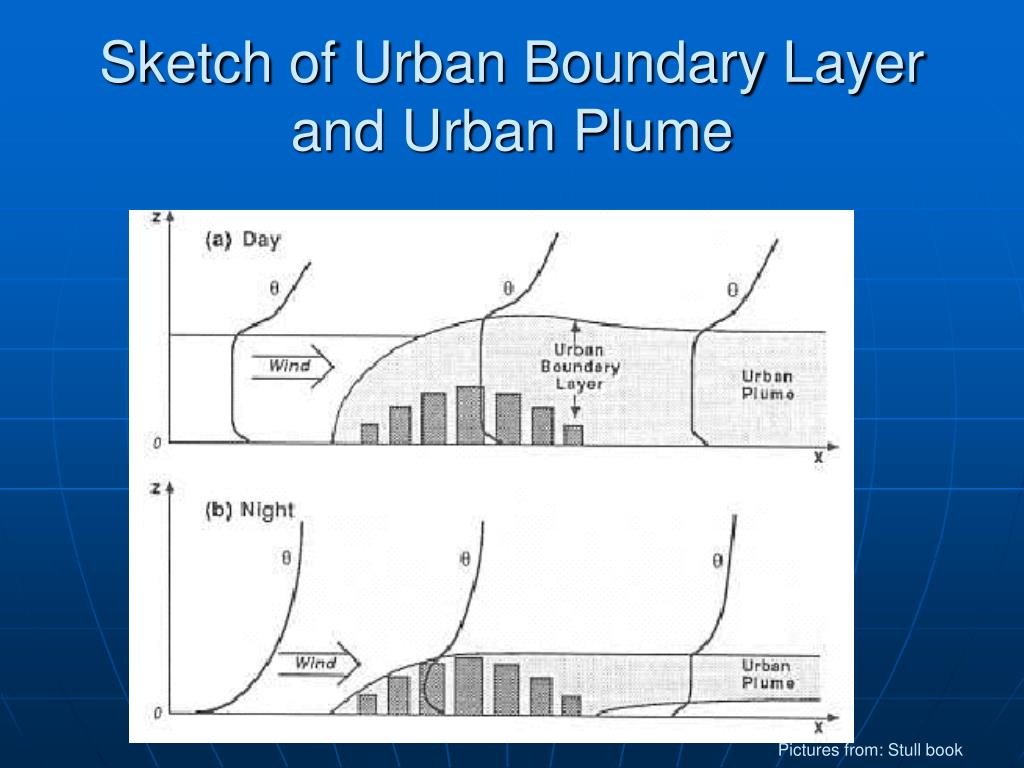

  13. Sketch of Urban Boundary Layer and Urban Plume Pictures from: Stull book

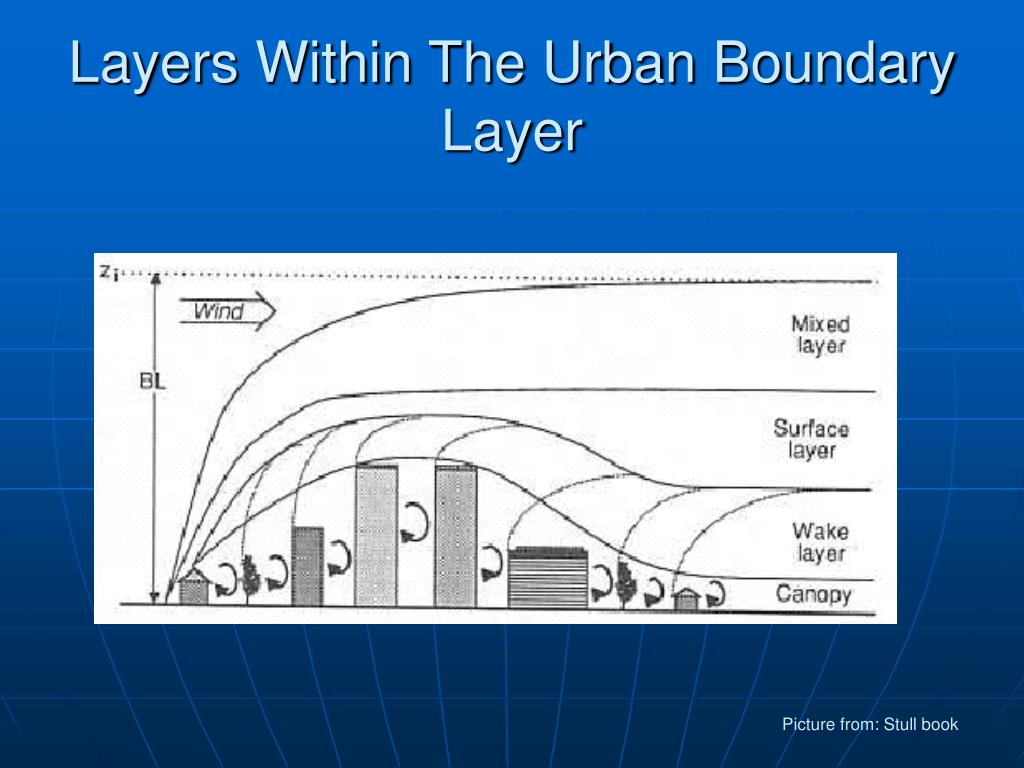

  14. Layers Within The Urban Boundary Layer Picture from: Stull book

  15. 2 m/s Recirculation eddy 10% of free stream velocity What Happens to Wind Profile Between the Buildings Wind Velocity Pollutant Distribution Pictures from: Gerdes et al., paper

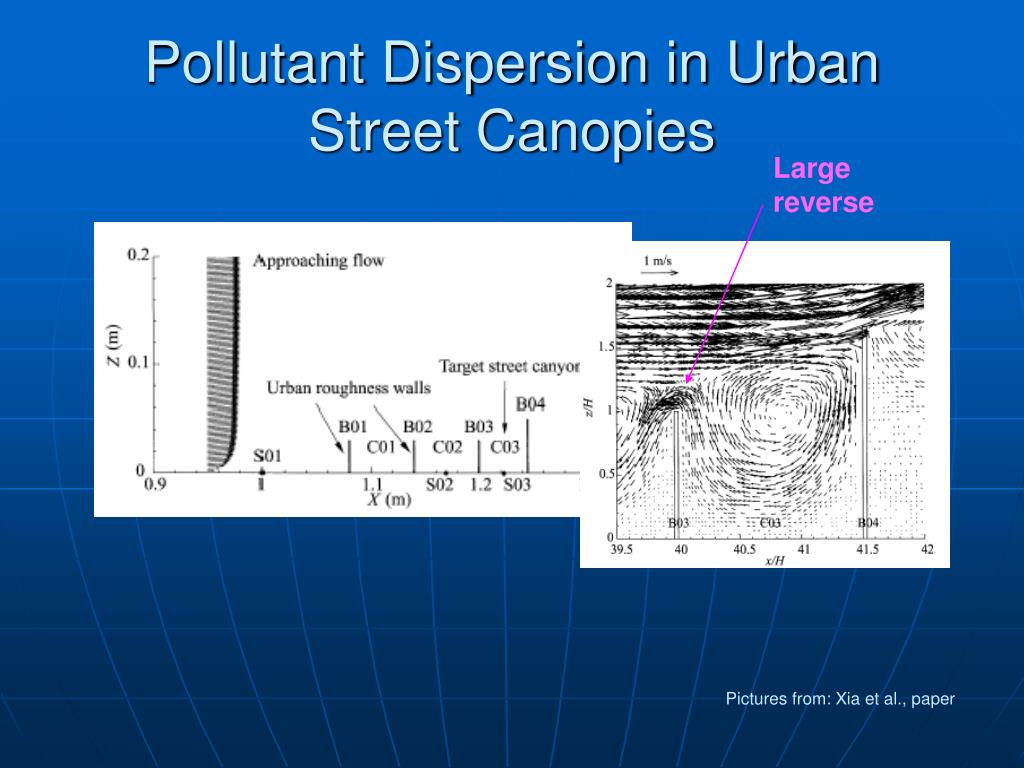

  16. Large reverse Pollutant Dispersion in Urban Street Canopies Pictures from: Xia et al., paper

  17. Low Building High Building Identical Building Upstream Pictures from: Xia et al., paper

  18. Urban Meteorology – case studies • Tehran, Iran • Graz, Austria • Sydney, Australia • Atlanta, GA

  19. Tehran, Iran From www.lonelyplanet.com

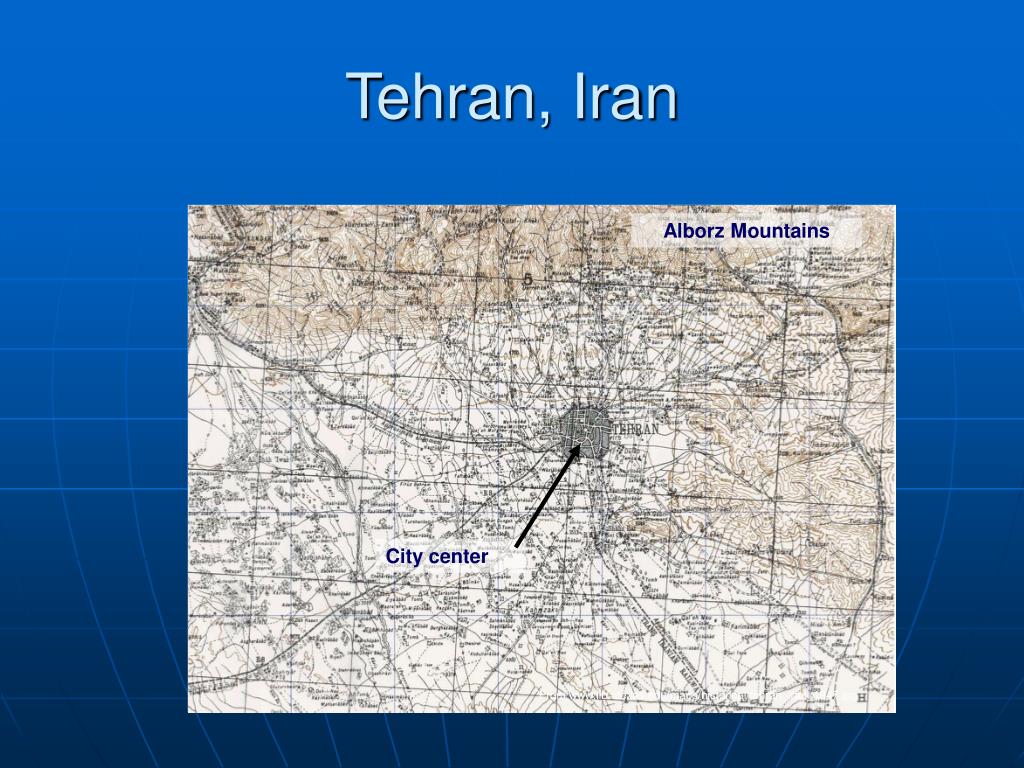

  20. City center Tehran, Iran Alborz Mountains From www.lib.utexas.edu/maps/historical/tehran_iran_1947.jpg

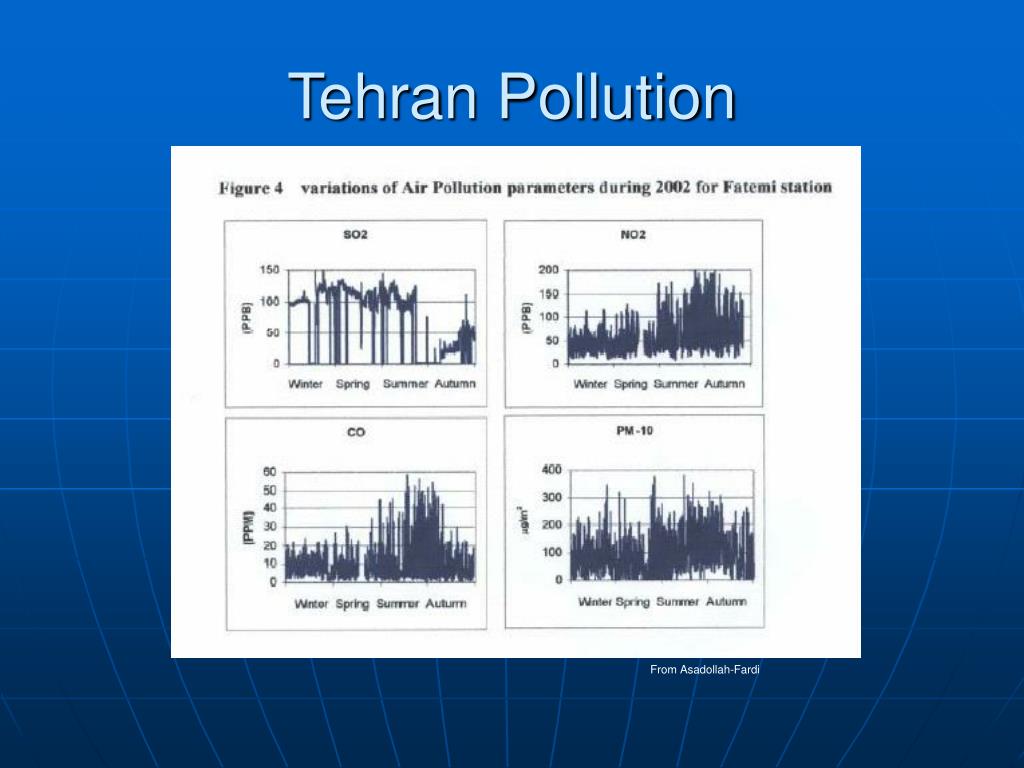

  21. Tehran Pollution From Asadollah-Fardi

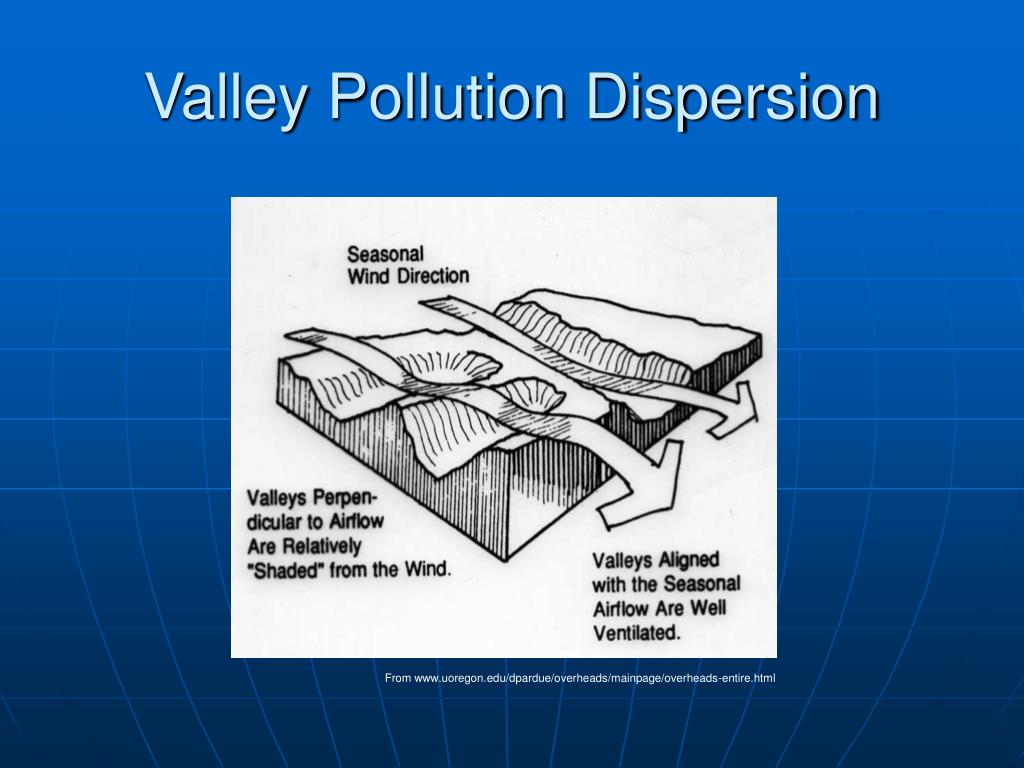

  22. Valley Pollution Dispersion From www.uoregon.edu/dpardue/overheads/mainpage/overheads-entire.html

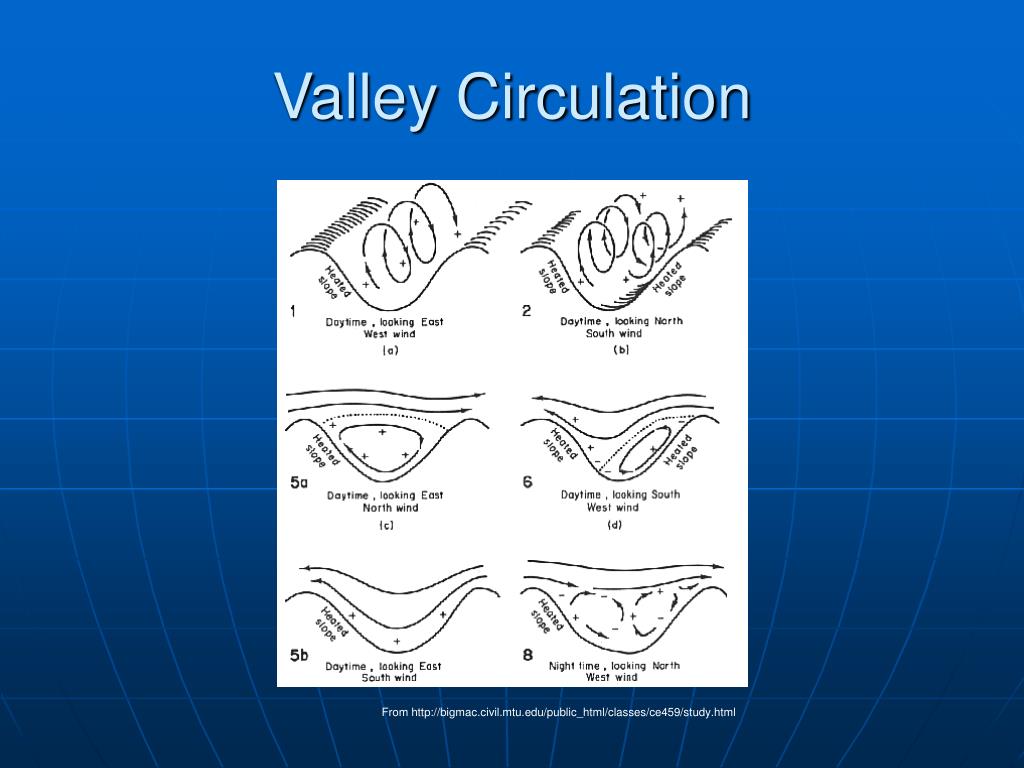

  23. Valley Circulation From http://bigmac.civil.mtu.edu/public_html/classes/ce459/study.html

  24. Graz, Austria From www.siteatlas.com

  25. Graz, Austria From www.atlapedia.com

  26. Graz Pollution Pollution Event – January 7, 1991 From Sturm, Almbauer, Kunz

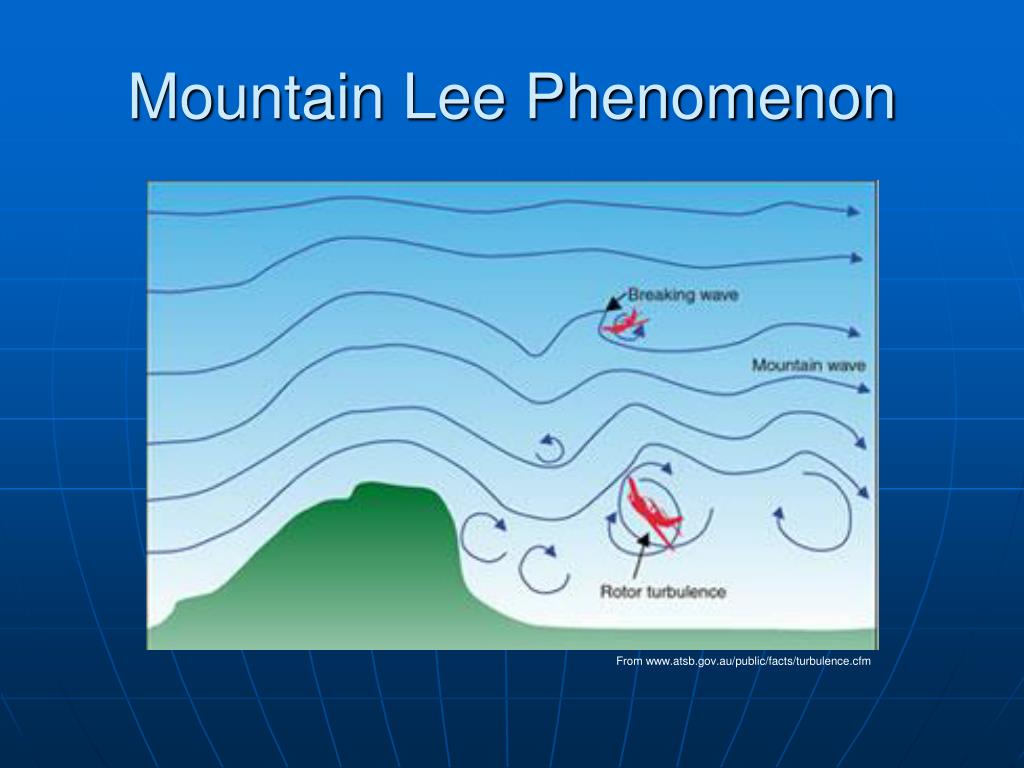

  27. Mountain Lee Phenomenon From www.atsb.gov.au/public/facts/turbulence.cfm

  28. Sydney, Australia From http://www.ga.gov.au/map/images.html

  29. Sydney, Australia From www.ga.gov.au/map.images.html

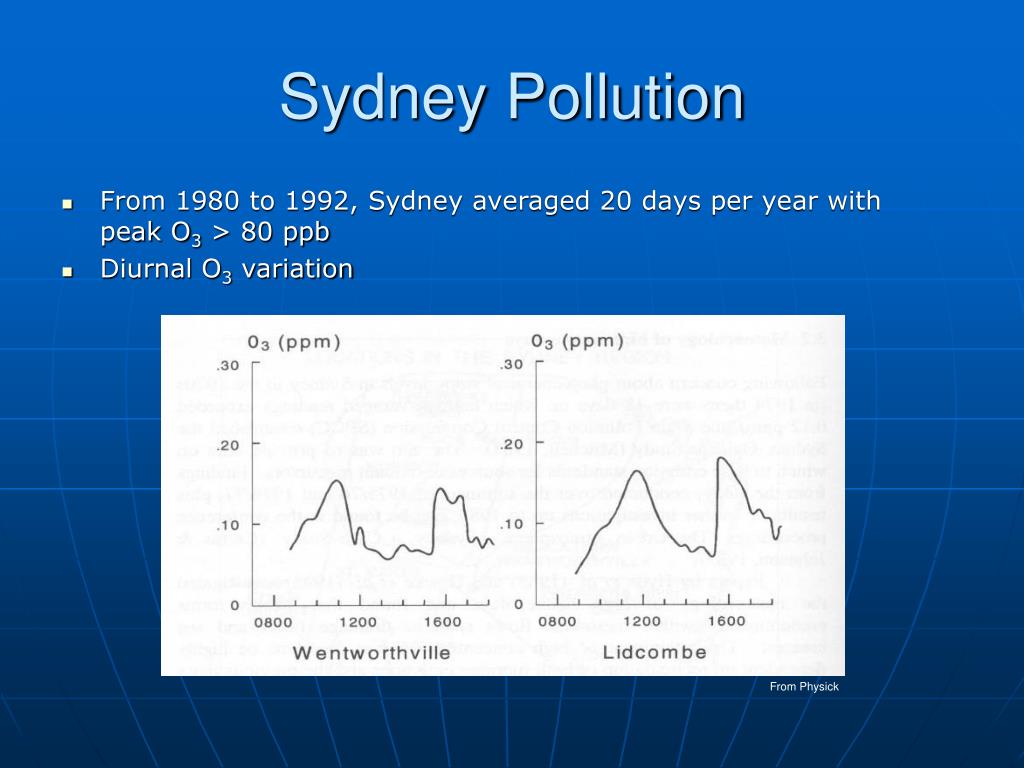

  30. Sydney Pollution • From 1980 to 1992, Sydney averaged 20 days per year with peak O3 > 80 ppb • Diurnal O3 variation From Physick

  31. Sea Breeze From USA Today

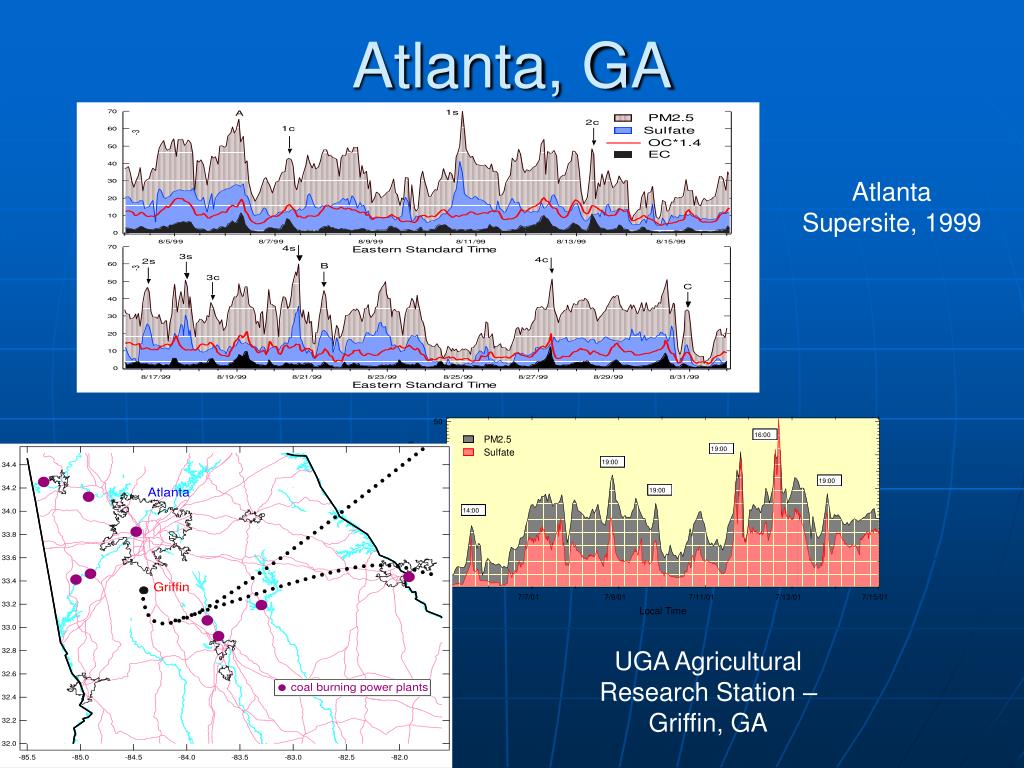

  32. Atlanta, GA Atlanta Supersite, 1999 UGA Agricultural Research Station – Griffin, GA

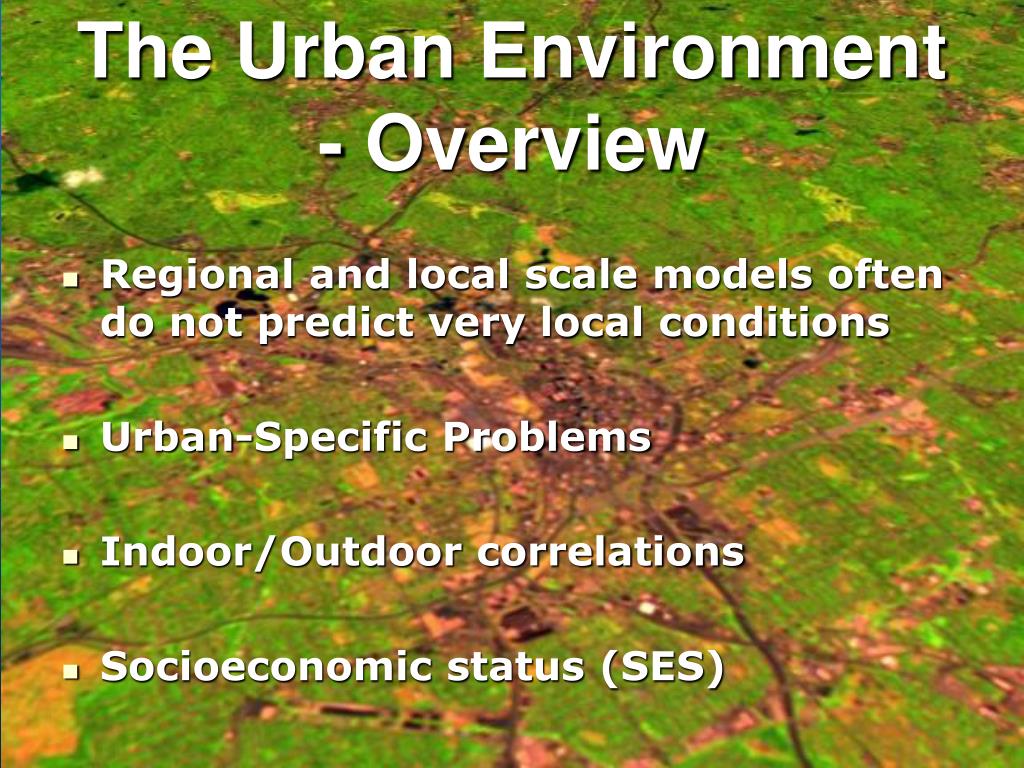

  33. The Urban Environment - Overview • Regional and local scale models often do not predict very local conditions • Urban-Specific Problems • Indoor/Outdoor correlations • Socioeconomic status (SES)

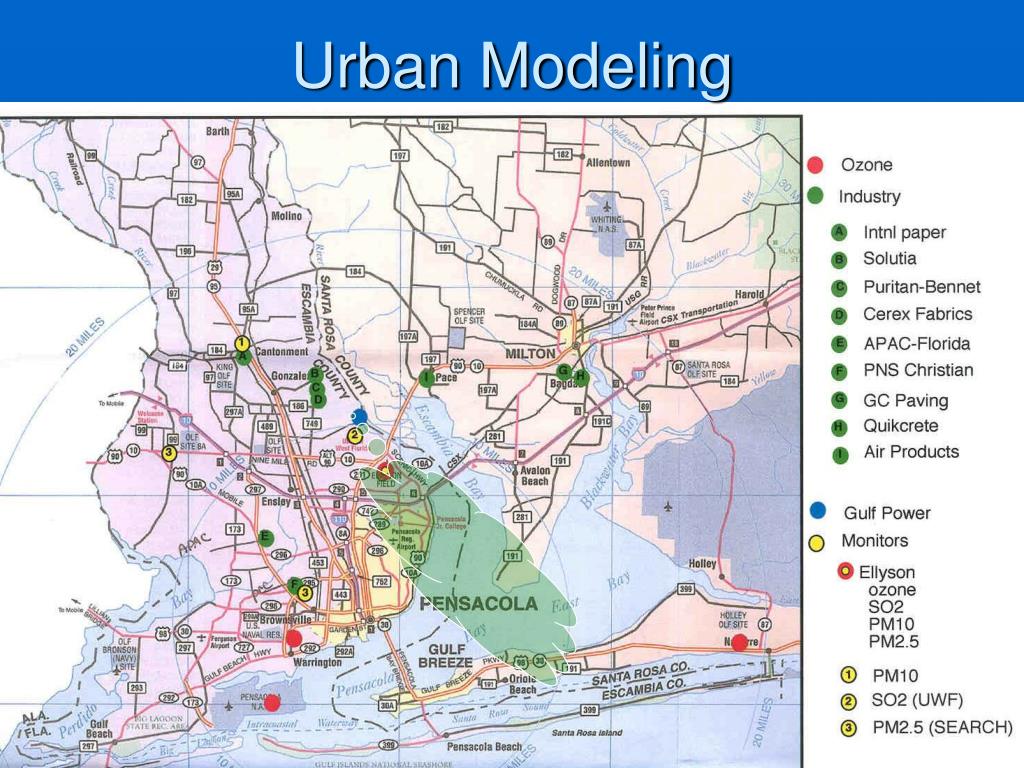

  34. Urban Modeling

  35. Urban Modeling

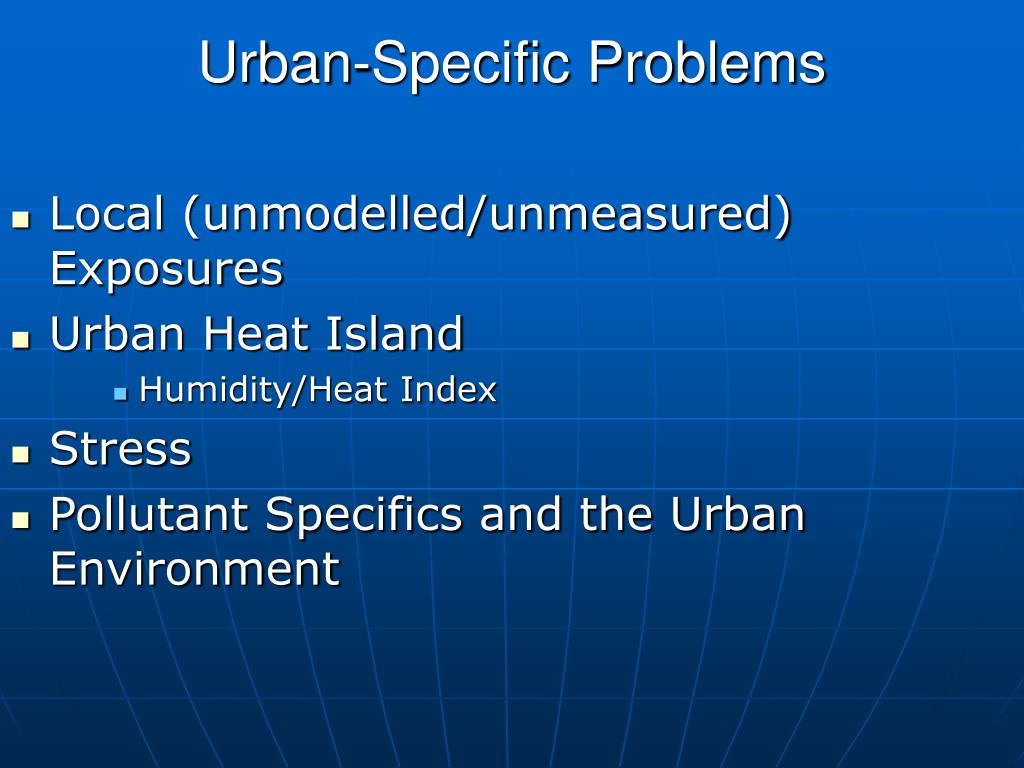

  36. Urban-Specific Problems • Local (unmodelled/unmeasured) Exposures • Urban Heat Island • Humidity/Heat Index • Stress • Pollutant Specifics and the Urban Environment

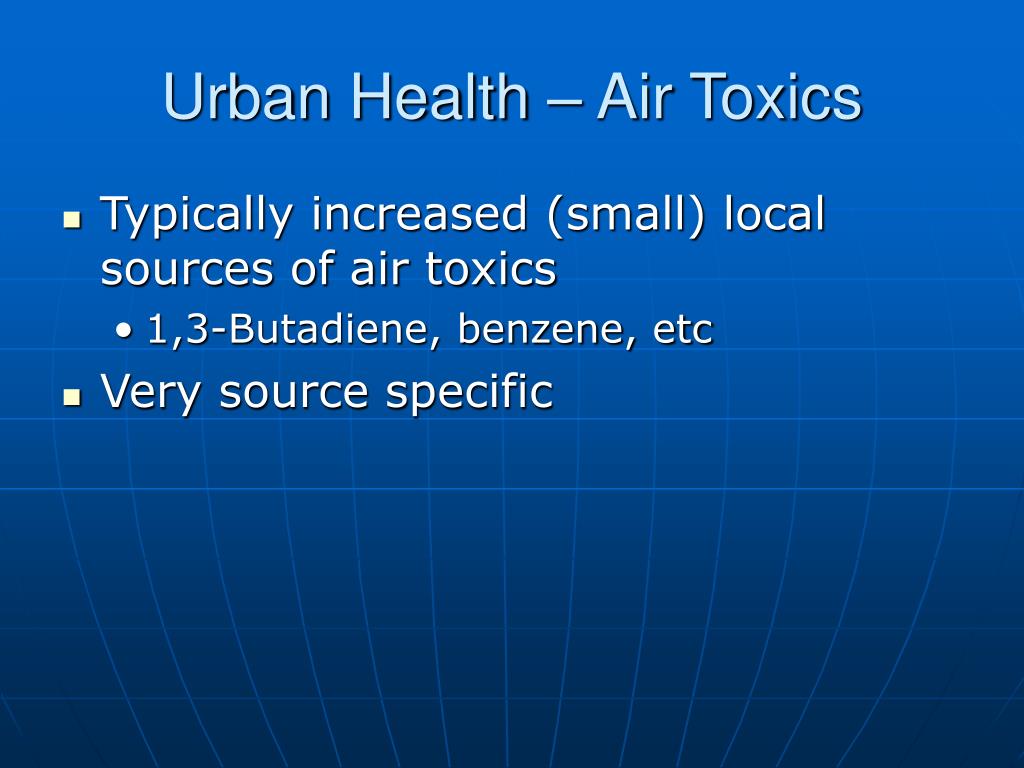

  37. Urban Health – Air Toxics • Typically increased (small) local sources of air toxics • 1,3-Butadiene, benzene, etc • Very source specific

  38. Indoor/Outdoor “Meteorology” • Harsh Urban Environment Mitigation (A/C, etc.) • Meteorology drives people inside/outside • Meteorological Phenomena sensitivity

  39. Urban Health - SES • Urban sites typically populated by many low-SES families • Low SES = increased susceptibility

  40. Our Urban Environment? • Tehran – ~12,000 persons/sq km • Graz – 4730 persons/sq km • Sydney – 2474 persons/sq km • Atlanta – 1303 persons/sq km

  41. Summary/Conclusions • Urban Heat Island • Urban Topography • Case Studies of the Urban Environment • Applications in the Urban Environment

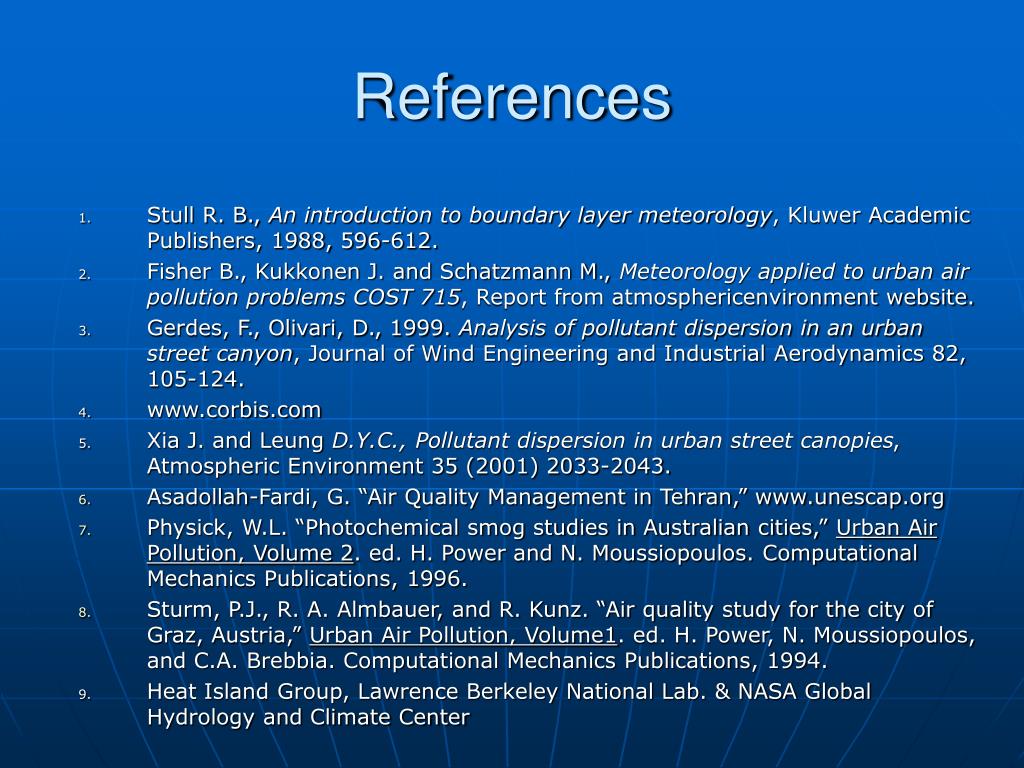

  42. References • Stull R. B., An introduction to boundary layer meteorology, Kluwer Academic Publishers, 1988, 596-612. • Fisher B., Kukkonen J. and Schatzmann M., Meteorology applied to urban air pollution problems COST 715, Report from atmosphericenvironment website. • Gerdes, F., Olivari, D., 1999. Analysis of pollutant dispersion in an urban street canyon, Journal of Wind Engineering and Industrial Aerodynamics 82, 105-124. • www.corbis.com • Xia J. and Leung D.Y.C., Pollutant dispersion in urban street canopies, Atmospheric Environment 35 (2001) 2033-2043. • Asadollah-Fardi, G. “Air Quality Management in Tehran,” www.unescap.org • Physick, W.L. “Photochemical smog studies in Australian cities,” Urban Air Pollution, Volume 2. ed. H. Power and N. Moussiopoulos. Computational Mechanics Publications, 1996. • Sturm, P.J., R. A. Almbauer, and R. Kunz. “Air quality study for the city of Graz, Austria,” Urban Air Pollution, Volume1. ed. H. Power, N. Moussiopoulos, and C.A. Brebbia. Computational Mechanics Publications, 1994. • Heat Island Group, Lawrence Berkeley National Lab. & NASA Global Hydrology and Climate Center

  43. Questions? • Classmates – Free! • Dr Wang - $5 per question
