Ma 242 003

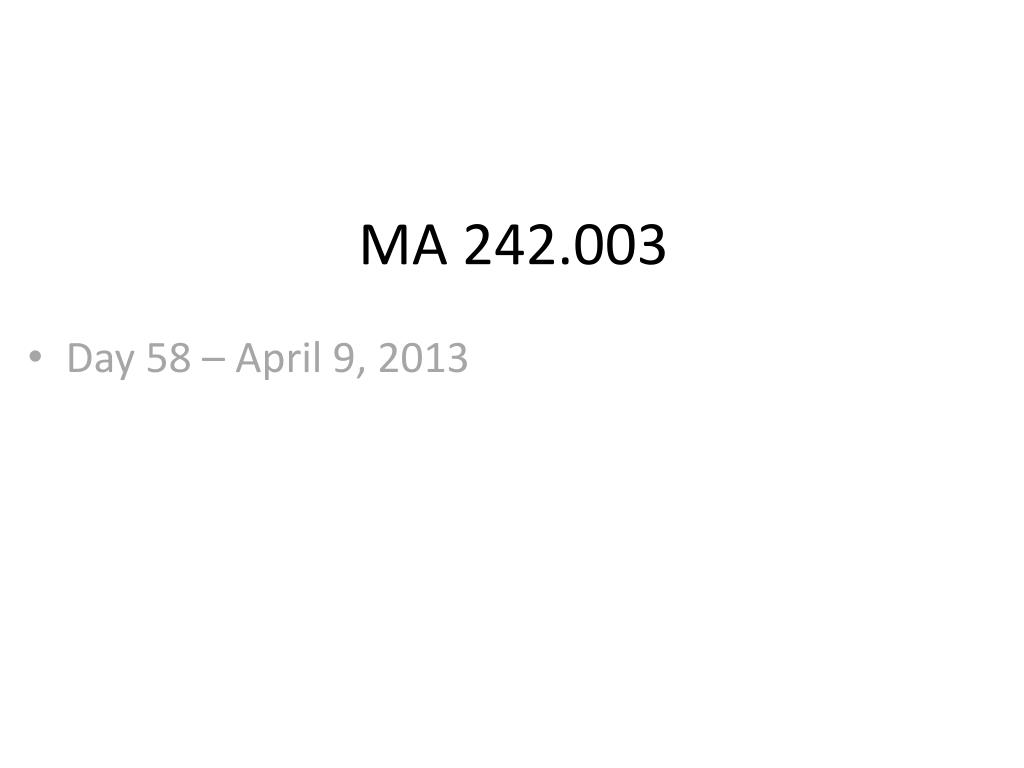

MA 242.003

  • Day 58 – April 9, 2013


Ma 242 0031
MA 242.003

The material we will cover before test #4 is:


Ma 242 0032
MA 242.003

  • Section 10.5: Parametric surfaces


Ma 242 0033
MA 242.003

  • Section 10.5: Parametric surfaces

  • Pages 777-778: Tangent planes to parametric surfaces


Ma 242 0034
MA 242.003

  • Section 10.5: Parametric surfaces

  • Pages 777-778: Tangent planes to parametric surfaces

  • Section 12.6: Surface area of parametric surfaces


Ma 242 0035
MA 242.003

  • Section 10.5: Parametric surfaces

  • Pages 777-778: Tangent planes to parametric surfaces

  • Section 12.6: Surface area of parametric surfaces

  • Section 13.6: Surface integrals




Recall the following from chapter 10 on parametric CURVES:

Example:


Space curves

DEFINITION: A space curve is the set of points given by the ENDPOINTS of the Vector-valued function

when the vector is in position vector representation.



My standard picture of a curve:

Parameterized curves are 1-dimensional.


My standard picture of a curve:

Parameterized curves are 1-dimensional.

We generalize to parameterized surfaces, which are 2-dimensional.





We will work with two types of surfaces:

Type 1: Surfaces that are graphs of functions of two variables


We will work with two types of surfaces:

Type 1: Surfaces that are graphs of functions of two variables

Type 2: Surfaces that are NOTgraphs of functions of two variables


First consider Type 1 surfaces that are graphs of functions of two variables.


An example: Let S be the surface that is the portion of

that lies above the unit square x = 0..1, y = 0..1 in the first octant.


An example: Let S be the surface that is the portion of

that lies above the unit square x = 0..1, y = 0..1 in the first octant.


An example: Let S be the surface that is the portion of

that lies above the unit square x = 0..1, y = 0..1 in the first octant.


An example: Let S be the surface that is the portion of

that lies above the unit square x = 0..1, y = 0..1 in the first octant.


An example: Let S be the surface that is the portion of

that lies above the unit square x = 0..1, y = 0..1 in the first octant.


An example: Let S be the surface that is the portion of

that lies above the unit square x = 0..1, y = 0..1 in the first octant.

General Rule

If S is given by z = f(x,y) then

r(u,v) = <u, v, f(u,v)>


General Rule:

If S is given by y = g(x,z) then

r(u,v) = (u,g(u,v),v)


General Rule:

If S is given by x = h(y,z) then

r(u,v) = (h(u,v),u,v)


Consider next Type 2 surfaces that are NOT graphs of functions of two variables.


Consider next Type 2 surfaces that are NOT graphs of functions of two variables.

Spheres


Consider next Type 2 surfaces that are NOT graphs of functions of two variables.

Spheres

Cylinders


2. Transformation Equations



Each parametric surface has a u-v COORDINATE GRID on the surface!


Each parametric surface has a u-v COORDINATE GRID on the surface!


Each parametric surface has a u-v COORDINATE GRID on the surface!

r(u,v)
