Presentation Transcript


Unl series product release applications opportunities

UNL Series Product ReleaseApplications & Opportunities


Unl series film capacitor snapmount replacement

UNL Series Film Capacitor Snapmount Replacement?

  • Benefits vs. Snaps

    • Higher Voltage 3x

    • Self healing

    • Up to 10x ripple current

    • Longer Life 20 x

    • Non polar

    • No electrolyte

    • More stable with temp.

    • 10+ yr. shelf life

    • RoHS Compliant

Two Pin solder terminals for PCB mount. Long or

Short pin

Options.

Epoxy Fill

Standoffs provide stability, allows air to circulate between board and capacitor.

Solvent resistant, flame retardant case 35 x 50 mm


Unl series film capacitor snapmount replacement1

UNL Series Film CapacitorSnapmount Replacement?

  • Our 35uF, 500 Vdc UNL5W35K-F can handle almost 4 times the ripple current as a snapmount capacitor of the same physical size.

UNL5W35K-F

13.0 A rms @ 20 KHz, 75 deg C

=

380LX271M500A052

3.7 Arms ea @ 20 KHz, 75 deg C

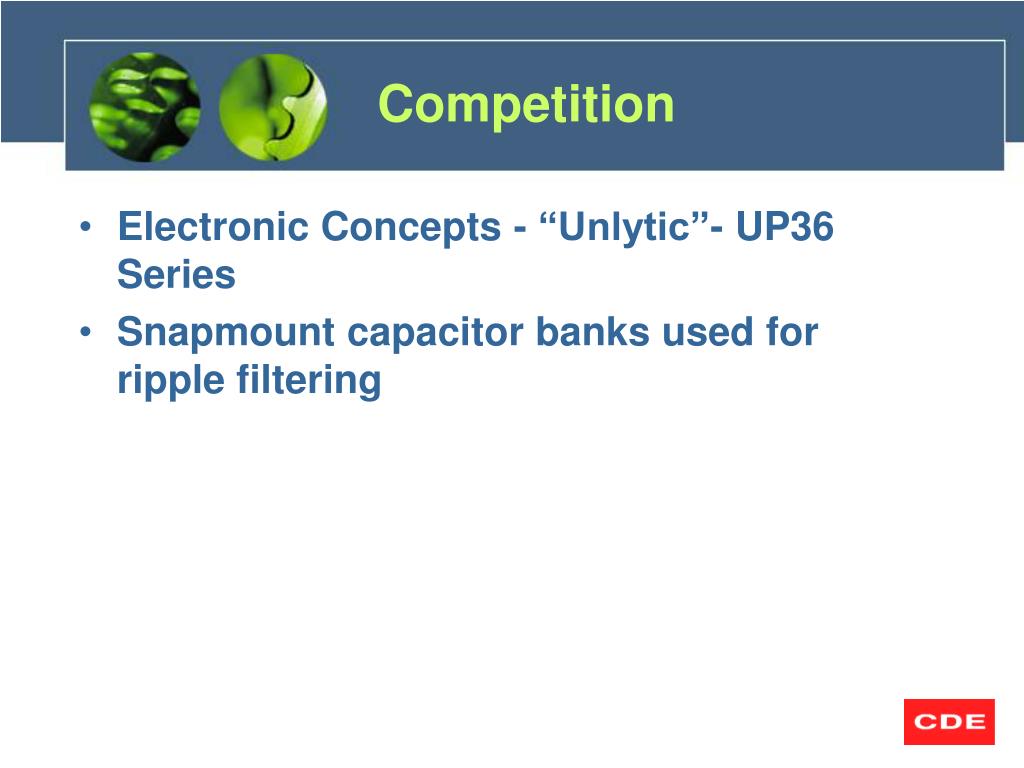

Competition

Competition

  • Electronic Concepts - “Unlytic”- UP36 Series

  • Snapmount capacitor banks used for ripple filtering

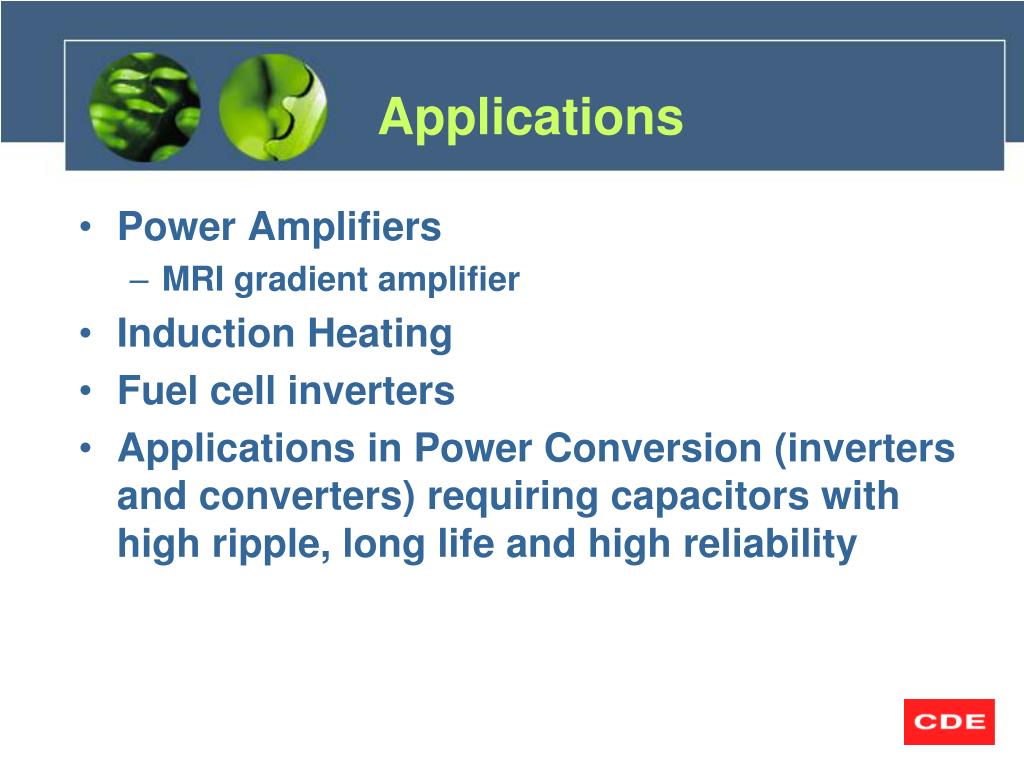

Applications

Applications

  • Power Amplifiers

    • MRI gradient amplifier

  • Induction Heating

  • Fuel cell inverters

  • Applications in Power Conversion (inverters and converters) requiring capacitors with high ripple, long life and high reliability

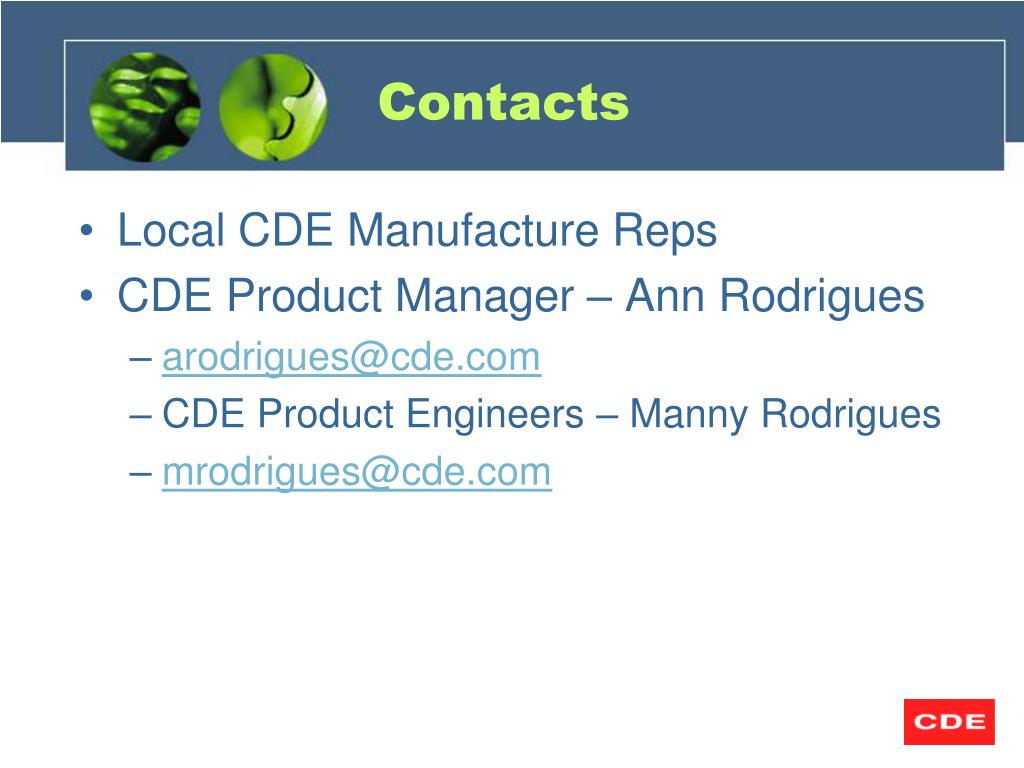

Contacts

Contacts

  • Local CDE Manufacture Reps

  • CDE Product Manager – Ann Rodrigues

    • [email protected]

    • CDE Product Engineers – Manny Rodrigues

    • [email protected]
