Problem solving plan strategies

Problem-Solving Plan & Strategies

Grade 8 TAKS Objective 6 8.14 (B) & (C)


Problem solving plan using the four step process

Problem-Solving PlanUsing the Four Step Process

Confidential


Problem solving plan using the four step process1

Step 1:

Understand the Problem

Problem-Solving PlanUsing the Four Step Process

  • What are you asked to find?

    • Make sure that you understand exactly what the problem is asking.

    • Restate the problem in your own words.

  • What information is given in the problem?

    • List every piece of information the problem gives you.

Confidential


Problem solving plan using the four step process2

Step 1:

Understand the Problem

Problem-Solving PlanUsing the Four Step Process

  • Is all the information relevant?

    • Sometimes problems have extra information that is not needed to solve the problem.

    • Try to determine what is and is not needed.

    • This helps you stay organized when you are making a plan.

  • Were you given enough information to solve the problem?

    • Sometimes there simply is not enough information to solve the problem.

    • List what else you need to know to solve the problem.

Confidential


Problem solving plan using the four step process3

Step 2:

Make a Plan

Problem-Solving PlanUsing the Four Step Process

  • What problem-solving strategy or strategies can you use to help you solve the problem?

    • Think about strategies you have used in the past to solve the problems.

    • Would any of them be helpful in solving this problem?

  • Create a step-by-step plan of how you will solve the problem.

    • Write out your plan in words to help you get a clearer idea of how to solve the problem mathematically.

Confidential


Problem solving plan using the four step process4

Step 3:

Solve

Problem-Solving PlanUsing the Four Step Process

  • Use your plan to solve the problem.

    • Translate your plan from words to math.

    • Show each step in your solution and write your answer in a complete sentence.

Confidential


Problem solving plan using the four step process5

Step 4:

Look Back

Problem-Solving PlanUsing the Four Step Process

  • Did you completely answer the question that was asked?

    • Be sure answered the question that was asked and that your answer is complete.

  • Is your answer reasonable?

    • Your answer should make sense.

  • Could you have used a different strategy to solve the problem?

    • Solving the problem again with a different strategy is a good way to check your answer.

  • Did you learn anything that could help you solve similar problems in the future?

    • You may want to take notes about this kind of problem and the strategy you used to solve it.

Confidential


Problem solving skills

Problem-Solving Skills

  • To be a good problem solver you need a good problem-solving plan.

  • Using a problem-solving plan along with a problem-solving strategy helps you organize your work and correctly solve the problem.

Confidential


What is a problem solving strategy

What Is a Problem-Solving Strategy?

  • A problem-solving strategy is a plan for solving a problem.

  • Different strategies work better for different types of problems.

  • Sometimes you can use more than one strategy to solve a problem.

  • As you practice solving problems, you will discover which strategies you prefer and which work best in various situations.

Confidential


Problem solving strategies

Problem Solving Strategies

  • Some problem-solving strategies include

    • drawing a picture;

    • looking for a pattern;

    • guessing and checking;

    • acting it out;

    • making a table;

    • working a simpler problem; and

    • working backwards.

Confidential


Drawing a picture

Drawing a Picture

  • You can solve problems by drawing pictures.

  • Step 1: Draw a picture to represent the situation.

  • Step 2: Finish the picture to show the action in the story.

  • Step 3: Interpret the picture to find the answer.

Confidential


Drawing a picture1

Drawing a Picture

  • Example: Suzanne was stacking boxes in a display window. The boxes were shaped in the shape of a triangle. How many boxes are needed altogether if there are 7 boxes on the bottom row?

Bottom row: 3 boxes

Total: 6 boxes

Confidential


Drawing a picture2

Drawing a Picture

  • Read and understand

    • What do you know?

      • Boxes are being stacked.

      • 3 on the bottom gives 6 altogether.

    • What are you trying to find?

      • The total number of boxes needed if there are 7 boxes in the bottom row.

Confidential


Drawing a picture3

Drawing a Picture

  • Plan and Solve

    • What strategy will you use?

      • Strategy: Draw a picture.

Bottom row: 5 boxes

Total: 15 boxes

Bottom row: 3 boxes

Total: 6 boxes

Bottom row: 4 boxes

Total: 10 boxes

Bottom row: 6 boxes

Total: 21 boxes

Bottom row: 7 boxes

Total: 28 boxes

Confidential


Drawing a picture4

Drawing a Picture

  • Look Back and Check

    • Is your answer reasonable?

      • Yes, the pattern continues in the triangle shapes.

      • The bottom row has one more box than the bottom row of the previous stack.

Confidential


Try this

Try This!

  • A pilot is 3,800 ft below the clouds. A plane at a lower altitude is 5,500 ft above the ground. The clouds are at 12,000 ft altitude. Find the difference in altitude between the planes.

Confidential


Looking for a pattern

Looking for a pattern

  • Looking at how numbers or figures in a pattern compare can help you find the rule that creates the pattern.

  • Example: The president of Best Idea has a 5-phase emergency plan.

  • Phase 1: The president emails her 2 vice presidents.

  • Phase 2: Each vice president forwards the email to 2 employees.

  • Phase 3: Each employee who receives the email sends it to 2 employees.

  • How many employees work for the company if everyone knows about the emergency in 5 phases?

Confidential


Looking for a pattern1

Looking for a pattern

  • Read and understand

    • What do you know?

      • Three employees know in Phase 1.

      • In Phase 2, seven employees know.

      • Fifteen employees know in Phase 3.

    • What are you trying to find?

      • Find the number of employees in the company.

Phase 1

Phase 2

Phase 3

Confidential


Looking for a pattern2

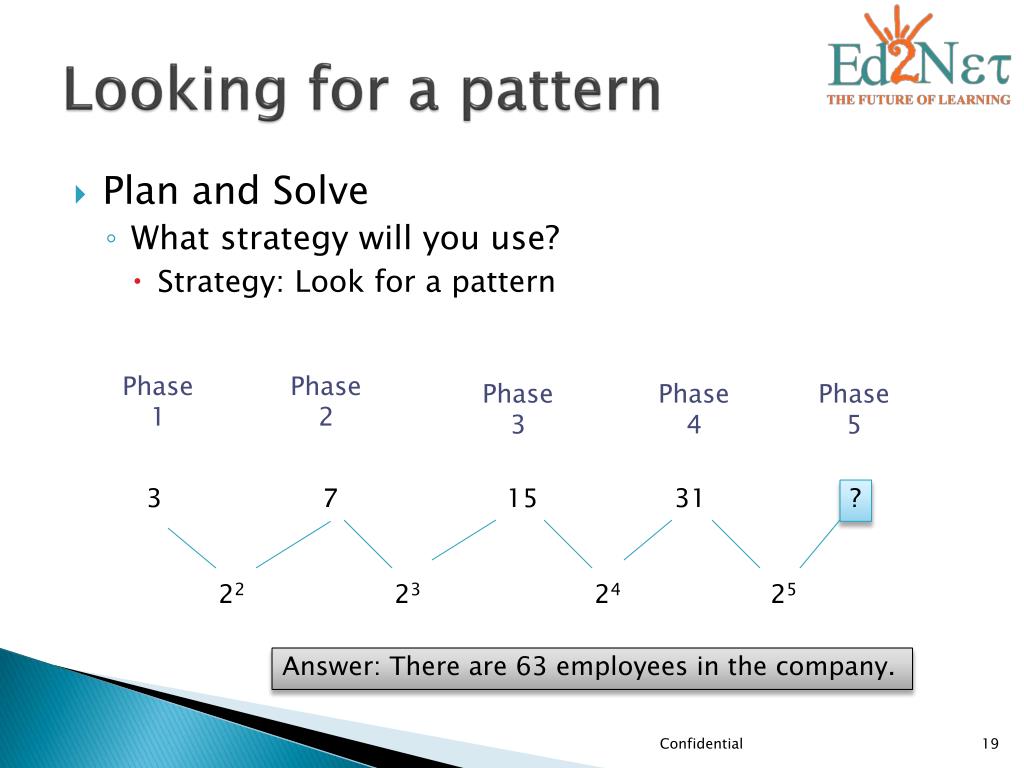

Looking for a pattern

  • Plan and Solve

    • What strategy will you use?

      • Strategy: Look for a pattern

Phase

1

Phase

2

Phase

3

Phase

4

Phase

5

3

7

15

31

?

22

23

24

25

Answer: There are 63 employees in the company.

Confidential


Looking for a pattern3

Looking for a pattern

  • Look Back and Check

    • Is your answer reasonable?

      • Yes, the difference from one phase to the next doubles.

Confidential


Try this1

Try This!

  • Name the missing numbers: 1, 3, 9, 27, __, __, __

Confidential


Guessing and checking

Guessing and Checking

  • Predicting and verifying can help solve problems.

  • Step 1: Think to make a reasonable first try.

  • Step 2: Check using information given in the problem.

  • Step 3: Revise. Use your first try to make a reasonable second try. Check.

  • Step 4: Use previous tries to continue trying and checking until you get the answer.

Confidential


Guessing and checking1

Guessing and Checking

  • Example: Kyle needs an average score of 85 (without rounding) on three exams. His scores on the first two exams were 82 and 86. What score must he get on the last exam?

Confidential


Guessing and checking2

Guessing and Checking

  • Read and Understand

    • What do you know?

      • Kyle needs an average score of 85.

      • He scored 82 and 86 on two of the exams.

    • What are you trying to find?

      • Find the score on the last exam that will give him an average greater than or equal to 85.

Confidential


Guessing and checking3

Guessing and Checking

  • Plan and Solve

    • Try 90: 82 + 86 + 90 = 258; 258 ÷ 3 = 86; 90 works. Since any score greater than or equal to 90 works, s ≥ 90

    • Try 85: 82 + 86 + 85 = 253; 253 ÷ 3 ≈ 84.3; 84 is too low.

    • Try 86: 82 + 86 + 86 = 254; 254 ÷ 3 ≈ 84.7; This rounds to 85 but Kyle’s teacher does not round grades.

    • Try 87: 82 + 86 + 87 = 255; 255 ÷ 3 = 85; s ≥ 87

  • Answer: A score of 87 or greater on the last exam will give Kyle an average of 85 or greater.

Confidential


Guessing and checking4

Guessing and Checking

  • Look Back and Check

    • Is your work correct?

      • Yes. It makes sense that the third score must be greater than 85.

Confidential


Try this2

Try This!

  • Carla needs an average score of 75 (without rounding) on 3 tests. Her first two scores were 73 and 70. What score must she get on the third test?

Confidential


Acting it out

Acting it out

  • To act out a problem means to perform or model the actions in the problem.

  • Example: Marco tosses two coins, a quarter and a nickel. Write a proportion that can be used to find p, the percent of times Marco can expect both coins to land heads up.

Confidential


Acting it out1

Acting it out

  • You can act out this problem by using two actual coins. Take a quarter and a nickel and turn them over one at a time until you have listed all the possible outcomes of tossing both coins.

  • There are four possible outcomes to this experiment: both coins land heads up; the quarter lands heads up and the nickel lands tails up; both coins land tails up; or the quarter lands tails up and the nickel lands heads up.

Confidential


Acting it out2

Acting it out

H

H

H

T

Quarter

Nickel

Quarter

Nickel

T

T

T

H

Quarter

Nickel

Quarter

Nickel

Confidential


Acting it out3

Acting it out

  • Only one of these outcomes—both coins land heads up—is a favorable outcome. The probability of both coins landing heads up is the ratio of the number of favorable outcomes to the number of possible outcomes: ¼ .

  • A percent is a ratio that compares a number to 100. Find the number of favorable outcomes for every 100 possible outcomes.

  • Represent p, the percent of favorable outcomes, in a ratio. p/100

  • Write a proportion using these two ratios. p/100 = ¼

  • The proportion p/100 = ¼ can be used to find p, the percent of times Marco can expect both coins to land heads up.

Confidential


Making a table

Making a table

  • Organizing data in a table can help you find the information you are looking for.

  • Look for patterns in the data.

  • Step 1: Set up the table with the correct labels.

  • Step 2: Enter known data into the table.

  • Step 3: Look for a pattern. Extend the table.

  • Step 4: Find the answer in the table.

Confidential


Making a table1

Making a table

  • Example: A scientist fills a balloon with a gas. As the gas is heated, the balloon expands in proportion to the temperature of the gas.

  • The table below shows the measurements the scientist recorded.

  • Write a proportion that can be used to find V, the volume of the balloon when the temperature is 35ºC.

Balloon Measurements

Confidential


Making a table2

Making a table

  • Write a ratio that compares a known volume to a known temperature.

    Volume = 125

    Temperature 25

  • Write a ratio that compares the unknown volume to the temperature 35ºC.

    Volume = V

    Temperature 35

Confidential


Making a table3

Making a table

  • The volume of the balloon is proportional to the temperature of the gas. Write a proportion setting these two ratios as equal.

  • The following proportion can be used to find the value of V, the volume of the balloon when the temperature is 35ºC:

    125=V

    2535

Confidential


Try this3

Try This!

  • For every 3 items you buy at the school store you earn 25 points toward the purchase of other items. How many items would you need to buy in order to earn enough points for a backpack worth 175 points? Make a table to solve the problem.

Confidential


Working a simpler problem

Working a simpler problem

  • Sometimes solving a simpler problem can help you solve a more difficult problem.

  • Step 1: Break apart or change the problem into one or more problems that are simpler to solve.

  • Step 2: Solve the simpler problem(s).

  • Step 3: Use the answer(s) to the simpler problem to help you solve the original problem.

Confidential


Working a simpler problem1

Working a simpler problem

  • Example: The diagram shows a swimming pool in the shape of a rectangle with semicircular ends.

  • Write an equation that can be used to find A, the approximate area of the pool.

34 feet

16 feet

Confidential


Working a simpler problem2

Working a simpler problem

  • By looking closely at the pool, you can see that it consists of a rectangle and two semicircles of equal size.

  • One way to find the area of the pool is to solve two simpler problems.

    • Find the area of the rectangle.

    • Find the area of the circle equal to the sum of the areas of the two semicircles.

    • Add the area of the rectangle and the area of the circle to represent the total area of the pool.

Confidential


Working a simpler problem3

Working a simpler problem

34 feet

  • Area of rectangle = lw = 34 x 16

  • Area of circle = πr2

  • The radius is equal to the diameter divided by 2.

  • r =16 ÷ 2 = 8

  • Use 3 to approximate the value of π.

  • Area of circle ≈ 3 x 82

  • The equation A ≈ (34 x 16) + (3 x 82) can be used to find the approximate area of the pool.

16 feet

16 feet

Confidential


Try this4

Try This!

  • The Werner’s dinner bill is $75 and they want to leave a 15% tip. Explain how you can solve a simpler problem to calculate the tip amount. Then find the tip amount.

Confidential


Working backwards

Working backwards

  • Start with what you know and work backwards to find the answer.

  • Step 1: Identify what you are trying to find.

  • Step 2: Draw a diagram to show each change, starting from the unknown.

  • Step 3: Start at the end. Work backward using the inverse of each change.

Confidential


Working backwards1

Working backwards

  • Start with what you know and work backwards to find the answer.

  • Example: Melissa wants to see a movie with her friend Gillian. The movie starts at 3:15 P.M., and they want to get to the theater 10 minutes early to buy tickets. It will take Melissa 10 minutes to ride her bike to Gillian’s house and twice that time for the girls to ride from Gillian’s house to the movie theater. What time should Melissa leave her house?

Confidential


Working backwards2

Working backwards

  • Identify the steps you would take to solve this problem logically. Begin with the starting time of the movie, 3:15 P.M., and work backwards.

    • Find the time the girls need to arrive at the theater.

      • Ten minutes before 3:15 P.M. is 3:05 P.M.

    • Find the time they need to leave Gillian’s house. Multiply 10 minutes by 2 to find the number of minutes needed to ride from Gillian’s house to the theater.

      • Twenty minutes before 3:05 P.M. is 2:45 P.M.

    • Find the time Melissa needs to leave her house.

      • Ten minutes before 2:45 P.M. is 2:35 P.M.

  • Melissa needs to leave her house at 2:35 P.M.

Confidential


Try this5

Try This!

  • After completing repairs on an elevator, a maintenance engineer tested his work by sending the elevator up 12 floors, down 18 floors, and back up 20 floors. If the elevator ended up on the 30th floor, on which floor did the engineer begin his test?

Confidential


Assessment

Assessment

  • 1) A tree branch divides into 2 branches. Each smaller branch divides into 3 branches. Each of these divides into 5 branches. How many branches of all sizes are there?

Confidential


Assessment1

Assessment

  • 2) Find the sum of the first 100 even positive numbers.

Confidential


Assessment2

Assessment

  • 3) Which of the numbers 4, 5, or 6 is a solution to (n + 3)(n - 2) = 36?

Confidential


Assessment3

Assessment

  • 4) Apply the act it out strategy to solve this problem. A baseball card manufacturer is holding a contest. Each package of cards contains a puzzle piece. If you collect all 6 different pieces, you win two tickets to a major league game. There is an equally-likely chance of getting a different puzzle piece each time. How many packages of cards would you need to buy to win the contest?

Confidential


Assessment4

Assessment

  • 5) Ramir makes his own pottery vases. It costs him $2.25 in materials for each vase. He sells them for $10 each. How many vases does he need to sell in order to make a profit of $93?

Confidential


Assessment5

Assessment

  • 6) Emma wants to buy a car that is priced at $8,000. She put a deposit on the car that is 15% of the price. How much was the deposit? Explain how you can solve a simpler problem to calculate the deposit. Then find the deposit.

Confidential


Assessment6

Assessment

  • 7) One January night, the temperature fell 13° F between midnight and 6am. By 9am, the temperature had doubled from what it had been at 6am. By noon, it had risen another 8 degrees to 32° F. What was the temperature at midnight?

Confidential


  • Login
