BARAUNI REFINERY

2nd National Conference

on

ERDMP Accreditation

27 Sept 2012


Supply chain of barauni refinery
Supply Chain of Barauni Refinery

DepotsTerminalsBulk Consumers

6 MMTPA

Nigeria

Malaysia

Nepal &

Other areas

30%

36%

34%

Haldia

Mktg TerminalBihar & UP

Barauni

Paradeep

BKPL

(Barauni Kanpur PiPELINE)

Patna, Mughalsarai,Allahabad, Kanpur,Lucknow

Middle EastSouth African Countries


BLOCK FLOW DIAGRAM OF BARAUNI REFINERY

Fuel Gas

LPG

CRU

Motor Sprit

Naphtha

AVU

I /

II /

III

Kerosene

H2 PLANT

MSQ

DHDT

HSD (High Speed Diesel)

COKER – A /B

LRU

LSHS

Petroleum Coke

FCCU

SULPHUR

ARU/SRU

LPG MERICHEM

GASOLINE MERICHEM


BARAUNI REFINERY

OFF-SITE DISASTER MOCK DRILL

FOR

ERDMP ACCREDITATION

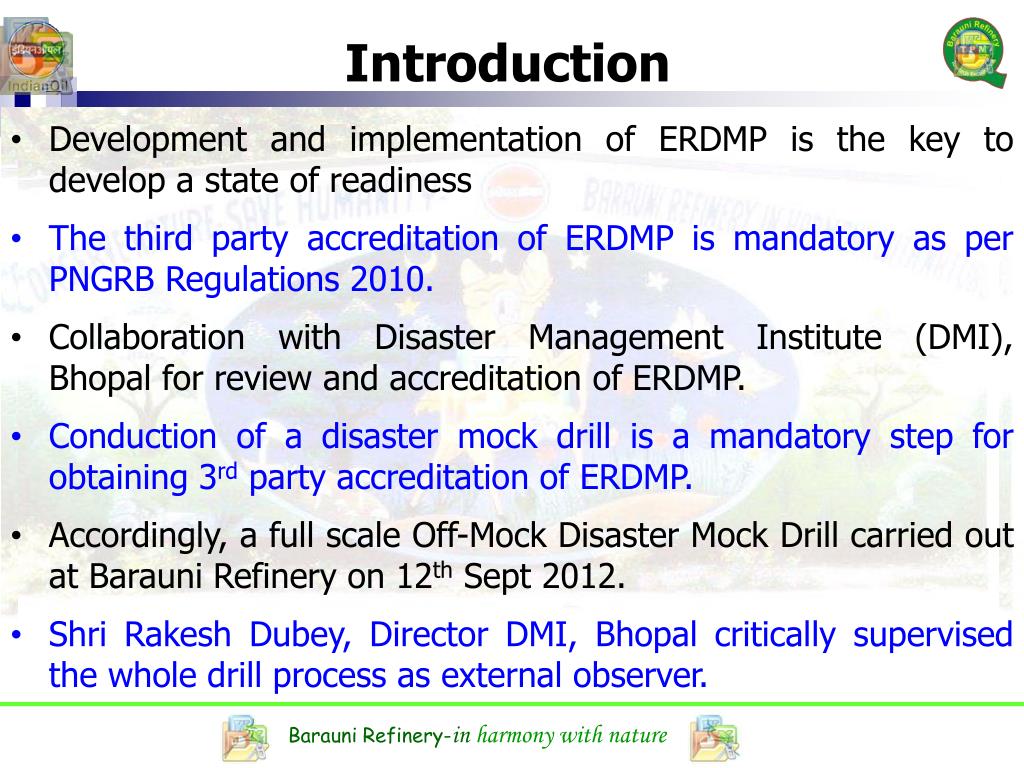

Introduction

  • Development and implementation of ERDMP is the key to develop a state of readiness

  • The third party accreditation of ERDMP is mandatory as per PNGRB Regulations 2010.

  • Collaboration with Disaster Management Institute (DMI), Bhopal for review and accreditation of ERDMP.

  • Conduction of a disaster mock drill is a mandatory step for obtaining 3rd party accreditation of ERDMP.

  • Accordingly, a full scale Off-Mock Disaster Mock Drill carried out at Barauni Refinery on 12th Sept 2012.

  • Shri Rakesh Dubey, Director DMI, Bhopal critically supervised the whole drill process as external observer.


Objective of Disaster Mock drill

  • Observe and evaluate the effectiveness of ERDMP.

  • Check preparedness of district administration to respond and manage large scale disasters.

  • Create awareness and coordination among government functionaries, refinery personnel and communities.

  • Develop and strengthen disaster management preparedness, response and recovery plans.

  • Minimize damage to public, environment, property and machinery.

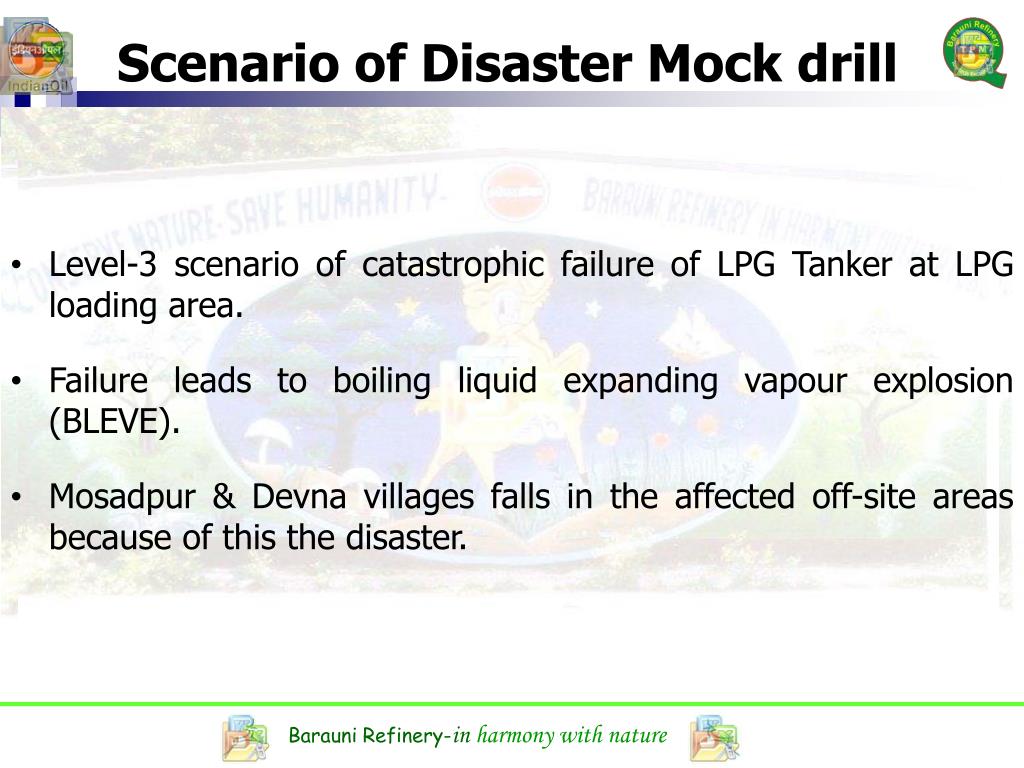

Scenario of Disaster Mock drill

  • Level-3 scenario of catastrophic failure of LPG Tanker at LPG loading area.

  • Failure leads to boiling liquid expanding vapour explosion (BLEVE).

  • Mosadpur & Devna villages falls in the affected off-site areas because of this the disaster.


Appreciation Programme

  • Conducted for district administration authorities.

  • To create awareness about the scenario of the mock drill.

  • Strengthen the communication and co-ordination between district authority and refinery.

  • DM, Begusari along with 50 other officials from district administration and Barauni Refinery attended the prograame




De-briefing Session

  • A debriefing session was held to review the disaster mock drill.

  • Areas of concern were discussed aiming at various scope of improvement.

  • DM, Begusrai chaired the debriefing session in presence of Mr. SK Jha, ED, Barauni Refinery, Dr Rakesh Dubey, Dir, DMI, Bhopal, Mr RK Chugh, GM (TS) and Mr S K Das, GM (T).

  • About 78 officials from district administration and Barauni Refinery attended the meeting.


Highlights of the Mock Drill

  • The drill lasted for about 44 minutes

  • Barauni Refinery executed the disaster management plan effectively.

  • All the off-site emergency coordinators from district administration participated actively in the exercise.

  • The district administration effectively discharged its role in managing and controlling the offsite disaster.

  • The habitants of affected villages, vehicle drivers and other people commuting on the nearby roads were found to be aware of the emergency situation.


Highlights of the Mock Drill

  • The active participation of Civil defense volunteers in the mock drill was praiseworthy.

  • Three causalities (one burn, another fallen from height and third with gas exposure) were reported onsite and two causalities were reported offsite.

  • The whole exercise was closely observed by 10 observers from Barauni Refinery and 4 observers from district administration.

  • The mock drill culminated without any mishap and inconvenience to the public.

  • The exercise was successful and was deeply appreciated by Mr Rakesh Dubey, Director, DMI, Bhopal.


Mock Drill in Pictures

Director DMI, Bhopal with ED, Barauni Refinery and BR Management during Opening Meeting

Location of Disaster Mock drill: LPG TT Loading Shed


Mock Drill in Pictures

Arrival of Fire Team at LPG TT Area and Fire Fighting in Progress

Removal of Causality from the Site


Mock Drill in Pictures

Civil defense officers and Ambulance in nearby village

Arrival of District Administration


Mock Drill in Pictures

District Police Controlling the traffic

Director, DMI Bhopal assessing the Offsite Situation
