  1. About Victron Energy

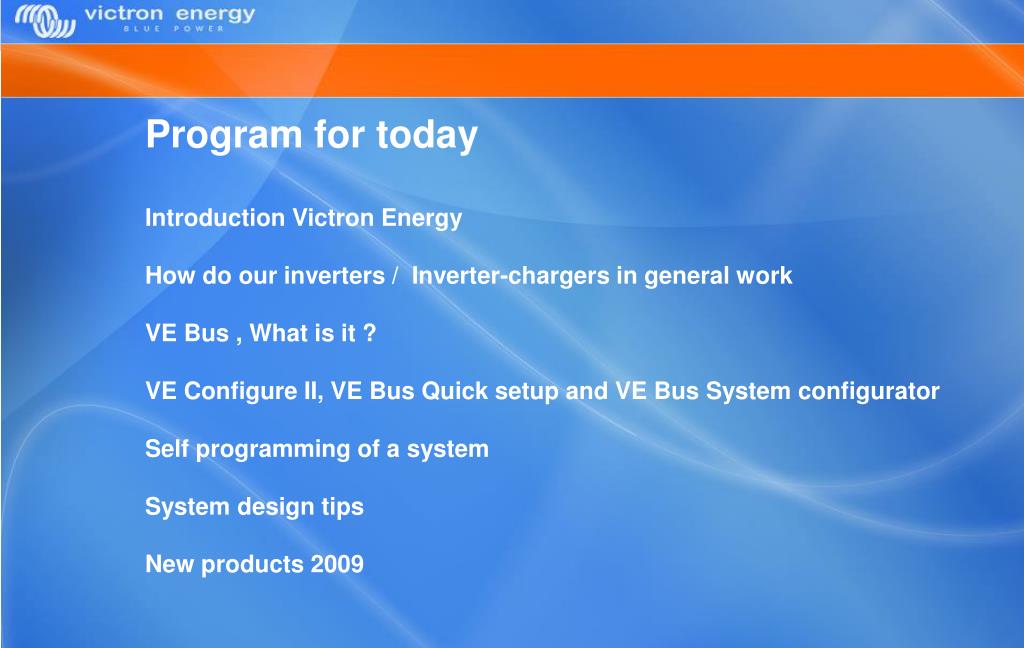

  2. Program for today Introduction Victron Energy How do our inverters / Inverter-chargers in general work VE Bus , What is it ? VE Configure II, VE Bus Quick setup and VE Bus System configurator Self programming of a system System design tips New products 2009

  3. More freedom Energy. Anytime. Anywhere. That's what Victron Energy’s is all about. Your spin-off: more freedom. Not only that, also cost saving and simplifing systems comes in the same package. Allow us to introduce ourselves to you

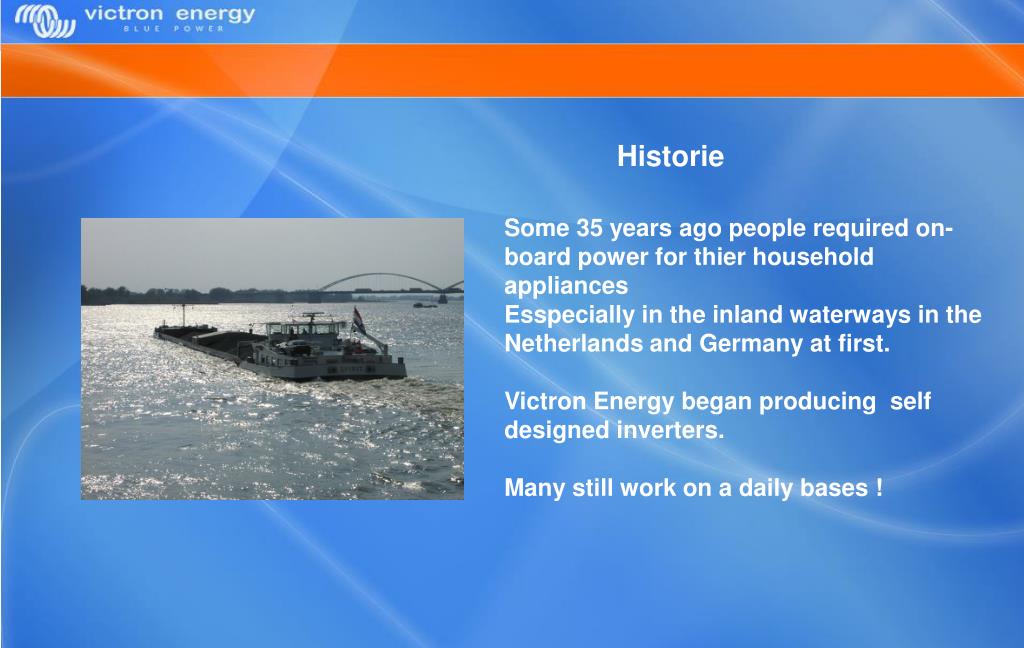

  4. Historie Some 35 years ago people required on-board power for thier household appliances Esspecially in the inland waterways in the Netherlands and Germany at first. Victron Energy began producing self designed inverters. Many still work on a daily bases !

  5. Present • Fact and figures ; • Private owned. • 36 employees • 10 sales • 12 R&D • 2 Service • 12 Finance, Quality contol and logestics ect. • Production in far East ( India and Malaysia ) • Sales worldwide by a distributers network • Market are Marine, Industrial ,Automotive , Off Grid and Mobility • Turnover 2008 ~20mln euro • Avarage groth over the last 5 years, + 25% yearly.

  6. Research and development All produced products are a result of our own research and development. We feel being innovative is the key to succes ! So all units have years of designing experiance making them more reliable and powerful ! Feature’s like PowerAssist and the abiliy to parallel units was introduced by Victron Energy.

  7. Production Mainly the complete production is done in the Far East. Main reason for this is the lower costprice of components Stock is held in third party warehouses worldwide and distributed on demand.

  8. Service The service department at Victron Energy coordinates service worldwide and is focus on bring the fastest and best solution on every situation. In the event that units are sent to service they will be sent back with a couple of days.

  9. Sales Our World wide sales is done by a extensive network of distributers and area managers employed by Victron Energy . All sales people have a technical back ground so they can advise not only on finacial side but they are also experts on calculating the electrical side and designing.

  10. Future Beside investing in our existing markets such as Marine, Automotive and Industrial we will also have a focus on groth in off-grid market. The filosophy will remain that we have to be known for our unrivalled reputation for technical innovation, reliability, and build quality. Our products are widely considered to be the professional choice for independent electric power, we are proud on that !!. So we make sure that you will have more freedom

  11. Questions or remarks so far ?

  12. VE BUS Digital communication between Victron products On this network is information such as; AC and DC Voltage and current Settings for charger and inverter Sync information Result check signals Alarm signals to the panel

  13. AC ~ 10 Vac DC 12Vdc

  14. AC ~ 230 Vac DC 12Vdc

  15. AC ~ 230 Vac DC 12Vdc

  16. AC ~ 230 Vac DC 12Vdc

  17. AC ~ 230 Vac DC 12Vdc

  18. AC ~ 230 Vac DC 12Vdc

  19. AC ~ 220 Vac AC ~ 220 Vac AC ~ 220 Vac DC 12Vdc

  20. AC ~ 220 Vac AC ~ 220 Vac AC ~ 220 Vac DC 12Vdc

  21. AC ~ 220 Vac AC ~ 220 Vac AC ~ 219 Vac DC 12Vdc

  22. AC ~ 220 Vac AC ~ 220 Vac AC ~ 222 Vac DC 12Vdc

  23. AC ~ 230 Vac DC 12Vdc

  24. Why VE bus ? VE BUS is more stabile/less sensitive for distortion VE BUS is faster VE BUS is ready for the future VE BUS is already capable of doing more !!

  25. VE Configure Configurator for inverters, charger and Multi’s Inverter ;from 1200Va and up Charger ;Phoenix charger range Multi ;All models

  26. VE Configure General settings such as ; Input/Output specification Inverter settings Charger settings VS feature

  27. VE BUS System Configurator Parallel single phase Multi phase ( three / split phase options ) Default settings Special settings such as floating phase and multiple inputs No limitation on number of units ! A dongle is needed >3 units and/or multiple inputs !!

  28. VE BUS Quick Configure Parallel single phase Multi phase ( three / split phase options ) Default settings Read out error settings Up to three units maximal !!

  29. VE Configure II VE BUS Quick setup VE BUS System Configure

  30. Quattro tips and tricks AC1 always has priority over AC2 AC1 is connected to the internal powersupply In paralleling when using single inputs give lower minimal current.

  31. VE Bus tips and tricks When having more then 1 inputs* every input has its own charge settings. These settings can be set in the Charger master All VS relays in a system are fully indepentent T sensors can be connected to any unit in a phase, V sense only on charge masters “Check remote panel “ can be used to update a panel, Only panels with blue LEDs can be updated ! * Quattro more then three !!

  32. Panel tips and tricks The system knows the scale of the panel The system knows the maximal Multi current The system knows which input is active VE bus panel are downwards compatible

  33. Questions or remarks so far ?

  34. New Multiplus 3k

  35. Quattro 3000 Watt

  36. ARGO FET Battery Isolator with alternator energize input

  37. Cyrix-i 12/24-100 Connect voltage From 13V to 13,8V and 26 to 27,6V with intelligent trend detection Disconnect voltage From 11V to 12,8V and 22 to 25,7V with intelligent trend detection Cyrix-i 12/24-200 and Cyrix-i 12/24-400 ( also available 24/48Vdc !) 4 selectable connect/disconnect profiles

  38. BMV 600 Complete package with shunt and cable included, One Battery Volatge range is 9-90Vdc BMV 602 As BMV600 but with the ability for a secondary voltage readout Communication port BMV 602h As BMV602 but designed for High DC voltage readout ( 35-150Vdc )

  39. New Skylla range

  40. New Skylla range
