Presentation Transcript

  1. Chapter 7: Air-Sea Interaction Fig. 7-20

  2. Atmosphere and ocean one interconnected system • Change in atmosphere affects ocean • Change in ocean affects atmosphere

  3. Unequal solar heating • Low latitudes receive more solar radiation • High latitudes receive less solar radiation

  4. Equatorial areas excess heat • Polar regions heat deficient Fig. 7-3

  5. Insolation factors • Latitude • Thickness of atmosphere • Albedo • Seasons • Time of day • Vegetation, bare rock, etc.

  6. Atmosphere (troposphere) • N2, O2, Ar • Temperature decreases with increasing altitude • Warm air is less dense than cool air • Moist air is less dense than dry air • Wind flows from high pressure to low pressure

  7. Coriolis Effect • Deflection in motion of moving objects • Rotation of Earth • Important for objects that move long distances/long times • Maximum deflection at poles • Negligible deflection at equator

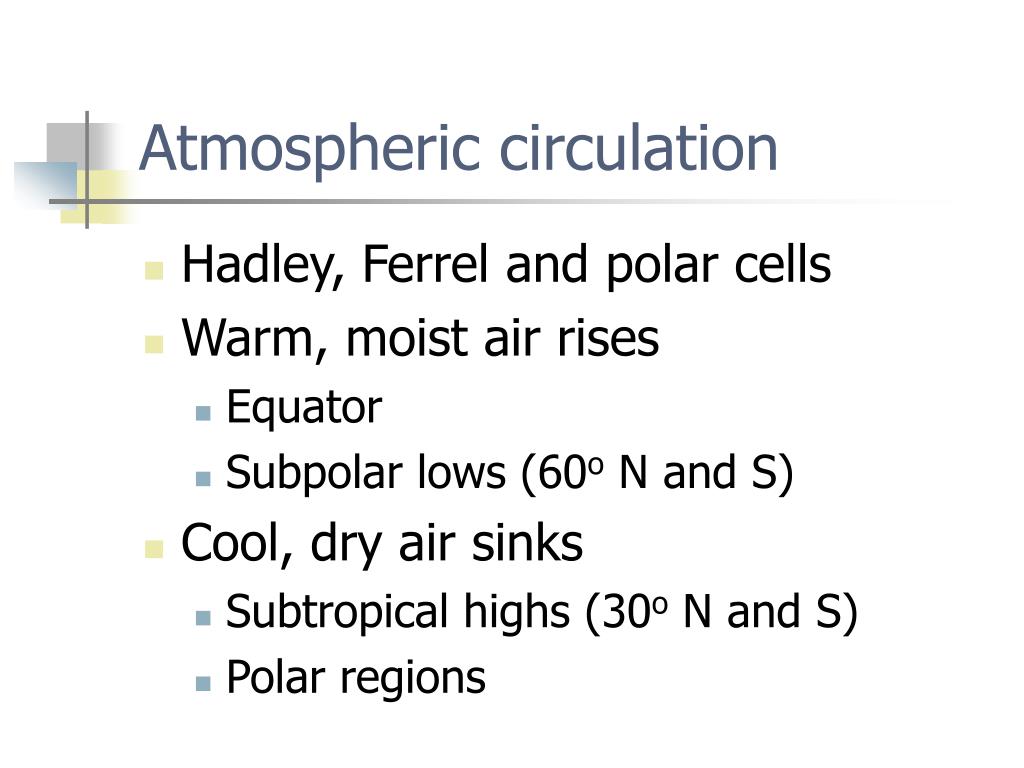

  8. Atmospheric circulation • Hadley, Ferrel and polar cells • Warm, moist air rises • Equator • Subpolar lows (60o N and S) • Cool, dry air sinks • Subtropical highs (30o N and S) • Polar regions

  9. Cells and surface winds • Surface winds flow from high pressure to low pressure Fig. 7-10

  10. Surface winds • Tradewinds • About 0o to 30o N and S • Northeast (Northern hemisphere) • Southeast (Southern hemisphere) • Westerlies • About 30o to 60o N and S • Polar Easterlies

  11. Idealized 3-cell model • Complicated by • Seasons, tilt • Differences in heat capacities of land and ocean • Uneven distribution of land and ocean • Example: monsoon winds in Asia and Indian Ocean

  12. Local winds and their effects • Sea breeze • Land breeze • Sea fog • Radiation fog

  13. Air masses meet at low pressure Fig. 7-14

  14. Regional winds and storms • Mid-latitude storm systems • Low pressure • Warm front • Cold front Fig. 7-15

  15. Hurricane (tropical cyclone) • Develop over tropical ocean • Warm ocean • Warm, moist air rising • Sufficient Coriolis Effect to cause rotation Fig. 7-17

  16. Tropical cyclones • Destructive high winds, storm surge • Classified by damage done/wind speed • Moved westward by trade winds

  17. Sea ice vs. icebergs • Sea ice frozen seawater • Especially important in Arctic • Pack ice, polar ice, fast ice • Icebergs broken pieces of glacier • Float in ocean • Shelf ice (extremely large plate-like icebergs)

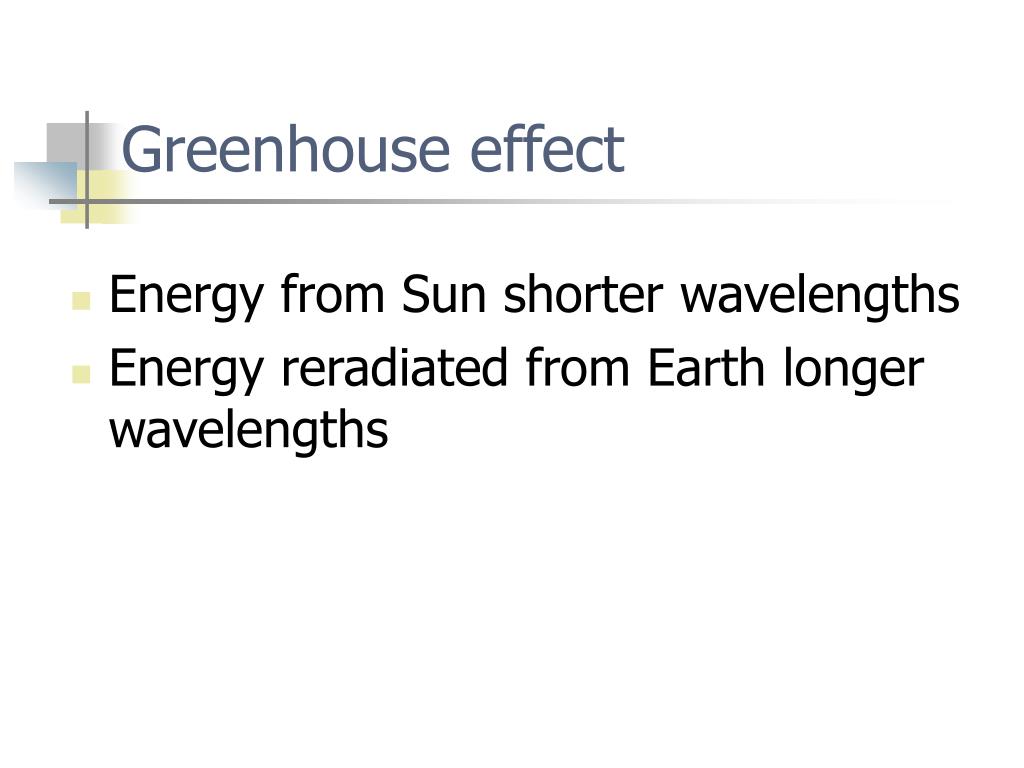

  18. Greenhouse effect • Energy from Sun shorter wavelengths • Energy reradiated from Earth longer wavelengths

  19. Fig. 7-24

  20. Greenhouse gases • Absorb infrared radiation from Earth • Mainly H2O and CO2

  21. Other greenhouse gases • Minor gases: methane, nitrous oxides, ozone, chlorofluorocarbons • Anthropogenic sources of greenhouse gases contribute to global warming • Increase in global temperature • Some natural • Most artificial

  22. CO2 in oceans • CO2 high solubility in seawater • Excess CO2 in atmosphere locked up in oceans • CaCO3 biogenic sediments • Stimulate growth of phytoplankton to use up CO2 in ocean

  23. SOFAR Channel • Sound travels far • Velocity of sound is temperature-dependent • Use sound to measure temperature in much of ocean • ATOC

  24. End of Chapter 7: Air-Sea Interaction
