Presentation Transcript

Overview l.jpg
Overview

  • Guided - wire

  • Unguided - wireless

  • Characteristics and quality determined by medium and signal

  • For guided, the medium is more important

  • For unguided, the bandwidth produced by the antenna is more important

  • Key concerns are data rate and distance


Design factors l.jpg
Design Factors

  • Bandwidth

    • Higher bandwidth gives higher data rate

  • Transmission impairments

    • Attenuation

  • Interference

  • Number of receivers

    • In guided media

    • More receivers (multi-point) introduce more attenuation


Wiring closet l.jpg

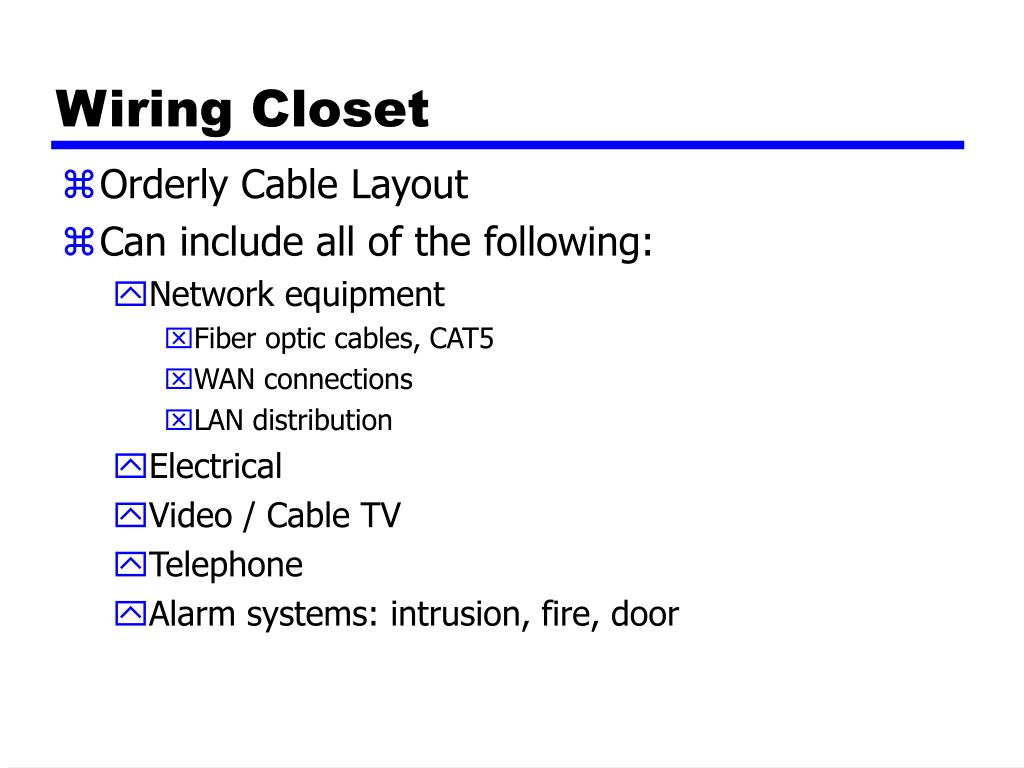

Wiring Closet

  • Orderly Cable Layout

  • Can include all of the following:

    • Network equipment

      • Fiber optic cables, CAT5

      • WAN connections

      • LAN distribution

    • Electrical

    • Video / Cable TV

    • Telephone

    • Alarm systems: intrusion, fire, door


Wiring closet5 l.jpg
Wiring Closet

  • Orderly Cable Layout

    Needs

    HELP!!!!!


Wiring closet6 l.jpg

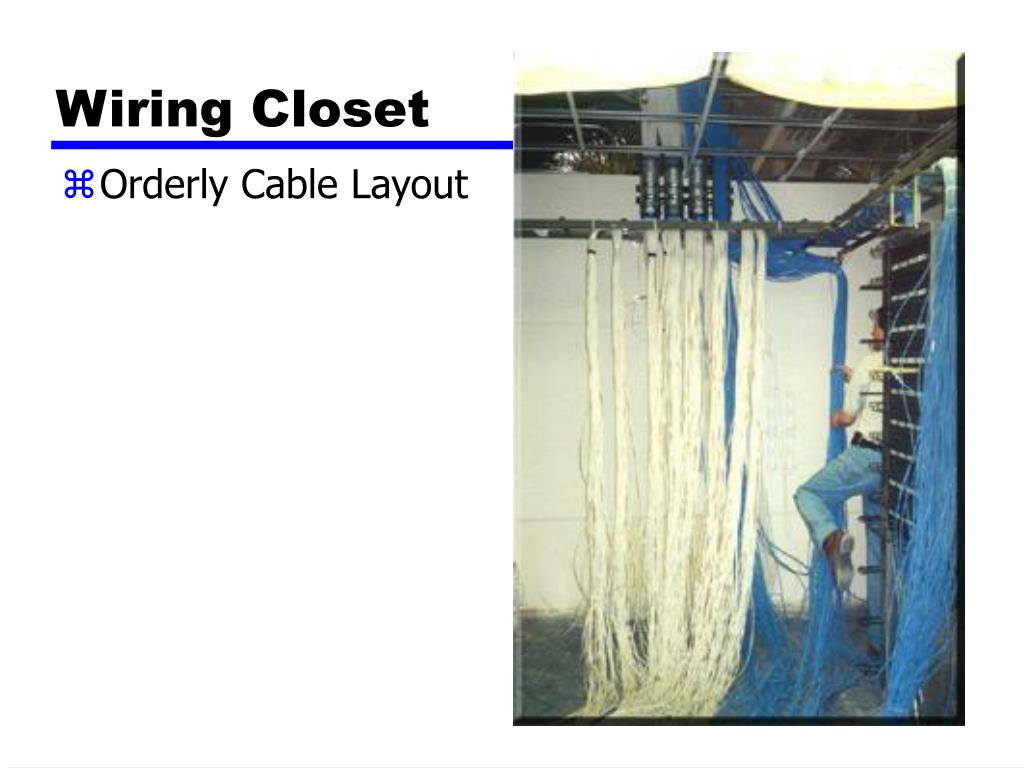

Wiring Closet

  • Orderly Cable Layout










Time domain reflectometer15 l.jpg
Time Domain Reflectometer

  • Works by transmitting a pulse of energy into a cable

  • Observing that energy as it is reflected by the system


Time domain reflectometer16 l.jpg

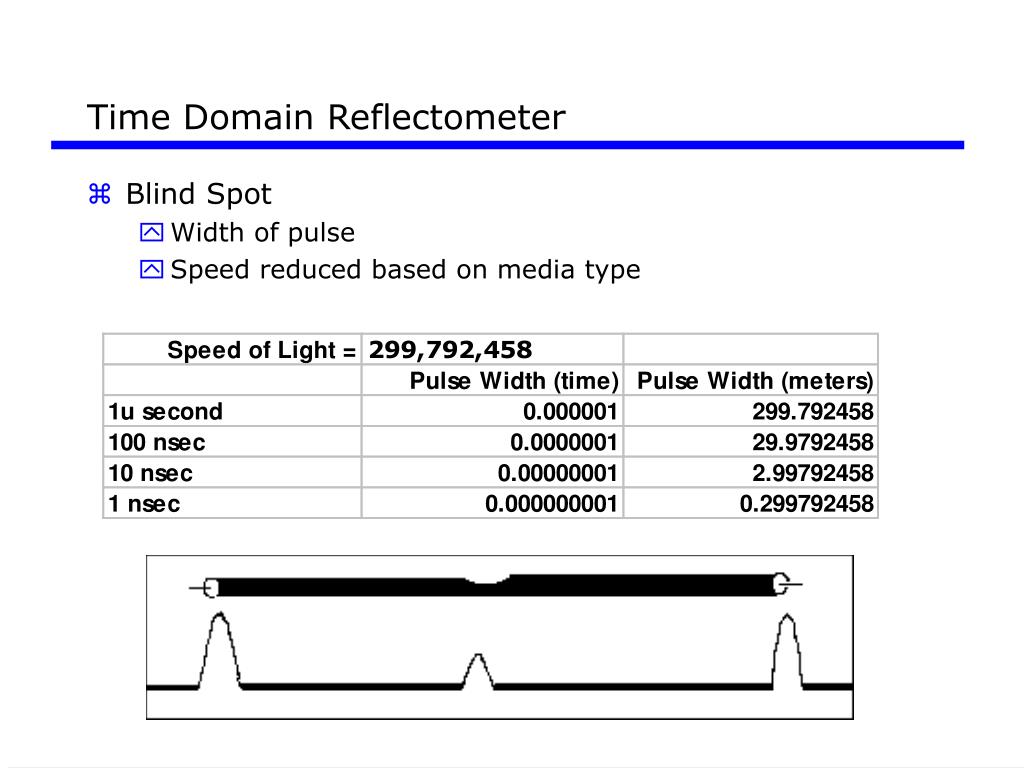

Time Domain Reflectometer

  • Blind Spot

    • Width of pulse

    • Speed reduced based on media type


Time domain reflectometer17 l.jpg
Time Domain Reflectometer

  • Distance vs. VOP

  • Velocity of Propagation – speed of light

    • Speed of light in vacuum = 299,792,458 m/s ( C )

    • VOP varies in different media – presented as a %

    • Distance pulse travels (D) = C x Time (T)

      D=C*T ; T = D/C

    • Measured time from transmission of pulse to receipt of reflected pulse – calculate distance

      • Round trip delay 0.000667128 sec * 299,792,458 m/s = 200,000

      • Length = 200,000 / 2 = 100,000 meters

    • Speed reduced based on media type


Time domain reflectometer18 l.jpg
Time Domain Reflectometer

  • Distance - Time

T = D/C


Time domain reflectometer19 l.jpg
Time Domain Reflectometer

  • VOP for various media

  • Important for VOP to be accurate

  • Measured or Obtained from MFR


Time domain reflectometer20 l.jpg

CABLE TYPE

Examples of VOP

TYPE

VOP

TELEPHONE

19AWG

Gel-Filled

68

22 AWG

Gel-Filled

66

24 AWG

Gel-Filled

62

26 AWG

Gel-Filled

60

19 AWG

AIR

72

22 AWG

AIR

67

24 AWG

AIR

66

26 AWG

AIR

64

Polyethylene

66

Polypropylene

66

Teflon

69

PIC

67

Pulp

72

CATV

Belden

Foam

78S-82

Solid

66

Comm/Scope

(F)

82

PARA I

82

PARA III

87

QR

88

Time Domain Reflectometer



Slide22 l.jpg

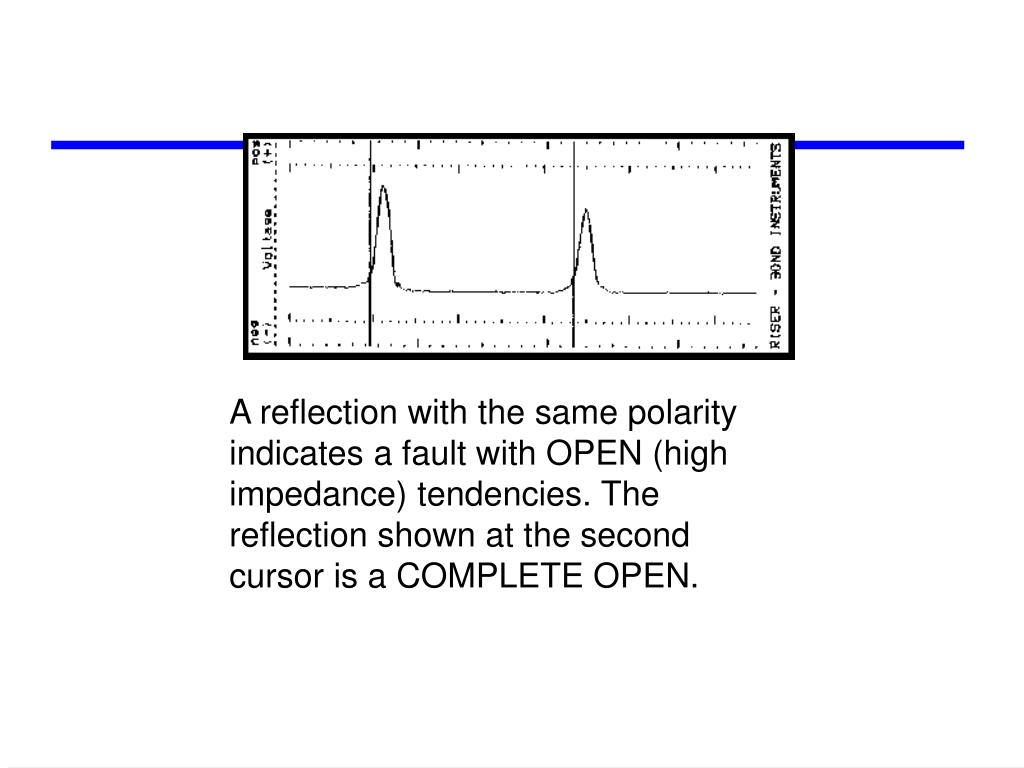

A reflection with the same polarity indicates a fault with OPEN (high impedance) tendencies. The reflection shown at the second cursor is a COMPLETE OPEN.


Slide23 l.jpg

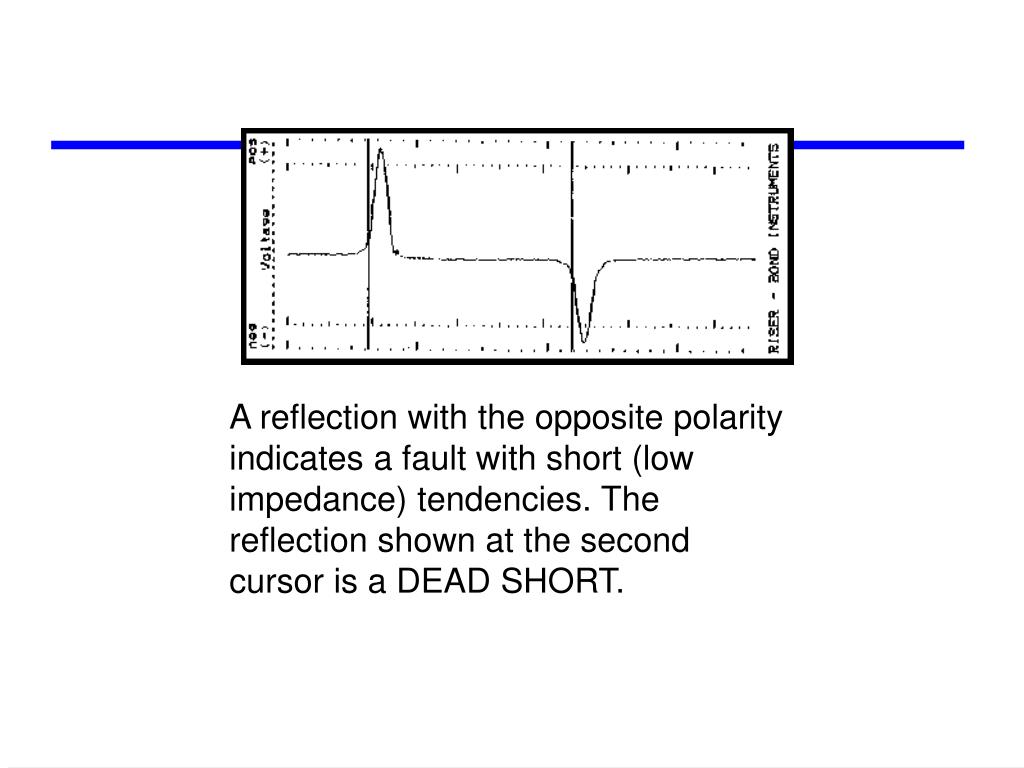

A reflection with the opposite polarity indicates a fault with short (low impedance) tendencies. The reflection shown at the second cursor is a DEAD SHORT.


Slide24 l.jpg

The middle reflection at the second cursor is a PARTIAL OPEN followed by a COMPLETE OPEN (end of the cable). The more severe the fault, the larger the reflection will be.


Slide25 l.jpg

The middle reflection at the second cursor is a PARTIAL SHORT followed by a COMPLETE OPEN (end of the cable). The more severe the fault, the larger the reflection will be.


Slide26 l.jpg

Two sections of coaxial cable with a barrel connector shown at the second cursor. The amount of reflection caused by the connector is directly proportional to the quality of the connector and connection.


Slide27 l.jpg

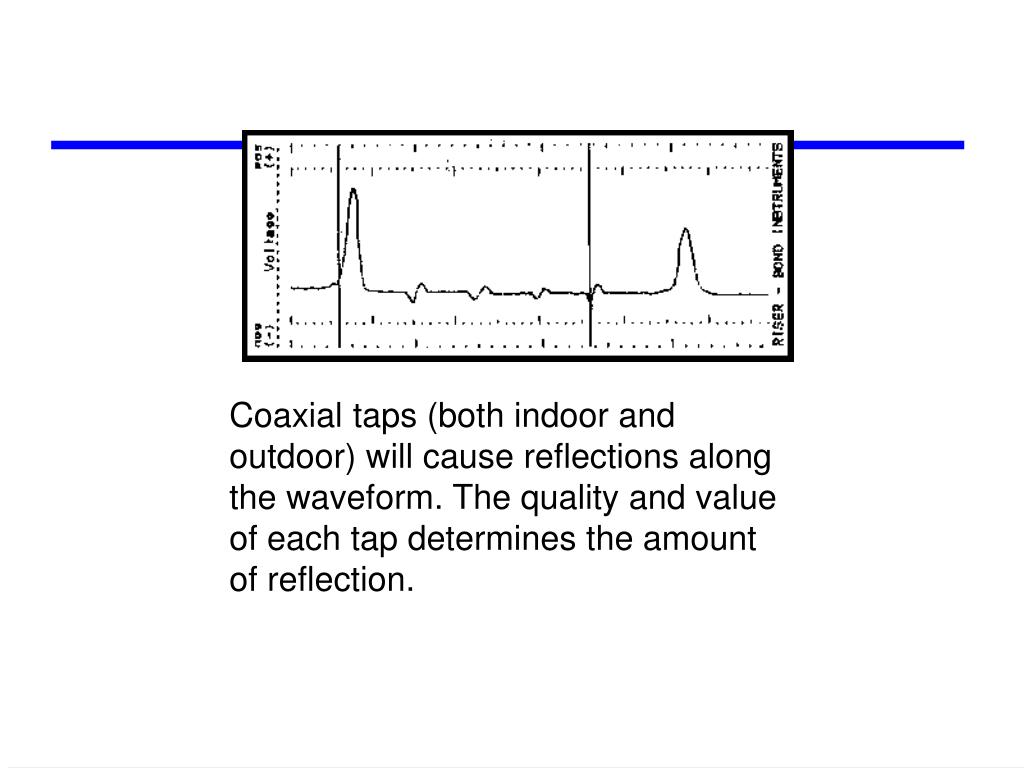

Coaxial taps (both indoor and outdoor) will cause reflections along the waveform. The quality and value of each tap determines the amount of reflection.


Slide28 l.jpg

A splitter or directional coupler can be identified although accurate measurements are difficult due to multiple reflections. The second cursor identifies the splitter. The two reflections following are the ends of each of the two segments.


Slide29 l.jpg

A water soaked cable will display a waveform with a downward slope indicating the beginning of the water and an upward rise at the end of the water . Generally, the area in between the two reflections will appear "noisy".


Slide30 l.jpg

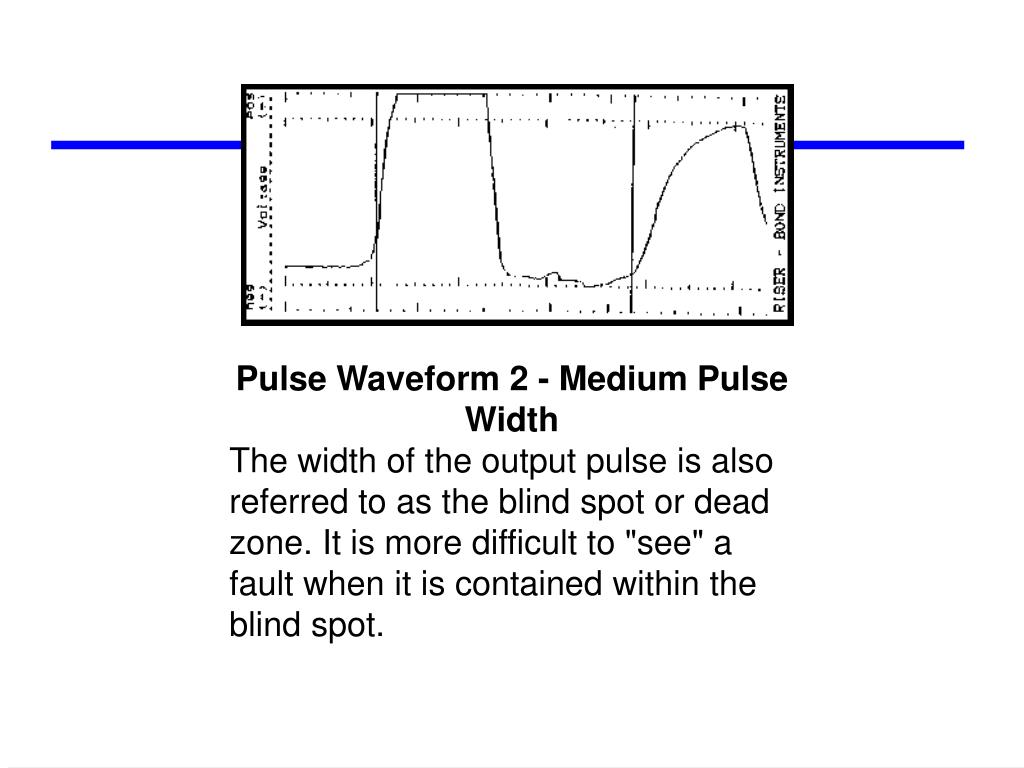

Pulse Waveform 2 - Medium Pulse Width slope indicating the beginning of the water and an upward rise at the end of the water . Generally, the area in between the two reflections will appear "noisy".

The width of the output pulse is also referred to as the blind spot or dead zone. It is more difficult to "see" a fault when it is contained within the blind spot.


Time domain reflectometer31 l.jpg
Time Domain Reflectometer slope indicating the beginning of the water and an upward rise at the end of the water . Generally, the area in between the two reflections will appear "noisy".
