第八章 Chain drives 链传动

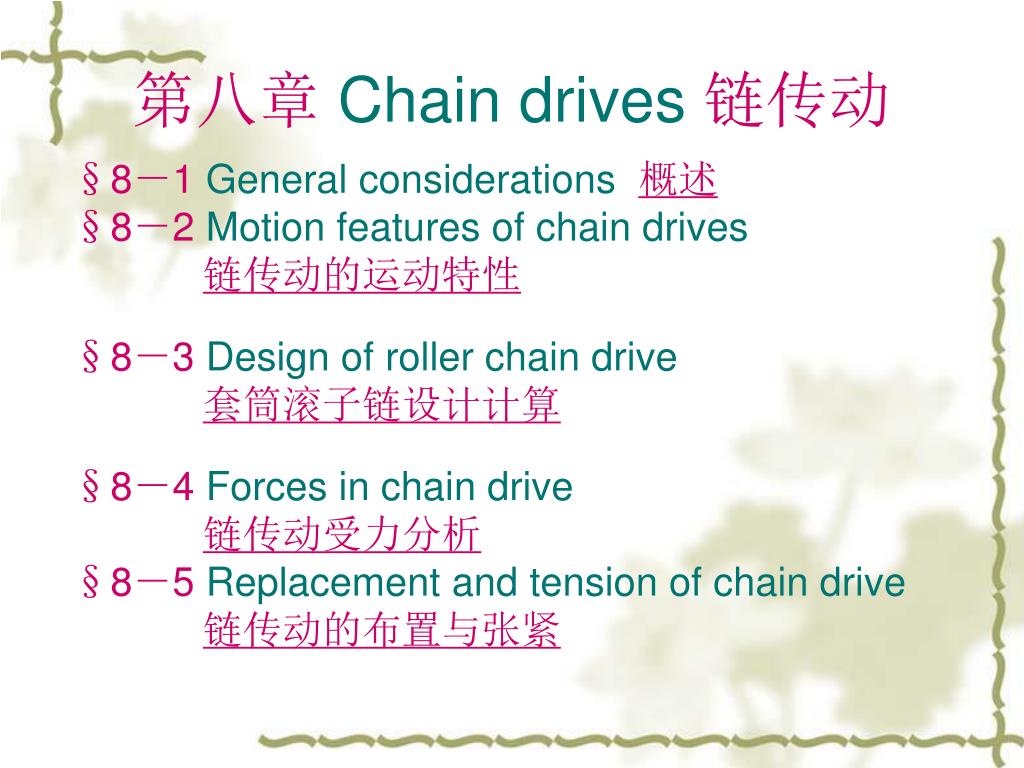

第八章 Chain drives 链传动. §8 - 1 General considerations 概述 §8 - 2 Motion features of chain drives 链传动的运动特性 §8 - 3 Design of roller chain drive 套筒滚子链设计计算 §8 - 4 Forces in chain drive 链传动受力分析 §8 - 5 Replacement and tension of chain drive 链传动的布置与张紧. §8-1 General considerations 概述.

masato
Download Presentation

第八章 Chain drives 链传动

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 第八章 Chain drives链传动 §8-1 General considerations概述 §8-2 Motion features of chain drives 链传动的运动特性 §8-3 Design of roller chain drive 套筒滚子链设计计算 §8-4 Forces in chain drive 链传动受力分析 §8-5 Replacement and tension of chain drive 链传动的布置与张紧

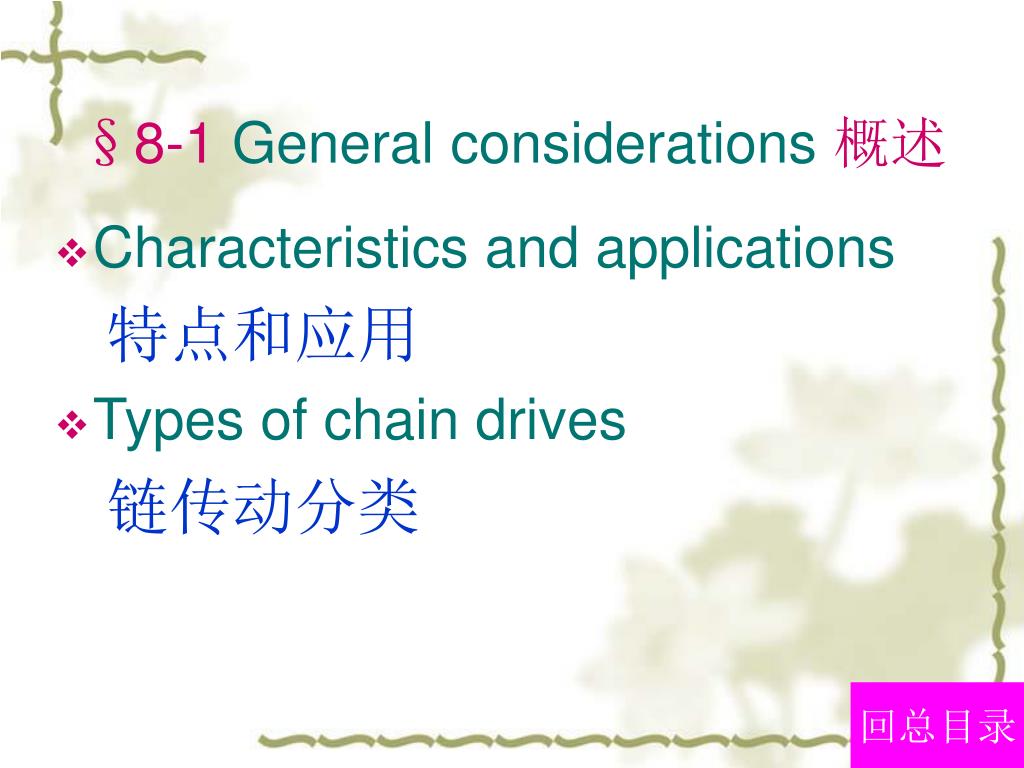

  2. §8-1 General considerations 概述 • Characteristics and applications 特点和应用 • Types of chain drives 链传动分类 回总目录

  3. 一、Characteristics and applications特点和应用 1、 Advantages 优点 ★ In comparison to belt drive 与带传动相比: ①Absence of slippage 无滑动 ②Smaller overall size 尺寸小 BACK

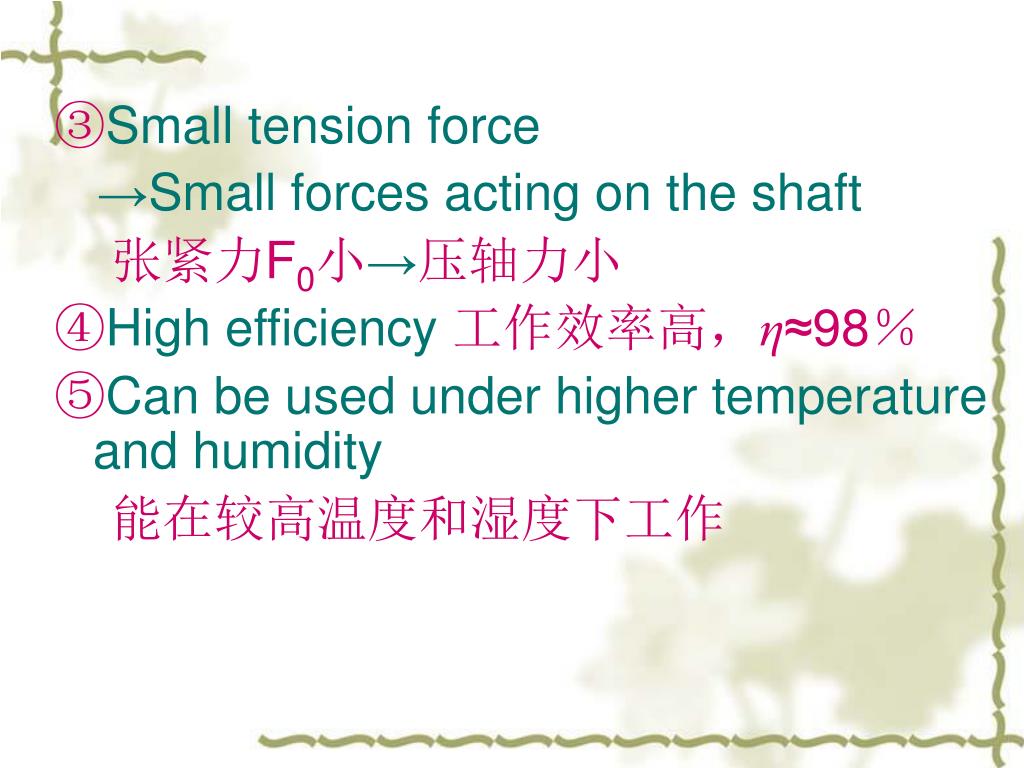

  4. ③Small tension force →Small forces acting on the shaft 张紧力F0小→压轴力小 ④High efficiency 工作效率高,η≈98% ⑤Can be used under higher temperature and humidity 能在较高温度和湿度下工作

  5. ★ In comparison to toothed drive Can be used for larger centre-to-centre distances 与齿轮传动相比: 中心距a可以很大(8m)

  6. 2、Drawbacks 缺点 ①Used only for parallel shafts 只用于平行轴 ②The velocity of the chain is not constant → Leading to larger impact, vibration and noise i瞬变化→高速时冲击、振动、噪音大.

  7. 3、Applications 应用 (For low speed and severe operation condition 适用于低速,胜任恶劣工况)

  8. 二、 Types of chain drives链传动分类 ①传动链:Power transmission chains 传递动力 Bushing chains 套筒链 : Higher slidingspeeds 、Severe wear Roller chains 套筒滚子链: Are extensively applied 应用广泛 Silent chains齿形链(无声链): Less noise 无噪音, High cost价格高 BACK

  9. ② Lifting chain起重链: Suspending loads提升重物 ③ Hauling chain曳引链: Carrying loads 移动重物

  10. 三、Roller chains 套筒滚子链 1、Structure 结构: Bushings 套筒4、inside link plates内链板1: Pin 销轴3、Outside linkplates外链板2: Interference fit 过盈配合

  11. Bushings 套筒、 Rollers滚子: Tolerance fit 间隙配合 The pin pass through the bushings of adjacent links to form swivel joints 套筒、销轴相对转动 链节屈伸 元件结构图

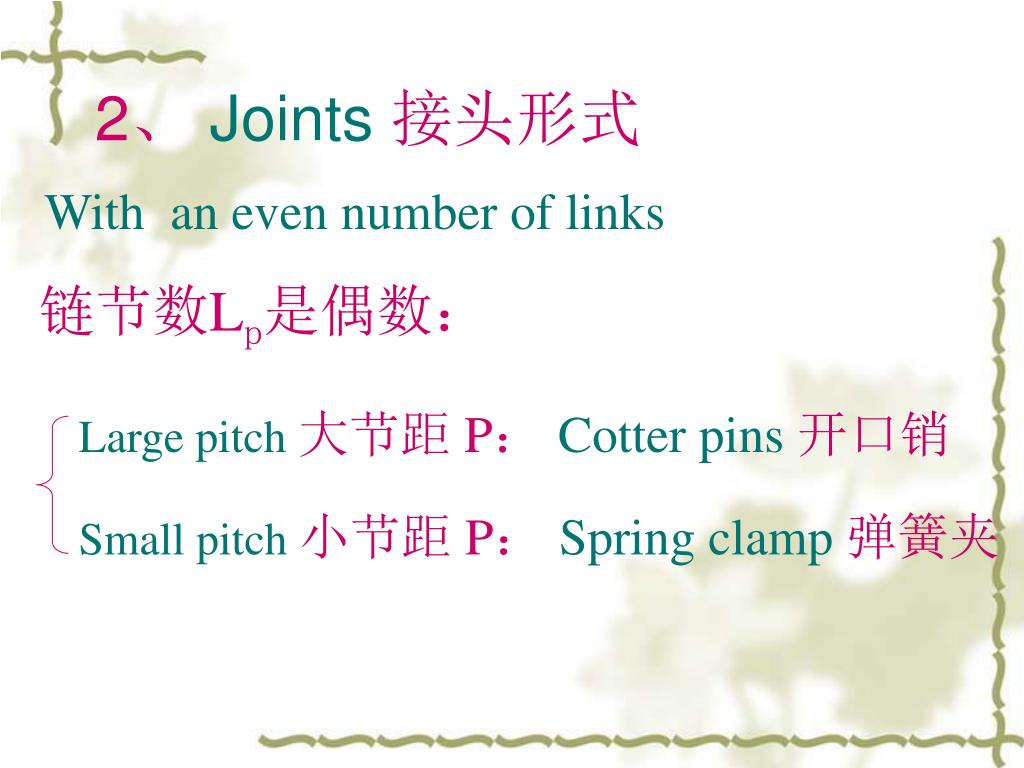

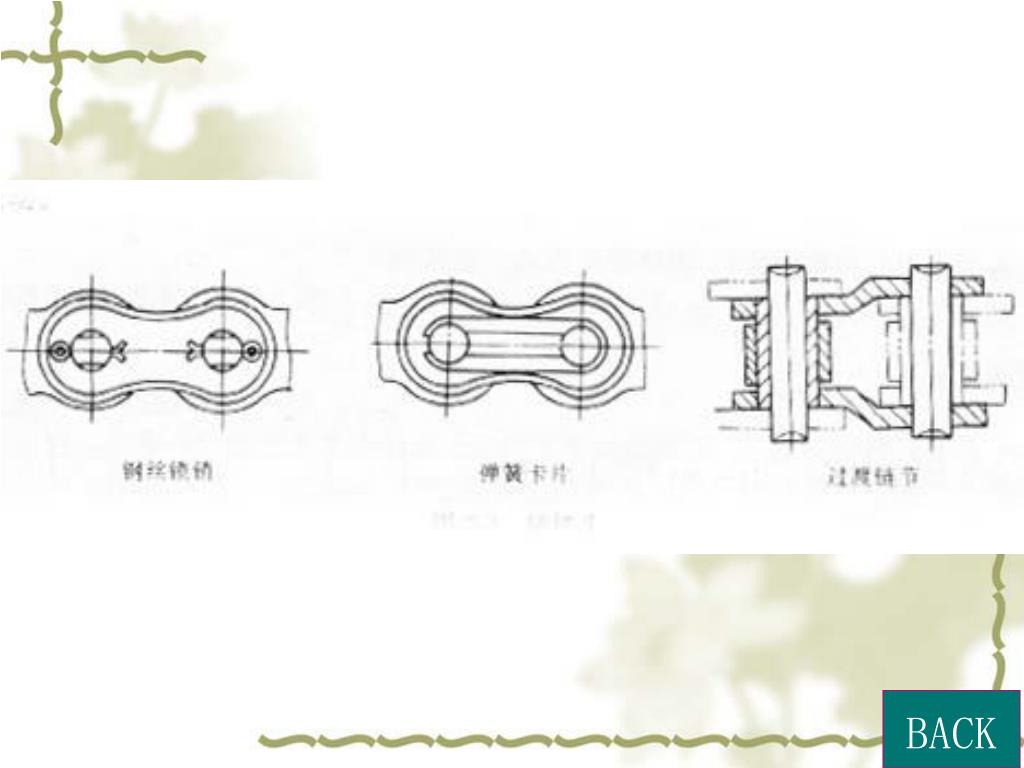

  12. 2、Joints 接头形式 With an even number of links 链节数Lp是偶数: Large pitch 大节距 P:Cotter pins 开口销 Small pitch 小节距 P:Spring clamp 弹簧夹

  13. With an uneven number of links: Offset link 链节数Lp是奇数:过渡链节 ( Which, however, is weaker than the main links. Therefore, designers try to use chains with an even number of links 附加弯矩,导致链条抗拉强度下降, 最好不用)

  14. BACK

  15. §8-2Motion features of chain drives链传动的运动特性 • Variation in speed ratio 运动不均匀性 • Dynamic load 动载荷 回总目录

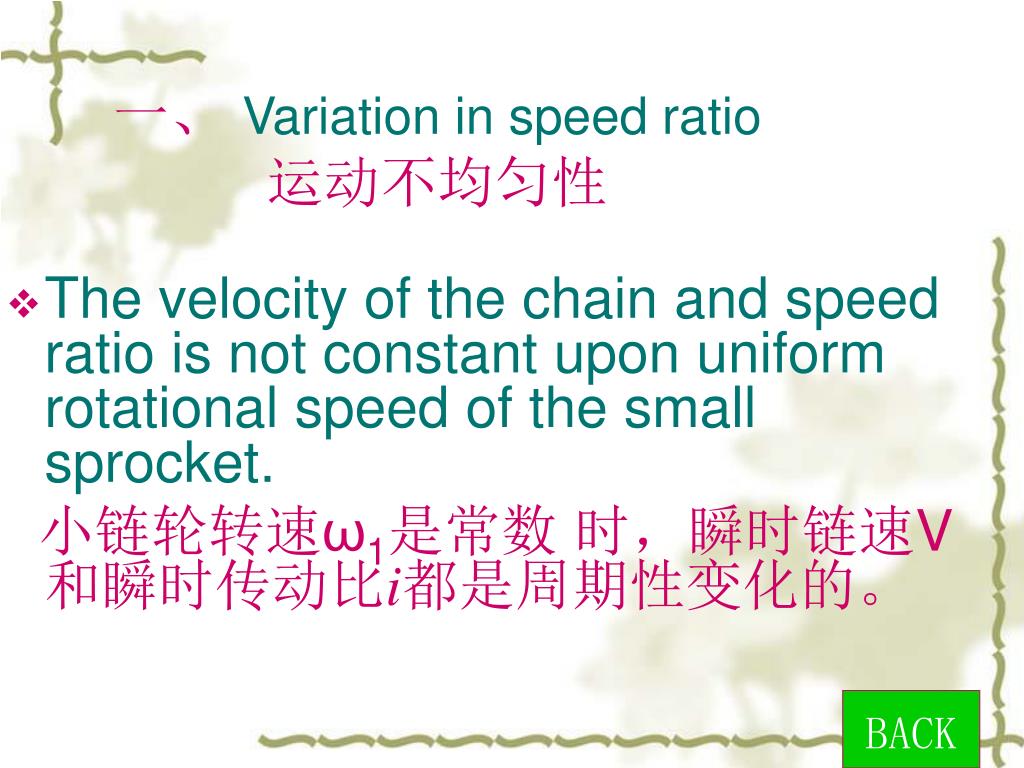

  16. The velocity of the chain and speed ratio is not constant upon uniform rotational speed of the small sprocket. 小链轮转速ω1是常数 时,瞬时链速V和瞬时传动比i都是周期性变化的。 一、 Variation in speed ratio运动不均匀性 BACK

  17. 1、The chain velocity 瞬时链速V (为便于分析,设紧边处于水平位置) ① The velocity of the joint of the link 销轴中心VA= ω1 R1 ② The velocity of chain 链速 V= VAcosβ= ω1 R1 cosβ (The velocity of vertical motion of the chain 链条上下垂直运动速度 V′= ω 1R1sinβ)

  18. Since angle βvaries, the chain velocity varies. 周期性变化,导致V不均匀性

  19. When rising, the chain suddenly falls and vice-versa ④ Deceleration in rising Unsteady motion and vibration Quick motion suddenly changes into slow motion and vice-versa Acceleration in falling

  20. Nun uniformity of the velocity for the chain

  21. 2、 Instantaneous speed ratio瞬时传动比 ① ②

  22. ③ Only at : Z1= Z2( R1= R2 ) There is exactly a whole number of links in the driving side of the chain 只有当Z1= Z2,紧边长度恰为P的整数倍时 (β,γ随时相等) i12≡1 (ω1 ≡ ω2)

  23. 3、Average velocity of the chain& average speed ratio 平均链速V和平均传动比 i When the sprocket turn 3600, the length of the chain running over the sprocket is zp. Number of teeth of a sprocket Chain pitch BACK

  24. 1、No uniformity of the motion • → Dynamic load • 运动不均匀性→动载荷 • V,i,ω2 Periodic change • →Acceleration → Dynamic load • 周期性变化→加速度→动载荷 二、Dynamic load 动载荷 BACK

  25. ③ ω1↑ P↑(Z1↓) → It is favorable to select small pitch and large number of teeth from the point of view of decreasing dynamic load 动载荷↑宜采用小节距P大齿数Z1

  26. 2、Periodic change V′周期性变化→Cross vibration 横向振动 →Dynamic load 动载荷

  27. 3、Mesh impact→ Dynamic load 冲击→动载荷 Impacts of the chain links on the sprocket teeth as new links come into engagement 链节进入链轮时,以一定相对 速度相啮合→冲击→动载荷

  28. Impact energy of motion 冲击动能 In order to reduce impact为减小冲击 Reduce 减小P,n Reduce 减小q (Mass per m 线密度) BACK

  29. §8-3Roller chain drive design 套筒滚子链设计计算 • Principal parameters 参数选择 • Types of failure 失效形式 • Limit power curve and allowable power curve 极限功率曲线和许用功率曲线 • Design 设计计算 回总目录

  30. 一、Principal parameters参数选择 1、i≤8( Usually 2~3.5) i↑→α1↓→Number of meshing teeth 啮合齿数↓→Wear of the sprocket 轮齿磨损→Shift outward upon the sprocket teeth profiles 跳链 α1 ≥120°→ i= 2~3.5

  31. 2、Z1,Z2 ⑴ Z1 Z1 ↓ → Nonuniformity of the motion and dynamics load 运动不均匀性、动载荷↑ The links turn增大链节相对转角 →Power losses功率损耗↑ pressure increased acting on the pins 增大铰链承压面压强→Wear磨损↑ Z1 ≥9 Z1=f(i)

  32. Chain is easily fall out off sprocket ⑵ Z2=i Z1 ≤120 Z2 ↑→易跳链

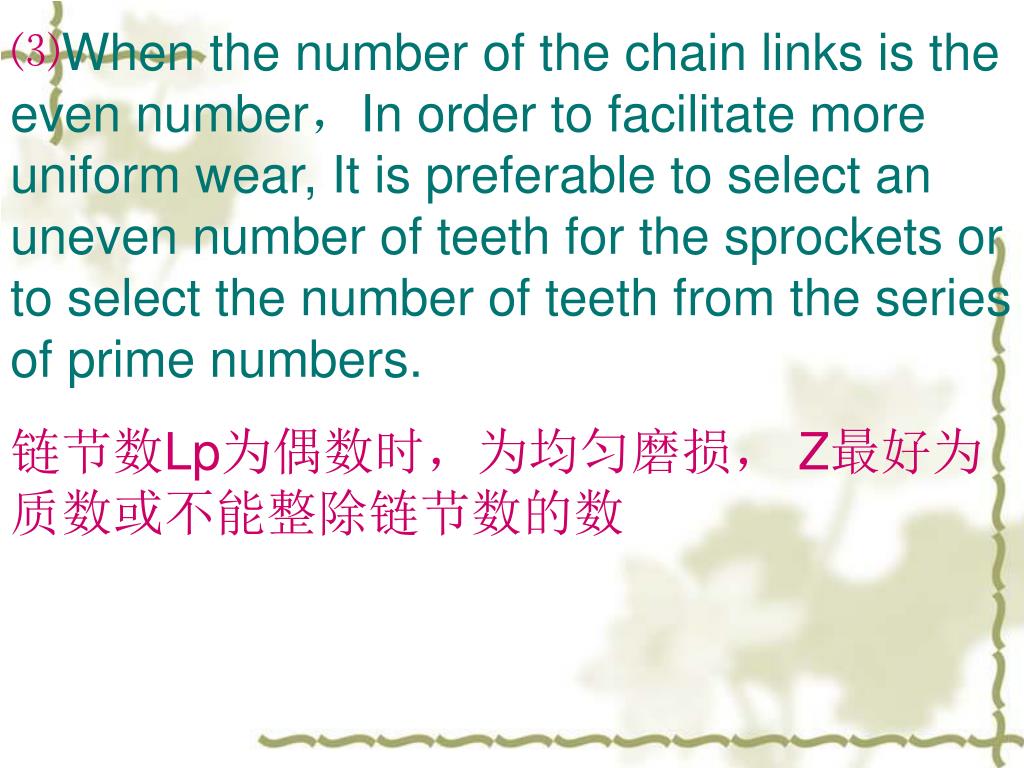

  33. ⑶When the number of the chain links is the even number,In order to facilitate more uniform wear, It is preferable to select an uneven number of teeth for the sprockets or to select the number of teeth from the series of prime numbers. 链节数Lp为偶数时,为均匀磨损, Z最好为质数或不能整除链节数的数

  34. 3、P( pitch节距) P ↑→Size 尺寸↑ Load carrying increases 承载能力增大 Nonuniformity of the motion and dynamic load increase 运动不均匀性、动载荷增大

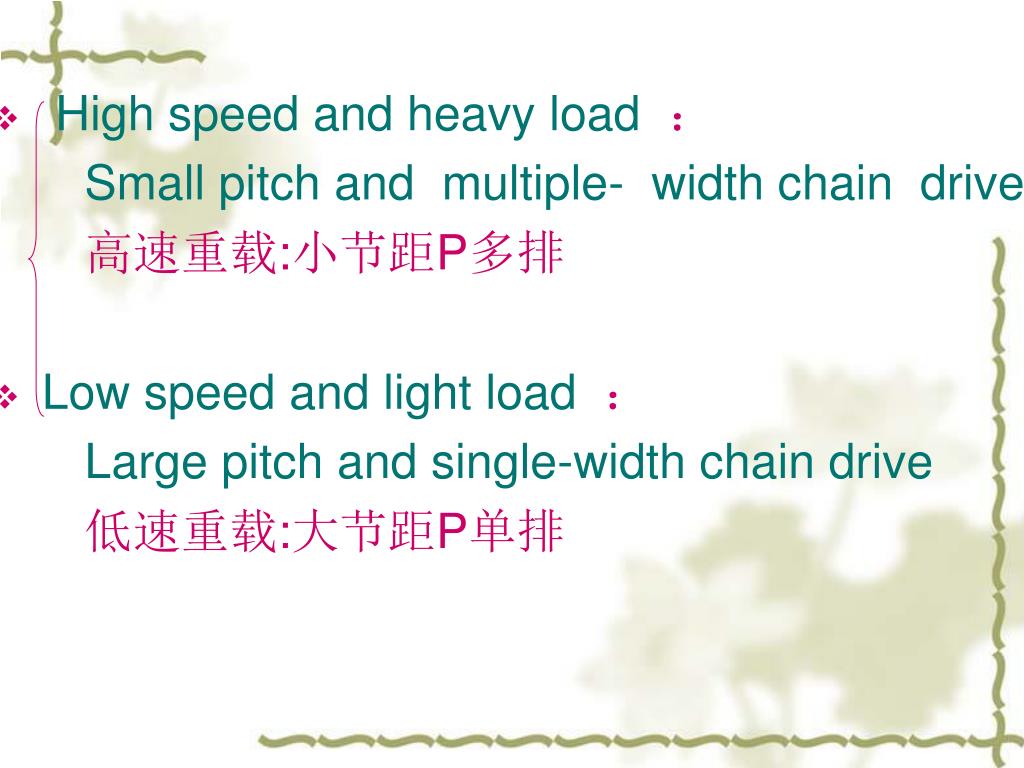

  35. High speed and heavy load : Small pitch and multiple- width chain drive 高速重载:小节距P多排 Low speed and light load : Large pitch and single-width chain drive 低速重载:大节距P单排

  36. It is best practice to elect a chain with the minimum allowable pitch for the given load 节距P 尽量小,但排数≤3~4(均匀)

  37. a ↓→V不变时,单位时间内同一链节 屈伸次数↑→磨损↑ a ↑→松边上下颤动,不平稳 • 4、Centre-to-centre distance中心距a The number of the chain links 链节数 Lp • ⑴a=(30~50)P (amax=80P)

  38. ⑵Lp(链条长度用链节数表示)L=LpP

  39. LpRound →The even number 偶数Lp′→ Actual centre-to-centre distance实际中心距a′
