  1. JCL DAY 2 ER/CORP/CRS/OS02/003-2

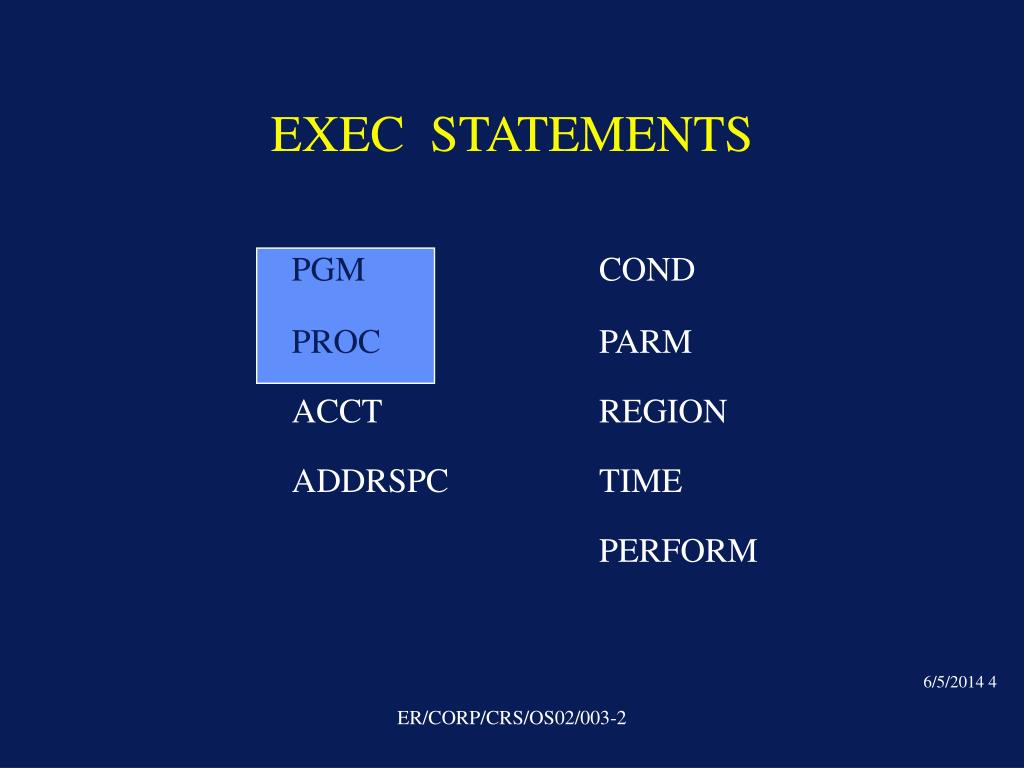

  2. EXEC STATEMENTS PGM COND PROC PARM ACCT REGION ADDRSPC TIME PERFORM ER/CORP/CRS/OS02/003-2

  3. IMPORTANT EXEC PARAMETERS positional parameters (PGM & PROC) ex. //STEP1 EXEC PGM=IEFBR14 ex. //STEP1 EXEC PROC=MYPROC • The PGM parameter identifies the name of the program that is • to be executed. • The PROC parameter identifies the name of the procedure that is • to be called. ER/CORP/CRS/OS02/003-2

  4. SEARCH SEQUENCE OF A PROGRAM JOB PACK AREA PAGEABLE LINK PACK AREA (PLPA) JOB LIBRARY / STEP LIBRARY FIXED LINK PACK AREA - FLPA SYS1.LINKLIB PGM NOT FOUND MODIFIED LINK PACK AREA - MLPA ER/CORP/CRS/OS02/003-2

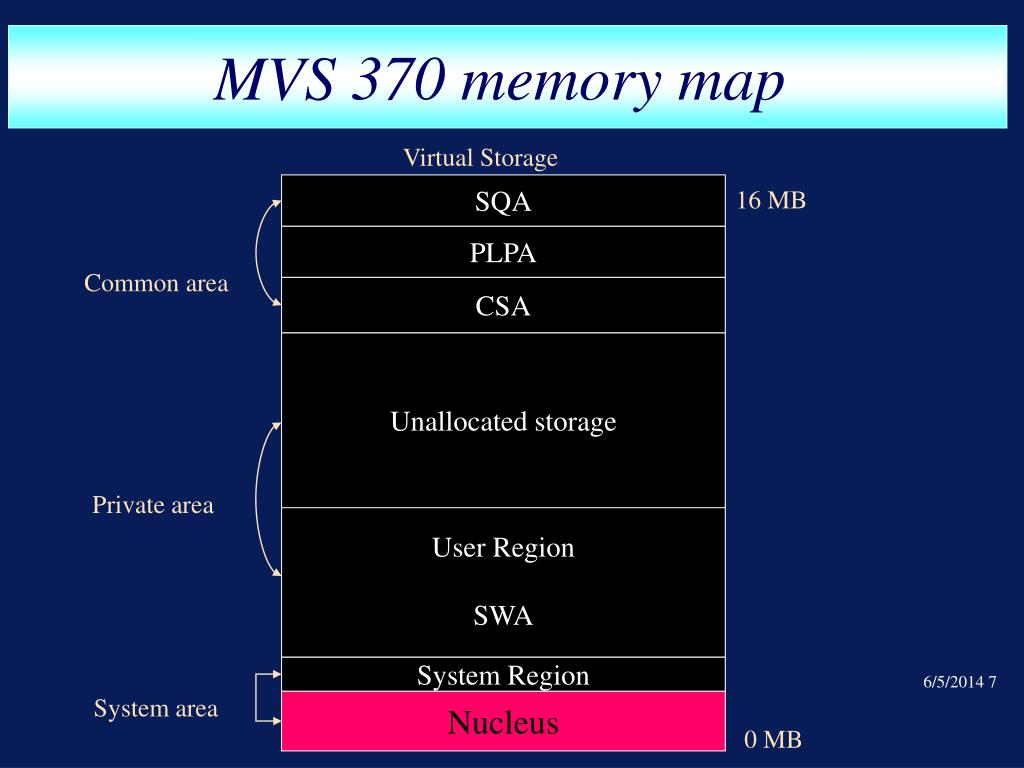

  5. MVS 370 memory map Virtual Storage 16 MB SQA PLPA Common area CSA Unallocated storage Private area User Region SWA System Region System area Nucleus ER/CORP/CRS/OS02/003-2 0 MB

  6. IMPORTANT EXEC PARAMETERS keyword parameters (PARM) ex. //STEP1 EXEC PGM=IEBUPDT,PARM=MOD • The PARM parameter is used to supply information to a program • as it executes. ER/CORP/CRS/OS02/003-2

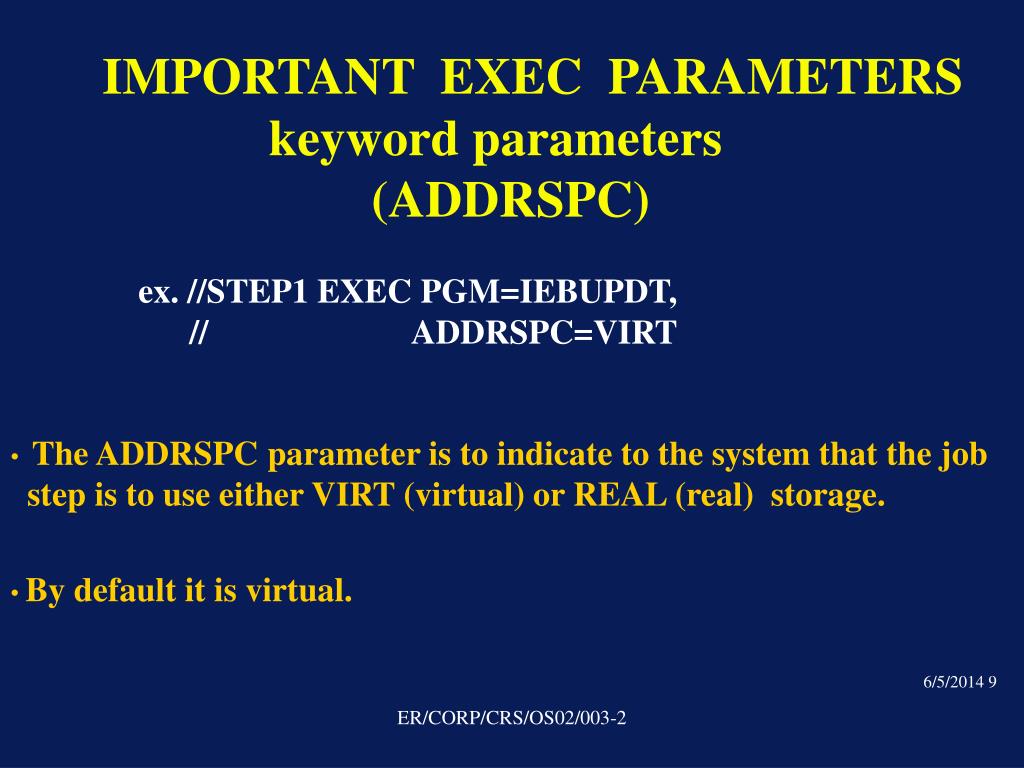

  7. IMPORTANT EXEC PARAMETERS keyword parameters (ADDRSPC) ex. //STEP1 EXEC PGM=IEBUPDT, // ADDRSPC=VIRT • The ADDRSPC parameter is to indicate to the system that the job • step is to use either VIRT (virtual) or REAL (real) storage. • By default it is virtual. ER/CORP/CRS/OS02/003-2

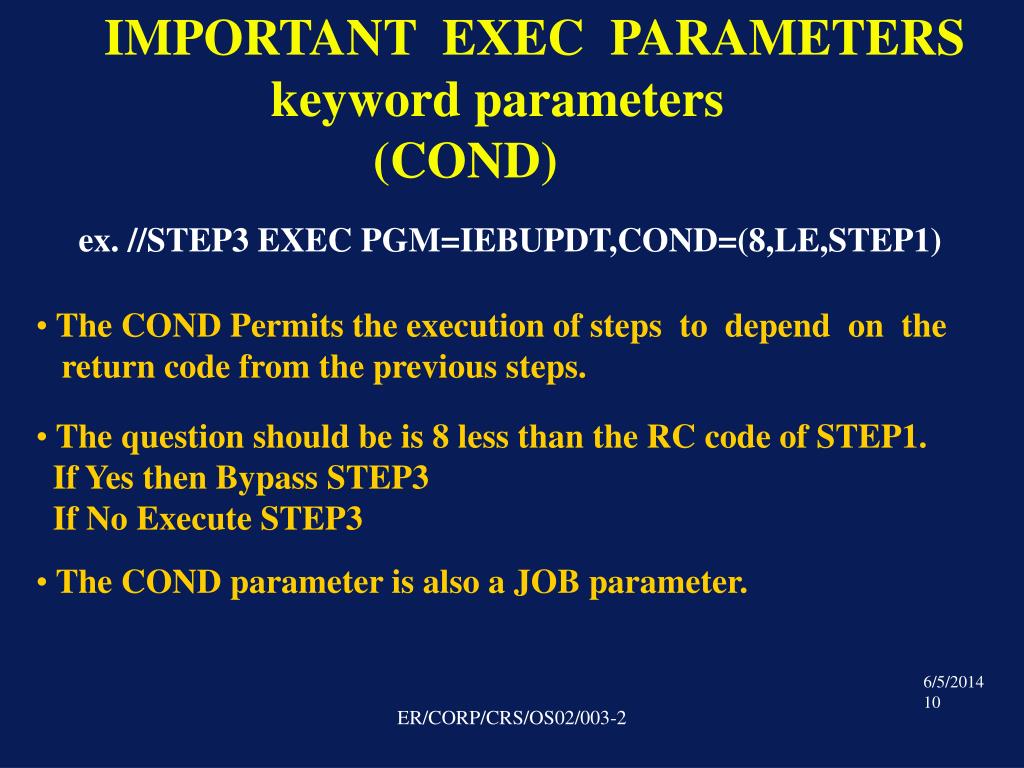

  8. IMPORTANT EXEC PARAMETERS keyword parameters (COND) ex. //STEP3 EXEC PGM=IEBUPDT,COND=(8,LE,STEP1) • The COND Permits the execution of steps to depend on the • return code from the previous steps. • The question should be is 8 less than the RC code of STEP1. • If Yes then Bypass STEP3 • If No Execute STEP3 • The COND parameter is also a JOB parameter. ER/CORP/CRS/OS02/003-2

  9. IMPORTANT EXEC PARAMETERS keyword parameters (COND) TRUE COND = BYPASS FALSE EXECUTE ER/CORP/CRS/OS02/003-2

  10. COND parameter in detail Only code in the exec statement not in job statement Format : COND=( 0/4/6/8/12/16 , GT/GE/LT/LE/EQ/NE , step name , EVEN/ONLY ) RC comparison code (0 - 4095) Condition EVEN : step will be executed even if previous steps terminate abnormally ONLY : step will be executed only if previous steps terminate abnormally. ER/CORP/CRS/OS02/003-2

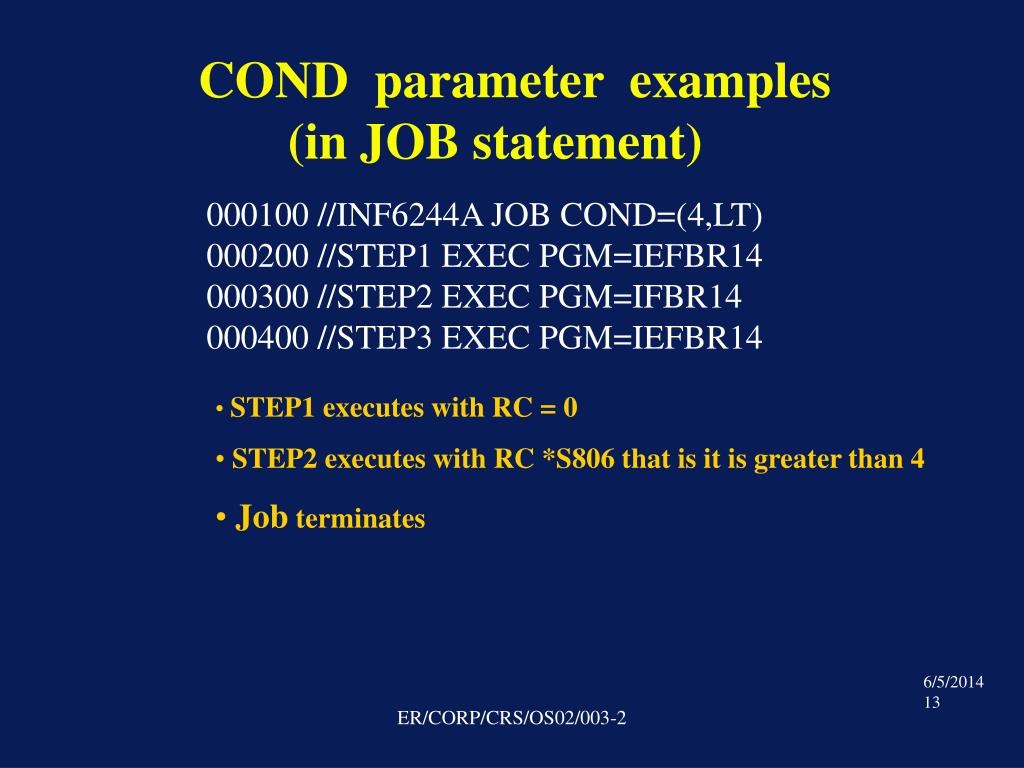

  11. COND parameter examples (in JOB statement) 000100 //INF6244A JOB COND=(4,LT) 000200 //STEP1 EXEC PGM=IEFBR14 000300 //STEP2 EXEC PGM=IFBR14 000400 //STEP3 EXEC PGM=IEFBR14 • STEP1 executes with RC = 0 • STEP2 executes with RC *S806 that is it is greater than 4 • Job terminates ER/CORP/CRS/OS02/003-2

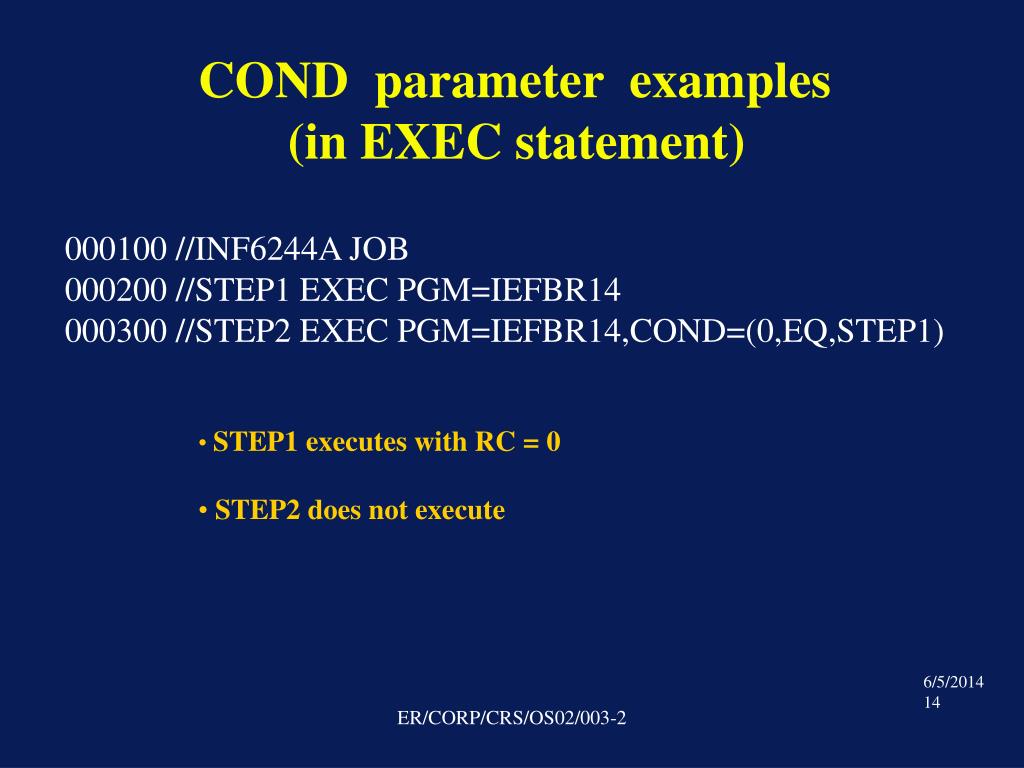

  12. COND parameter examples (in EXEC statement) 000100 //INF6244A JOB 000200 //STEP1 EXEC PGM=IEFBR14 000300 //STEP2 EXEC PGM=IEFBR14,COND=(0,EQ,STEP1) • STEP1 executes with RC = 0 • STEP2 does not execute ER/CORP/CRS/OS02/003-2

  13. COND parameter examples (in EXEC statement) 000100 //INF6244A JOB 000200 //STEP1 EXEC PGM=IEFBR14 000300 //STEP2 EXEC PGM=IEFBR14,COND=ONLY • STEP1 executes with RC = 0 • STEP2 does not execute 000100 //INF6244A JOB 000200 //STEP1 EXEC PGM=IFBR14 000210 //STEP2 EXEC PGM=IEFBR14 000220 //STEP3 EXEC PGM=IEFBR14,COND=ONLY • STEP1 abends with RC = *S806 • STEP2 does not execute ( if a single step abends all other steps • are bypassed if no COND statement is there ) • STEP3 executes with RC = 0 ER/CORP/CRS/OS02/003-2

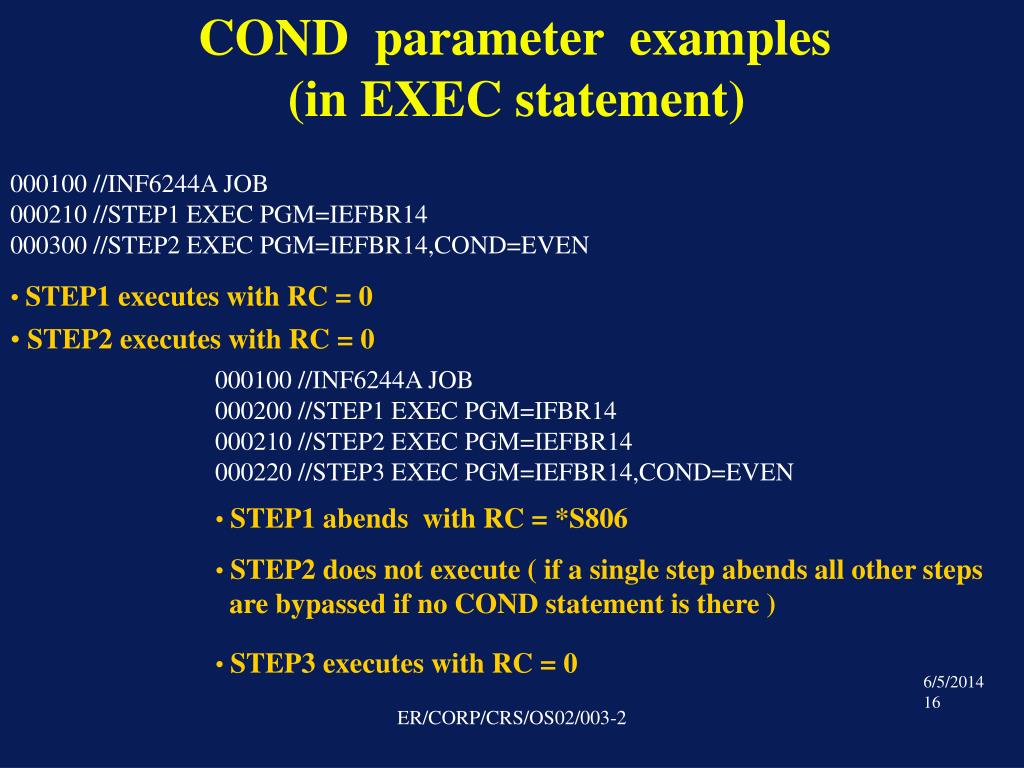

  14. COND parameter examples (in EXEC statement) 000100 //INF6244A JOB 000210 //STEP1 EXEC PGM=IEFBR14 000300 //STEP2 EXEC PGM=IEFBR14,COND=EVEN • STEP1 executes with RC = 0 • STEP2 executes with RC = 0 000100 //INF6244A JOB 000200 //STEP1 EXEC PGM=IFBR14 000210 //STEP2 EXEC PGM=IEFBR14 000220 //STEP3 EXEC PGM=IEFBR14,COND=EVEN • STEP1 abends with RC = *S806 • STEP2 does not execute ( if a single step abends all other steps • are bypassed if no COND statement is there ) • STEP3 executes with RC = 0 ER/CORP/CRS/OS02/003-2

  15. COND parameter examples (in EXEC statement) //INF6244A JOB //STEP1 EXEC PGM=IEFBR14 //STEP2 EXEC PGM=IEFBR14 //STEP3 EXEC PGM=IEFBR14, // COND=((0,NE,STEP2),ONLY) • STEP1 executes with RC = 0 • STEP2 executes with RC = 0 000100 //INF6244A JOB 000200 //STEP1 EXEC PGM=IEFBR14 000210 //STEP2 EXEC PGM=IEFBR14 000220 //STEP3 EXEC PGM=IEFBR14, 000230 // COND=((0,NE,STEP2)) • STEP3 does not execute • STEP1 executes with RC = 0 • STEP2 executes with RC = 0 • STEP3 executes with RC = 0 ER/CORP/CRS/OS02/003-2

  16. COND parameter examples (in EXEC statement) 000100 //INF6244A JOB 000200 //STEP1 EXEC PGM=IEFBR14 000210 //STEP2 EXEC PGM=IEFBR14 000220 //STEP3 EXEC PGM=IEFBR14, 000230 // COND=((0,NE,STEP2),(0,NE,STEP1)) • STEP1 executes with RC = 0 • STEP2 executes with RC = 0 000100 //INF6244A JOB 000200 //STEP1 EXEC PGM=IEFBR14 000210 //STEP2 EXEC PGM=IEFBR14 000220 //STEP3 EXEC PGM=IEFBR14, 000230 // COND=((0,NE,STEP2),(0,EQ,STEP1)) • STEP3 executes with RC = 0 • STEP1 executes with RC = 0 • STEP2 executes with RC = 0 • STEP3 does not execute ER/CORP/CRS/OS02/003-2

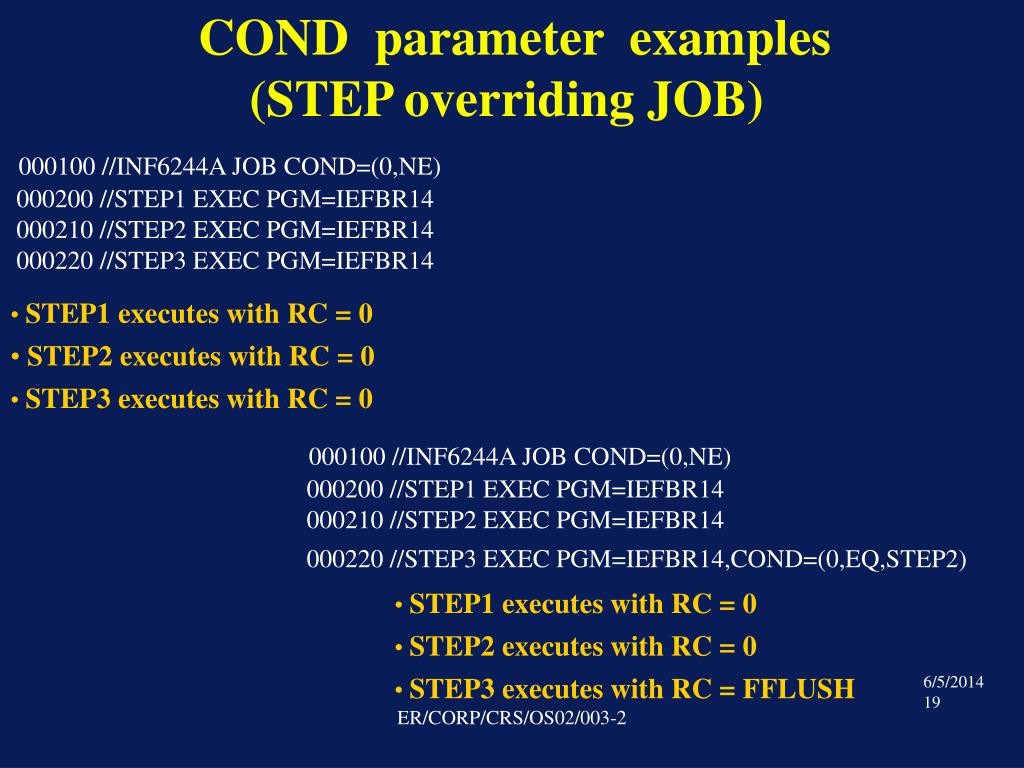

  17. COND parameter examples (STEP overriding JOB) 000100 //INF6244A JOB COND=(0,NE) 000200 //STEP1 EXEC PGM=IEFBR14 000210 //STEP2 EXEC PGM=IEFBR14 000220 //STEP3 EXEC PGM=IEFBR14 • STEP1 executes with RC = 0 • STEP2 executes with RC = 0 • STEP3 executes with RC = 0 000100 //INF6244A JOB COND=(0,NE) 000200 //STEP1 EXEC PGM=IEFBR14 000210 //STEP2 EXEC PGM=IEFBR14 000220 //STEP3 EXEC PGM=IEFBR14,COND=(0,EQ,STEP2) • STEP1 executes with RC = 0 • STEP2 executes with RC = 0 • STEP3 executes with RC = FFLUSH ER/CORP/CRS/OS02/003-2

  18. IMPORTANT EXEC PARAMETERS keyword parameters (IF/THEN/ELSE/ENDIF) ex. // IF (STEPA.RC GE 4) THEN //jcl statements // ELSE //jcl statements // ENDIF • The IF/THEN/ELSE/ENDIF statement construct provides a simple • means of selectively executing job steps. • It is available in Release 4 or later , of MVS/ESA and eliminates • the need to struggle with the COND parameter. ER/CORP/CRS/OS02/003-2

  19. IF/THEN/ELSE/ENDIF parameter examples 000100 //INF6244A JOB 2933100P,AMLAN,MSGCLASS=A,CLASS=A 000120 //STEP1 EXEC PGM=IEFBR14 000121 // IF (STEP1.RC GT 0) THEN 000130 //STEP3 EXEC PGM=IEFBR14 000150 //DD1 DD DSN=INF6244.TRUE.PS,DISP=(NEW,CATLG), 000160 // VOL=SER=INUSR2, 000170 // SPACE=(TRK,(1,1)), 000180 // DCB=(LRECL=80,BLKSIZE=800,RECFM=FB) 000190 // ELSE 000191 //STEP4 EXEC PGM=IEFBR14 000200 //DD2 DD DSN=INF6244.FALSE.PS,DISP=(NEW,CATLG), 000300 // VOL=SER=INUSR2, 000400 // SPACE=(TRK,(1,1)), 000500 // DCB=(LRECL=80,BLKSIZE=800,RECFM=FB) 000600 // ENDIF 000610 /* STEPNAME PROCSTEP RC STEP1 00 STEP3 FLUSH STEP4 00 ER/CORP/CRS/OS02/003-2

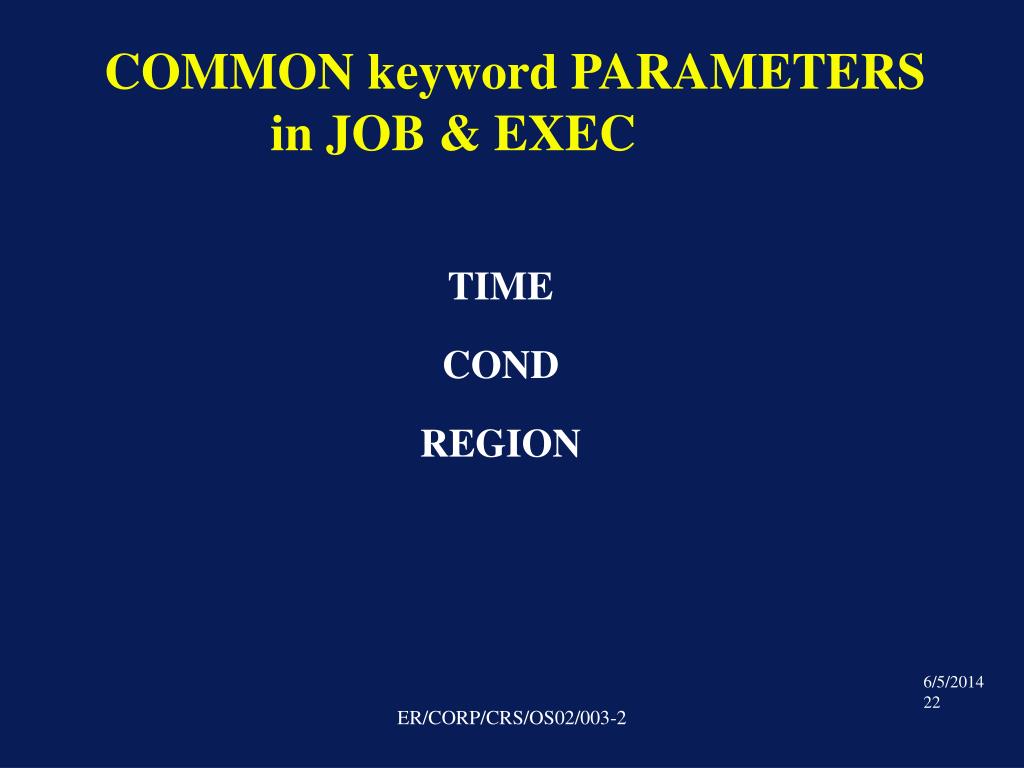

  20. COMMON keyword PARAMETERS in JOB & EXEC TIME COND REGION ER/CORP/CRS/OS02/003-2

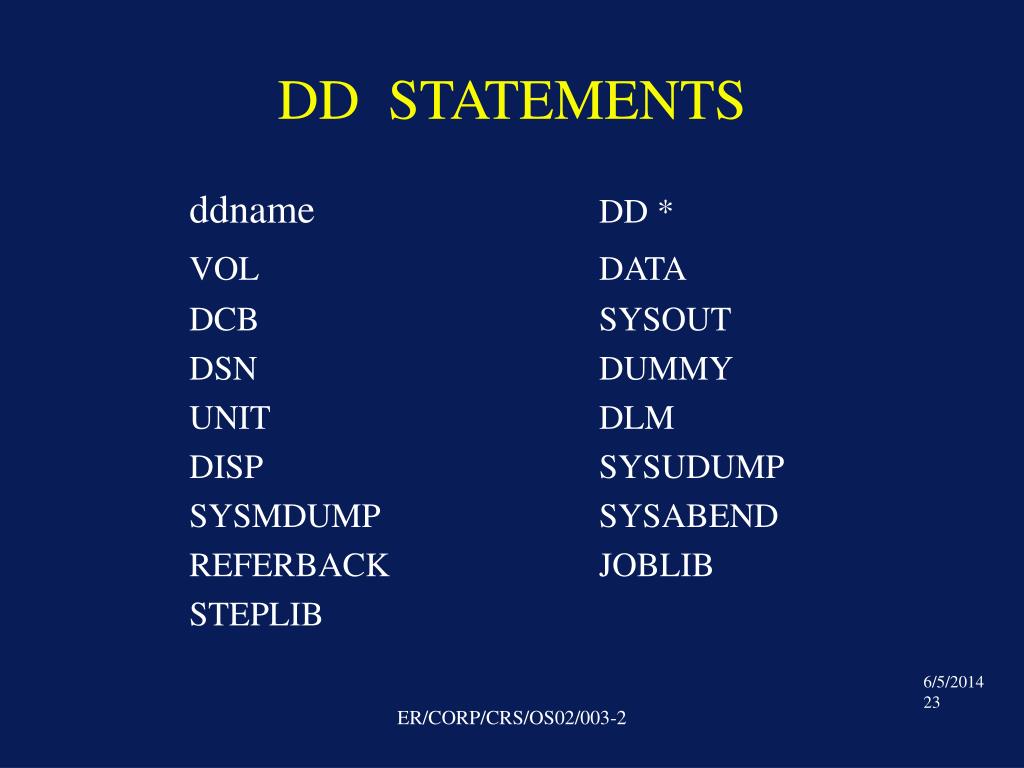

  21. DD STATEMENTS ddname DD * VOL DATA DCB SYSOUT DSN DUMMY UNIT DLM DISP SYSUDUMP SYSMDUMP SYSABEND REFERBACK JOBLIB STEPLIB ER/CORP/CRS/OS02/003-2

  22. DSN • The name of the data set • Simple Name : 1 to 8 chars • Qualified Name : separated by periods • each name 1 to 8 chars • total 44 characters including periods • Temporary data sets : &&TEMP or do not mention DSN • parameter • Refer back : DSN=*.STEP1.DD1 ER/CORP/CRS/OS02/003-2

  23. DISP NEW ,DELETE ,DELETE OLD ,KEEP ,KEEP DISP= SHR ,CATLG ,CATLG MOD ,UNCATLG ,UNCATLG ,PASS ER/CORP/CRS/OS02/003-2

  24. DCB LRECL=n (VALUE IN BYTES) RECFM=(F/FB/V/VB/U) BLKSIZE= multiple of LRECL DSORG=(PS/PO/DA) ER/CORP/CRS/OS02/003-2

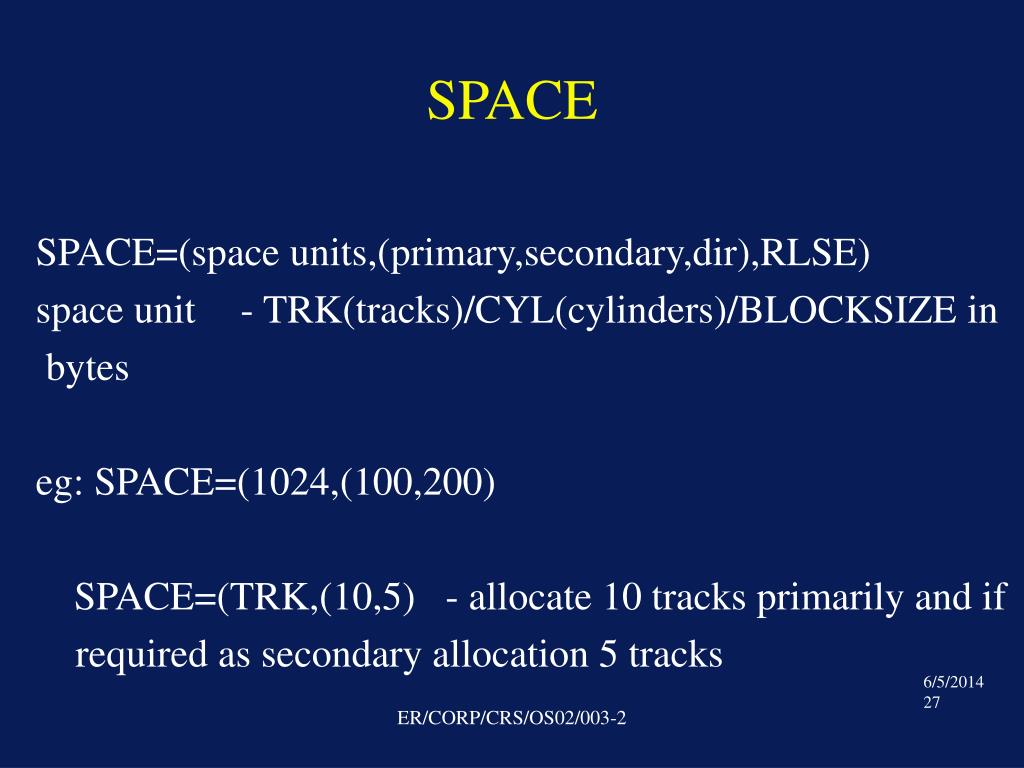

  25. SPACE SPACE=(space units,(primary,secondary,dir),RLSE) space unit - TRK(tracks)/CYL(cylinders)/BLOCKSIZE in bytes eg: SPACE=(1024,(100,200) SPACE=(TRK,(10,5) - allocate 10 tracks primarily and if required as secondary allocation 5 tracks ER/CORP/CRS/OS02/003-2

  26. UNIT • Hardware address • Type • Group // UNIT=0320 OR // UNIT=3390 OR // UNIT=SYSDA To use the same unit that has been used by prior DD statement // UNIT=AFF=ddname ER/CORP/CRS/OS02/003-2

  27. VOL • It is used to specify a disk volume or specific tapes. // VOL=SER=INUSR2,UNIT=SYSDA To referback a volume used by some prior DD statement use: // VOL=REF=ddname ER/CORP/CRS/OS02/003-2

  28. SYSOUT • SYSOUT is used to route output to a device. // DDNAME DD SYSOUT=CLASS // DDNAME DD SYSOUT=A If you want to send the output to the same device described by MSGCLASS of the job use // DDNAME DD SYSOUT=* ER/CORP/CRS/OS02/003-2

  29. JOBLIB STATEMENTS ex. //INFOSYS1 JOB //JOBLIB DD DSN=INFOSYS.COMPLIB.LOAD, • // DISP = (what should be the disposition) • // DISP = SHR • //STEP1 EXEC PGM=INHOUSE • The JOBLIB statement defines the library where the program is • residing. It is placed after the JOB statement and is effective for • every JOB steps. ER/CORP/CRS/OS02/003-2

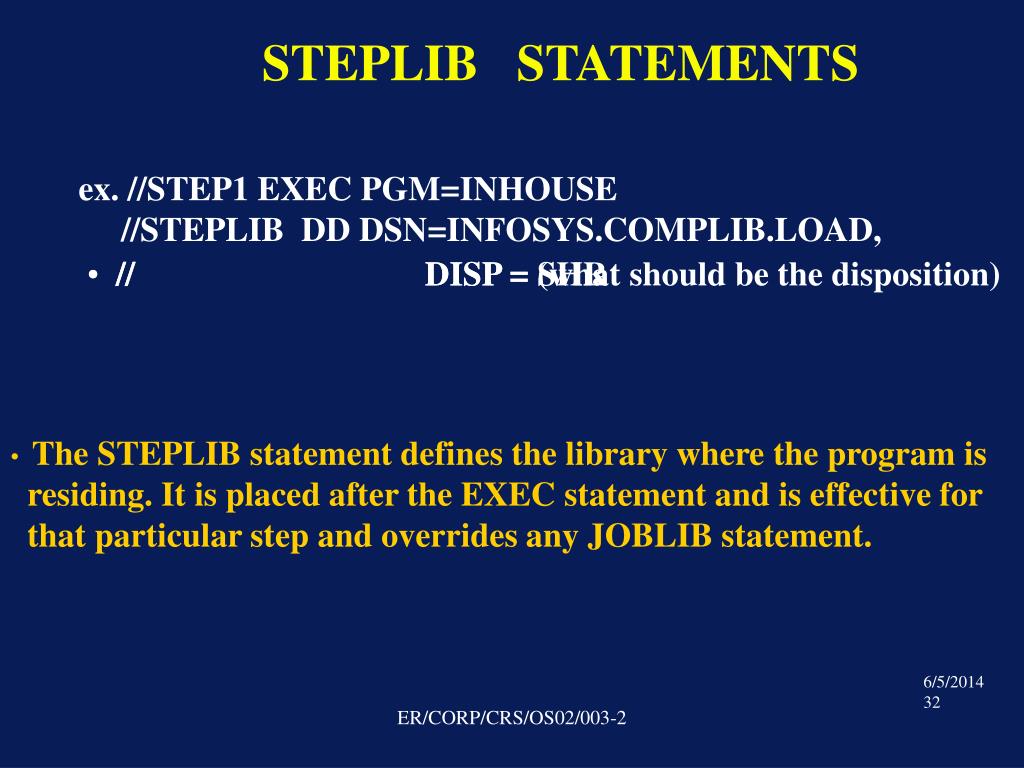

  30. STEPLIB STATEMENTS ex. //STEP1 EXEC PGM=INHOUSE //STEPLIB DD DSN=INFOSYS.COMPLIB.LOAD, • // DISP = (what should be the disposition) • // DISP = SHR • The STEPLIB statement defines the library where the program is • residing. It is placed after the EXEC statement and is effective for • that particular step and overrides any JOBLIB statement. ER/CORP/CRS/OS02/003-2

  31. The first JCL to create a PS. //AMLANX JOB 1234,AMLAN,CLASS=A,MSGCLASS=(1,1) TO CREATE PS //STEP1 EXEC PGM=IEFBR14 //PS1 DD DSN=AMLAN.FLOWER.ROSE,UNIT=SYSDA,VOL=SER=INUSR2, // DCB=(LRECL=80,RECFM=FB,BLKSIZE=800),SPACE=(TRK,(1,1)), // DISP=(NEW,CATLG) ER/CORP/CRS/OS02/003-2

  32. That’s all for DAY 2 ER/CORP/CRS/OS02/003-2
