  1. Operating Functions

  2. Operating Functions Temperature Parameters • Room set temperature (T set) • Room ambient temperature (T amb)

  3. Operating Functions Fundamental Functions After powered on, no matter when the compressor is started, the time interval between two startups cannot be less than 3 minutes.

  4. Operating Functions Fundamental Functions COOL Mode The condition and process of cooling • If the indoor ambient temperature is equal to or greater than the room set temperature, COOL mode will act, the compressor and outdoor fan will run, and the indoor fan will run at the set speed . • If the indoor ambient temperature is equal to or lower than 2°F below the room set temperature, the compressor will stop, the outdoor fan will delay 30 seconds to stop, and the indoor fan will run at the set speed . • If the indoor ambient temperature is lower than the room set temperature, yet higher than 2°F below the room set temperature, the unit will keep running in the previous mode. In this mode, the reversal valve will not be powered on and the temperature setting range is 61°F ~ 86°F. The unit will adjust the running frequency of the compressor automatically according to the change of ambient temperature.

  5. Operating Functions Fundamental Functions COOL Mode Anti-freezing protection 1) Under cooling or dehumidify mode, if T indoor tube senor has detect a temperature that is below 32 °F continuously for 3 minutes, the unit will go into freeze protection mode and shut down. Once the unit shut down because of freeze protection, the unit will not restart until T indoor tube sensor is above 42.8 °F. The compressor has to wait at least 3 minutes to restart after shutting down due to freeze protection. 2) Under cooling or dehumidify mode, if T indoor tube senor has detected a temperature that is below 42.8 °F but higher than 32 °F, the compressor may decrease its speed to prevent the temperature to go below 32 °F. 3) If the unit has been shut down six times because of the freeze protection, it will not restart again automatically. Instead, user or service technician needs to completely power off the unit before he/she can try to restart the unit manually. But, once the compressor runs continuously for more than 10 minutes normally (no freeze protection detected), the number of freeze protections will be cleared to zero.

  6. Operating Functions Fundamental Functions COOL Mode Overcurrent protection If total current is high, the compressor will run in limited or dropped frequency. When total current goes on rising over the stated value, the compressor will stop, the outdoor fan will delay 30 seconds, then stop.

  7. Operating Functions Fundamental Functions DRY Mode The condition and process of drying • If the indoor ambient temperature is greater than the room set temperature, DRY mode will act, the indoor fan, outdoor fan and compressor will run, and indoor fan will run at low speed. • If the indoor ambient temperature is lower than the room set temperature, yet higher than 2°F below the room set temperature, the unit will keep running in the original mode. • If the room ambient temperature is lower than 2°F below the room set temperature, the compressor will stop running, the outdoor fan will delay 30 seconds to stop and the indoor fan will run at low speed. In this mode, the reversal valve will not be powered on and the temperature setting range is 61°F ~ 86°F. The unit will adjust the running frequency of the compressor automatically according to the change of ambient temperature.

  8. Operating Functions Fundamental Functions DRY Mode Protection Protection is the same with that in COOL mode.

  9. Operating Functions Fundamental Functions HEAT Mode The condition and process of heating • If the indoor ambient temperature is equal to or less than 2°F above room set temperature, HEAT mode will act, the compressor, outdoor fan and 4-way valve will run simultaneously, and the indoor fan will delay up to 2 minutes before running. • If the indoor ambient temperature is lower than 9°F above room set temperature, yet higher than 2°F above room set temperature, the unit will keep running in the original mode. • If the indoor ambient temperature is greater than 9°F above room set temperature, the compressor will stop, the outdoor fan will delay 30 seconds then stop, and the indoor fan will blow for 60 seconds at the original speed and then stop. In this mode, the temperature setting range is 61°F ~ 86°F. The air conditioner will adjust the running frequency of the compressor automatically according to the change of ambient temperature. When the unit is turned off in HEAT mode, or switched to another mode, the 4-way valve will be powered off 2 minutes after the compressor stops.

  10. Operating Functions Fundamental Functions HEAT Mode The condition and process of defrosting What parameters have been used in the defrost algorithm? There are two temperatures that basically determine if the system goes into defrost mode or not, and they are Toutdoor ambient and Toutdoor tube. One intermediate parameter, Tcompensation, has also been created and involved in the calculation. Tcompensationcan be determined by Toutdoor tube, If Toutdoortube > 35.6 °F, Tcompensation = 0°F 2) If Toutdoortube ≤ 35.6 °F, Tcompensation= 5.4°F

  11. Operating Functions Fundamental Functions HEAT Mode When will the system go into defrost mode? When the system continuously runs in heating mode for more than 45 minutes or the compressor accumulated run time is more than 90 minutes, the unit will switch to defrost mode under any of the following conditions, 1) Toutdoor ambient ≥ 41 °F, Toutdoor tube ≤ 28.4 °F 2) 28.4 °F >Toutdoor ambient < 41 °F, Toutdoor tube ≤ 21.2 °F 3) 23 °F ≤ Toutdoor ambient< 28.4 °F, Toutdoor tube ≤ 17.6 °F 4) 14 °F ≤ Toutdoor ambient< 23 °F, Toutdoor tube ≤ Toutdoor ambient- 5.4 + Tcompensation 5) Toutdoor ambient< 14 °F, Toutdoor tube≤ Toutdoor ambient- 5.4 + Tcompensation Other than these 5 conditions, the system could also switch to defrost mode under the following condition, 6) Toutdoor ambient≥ 41 °F, compressor has more than 180 minutes accumulated run time, and Toutdoor tubesensor continuously report the temperature is < 32°F for more than 1 minute. Note: Compressor accumulated run time can be cleared to 0 only under the following conditions. • System finished a defrost cycle. • System switched to cooling mode Compressor accumulated run time will NOT be cleared for any other conditions including • System stops running when reaching the set indoor temperature • System stops running for any protection • System switches to fan mode

  12. Operating Functions Fundamental Functions HEAT Mode When will the system stop defrost mode? The system will stop defrost cycle if ANY of the following conditions are satisfied 1) Toutdoor tube ≥ 50 °F 2) Defrost cycle reaches maximum defrost set time, typically this value is around 7 - 10 minutes and it varies model by model

  13. Operating Functions Fundamental Functions HEAT Mode How does each component respond in sequence during a defrost cycle? Once the system determines to run a defrost cycle, first the indoor fan stop running and subsequently the compressor reduces the speed and stops within a minute. The outdoor fan will continue to run for another minute, and then stop. Fifteen seconds later, the switch over valve will switch the position from heating to defrost (or cooling). The compressor starts up again and increases into a relatively high speed to defrost. Once the system determine to exit a defrost cycle, the compressor decreases the speed and stops within a minute. A few seconds later, the switch over valve will switch the position from defrost (or cooling) to heating. After one minute, the compressor will operate again, and subsequently the outdoor fan and indoor fan will return to normal and run in heating mode.

  14. Operating Functions Fundamental Functions HEAT Mode Protection • Overcurrent protection If the total current is high, the compressor will run in limited or dropped frequency. When total current continues rising over the stated value, the compressor will stop, the outdoor fan will delay 30 seconds, then stop.

  15. Operating Functions Fundamental Functions FAN Mode In this mode, the indoor fan will run the fan in High, Med, Low and Auto mode. The compressor, outdoor fan and four-way valve will stop.

  16. Operating Functions Fundamental Functions AUTO Mode In this mode, the system selects COOL, HEAT and FAN mode automatically according to the change of ambient temperature. The protection function is the same with that of COOL/HEAT mode. The unit will adjust the running frequency of the compressor automatically according to the change of ambient temperature.

  17. Operating Functions Other Control ON/OFF Each time the On/Off button of the remote controller is pressed, the On/Off state will switch once.

  18. Operating Functions Other Control MODE SELECTION Press the MODE button on the remote controller to select and display the following modes: AUTO, COOL, DRY, FAN, and HEAT.

  19. Operating Functions Other Control TEMP. Setting Button Each time TEMP+ or TEMP- button is pressed, the set temperature will be increased or decreased by 2°F. Adjusting range is 61°F ~ 86°F. In AUTO mode, this button does not function .

  20. Operating Functions Other Control AUTO Key Press the AUTO key to start the unit. The unit will run in AUTO mode. When the unit is running, press the AUTO key to stop the unit.

  21. Operating Functions Other Control Timer Control The unit is turned on or off according to the timer set by the remote controller.

  22. Operating Functions Other Control Sleep Control When the air conditioner is in COOL or DRY mode, after Sleep mode has been set properly, the preset room set temperature will be increased by 2°F after the sleep program has run for 1 hour. The room set temperature will be increased by another 2°F after 2 hours. The room set temperature has been increased by 4°F total in two hours. The unit will continue to run at this set temperature and at the set speed. When the air conditioner is in HEAT mode, after Sleep mode has been set properly, the preset room set temperature will be decreased by 2°F after the sleep program has run for 1 hour. The room set temperature will be decreased by another 2°F after 2 hours. The room set temperature has now been decreased by 4°F total in two hours. The unit will continue to run at this set temperature and at the set speed. In AUTO or FAN mode, the setting temperature will not change.

  23. Operating Functions Other Control Indoor Fan Control Use the remote control to set the indoor fan to run at HIGH, MED, or LOW speed. It can also be set to AUTO. The indoor unit will select the fan speed (HIGH, MED, or LOW) automatically according to ambient temperature. There are at least 3 minutes and 30 seconds delay for fan speed shift.

  24. Operating Functions Other Control Power Supply for Outdoor Unit The power supply for the outdoor unit is turned on in AUTO, COOL, HEAT, and DRY mode under the turn-on state. The power supply for the outdoor unit will delay 3 minutes to turn off under the turn-off state or in the FAN mode under the turn-on state.

  25. Operating Functions Other Control Swing Control Use the SWING button of the wireless remote control to control SWING On and Off. Swing will only act when the indoor fan is running. After power off, the swing motor turns back to 0 position and closes the air outlet vent. If it does not enter a preset swing mode, after the unit is turned on, it will turn to the maximum air outlet D1 position, then turn back to L position under COOL mode. Under HEAT mode, the guide louver stays at D1. When in a swing mode, it will swing between L1 and D1 position. When the unit is turned off, it will turn back to the 0 position.

  26. Operating Functions Other Control Buzzer Control When the unit is powered on or receives a remote control signal, or the auto key be pressed, the buzzer will give out a beep.

  27. Operating Functions Other Control Power-off Memory Function Contents of memory: Mode; Swing; Set fan speed, Set temperature, Timing etc. Under turn-on state, when powered on, the power supply for the outdoor unit will be turned on after 3 minutes. Under turn-off state, when powered off, the power supply for the outdoor unit will be turned off immediately.

  28. Operating Functions Other Control Delay Protection of Compressor Under COOL, DRY, and HEAT modes, there will be a 3 minute time delay before the compressor starts.

  29. Operating Functions Common Protection Function in Each Mode Overload Protection T tube: In cooling mode, it detects the temperature of the outdoor heat exchanger, in heating mode, it detects the temperature of the indoor heat exchanger. When T tube detects high temperature, the compressor will run in limited frequency. When T tube temperature continues rising over the stated value, the compressor will stop. Under AUTO HEAT or HEAT mode, the indoor fan will blow 60 seconds at low fan speed and then stop. Under other modes, the indoor fan will run at set speed.

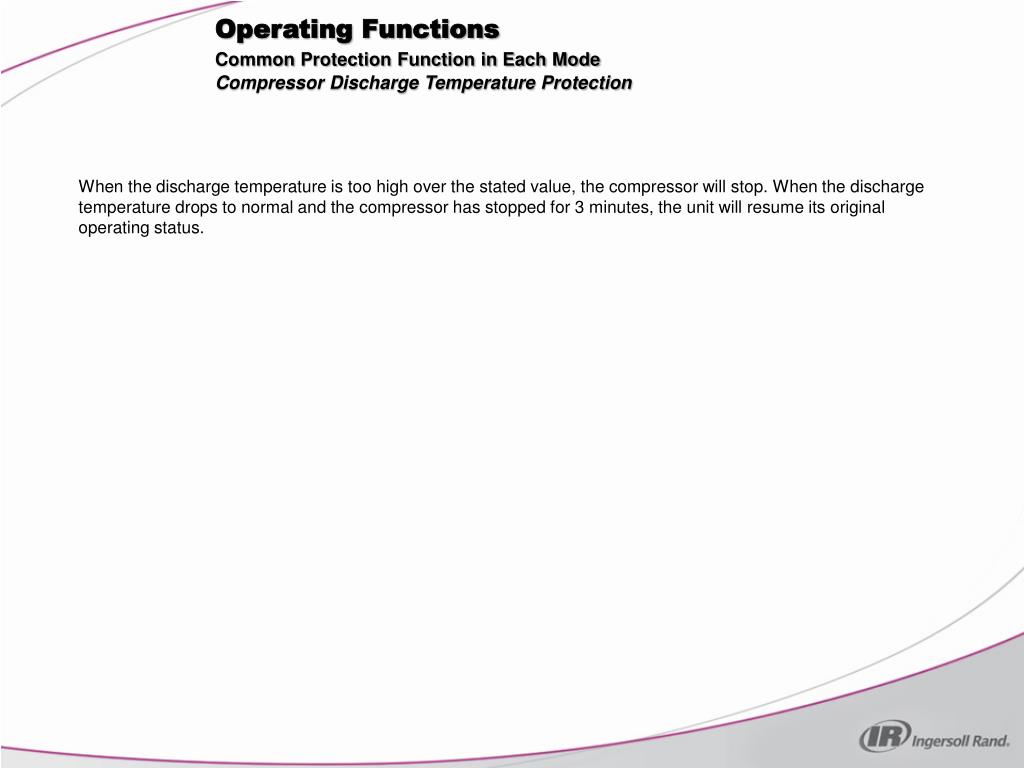

  30. Operating Functions Common Protection Function in Each Mode Compressor Discharge Temperature Protection When the discharge temperature is too high over the stated value, the compressor will stop. When the discharge temperature drops to normal and the compressor has stopped for 3 minutes, the unit will resume its original operating status.

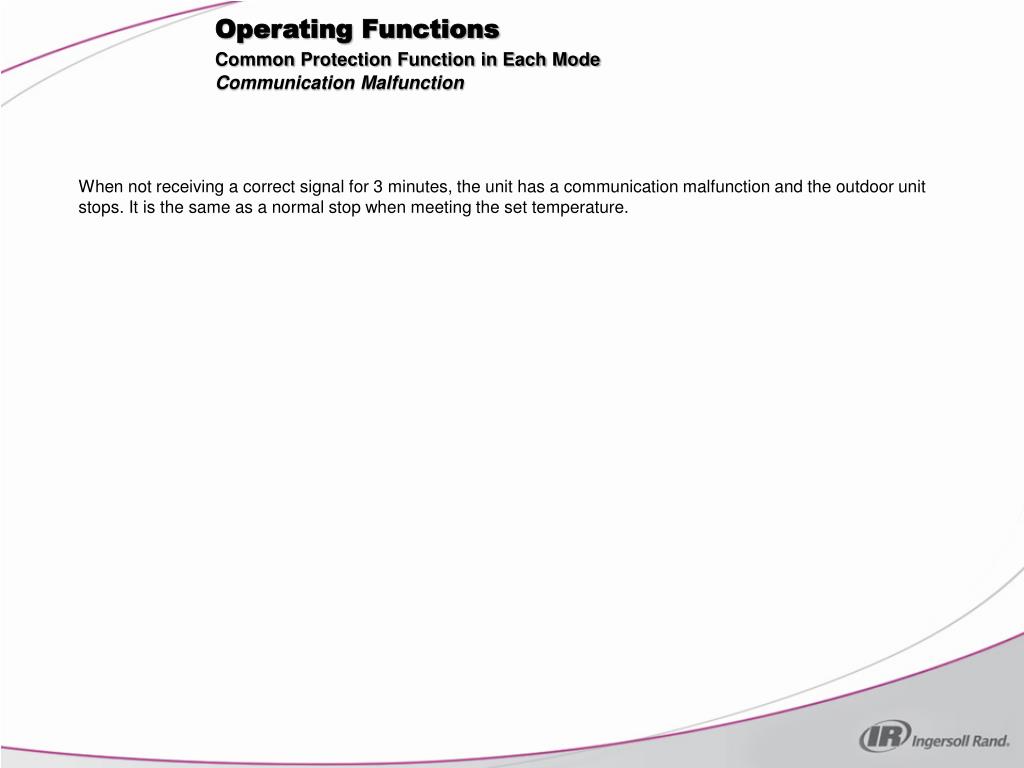

  31. Operating Functions Common Protection Function in Each Mode Communication Malfunction When not receiving a correct signal for 3 minutes, the unit has a communication malfunction and the outdoor unit stops. It is the same as a normal stop when meeting the set temperature.

  32. Operating Functions Common Protection Function in Each Mode Module Protection When the module is in protection, the compressor will stop. After the compressor has stopped for 3 minutes, it will resume operation. During the module protection period, the indoor unit displays error code H5 and the entire system stops.

  33. Operating Functions Multi Zone Special Functions Introduction The Multi-Split Heat Pump system has special protection modes that may be entered should the inverter board detect abnormal system operation. The special protection functions descriptions are as follows: Mode Conflict Mode Conflict is an indication that a wall unit is calling for a different mode of operation than the first unit that called. For example, the first unit that called for comfort operation indicated a cooling mode need and the second unit indicated a heating mode need. System Response The system will satisfy the first unit call before switching modes to satisfy the conflicting call. If the unit is in Fan Mode and a Heat Mode call is initiated, the Heat Mode call will satisfied immediately. Overload Protection Function The temperature of the liquid leaving the outdoor coil is monitored to ensure it is not too hot. Causes include dirty outdoor coil, high heat load on system, hot outdoor air temperature. Response If the outdoor coil temperature gets too hot, the compressor frequency is reduced. If the temperature of the outdoor coil is too low, the compressor frequency is increased.

  34. Operating Functions Multi Zone Special Functions Compressor Discharge Temperature The compressor discharge line temperature is monitored to ensure the compressor hot gas temperature is at optimum operating range. If the temperature of the discharge line gets either too hot or cool, the system efficiency and reliability are affected. Response When the discharge line is too hot, the compressor frequency is reduced. If the line gets too cool, the compressor frequency is increased. If the line is too hot, the compressor will shut off momentarily. If this happens 6 times the outdoor unit will lock out and power will have to be restored. If at any time, the compressor can run for a period of 7 minutes without stopping, the event timer is reset to 0 and another count begins. Compressor High Pressure Protection The system is protected against high refrigerant pressure. Causes include over charging, dirty outdoor coil, outdoor fan motor problems. Response If the system shuts off on high pressure protection, the system will need to be re-powered before it will restart.

  35. Operating Functions Multi Zone Special Functions Compressor Low Pressure Protection 42 size models have a low pressure switch. The switch protects the system against low operating pressures that can be due to undercharging, low heat loading or restrictions. Response When the low pressure switch opens the system will shut down. If the switch recluses, the system will operate. If the low pressure switch opens twice in one hour, the system will lock out and power will need to be shut off and then restored for operation to occur. Compressor Overload Protection This error indicates the high temperature overload limit on the compressor has opened. Causes include lack of refrigerant, restrictions, high heat loading. Response The system will shut the compressor off. If the compressor temperature cools within 3 minutes, the system will automatically resume operation. If the system experiences 6 of these events, the system will lock out and will need to be re-powered to run. If at any time prior to the 6 events, the compressor runs for at least 30 minutes, the timer is automatically reset to 0.
