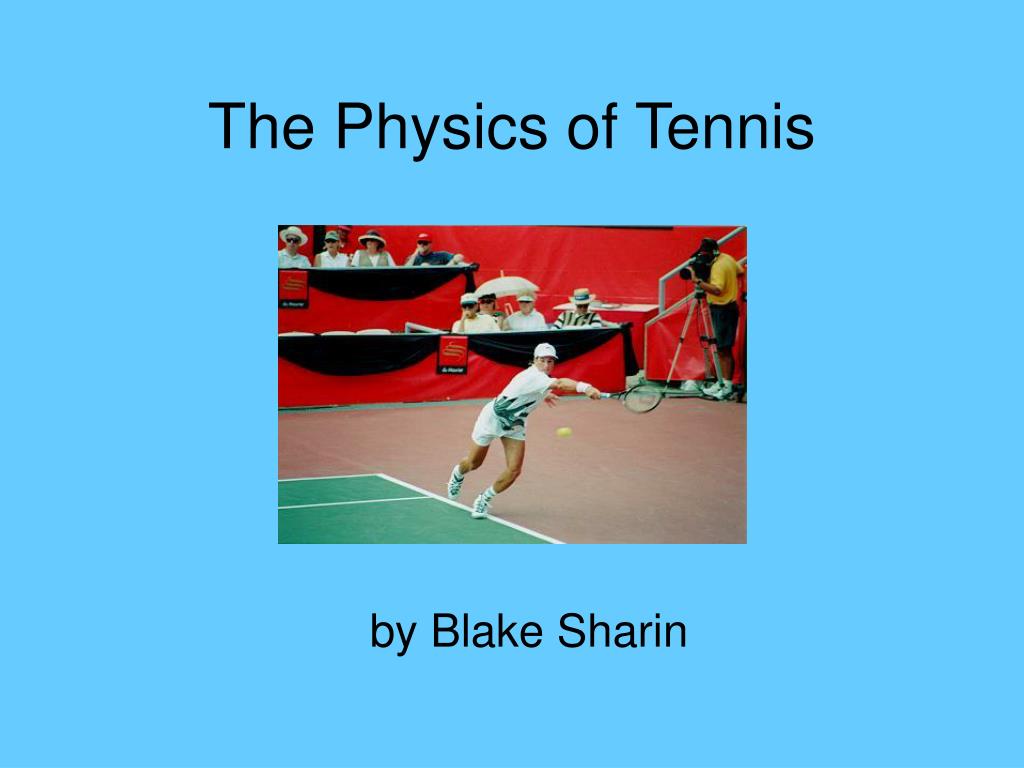

  1. The Physics of Tennis by Blake Sharin

  2. Introduction • The Sweet Spots • Vibration Node • Centre of Percussion • The Dead Spot • Coefficient of Restitution

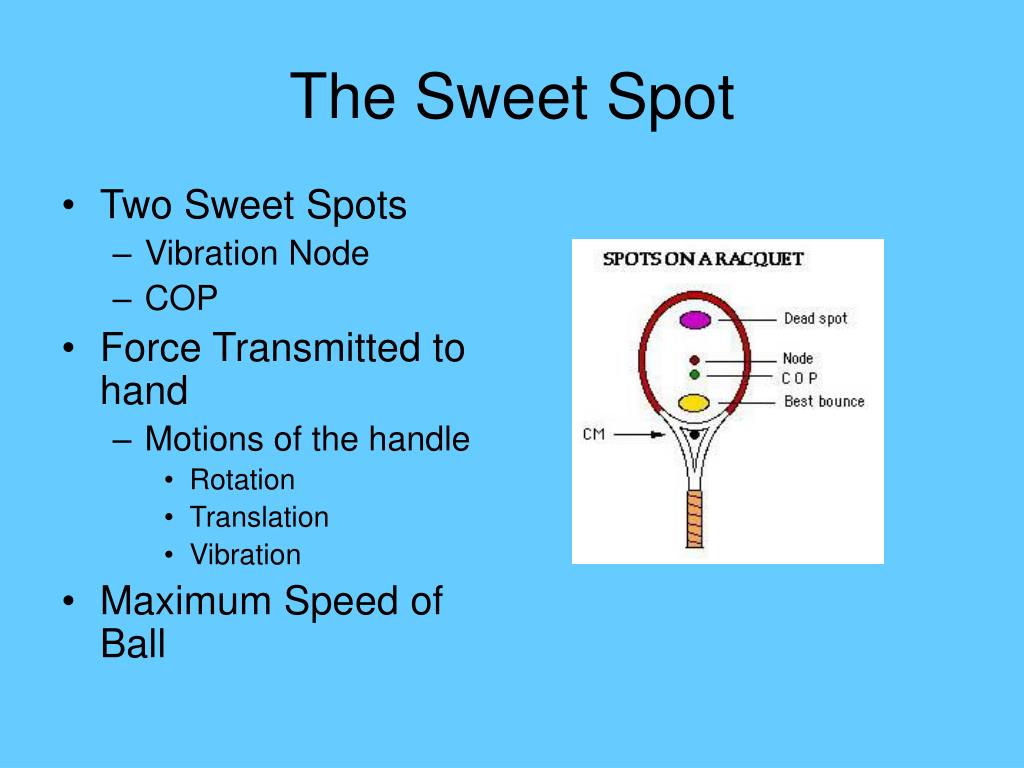

  3. The Sweet Spot • Two Sweet Spots • Vibration Node • COP • Force Transmitted to hand • Motions of the handle • Rotation • Translation • Vibration • Maximum Speed of Ball

  4. Vibration Node • Behaves like a Uniform Beam • Fundamental Mode • Frequency • 100Hz for flexible frame • 140Hz for stiff frame • Two nodes • Near the center of strings • Near the handle

  5. Vibration Node (Contd.) • Frequency is 2.75 times the fundamental frequency • Not excited with any significant amplitude • Duration, T=5ms • Peaks at Zero at f=1.5/T=300Hz • Close to second mode frequency

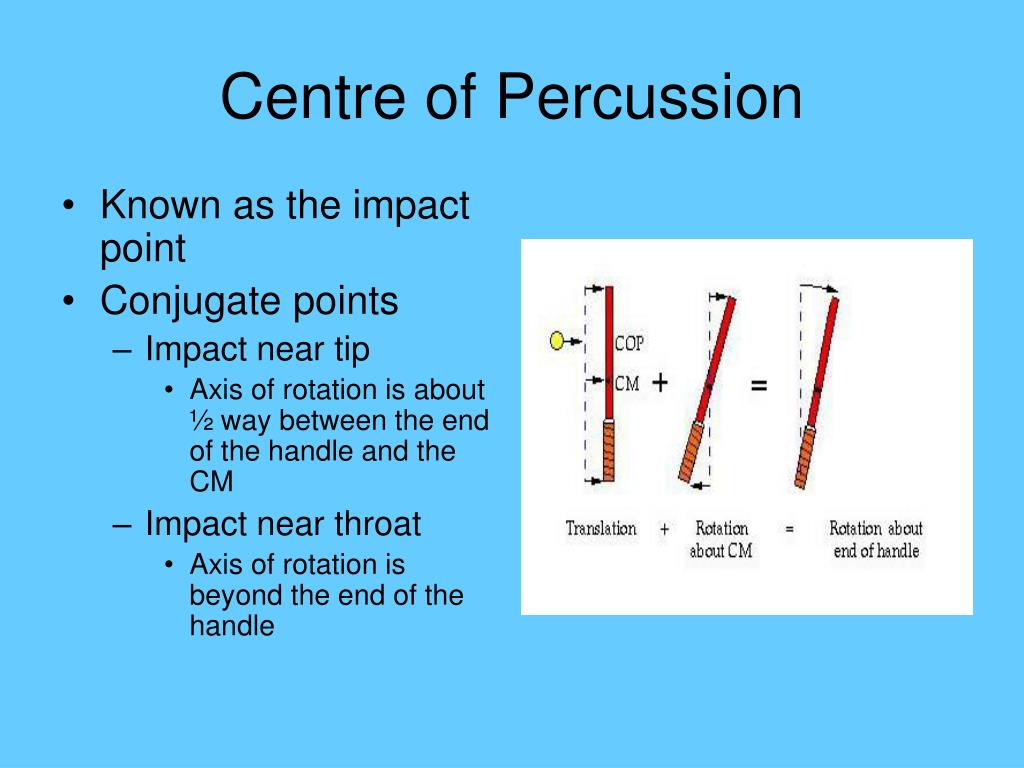

  6. Centre of Percussion • Known as the impact point • Conjugate points • Impact near tip • Axis of rotation is about ½ way between the end of the handle and the CM • Impact near throat • Axis of rotation is beyond the end of the handle

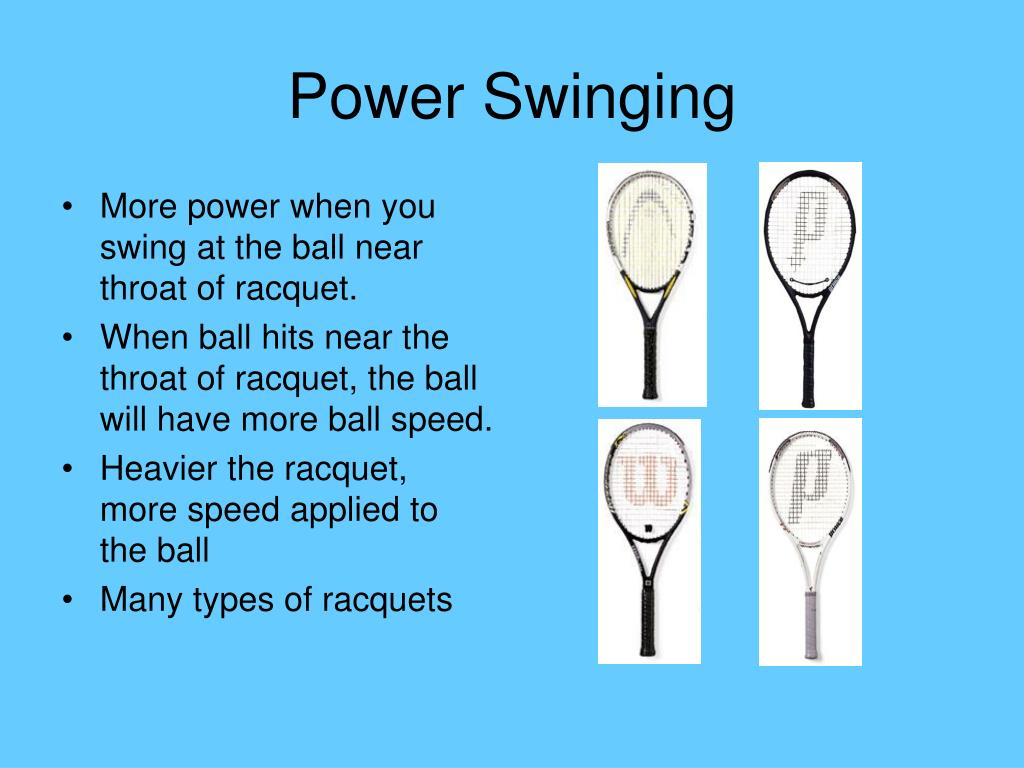

  7. Power Swinging • More power when you swing at the ball near throat of racquet. • When ball hits near the throat of racquet, the ball will have more ball speed. • Heavier the racquet, more speed applied to the ball • Many types of racquets

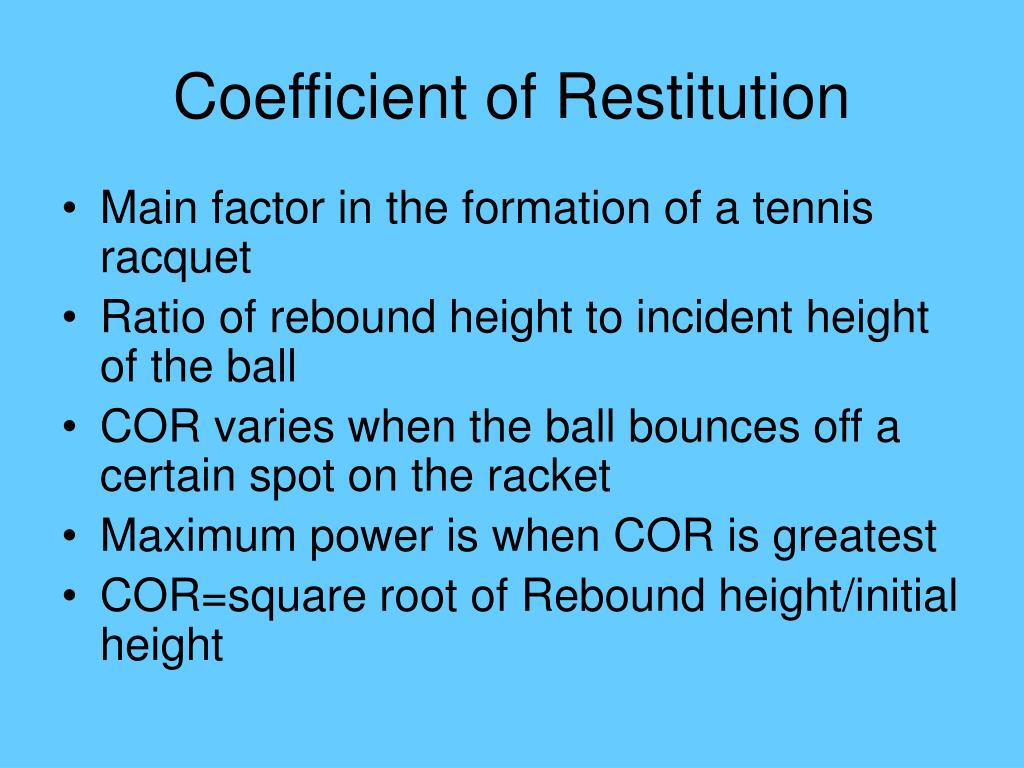

  8. Coefficient of Restitution • Main factor in the formation of a tennis racquet • Ratio of rebound height to incident height of the ball • COR varies when the ball bounces off a certain spot on the racket • Maximum power is when COR is greatest • COR=square root of Rebound height/initial height

  9. COR Data • Tip of Head • 1st set: hd = 20 cm, hr = 12 cm • 2nd set: hd = 40 cm, hr = 24 cm • 3rd set: hd = 60 cm, hr = 36 cm • 4th set: hd = 80 cm, hr = 48 cm • 5th set: hd = 100 cm, hr = 60 cm • COR • COR (center of mass): .74162 • COR (near the throat): .63246 • COR (tip of the head): .7746 • Center of Mass • 1st set: hd = 20 cm, hr = 11 cm • 2nd set: hd = 40 cm, hr = 22 cm • 3rd set: hd = 60 cm, hr = 33 cm • 4th set: hd = 80 cm, hr = 44 cm • 5th set: hd = 100 cm, hr = 55 cm • Near Throat • 1st set: hd = 20 cm, hr = 8 cm • 2nd set: hd = 40 cm, hr = 16 cm • 3rd set: hd = 60 cm, hr = 24 cm • 4th set: hd = 80 cm, hr = 32 cm • 5th set: hd = 100 cm, hr = 40 cm hr = rebound height, hd = Initial height

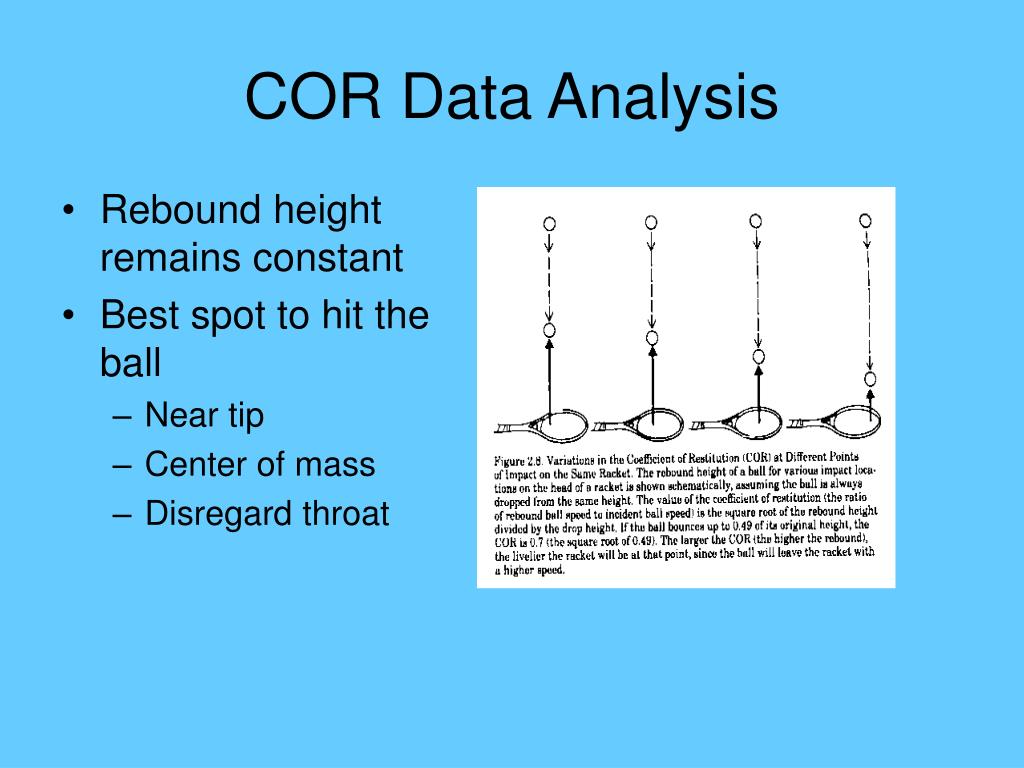

  10. COR Data Analysis • Rebound height remains constant • Best spot to hit the ball • Near tip • Center of mass • Disregard throat

  11. The Dead Spot • Spot near the tip where ball doesn’t bounce at all • All of the energy is given to the racquet • Racquet doesn’t give any energy back to the ball • Effective mass of the racquet at that point is equal to the ball • Effective mass is F=ma, therefore m=F/a • When serving, the best place to hit the ball is at the dead spot • When returning, dead spot is the worst

  12. Strings on the Racquet • Act as a medium • Absorb much of the ball’s kinetic energy • Returns some of that energy back to the ball • Tighter strings produce slower ball speeds • Loose strings • Leads to slightly higher rebound velocities • More power

  13. Conclusion • Performance of the racquet • Strings • Size of the head • Larger the head = more speed applied to ball • Game depends on two main things • How well you hit with the racquet • The “spot”

  14. Bibliography • Brody, H. (1979) Physics of the tennis racket. American Journal of Physics 47, 482-487 • Brody, H. (1981) Physics of the tennis racket II: The sweet spot. American Journal of Physics, 49, 816-819. • Brody, H. (1995) How would a physicist design a tennis racket?. Physics Today, 48, 26-31 • Pallis, Jani. "The Flight of the Tennis Ball" www.Tennisserver.com
