  1. Network + Tom McLaughlin b-admin, mcse, mous, a+, net+ (mct, linux) tom@tomax7.com http://www.tomax7.com

  2. Networking Enables: Information Sharing Centralized Administration and Support Hardware and Software Sharing Networking Benefits

  3. Mail Server Mail Server Database Server Database Server Fax Server Fax Server Database Database File and Print Server Directory Services Server File and Print Server Client Computer Roles of Computers in a Network Mail Server Database Server Fax Server File and Print Server

  4. Peer-to-Peer Client-Server Types of Networks

  5. Scope of Networks Local Area Network Wide Area Network

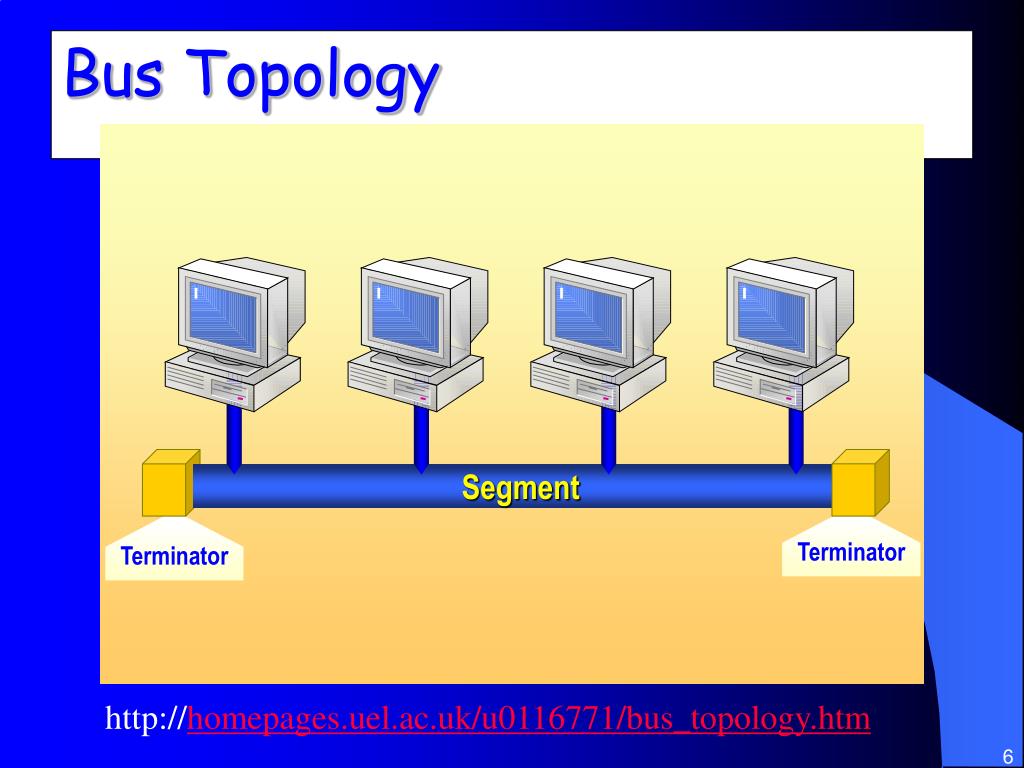

  6. Segment Terminator Terminator Bus Topology http://homepages.uel.ac.uk/u0116771/bus_topology.htm

  7. Hub Star Topology http://www.computerhope.com/jargon/s/startopo.htm

  8. Ring Topology http://www.computerhope.com/jargon/r/ringtopo.htm

  9. Mesh Topology http://www.computerhope.com/jargon/m/mesh.htm

  10. Star-Bus Bus Star-Ring Hybrid Topologies http://en.wikipedia.org/wiki/Network_topology#Hybrids

  11. Physical Ring Logical Ring MSAU Characteristics Description Access Method Tokenpassing Transfer Speed 4 to 16 Mbps for all cable types Token Ring http://www.webopedia.com/TERM/T/token_ring_network.html

  12. Twisted-Pair Unshielded (UTP) Shielded (STP) 10BaseT Coaxial ThinNet ThickNet 10Base2, 10Base5 Fiber-Optics Network Cables Types of Cables

  13. Infrared Transmission Narrowband Radio Transmission Wireless Communication Devices Wireless Communication Devices http://searchnetworking.techtarget.com/definition/infrared-transmission

  14. Routers Router Router Router Router http://www.computerhope.com/jargon/r/router.htm

  15. Ethernet Token Ring Gateways Gateway http://en.wikipedia.org/wiki/Gateway

  16. Wireless Communication by Using IrDA WindowsClient Laptop Mouse Infrared Data Association (IrDA)

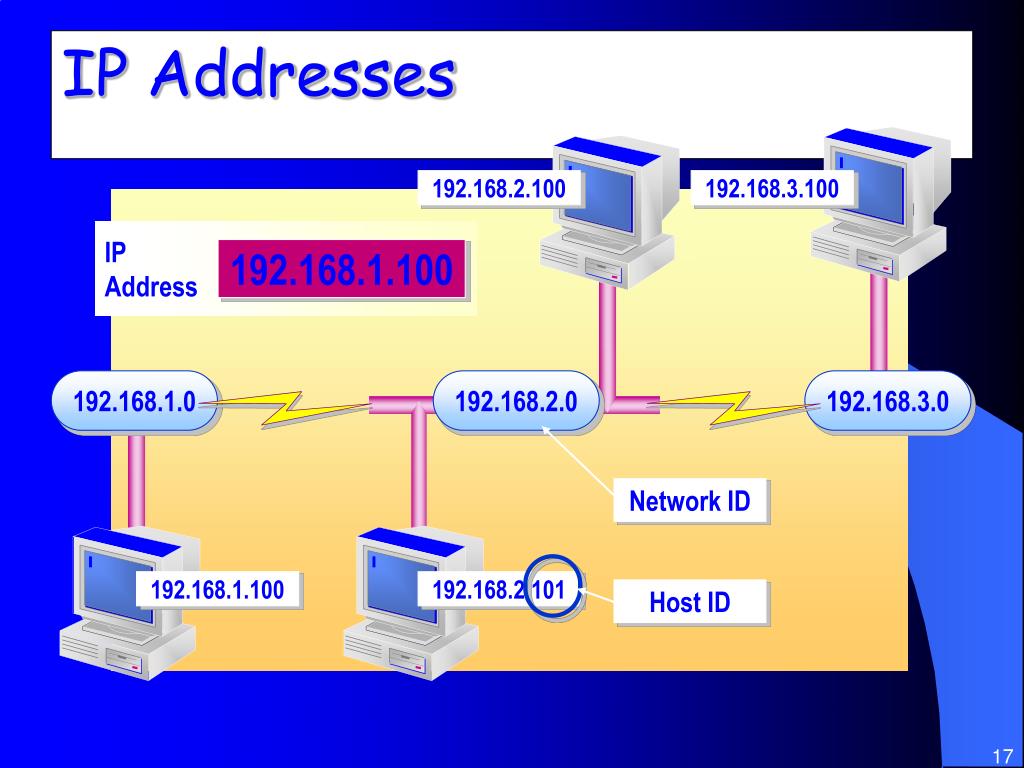

  17. IP Address 192.168.1.100 IP Addresses 192.168.2.100 192.168.3.100 192.168.1.0 192.168.2.0 192.168.3.0 Network ID 192.168.1.100 192.168.2.101 Host ID

  18. Internet The Internet Server Text, Audio, Video, and Graphics Data Connection Using TCP/IP Protocol Client http://en.wikipedia.org/wiki/Internet

  19. Electronic Mail (e-mail) World Wide Web (WWW) Chat Internet News File Transfer Protocol (FTP) Telnet Internet Internet Services

  20. URL (http://example.microsoft.com/tutorial/default.html) Protocol used (http://) DNS address (example.microsoft.com) Path on the server (/tutorial/default.html) http://example.microsoft.com/tutorial/default.html Uniform Resource Locator (URL)

  21. LAN LAN LAN AuthorizedUser Internet Firewall Unauthorized User Firewalls http://en.wikipedia.org/wiki/Firewall_%28computing%29
